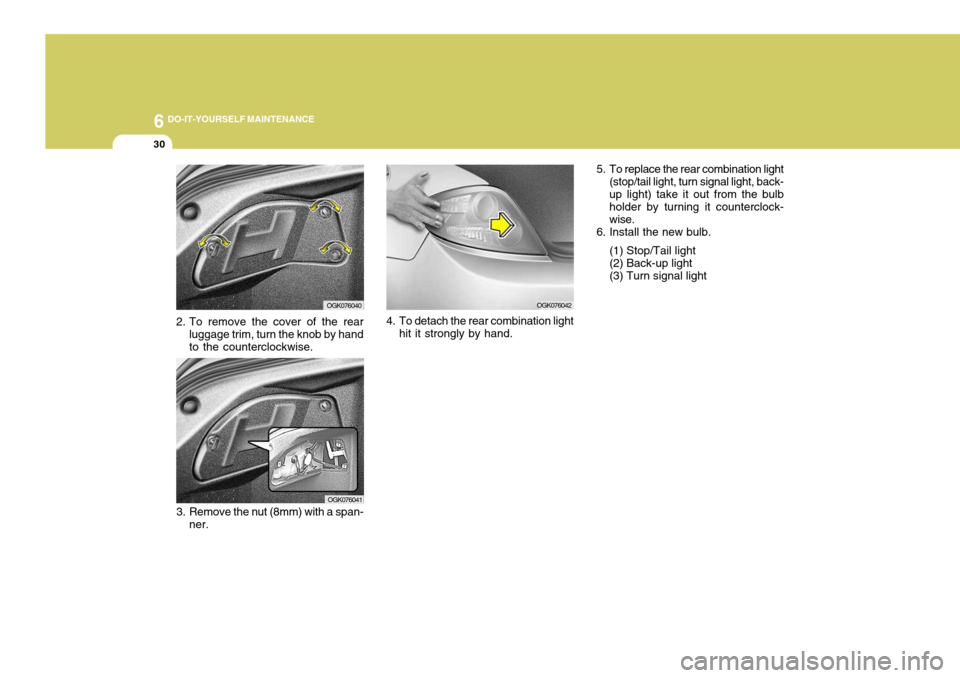

Page 231 of 407
6 DO-IT-YOURSELF MAINTENANCE
30
5. To replace the rear combination light
(stop/tail light, turn signal light, back- up light) take it out from the bulb holder by turning it counterclock- wise.
6. Install the new bulb.
(1) Stop/Tail light(2) Back-up light (3) Turn signal light
3. Remove the nut (8mm) with a span-ner. OGK0760414. To detach the rear combination light
hit it strongly by hand. OGK076042
OGK076040
2. To remove the cover of the rear luggage trim, turn the knob by hand to the counterclockwise.

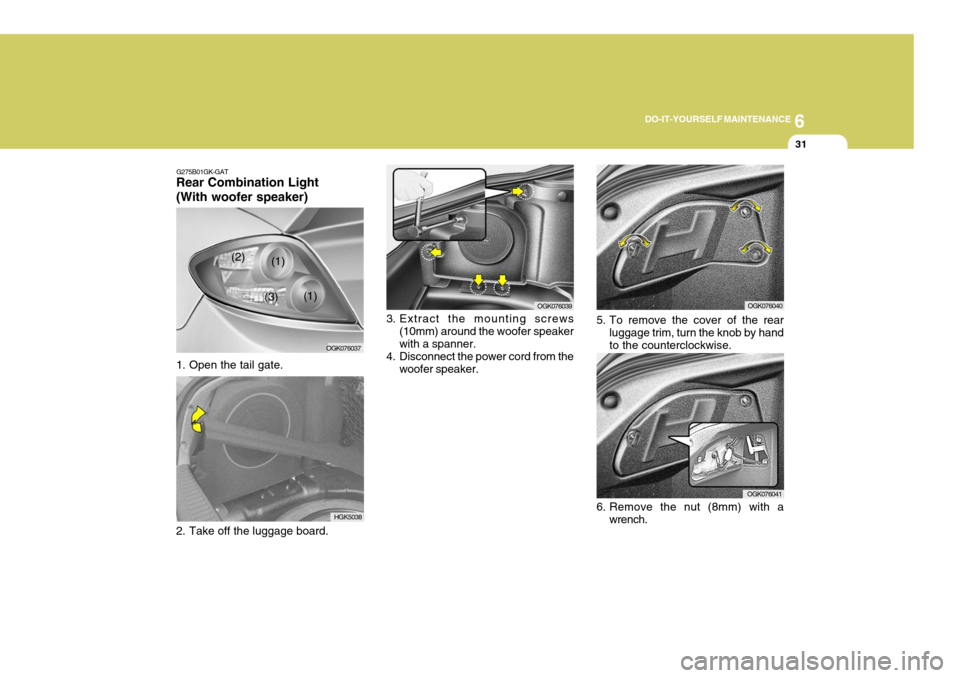

Page 232 of 407
6
DO-IT-YOURSELF MAINTENANCE
31
1. Open the tail gate. OGK076039
3. Extract the mounting screws (10mm) around the woofer speaker with a spanner.
4. Disconnect the power cord from the woofer speaker.
HGK5038
G275B01GK-GAT
Rear Combination Light (With woofer speaker)
2. Take off the luggage board.
OGK076040
5. To remove the cover of the rear luggage trim, turn the knob by hand to the counterclockwise.
OGK076041
6. Remove the nut (8mm) with a wrench.
OGK076037
(1)
(2)
(3) (1)

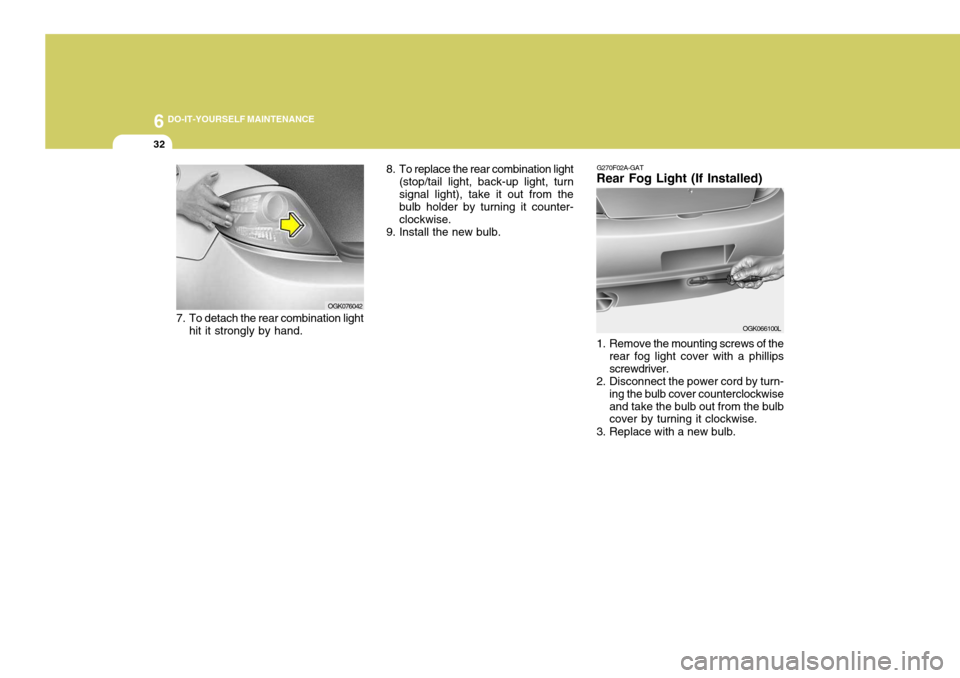

Page 233 of 407
6 DO-IT-YOURSELF MAINTENANCE
32
8. To replace the rear combination light
(stop/tail light, back-up light, turn signal light), take it out from the bulb holder by turning it counter- clockwise.
9. Install the new bulb.
OGK076042
7. To detach the rear combination light hit it strongly by hand.
1. Remove the mounting screws of therear fog light cover with a phillips screwdriver.
2. Disconnect the power cord by turn-
ing the bulb cover counterclockwiseand take the bulb out from the bulb cover by turning it clockwise.
3. Replace with a new bulb. G270F02A-GAT
Rear Fog Light (If Installed)
OGK066100L

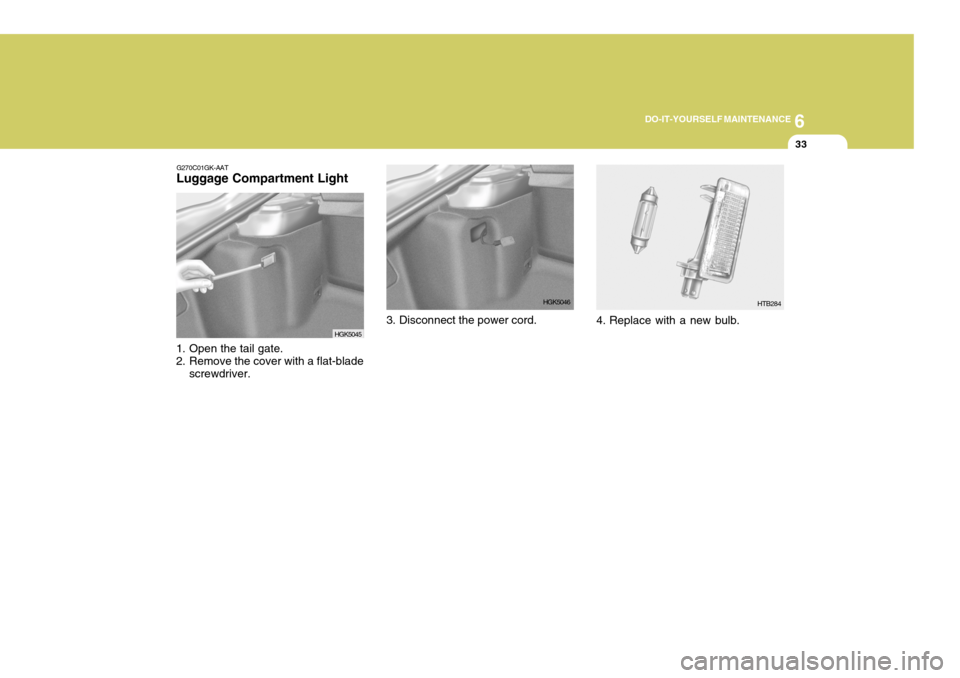

Page 234 of 407
6
DO-IT-YOURSELF MAINTENANCE
33
G270C01GK-AAT
Luggage Compartment Light
1. Open the tail gate.
2. Remove the cover with a flat-blade screwdriver.
HGK5045 HTB284
3. Disconnect the power cord. HGK5046
4. Replace with a new bulb.
Page 235 of 407
6 DO-IT-YOURSELF MAINTENANCE
34
G270G01GK-AAT
Map Light
1. Remove the cover with a flat-blade
screwdriver.
2. Replace with a new bulb.
OGK076046
OGK076021
2. Open the glove box and remove the mounting screws on the upside of the glove box.
G270H01GK-GAT
Glove Box Illuminated Light
1. Remove the mounting screws on
the downside of the glove box. OGK076020
3. Remove the glove box by pulling
strongly.
CAUTION:
Be careful not to damage the glove box when pulling the glove box.
!
OGK076022
Page 236 of 407
6
DO-IT-YOURSELF MAINTENANCE
35

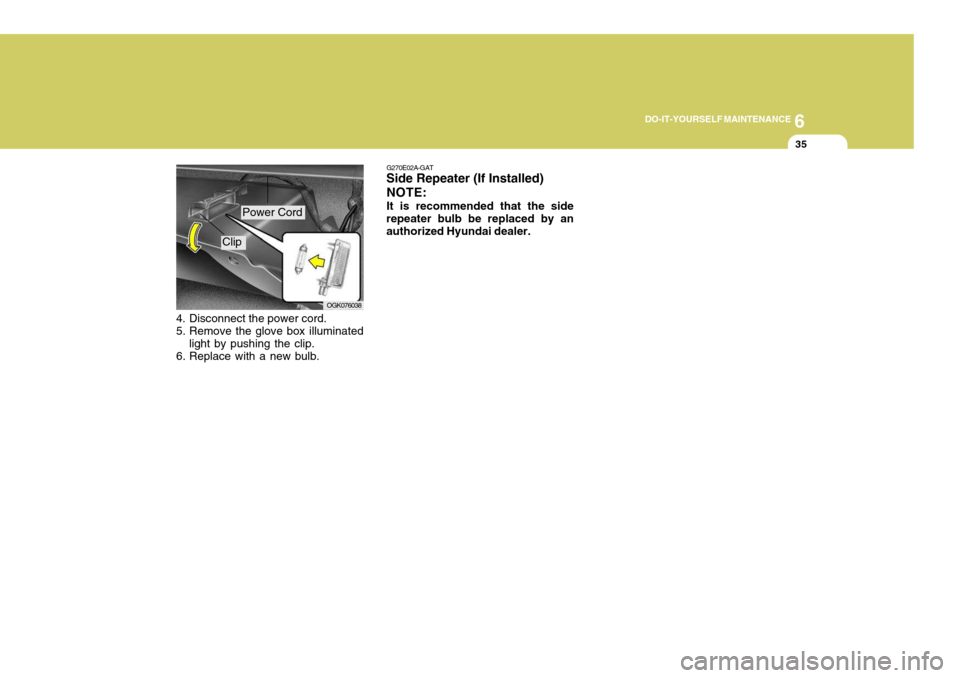

OGK076038
4. Disconnect the power cord.
5. Remove the glove box illuminated
light by pushing the clip.
6. Replace with a new bulb. G270E02A-GAT
Side Repeater (If Installed)
NOTE: It is recommended that the side
repeater bulb be replaced by an authorized Hyundai dealer.
Clip
Power Cord

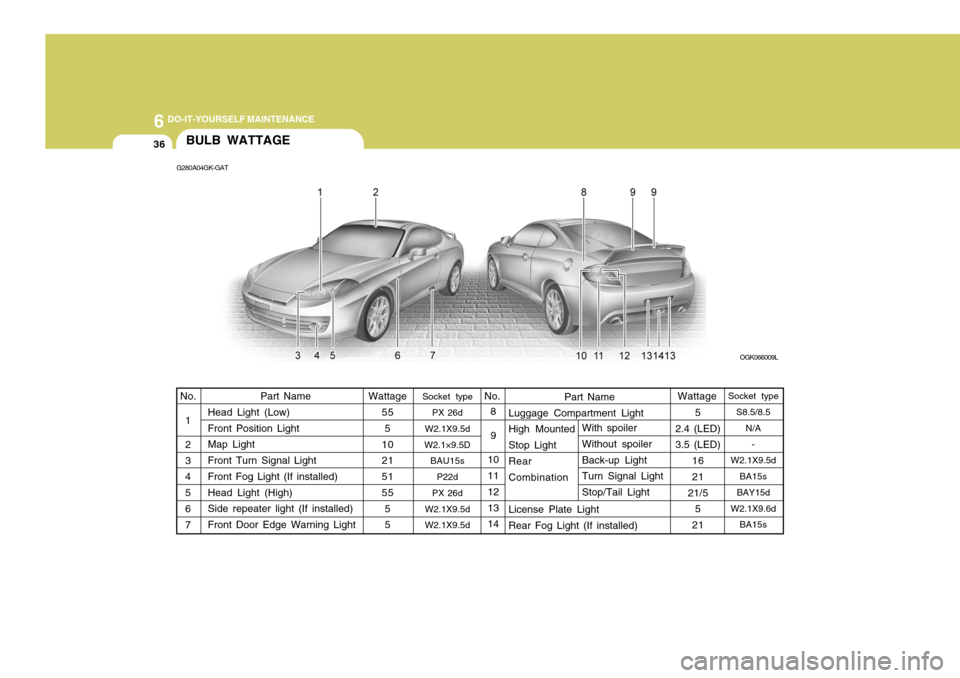

Page 237 of 407
6 DO-IT-YOURSELF MAINTENANCE
36
Part Name
Luggage Compartment Light High Mounted Stop Light Rear Combination License Plate Light Rear Fog Light (If installed) With spoilerWithout spoiler Back-up Light Turn Signal Light Stop/Tail Light
8 9
10 11 12 13 14
Part Name
Head Light (Low) Front Position Light Map Light Front Turn Signal Light Front Fog Light (If installed) Head Light (High) Side repeater light (If installed) Front Door Edge Warning Light
BULB WATTAGE
Socket typePX 26d
W2.1X9.5d
W2.1×9.5D BAU15s
P22d
PX 26d
W2.1X9.5d W2.1X9.5d
G280A04GK-GAT
Wattage
No.No.
1 2 3 4 5 6 7
OGK066009L
Wattage 555
10 21 51 55 55
5
2.4 (LED) 3.5 (LED) 1621
21/5 5
21 Socket type
S8.5/8.5 N/A
-
W2.1X9.5d
BA15s
BAY15d
W2.1X9.6d BA15s
Page 238 of 407
6
DO-IT-YOURSELF MAINTENANCE
37FUSE PANEL DESCRIPTION
G200C02GK-GAT
Engine Compartment NOTE: Not all fuse panel descriptions in this manual may be applicable to your vehicle. It is accurate at the time of printing. When you inspect the fuse box on your vehicle, refer to the fuse box label. HGK4005
Page 239 of 407
6 DO-IT-YOURSELF MAINTENANCE
38
PROTECTED COMPONENTS
Generator(1.6L/2.0L) BCM BOX(Tail lamp relay,Power connector,Fuse(2,7,12,13,19,20,24))Condenser fan relayRadiator fan relayEngine control relay, Fuel pump relay, A/T control relay, Generator,ECM(1.6L/2.7L),PCM(2.0L) Ignition switch,Start relayABS/ESP control module,ESP Air bleeding connectorABS/ESP control module,ESP Air bleeding connectorBlower relayInjector Oxygen sensor,Camshaft position sensor, Idle speed control actuator DRL control moduleFront fog lamp relayTCM(2.7L),ECM(2.7L/1.6L)Horn relay,A/C relay Head lamp relay(High) Head lamp relay(Low)
FUSERATING 120A50A 30A30A 30A 30A 40A40A30A 15A 10A15A15A10A15A 15A 15A
DESCRIPTION
BATTBATT
COND RAD ECU
IGN
ABS 1 ABS 2
BLOWER INJ
SNSR DRL
F/FOG ECU
HORN,A/CON H/LP (HI)
H/LP (LO)

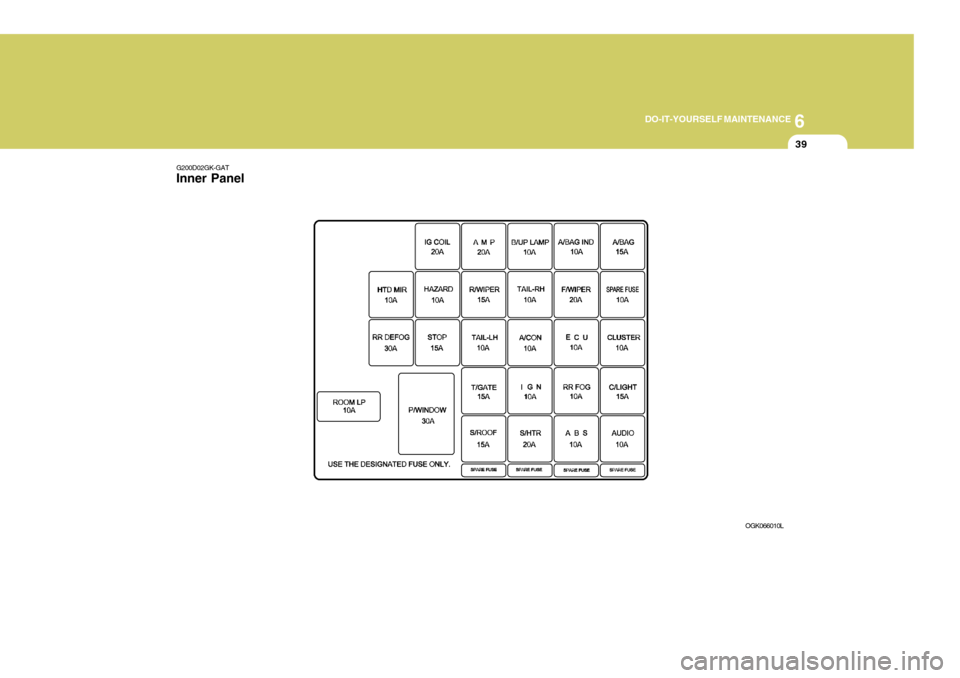

Page 240 of 407
6
DO-IT-YOURSELF MAINTENANCE
39
G200D02GK-GAT
Inner Panel
OGK066010L
