Hyundai Coupe 2008 Owner's Manual
Manufacturer: HYUNDAI, Model Year: 2008, Model line: Coupe, Model: Hyundai Coupe 2008Pages: 407, PDF Size: 11.03 MB
Page 271 of 407

1
FEATURES OF YOUR HYUNDAI

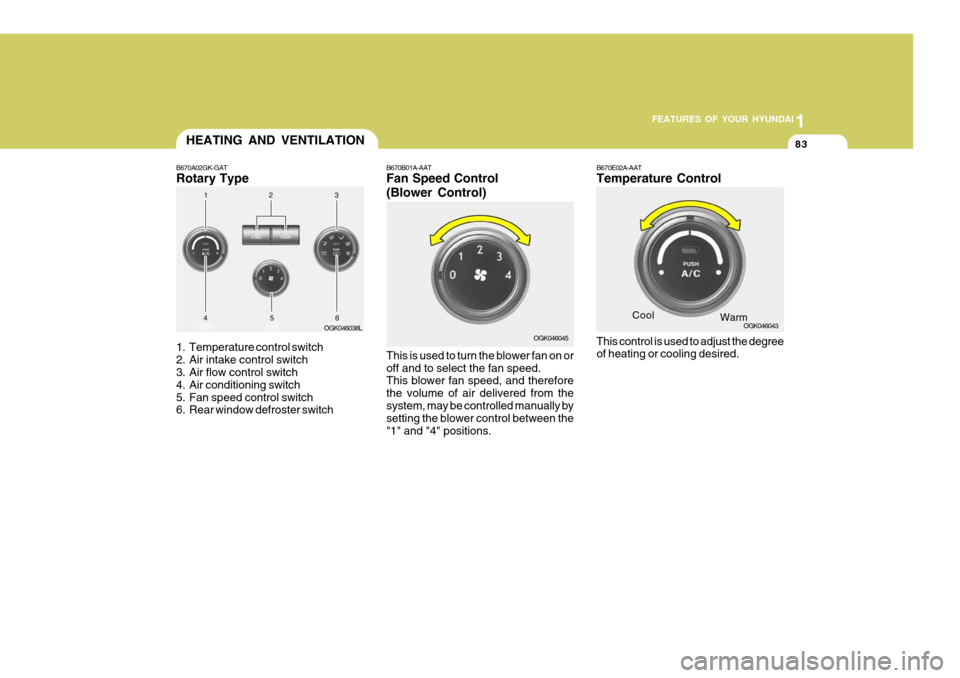

83HEATING AND VENTILATION
B670A02GK-GAT Rotary Type
1. Temperature control switch
2. Air intake control switch
3. Air flow control switch
4. Air conditioning switch
5. Fan speed control switch
6. Rear window defroster switch B670B01A-AAT Fan Speed Control (Blower Control) This is used to turn the blower fan on or off and to select the fan speed. This blower fan speed, and therefore the volume of air delivered from thesystem, may be controlled manually by setting the blower control between the "1" and "4" positions.B670E02A-AAT Temperature Control This control is used to adjust the degree of heating or cooling desired.
Cool
OGK046038L OGK046045 OGK046043
Warm
Page 272 of 407

1FEATURES OF YOUR HYUNDAI
84

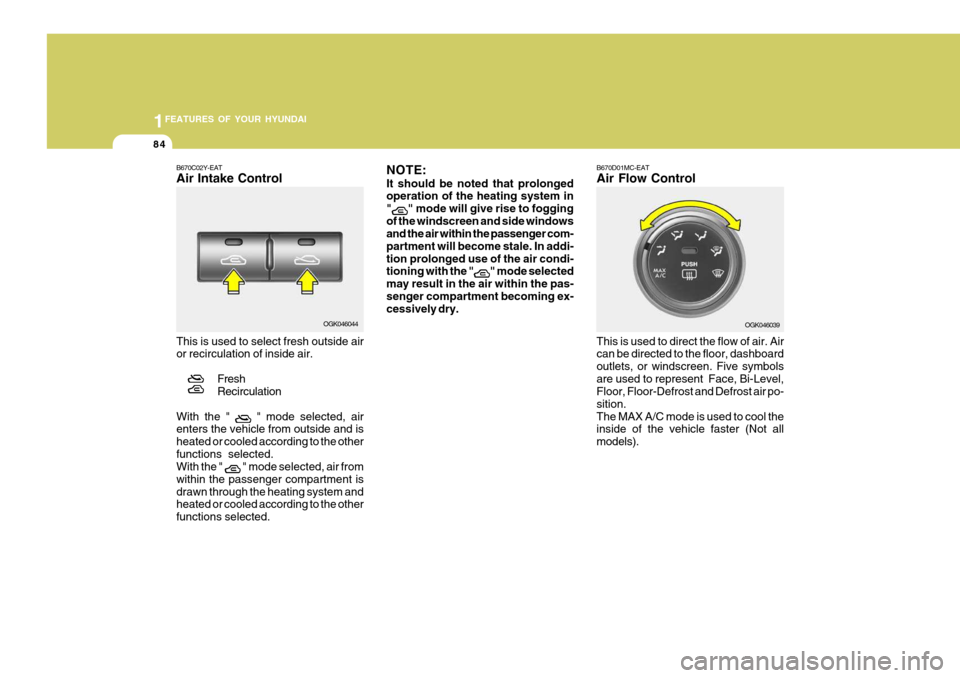

B670D01MC-EAT Air Flow Control This is used to direct the flow of air. Air can be directed to the floor, dashboard outlets, or windscreen. Five symbolsare used to represent Face, Bi-Level, Floor, Floor-Defrost and Defrost air po- sition.The MAX A/C mode is used to cool the inside of the vehicle faster (Not all models). OGK046039B670C02Y-EAT Air Intake Control This is used to select fresh outside air or recirculation of inside air.
FreshRecirculation
With the "
" mode selected, air
enters the vehicle from outside and is heated or cooled according to the otherfunctions selected. With the "
" mode selected, air from
within the passenger compartment is drawn through the heating system and heated or cooled according to the other functions selected. NOTE: It should be noted that prolonged operation of the heating system in "
" mode will give rise to fogging
of the windscreen and side windows and the air within the passenger com- partment will become stale. In addi-tion prolonged use of the air condi- tioning with the "
" mode selected
may result in the air within the pas- senger compartment becoming ex- cessively dry.
OGK046044
Page 273 of 407

1
FEATURES OF YOUR HYUNDAI
85

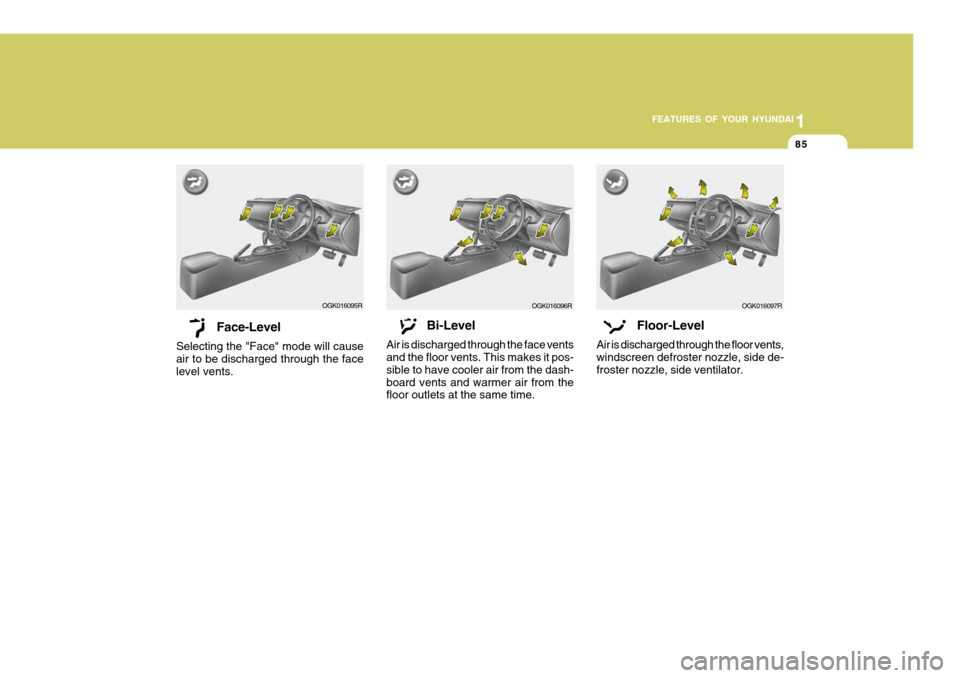

Face-Level
Selecting the "Face" mode will cause air to be discharged through the facelevel vents. Bi-Level
Air is discharged through the face vents and the floor vents. This makes it pos- sible to have cooler air from the dash-board vents and warmer air from the floor outlets at the same time. Floor-Level
Air is discharged through the floor vents,windscreen defroster nozzle, side de- froster nozzle, side ventilator.
OGK016095R OGK016096R OGK016097R
Page 274 of 407

1FEATURES OF YOUR HYUNDAI
86

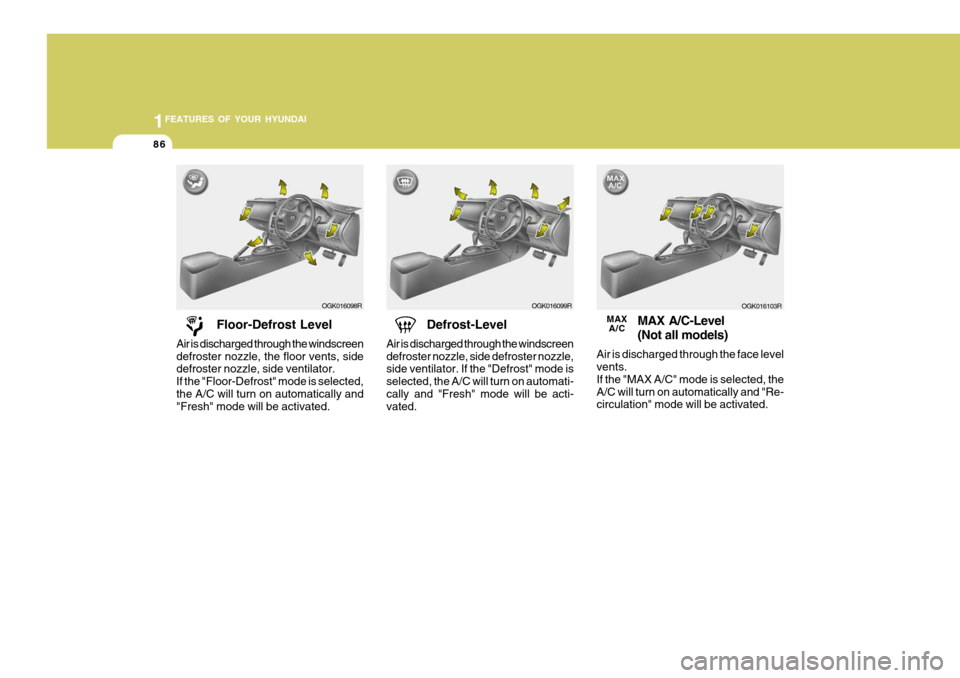

Floor-Defrost Level
Air is discharged through the windscreen defroster nozzle, the floor vents, side defroster nozzle, side ventilator. If the "Floor-Defrost" mode is selected,the A/C will turn on automatically and "Fresh" mode will be activated. Defrost-Level
Air is discharged through the windscreen defroster nozzle, side defroster nozzle, side ventilator. If the "Defrost" mode is selected, the A/C will turn on automati-cally and "Fresh" mode will be acti- vated.
OGK016098R
OGK016099R
MAX A/C-Level (Not all models)
Air is discharged through the face level vents. If the "MAX A/C" mode is selected, theA/C will turn on automatically and "Re- circulation" mode will be activated.
OGK016103R
MAX A/C
Page 275 of 407

1
FEATURES OF YOUR HYUNDAI
87
* The A/C or the air intake control
switch returns to its former setting.
A/C
ON
ON or OFF * ON or OFF *
ONON Air Intake
Control Switch
or *
NOTE:
o The air intake control switch will change to "
" mode when the
ignition switch is turned "ON" with the MAX A/C mode selected.
o When you change to another mode
from MAX A/C, the A/C and the airintake control switch are set as shown in the following chart.

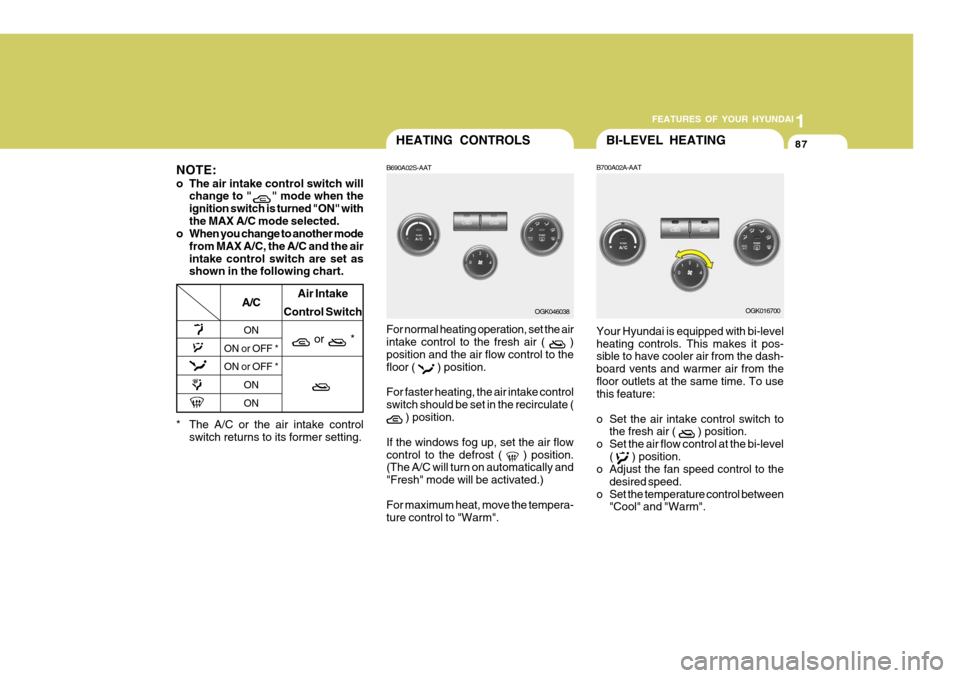

HEATING CONTROLS
B690A02S-AAT For normal heating operation, set the air intake control to the fresh air (
)
position and the air flow control to the floor (
) position.
For faster heating, the air intake control switch should be set in the recirculate (
) position.
If the windows fog up, set the air flow control to the defrost (
) position.
(The A/C will turn on automatically and "Fresh" mode will be activated.) For maximum heat, move the tempera- ture control to "Warm". OGK046038
BI-LEVEL HEATING
B700A02A-AAT Your Hyundai is equipped with bi-level heating controls. This makes it pos- sible to have cooler air from the dash- board vents and warmer air from thefloor outlets at the same time. To use this feature:
o Set the air intake control switch to the fresh air (
) position.
o Set the air flow control at the bi-level (
) position.
o Adjust the fan speed control to the
desired speed.
o Set the temperature control between "Cool" and "Warm". OGK016700

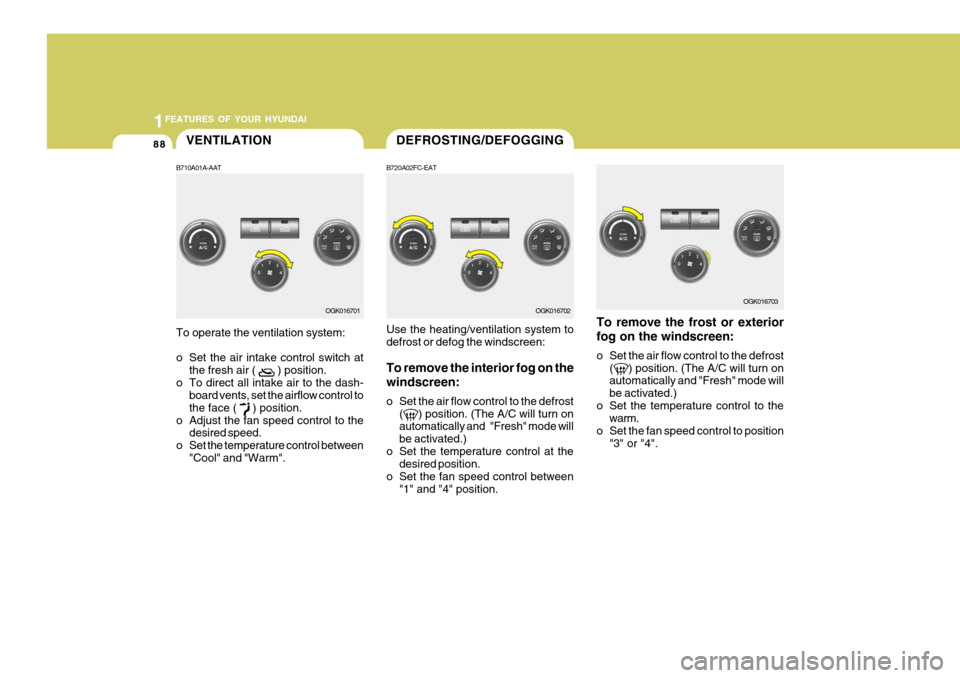

Page 276 of 407

1FEATURES OF YOUR HYUNDAI
88DEFROSTING/DEFOGGING
B720A02FC-EAT Use the heating/ventilation system to defrost or defog the windscreen: To remove the interior fog on the windscreen:
o Set the air flow control to the defrost ( ) position. (The A/C will turn on automatically and "Fresh" mode will be activated.)
o Set the temperature control at the desired position.
o Set the fan speed control between
"1" and "4" position.
OGK016702
VENTILATION
B710A01A-AAT To operate the ventilation system:
o Set the air intake control switch at the fresh air (
) position.
o To direct all intake air to the dash- board vents, set the airflow control to the face (
) position.
o Adjust the fan speed control to the desired speed.
o Set the temperature control between "Cool" and "Warm". OGK016701
To remove the frost or exterior fog on the windscreen:
o Set the air flow control to the defrost
( ) position. (The A/C will turn on automatically and "Fresh" mode will be activated.)
o Set the temperature control to the warm.
o Set the fan speed control to position "3" or "4".
OGK016703
Page 277 of 407

1
FEATURES OF YOUR HYUNDAI

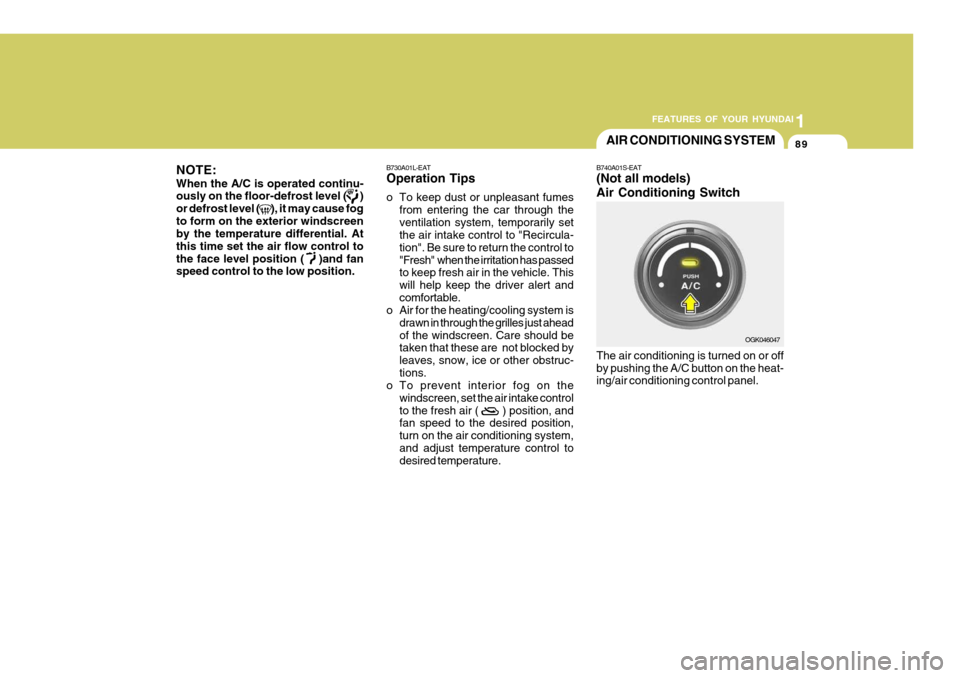

89AIR CONDITIONING SYSTEM
B740A01S-EAT (Not all models) Air Conditioning Switch The air conditioning is turned on or off by pushing the A/C button on the heat- ing/air conditioning control panel. OGK046047
NOTE: When the A/C is operated continu- ously on the floor-defrost level ( ) or defrost level ( ), it may cause fogto form on the exterior windscreen by the temperature differential. At this time set the air flow control tothe face level position ( )and fan speed control to the low position.
B730A01L-EAT Operation Tips
o To keep dust or unpleasant fumes
from entering the car through the ventilation system, temporarily set the air intake control to "Recircula- tion". Be sure to return the control to"Fresh" when the irritation has passed to keep fresh air in the vehicle. This will help keep the driver alert andcomfortable.
o Air for the heating/cooling system is
drawn in through the grilles just aheadof the windscreen. Care should be taken that these are not blocked by leaves, snow, ice or other obstruc-tions.
o To prevent interior fog on the
windscreen, set the air intake controlto the fresh air ( ) position, and fan speed to the desired position, turn on the air conditioning system,and adjust temperature control to desired temperature.
Page 278 of 407

1FEATURES OF YOUR HYUNDAI
90

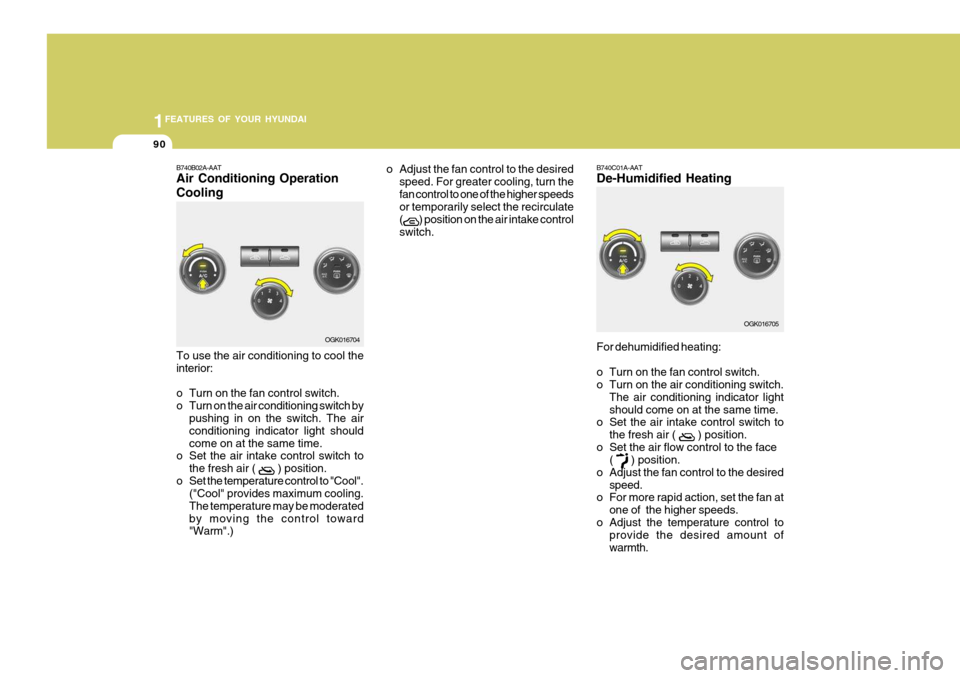

B740B02A-AAT Air Conditioning Operation Cooling To use the air conditioning to cool the interior:
o Turn on the fan control switch.
o Turn on the air conditioning switch by
pushing in on the switch. The airconditioning indicator light shouldcome on at the same time.
o Set the air intake control switch to
the fresh air (
) position.
o Set the temperature control to "Cool". ("Cool" provides maximum cooling. The temperature may be moderatedby moving the control toward "Warm".) o Adjust the fan control to the desired
speed. For greater cooling, turn the fan control to one of the higher speeds or temporarily select the recirculate (
) position on the air intake control
switch.
OGK016704
B740C01A-AAT De-Humidified Heating For dehumidified heating:
o Turn on the fan control switch.
o Turn on the air conditioning switch. The air conditioning indicator light should come on at the same time.
o Set the air intake control switch to
the fresh air (
) position.
o Set the air flow control to the face (
) position.
o Adjust the fan control to the desired
speed.
o For more rapid action, set the fan at
one of the higher speeds.
o Adjust the temperature control to provide the desired amount of warmth. OGK016705
Page 279 of 407

1
FEATURES OF YOUR HYUNDAI
91
B740D01A-AAT Operation Tips
o If the interior of the car is hot when you first get in, open the windows for a few minutes to expel the hot air.
o When you are using the air condition-
ing system, keep all windows closedto keep hot air out.
o When moving slowly, as in heavy
traffic, shift to a lower gear. Thisincreases engine speed, which in turn increases the speed of the air conditioning compressor.
o On steep grades, turn the air condi- tioning off to avoid the possibility ofthe engine over-heating.
o During winter months or in periods when the air conditioning is not usedregularly, run the air conditioning onceevery month for a few minutes. This will help circulate the lubricants and keep your system in peak operatingcondition.
Page 280 of 407

1FEATURES OF YOUR HYUNDAI

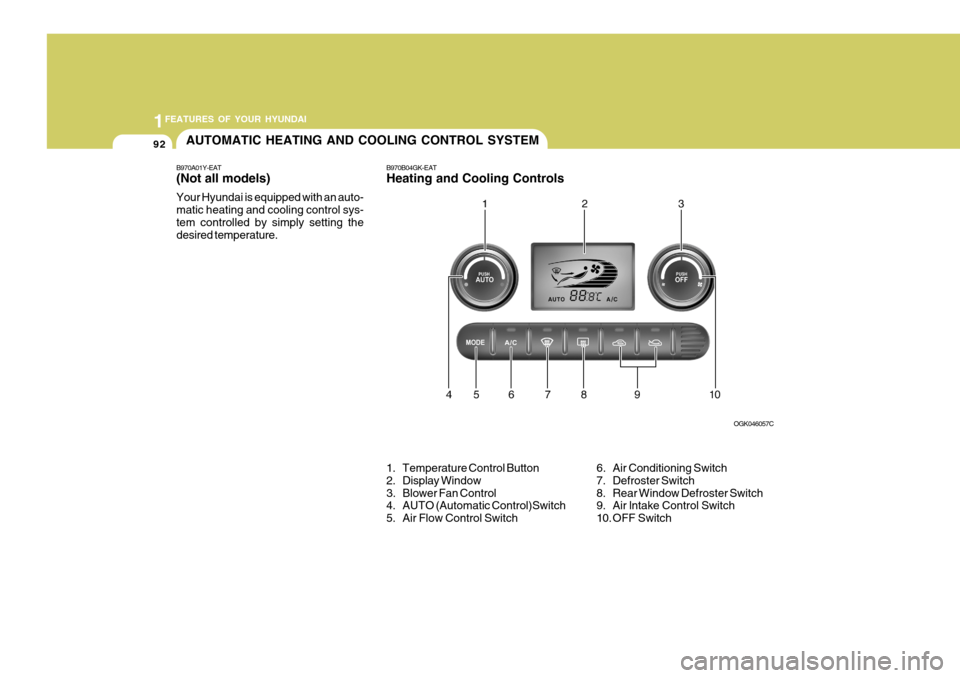

92AUTOMATIC HEATING AND COOLING CONTROL SYSTEM
B970A01Y-EAT (Not all models) Your Hyundai is equipped with an auto- matic heating and cooling control sys-tem controlled by simply setting the desired temperature.
1. Temperature Control Button
2. Display Window
3. Blower Fan Control
4. AUTO (Automatic Control)Switch
5. Air Flow Control Switch OGK046057C
6. Air Conditioning Switch
7. Defroster Switch
8. Rear Window Defroster Switch
9. Air lntake Control Switch
10. OFF Switch
B970B04GK-EAT Heating and Cooling Controls
