F9
Introduction

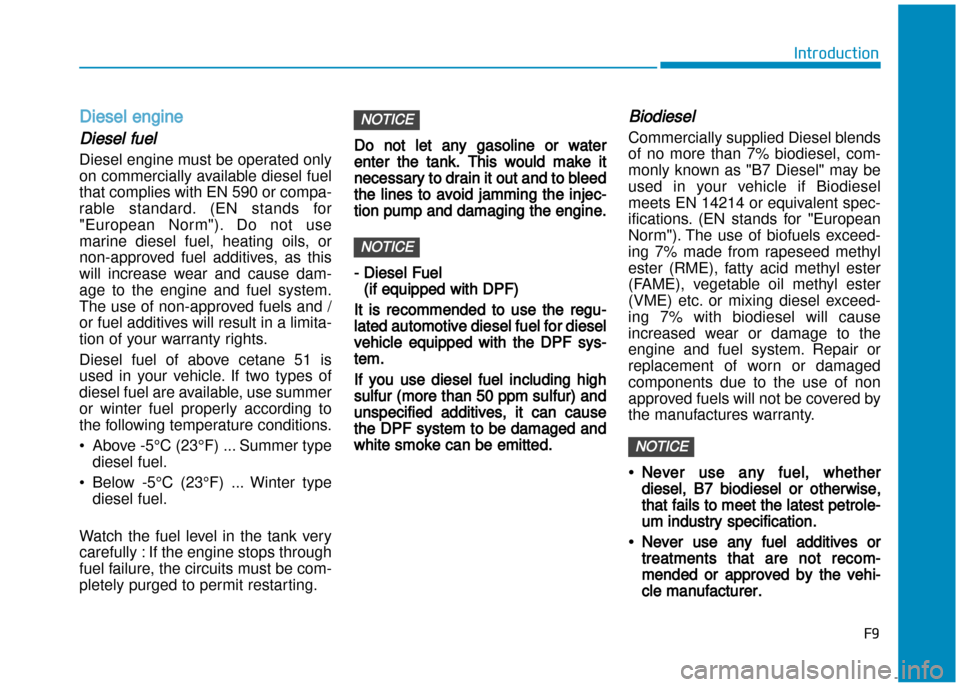

Diesel engine
Diesel fuel
Diesel engine must be operated only
on commercially available diesel fuel
that complies with EN 590 or compa
rable standard. (EN stands for
"European Norm"). Do not use
marine diesel fuel, heating oils, or
nonapproved fuel additives, as this
will increase wear and cause dam
age to the engine and fuel system.
The use of nonapproved fuels and /
or fuel additives will result in a limita
tion of your warranty rights.
Diesel fuel of above cetane 51 is
used in your vehicle. If two types of
diesel fuel are available, use summer
or winter fuel properly according to
the following temperature conditions.
• Above 5°C (23°F) ... Summer typediesel fuel.
• Below 5°C (23°F) ... Winter type diesel fuel.
Watch the fuel level in the tank very
carefully : If the engine stops through
fuel failure, the circuits must be com
pletely purged to permit restarting.Do not let any gasoline or water
enter the tank. This would make it
necessary to drain it out and to bleed
the lines to avoid jamming the injec
tion pump and damaging the engine.
Diesel Fuel
(if equipped with DPF)
It is recommended to use the regu
lated automotive diesel fuel for diesel
vehicle equipped with the DPF sys
tem.
If you use diesel fuel including high
sulfur (more than 50 ppm sulfur) and
unspecified additives, it can cause
the DPF system to be damaged and
white smoke can be emitted.
Biodiesel
Commercially supplied Diesel blends
of no more than 7% biodiesel, com
monly known as "B7 Diesel" may be
used in your vehicle if Biodiesel
meets EN 14214 or equivalent spec
ifications. (EN stands for "European
Norm"). The use of biofuels exceed
ing 7% made from rapeseed methyl
ester (RME), fatty acid methyl ester
(FAME), vegetable oil methyl ester
(VME) etc. or mixing diesel exceed
ing 7% with biodiesel will cause
increased wear or damage to the
engine and fuel system. Repair or
replacement of worn or damaged
components due to the use of non
approved fuels will not be covered by
the manufactures warranty.
•Never use any fuel, whether
diesel, B7 biodiesel or otherwise,
that fails to meet the latest petrole
um industry specification.
•Never use any fuel additives or
treatments that are not recom
mended or approved by the vehi
cle manufacturer.
NOTICE
NOTICE
NOTICE

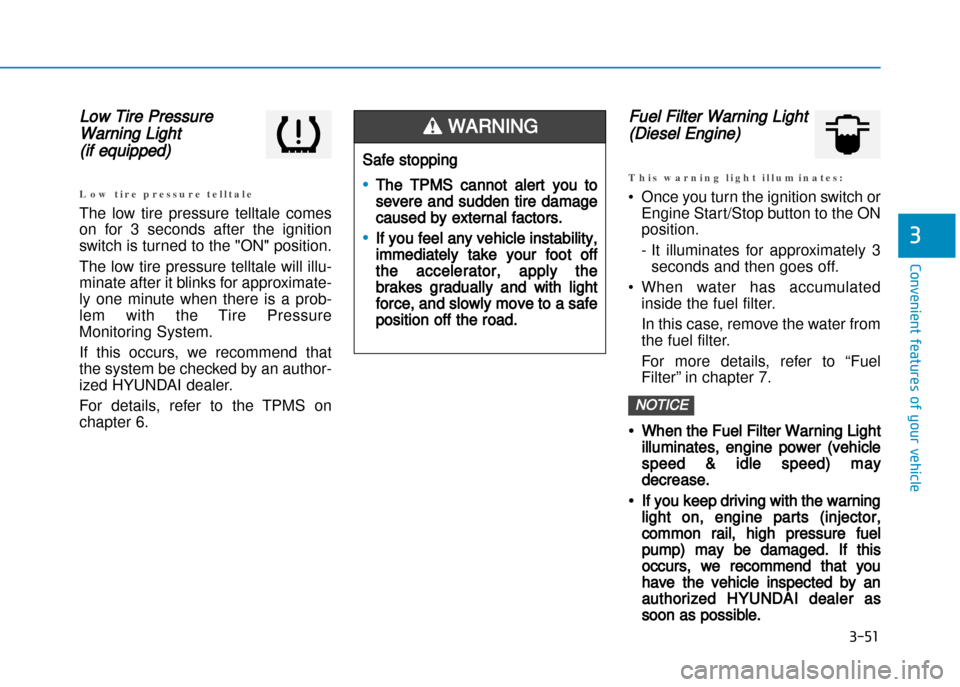

Low Tire Pressure
Warning Light
(if equipped)
L o w t i r e p r e s s u r e t e l l t a l e
The low tire pressure telltale comes
on for 3 seconds after the ignition
switch is turned to the "ON" position.
The low tire pressure telltale will illu
minate after it blinks for approximate
ly one minute when there is a prob
lem with the Tire Pressure
Monitoring System.
If this occurs, we recommend that
the system be checked by an author
ized HYUNDAI dealer.
For details, refer to the TPMS on
chapter 6.
Fuel Filter Warning Light
(Diesel Engine)
T h i s w a r n i n g l i g h t i l l u m i n a t e s :
• Once you turn the ignition switch orEngine Start/Stop button to the ON position.
It illuminates for approximately 3seconds and then goes off.
• When water has accumulated inside the fuel filter.
In this case, remove the water from
the fuel filter.

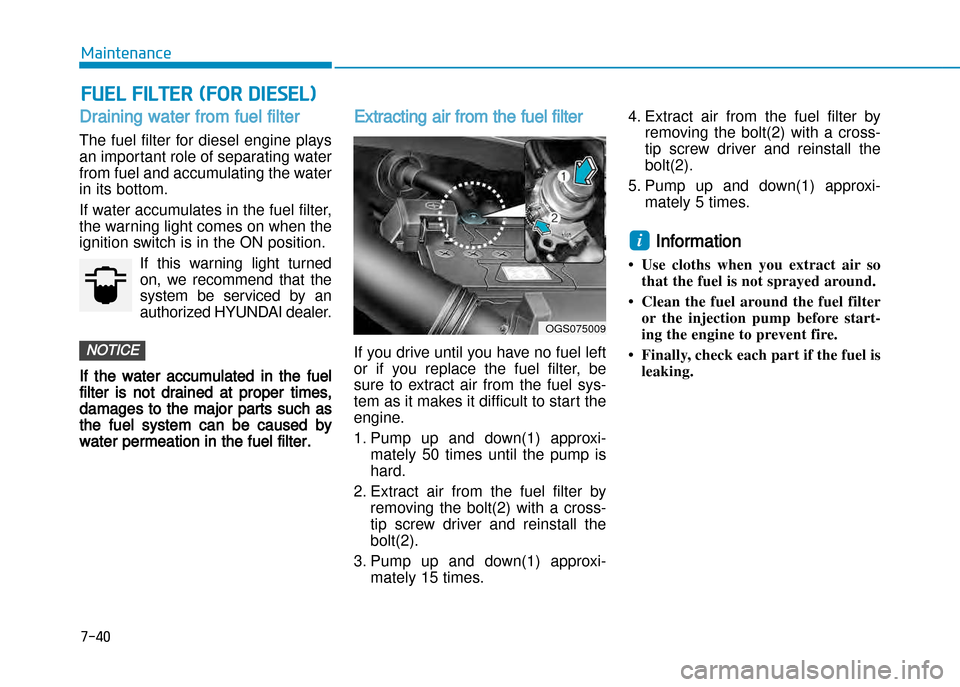

For more details, refer to “Fuel
Filter” in chapter 7.
•When the Fuel Filter Warning Light
illuminates, engine power (vehicle
speed & idle speed) may
decrease.
•If you keep driving with the warning
light on, engine parts (injector,
common rail, high pressure fuel
pump) may be damaged. If this
occurs, we recommend that you
have the vehicle inspected by an
authorized HYUNDAI dealer as
soon as possible.
NOTICE
3-51
Convenient features of your vehicle
3
Safe stopping
•The TPMS cannot alert you to
severe and sudden tire damage
caused by external factors.
•If you feel any vehicle instability,
immediately take your foot off
the accelerator, apply the
brakes gradually and with light
force, and slowly move to a safe
position off the road.
WARNING

5-30
Driving your vehicle

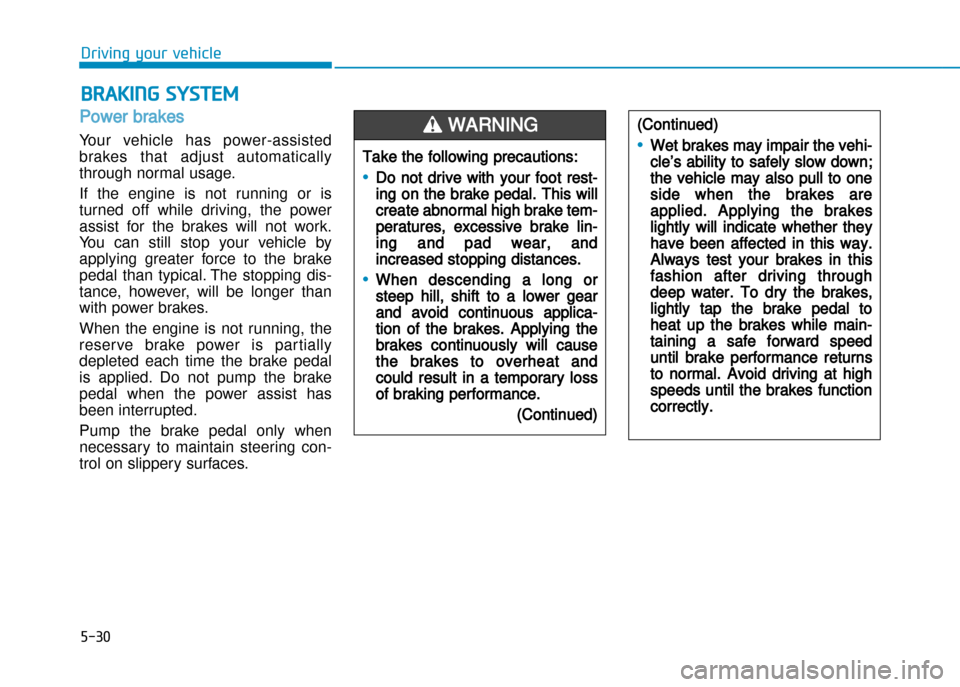

Power brakes
Your vehicle has powerassisted
brakes that adjust automatically
through normal usage.
If the engine is not running or is
turned off while driving, the power
assist for the brakes will not work.
You can still stop your vehicle by
applying greater force to the brake
pedal than typical. The stopping dis
tance, however, will be longer than
with power brakes.
When the engine is not running, the
reser ve brake power is par tially
depleted each time the brake pedal
is applied. Do not pump the brake
pedal when the power assist has
been interrupted.
Pump the brake pedal only when
necessary to maintain steering con
trol on slippery surfaces.
BRAKING SYSTEM
Take the following precautions:
•Do not drive with your foot rest
ing on the brake pedal. This will
create abnormal high brake tem
peratures, excessive brake lin
ing and pad wear, and
increased stopping distances.
•When descending a long or
steep hill, shift to a lower gear
and avoid continuous applica
tion of the brakes. Applying the
brakes continuously will cause
the brakes to overheat and
could result in a temporary loss
of braking performance.
(Continued)
(Continued)
•Wet brakes may impair the vehi
cle’s ability to safely slow down;
the vehicle may also pull to one
side when the brakes are
applied. Applying the brakes
lightly will indicate whether they
have been affected in this way.
Always test your brakes in this
fashion after driving through
deep water. To dry the brakes,
lightly tap the brake pedal to
heat up the brakes while main
taining a safe forward speed
until brake performance returns
to normal. Avoid driving at high
speeds until the brakes function
correctly.
WARNING

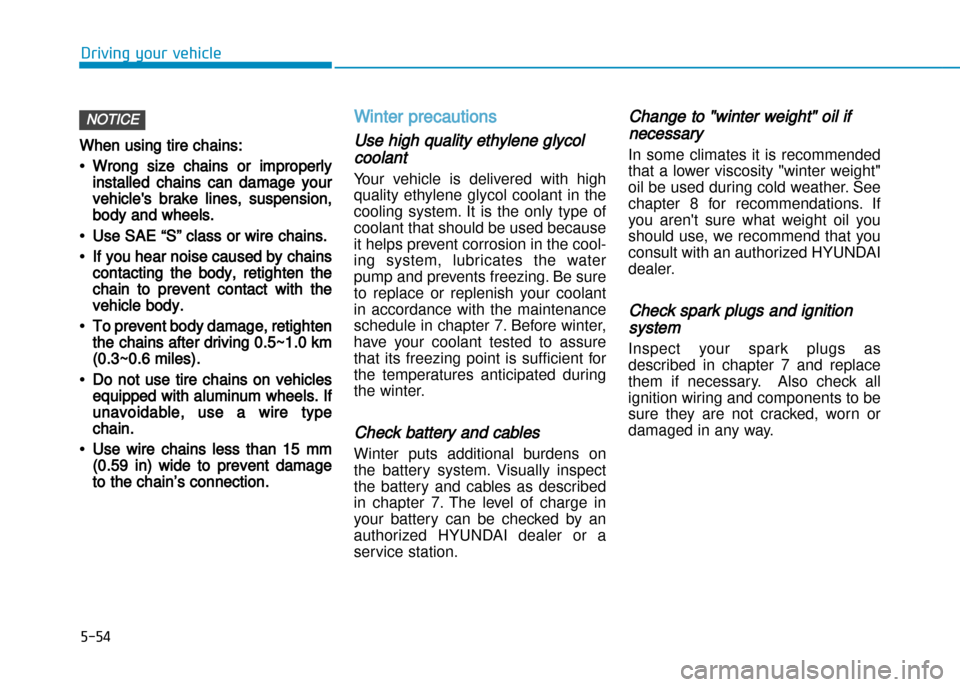

When using tire chains:
•Wrong size chains or improperly
installed chains can damage your
vehicle's brake lines, suspension,
body and wheels.
•Use SAE “S” class or wire chains.
•If you hear noise caused by chains
contacting the body, retighten the
chain to prevent contact with the
vehicle body.
•To prevent body damage, retighten
the chains after driving 0.5~1.0 km
(0.3~0.6 miles).
•Do not use tire chains on vehicles
equipped with aluminum wheels. If
unavoidable, use a wire type
chain.
•Use wire chains less than 15 mm
(0.59 in) wide to prevent damage
to the chain’s connection.
Winter precautions
Use high quality ethylene glycol
coolant
Your vehicle is delivered with high
quality ethylene glycol coolant in the
cooling system. It is the only type of
coolant that should be used because
it helps prevent corrosion in the cool
ing system, lubricates the water
pump and prevents freezing. Be sure
to replace or replenish your coolant
in accordance with the maintenance
schedule in chapter 7. Before winter,
have your coolant tested to assure
that its freezing point is sufficient for
the temperatures anticipated during
the winter.
Check battery and cables
Winter puts additional burdens on
the battery system. Visually inspect
the battery and cables as described
in chapter 7. The level of charge in
your battery can be checked by an
authorized HYUNDAI dealer or a
service station.
Change to "winter weight" oil if
necessary
In some climates it is recommended
that a lower viscosity "winter weight"
oil be used during cold weather. See
chapter 8 for recommendations. If
you aren't sure what weight oil you
should use, we recommend that you
consult with an authorized HYUNDAI
dealer.
Check spark plugs and ignition
system
Inspect your spark plugs as
described in chapter 7 and replace
them if necessary. Also check all
ignition wiring and components to be
sure they are not cracked, worn or
damaged in any way.
NOTICE
Driving your vehicle
5-54

7-11
7
Maintenance
I : Inspect and if necessary, adjust, correct, clean or replace.
R : Replace or change. * 1
: Adjust alternator and power steering (and water pump drive belt) and air conditioner drive belt (if equipped).
Inspect and if necessary correct or replace.
* 2
: Check the engine oil level and leak every 500 km (350 miles) or before starting a long trip.
* 3
: If good quality gasolines that meet Europe Fuel standards (EN228) or equivalents including fuel additives is not available, one
bottle of additive is recommended. Additives are available from your authorized HYUNDAI dealer along with information on how
to use them. Do not mix other additives.
* 4
: For your convenience, it can be replaced prior to it's interval when you do maintenance of other items.
* 5
: Inspect for excessive valve noise and/or engine vibration and adjust if necessary. We recommend that the system be checked
by an authorized HYUNDAI dealer.

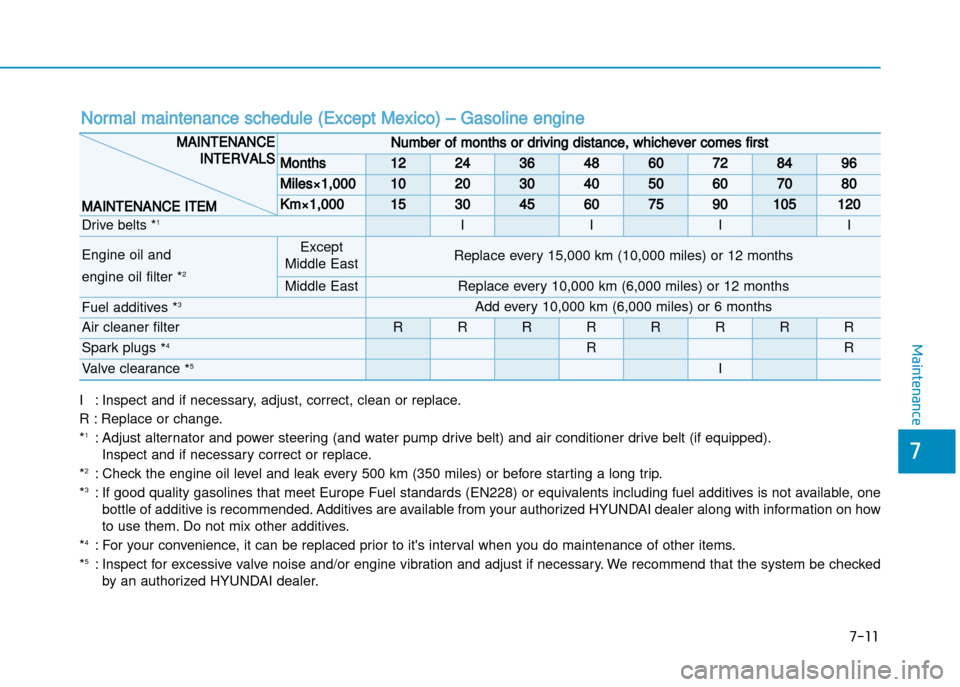

Normal maintenance schedule (Except Mexico) – Gasoline engine
Number of months or driving distance, whichever comes first
Months1224364860728496
Miles1,0001020304050607080
Km1,000153045607590105120
Drive belts * 1IIII
Engine oil and
engine oil filter * 2Except
Middle EastReplace every 15,000 km (10,000 miles) or 12 months
Middle EastReplace every 10,000 km (6,000 miles) or 12 months
Fuel additives * 3Add every 10,000 km (6,000 miles) or 6 months
Air cleaner filterRRRRRRRR
Spark plugs
*4RR
Valve clearance
*5I
MAINTENANCE
INTERVALS
MAINTENANCE ITEM

7-12
Maintenance

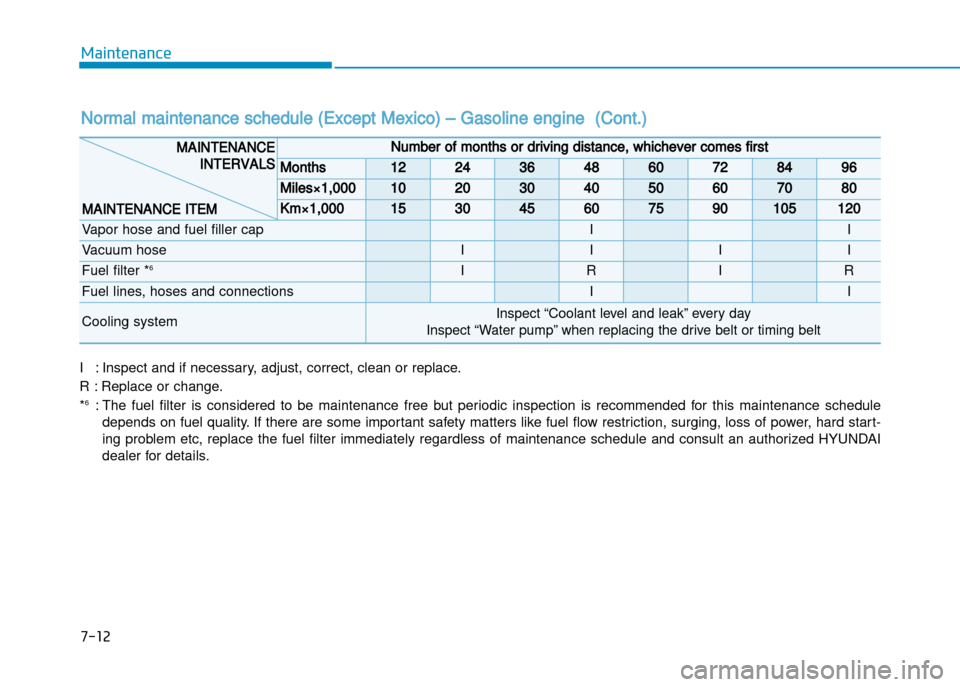

Normal maintenance schedule (Except Mexico) – Gasoline engine (Cont.)
I : Inspect and if necessary, adjust, correct, clean or replace.
R : Replace or change. * 6
: The fuel filter is considered to be maintenance free but periodic inspection is recommended for this maintenance schedule
depends on fuel quality. If there are some important safety matters like fuel flow restriction, surging, loss of power, hard start
ing problem etc, replace the fuel filter immediately regardless of maintenance schedule and consult an authorized HYUNDAI
dealer for details.
Number of months or driving distance, whichever comes first
Months1224364860728496
Miles1,0001020304050607080
Km1,000153045607590105120
Vapor hose and fuel filler capII
Vacuum hoseIIII
Fuel filter * 6IRIR
Fuel lines, hoses and connectionsII
Cooling systemInspect “Coolant level and leak” every day
Inspect “Water pump” when replacing the drive belt or timing belt
MAINTENANCE
INTERVALS
MAINTENANCE ITEM

7-22
Maintenance
I : Inspect and if necessary, adjust, correct, clean or replace.
R : Replace or change. * 1
: Adjust alternator and power steering (and water pump drive belt) and air conditioner drive belt (if equipped).
Inspect and if necessary correct or replace.
* 2
: Check the engine oil level and leak every 500 km (350 miles) or before starting a long trip.
* 3
: If good quality gasolines meet Europe Fuel standards (EN228) or equivalents including fuel additives is not available, one bot
tle of additive is recommended. Additives are available from your authorized HYUNDAI dealer along with information on how to
use them. Do not mix other additives.
* 4
: For your convenience, it can be replaced prior to it's interval when you do maintenance of other items.
* 5
: Inspect for excessive valve noise and/or engine vibration and adjust if necessary. We recommend that the system be checked
by an authorized HYUNDAI dealer.

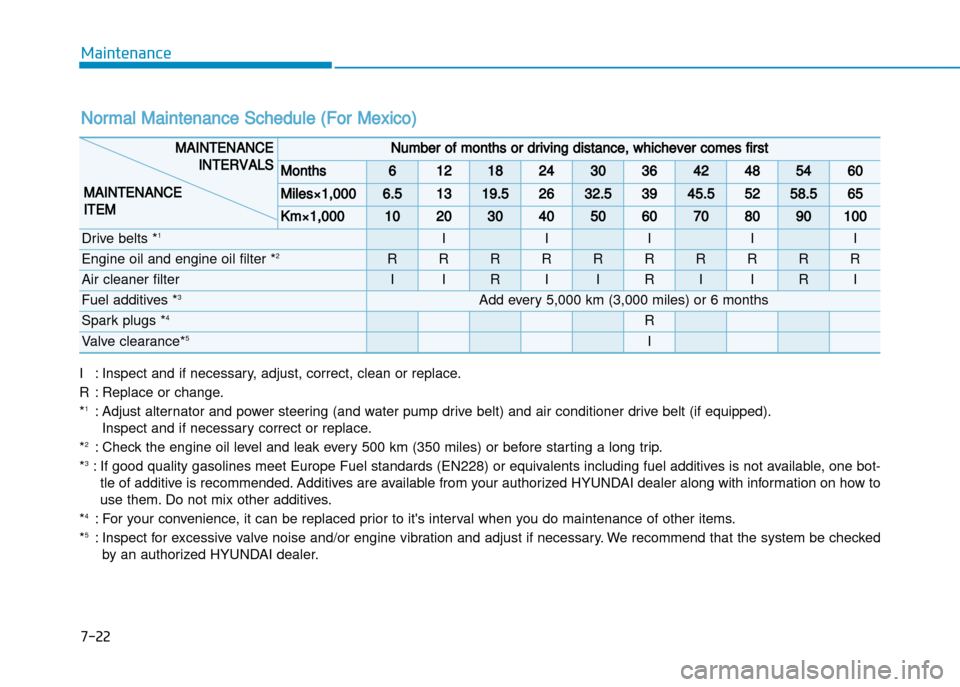

Normal Maintenance Schedule (For Mexico)
Number of months or driving distance, whichever comes first
Months6121824303642485460
Miles1,0006.51319.52632.53945.55258.565
Km1,000102030405060708090100
Drive belts * 1IIIII
Engine oil and engine oil filter * 2RRRRRRRRRR
Air cleaner filterIIRIIRIIRI
Fuel additives *3Add every 5,000 km (3,000 miles) or 6 months
Spark plugs *4R
Valve clearance* 5I
MAINTENANCE
INTERVALS
MAINTENANCE
ITEM

7-34
Maintenance

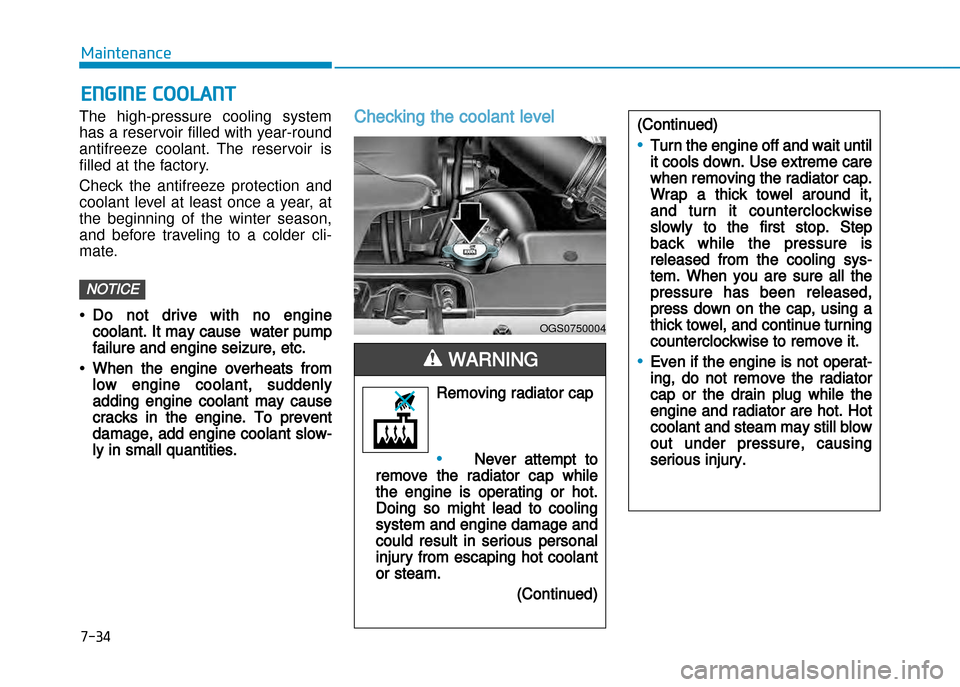

ENGINE COOlANT
The highpressure cooling system
has a reservoir filled with yearround
antifreeze coolant. The reservoir is
filled at the factory.
Check the antifreeze protection and
coolant level at least once a year, at
the beginning of the winter season,
and before traveling to a colder cli
mate.
•Do not drive with no engine
coolant. It may cause water pump
failure and engine seizure, etc.
•When the engine overheats from
low engine coolant, suddenly
adding engine coolant may cause
cracks in the engine. To prevent
damage, add engine coolant slow
ly in small quantities.
Checking the coolant level
NOTICE
Removing radiator cap
•Never attempt to
remove the radiator cap while
the engine is operating or hot.
Doing so might lead to cooling
system and engine damage and
could result in serious personal
injury from escaping hot coolant
or steam.
(Continued)
WARNING
(Continued)
•Turn the engine off and wait until
it cools down. Use extreme care
when removing the radiator cap.
Wrap a thick towel around it,
and turn it counterclockwise
slowly to the first stop. Step
back while the pressure is
released from the cooling sys
tem. When you are sure all the
pressure has been released,
press down on the cap, using a
thick towel, and continue turning
counterclockwise to remove it.
•Even if the engine is not operat
ing, do not remove the radiator
cap or the drain plug while the
engine and radiator are hot. Hot
coolant and steam may still blow
out under pressure, causing
serious injury.
OGS0750004

7-40
Maintenance
FuEl FIlTER (FOR dIESEl)
Draining water from fuel filter
The fuel filter for diesel engine plays
an important role of separating water
from fuel and accumulating the water
in its bottom.
If water accumulates in the fuel filter,
the warning light comes on when the
ignition switch is in the ON position.If this warning light turned
on, we recommend that the
system be serviced by an
authorized HYUNDAI dealer.
If the water accumulated in the fuel
filter is not drained at proper times,
damages to the major parts such as
the fuel system can be caused by
water permeation in the fuel filter.
Extracting air from the fuel filter
If you drive until you have no fuel left
or if you replace the fuel filter, be
sure to extract air from the fuel sys
tem as it makes it difficult to start the
engine.
1. Pump up and down(1) approxi mately 50 times until the pump is
hard.
2. Extract air from the fuel filter by removing the bolt(2) with a cross
tip screw driver and reinstall thebolt(2).
3. Pump up and down(1) approxi mately 15 times. 4. Extract air from the fuel filter by
removing the bolt(2) with a cross
tip screw driver and reinstall thebolt(2).
5. Pump up and down(1) approxi mately 5 times.
Information
• Use cloths when you extract air so that the fuel is not sprayed around.
• Clean the fuel around the fuel filter or the injection pump before start
ing the engine to prevent fire.
• Finally, check each part if the fuel is leaking.i
NOTICE
OGS075009
