DO-IT-YOURSELF MAINTENANCE
28
HXDFL1017

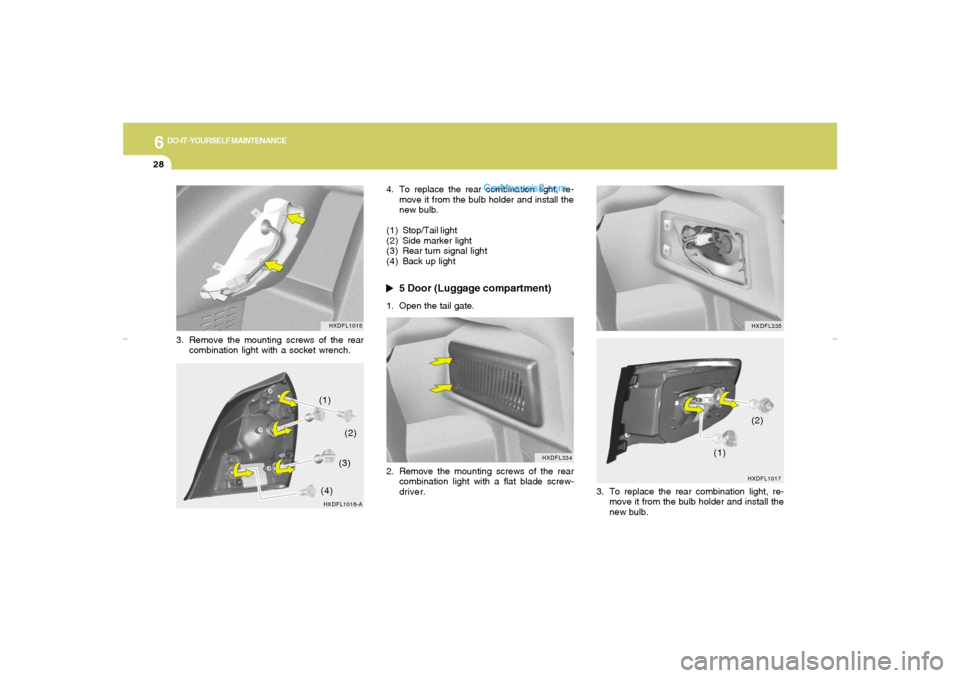

3. To replace the rear combination light, re-
move it from the bulb holder and install the
new bulb.(2)
HXDFL335
3. Remove the mounting screws of the rear
combination light with a socket wrench.4. To replace the rear combination light, re-
move it from the bulb holder and install the
new bulb.
(1) Stop/Tail light
(2) Side marker light
(3) Rear turn signal light
(4) Back up light
5 Door (Luggage compartment)
1. Open the tail gate.2. Remove the mounting screws of the rear
combination light with a flat blade screw-
driver.
HXDFL1016-AHXDFL1015(1)
(2)
(3)
(4)
HXDFL334
(1)
xdflhma-6.p652/5/2008, 2:14 PM 28

6
DO-IT-YOURSELF MAINTENANCE
29
HXDFL333 HXDFL342
5 Door (Tail gate)
1. Open the tail gate.
HXDFL332
2. Remove the cover with a flat blade screw-
driver.Back up light
3. To replace the rear combination light, re-
move it from the bulb holder and install the
new bulb.
Tail light
(1) Stop/Tail light
(2) Rear turn signal light
G270C01L-GATLUGGAGE COMPARTMENT LIGHT
4 Door1. Open the trunk lid.
2. Remove the plastic cover with a flat blade
screwdriver.
HXDFL341A
xdflhma-6.p652/5/2008, 2:14 PM 29

6
DO-IT-YOURSELF MAINTENANCE
30
HTB284

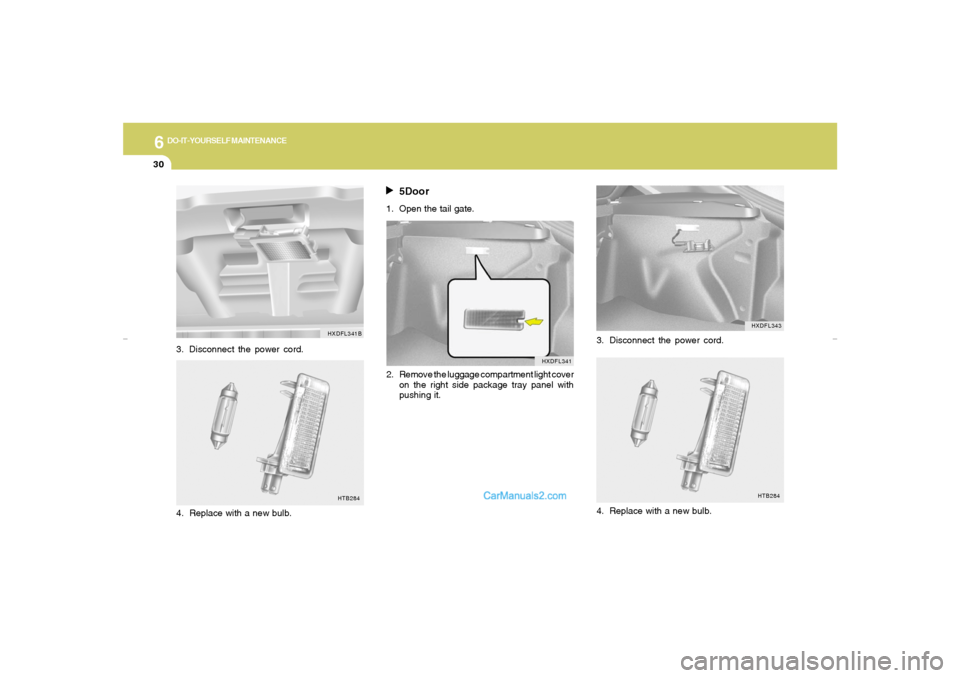

3. Disconnect the power cord.
4. Replace with a new bulb.
HXDFL343
3. Disconnect the power cord.
HTB284
4. Replace with a new bulb.
5Door
1. Open the tail gate.
2. Remove the luggage compartment light cover
on the right side package tray panel with
pushing it.
HXDFL341B
HXDFL341
xdflhma-6.p652/5/2008, 2:14 PM 30

6
DO-IT-YOURSELF MAINTENANCE
31

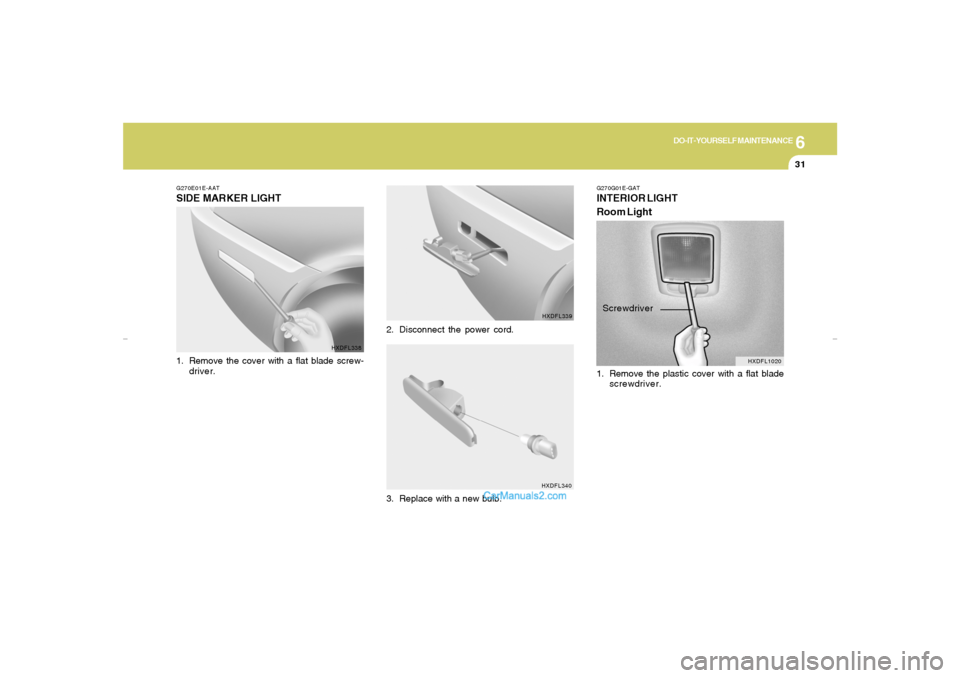

G270E01E-AATSIDE MARKER LIGHT1. Remove the cover with a flat blade screw-
driver.2. Disconnect the power cord.
3. Replace with a new bulb.
HXDFL338HXDFL339
HXDFL340G270G01E-GAT
INTERIOR LIGHT
Room Light1. Remove the plastic cover with a flat blade
screwdriver.
HXDFL1020
Screwdriver
xdflhma-6.p652/5/2008, 2:14 PM 31

6
DO-IT-YOURSELF MAINTENANCE
32

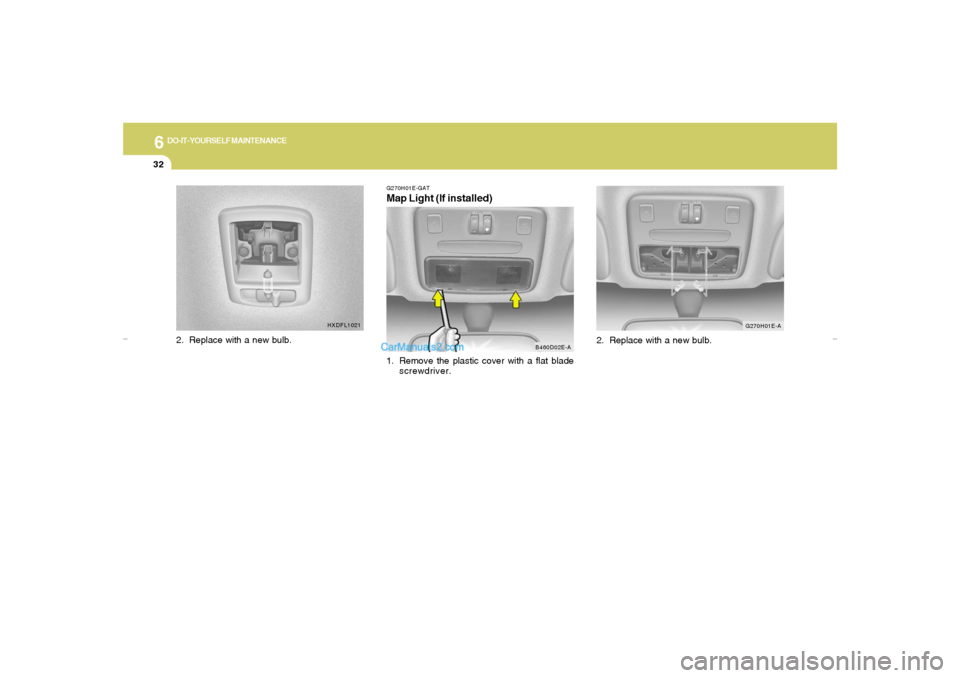

G270H01E-GATMap Light (If installed)1. Remove the plastic cover with a flat blade
screwdriver.
B460D02E-AG270H01E-A
2. Replace with a new bulb.
HXDFL1021
2. Replace with a new bulb.
xdflhma-6.p652/5/2008, 2:15 PM 32

6
DO-IT-YOURSELF MAINTENANCE
33
Soket type
-
S8.5/8.5
S8.5/8.5
BA 15s
BAY 15d
BAY 15d
W2.1 x 9.5D
BA 15s Soket type
P14,5s/PX 26d
P22d
BA15s
W2.1x9.5d
W2.1x9.5D
S8.5/8.5
W2.1x9.5d
BA 15s

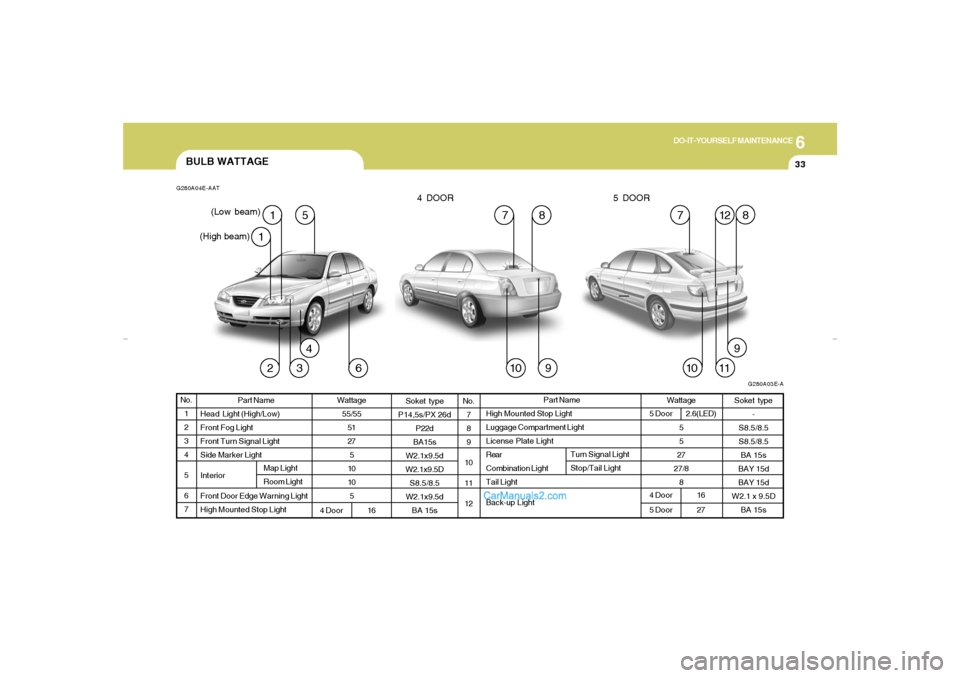

BULB WATTAGEG280A04E-AAT
23 678
G280A03E-A
(High beam)(Low beam)4 DOOR 5 DOOR
1
1512 7
4
9 10
9
10 118
Wattage
55/55
51
27
5
10
10
5Part Name
High Mounted Stop Light
Luggage Compartment Light
License Plate Light
Rear
Combination Light
Tail Light
Back-up Light Part Name
Head Light (High/Low)
Front Fog Light
Front Turn Signal Light
Side Marker Light
Interior
Front Door Edge Warning Light
High Mounted Stop Light
No.
1
2
3
4
5
6
7
Wattage
5
5
27
27/8
8
Map Light
Room Light
No.
7
8
9
10
11
12
5 Door 2.6(LED)
Turn Signal Light
Stop/Tail Light
4 Door
5 Door16
27
4 Door 16
xdflhma-6.p652/5/2008, 2:15 PM 33

6
DO-IT-YOURSELF MAINTENANCE
34
FUSE PANEL DESCRIPTIONG200B01E-AATEngine Compartment
G280B01E
NOTE:Not all fuse panel descriptions in this manual may be applicable to your vehicle. It is accurate at the time of printing. When you inspect the
fuse box on your vehicle, refer to the fuse box label.
FUSE
RATING
120A
50A
20A
20A
20A
40A
30A
30A
30A
15A
10A
15A
20A
15A
10A
15A
15A
15APROTECTED COMPONENTS
Generator
Fusible link (P/WDW), Tail lamp relay, Power connector
Condenser fan relay.1
Radiator fan relay
Generator, Engine control relay, Fuel pump relay, PCM
Ignition switch, Start relay
ABS control (Motor)
ABS control (Solenoid)
Blower relay
Injectors
PCM, Heated oxygen sensor, SMATRA, Heater relay, Glow plug relay
DRL control
Head lamp washer
Front fog lamp relay
Siren, PCM
A/C relay, Horn relay
Head lamp (Hight)
Head lamp (Low)
BATT
BATT
COND
RAD
ECU
IGN
ABS.1
ABS.2
BLOWER
INJ.
SNSR
DRL
H/LP WASHER
F/FOG
ECU
HORN & A/C
H/LP (HI)
H/LP (LO) FUSIBLE
LINK
FUSE
DESCRIPTION
xdflhma-6.p652/5/2008, 2:15 PM 34

6
DO-IT-YOURSELF MAINTENANCE
35
G200D01E-GATInner Panel
G280D01E
FUSE
RATING
10A
10A
15A
10A
10A
10A
10A
10A
10A
10A
10A
10A
30A
20A
15A
15A
10A
15A
10A
10A
15A
20A
20A
10A
15A
30APROTECTED COMPONENTS
Turn signal lamps, Back-up lamp
Pre-excitation resistor, Instrument cluster (IND)
SRS control
Hazard relay, Hazard lamps
A/C Control
Shor t connector, Illumination lamps, Tail lamp (RH), Head lamp washer
Tail lamp (LH), Exterior lamps
B/Alarm relay
Digital clock, Power outside mirror & mirror folding, Audio
Cruise control, PCM, Vehicle speed sensor, Ignition coil
ABS control
Instrument cluster (Air bag IND)
Defogger relay
Power antenna
Power door lock control, Sunroof
Stop lamps, Power window, Power outside mirror folding
Rear window & outside mirror defogger, A/C control
Cigarette lighter, Power outlet
Rear fog lamps
Head lamp, Head lamp washer, Fuel filter heating
Rear wiper & washer
Front wiper & washer
Seat warmer
Blower & A/C control, ETACM, Sunroof controller, Electronic chrome mirror
Door lamps, Instrument cluster, Data link connector, Multipurpose check
connector, Room lamps, ETACM, Audio, Power connector
Power window
T/SIG
CLUSTER
A/BAG
HAZARD
A/C SW
TAIL-RH
TAIL-LH
START
AUDIO
E C U
A B S
A/BAG IND
RR HTR
A M P
S/ROOF
STOP
HTD MIR
C/LIGHT
RR FOG
I G N
R/WIPER
F/WIPER
S/HTR
A/CON
ROOM LP
P/WINDOW FUSE
FUSIBLE
LINK
DESCRIPTION
xdflhma-6.p652/5/2008, 2:15 PM 35

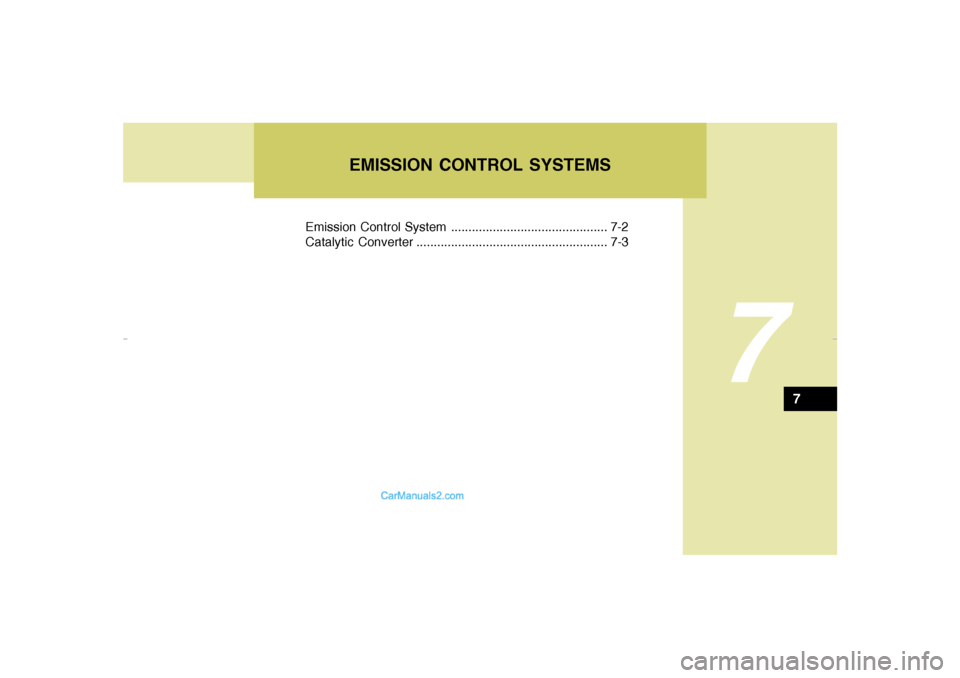

EMISSION CONTROL SYSTEMS
7
Emission Control System ............................................. 7-2
Catalytic Converter ....................................................... 7-3
7
xdflhma-7.p652/5/2008, 2:15 PM 1

7

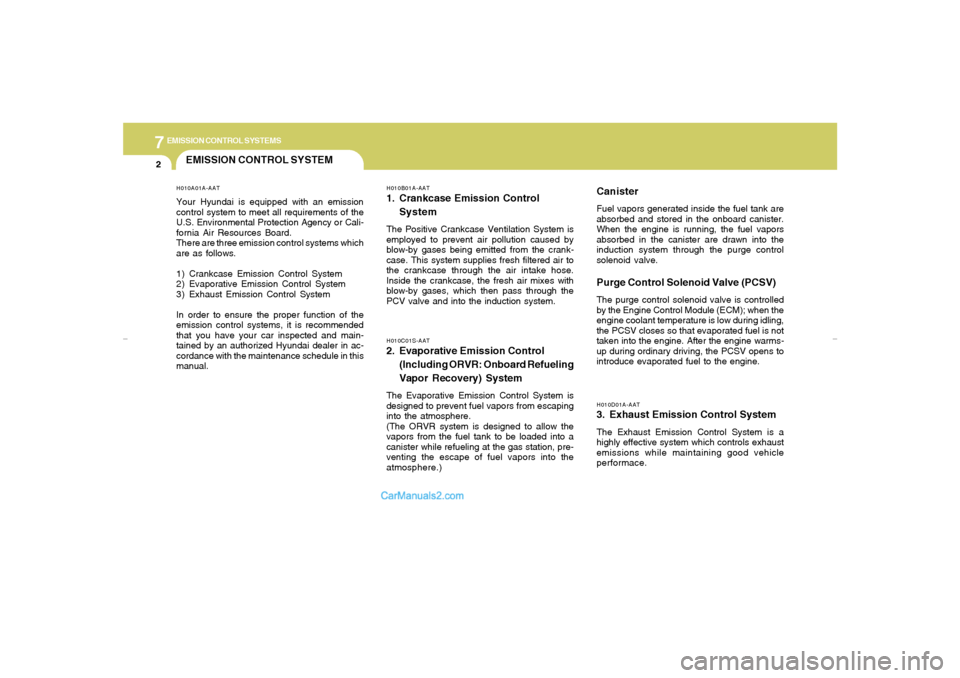

EMISSION CONTROL SYSTEMS2
EMISSION CONTROL SYSTEM
H010D01A-AAT3. Exhaust Emission Control SystemThe Exhaust Emission Control System is a
highly effective system which controls exhaust
emissions while maintaining good vehicle
performace.
H010B01A-AAT1. Crankcase Emission Control
SystemThe Positive Crankcase Ventilation System is
employed to prevent air pollution caused by
blow-by gases being emitted from the crank-
case. This system supplies fresh filtered air to
the crankcase through the air intake hose.
Inside the crankcase, the fresh air mixes with
blow-by gases, which then pass through the
PCV valve and into the induction system.
H010A01A-AATYour Hyundai is equipped with an emission
control system to meet all requirements of the
U.S. Environmental Protection Agency or Cali-
fornia Air Resources Board.
There are three emission control systems which
are as follows.
1) Crankcase Emission Control System
2) Evaporative Emission Control System
3) Exhaust Emission Control System
In order to ensure the proper function of the
emission control systems, it is recommended
that you have your car inspected and main-
tained by an authorized Hyundai dealer in ac-
cordance with the maintenance schedule in this
manual.
CanisterFuel vapors generated inside the fuel tank are
absorbed and stored in the onboard canister.
When the engine is running, the fuel vapors
absorbed in the canister are drawn into the
induction system through the purge control
solenoid valve.Purge Control Solenoid Valve (PCSV)The purge control solenoid valve is controlled
by the Engine Control Module (ECM); when the
engine coolant temperature is low during idling,
the PCSV closes so that evaporated fuel is not
taken into the engine. After the engine warms-
up during ordinary driving, the PCSV opens to
introduce evaporated fuel to the engine.
H010C01S-AAT2. Evaporative Emission Control
(Including ORVR: Onboard Refueling
Vapor Recovery) SystemThe Evaporative Emission Control System is
designed to prevent fuel vapors from escaping
into the atmosphere.
(The ORVR system is designed to allow the
vapors from the fuel tank to be loaded into a
canister while refueling at the gas station, pre-
venting the escape of fuel vapors into the
atmosphere.)
xdflhma-7.p652/5/2008, 2:15 PM 2
