DO-IT-YOURSELF MAINTENANCE
18
5. Replace the air conditioner filter with a new
one.
6. Installation is the reverse order of disassem-
bly.
!
4. Remove the filter cover by pushing the two
hooks of the filter cover.
CAUTION:
Be sure to install the air conditioner filter in
the direction of the arrow sign. Otherwise,
noise or filter damage may result.
HXD2099

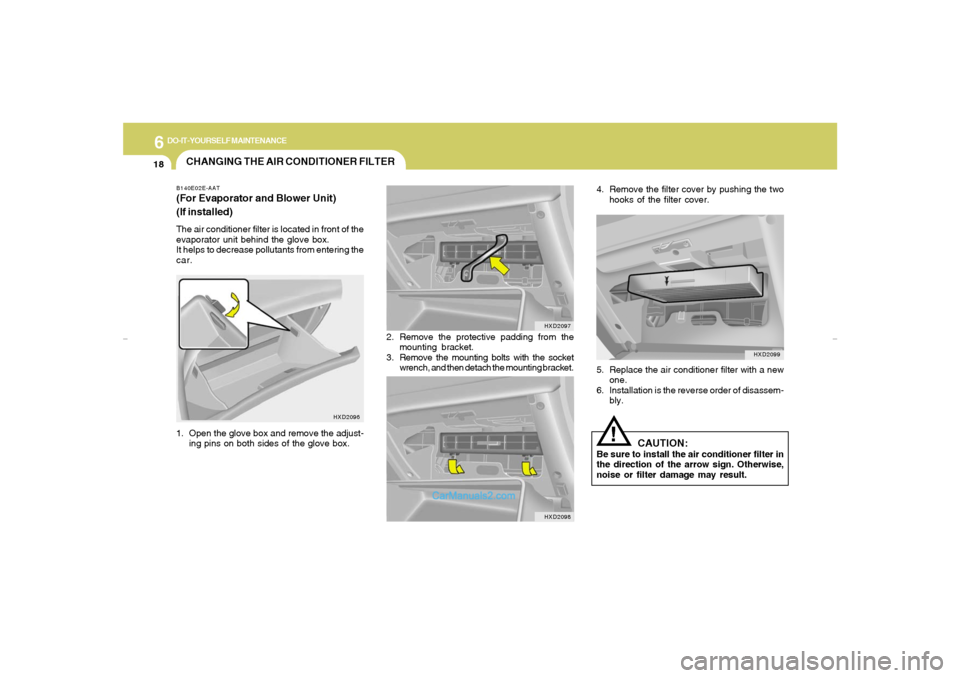

CHANGING THE AIR CONDITIONER FILTER
HXD2096 B140E02E-AAT
(For Evaporator and Blower Unit)
(If installed)The air conditioner filter is located in front of the
evaporator unit behind the glove box.
It helps to decrease pollutants from entering the
car.
2. Remove the protective padding from the
mounting bracket.
3. Remove the mounting bolts with the socket
wrench, and then detach the mounting bracket.
1. Open the glove box and remove the adjust-
ing pins on both sides of the glove box.
HXD2097
HXD2098
xdflhma-6.p652/5/2008, 2:13 PM 18

6
DO-IT-YOURSELF MAINTENANCE
19
G150A02E

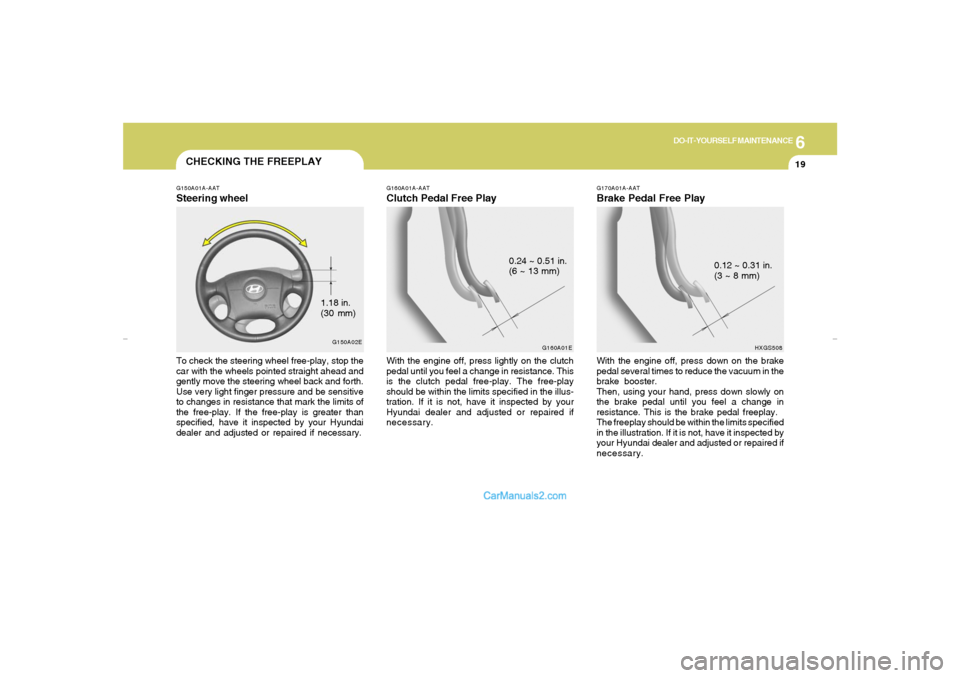

CHECKING THE FREEPLAY
G160A01A-AATClutch Pedal Free PlayWith the engine off, press lightly on the clutch
pedal until you feel a change in resistance. This
is the clutch pedal free-play. The free-play
should be within the limits specified in the illus-
tration. If it is not, have it inspected by your
Hyundai dealer and adjusted or repaired if
necessary.
G160A01E
0.24 ~ 0.51 in.
(6 ~ 13 mm)
G150A01A-AATSteering wheelTo check the steering wheel free-play, stop the
car with the wheels pointed straight ahead and
gently move the steering wheel back and forth.
Use very light finger pressure and be sensitive
to changes in resistance that mark the limits of
the free-play. If the free-play is greater than
specified, have it inspected by your Hyundai
dealer and adjusted or repaired if necessary.1.18 in.
(30 mm)
G170A01A-AATBrake Pedal Free PlayWith the engine off, press down on the brake
pedal several times to reduce the vacuum in the
brake booster.
Then, using your hand, press down slowly on
the brake pedal until you feel a change in
resistance. This is the brake pedal freeplay.
The freeplay should be within the limits specified
in the illustration. If it is not, have it inspected by
your Hyundai dealer and adjusted or repaired if
necessary.
HXGS508
0.12 ~ 0.31 in.
(3 ~ 8 mm)
xdflhma-6.p652/5/2008, 2:13 PM 19

6
DO-IT-YOURSELF MAINTENANCE
20
CHECKING AND REPLACING FUSESG200A03A-AATReplacing a Fusible LinkA fusible link will melt if the electrical circuits from
the battery are ever overloaded, thus prevent-
ing damage to the entire wiring harness. (This
could be caused by a short in the system
drawing too much current.) If this ever happens,
have a Hyundai dealer determine the cause,
repair the system and replace the fusible link.
The fusible links are located in a relay box in the
engine compartment for easy inspection.
Good
Open-ReplaceG200A01E
HTB186
CHECKING DRIVE BELTS
G180A01A-AATChecking Brake Pedal ClearanceYou need a helper to check the brake pedal
clearance. With the engine running, have your
helper press down on the brake pedal several
times and then hold it down with a force of about
110 lbs (50 kg, 490 N). The brake pedal clear-
ance is the distance from the top surface of the
brake pedal to the asphalt sheeting under the
floor mat.
If the brake pedal clearance is not within the
limits specified in the illustration, have it in-
spected by your Hyundai dealer and adjusted
or repaired if necessary.
G180A01L
1.78 in.
(45.1 mm)
Drive belts should be checked periodically for
proper tension and adjusted if necessary. At the
same time, belts should be examined for cracks,
wear, fraying or other evidence of deterioration
and replaced if necessary.
Belt routing should also be checked to be sure
there is no interference between the belts and
other parts of the engine. After a belt is replaced,
the new belt should be adjusted again after two
or three weeks to eliminate slack resulting from
initial stretching after use.
G190A01A-AAT
Water Pump Pulley
Generator
Pulley
Crankshaft Pulley0.2 ~ 0.24 in.
(5.1 ~ 6 mm)
xdflhma-6.p652/5/2008, 2:14 PM 20

6
DO-IT-YOURSELF MAINTENANCE
21
!
G200B02E-AATReplacing Accessory Fuses
CAUTION:
When replacing a fusible link, never use
anything but a new fusible link with the
same or lower amperage rating. Never use
a piece of wire or a higher-rated fusible link.
This could result in serious damage and
create a fire hazard.
The fuse box for the lights and other electrical
accessories will be found behind the storage
box located on the instrument panel to the left
side of the driver. On the backside of the multi
box, you will find a list showing the circuits
protected by each fuse.
If any of your car's lights or other electrical
accessories stop working, a blown fuse could
be the reason. If the fuse has burned out, you
will see that the metal strip inside the fuse has
melted through. If you suspect a blown fuse,
follow this procedure:
HXDFL200
1. Turn off the ignition and all other switches.
2. Open the fuse box and examine each fuse.
Remove each fuse by pulling it toward you
(a small "fuse puller" tool is contained in the
fuse box to simplify this operation).
3. Be sure to check all other fuses even if you
find one that appears to have opened.
4. Replace the blown fuse by pressing a new
fuse of the same rating into place. The fuse
should be a snug fit. If it is not, have the fuse
clip repaired or replaced by a Hyundai dealer.
If you do not have a spare fuse, you may be
able to borrow a fuse of the same or lower
rating from an accessory you can tempo-
rarily get along without (the radio or cigarette
lighter, for example). Always remember to
replace the borrowed fuse.
HXDFL1026-1
xdflhma-6.p652/5/2008, 2:14 PM 21

6
DO-IT-YOURSELF MAINTENANCE
22
o If battery fluid is on your skin, flush the
affected areas with water for at least 15
minutes and then seek medical assistance.
o If battery fluid is in your eyes, rinse out your
eyes with water and get medical assistance
as soon as possible. While you are being
driven to get medical assistance, continue to
rinse your eyes by using a sponge or soft
cloth saturated with water.
o If you swallow battery fluid, drink a large
quantity of water or milk followed by milk of
magnesia, eat a raw egg or drink vegetable
oil. Get medical assistance as soon as
possible.
While batteries are being charged (either by a
battery charger or by the vehicle's generator),
they produce explosive gases. Always ob-
serve these warnings to prevent injuries from
occurring:
o Charge batteries only in a well ventilated
area.
o Do not permit flames, sparks or smoking in
the area.
o Keep children away from the area.
!
!
G210A01A-AAT
WARNING:
Batteries can be dangerous! When working
with batteries, carefully observe the follow-
ing precautions to avoid serious injuries.
The fluid in the battery contains a strong solution
of sulfuric acid, which is poisonous and highly
corrosive. Be careful not to spill it on yourself or
the car. If you do spill battery fluid on yourself,
immediately do the following:
CAUTION:
An open fuse indicates that there is a prob-
lem in the electrical circuit. If you replace a
fuse and it blows as soon as the accessory
is turned on, the problem is serious and
should be referred to a Hyundai dealer for
diagnosis and repair. Never replace a fuse
with anything except a fuse with the same
or a lower amperage rating. A higher capac-
ity fuse could cause damage and create a
fire hazard.NOTE:See page 6-34 for the fuse panel descrip-
tions.
G200B02L
GoodOpen-Replace

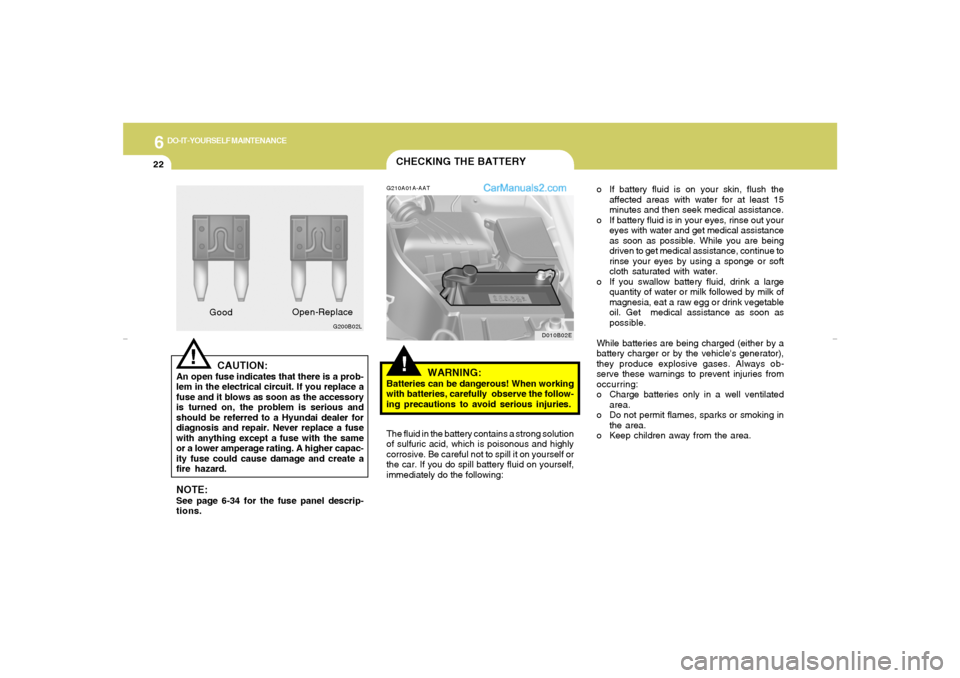

CHECKING THE BATTERY
D010B02E
xdflhma-6.p652/5/2008, 2:14 PM 22

6
DO-IT-YOURSELF MAINTENANCE
23
CHECKING ELECTRIC COOLING
FANS!
!
G220B01A-AATChecking Engine Cooling FanThe engine cooling fan should come on auto-
matically if the engine coolant temperature is
high.G220A01A-AAT
G220C01A-AATChecking Condenser Cooling FanThe condenser cooling fan should come on
automatically whenever the air conditioning is in
operation.
WARNING:
The cooling fan is controlled by engine
coolant temperature and may sometimes
operate even when the engine is not run-
ning. Use extreme caution when working
near the blades of the cooling fan, so that
you are not injured by a rotating fan blade.
As the engine coolant temperature de-
creases the fan will automatically shut off.
This is a normal condition.
G210B03A-AATChecking the BatteryKeep the battery clean. Any evidence of corro-
sion around the battery posts or terminals
should be removed using a solution of house-
hold baking soda and warm water. After the
battery terminals are dry, cover them with a light
coating of grease.
PROPOSITION 65 WARNING:
Battery posts, terminals, and related acces-
sories contain lead and lead compounds,
chemicals known to the state of California
to cause cancer and reproductive harm.
Batteries also contain other chemicals
known to the State of California to cause
cancer. Wash hands after handling.
POWER STEERING FLUID LEVELG230A03A-AATThe power steering fluid level should be checked
regularly. To check the power steering fluid
level, be sure the engine is "OFF", then check
to make certain that the power steering fluid
level is between the "MAX" and "MIN" level
markings on the fluid reservoir.NOTE:Grinding noise from the power steering
pump may be heard immediately after the
engine is started in extremely cold condi-
tions (below - 4°F). If the noise stops during
warm up, there is no abnormal function in
the system. It is due to a power steering
fluid characteristic in extremely cold condi-
tions.
G230A01E
xdflhma-6.p652/5/2008, 2:14 PM 23

6
DO-IT-YOURSELF MAINTENANCE
24
!
5. Open the hood.
6. Draw a vertical line (through the center of
each headlight beam pattern) and a horizon-
tal line (through the center of each headlight
beam pattern) on the aiming screen.
And then, draw the horizontal parallel line at
0.8 in. (21 mm) under the horizontal line.
7. Adjust each cut-off line of the low beam to the
parallel line with a phillips screwdriver
- VERTICAL AIMING
WARNING:
Horizontal aiming should be adjusted by an
authorized Hyundai Dealer.

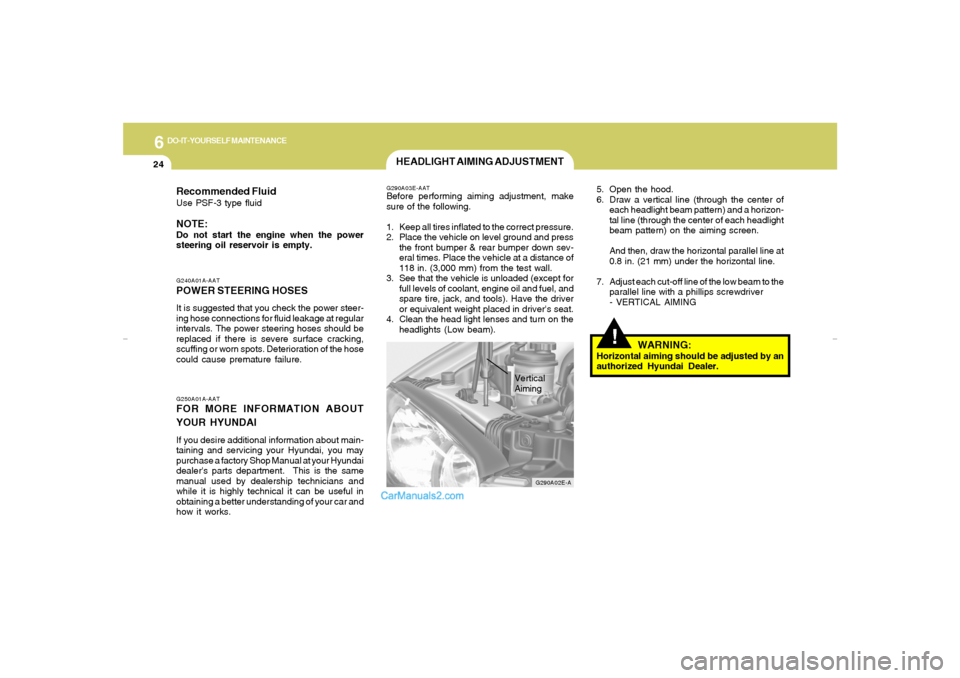

HEADLIGHT AIMING ADJUSTMENT
G250A01A-AATFOR MORE INFORMATION ABOUT
YOUR HYUNDAIIf you desire additional information about main-
taining and servicing your Hyundai, you may
purchase a factory Shop Manual at your Hyundai
dealer's parts department. This is the same
manual used by dealership technicians and
while it is highly technical it can be useful in
obtaining a better understanding of your car and
how it works.G240A01A-AATPOWER STEERING HOSESIt is suggested that you check the power steer-
ing hose connections for fluid leakage at regular
intervals. The power steering hoses should be
replaced if there is severe surface cracking,
scuffing or worn spots. Deterioration of the hose
could cause premature failure.Recommended FluidUse PSF-3 type fluidNOTE:Do not start the engine when the power
steering oil reservoir is empty.
G290A03E-AATBefore performing aiming adjustment, make
sure of the following.
1. Keep all tires inflated to the correct pressure.
2. Place the vehicle on level ground and press
the front bumper & rear bumper down sev-
eral times. Place the vehicle at a distance of
118 in. (3,000 mm) from the test wall.
3. See that the vehicle is unloaded (except for
full levels of coolant, engine oil and fuel, and
spare tire, jack, and tools). Have the driver
or equivalent weight placed in driver's seat.
4. Clean the head light lenses and turn on the
headlights (Low beam).
Vertical
Aiming
G290A02E-A
xdflhma-6.p652/5/2008, 2:14 PM 24

6
DO-IT-YOURSELF MAINTENANCE
25
Specification:"H"
Horizontal center line of headlights from
ground.
Low beam : 25.2 in. (639 mm)
High beam : 23.3 in. (619 mm)
"W"
Distance between each headlight center.
Low beam : 44.2 in. (1124 mm)
High beam : 33.0 in. (840 mm)
"L"
Distance between the headlights and the
wall that the lights are tested against.
: 118 in. (3,000 mm).

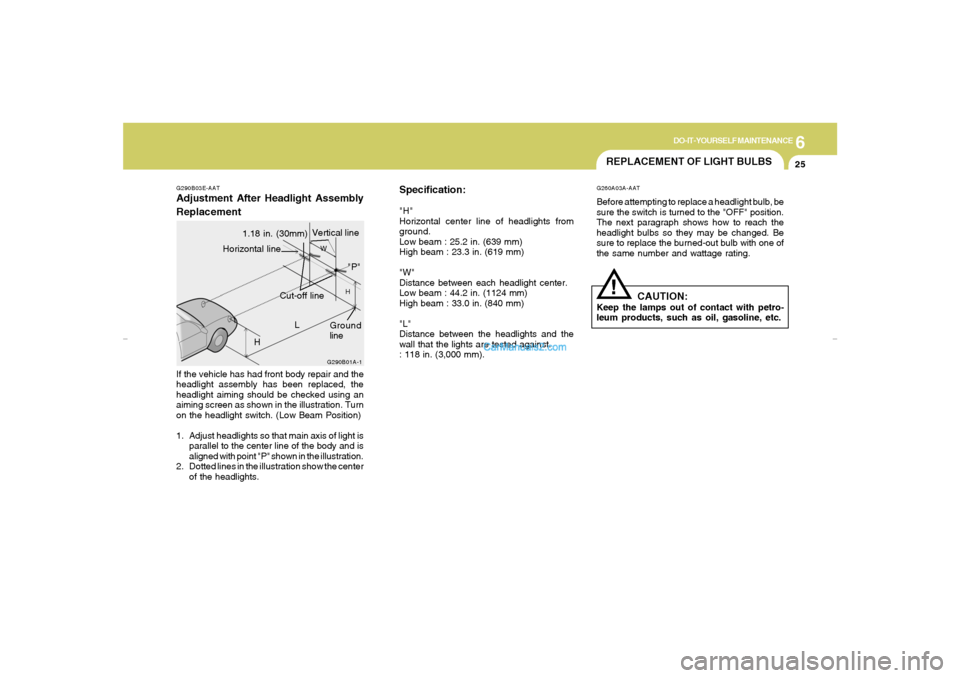

G290B03E-AATAdjustment After Headlight Assembly
ReplacementIf the vehicle has had front body repair and the
headlight assembly has been replaced, the
headlight aiming should be checked using an
aiming screen as shown in the illustration. Turn
on the headlight switch. (Low Beam Position)
1. Adjust headlights so that main axis of light is
parallel to the center line of the body and is
aligned with point "P" shown in the illustration.
2. Dotted lines in the illustration show the center
of the headlights.
G290B01A-1
L
W
H
HCut-off line
"P"
1.18 in. (30mm)Vertical line
Horizontal line
Ground
line
REPLACEMENT OF LIGHT BULBSG260A03A-AATBefore attempting to replace a headlight bulb, be
sure the switch is turned to the "OFF" position.
The next paragraph shows how to reach the
headlight bulbs so they may be changed. Be
sure to replace the burned-out bulb with one of
the same number and wattage rating.
CAUTION:
Keep the lamps out of contact with petro-
leum products, such as oil, gasoline, etc.
!
xdflhma-6.p652/5/2008, 2:14 PM 25

6
DO-IT-YOURSELF MAINTENANCE
26

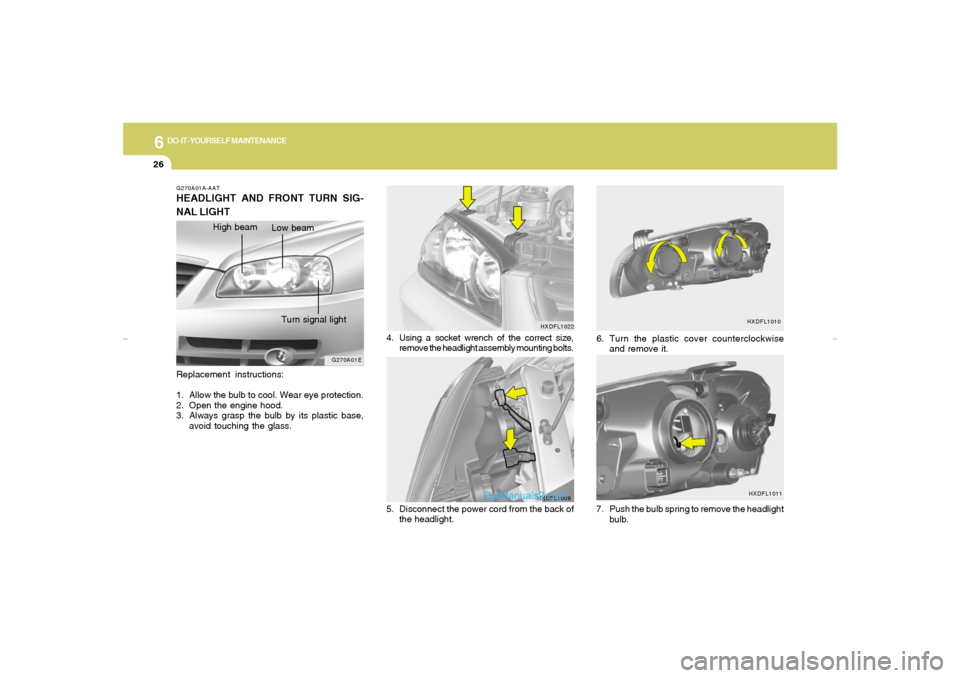

7. Push the bulb spring to remove the headlight
bulb. 6. Turn the plastic cover counterclockwise
and remove it.
HXDFL1011 HXDFL1010
4. Using a socket wrench of the correct size,
remove the headlight assembly mounting bolts.
5. Disconnect the power cord from the back of
the headlight. Replacement instructions:
1. Allow the bulb to cool. Wear eye protection.
2. Open the engine hood.
3. Always grasp the bulb by its plastic base,
avoid touching the glass.
G270A01A-AATHEADLIGHT AND FRONT TURN SIG-
NAL LIGHT
G270A01E
High beam
Low beam
Turn signal light
HXDFL1009HXDFL1022
xdflhma-6.p652/5/2008, 2:14 PM 26

6
DO-IT-YOURSELF MAINTENANCE
27
!
WARNING:
This halogen bulb contains gas under pres-
sure and if impacted could shatter, result-
ing in flying fragments. Always wear eye
protection when servicing the bulb. Protect
the bulb against abrasions or scratches
and against liquids when lighted. Turn the
bulb on only when installing in a headlight.
Replace the headlight if damaged or cracked.
Keep the bulb out of the reach of children
and dispose of the used bulb with care. 8. Remove the protective cap from the re-
placement bulb and install the new bulb by
matching the plastic base with the headlight
hole. Retighten the bulb spring and recon-
nect the power cord.
9. Use the protective cap and carton to prompt-
ly dispose of the old bulb.
10. Check for proper headlight aim.
(1) High beam
(2) Low beam
(3) Front turn signal light
HXDFL1013-1
(1)(2)(3)
G270A03OG270D01E-AAT
REAR COMBINATION LIGHT
(Stop / Tail Light, Back up light and Rear
Turn Signal Light)
4 Door1. Open the trunk lid.
2. Unscrew and remove the cover on the inside
of the rear luggage trim.
HXDFL1014
xdflhma-6.p652/5/2008, 2:14 PM 27
