Hyundai Elantra 2005 Owner's Guide

1FEATURES OF YOUR HYUNDAI10
WINDOWB050A01A-AATWINDOW GLASSTo raise or lower the window, turn the window
regulator handle clockwise or counterclock-
wise.
!
WARNING:
When opening or closing the windows,
make sure your passenger's arms, hands
and body are safely out of the way.
B060A02E-AATPOWER WINDOWS (If installed)The power windows operate when the ignition
key is in the "ON" position. The main switches
are located on the driver's armrest and control
the front and rear windows on both sides of the
vehicle. The windows may be opened by de-
pressing the appropriate window switch and
closed by pulling up the switch. To open the
window on the driver's side, press the switch(1)
down. The window moves as long as the switch
is operated.
B050A01E
2. Remove the old battery from the case and
note the polarity. Make sure the polarity of
the new battery is the same(+side facing
down), then insert it in the transmitter.
CloseB060A01E
(1)
Open
B070E02A-1
Case
Battery
xdflhma-1a.p652/5/2008, 2:02 PM 10

1
FEATURES OF YOUR HYUNDAI
11

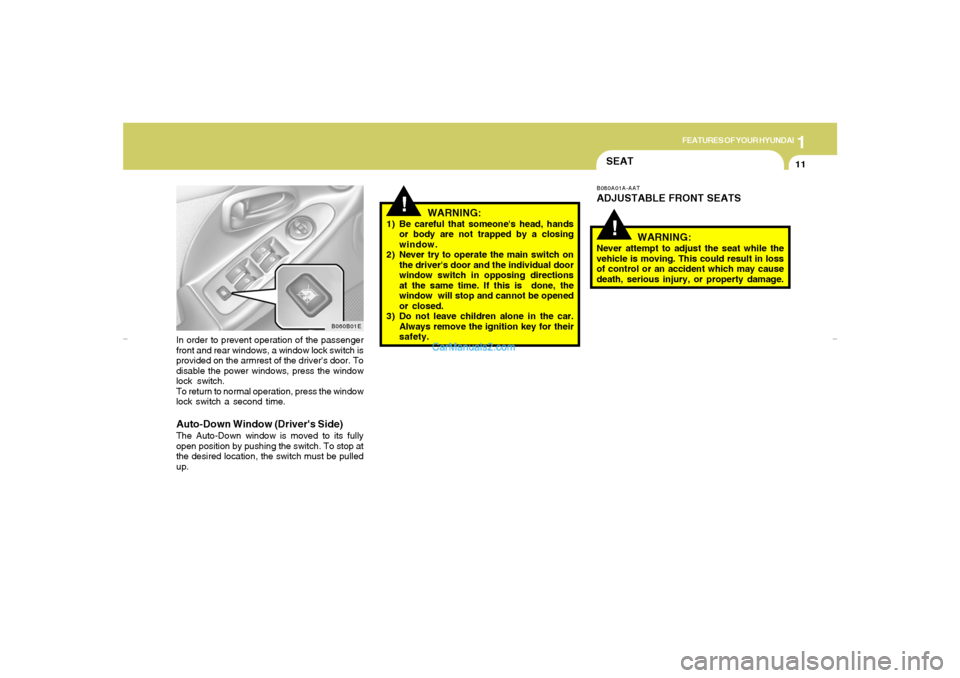

In order to prevent operation of the passenger
front and rear windows, a window lock switch is
provided on the armrest of the driver's door. To
disable the power windows, press the window
lock switch.
To return to normal operation, press the window
lock switch a second time.Auto-Down Window (Driver's Side)The Auto-Down window is moved to its fully
open position by pushing the switch. To stop at
the desired location, the switch must be pulled
up.
B060B01E
!
!
WARNING:
1) Be careful that someone's head, hands
or body are not trapped by a closing
window.
2) Never try to operate the main switch on
the driver's door and the individual door
window switch in opposing directions
at the same time. If this is done, the
window will stop and cannot be opened
or closed.
3) Do not leave children alone in the car.
Always remove the ignition key for their
safety.
B080A01A-AATADJUSTABLE FRONT SEATS
WARNING:Never attempt to adjust the seat while the
vehicle is moving. This could result in loss
of control or an accident which may cause
death, serious injury, or property damage.SEAT
xdflhma-1a.p652/5/2008, 2:02 PM 11

1FEATURES OF YOUR HYUNDAI12
!

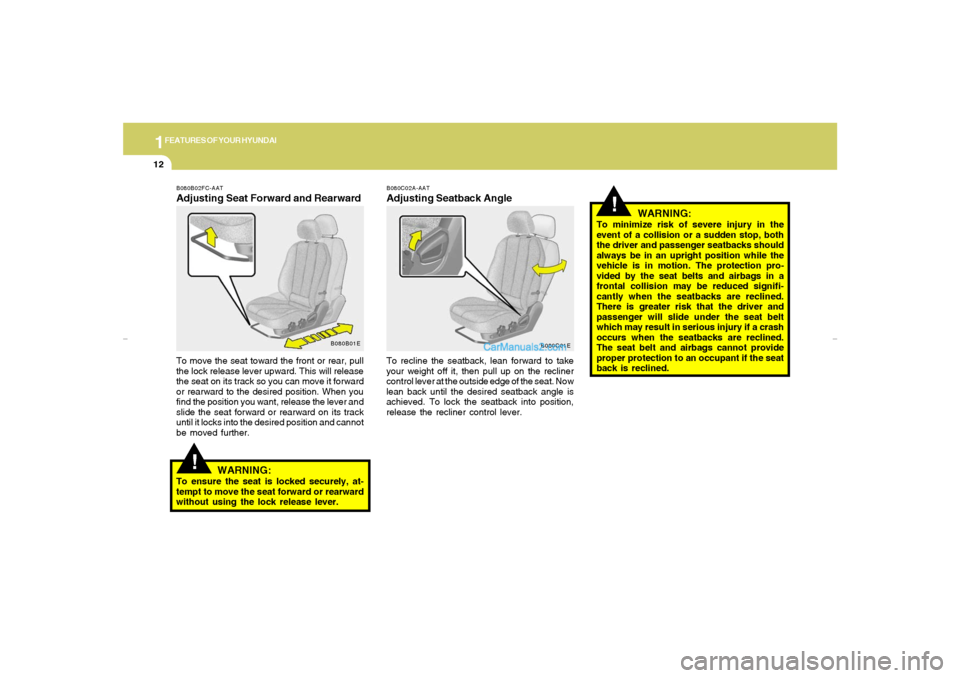

B080C02A-AATAdjusting Seatback AngleTo recline the seatback, lean forward to take
your weight off it, then pull up on the recliner
control lever at the outside edge of the seat. Now
lean back until the desired seatback angle is
achieved. To lock the seatback into position,
release the recliner control lever.
WARNING:
To minimize risk of severe injury in the
event of a collision or a sudden stop, both
the driver and passenger seatbacks should
always be in an upright position while the
vehicle is in motion. The protection pro-
vided by the seat belts and airbags in a
frontal collision may be reduced signifi-
cantly when the seatbacks are reclined.
There is greater risk that the driver and
passenger will slide under the seat belt
which may result in serious injury if a crash
occurs when the seatbacks are reclined.
The seat belt and airbags cannot provide
proper protection to an occupant if the seat
back is reclined.
B080C01E B080B02FC-AAT
Adjusting Seat Forward and RearwardTo move the seat toward the front or rear, pull
the lock release lever upward. This will release
the seat on its track so you can move it forward
or rearward to the desired position. When you
find the position you want, release the lever and
slide the seat forward or rearward on its track
until it locks into the desired position and cannot
be moved further.
B080B01E
!
WARNING:
To ensure the seat is locked securely, at-
tempt to move the seat forward or rearward
without using the lock release lever.
xdflhma-1a.p652/5/2008, 2:02 PM 12

1
FEATURES OF YOUR HYUNDAI
13

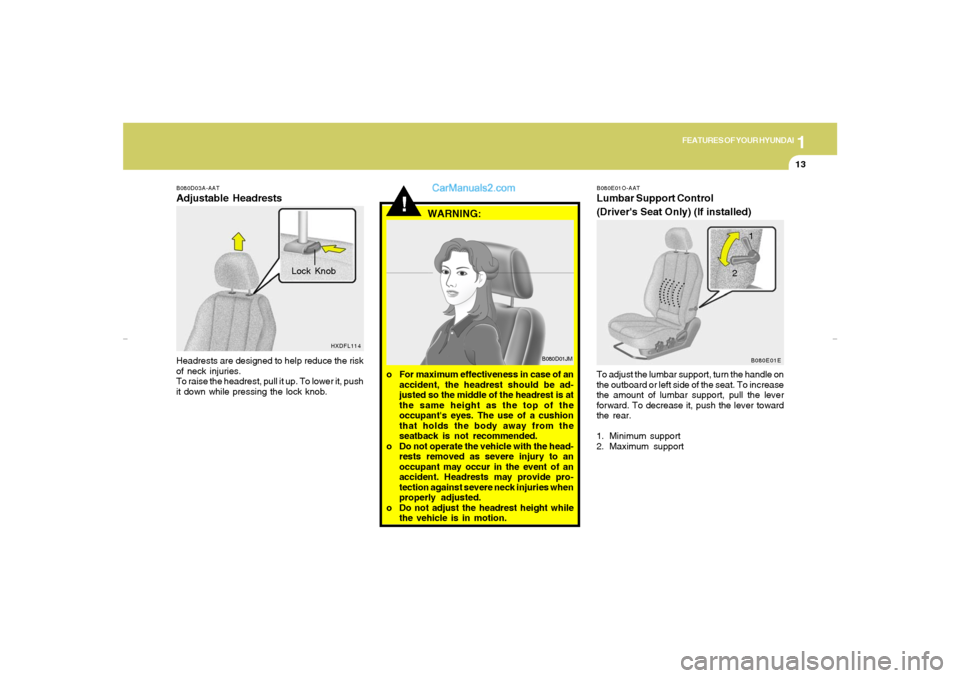

B080D03A-AATAdjustable HeadrestsHeadrests are designed to help reduce the risk
of neck injuries.
To raise the headrest, pull it up. To lower it, push
it down while pressing the lock knob.
Lock Knob
HXDFL114
!
B080E01O-AATLumbar Support Control
(Driver's Seat Only) (If installed)To adjust the lumbar support, turn the handle on
the outboard or left side of the seat. To increase
the amount of lumbar support, pull the lever
forward. To decrease it, push the lever toward
the rear.
1. Minimum support
2. Maximum support
WARNING:
B080E01E1
2
o For maximum effectiveness in case of an
accident, the headrest should be ad-
justed so the middle of the headrest is at
the same height as the top of the
occupant's eyes. The use of a cushion
that holds the body away from the
seatback is not recommended.
o Do not operate the vehicle with the head-
rests removed as severe injury to an
occupant may occur in the event of an
accident. Headrests may provide pro-
tection against severe neck injuries when
properly adjusted.
o Do not adjust the headrest height while
the vehicle is in motion.
B080D01JM
xdflhma-1a.p652/5/2008, 2:02 PM 13

1FEATURES OF YOUR HYUNDAI14

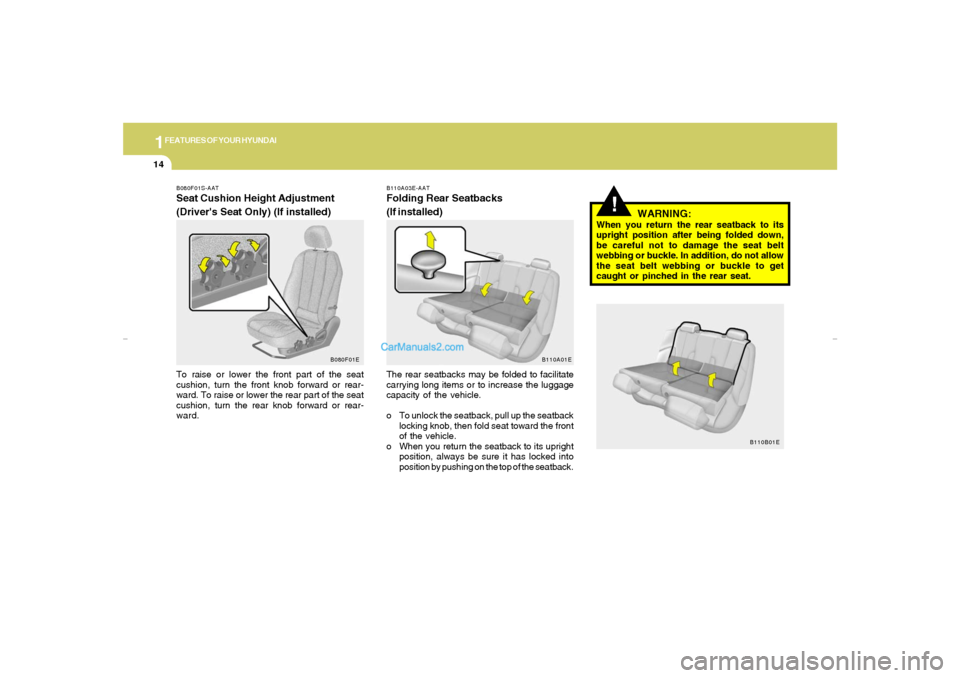

B110A03E-AATFolding Rear Seatbacks
(If installed)The rear seatbacks may be folded to facilitate
carrying long items or to increase the luggage
capacity of the vehicle.
o To unlock the seatback, pull up the seatback
locking knob, then fold seat toward the front
of the vehicle.
o When you return the seatback to its upright
position, always be sure it has locked into
position by pushing on the top of the seatback.
!
WARNING:
When you return the rear seatback to its
upright position after being folded down,
be careful not to damage the seat belt
webbing or buckle. In addition, do not allow
the seat belt webbing or buckle to get
caught or pinched in the rear seat.
B110A01E
B080F01S-AATSeat Cushion Height Adjustment
(Driver's Seat Only) (If installed)To raise or lower the front part of the seat
cushion, turn the front knob forward or rear-
ward. To raise or lower the rear part of the seat
cushion, turn the rear knob forward or rear-
ward.
B080F01E
B110B01E
xdflhma-1a.p652/5/2008, 2:02 PM 14

1
FEATURES OF YOUR HYUNDAI
15
!
WARNING:
The purpose of the fold-down rear
seatbacks is to allow you to carry larger
items than could otherwise be accommo-
dated. Never allow passengers to sit on top
of the folded down seat back while the car
is moving as this is not a proper seating
position and no seat belts are available for
use. This could result in serious injury or
death in case of an accident or sudden stop.
Objects carried on the folded down
seatback should not extend higher than the
top of the front seats. This could allow
cargo to slide forward and cause injury or
damage during sudden stops.

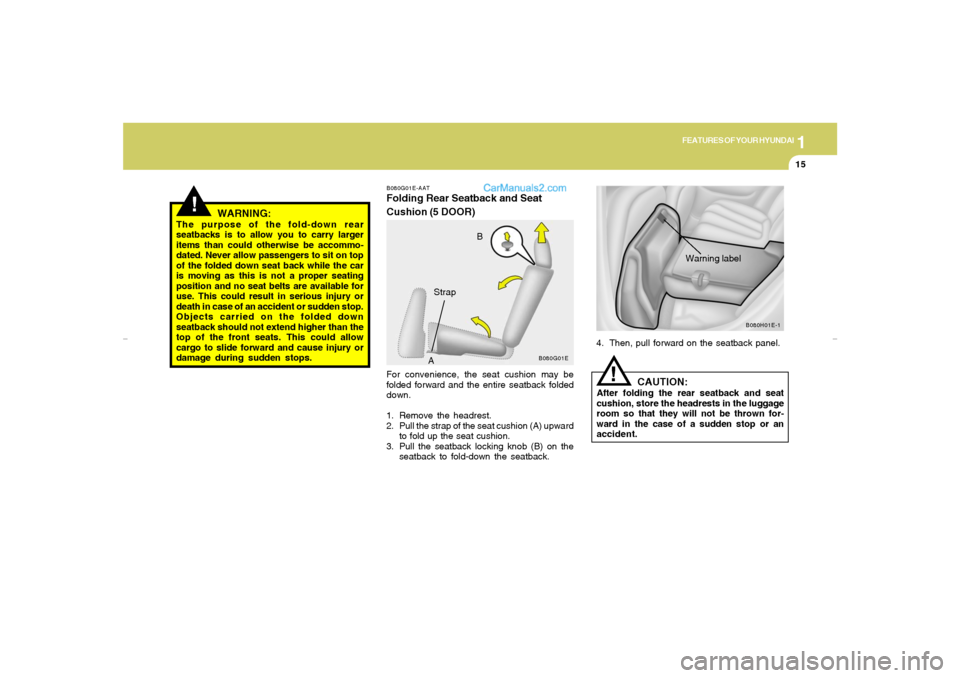

B080G01E-AATFolding Rear Seatback and Seat
Cushion (5 DOOR)For convenience, the seat cushion may be
folded forward and the entire seatback folded
down.
1. Remove the headrest.
2. Pull the strap of the seat cushion (A) upward
to fold up the seat cushion.
3. Pull the seatback locking knob (B) on the
seatback to fold-down the seatback.4. Then, pull forward on the seatback panel.Warning label
B080H01E-1
B080G01E
Strap
CAUTION:
After folding the rear seatback and seat
cushion, store the headrests in the luggage
room so that they will not be thrown for-
ward in the case of a sudden stop or an
accident.
!
AB
xdflhma-1a.p652/5/2008, 2:02 PM 15

1FEATURES OF YOUR HYUNDAI16
!
WARNING:
o Before folding the seatback, place the
rear seat belt buckles in the buckle clips
on the seatback. This will prevent the
seat belt buckles from becoming cov-
ered by the seat cushion when it is
returned to the seating position.
o When you return the folded down seat
back to its upright position, make sure
the seat belts are in position to be acces-
sible and to function properly.
o When returning the seat cushion to the
seating position, place the seat belt
buckles on top of the cushion.o The purpose of the fold down rear seat
back and the fold forward rear seat cush-
ion is to increase cargo space. Do not
allow passengers to sit in the cargo area
while the car is moving. This is not a
proper seating position and no seat belts
are available for use when the seat back
is folded down. Passengers who are not
properly seated and wearing seat belts
could sustain serious injuries or death in
case of an accident or a sudden stop.
o Objects should not extend higher than
the top of the front seatbacks. This could
allow cargo to slide forward and cause
injury or damage during sudden stops.
o When you return the folded down seat
back to its upright position, always be
sure to place the rear seat belt buckles on
the seat cushion below the seatback.
o When you return the folded down
seatback to its upright position, always
be sure to install the headrests in their
proper positions. Headrests are impor-
tant to the safety of occupants in a rear
collision. If the headrests are not in-
stalled in their proper position, serious
injury or death could result if a rear end
collision occurs. Buckle clips
B080I01E
!
WARNING:

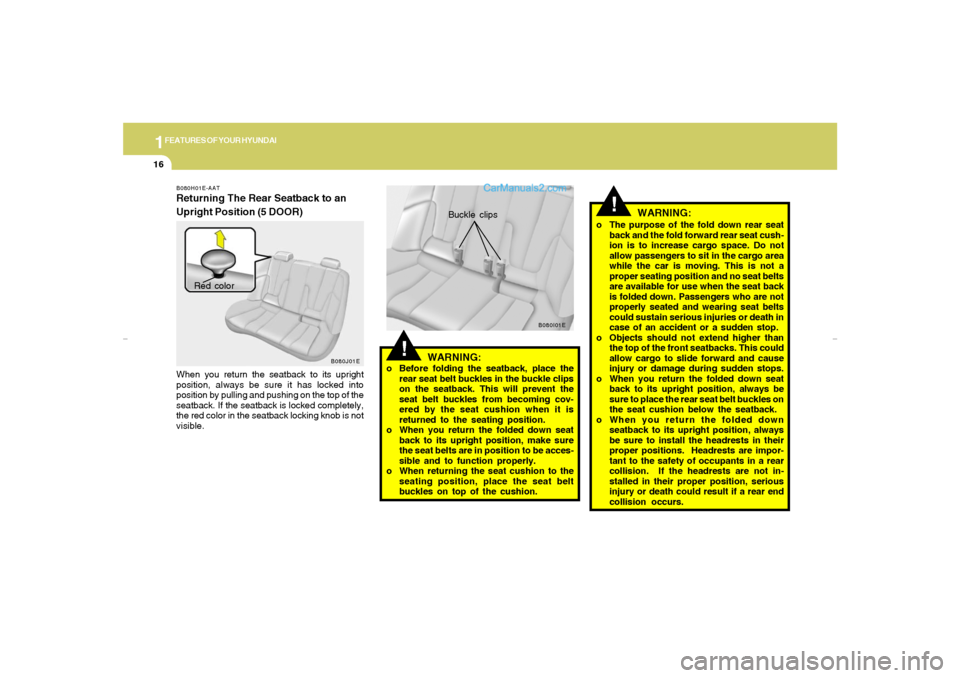

B080H01E-AATReturning The Rear Seatback to an
Upright Position (5 DOOR)When you return the seatback to its upright
position, always be sure it has locked into
position by pulling and pushing on the top of the
seatback. If the seatback is locked completely,
the red color in the seatback locking knob is not
visible.
B080J01E
Red color
xdflhma-1a.p652/5/2008, 2:02 PM 16

1
FEATURES OF YOUR HYUNDAI
17

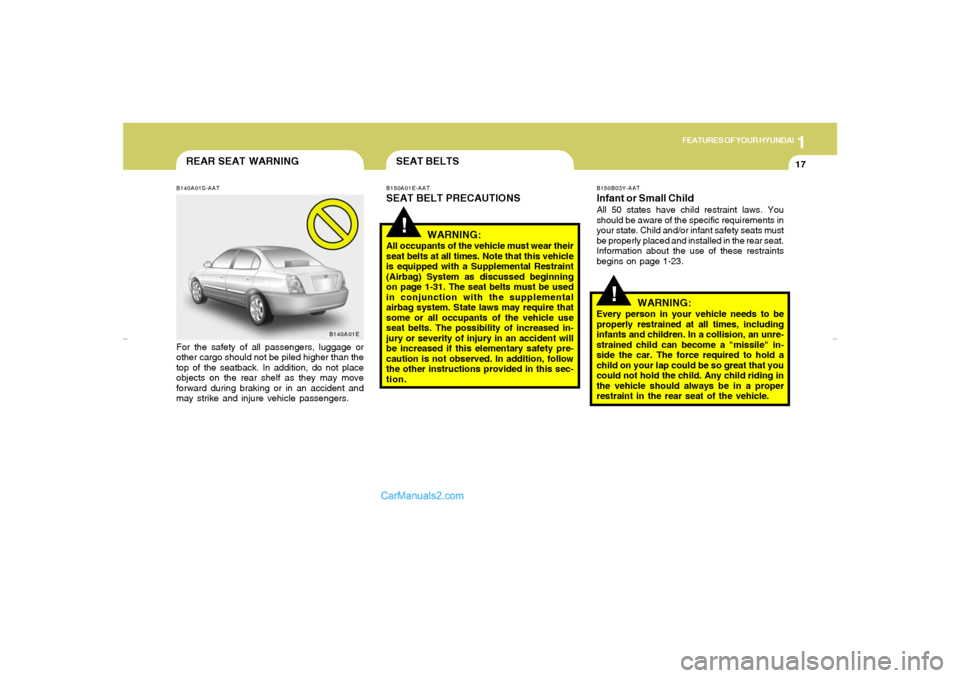

REAR SEAT WARNINGB140A01S-AATFor the safety of all passengers, luggage or
other cargo should not be piled higher than the
top of the seatback. In addition, do not place
objects on the rear shelf as they may move
forward during braking or in an accident and
may strike and injure vehicle passengers.
B140A01E
SEAT BELTS
!
!
B150A01E-AATSEAT BELT PRECAUTIONS
WARNING:All occupants of the vehicle must wear their
seat belts at all times. Note that this vehicle
is equipped with a Supplemental Restraint
(Airbag) System as discussed beginning
on page 1-31. The seat belts must be used
in conjunction with the supplemental
airbag system. State laws may require that
some or all occupants of the vehicle use
seat belts. The possibility of increased in-
jury or severity of injury in an accident will
be increased if this elementary safety pre-
caution is not observed. In addition, follow
the other instructions provided in this sec-
tion.
B150B03Y-AATInfant or Small ChildAll 50 states have child restraint laws. You
should be aware of the specific requirements in
your state. Child and/or infant safety seats must
be properly placed and installed in the rear seat.
Information about the use of these restraints
begins on page 1-23.
WARNING:
Every person in your vehicle needs to be
properly restrained at all times, including
infants and children. In a collision, an unre-
strained child can become a "missile" in-
side the car. The force required to hold a
child on your lap could be so great that you
could not hold the child. Any child riding in
the vehicle should always be in a proper
restraint in the rear seat of the vehicle.
xdflhma-1a.p652/5/2008, 2:02 PM 17

1FEATURES OF YOUR HYUNDAI18
!

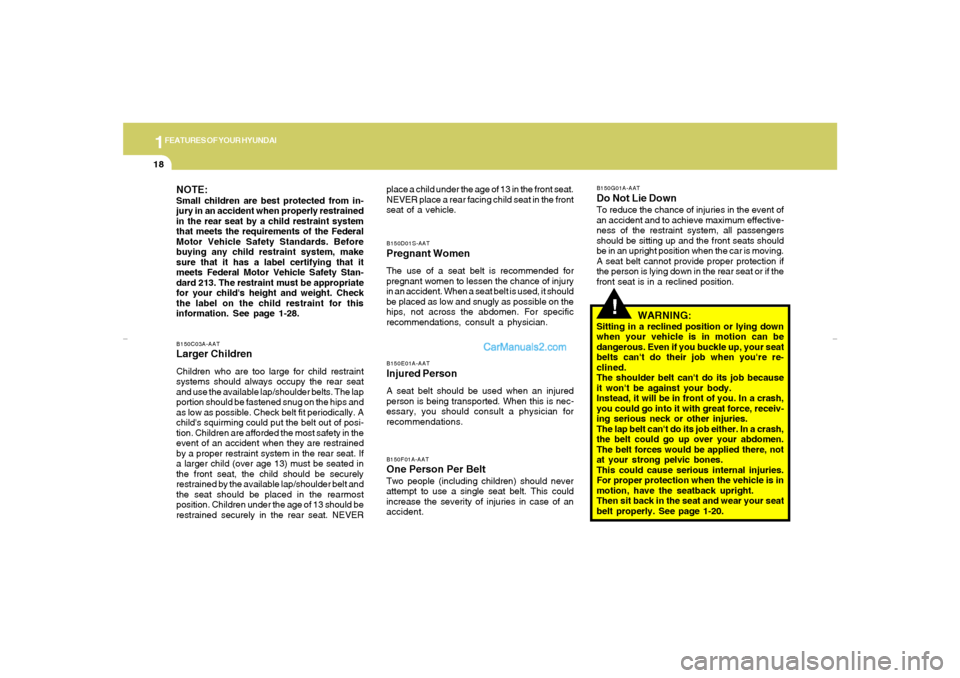

B150D01S-AATPregnant WomenThe use of a seat belt is recommended for
pregnant women to lessen the chance of injury
in an accident. When a seat belt is used, it should
be placed as low and snugly as possible on the
hips, not across the abdomen. For specific
recommendations, consult a physician.B150E01A-AATInjured PersonA seat belt should be used when an injured
person is being transported. When this is nec-
essary, you should consult a physician for
recommendations.B150F01A-AATOne Person Per BeltTwo people (including children) should never
attempt to use a single seat belt. This could
increase the severity of injuries in case of an
accident.
B150G01A-AATDo Not Lie DownTo reduce the chance of injuries in the event of
an accident and to achieve maximum effective-
ness of the restraint system, all passengers
should be sitting up and the front seats should
be in an upright position when the car is moving.
A seat belt cannot provide proper protection if
the person is lying down in the rear seat or if the
front seat is in a reclined position.
WARNING:
Sitting in a reclined position or lying down
when your vehicle is in motion can be
dangerous. Even if you buckle up, your seat
belts can't do their job when you're re-
clined.
The shoulder belt can't do its job because
it won't be against your body.
Instead, it will be in front of you. In a crash,
you could go into it with great force, receiv-
ing serious neck or other injuries.
The lap belt can't do its job either. In a crash,
the belt could go up over your abdomen.
The belt forces would be applied there, not
at your strong pelvic bones.
This could cause serious internal injuries.
For proper protection when the vehicle is in
motion, have the seatback upright.
Then sit back in the seat and wear your seat
belt properly. See page 1-20. place a child under the age of 13 in the front seat.
NEVER place a rear facing child seat in the front
seat of a vehicle.
B150C03A-AATLarger ChildrenChildren who are too large for child restraint
systems should always occupy the rear seat
and use the available lap/shoulder belts. The lap
portion should be fastened snug on the hips and
as low as possible. Check belt fit periodically. A
child's squirming could put the belt out of posi-
tion. Children are afforded the most safety in the
event of an accident when they are restrained
by a proper restraint system in the rear seat. If
a larger child (over age 13) must be seated in
the front seat, the child should be securely
restrained by the available lap/shoulder belt and
the seat should be placed in the rearmost
position. Children under the age of 13 should be
restrained securely in the rear seat. NEVERNOTE:Small children are best protected from in-
jury in an accident when properly restrained
in the rear seat by a child restraint system
that meets the requirements of the Federal
Motor Vehicle Safety Standards. Before
buying any child restraint system, make
sure that it has a label certifying that it
meets Federal Motor Vehicle Safety Stan-
dard 213. The restraint must be appropriate
for your child's height and weight. Check
the label on the child restraint for this
information. See page 1-28.
xdflhma-1a.p652/5/2008, 2:02 PM 18

1

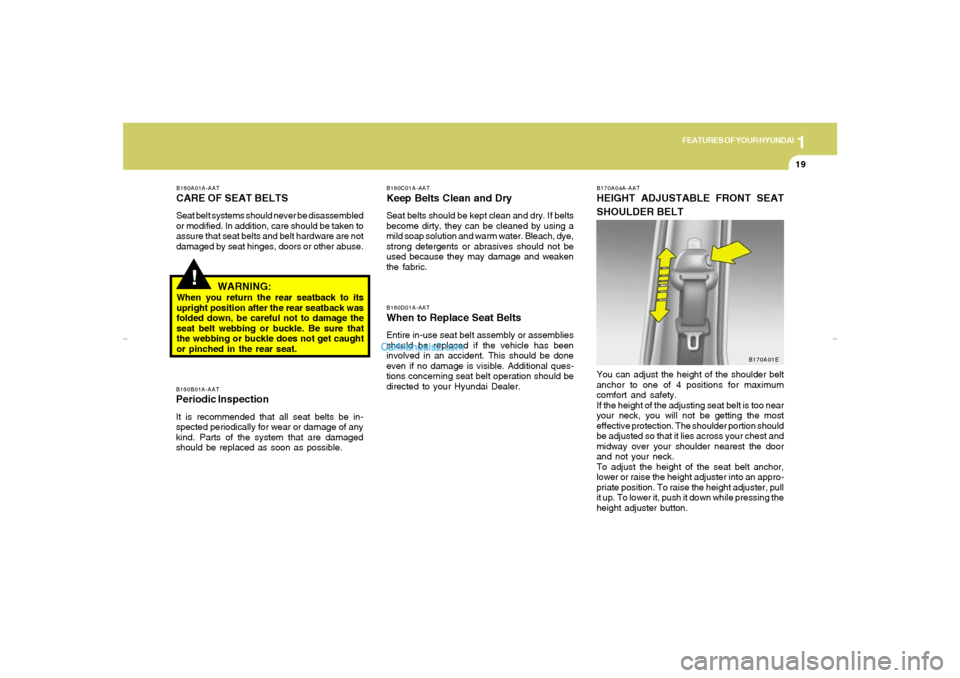

FEATURES OF YOUR HYUNDAI
19
B160A01A-AATCARE OF SEAT BELTSSeat belt systems should never be disassembled
or modified. In addition, care should be taken to
assure that seat belts and belt hardware are not
damaged by seat hinges, doors or other abuse.B160B01A-AATPeriodic InspectionIt is recommended that all seat belts be in-
spected periodically for wear or damage of any
kind. Parts of the system that are damaged
should be replaced as soon as possible.
WARNING:
When you return the rear seatback to its
upright position after the rear seatback was
folded down, be careful not to damage the
seat belt webbing or buckle. Be sure that
the webbing or buckle does not get caught
or pinched in the rear seat.
!
B160C01A-AATKeep Belts Clean and DrySeat belts should be kept clean and dry. If belts
become dirty, they can be cleaned by using a
mild soap solution and warm water. Bleach, dye,
strong detergents or abrasives should not be
used because they may damage and weaken
the fabric.B160D01A-AATWhen to Replace Seat BeltsEntire in-use seat belt assembly or assemblies
should be replaced if the vehicle has been
involved in an accident. This should be done
even if no damage is visible. Additional ques-
tions concerning seat belt operation should be
directed to your Hyundai Dealer.
B170A04A-AATHEIGHT ADJUSTABLE FRONT SEAT
SHOULDER BELTYou can adjust the height of the shoulder belt
anchor to one of 4 positions for maximum
comfort and safety.
If the height of the adjusting seat belt is too near
your neck, you will not be getting the most
effective protection. The shoulder portion should
be adjusted so that it lies across your chest and
midway over your shoulder nearest the door
and not your neck.
To adjust the height of the seat belt anchor,
lower or raise the height adjuster into an appro-
priate position. To raise the height adjuster, pull
it up. To lower it, push it down while pressing the
height adjuster button.
B170A01E
xdflhma-1a.p652/5/2008, 2:02 PM 19
