1FEATURES OF YOUR HYUNDAI50
!
B290A02E-AATENGINE COOLANT TEMPERATURE
GAUGE
WARNING:
Never remove the radiator cap when the
engine is hot. The engine coolant is under
pressure and could erupt and cause severe
burns. Wait until the engine is cool before
removing the radiator cap.
The needle on the engine coolant temperature
gauge should stay in the middle between "H"
and "C". If it moves across the dial to "H" (Hot),
pull over and stop as soon as possible and turn
off the engine. Then open the hood and, after the
engine has cooled, check the coolant level and
the water pump drive belt. If you suspect cooling
system trouble, have your cooling system
checked by a Hyundai dealer as soon as
possible.
B300A01S-AATSPEEDOMETERYour Hyundai's speedometer is calibrated in
miles per hour (on the outer scale) and kilome-
ters per hour (on the inner scale).
HXDFL290
HXDFL283
Without Trip Computer
With Trip ComputerWithout Trip Computer
HXDFL030-A
HXDFL029-A
With Trip Computer
xdflhma-1a.p652/5/2008, 2:03 PM 50

1
FEATURES OF YOUR HYUNDAI
51
B330A01L-AATTACHOMETER
The tachometer registers the speed of your
engine in revolutions per minute (rpm).
CAUTION:
The engine should not be raced to such a
speed that the needle enters the red zone
on the tachometer face. This can cause
severe engine damage and may void your
warranty.
!
B310B04E-AATODOMETER/TRIP ODOMETER
OdometerRecords the total distance the vehicle has been
driven.NOTE:Federal law forbids alteration of the odom-
eter of any vehicle with the intent to change
the mileage registered on the odometer.
The alteration of the odometer may void
your warranty coverage. Without Trip Computer
HXDFL330
HXDFL331
With Trip ComputerWithout Trip Computer
HXDFL231-A
xdflhma-1a.p652/5/2008, 2:03 PM 51

1FEATURES OF YOUR HYUNDAI52
HXDFL077-1
Function of Digital Odometer/
Trip OdometerPushing in the reset switch under the right side
of the speedometer when the ignition switch is
turned "ON" will display the following sequence:
1. OdometerThe odometer records the total driving distance
in miles or kilometers.2,3. Trip odometerRecords the distance of 2 trips in miles or
kilometers.
TRIP A : First distance you have traveled from
your origination point to a first destina-
tion.
TRIP B : Second distance from the first desti-
nation to the final destination.
To shift from TRIP A to TRIP B, press the reset
switch. When pressed for 1 second, it will reset
to 0.
B310A01S-AATODOMETERThe odometer records the total driving distance
in miles or kilometers, and is useful for keeping
a record for maintenance intervals.NOTE:Federal law forbids alteration of the odom-
eter of any vehicle with the intent to change
the number of the odometer.
The alteration of the odometer may void
your warranty coverage.With Trip Computer
HXDFL078-A
Reset switch
HXDFL230-A
Odometer
xdflhma-1a.p652/5/2008, 2:03 PM 52

1
FEATURES OF YOUR HYUNDAI
53

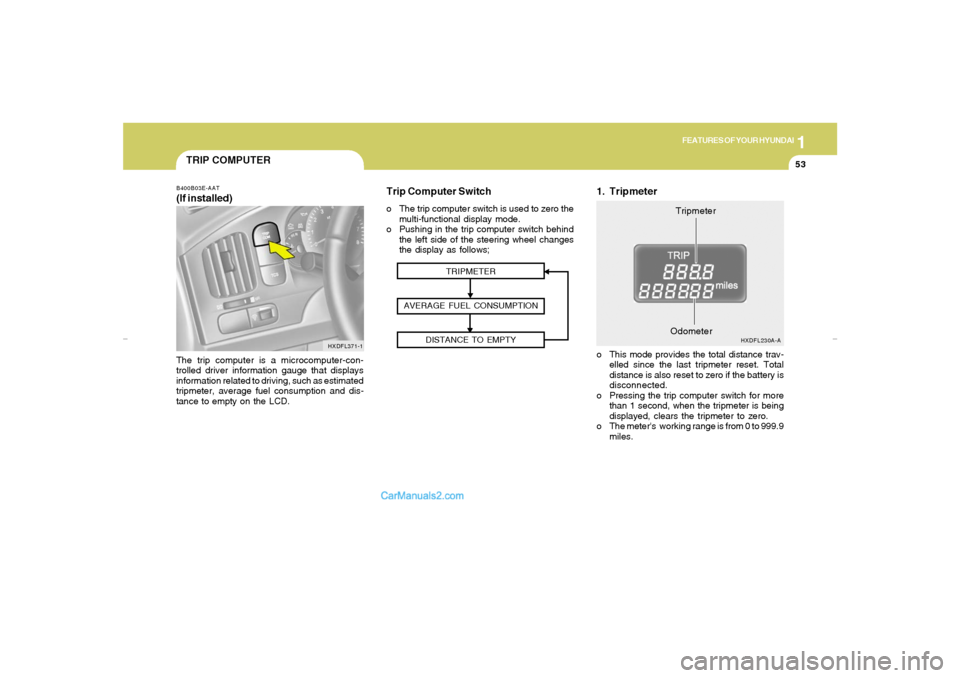

B400B03E-AAT(If installed)The trip computer is a microcomputer-con-
trolled driver information gauge that displays
information related to driving, such as estimated
tripmeter, average fuel consumption and dis-
tance to empty on the LCD.
1. Tripmetero This mode provides the total distance trav-
elled since the last tripmeter reset. Total
distance is also reset to zero if the battery is
disconnected.
o Pressing the trip computer switch for more
than 1 second, when the tripmeter is being
displayed, clears the tripmeter to zero.
o The meter's working range is from 0 to 999.9
miles.
HXDFL371-1
Tripmeter
TRIPMETER
AVERAGE FUEL CONSUMPTION
DISTANCE TO EMPTY
HXDFL230A-A
Odometer
Trip Computer Switcho The trip computer switch is used to zero the
multi-functional display mode.
o Pushing in the trip computer switch behind
the left side of the steering wheel changes
the display as follows;
TRIP COMPUTER
xdflhma-1a.p652/5/2008, 2:03 PM 53

1FEATURES OF YOUR HYUNDAI54

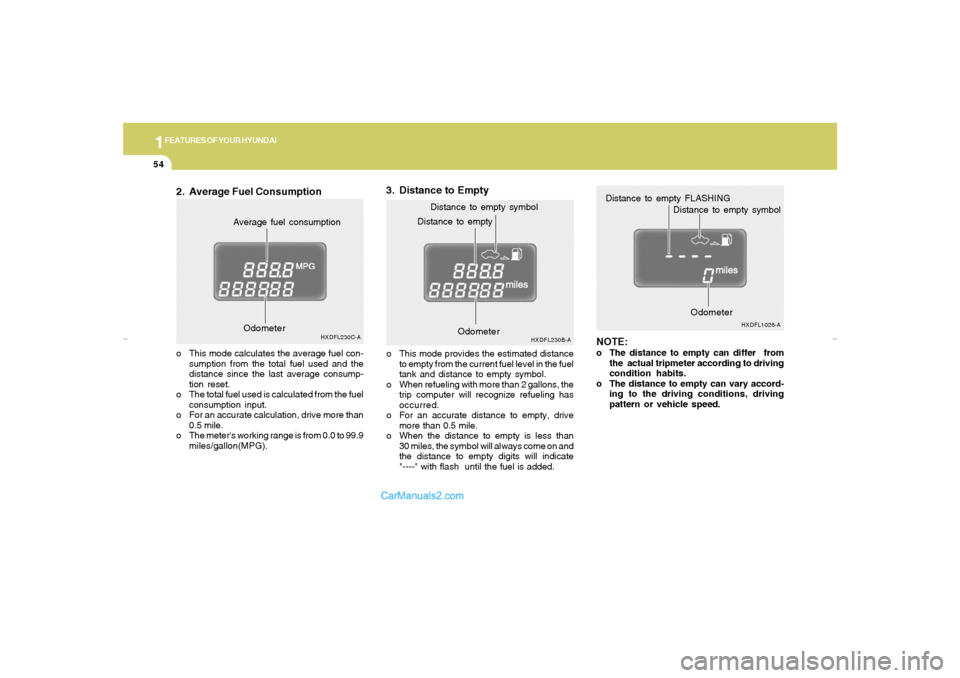

2. Average Fuel Consumption3. Distance to Empty
NOTE:
o The distance to empty can differ from
the actual tripmeter according to driving
condition habits.
o The distance to empty can vary accord-
ing to the driving conditions, driving
pattern or vehicle speed. Distance to emptyDistance to empty symbol
HXDFL230B-A
OdometerOdometer
HXDFL1026-A
Distance to empty FLASHING
Distance to empty symbol
Average fuel consumption
HXDFL230C-A
o This mode calculates the average fuel con-
sumption from the total fuel used and the
distance since the last average consump-
tion reset.
o The total fuel used is calculated from the fuel
consumption input.
o For an accurate calculation, drive more than
0.5 mile.
o The meter's working range is from 0.0 to 99.9
miles/gallon(MPG).o This mode provides the estimated distance
to empty from the current fuel level in the fuel
tank and distance to empty symbol.
o When refueling with more than 2 gallons, the
trip computer will recognize refueling has
occurred.
o For an accurate distance to empty, drive
more than 0.5 mile.
o When the distance to empty is less than
30 miles, the symbol will always come on and
the distance to empty digits will indicate
"----" with flash until the fuel is added. Odometer
xdflhma-1a.p652/5/2008, 2:03 PM 54

1
FEATURES OF YOUR HYUNDAI
55

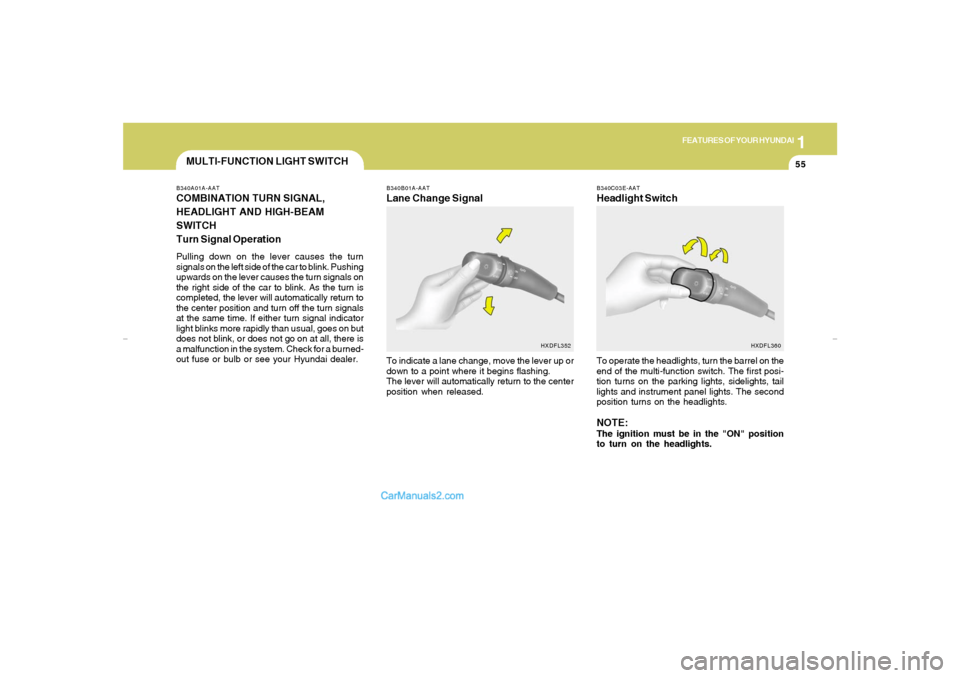

B340A01A-AATCOMBINATION TURN SIGNAL,
HEADLIGHT AND HIGH-BEAM
SWITCH
Turn Signal OperationPulling down on the lever causes the turn
signals on the left side of the car to blink. Pushing
upwards on the lever causes the turn signals on
the right side of the car to blink. As the turn is
completed, the lever will automatically return to
the center position and turn off the turn signals
at the same time. If either turn signal indicator
light blinks more rapidly than usual, goes on but
does not blink, or does not go on at all, there is
a malfunction in the system. Check for a burned-
out fuse or bulb or see your Hyundai dealer.
B340B01A-AATLane Change SignalTo indicate a lane change, move the lever up or
down to a point where it begins flashing.
The lever will automatically return to the center
position when released.
MULTI-FUNCTION LIGHT SWITCH
HXDFL352B340C03E-AAT
Headlight SwitchTo operate the headlights, turn the barrel on the
end of the multi-function switch. The first posi-
tion turns on the parking lights, sidelights, tail
lights and instrument panel lights. The second
position turns on the headlights.NOTE:The ignition must be in the "ON" position
to turn on the headlights.
HXDFL360
xdflhma-1a.p652/5/2008, 2:03 PM 55

1FEATURES OF YOUR HYUNDAI56

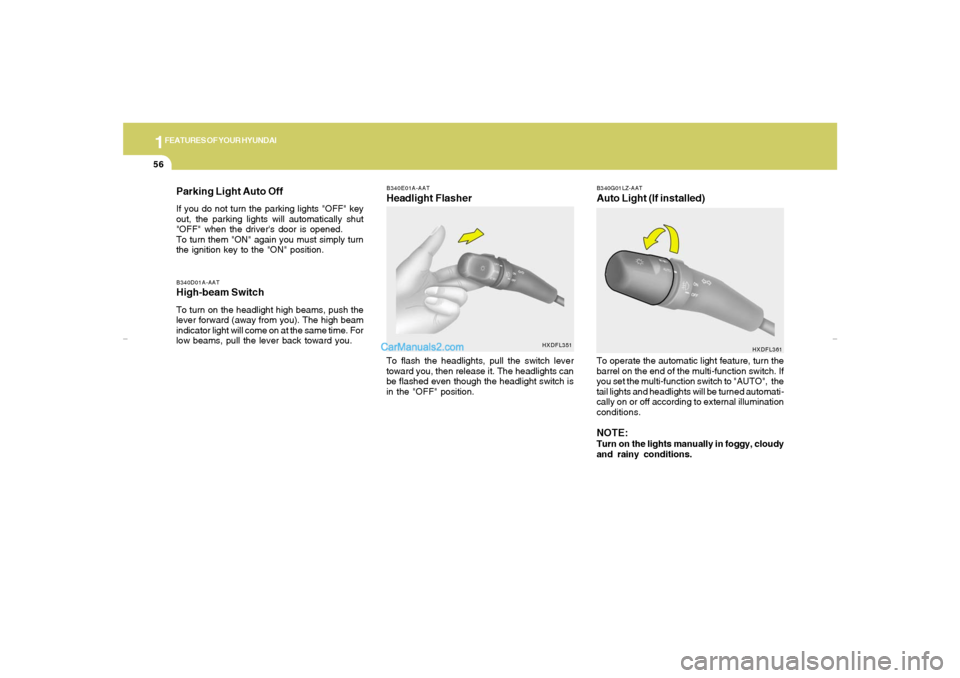

Parking Light Auto OffIf you do not turn the parking lights "OFF" key
out, the parking lights will automatically shut
"OFF" when the driver's door is opened.
To turn them "ON" again you must simply turn
the ignition key to the "ON" position.B340D01A-AATHigh-beam SwitchTo turn on the headlight high beams, push the
lever forward (away from you). The high beam
indicator light will come on at the same time. For
low beams, pull the lever back toward you.
B340E01A-AATHeadlight FlasherTo flash the headlights, pull the switch lever
toward you, then release it. The headlights can
be flashed even though the headlight switch is
in the "OFF" position.
B340G01LZ-AATAuto Light (If installed)
HXDFL361
To operate the automatic light feature, turn the
barrel on the end of the multi-function switch. If
you set the multi-function switch to "AUTO", the
tail lights and headlights will be turned automati-
cally on or off according to external illumination
conditions.NOTE:Turn on the lights manually in foggy, cloudy
and rainy conditions.
HXDFL351
xdflhma-1a.p652/5/2008, 2:03 PM 56

1
FEATURES OF YOUR HYUNDAI
57

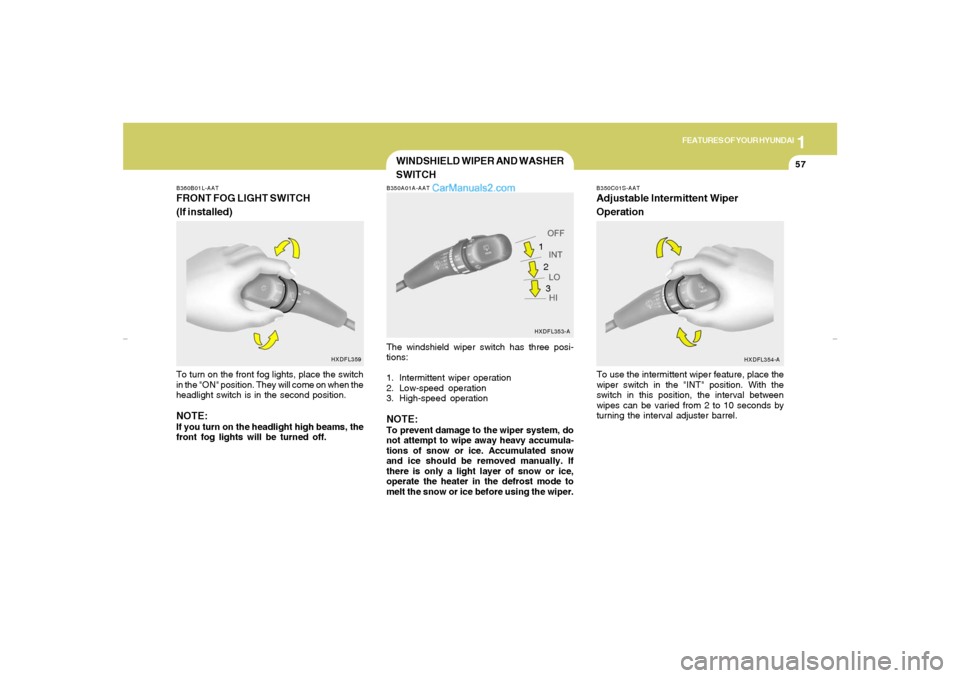

B350A01A-AATThe windshield wiper switch has three posi-
tions:
1. Intermittent wiper operation
2. Low-speed operation
3. High-speed operationNOTE:To prevent damage to the wiper system, do
not attempt to wipe away heavy accumula-
tions of snow or ice. Accumulated snow
and ice should be removed manually. If
there is only a light layer of snow or ice,
operate the heater in the defrost mode to
melt the snow or ice before using the wiper.
B350C01S-AATAdjustable Intermittent Wiper
OperationTo use the intermittent wiper feature, place the
wiper switch in the "INT" position. With the
switch in this position, the interval between
wipes can be varied from 2 to 10 seconds by
turning the interval adjuster barrel.
B360B01L-AATFRONT FOG LIGHT SWITCH
(If installed)To turn on the front fog lights, place the switch
in the "ON" position. They will come on when the
headlight switch is in the second position.NOTE:If you turn on the headlight high beams, the
front fog lights will be turned off.
HXDFL359HXDFL353-A
HXDFL354-A
WINDSHIELD WIPER AND WASHER
SWITCH
1
2
3
xdflhma-1a.p652/5/2008, 2:03 PM 57

1FEATURES OF YOUR HYUNDAI58

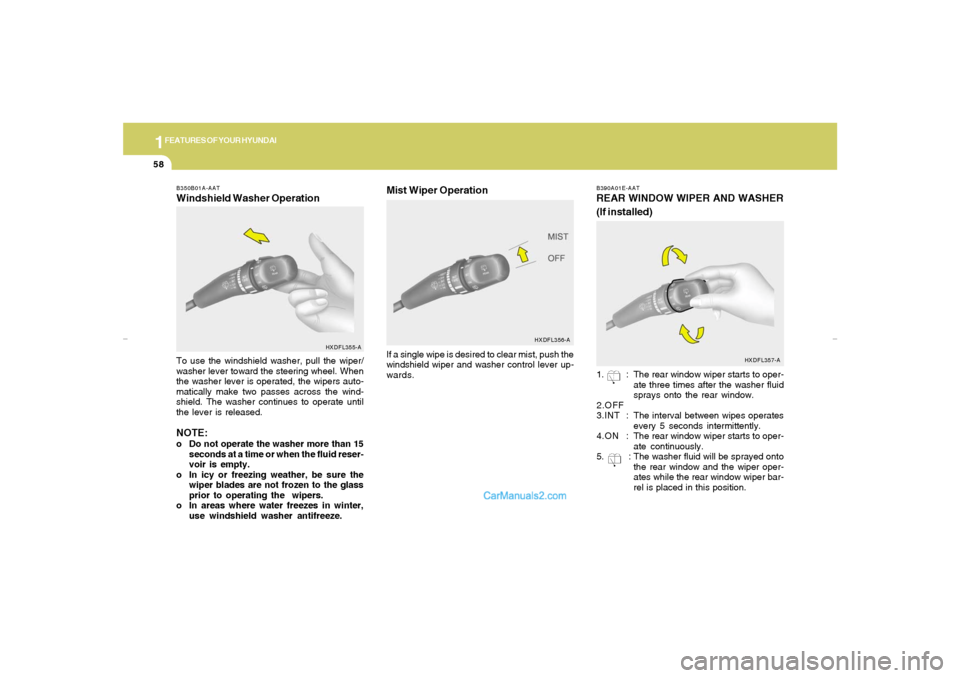

B350B01A-AATWindshield Washer OperationTo use the windshield washer, pull the wiper/
washer lever toward the steering wheel. When
the washer lever is operated, the wipers auto-
matically make two passes across the wind-
shield. The washer continues to operate until
the lever is released.NOTE:o Do not operate the washer more than 15
seconds at a time or when the fluid reser-
voir is empty.
o In icy or freezing weather, be sure the
wiper blades are not frozen to the glass
prior to operating the wipers.
o In areas where water freezes in winter,
use windshield washer antifreeze.
HXDFL355-AB390A01E-AAT
REAR WINDOW WIPER AND WASHER
(If installed)1. : The rear window wiper starts to oper-
ate three times after the washer fluid
sprays onto the rear window.
2.OFF
3.INT :The interval between wipes operates
every 5 seconds intermittently.
4.ON :The rear window wiper starts to oper-
ate continuously.
5. : The washer fluid will be sprayed onto
the rear window and the wiper oper-
ates while the rear window wiper bar-
rel is placed in this position.
HXDFL357-A
Mist Wiper OperationIf a single wipe is desired to clear mist, push the
windshield wiper and washer control lever up-
wards.
HXDFL356-A
xdflhma-1a.p652/5/2008, 2:03 PM 58

1
FEATURES OF YOUR HYUNDAI
59

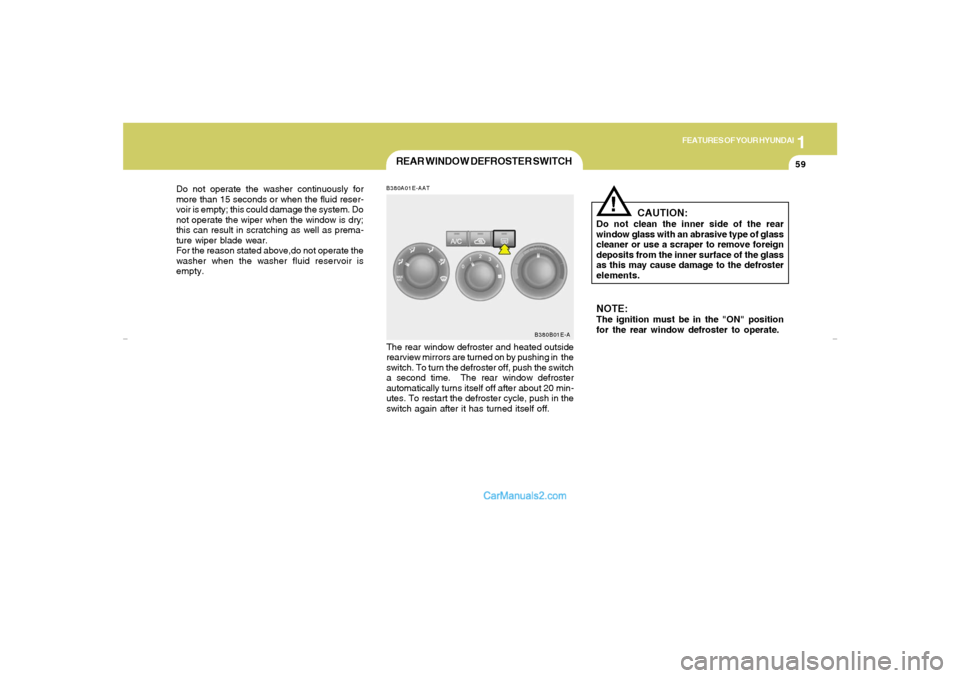

B380A01E-AATThe rear window defroster and heated outside
rearview mirrors are turned on by pushing in the
switch. To turn the defroster off, push the switch
a second time. The rear window defroster
automatically turns itself off after about 20 min-
utes. To restart the defroster cycle, push in the
switch again after it has turned itself off.
CAUTION:
Do not clean the inner side of the rear
window glass with an abrasive type of glass
cleaner or use a scraper to remove foreign
deposits from the inner surface of the glass
as this may cause damage to the defroster
elements.
!
NOTE:The ignition must be in the "ON" position
for the rear window defroster to operate. Do not operate the washer continuously for
more than 15 seconds or when the fluid reser-
voir is empty; this could damage the system. Do
not operate the wiper when the window is dry;
this can result in scratching as well as prema-
ture wiper blade wear.
For the reason stated above,do not operate the
washer when the washer fluid reservoir is
empty.
REAR WINDOW DEFROSTER SWITCH
B380B01E-A
xdflhma-1a.p652/5/2008, 2:03 PM 59
