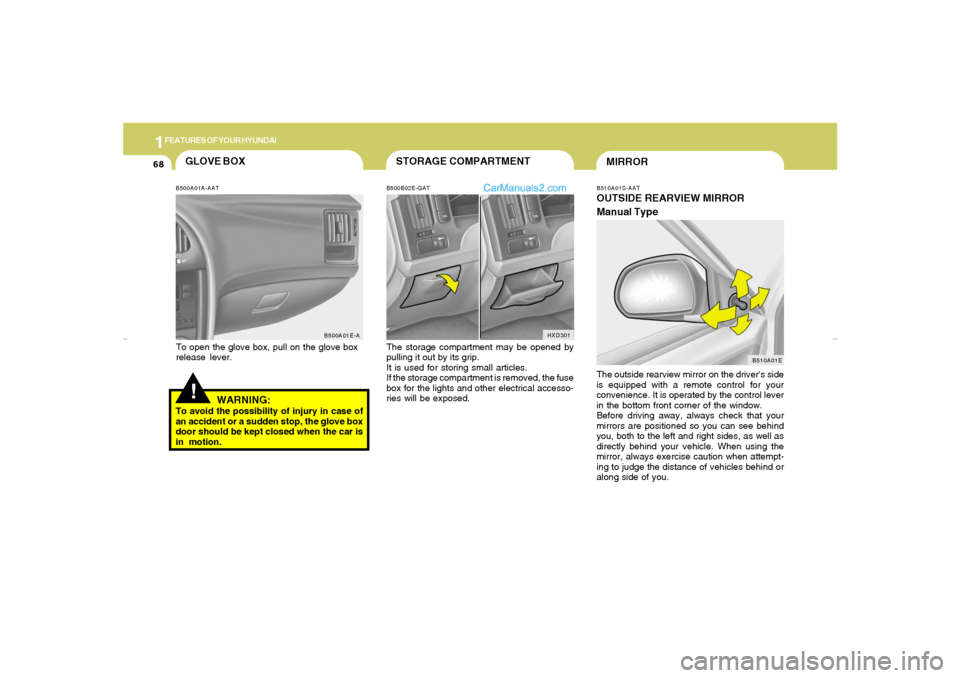

1FEATURES OF YOUR HYUNDAI68
MIRRORB510A01S-AATOUTSIDE REARVIEW MIRROR
Manual TypeThe outside rearview mirror on the driver's side
is equipped with a remote control for your
convenience. It is operated by the control lever
in the bottom front corner of the window.
Before driving away, always check that your
mirrors are positioned so you can see behind
you, both to the left and right sides, as well as
directly behind your vehicle. When using the
mirror, always exercise caution when attempt-
ing to judge the distance of vehicles behind or
along side of you.
B510A01E
STORAGE COMPARTMENTB500B02E-GATThe storage compartment may be opened by
pulling it out by its grip.
It is used for storing small articles.
If the storage compartment is removed, the fuse
box for the lights and other electrical accesso-
ries will be exposed.
HXD301
GLOVE BOXB500A01A-AAT
!
WARNING:
To avoid the possibility of injury in case of
an accident or a sudden stop, the glove box
door should be kept closed when the car is
in motion.
B500A01E-A
To open the glove box, pull on the glove box
release lever.
xdflhma-1a.p652/5/2008, 2:04 PM 68

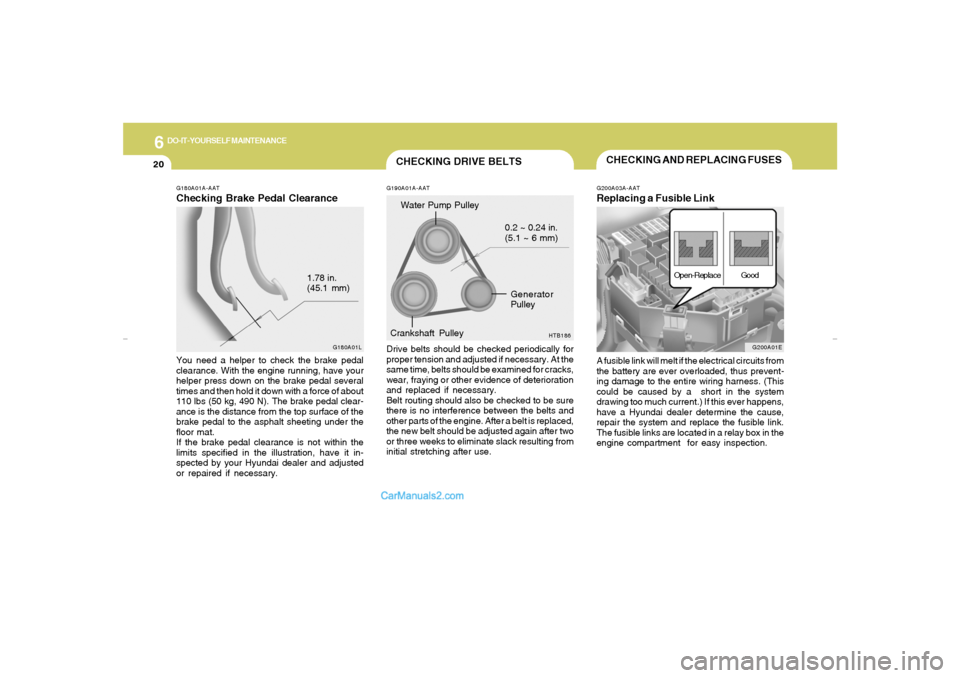

6
DO-IT-YOURSELF MAINTENANCE
20
CHECKING AND REPLACING FUSESG200A03A-AATReplacing a Fusible LinkA fusible link will melt if the electrical circuits from
the battery are ever overloaded, thus prevent-
ing damage to the entire wiring harness. (This
could be caused by a short in the system
drawing too much current.) If this ever happens,
have a Hyundai dealer determine the cause,
repair the system and replace the fusible link.
The fusible links are located in a relay box in the
engine compartment for easy inspection.
Good
Open-ReplaceG200A01E
HTB186
CHECKING DRIVE BELTS
G180A01A-AATChecking Brake Pedal ClearanceYou need a helper to check the brake pedal
clearance. With the engine running, have your
helper press down on the brake pedal several
times and then hold it down with a force of about
110 lbs (50 kg, 490 N). The brake pedal clear-
ance is the distance from the top surface of the
brake pedal to the asphalt sheeting under the
floor mat.
If the brake pedal clearance is not within the
limits specified in the illustration, have it in-
spected by your Hyundai dealer and adjusted
or repaired if necessary.
G180A01L
1.78 in.
(45.1 mm)
Drive belts should be checked periodically for
proper tension and adjusted if necessary. At the
same time, belts should be examined for cracks,
wear, fraying or other evidence of deterioration
and replaced if necessary.
Belt routing should also be checked to be sure
there is no interference between the belts and
other parts of the engine. After a belt is replaced,
the new belt should be adjusted again after two
or three weeks to eliminate slack resulting from
initial stretching after use.
G190A01A-AAT
Water Pump Pulley
Generator
Pulley
Crankshaft Pulley0.2 ~ 0.24 in.
(5.1 ~ 6 mm)
xdflhma-6.p652/5/2008, 2:14 PM 20

6
DO-IT-YOURSELF MAINTENANCE
21
!

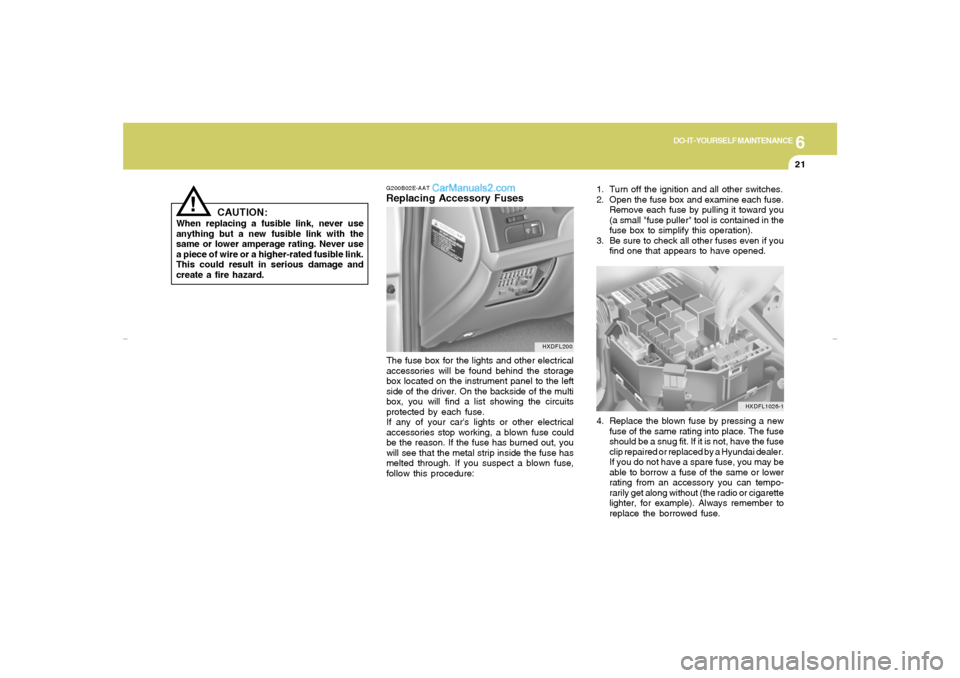

G200B02E-AATReplacing Accessory Fuses
CAUTION:
When replacing a fusible link, never use
anything but a new fusible link with the
same or lower amperage rating. Never use
a piece of wire or a higher-rated fusible link.
This could result in serious damage and
create a fire hazard.
The fuse box for the lights and other electrical
accessories will be found behind the storage
box located on the instrument panel to the left
side of the driver. On the backside of the multi
box, you will find a list showing the circuits
protected by each fuse.
If any of your car's lights or other electrical
accessories stop working, a blown fuse could
be the reason. If the fuse has burned out, you
will see that the metal strip inside the fuse has
melted through. If you suspect a blown fuse,
follow this procedure:
HXDFL200
1. Turn off the ignition and all other switches.
2. Open the fuse box and examine each fuse.
Remove each fuse by pulling it toward you
(a small "fuse puller" tool is contained in the
fuse box to simplify this operation).
3. Be sure to check all other fuses even if you
find one that appears to have opened.
4. Replace the blown fuse by pressing a new
fuse of the same rating into place. The fuse
should be a snug fit. If it is not, have the fuse
clip repaired or replaced by a Hyundai dealer.
If you do not have a spare fuse, you may be
able to borrow a fuse of the same or lower
rating from an accessory you can tempo-
rarily get along without (the radio or cigarette
lighter, for example). Always remember to
replace the borrowed fuse.
HXDFL1026-1
xdflhma-6.p652/5/2008, 2:14 PM 21

6
DO-IT-YOURSELF MAINTENANCE
34

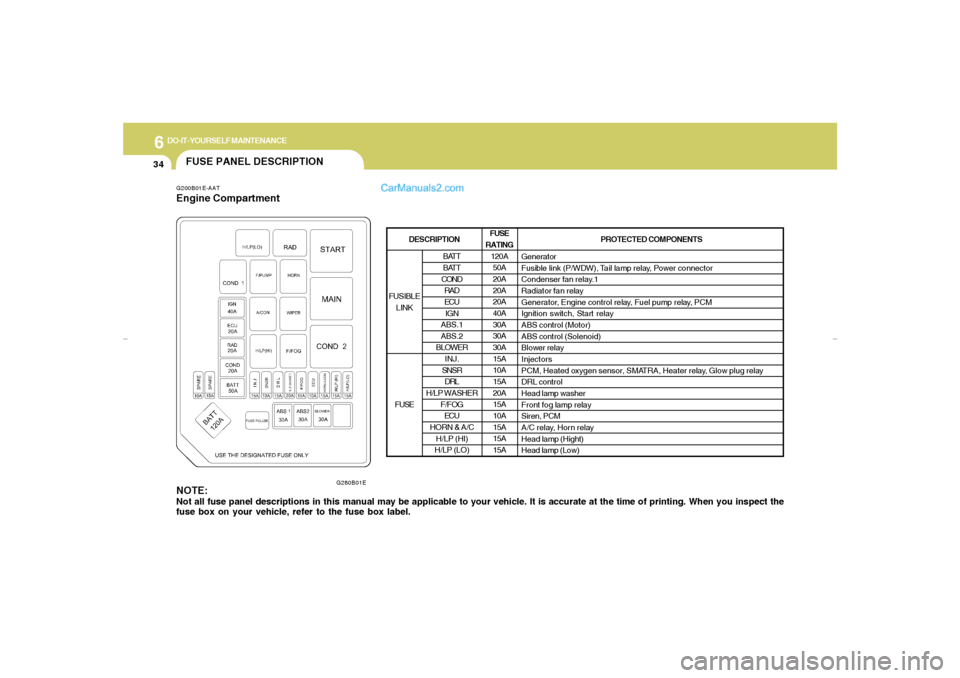

FUSE PANEL DESCRIPTIONG200B01E-AATEngine Compartment
G280B01E
NOTE:Not all fuse panel descriptions in this manual may be applicable to your vehicle. It is accurate at the time of printing. When you inspect the
fuse box on your vehicle, refer to the fuse box label.
FUSE
RATING
120A
50A
20A
20A
20A
40A
30A
30A
30A
15A
10A
15A
20A
15A
10A
15A
15A
15APROTECTED COMPONENTS
Generator
Fusible link (P/WDW), Tail lamp relay, Power connector
Condenser fan relay.1
Radiator fan relay
Generator, Engine control relay, Fuel pump relay, PCM
Ignition switch, Start relay
ABS control (Motor)
ABS control (Solenoid)
Blower relay
Injectors
PCM, Heated oxygen sensor, SMATRA, Heater relay, Glow plug relay
DRL control
Head lamp washer
Front fog lamp relay
Siren, PCM
A/C relay, Horn relay
Head lamp (Hight)
Head lamp (Low)
BATT
BATT
COND
RAD
ECU
IGN
ABS.1
ABS.2
BLOWER
INJ.
SNSR
DRL
H/LP WASHER
F/FOG
ECU
HORN & A/C
H/LP (HI)
H/LP (LO) FUSIBLE
LINK
FUSE
DESCRIPTION
xdflhma-6.p652/5/2008, 2:15 PM 34

10
INDEX
3
D
Defrosting / Defogging ......................................................................1-89
Door
Locking, unlocking front door with a key ...................................... 1-5
Drink Holder ......................................................................................1-63
Drive Belts.........................................................................................6-20
Driving
Driving for economy .....................................................................2-14
Smooth cornering.........................................................................2-15
Winter driving...............................................................................2-15
E
Emission Control System ................................................................... 7-2
Engine
Before starting the engine .............................................................. 2-3
Compartment................................................................................. 6-2
Coolant........................................................................................... 6-7
Coolant temperature gauge .........................................................1-50
If the engine overheats .................................................................. 3-4
Number........................................................................................... 8-2
Oil ................................................................................................... 6-4
Starting........................................................................................... 2-4
Engine Exhaust Can Be Dangerous .................................................. 2-2
F
Fan Speed Control............................................................................1-86
Floor Mat Anchor ..............................................................................1-73
Fog Light
Front.............................................................................................1-57Front Seats
Adjustable front seats ..................................................................1-11
Adjustable headrests...................................................................1-13
Adjusting seat forward and rearward ..........................................1-12
Adjusting seatback angle .............................................................1-13
Fuel
Capacity......................................................................................... 9-2
Gauge...........................................................................................1-49
Recommendations......................................................................... 1-2
Fuel Filler Lid
Remote release............................................................................1-73
Fuses ................................................................................................6-20
Fuse Panel Description.....................................................................6-34
G
General Checks.................................................................................. 6-3
Glove Box..........................................................................................1-68
H
Hazard Warning System ..................................................................1-60
Headlight Aiming Adjustment ............................................................
6-24
Heating and Cooling Control.............................................................1-81
Heating and Ventilation
Air flow control..............................................................................1-82
Air intake control ..........................................................................1-85
Bi-level heating.............................................................................1-86
Defrosting / Defogging .................................................................1-89
Fan speed control (Blower control).............................................1-86
Temperature control....................................................................1-85
xdflhma-10.p652/5/2008, 2:18 PM 3
