Page 311 of 345

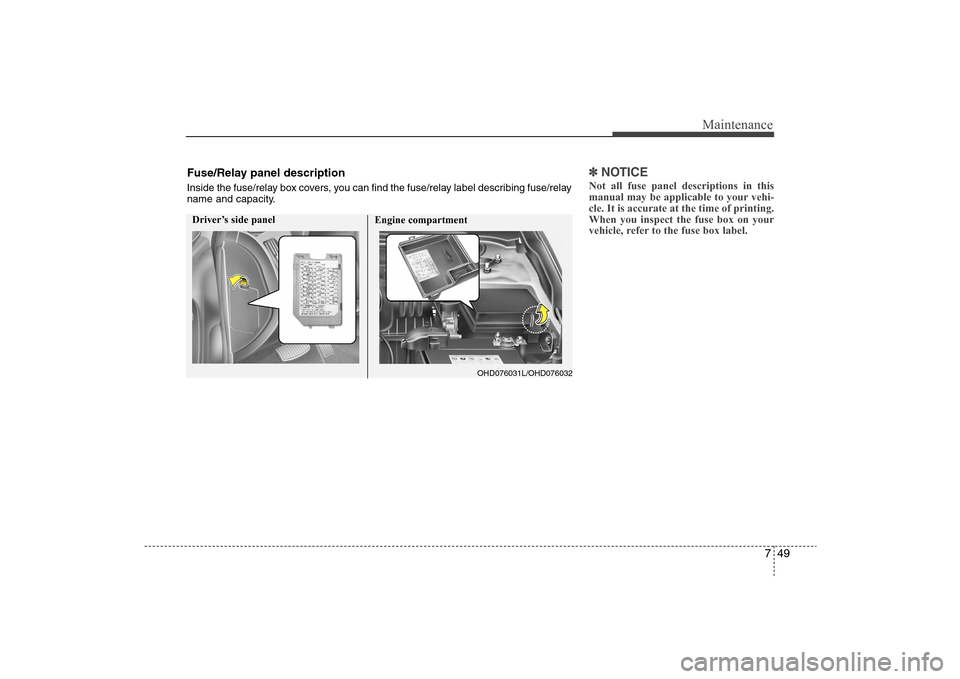

Hyundai Elantra 2009  Owners Manual 749
Maintenance
✽ ✽
NOTICENot all fuse panel descriptions in this
manual may be applicable to your vehi-
cle. It is accurate at the time of printing.
When you inspect the fuse box on your
vehicle,

Page 312 of 345

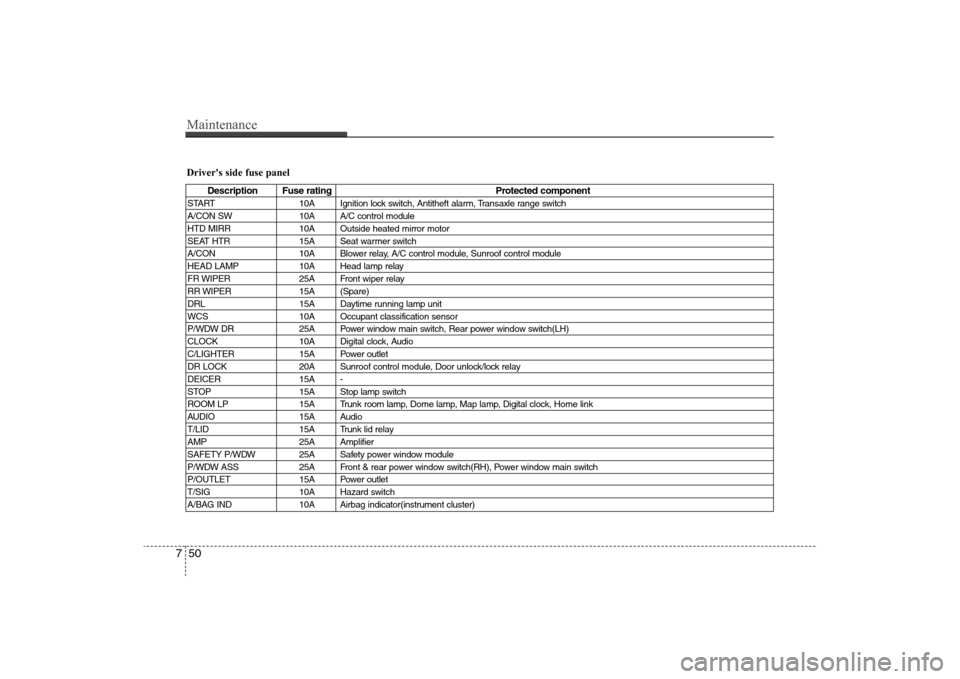

Hyundai Elantra 2009  Owners Manual Maintenance50 7Drivers side fuse panel
Description Fuse rating Protected component
START 10A Ignition lock switch, Antitheft alarm, Transaxle range switch
A/CON SW 10A A/C control module
HTD MIRR 10A

Page 313 of 345

Hyundai Elantra 2009  Owners Manual 751
Maintenance

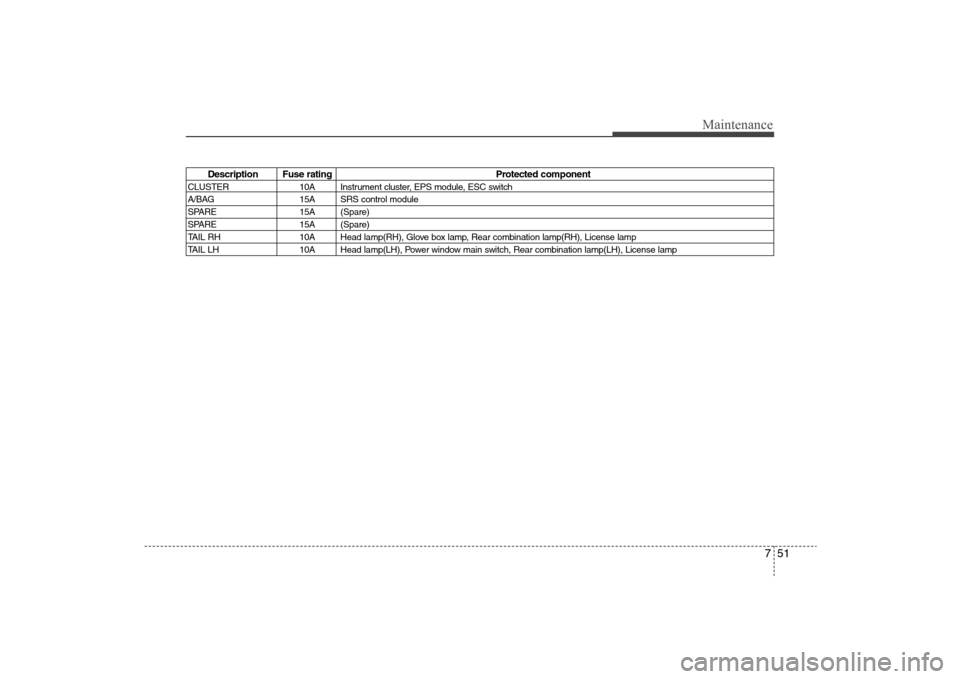

Description Fuse rating Protected component
CLUSTER 10A Instrument cluster, EPS module, ESC switch
A/BAG 15A SRS control module
SPARE 15A (Spare)
SPARE 15A (Spare)
TAIL RH 10A Head lam

Page 314 of 345

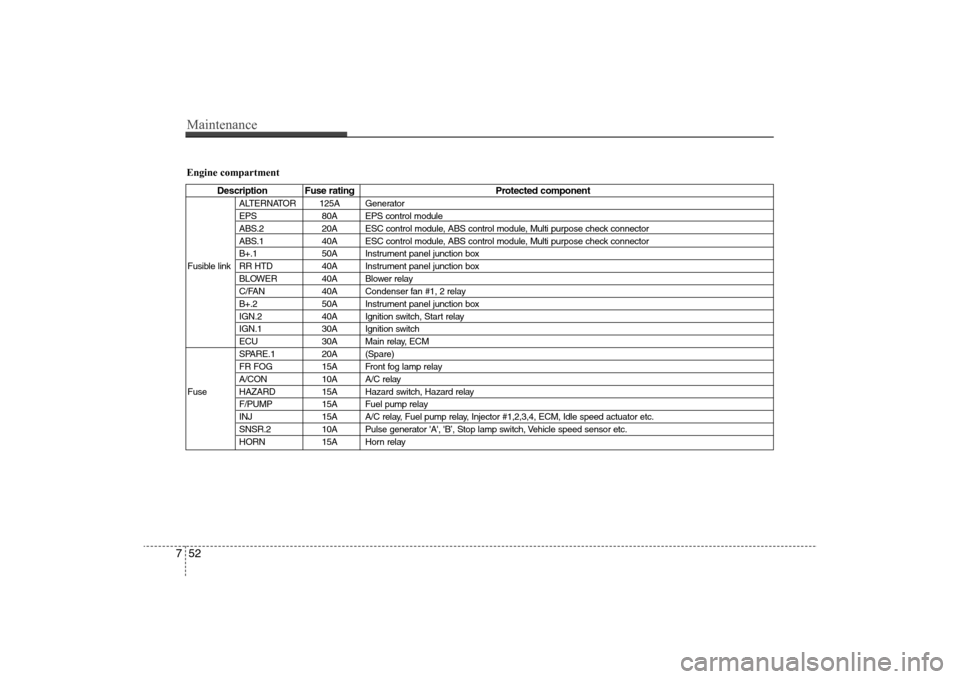

Hyundai Elantra 2009  Owners Manual Maintenance52 7Engine compartment
Description Fuse rating Protected component
ALTERNATOR 125A Generator
EPS 80A EPS control module
ABS.2 20A ESC control module, ABS control module, Multi purpose check

Page 315 of 345

Hyundai Elantra 2009  Owners Manual 753
Maintenance

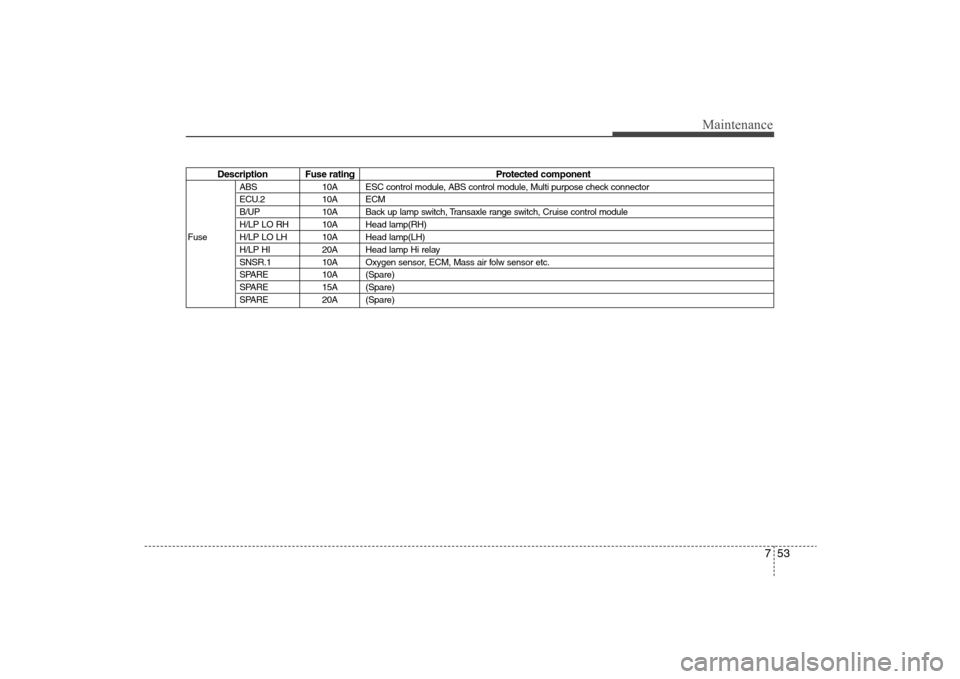

Description Fuse rating Protected component
ABS 10A ESC control module, ABS control module, Multi purpose check connector
ECU.2 10A ECM
B/UP 10A Back up lamp switch, Transaxle range sw

Page 316 of 345

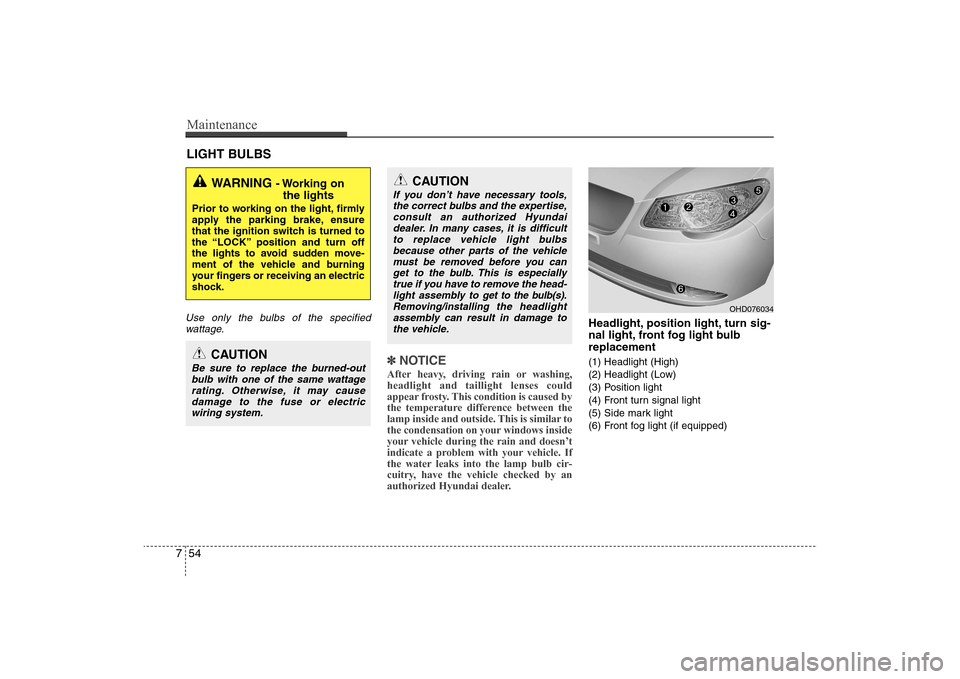

Hyundai Elantra 2009  Owners Manual Maintenance54 7LIGHT BULBSUse only the bulbs of the specified
wattage.
✽ ✽
NOTICEAfter heavy, driving rain or washing,
headlight and taillight lenses could
appear frosty. This condition is caused

Page 317 of 345

Hyundai Elantra 2009  Owners Manual 755
Maintenance

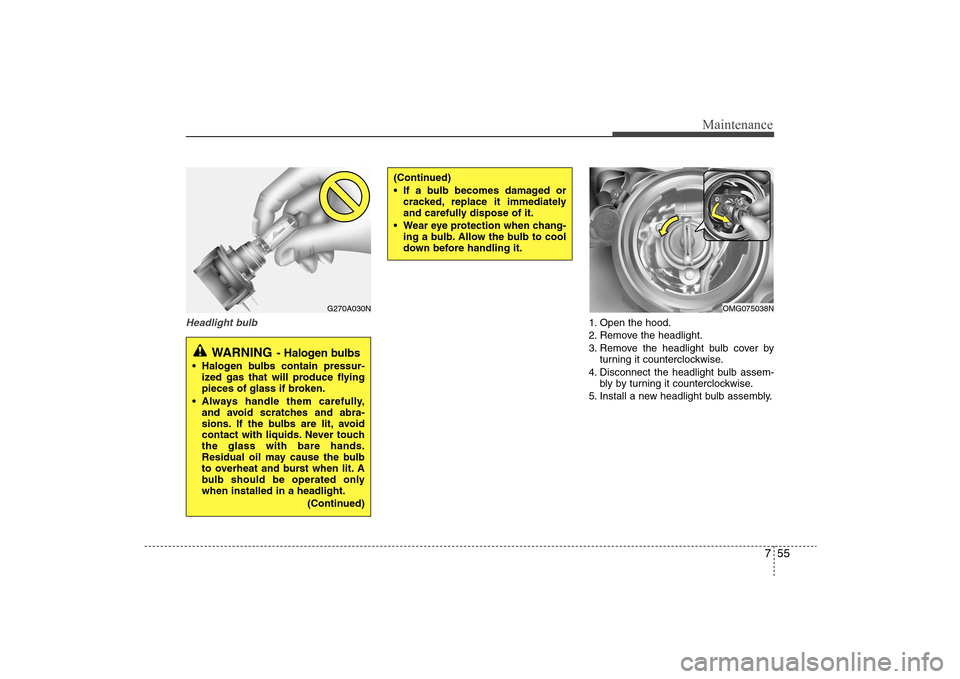

Headlight bulb
1. Open the hood.
2. Remove the headlight.
3. Remove the headlight bulb cover by
turning it counterclockwise.
4. Disconnect the headlight bulb assem-
bly by turning it c

Page 318 of 345

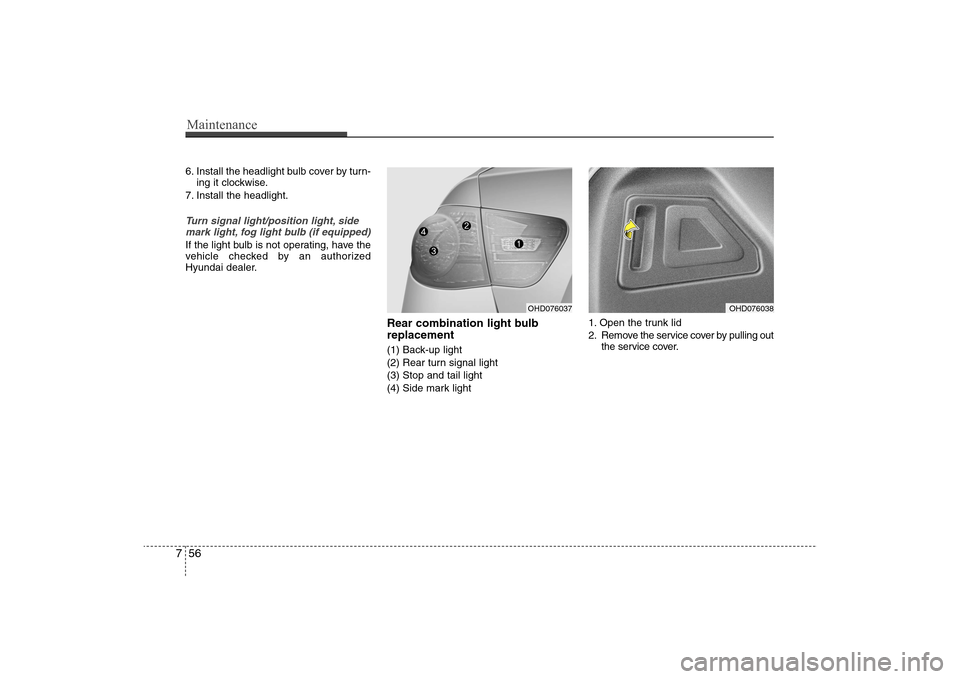

Hyundai Elantra 2009  Owners Manual Maintenance56 76. Install the headlight bulb cover by turn-
ing it clockwise.
7. Install the headlight.Turn signal light/position light, side
mark light, fog light bulb (if equipped)If the light bulb

Page 319 of 345

Hyundai Elantra 2009  Owners Manual 757
Maintenance

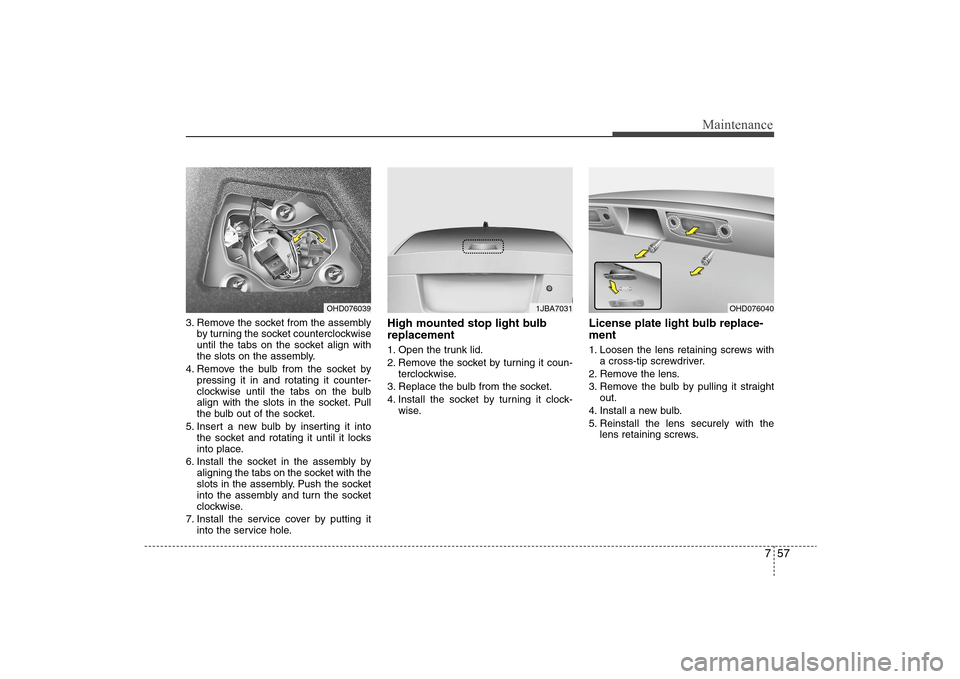

3. Remove the socket from the assembly
by turning the socket counterclockwise
until the tabs on the socket align with
the slots on the assembly.
4. Remove the bulb from the socket by
p

Page 320 of 345

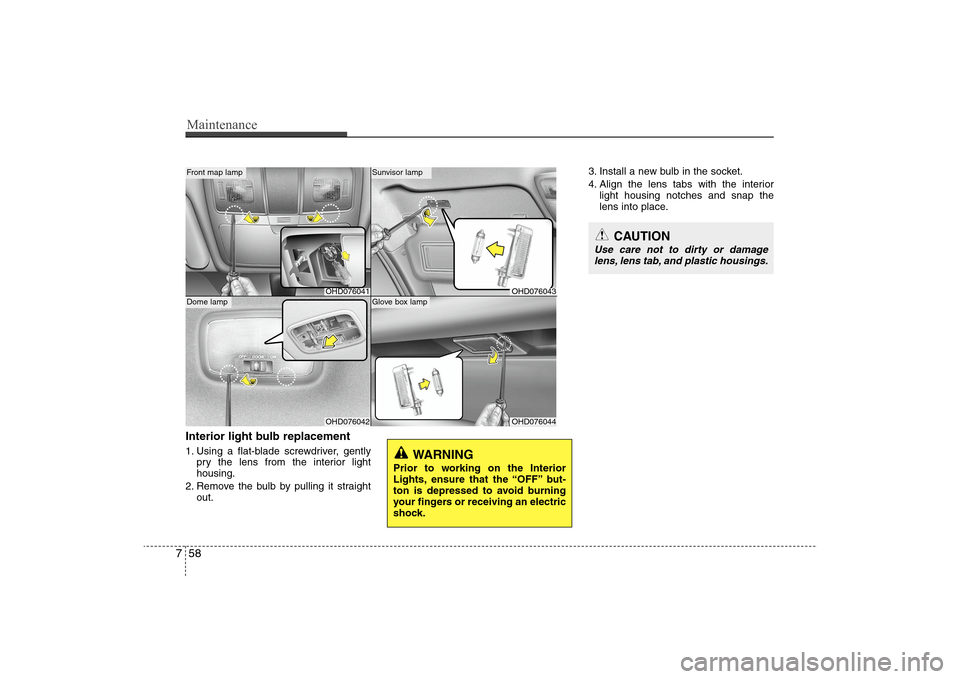

Hyundai Elantra 2009  Owners Manual Maintenance58 7Interior light bulb replacement1. Using a flat-blade screwdriver, gently
pry the lens from the interior light
housing.
2. Remove the bulb by pulling it straight
out.3. Install a new bul
