fuel consumption Hyundai Elantra 2016 Owner's Manual

457
Features of your vehicle

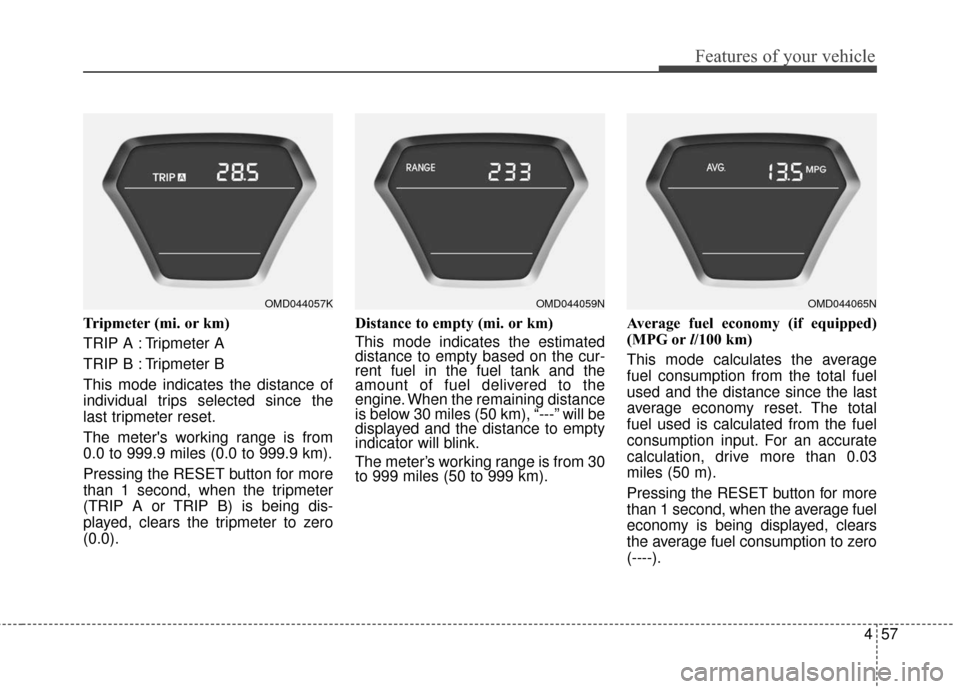

Tripmeter (mi. or km)
TRIP A : Tripmeter A
TRIP B : Tripmeter B
This mode indicates the distance of
individual trips selected since the
last tripmeter reset.
The meter's working range is from
0.0 to 999.9 miles (0.0 to 999.9 km).
Pressing the RESET button for more
than 1 second, when the tripmeter
(TRIP A or TRIP B) is being dis-
played, clears the tripmeter to zero
(0.0).Distance to empty (mi. or km)
This mode indicates the estimated
distance to empty based on the cur-
rent fuel in the fuel tank and the
amount of fuel delivered to the
engine. When the remaining distance
is below 30 miles (50 km), “---” will be
displayed and the distance to empty
indicator will blink.
The meter’s working range is from 30
to 999 miles (50 to 999 km).
Average fuel economy (if equipped)
(MPG or
l/100 km)
This mode calculates the average
fuel consumption from the total fuel
used and the distance since the last
average economy reset. The total
fuel used is calculated from the fuel
consumption input. For an accurate
calculation, drive more than 0.03
miles (50 m).
Pressing the RESET button for more
than 1 second, when the average fuel
economy is being displayed, clears
the average fuel consumption to zero
(----).
OMD044057KOMD044059NOMD044065N

459
Features of your vehicle
✽

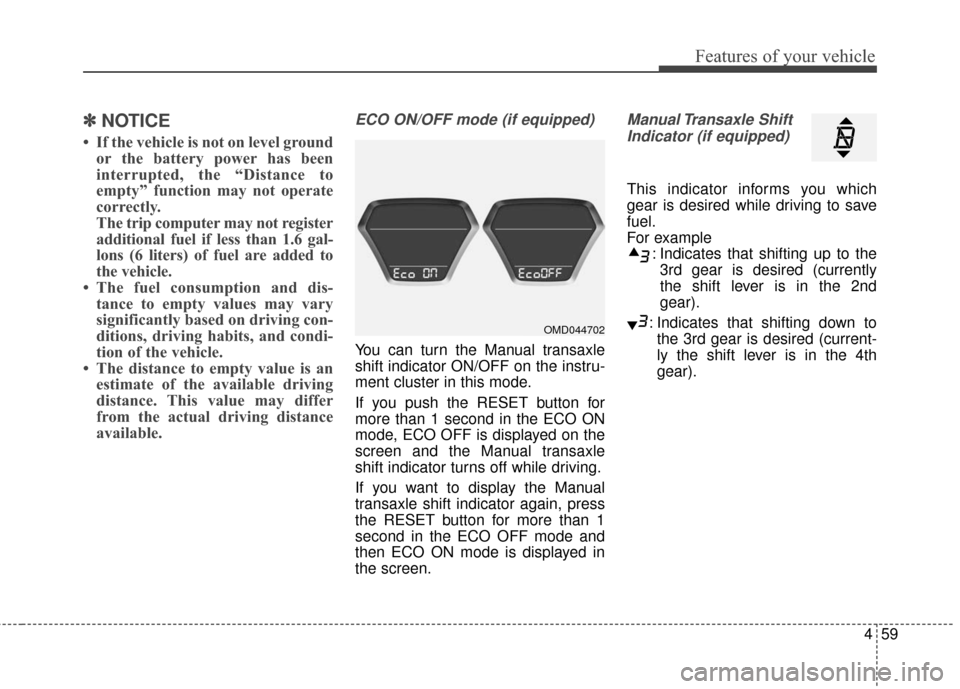

✽NOTICE
• If the vehicle is not on level ground
or the battery power has been
interrupted, the “Distance to
empty” function may not operate
correctly.
The trip computer may not register
additional fuel if less than 1.6 gal-
lons (6 liters) of fuel are added to
the vehicle.
• The fuel consumption and dis- tance to empty values may vary
significantly based on driving con-
ditions, driving habits, and condi-
tion of the vehicle.
• The distance to empty value is an estimate of the available driving
distance. This value may differ
from the actual driving distance
available.
ECO ON/OFF mode (if equipped)
You can turn the Manual transaxle
shift indicator ON/OFF on the instru-
ment cluster in this mode.
If you push the RESET button for
more than 1 second in the ECO ON
mode, ECO OFF is displayed on the
screen and the Manual transaxle
shift indicator turns off while driving.
If you want to display the Manual
transaxle shift indicator again, press
the RESET button for more than 1
second in the ECO OFF mode and
then ECO ON mode is displayed in
the screen.
Manual Transaxle Shift
Indicator (if equipped)
This indicator informs you which
gear is desired while driving to save
fuel.
For example : Indicates that shifting up to the3rd gear is desired (currently
the shift lever is in the 2nd
gear).
: Indicates that shifting down to the 3rd gear is desired (current-
ly the shift lever is in the 4th
gear).
OMD044702
