Hyundai Elantra 2018 Owner's Manual

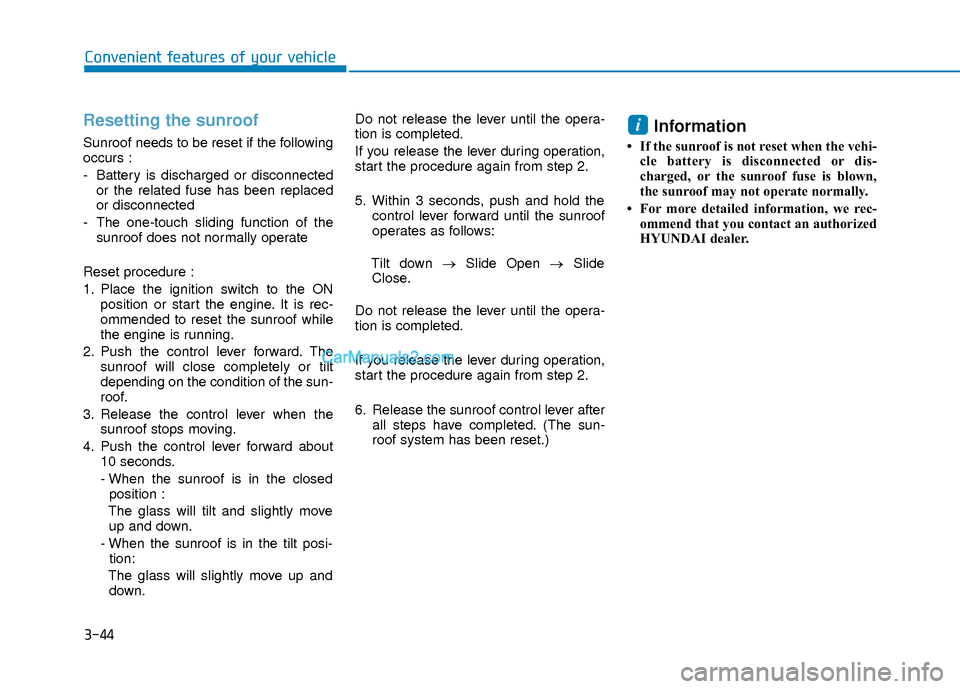

3-44
Convenient features of your vehicle
Resetting the sunroof
Sunroof needs to be reset if the following
occurs :
- Battery is discharged or disconnectedor the related fuse has been replaced
or disconnected
- The one-touch sliding function of the sunroof does not normally operate
Reset procedure :
1. Place the ignition switch to the ON position or start the engine. It is rec-
ommended to reset the sunroof while
the engine is running.
2. Push the control lever forward. The sunroof will close completely or tilt
depending on the condition of the sun-
roof.
3. Release the control lever when the sunroof stops moving.
4. Push the control lever forward about 10 seconds.
- When the sunroof is in the closed position :
The glass will tilt and slightly move up and down.
- When the sunroof is in the tilt posi- tion:
The glass will slightly move up and down. Do not release the lever until the opera-
tion is completed.
If you release the lever during operation,
start the procedure again from step 2.
5. Within 3 seconds, push and hold the
control lever forward until the sunroof
operates as follows:
Tilt down → Slide Open → Slide
Close.
Do not release the lever until the opera-
tion is completed.
If you release the lever during operation,
start the procedure again from step 2.
6. Release the sunroof control lever after all steps have completed. (The sun-
roof system has been reset.)
Information
• If the sunroof is not reset when the vehi-cle battery is disconnected or dis-
charged, or the sunroof fuse is blown,
the sunroof may not operate normally.
• For more detailed information, we rec- ommend that you contact an authorized
HYUNDAI dealer.
i

3-45
Convenient features of your vehicle
3
E
EX
X T
TE
ER
R I
IO
O R
R
F
F E
E A
A T
TU
U R
RE
ES
S
Hood
Opening the hood
1. Park the vehicle and set the parking
brake.
2. Pull the release lever to unlatch the hood. The hood should pop open
slightly. 3. Go to the front of the vehicle, raise the
hood slightly, push up the secondary
latch (1) inside of the hood center and
lift the hood (2). 4. Pull out the support rod and hold the
hood open with the support rod (3).
OAD045025
OAD045039L
Grasp the support rod in the area
wrapped in rubber. The rubber
will help prevent you from being
burned by hot metal when the
engine is hot.
The support rod must be inserted
completely into the hole provided
whenever you inspect the engine
compartment. This will prevent
the hood from falling and possi-
bly injuring you.
WARNING
OAD045026

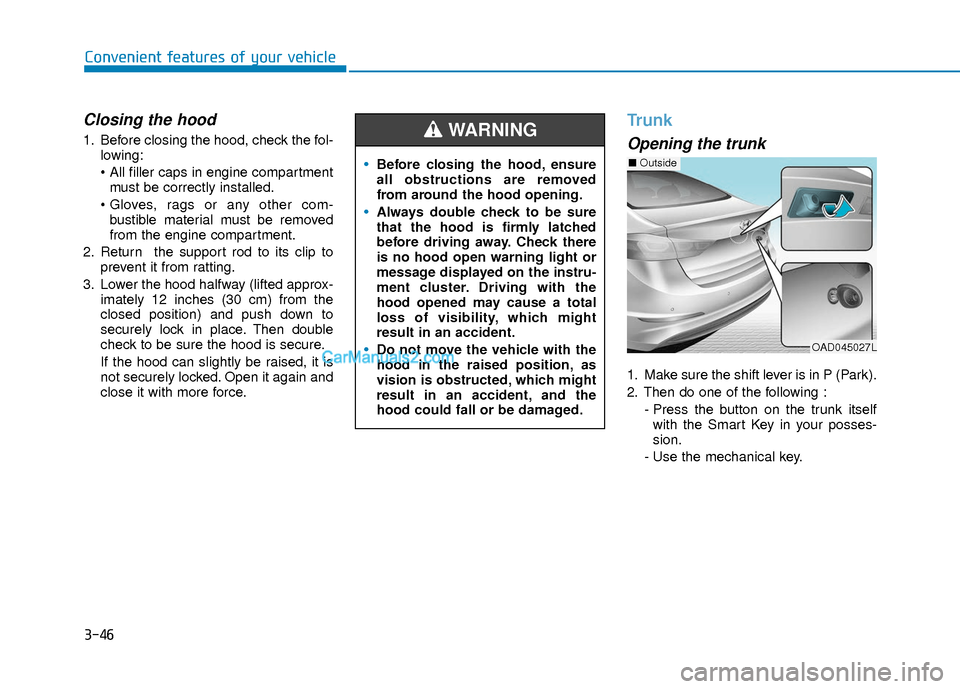

3-46
Convenient features of your vehicle
Closing the hood
1. Before closing the hood, check the fol-lowing:
must be correctly installed.
bustible material must be removed
from the engine compartment.
2. Return the support rod to its clip to prevent it from ratting.
3. Lower the hood halfway (lifted approx- imately 12 inches (30 cm) from the
closed position) and push down to
securely lock in place. Then double
check to be sure the hood is secure.
If the hood can slightly be raised, it is
not securely locked. Open it again and
close it with more force.
Trunk
Opening the trunk
1. Make sure the shift lever is in P (Park).
2. Then do one of the following :
- Press the button on the trunk itselfwith the Smart Key in your posses-
sion.
- Use the mechanical key.
Before closing the hood, ensure
all obstructions are removed
from around the hood opening.
Always double check to be sure
that the hood is firmly latched
before driving away. Check there
is no hood open warning light or
message displayed on the instru-
ment cluster. Driving with the
hood opened may cause a total
loss of visibility, which might
result in an accident.
Do not move the vehicle with the
hood in the raised position, as
vision is obstructed, which might
result in an accident, and the
hood could fall or be damaged.
WARNING
OAD045027L
■ Outside

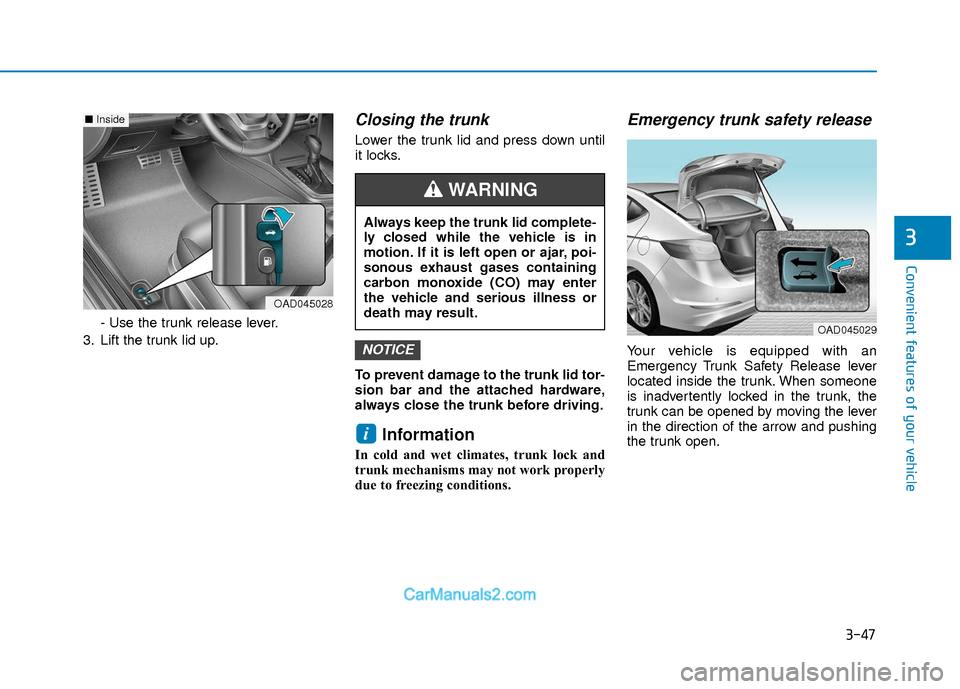

3-47
Convenient features of your vehicle
3
- Use the trunk release lever.
3. Lift the trunk lid up.
Closing the trunk
Lower the trunk lid and press down until
it locks.
To prevent damage to the trunk lid tor-
sion bar and the attached hardware,
always close the trunk before driving.
Information
In cold and wet climates, trunk lock and
trunk mechanisms may not work properly
due to freezing conditions.
Emergency trunk safety release
Your vehicle is equipped with an
Emergency Trunk Safety Release lever
located inside the trunk. When someone
is inadvertently locked in the trunk, the
trunk can be opened by moving the lever
in the direction of the arrow and pushing
the trunk open.
i
NOTICE
Always keep the trunk lid complete-
ly closed while the vehicle is in
motion. If it is left open or ajar, poi-
sonous exhaust gases containing
carbon monoxide (CO) may enter
the vehicle and serious illness or
death may result.
WARNING
OAD045029
OAD045028
■ Inside

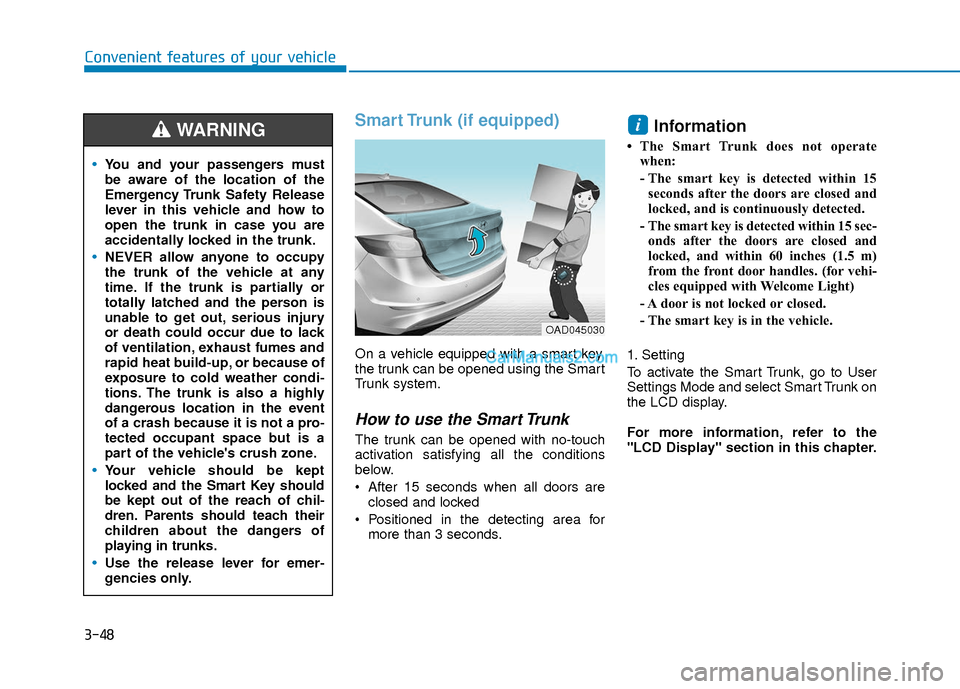

3-48
Convenient features of your vehicle
Smart Trunk (if equipped)
On a vehicle equipped with a smart key,
the trunk can be opened using the Smart
Trunk system.
How to use the Smart Trunk
The trunk can be opened with no-touch
activation satisfying all the conditions
below.
After 15 seconds when all doors areclosed and locked
Positioned in the detecting area for more than 3 seconds.
Information
• The Smart Trunk does not operatewhen:
- The smart key is detected within 15seconds after the doors are closed and
locked, and is continuously detected.
- The smart key is detected within 15 sec- onds after the doors are closed and
locked, and within 60 inches (1.5 m)
from the front door handles. (for vehi-
cles equipped with Welcome Light)
- A door is not locked or closed.
- The smart key is in the vehicle.
1. Setting
To activate the Smart Trunk, go to User
Settings Mode and select Smart Trunk on
the LCD display.
For more information, refer to the
"LCD Display" section in this chapter.
i
You and your passengers must
be aware of the location of the
Emergency Trunk Safety Release
lever in this vehicle and how to
open the trunk in case you are
accidentally locked in the trunk.
NEVER allow anyone to occupy
the trunk of the vehicle at any
time. If the trunk is partially or
totally latched and the person is
unable to get out, serious injury
or death could occur due to lack
of ventilation, exhaust fumes and
rapid heat build-up, or because of
exposure to cold weather condi-
tions. The trunk is also a highly
dangerous location in the event
of a crash because it is not a pro-
tected occupant space but is a
part of the vehicle's crush zone.
Your vehicle should be kept
locked and the Smart Key should
be kept out of the reach of chil-
dren. Parents should teach their
children about the dangers of
playing in trunks.
Use the release lever for emer-
gencies only.
WARNING
OAD045030

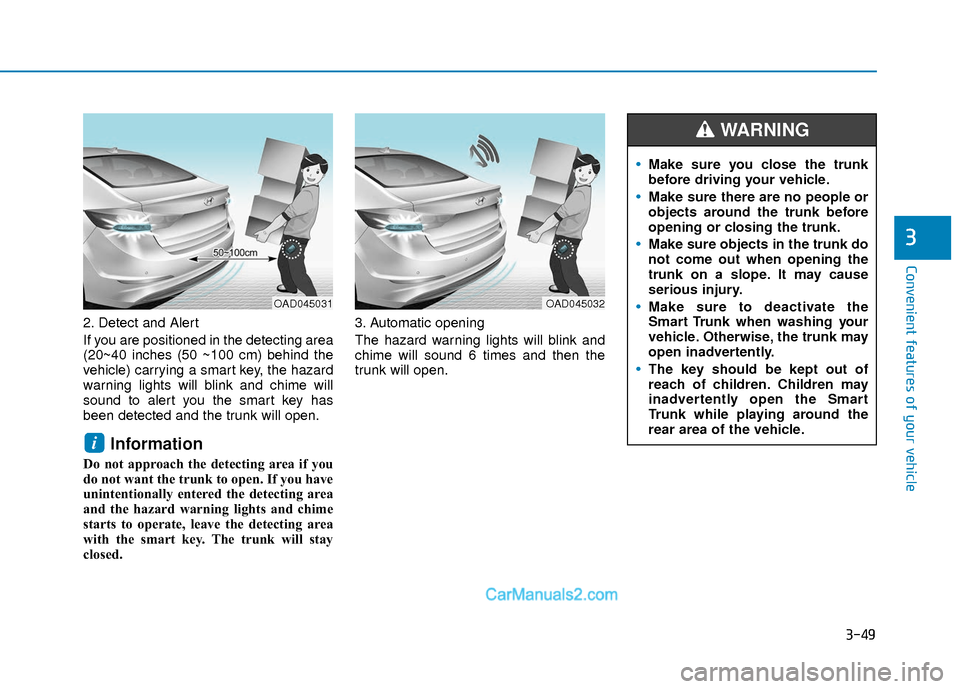

3-49
Convenient features of your vehicle
3
2. Detect and Alert
If you are positioned in the detecting area
(20~40 inches (50 ~100 cm) behind the
vehicle) carrying a smart key, the hazard
warning lights will blink and chime will
sound to alert you the smart key has
been detected and the trunk will open.
Information
Do not approach the detecting area if you
do not want the trunk to open. If you have
unintentionally entered the detecting area
and the hazard warning lights and chime
starts to operate, leave the detecting area
with the smart key. The trunk will stay
closed.3. Automatic opening
The hazard warning lights will blink and
chime will sound 6 times and then the
trunk will open.
i
OAD045032OAD045031
Make sure you close the trunk
before driving your vehicle.
Make sure there are no people or
objects around the trunk before
opening or closing the trunk.
Make sure objects in the trunk do
not come out when opening the
trunk on a slope. It may cause
serious injury.
Make sure to deactivate the
Smart Trunk when washing your
vehicle. Otherwise, the trunk may
open inadvertently.
The key should be kept out of
reach of children. Children may
inadvertently open the Smart
Trunk while playing around the
rear area of the vehicle.
WARNING

3-50
Convenient features of your vehicle
How to deactivate the SmartTrunk function using the smartkey
1. Door lock
2. Door unlock
3. Trunk open
4. Panic
If you press any button of the smart key
during the Detect and Alert stage, the
Smart Trunk function will be deactivated.
Make sure to be aware of how to deacti-
vate the Smart Trunk function for emer-
gency situations.
Information
• If you press the door unlock button (2),
the Smart Trunk function will be deacti-
vated temporarily. But, if you do not
open any door for 30 seconds, the smart
trunk function will be activated again.
• If you press the trunk open button (3) for more than 1 second, the trunk opens.
• If you press the door lock button (1) or trunk open button (3) when the Smart
Trunk function is not in the Detect and
Alert stage, the smart trunk function
will not be deactivated.
• In case you have deactivated the Smart Trunk function by pressing the smart
key button and opened a door, the smart
trunk function can be activated again by
closing and locking all doors.
Detecting area
The Smart Trunk operates with a wel-come alert if the smart key is detected
within 20~40 inches (50~100 cm) from
the trunk.
The alert stops at once if the smart key is positioned outside the detecting
area during the Detect and Alert stage.
i
OLF044006
OAD045033

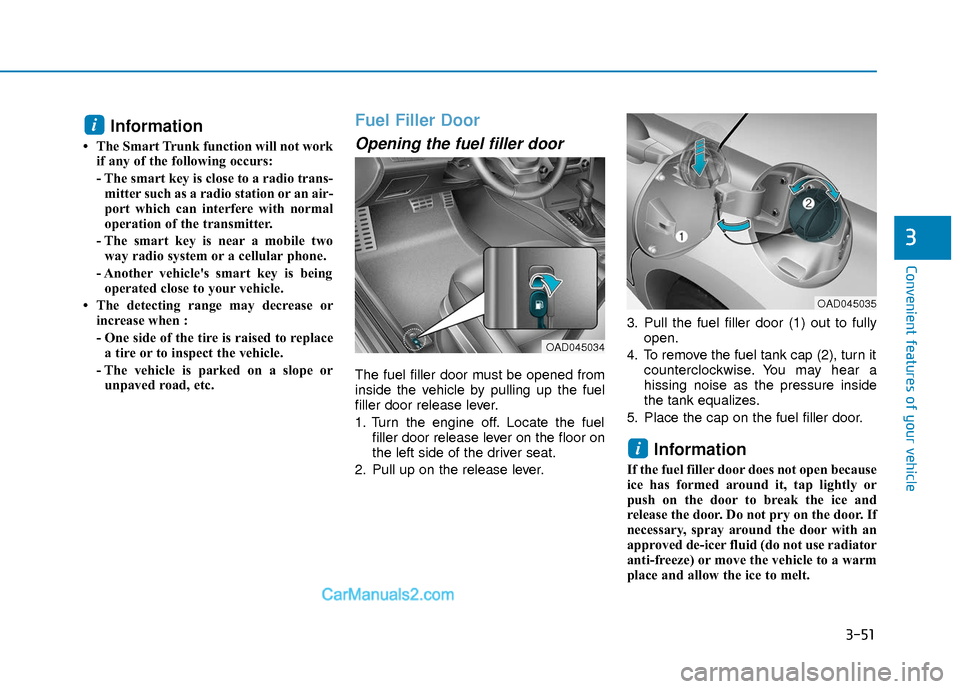

3-51
Convenient features of your vehicle
3
Information
• The Smart Trunk function will not workif any of the following occurs:
- The smart key is close to a radio trans-mitter such as a radio station or an air-
port which can interfere with normal
operation of the transmitter.
- The smart key is near a mobile two way radio system or a cellular phone.
- Another vehicle's smart key is being operated close to your vehicle.
• The detecting range may decrease or increase when :
- One side of the tire is raised to replacea tire or to inspect the vehicle.
- The vehicle is parked on a slope or unpaved road, etc.
Fuel Filler Door
Opening the fuel filler door
The fuel filler door must be opened from
inside the vehicle by pulling up the fuel
filler door release lever.
1. Turn the engine off. Locate the fuel filler door release lever on the floor on
the left side of the driver seat.
2. Pull up on the release lever. 3. Pull the fuel filler door (1) out to fully
open.
4. To remove the fuel tank cap (2), turn it counterclockwise. You may hear a
hissing noise as the pressure inside
the tank equalizes.
5. Place the cap on the fuel filler door.
Information
If the fuel filler door does not open because
ice has formed around it, tap lightly or
push on the door to break the ice and
release the door. Do not pry on the door. If
necessary, spray around the door with an
approved de-icer fluid (do not use radiator
anti-freeze) or move the vehicle to a warm
place and allow the ice to melt.
i
i
OAD045034
OAD045035

3-52
Convenient features of your vehicle
Closing the fuel filler door
1. To install the fuel tank cap, turn itclockwise until it "clicks" one time.
2. Close the fuel filler door until it is latched securely.
Gasoline is highly flammable and
explosive. Failure to follow these
guidelines may result in SERIOUS
INJURY or DEATH:
Read and follow all warnings
posted at the gas station.
Before refueling, note the loca-
tion of the Emergency Gasoline
Shut-Off, if available, at the gas
station.
Before touching the fuel nozzle,
you should eliminate the poten-
tial build-up of static electricity
by touching a metal part of the
vehicle, a safe distance away
from the fuel filler neck, nozzle, or
other gas source, with your bare
hand. (Continued)
WARNING
(Continued)
Do not use cellular phones while
refueling. Electric current and/or
electronic interference from cel-
lular phones can potentially
ignite fuel vapors and cause a
fire.
Do not get back into a vehicle
once you have begun refueling.
You can generate a build-up of
static electricity by touching, rub-
bing or sliding against any item
or fabric capable of producing
static electricity. Static electricity
discharge can ignite fuel vapors
causing a fire. If you must re-
enter the vehicle, you should
once again eliminate potentially
dangerous static electricity dis-
charge by touching a metal part
of the vehicle, away from the fuel
filler neck, nozzle or other gaso-
line source, with your bare hand.
When using an approved
portable fuel container, be sure to
place the container on the
ground prior to refueling. Static
electricity discharge from the
container can ignite fuel vapors
causing a fire.(Continued)
(Continued)Once refueling has begun, con-
tact between your bare hand and
the vehicle should be maintained
until the filling is complete.
Use only approved portable plastic
fuel containers designed to carry
and store gasoline.
When refueling, always move the
shift lever to the P (Park) posi-
tion, set the parking brake, and
place the ignition switch to the
LOCK/OFF position. Sparks pro-
duced by electrical components
related to the engine can ignite
fuel vapors causing a fire.
Do not use matches or a lighter
and do not smoke or leave a lit
cigarette in your vehicle while at
a gas station, especially during
refueling.
Do not over-fill or top-off your
vehicle tank, which can cause
gasoline spillage. (Continued)

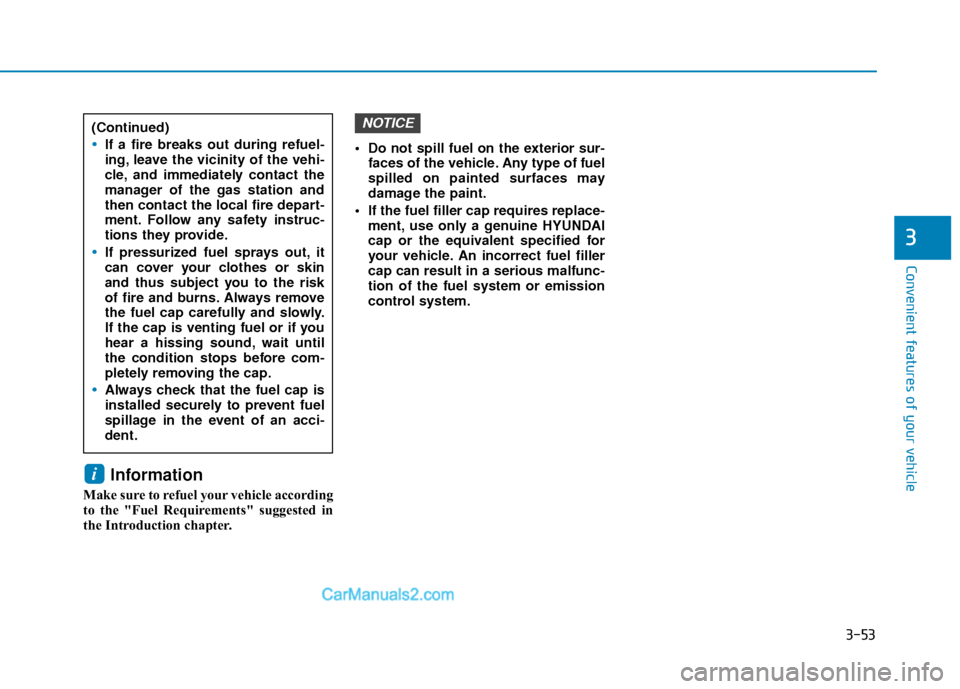

3-53
Convenient features of your vehicle
3
Information
Make sure to refuel your vehicle according
to the "Fuel Requirements" suggested in
the Introduction chapter. Do not spill fuel on the exterior sur-
faces of the vehicle. Any type of fuel
spilled on painted surfaces may
damage the paint.
If the fuel filler cap requires replace- ment, use only a genuine HYUNDAI
cap or the equivalent specified for
your vehicle. An incorrect fuel filler
cap can result in a serious malfunc-
tion of the fuel system or emission
control system.
NOTICE
i
(Continued)
If a fire breaks out during refuel-
ing, leave the vicinity of the vehi-
cle, and immediately contact the
manager of the gas station and
then contact the local fire depart-
ment. Follow any safety instruc-
tions they provide.
If pressurized fuel sprays out, it
can cover your clothes or skin
and thus subject you to the risk
of fire and burns. Always remove
the fuel cap carefully and slowly.
If the cap is venting fuel or if you
hear a hissing sound, wait until
the condition stops before com-
pletely removing the cap.
Always check that the fuel cap is
installed securely to prevent fuel
spillage in the event of an acci-
dent.
