Hyundai Elantra 2018 Owner's Manual

3-34
Convenient features of your vehicle
Use your interior side view mirror or
direct observation to determine the actu-
al distance of following vehicles when
changing lanes.
Do not scrape ice off the mirrorface; this may damage the surface
of the glass.
If the mirror is jammed with ice, do not adjust the mirror by force. Use
an approved spray de-icer (not radi-
ator antifreeze) spray, or a sponge
or soft cloth with very warm water,
or move the vehicle to a warm place
and allow the ice to melt.Blind spot mirror
The Blind Spot Mirror (BSM) is a supple-
mental mirror that reduces the driver's
blind spot by showing the rear side area
of the vehicle. The blind spot mirror is
equipped on the left-hand side view mir-
ror. Do not clean the mirror with harsh
abrasives, fuel or other petroleum
based cleaning products.
NOTICENOTICEOLF044477N
OLF044478N
Do not adjust or fold the side view
mirrors while driving. This may
cause loss of vehicle control result-
ing in an accident.
WARNING
Always check the road condition
while driving for unexpected situ-
ations even though the vehicle is
equipped with a blind spot mirror.
The blind spot mirror is a device
made for convenience. Do not
solely rely on the mirror but
always pay attention to traffic
around you.
WARNING

3-35
Convenient features of your vehicle
3
Side view mirrors control
Adjusting the side mirrors:
1. Press either the L (driver's side) or R(passenger's side) button (1) to select
the side view mirror you would like to
adjust.
2. Use the mirror adjustment control switch to position the selected mirror
up, down, left or right.
3. After adjustment, put the button into neutral (center) position to prevent
inadvertent adjustment. The mirrors stop moving when they
reach the maximum adjusting
angles, but the motor continues to
operate while the switch is pressed.
Do not press the switch longer than
necessary, the motor may be dam-
aged.
Do not attempt to adjust the side view mirrors by hand or the motor
may be damaged.
Folding the side view mirrors
To fold the side view mirrors, grasp the
housing of the mirror and then fold it
toward the rear of the vehicle.
NOTICE
OAD045015NOAD045016

3-36
Convenient features of your vehicle
Reverse Parking Aid Function
(if equipped)
When you move the shift lever to the R
(Reverse) position, the side view mir-
ror(s) will rotate downwards to aid with
driving in reverse. The position of the side
view mirror switch (1) determines
whether or not the mirrors will move:
Left/Right :When either the L (Left) or R
(Right) switch is selected, both
side view mirrors will move.
Neutral : When neither switch is selected, the side view mirrors will not
move. The side view mirrors will automatically
revert to their original positions if any of
the following occur:
The ignition switch is placed to either
the LOCK/OFF position or the ACC
position.
The shift lever is moved to any position except R (Reverse).
The remote control side view mirror switch is not selected.
OADA045461

3-37
Convenient features of your vehicle
3
(1) Driver’s door power window switch
(2) Front passenger’s door power win-dow switch
(3) Rear door (left) power window switch
(4) Rear door (right) power window switch
(5) Window opening and closing
(6) Automatic power window
(7) Power window lock switch
W W I
IN
N D
DO
O W
W S
S
OAD045020N

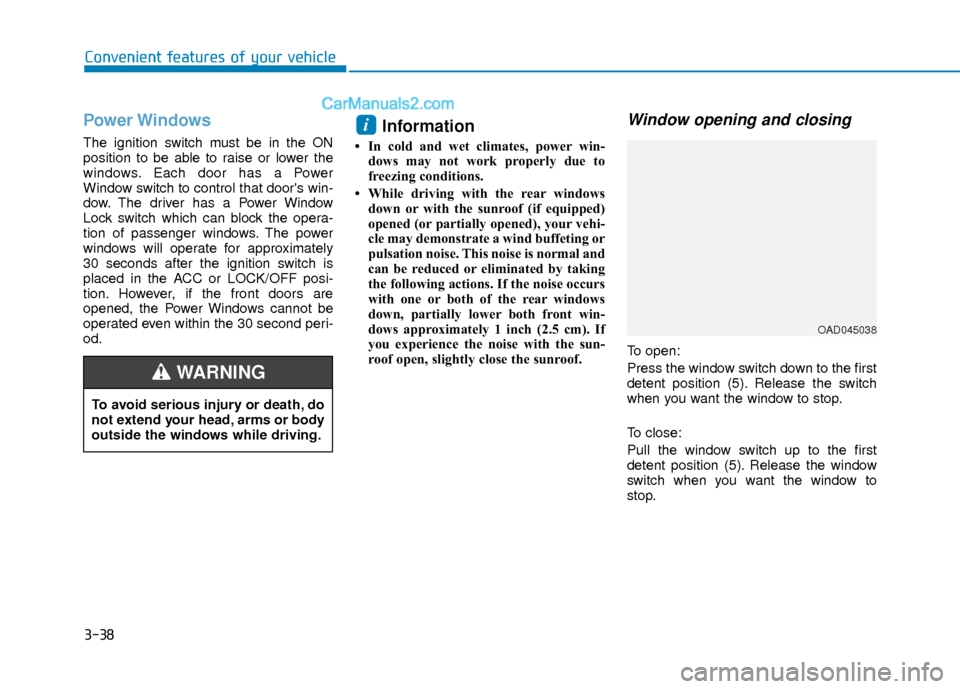

3-38
Convenient features of your vehicle
Power Windows
The ignition switch must be in the ON
position to be able to raise or lower the
windows. Each door has a Power
Window switch to control that door's win-
dow. The driver has a Power Window
Lock switch which can block the opera-
tion of passenger windows. The power
windows will operate for approximately
30 seconds after the ignition switch is
placed in the ACC or LOCK/OFF posi-
tion. However, if the front doors are
opened, the Power Windows cannot be
operated even within the 30 second peri-
od.
Information
• In cold and wet climates, power win-dows may not work properly due to
freezing conditions.
• While driving with the rear windows down or with the sunroof (if equipped)
opened (or partially opened), your vehi-
cle may demonstrate a wind buffeting or
pulsation noise. This noise is normal and
can be reduced or eliminated by taking
the following actions. If the noise occurs
with one or both of the rear windows
down, partially lower both front win-
dows approximately 1 inch (2.5 cm). If
you experience the noise with the sun-
roof open, slightly close the sunroof.
Window opening and closing
To open:
Press the window switch down to the first
detent position (5). Release the switch
when you want the window to stop.
To close:
Pull the window switch up to the first
detent position (5). Release the window
switch when you want the window to
stop.
i
To avoid serious injury or death, do
not extend your head, arms or body
outside the windows while driving.
WARNING
OAD045038

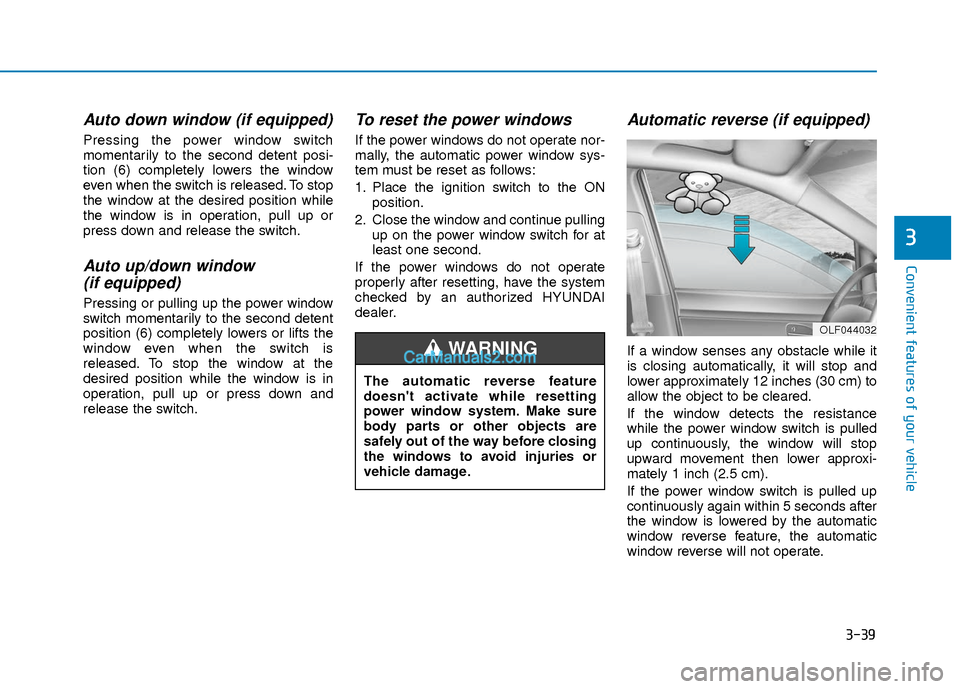

3-39
Convenient features of your vehicle
3
Auto down window (if equipped)
Pressing the power window switch
momentarily to the second detent posi-
tion (6) completely lowers the window
even when the switch is released. To stop
the window at the desired position while
the window is in operation, pull up or
press down and release the switch.
Auto up/down window (if equipped)
Pressing or pulling up the power window
switch momentarily to the second detent
position (6) completely lowers or lifts the
window even when the switch is
released. To stop the window at the
desired position while the window is in
operation, pull up or press down and
release the switch.
To reset the power windows
If the power windows do not operate nor-
mally, the automatic power window sys-
tem must be reset as follows:
1. Place the ignition switch to the ON
position.
2. Close the window and continue pulling up on the power window switch for at
least one second.
If the power windows do not operate
properly after resetting, have the system
checked by an authorized HYUNDAI
dealer.
Automatic reverse (if equipped)
If a window senses any obstacle while it
is closing automatically, it will stop and
lower approximately 12 inches (30 cm) to
allow the object to be cleared.
If the window detects the resistance
while the power window switch is pulled
up continuously, the window will stop
upward movement then lower approxi-
mately 1 inch (2.5 cm).
If the power window switch is pulled up
continuously again within 5 seconds after
the window is lowered by the automatic
window reverse feature, the automatic
window reverse will not operate.
OLF044032
The automatic reverse feature
doesn't activate while resetting
power window system. Make sure
body parts or other objects are
safely out of the way before closing
the windows to avoid injuries or
vehicle damage.
WARNING

3-40
Convenient features of your vehicle
Information
The automatic reverse feature is only
active when the "Auto Up" feature is used
by fully pulling up the switch to the second
detent.Do not install any accessories on the
windows. The automatic reverse fea-
ture may not operate.
Power window lock switch
The driver can disable the power window
switches on the passenger's doors by
pressing the power window lock switch.
When the power window lock switch is
pressed:
The driver's master control can onlyoperate the driver's power window.
The front passenger's control cannot operate the front passenger's power
window.
The rear passenger's control cannot operate the rear passenger's power
window.NOTICE
i
OAD045021N
Make sure body parts or other
objects are safely out of the way
before closing the windows to
avoid injuries or vehicle damage.
Objects less than 0.16 inch (4 mm)
in diameter caught between the
window glass and the upper win-
dow channel may not be detected
by the automatic reverse window
and the window will not stop and
reverse direction.
WARNING
Small objects that can get caught
between the sunroof glass and the
front glass channel may not be
detected by the automatic reverse
system. In this case, the sunroof
glass will not detect the object and
reverse direction.
WARNING

3-41
Convenient features of your vehicle
3
To prevent possible damage to thepower window system, do not open
or close two windows or more at the
same time. This will also ensure the
longevity of the fuse.
Never try to operate the main switch on the driver's door and the individ-
ual door window switch in opposite
directions at the same time. If this is
done, the window will stop and can-
not be opened or closed. If your vehicle is equipped with a sunroof,
you can slide or tilt your sunroof with the
sunroof control switch located on the
overhead console.
The sunroof can only be opened, closed,
or tilted when the ignition switch is in the
ON position.
Information
• In cold and wet climates, the sunroof
may not work properly due to freezing
conditions.
• After the vehicle is washed or in a rain- storm, be sure to wipe off any water that
is on the sunroof before operating it.
i
NOTICE
S SU
U N
NR
RO
O O
OF
F
(
( I
IF
F
E
E Q
Q U
UI
IP
P P
PE
ED
D )
)
OAD045022
Never adjust the sunroof or sun-
shade while driving. This could
result in loss of control and an
accident that may cause death,
serious injury, or property dam-
age.
Make sure heads, other body
parts or objects are out of the
way before using the sunroof.
Do not extend your head, arms or
body outside the sunroof while
driving, to avoid serious injury.
Do not leave the engine running
and the key in your vehicle with
unsupervised children.
Unattended children could oper-
ate the sunroof, which could
result in serious injury.
Do not sit on the top of the vehi-
cle. It may cause injuries or vehi-
cle damage.
WARNING
Do not allow children to play with
the power windows. Keep the dri-
ver's door power window lock
switch in the LOCK position.
Serious injury or death can result
from unintentional window opera-
tion by a child.
WARNING

3-42
Convenient features of your vehicle
Do not continue to move the sun-roof control lever after the sunroof
is fully opened, closed, or tilted.
Damage to the motor or system
components could occur.
Make sure the sunroof is closed fully when leaving your vehicle.
If the sunroof is open, rain or snow
may leak through the sunroof and
wet the interior as well as allow
theft.
Sunroof opening and closing
To open:
Press the sunroof control lever backward
to the first detent position. Release the
switch when you want the sunroof to
stop.
To close:
Press the sunroof control lever forward to
the first detent position. Release the
switch when you want the sunroof to
stop.
Sliding the sunroof
Pressing the sunroof control lever back-
ward or forward momentarily to the sec-
ond detent position completely opens or
closes the sunroof even when the switch
is released. To stop the sunroof at the
desired position while the sunroof is in
operation, press the sunroof control lever
backward or forward and release the
switch.
Information
To minimize wind noise while driving, it is
recommended that you drive with the sun-
roof slightly closed (stop the sunroof about
2 inch (5 cm) before the maximum slide
open position).
i
NOTICE
OAD045023

3-43
Convenient features of your vehicle
3
Tilting the sunroof
Tilt the sunroof open:
Push the sunroof control lever upward
until the sunroof moves to the desired
position.
To close the sunroof:
Push the sunroof control lever forward
until the sunroof moves to the desired
position. Periodically remove any dirt that
may accumulate on the sunroof
guide rail or between the sunroof
and roof panel which can make a
noise.
Do not try to open the sunroof when the temperature is below freezing or
when the sunroof is covered with
snow or ice, otherwise the motor
could be damaged.
Sunshade
The sunshade will open automatically
with the sunroof when the glass panel
moves. If you want it closed, move the
sunshade manually.
The sunroof is made to slide together
with the sunshade. Do not leave the
sunshade closed while the sunroof is
open.
NOTICE
NOTICE
OAD045024
Make sure heads, other body
parts or other objects are safely
out of the way before closing the
sunroof to avoid injuries or vehi-
cle damage.
Never adjust the sunroof or sun-
shade while driving. This may
cause loss of vehicle control
resulting in an accident.
To avoid serious injury or death,
do not extend your head, arms or
body outside the sunroof while
driving.
WARNING
OAD045037
