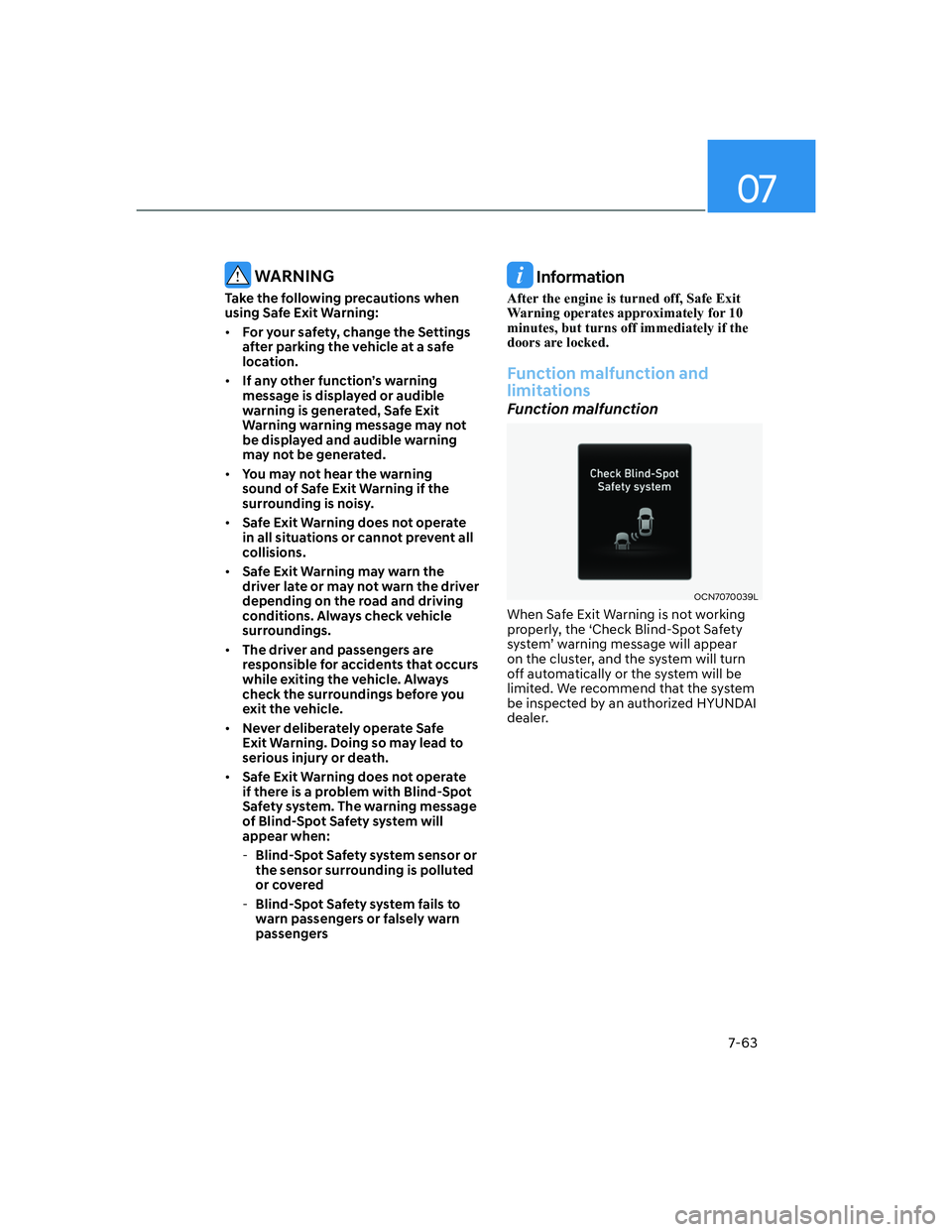

HYUNDAI ELANTRA 2022 Owners Manual

07
7-63
WARNING
Take the following precautions when
using Safe Exit Warning:

[For your safety, change the Settings
after parking the vehicle at a safe
location.

[If any other function’s warning
message is displayed or audible
warning is generated, Safe Exit
Warning warning message may not
be displayed and audible warning
may not be generated.

[You may not hear the warning
sound of Safe Exit Warning if the
surrounding is noisy.

[Safe Exit Warning does not operate
in all situations or cannot prevent all
collisions.

[Safe Exit Warning may warn the
driver late or may not warn the driver
depending on the road and driving
conditions. Always check vehicle
surroundings.

[The driver and passengers are
responsible for accidents that occurs
while exiting the vehicle. Always
check the surroundings before you
exit the vehicle.

[Never deliberately operate Safe
Exit Warning. Doing so may lead to
serious injury or death.

[Safe Exit Warning does not operate
if there is a problem with Blind-Spot
Safety system. The warning message
of Blind-Spot Safety system will
appear when:
-Blind-Spot Safety system sensor or
the sensor surrounding is polluted
or covered
-Blind-Spot Safety system fails to
warn passengers or falsely warn
passengers
Information
After the engine is turned off, Safe Exit
Warning operates approximately for 10
minutes, but turns off immediately if the
doors are locked.
Function malfunction and
limitations
Function malfunction
OCN7070039L
When Safe Exit Warning is not working
properly, the ‘Check Blind-Spot Safety
V\VWHP
TZDUQLQJPHVVDJHZLOODSSHDU
on the cluster, and the system will turn
off automatically or the system will be
limited. We recommend that the system
be inspected by an authorized HYUNDAI
dealer.

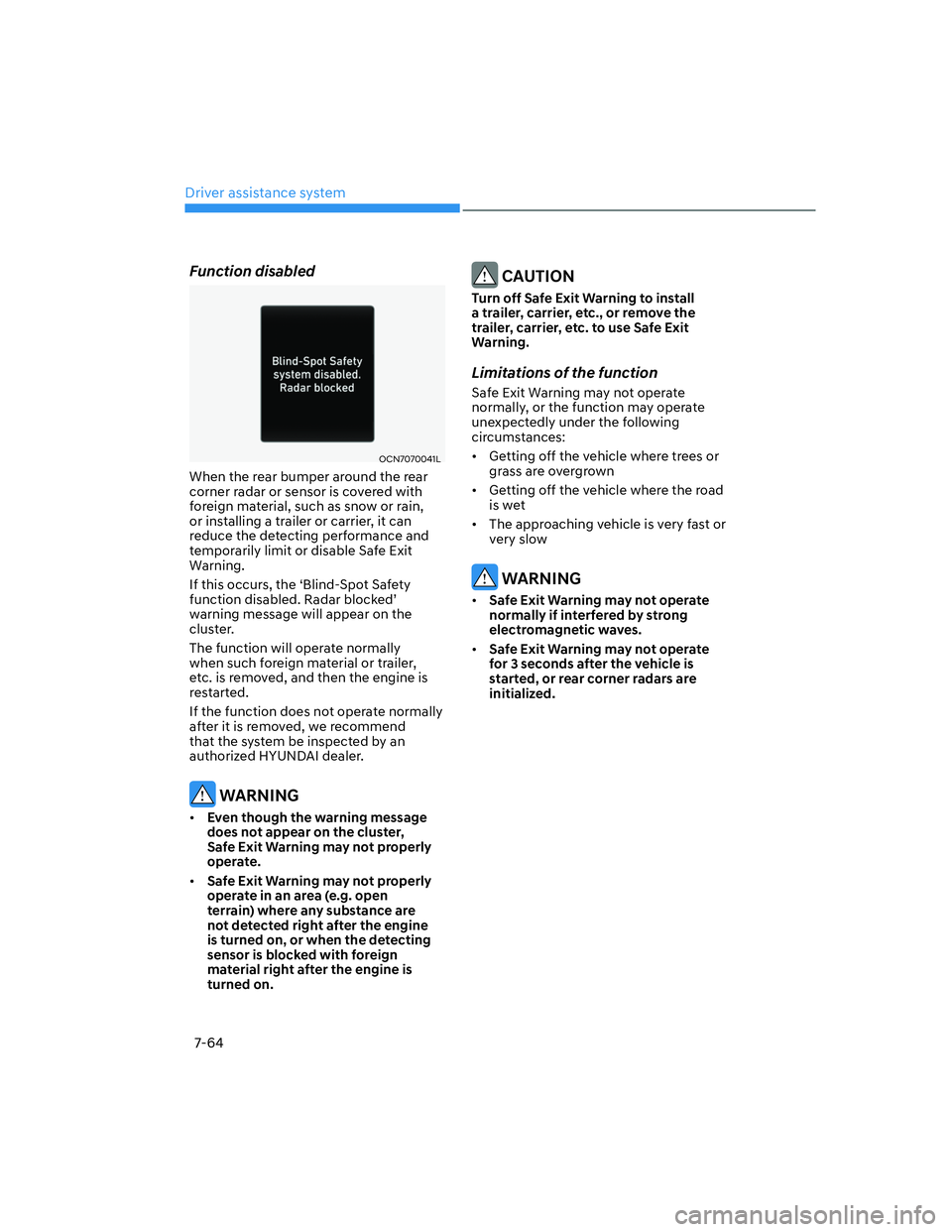

Driver assistance system
7-64
Function disabled
OCN7070041L
When the rear bumper around the rear
corner radar or sensor is covered with
foreign material, such as snow or rain,
or installing a trailer or carrier, it can
reduce the detecting performance and
temporarily limit or disable Safe Exit
Warning.
If this occurs, the ‘Blind-Spot Safety
IXQFWLRQGLVDEOHG5DGDUEORFNHG
T
warning message will appear on the
cluster.
The function will operate normally
when such foreign material or trailer,
etc. is removed, and then the engine is
restarted.
If the function does not operate normally
after it is removed, we recommend
that the system be inspected by an
authorized HYUNDAI dealer.
WARNING

[Even though the warning message
does not appear on the cluster,
Safe Exit Warning may not properly
operate.

[Safe Exit Warning may not properly
operate in an area (e.g. open
terrain) where any substance are
not detected right after the engine
is turned on, or when the detecting
sensor is blocked with foreign
material right after the engine is
turned on.
CAUTION
Turn off Safe Exit Warning to install
a trailer, carrier, etc., or remove the
trailer, carrier, etc. to use Safe Exit
Warning.
Limitations of the function
Safe Exit Warning may not operate
normally, or the function may operate
unexpectedly under the following
circumstances:

[Getting off the vehicle where trees or
grass are overgrown

[Getting off the vehicle where the road
is wet

[The approaching vehicle is very fast or
very slow
WARNING

[Safe Exit Warning may not operate
normally if interfered by strong
electromagnetic waves.

[Safe Exit Warning may not operate
for 3 seconds after the vehicle is
started, or rear corner radars are
initialized.

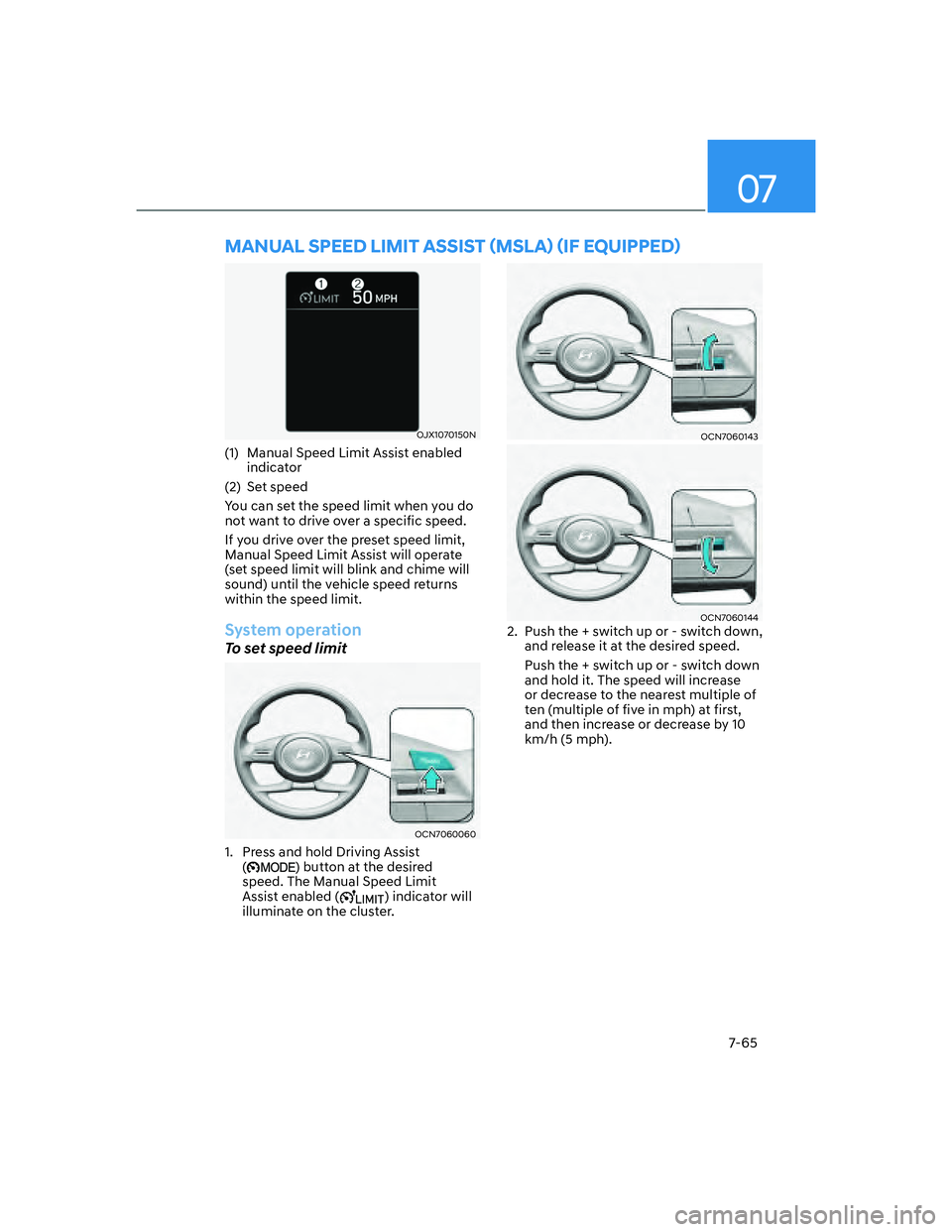

07
7-65
OJX1070150N
(1) Manual Speed Limit Assist enabled
indicator
(2) Set speed
You can set the speed limit when you do
not want to drive over a specific speed.
If you drive over the preset speed limit,
Manual Speed Limit Assist will operate
(set speed limit will blink and chime will
sound) until the vehicle speed returns
within the speed limit.
System operation
To set speed limit
OCN7060060
1. Press and hold Driving Assist
() button at the desired
speed. The Manual Speed Limit
Assist enabled (
) indicator will
illuminate on the cluster.
OCN7060143
OCN70601442. Push the + switch up or - switch down,
and release it at the desired speed.
Push the + switch up or - switch down
and hold it. The speed will increase
or decrease to the nearest multiple of
ten (multiple of five in mph) at first,
and then increase or decrease by 10
km/h (5 mph).
MANUAL SPEED LIMIT ASSIST
ãMSLA
ä
ãIF EQUIPPED
ä

Driver assistance system
7-66
OJX1070151N

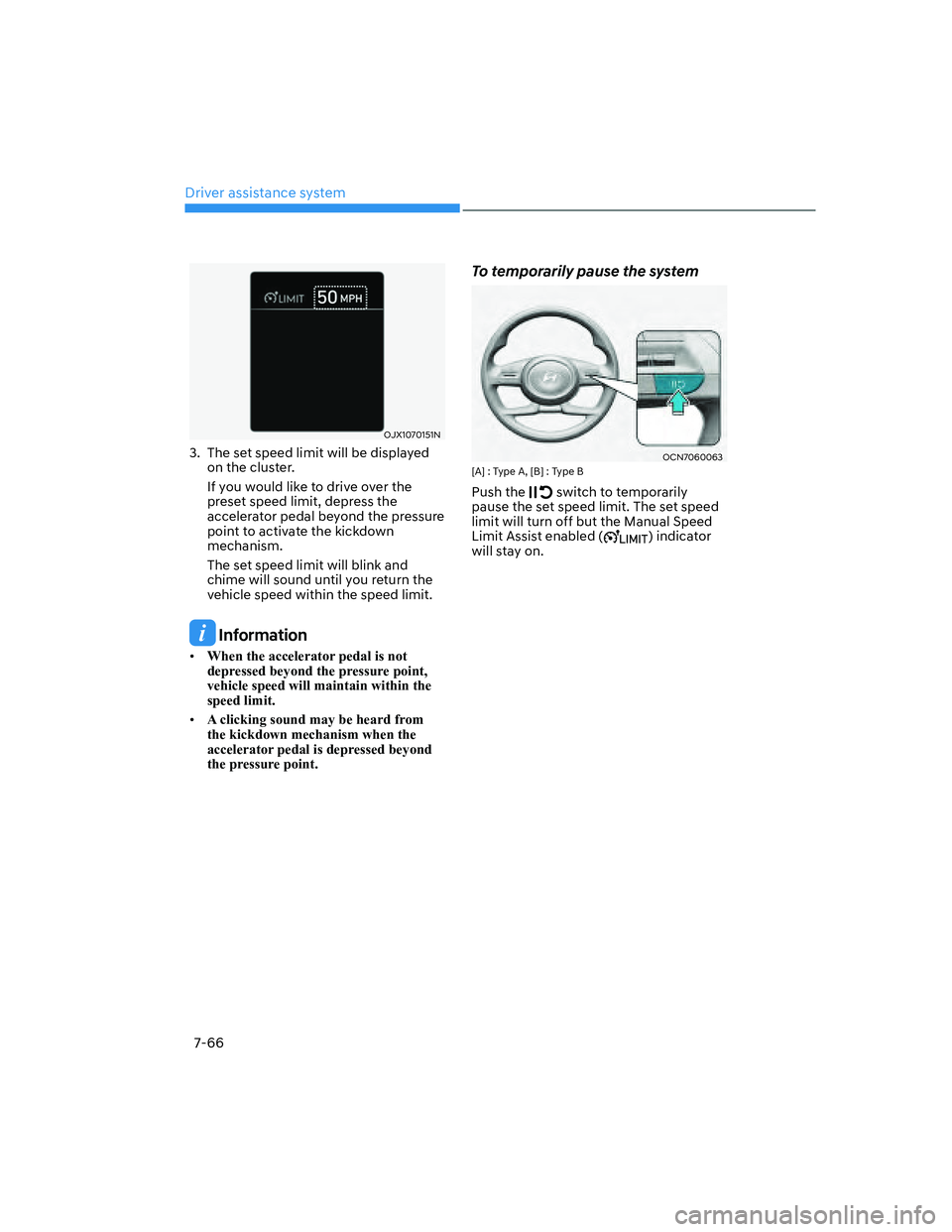

3. The set speed limit will be displayed
on the cluster.
If you would like to drive over the
preset speed limit, depress the
accelerator pedal beyond the pressure
point to activate the kickdown
mechanism.
The set speed limit will blink and
chime will sound until you return the
vehicle speed within the speed limit.
Information

[When the accelerator pedal is not
depressed beyond the pressure point,
vehicle speed will maintain within the
speed limit.

[A clicking sound may be heard from
the kickdown mechanism when the
accelerator pedal is depressed beyond
the pressure point.
To temporarily pause the system
OCN7060063[A] : Type A, [B] : Type B
Push the switch to temporarily
pause the set speed limit. The set speed
limit will turn off but the Manual Speed
Limit Assist enabled (
) indicator
will stay on.

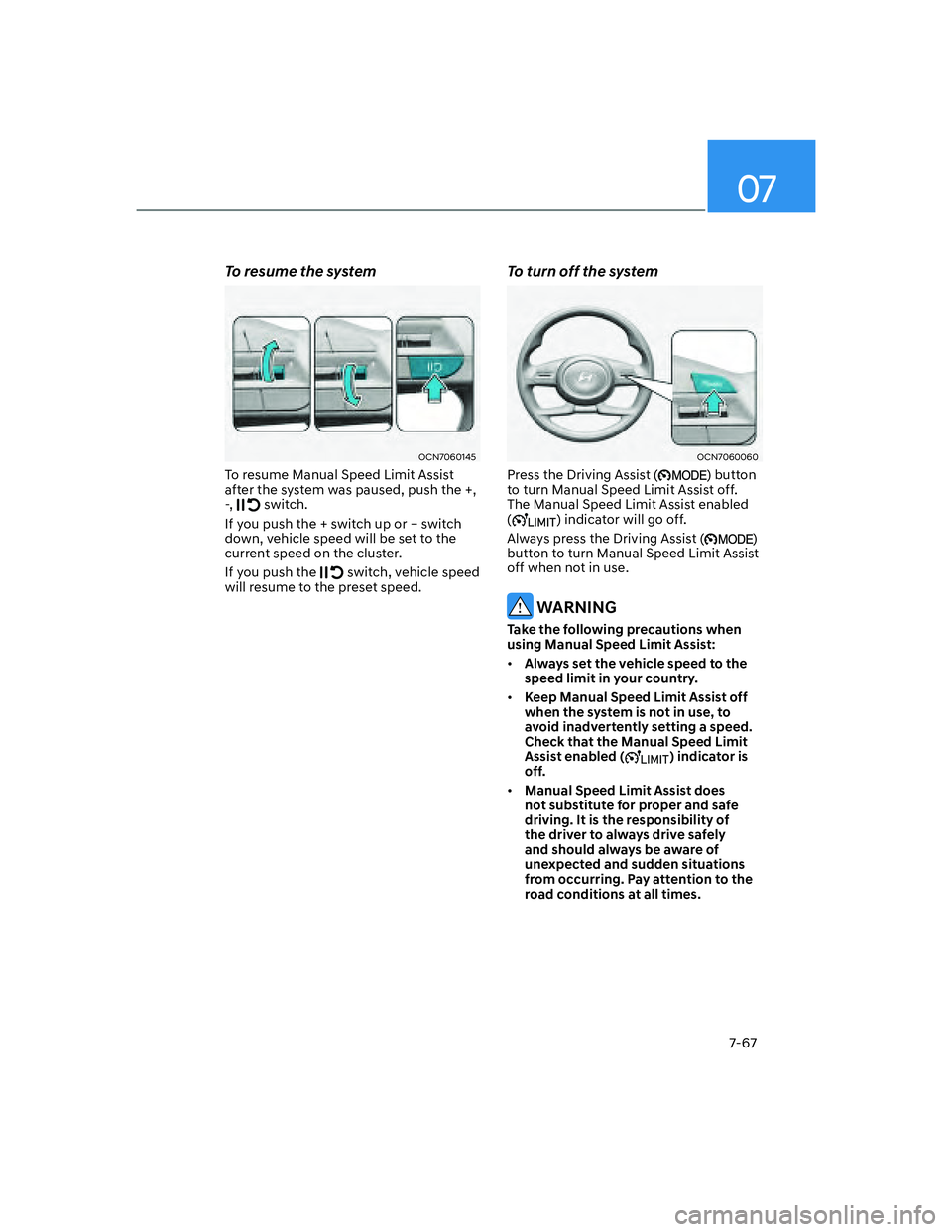

07
7-67
To resume the system
OCN7060145
To resume Manual Speed Limit Assist
after the system was paused, push the +,
-,
switch.
If you push the + switch up or – switch
down, vehicle speed will be set to the
current speed on the cluster.
If you push the
switch, vehicle speed
will resume to the preset speed.
To turn off the system
OCN7060060
Press the Driving Assist () button
to turn Manual Speed Limit Assist off.
The Manual Speed Limit Assist enabled
(
) indicator will go off.
Always press the Driving Assist (
)
button to turn Manual Speed Limit Assist
off when not in use.
WARNING
Take the following precautions when
using Manual Speed Limit Assist:

[Always set the vehicle speed to the
speed limit in your country.

[Keep Manual Speed Limit Assist off
when the system is not in use, to
avoid inadvertently setting a speed.
Check that the Manual Speed Limit
Assist enabled (
) indicator is
off.

[Manual Speed Limit Assist does
not substitute for proper and safe
driving. It is the responsibility of
the driver to always drive safely
and should always be aware of
unexpected and sudden situations
from occurring. Pay attention to the
road conditions at all times.

Driver assistance system
7-68

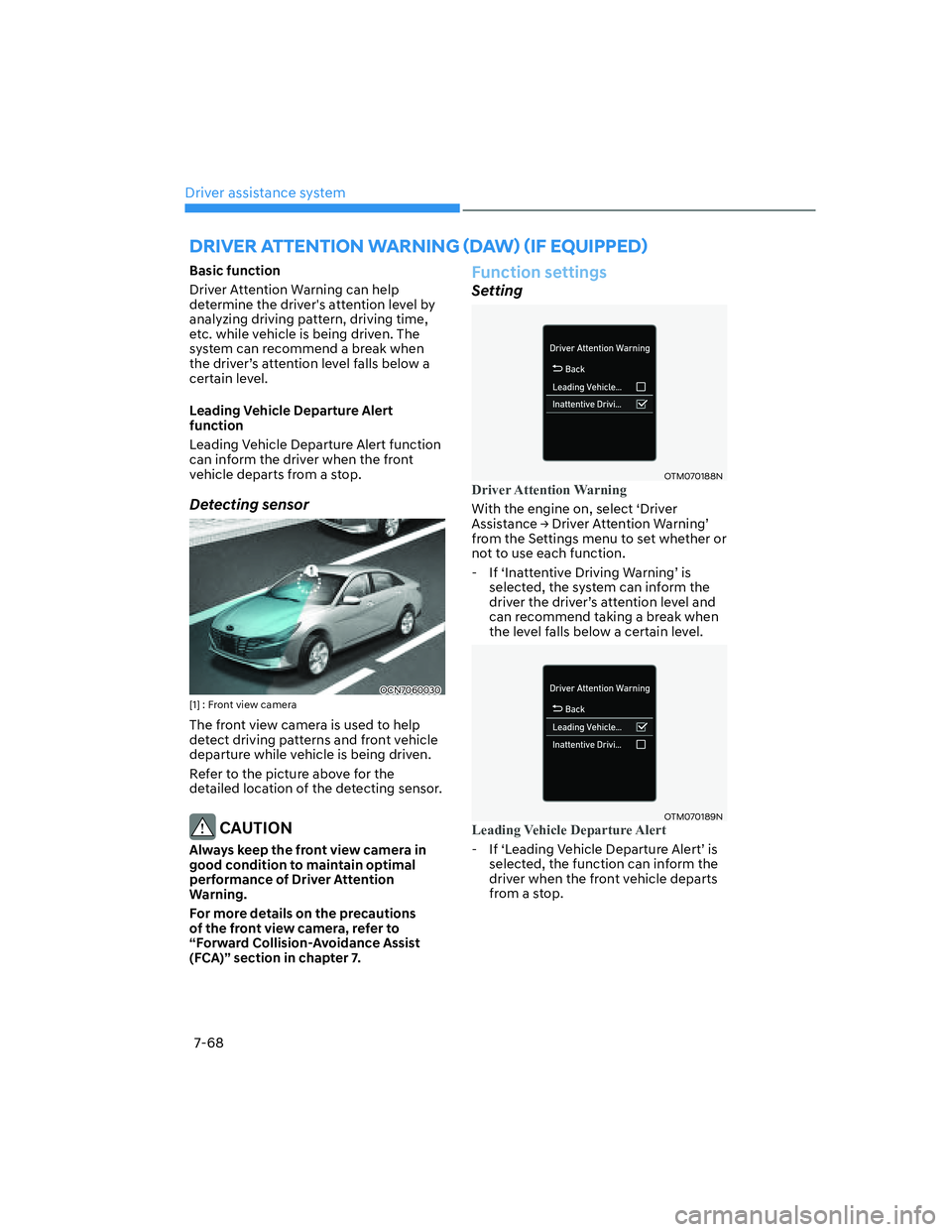

Basic function
Driver Attention Warning can help
determine the driver's attention level by
analyzing driving pattern, driving time,
etc. while vehicle is being driven. The
system can recommend a break when
WKHGULYHU
TVDWWHQWLRQOHYHOIDOOVEHORZD
certain level.
Leading Vehicle Departure Alert
function
Leading Vehicle Departure Alert function
can inform the driver when the front
vehicle departs from a stop.
Detecting sensor
OCN7060030[1] : Front view camera
The front view camera is used to help
detect driving patterns and front vehicle
departure while vehicle is being driven.
Refer to the picture above for the
detailed location of the detecting sensor.
CAUTION
Always keep the front view camera in
good condition to maintain optimal
performance of Driver Attention
Warning.
For more details on the precautions
of the front view camera, refer to
“Forward Collision-Avoidance Assist
(FCA)” section in chapter 7.
Function settings
Setting
OTM070188NDriver Attention Warning
With the engine on, select ‘Driver
$VVLVWDQFH

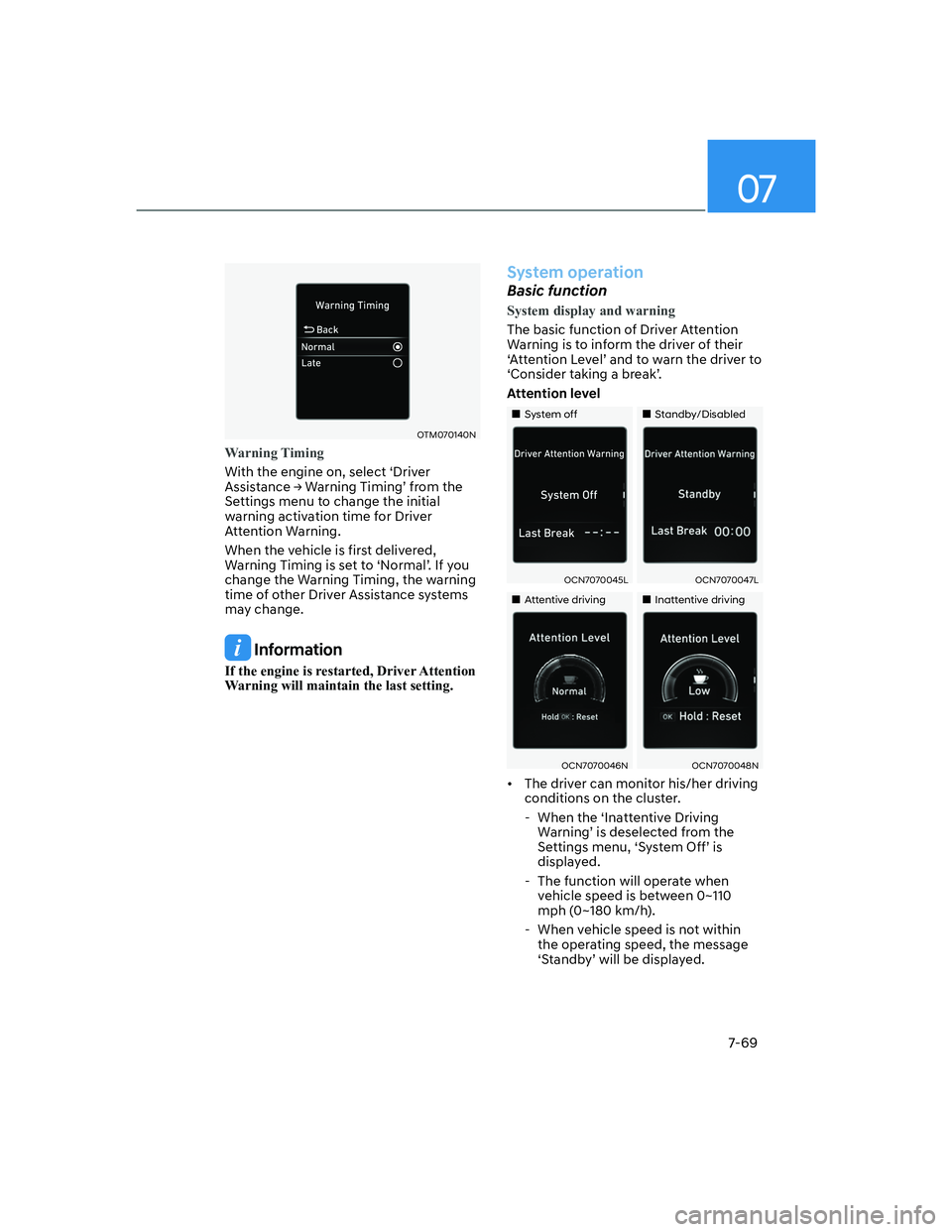

07
7-69
OTM070140N
Warning Timing
With the engine on, select ‘Driver
$VVLVWDQFH

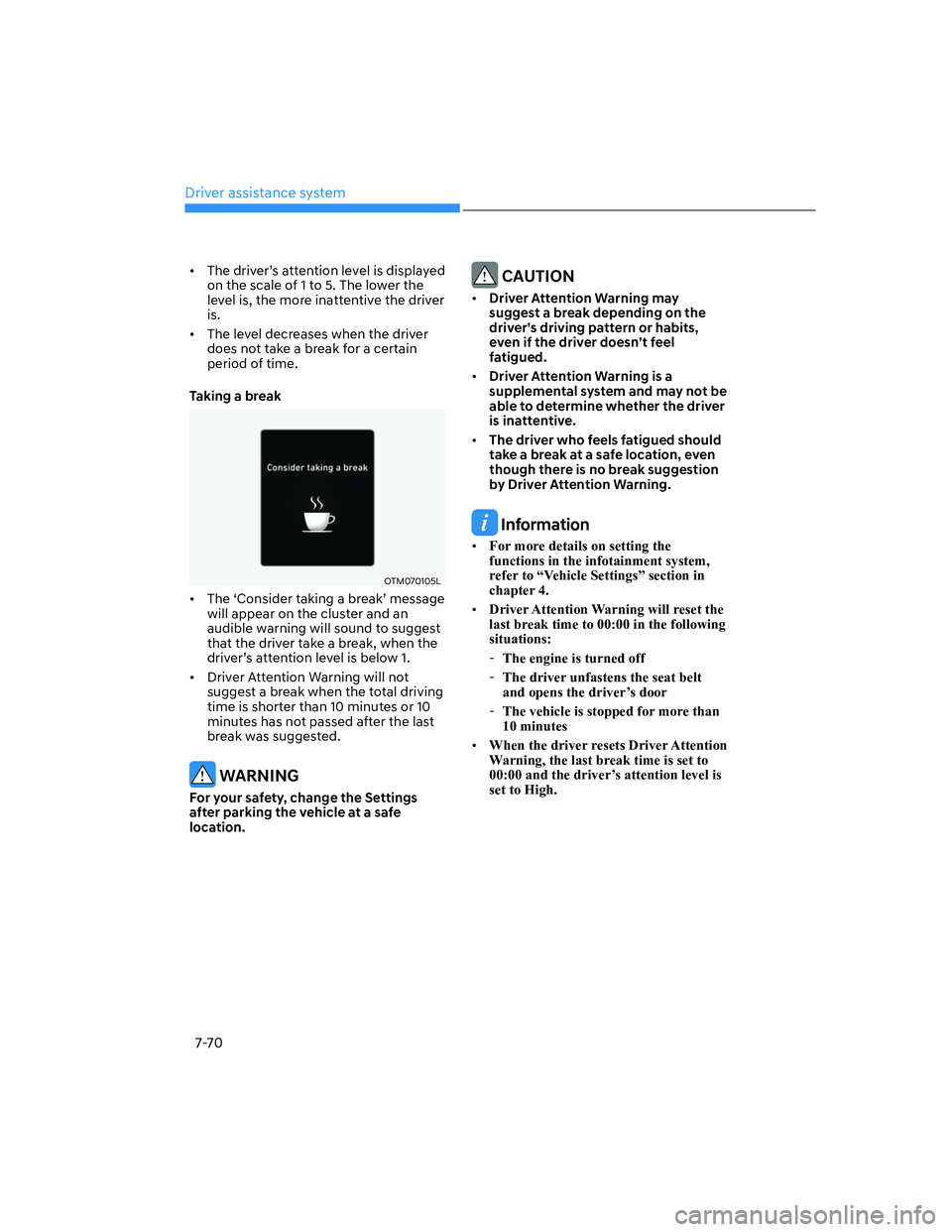

Driver assistance system
7-70

[ 7KHGULYHU
TVDWWHQWLRQOHYHOLVGLVSOD\HG
on the scale of 1 to 5. The lower the
level is, the more inattentive the driver
is.

[The level decreases when the driver
does not take a break for a certain
period of time.
Taking a break
OTM070105L

[ 7KH
S&RQVLGHUWDNLQJDEUHDN
TPHVVDJH
will appear on the cluster and an
audible warning will sound to suggest
that the driver take a break, when the
GULYHU
TVDWWHQWLRQOHYHOLVEHORZ

[Driver Attention Warning will not
suggest a break when the total driving
time is shorter than 10 minutes or 10
minutes has not passed after the last
break was suggested.
WARNING
For your safety, change the Settings
after parking the vehicle at a safe
location.
CAUTION

[Driver Attention Warning may
suggest a break depending on the
driver’s driving pattern or habits,
even if the driver doesn’t feel
fatigued.

[Driver Attention Warning is a
supplemental system and may not be
able to determine whether the driver
is inattentive.

[The driver who feels fatigued should
take a break at a safe location, even
though there is no break suggestion
by Driver Attention Warning.
Information

[For more details on setting the
functions in the infotainment system,
refer to “Vehicle Settings” section in
chapter 4.

[Driver Attention Warning will reset the
last break time to 00:00 in the following
situations:
-The engine is turned off
-The driver unfastens the seat belt
and opens the driver’s door
-The vehicle is stopped for more than
10 minutes

[When the driver resets Driver Attention
Warning, the last break time is set to
00:00 and the driver’s attention level is
set to High.

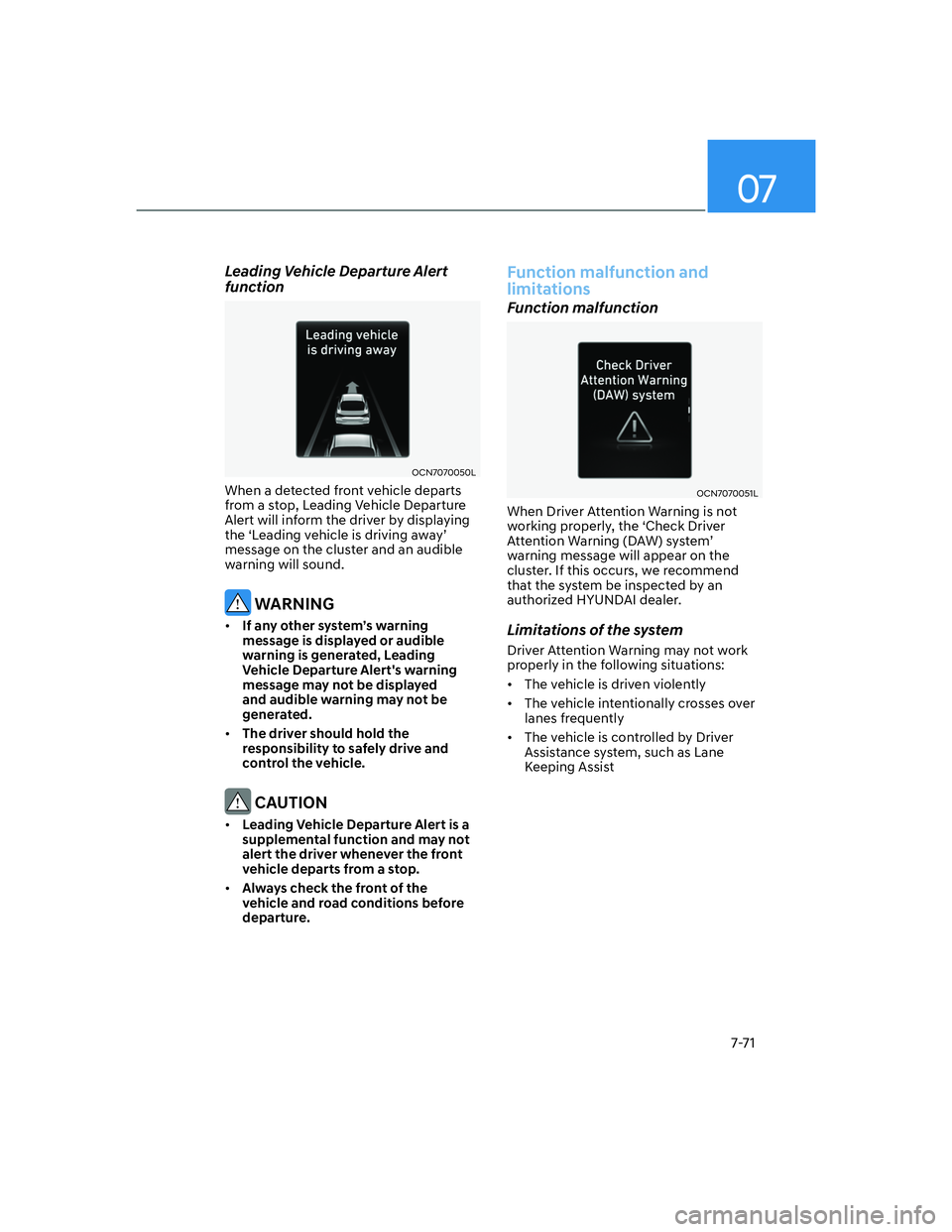

07
7-71
Leading Vehicle Departure Alert
function
OCN7070050L
When a detected front vehicle departs
from a stop, Leading Vehicle Departure
Alert will inform the driver by displaying
WKH
S/HDGLQJYHKLFOHLVGULYLQJDZD\
T
message on the cluster and an audible
warning will sound.
WARNING

[If any other system’s warning
message is displayed or audible
warning is generated, Leading
Vehicle Departure Alert's warning
message may not be displayed
and audible warning may not be
generated.

[The driver should hold the
responsibility to safely drive and
control the vehicle.
CAUTION

[Leading Vehicle Departure Alert is a
supplemental function and may not
alert the driver whenever the front
vehicle departs from a stop.

[Always check the front of the
vehicle and road conditions before
departure.
Function malfunction and
limitations
Function malfunction
OCN7070051L
When Driver Attention Warning is not
working properly, the ‘Check Driver
$WWHQWLRQ:DUQLQJ'$:V\VWHP
T
warning message will appear on the
cluster. If this occurs, we recommend
that the system be inspected by an
authorized HYUNDAI dealer.
Limitations of the system
Driver Attention Warning may not work
properly in the following situations:

[The vehicle is driven violently

[The vehicle intentionally crosses over
lanes frequently

[The vehicle is controlled by Driver
Assistance system, such as Lane
Keeping Assist

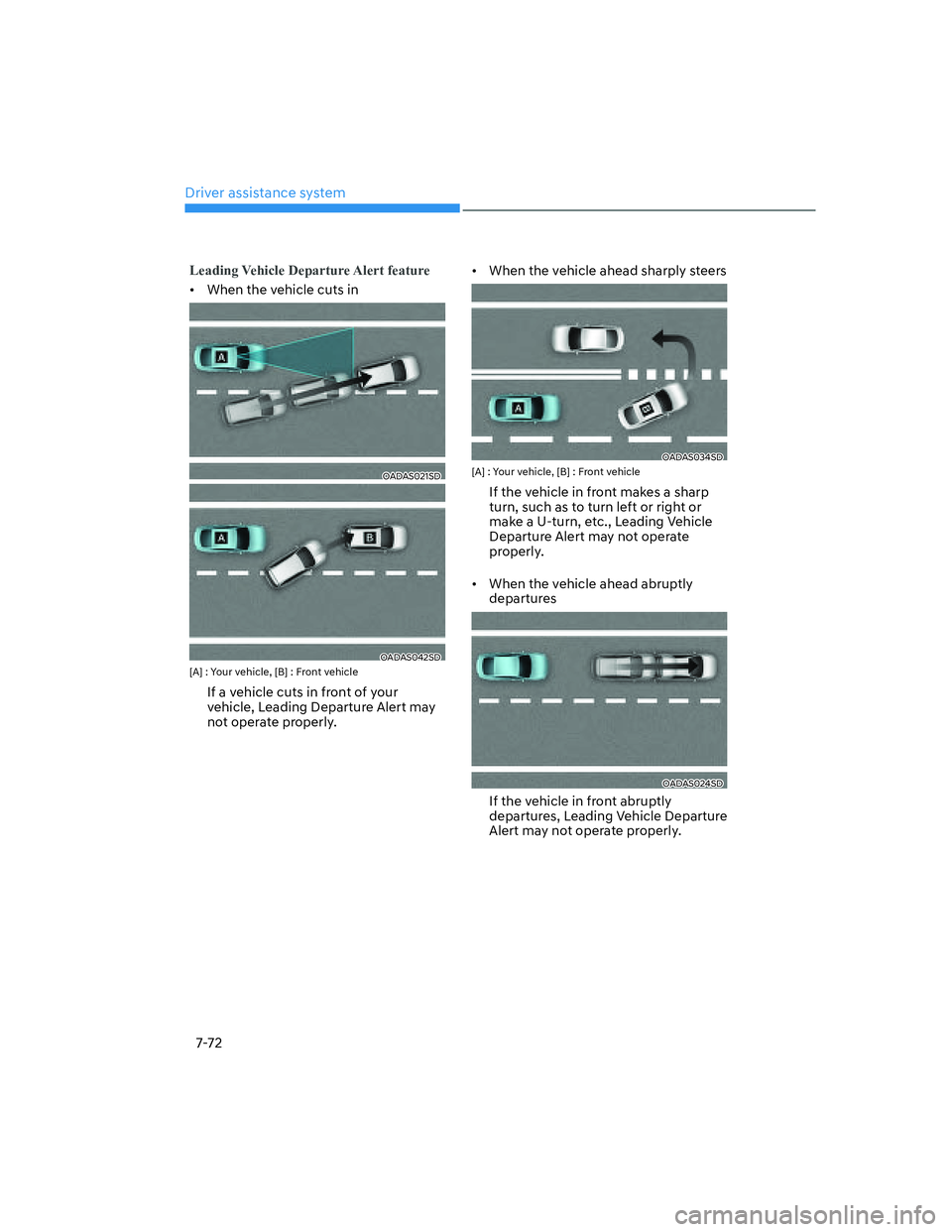

Driver assistance system
7-72
Leading Vehicle Departure Alert feature

[When the vehicle cuts in
OADAS021SD
OADAS042SD[A] : Your vehicle, [B] : Front vehicle
If a vehicle cuts in front of your
vehicle, Leading Departure Alert may
not operate properly.
[When the vehicle ahead sharply steers
OADAS034SD[A] : Your vehicle, [B] : Front vehicle
If the vehicle in front makes a sharp
turn, such as to turn left or right or
make a U-turn, etc., Leading Vehicle
Departure Alert may not operate
properly.

[When the vehicle ahead abruptly
departures
OADAS024SD
If the vehicle in front abruptly
departures, Leading Vehicle Departure
Alert may not operate properly.
