HYUNDAI ELANTRA 2022 Owners Manual

07
7-83

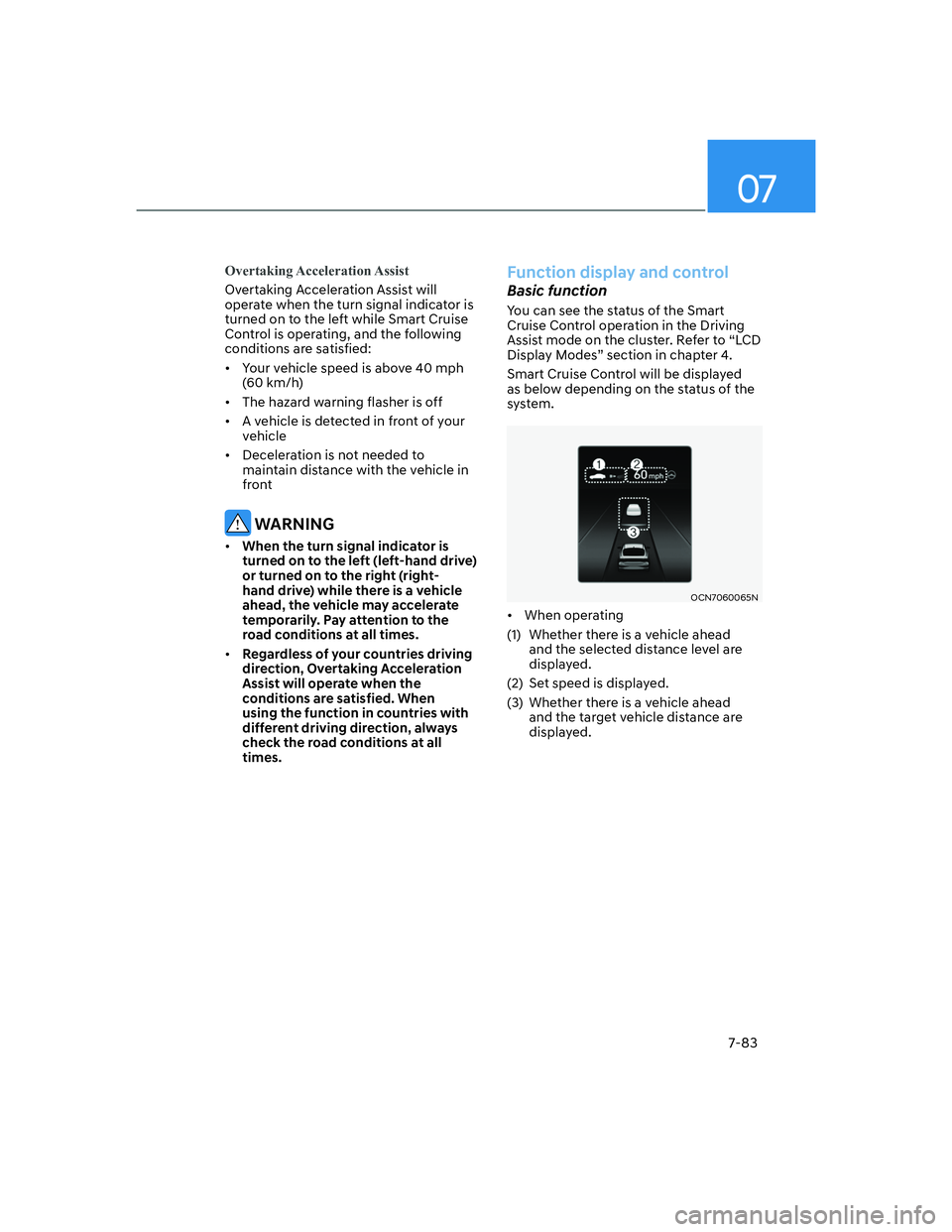

Overtaking Acceleration Assist
Overtaking Acceleration Assist will
operate when the turn signal indicator is
turned on to the left while Smart Cruise
Control is operating, and the following
conditions are satisfied:

[Your vehicle speed is above 40 mph
(60 km/h)

[The hazard warning flasher is off

[A vehicle is detected in front of your
vehicle

[Deceleration is not needed to
maintain distance with the vehicle in
front
WARNING

[When the turn signal indicator is
turned on to the left (left-hand drive)
or turned on to the right (right-
hand drive) while there is a vehicle
ahead, the vehicle may accelerate
temporarily. Pay attention to the
road conditions at all times.

[Regardless of your countries driving
direction, Overtaking Acceleration
Assist will operate when the
conditions are satisfied. When
using the function in countries with
different driving direction, always
check the road conditions at all
times.
Function display and control
Basic function
You can see the status of the Smart
Cruise Control operation in the Driving
Assist mode on the cluster. Refer to “LCD
Display Modes” section in chapter 4.
Smart Cruise Control will be displayed
as below depending on the status of the
system.
OCN7060065N

[When operating
(1) Whether there is a vehicle ahead
and the selected distance level are
displayed.
(2) Set speed is displayed.
(3) Whether there is a vehicle ahead
and the target vehicle distance are
displayed.

Driver assistance system
7-84
OCN7060164N

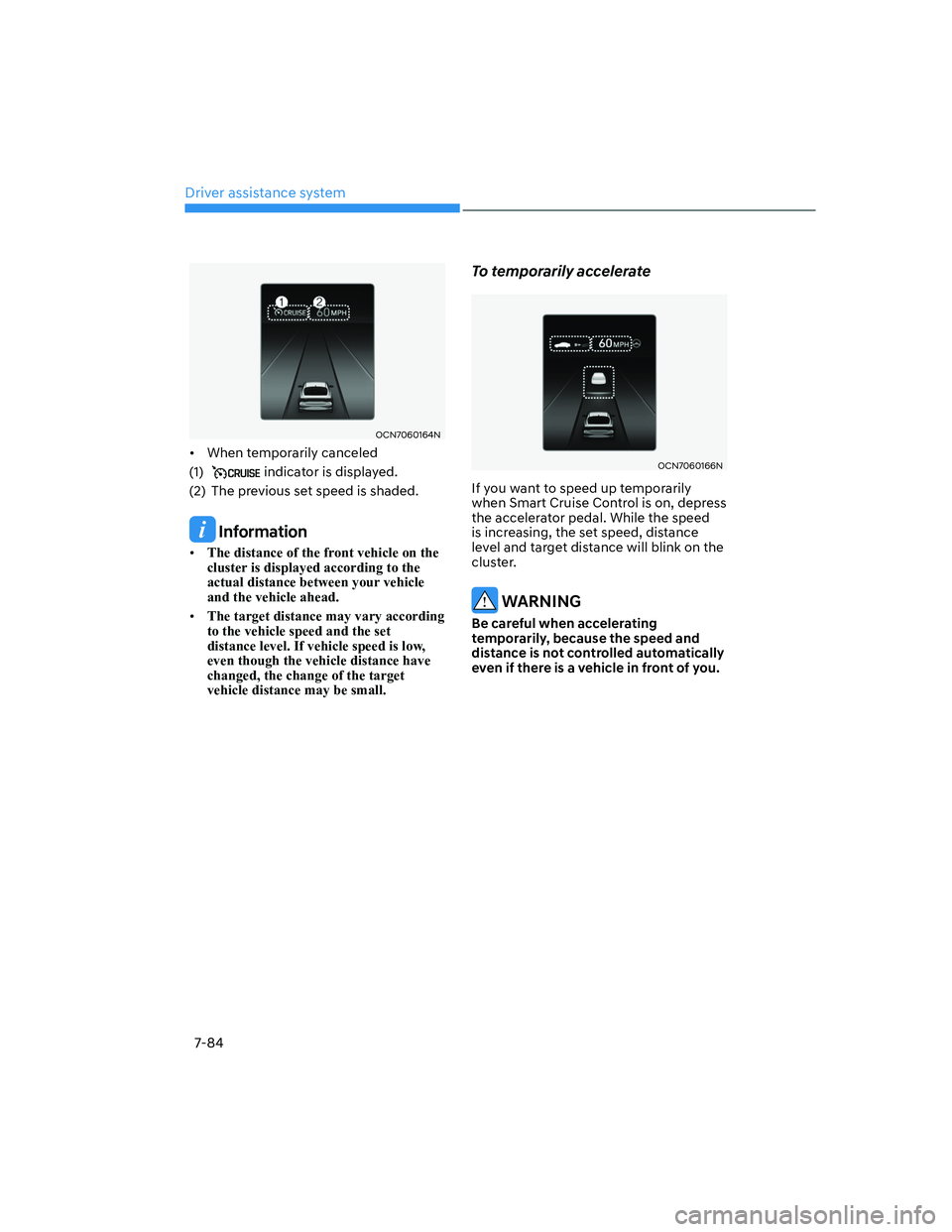

[When temporarily canceled
(1)
indicator is displayed.
(2) The previous set speed is shaded.
Information

[The distance of the front vehicle on the
cluster is displayed according to the
actual distance between your vehicle
and the vehicle ahead.

[The target distance may vary according
to the vehicle speed and the set
distance level. If vehicle speed is low,
even though the vehicle distance have
changed, the change of the target
vehicle distance may be small.
To temporarily accelerate
OCN7060166N
If you want to speed up temporarily
when Smart Cruise Control is on, depress
the accelerator pedal. While the speed
is increasing, the set speed, distance
level and target distance will blink on the
cluster.
WARNING
Be careful when accelerating
temporarily, because the speed and
distance is not controlled automatically
even if there is a vehicle in front of you.

07
7-85

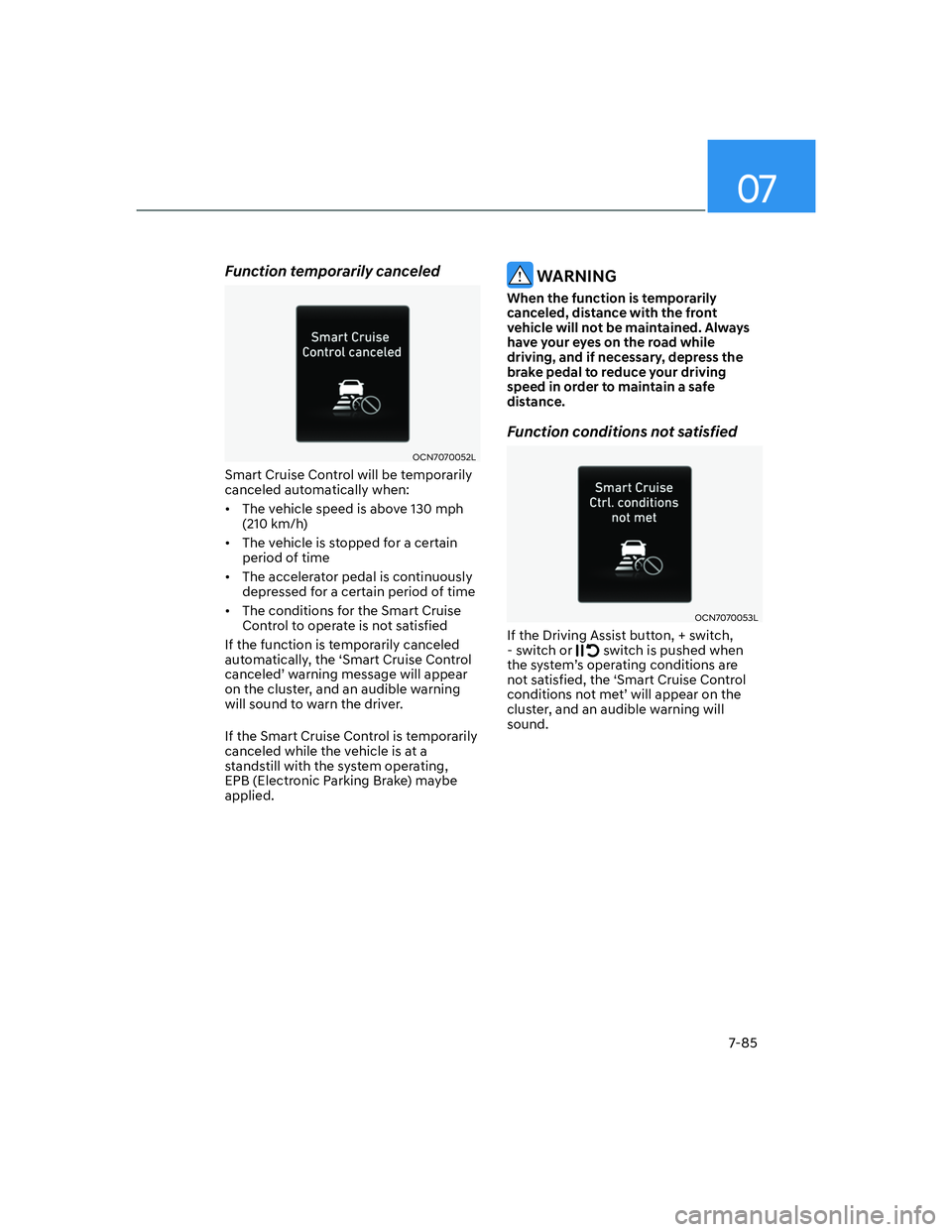

Function temporarily canceled
OCN7070052L
Smart Cruise Control will be temporarily
canceled automatically when:

[The vehicle speed is above 130 mph
(210 km/h)

[The vehicle is stopped for a certain
period of time

[The accelerator pedal is continuously
depressed for a certain period of time

[The conditions for the Smart Cruise
Control to operate is not satisfied
If the function is temporarily canceled
automatically, the ‘Smart Cruise Control
FDQFHOHG
TZDUQLQJPHVVDJHZLOODSSHDU
on the cluster, and an audible warning
will sound to warn the driver.
If the Smart Cruise Control is temporarily
canceled while the vehicle is at a
standstill with the system operating,
EPB (Electronic Parking Brake) maybe
applied.
WARNING
When the function is temporarily
canceled, distance with the front
vehicle will not be maintained. Always
have your eyes on the road while
driving, and if necessary, depress the
brake pedal to reduce your driving
speed in order to maintain a safe
distance.
Function conditions not satisfied
OCN7070053L
If the Driving Assist button, + switch,
- switch or switch is pushed when
WKHV\VWHP
TVRSHUDWLQJFRQGLWLRQVDUH
not satisfied, the ‘Smart Cruise Control
FRQGLWLRQVQRWPHW
TZLOODSSHDURQWKH
cluster, and an audible warning will
sound.

Driver assistance system
7-86

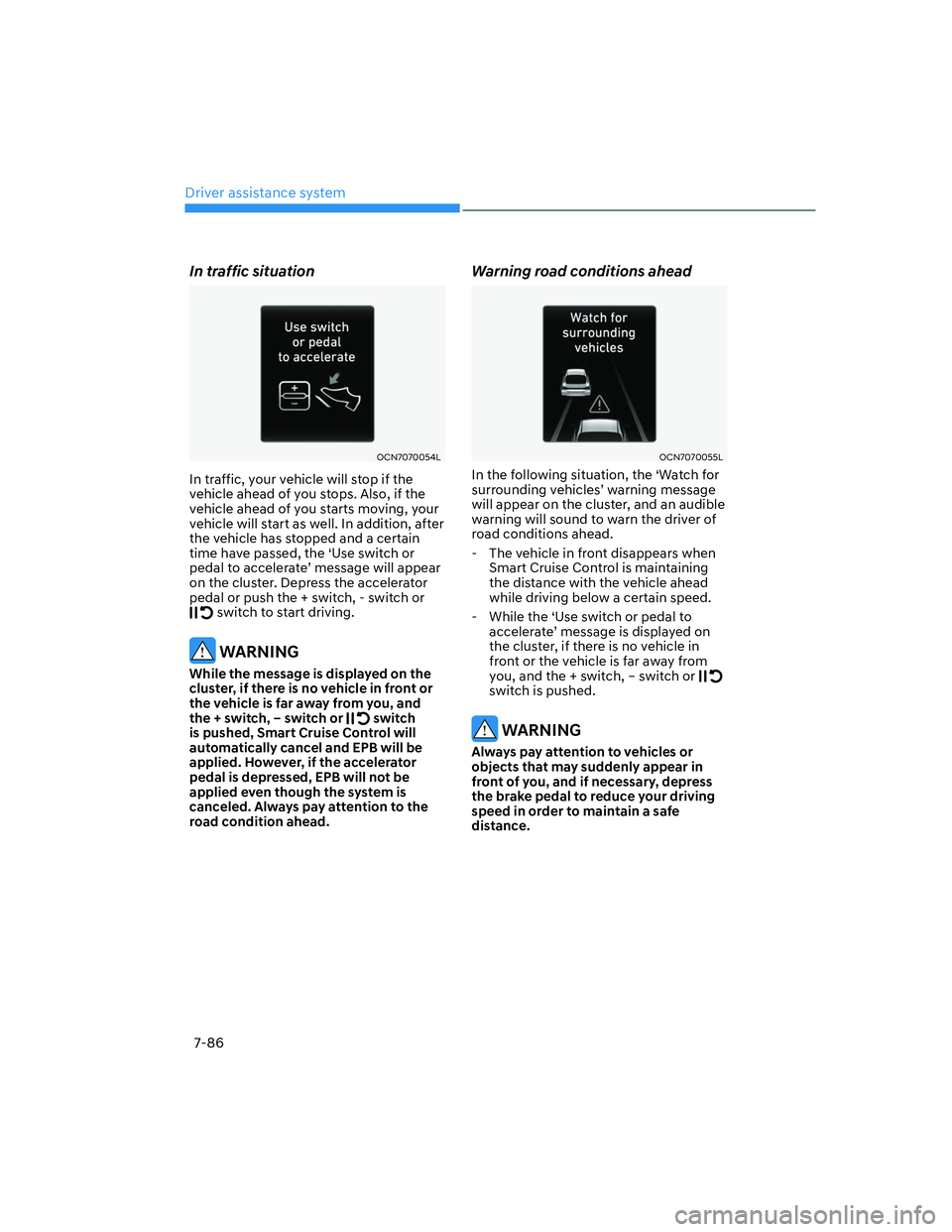

In traffic situation
OCN7070054L
In traffic, your vehicle will stop if the
vehicle ahead of you stops. Also, if the
vehicle ahead of you starts moving, your
vehicle will start as well. In addition, after
the vehicle has stopped and a certain
time have passed, the ‘Use switch or
SHGDOWRDFFHOHUDWH
TPHVVDJHZLOODSSHDU
on the cluster. Depress the accelerator
pedal or push the + switch, - switch or
switch to start driving.
WARNING
While the message is displayed on the
cluster, if there is no vehicle in front or
the vehicle is far away from you, and
the + switch, – switch or
switch
is pushed, Smart Cruise Control will
automatically cancel and EPB will be
applied. However, if the accelerator
pedal is depressed, EPB will not be
applied even though the system is
canceled. Always pay attention to the
road condition ahead.
Warning road conditions ahead
OCN7070055L
In the following situation, the ‘Watch for
VXUURXQGLQJYHKLFOHV
TZDUQLQJPHVVDJH
will appear on the cluster, and an audible
warning will sound to warn the driver of
road conditions ahead.
- The vehicle in front disappears when
Smart Cruise Control is maintaining
the distance with the vehicle ahead
while driving below a certain speed.
- While the ‘Use switch or pedal to
DFFHOHUDWH
TPHVVDJHLVGLVSOD\HGRQ
the cluster, if there is no vehicle in
front or the vehicle is far away from
you, and the + switch, – switch or

switch is pushed.
WARNING
Always pay attention to vehicles or
objects that may suddenly appear in
front of you, and if necessary, depress
the brake pedal to reduce your driving
speed in order to maintain a safe
distance.

07
7-87

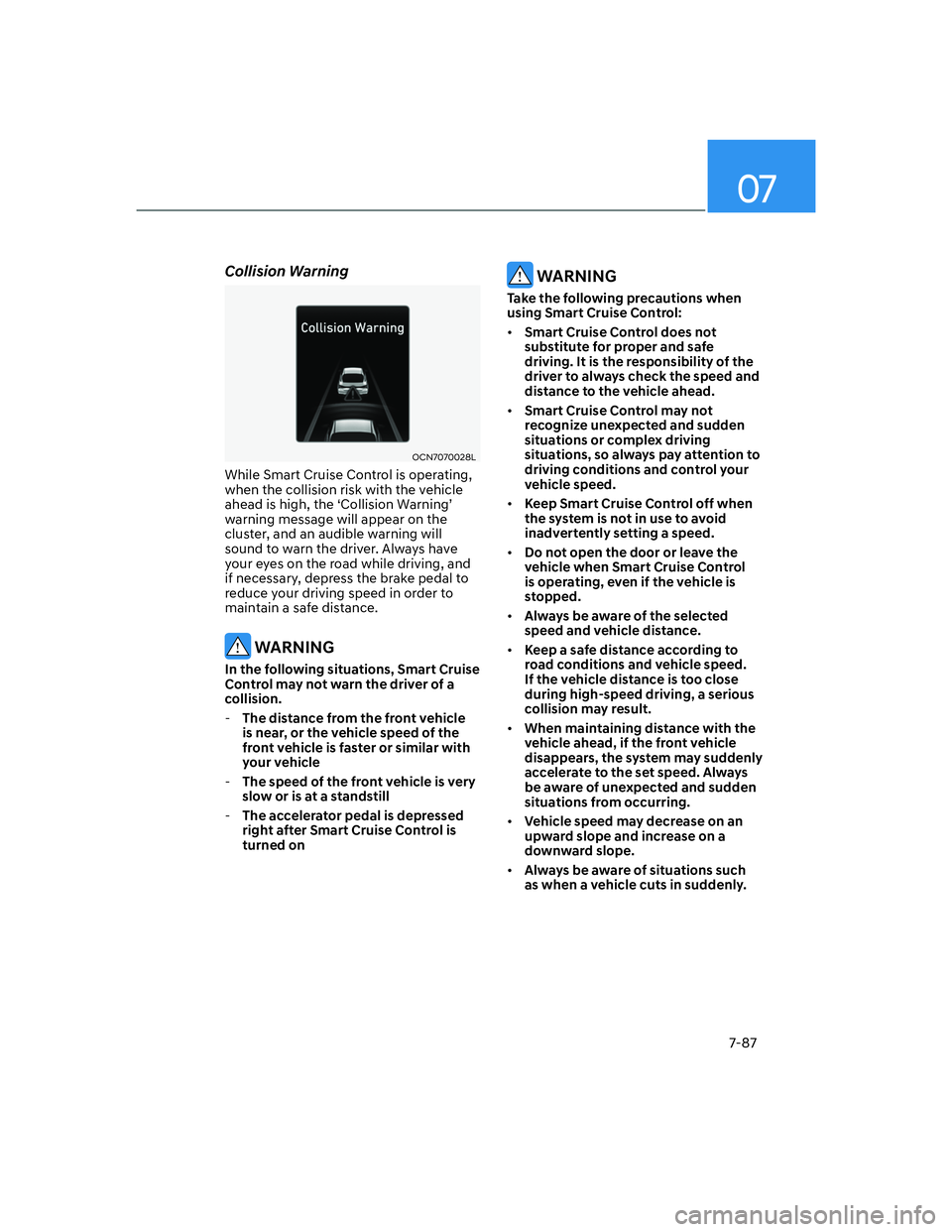

Collision Warning
OCN7070028L
While Smart Cruise Control is operating,
when the collision risk with the vehicle
DKHDGLVKLJKWKH
S&ROOLVLRQ:DUQLQJ
T
warning message will appear on the
cluster, and an audible warning will
sound to warn the driver. Always have
your eyes on the road while driving, and
if necessary, depress the brake pedal to
reduce your driving speed in order to
maintain a safe distance.
WARNING
In the following situations, Smart Cruise
Control may not warn the driver of a
collision.
-The distance from the front vehicle
is near, or the vehicle speed of the
front vehicle is faster or similar with
your vehicle
-The speed of the front vehicle is very
slow or is at a standstill
-The accelerator pedal is depressed
right after Smart Cruise Control is
turned on
WARNING
Take the following precautions when
using Smart Cruise Control:

[Smart Cruise Control does not
substitute for proper and safe
driving. It is the responsibility of the
driver to always check the speed and
distance to the vehicle ahead.

[Smart Cruise Control may not
recognize unexpected and sudden
situations or complex driving
situations, so always pay attention to
driving conditions and control your
vehicle speed.

[Keep Smart Cruise Control off when
the system is not in use to avoid
inadvertently setting a speed.

[Do not open the door or leave the
vehicle when Smart Cruise Control
is operating, even if the vehicle is
stopped.

[Always be aware of the selected
speed and vehicle distance.

[Keep a safe distance according to
road conditions and vehicle speed.
If the vehicle distance is too close
during high-speed driving, a serious
collision may result.

[When maintaining distance with the
vehicle ahead, if the front vehicle
disappears, the system may suddenly
accelerate to the set speed. Always
be aware of unexpected and sudden
situations from occurring.

[Vehicle speed may decrease on an
upward slope and increase on a
downward slope.

[Always be aware of situations such
as when a vehicle cuts in suddenly.

Driver assistance system
7-88

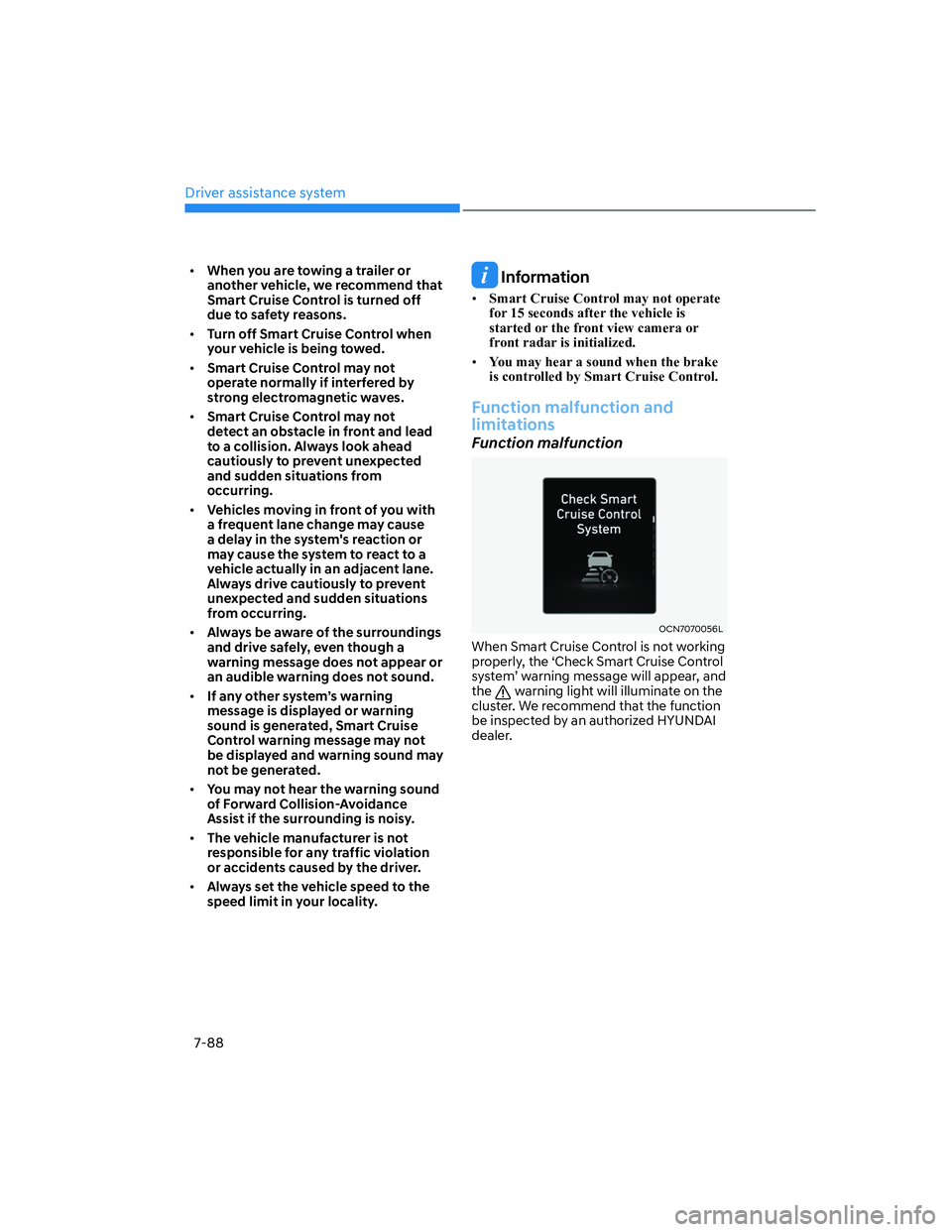

[When you are towing a trailer or
another vehicle, we recommend that
Smart Cruise Control is turned off
due to safety reasons.

[Turn off Smart Cruise Control when
your vehicle is being towed.

[Smart Cruise Control may not
operate normally if interfered by
strong electromagnetic waves.

[Smart Cruise Control may not
detect an obstacle in front and lead
to a collision. Always look ahead
cautiously to prevent unexpected
and sudden situations from
occurring.

[Vehicles moving in front of you with
a frequent lane change may cause
a delay in the system's reaction or
may cause the system to react to a
vehicle actually in an adjacent lane.
Always drive cautiously to prevent
unexpected and sudden situations
from occurring.

[Always be aware of the surroundings
and drive safely, even though a
warning message does not appear or
an audible warning does not sound.

[If any other system’s warning
message is displayed or warning
sound is generated, Smart Cruise
Control warning message may not
be displayed and warning sound may
not be generated.

[You may not hear the warning sound
of Forward Collision-Avoidance
Assist if the surrounding is noisy.

[The vehicle manufacturer is not
responsible for any traffic violation
or accidents caused by the driver.

[Always set the vehicle speed to the
speed limit in your locality. Information

[Smart Cruise Control may not operate
for 15 seconds after the vehicle is
started or the front view camera or
front radar is initialized.

[You may hear a sound when the brake
is controlled by Smart Cruise Control.
Function malfunction and
limitations
Function malfunction
OCN7070056L
When Smart Cruise Control is not working
properly, the ‘Check Smart Cruise Control
V\VWHP
T ZDUQLQJ PHVVDJH ZLOO DSSHDU DQG
the
warning light will illuminate on the
cluster. We recommend that the function
be inspected by an authorized HYUNDAI
dealer.

07
7-89

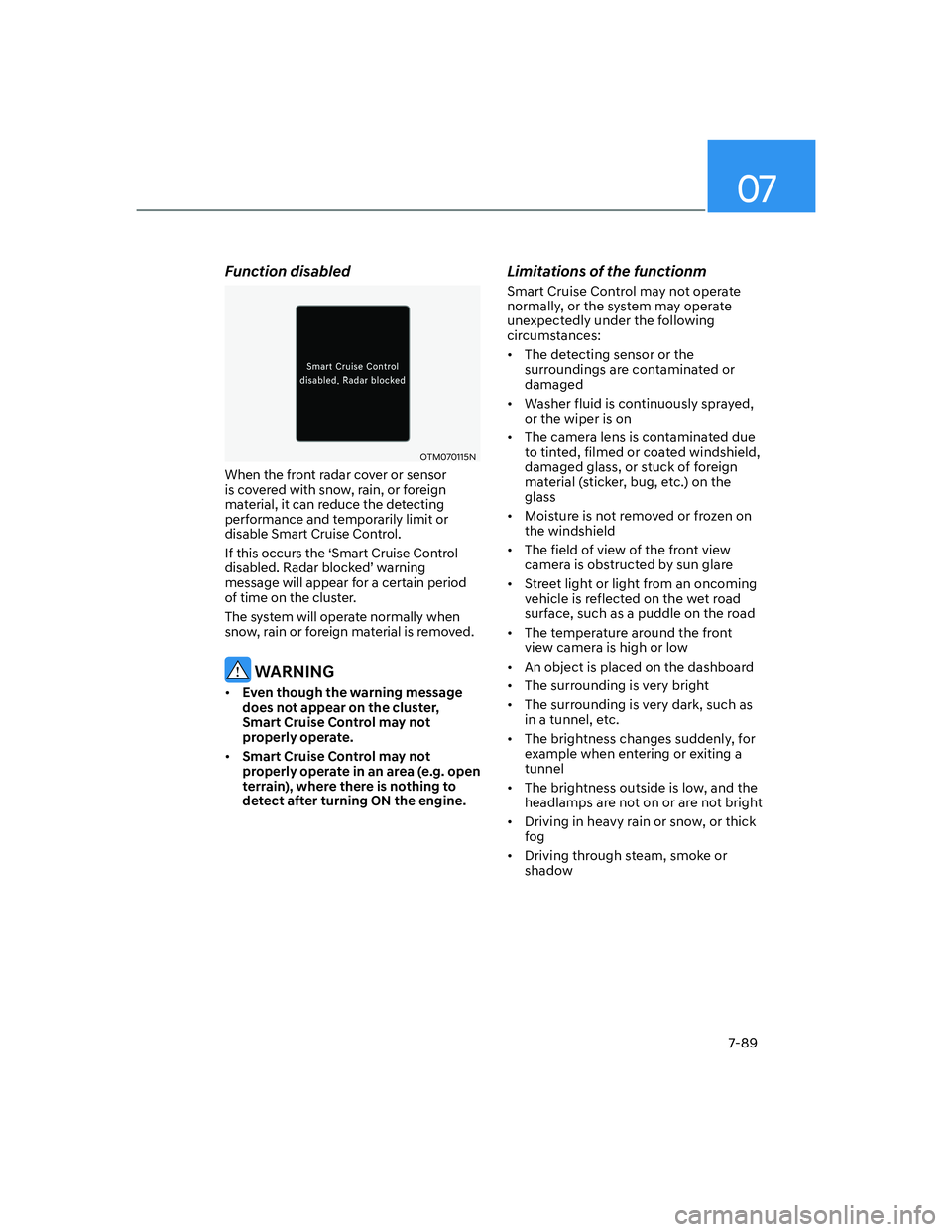

Function disabled
OTM070115N
When the front radar cover or sensor
is covered with snow, rain, or foreign
material, it can reduce the detecting
performance and temporarily limit or
disable Smart Cruise Control.
If this occurs the ‘Smart Cruise Control
GLVDEOHG5DGDUEORFNHG
TZDUQLQJ
message will appear for a certain period
of time on the cluster.
The system will operate normally when
snow, rain or foreign material is removed.
WARNING

[Even though the warning message
does not appear on the cluster,
Smart Cruise Control may not
properly operate.

[Smart Cruise Control may not
properly operate in an area (e.g. open
terrain), where there is nothing to
detect after turning ON the engine.
Limitations of the functionm
Smart Cruise Control may not operate
normally, or the system may operate
unexpectedly under the following
circumstances:

[The detecting sensor or the
surroundings are contaminated or
damaged

[Washer fluid is continuously sprayed,
or the wiper is on

[The camera lens is contaminated due
to tinted, filmed or coated windshield,
damaged glass, or stuck of foreign
material (sticker, bug, etc.) on the
glass

[Moisture is not removed or frozen on
the windshield

[The field of view of the front view
camera is obstructed by sun glare

[Street light or light from an oncoming
vehicle is reflected on the wet road
surface, such as a puddle on the road

[The temperature around the front
view camera is high or low

[An object is placed on the dashboard

[The surrounding is very bright

[The surrounding is very dark, such as
in a tunnel, etc.

[The brightness changes suddenly, for
example when entering or exiting a
tunnel

[The brightness outside is low, and the
headlamps are not on or are not bright

[Driving in heavy rain or snow, or thick
fog

[Driving through steam, smoke or
shadow

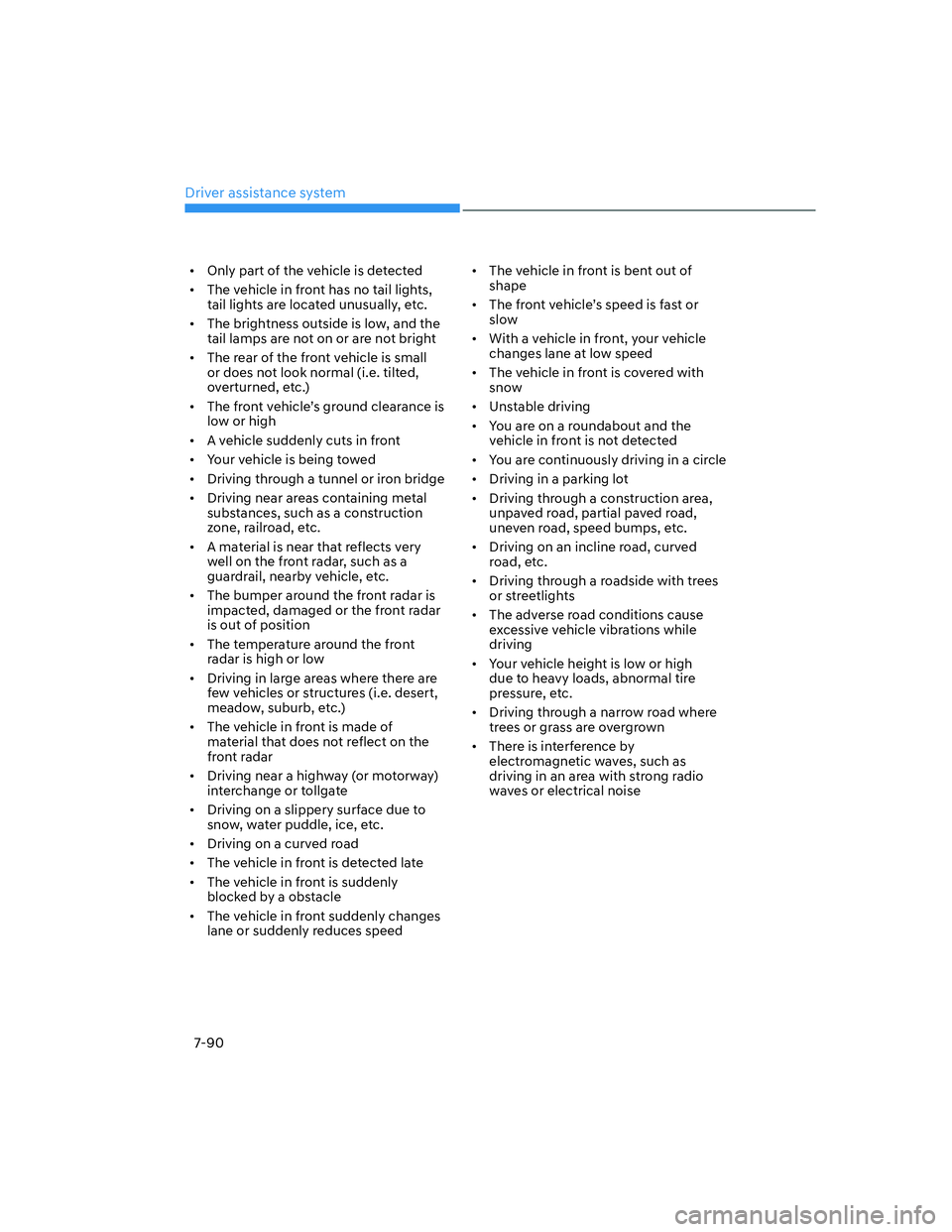

Driver assistance system
7-90

[Only part of the vehicle is detected

[The vehicle in front has no tail lights,
tail lights are located unusually, etc.

[The brightness outside is low, and the
tail lamps are not on or are not bright

[The rear of the front vehicle is small
or does not look normal (i.e. tilted,
overturned, etc.)

[ 7KHIURQWYHKLFOH
TVJURXQGFOHDUDQFHLV
low or high

[A vehicle suddenly cuts in front

[Your vehicle is being towed

[Driving through a tunnel or iron bridge

[Driving near areas containing metal
substances, such as a construction
zone, railroad, etc.

[A material is near that reflects very
well on the front radar, such as a
guardrail, nearby vehicle, etc.

[The bumper around the front radar is
impacted, damaged or the front radar
is out of position

[The temperature around the front
radar is high or low

[Driving in large areas where there are
few vehicles or structures (i.e. desert,
meadow, suburb, etc.)

[The vehicle in front is made of
material that does not reflect on the
front radar

[Driving near a highway (or motorway)
interchange or tollgate

[Driving on a slippery surface due to
snow, water puddle, ice, etc.

[Driving on a curved road

[The vehicle in front is detected late

[The vehicle in front is suddenly
blocked by a obstacle

[The vehicle in front suddenly changes
lane or suddenly reduces speed
[The vehicle in front is bent out of
shape

[ 7KHIURQWYHKLFOH
TVVSHHGLVIDVWRU
slow

[With a vehicle in front, your vehicle
changes lane at low speed

[The vehicle in front is covered with
snow

[Unstable driving

[You are on a roundabout and the
vehicle in front is not detected

[You are continuously driving in a circle

[Driving in a parking lot

[Driving through a construction area,
unpaved road, partial paved road,
uneven road, speed bumps, etc.

[Driving on an incline road, curved
road, etc.

[Driving through a roadside with trees
or streetlights

[The adverse road conditions cause
excessive vehicle vibrations while
driving

[Your vehicle height is low or high
due to heavy loads, abnormal tire
pressure, etc.

[Driving through a narrow road where
trees or grass are overgrown

[There is interference by
electromagnetic waves, such as
driving in an area with strong radio
waves or electrical noise

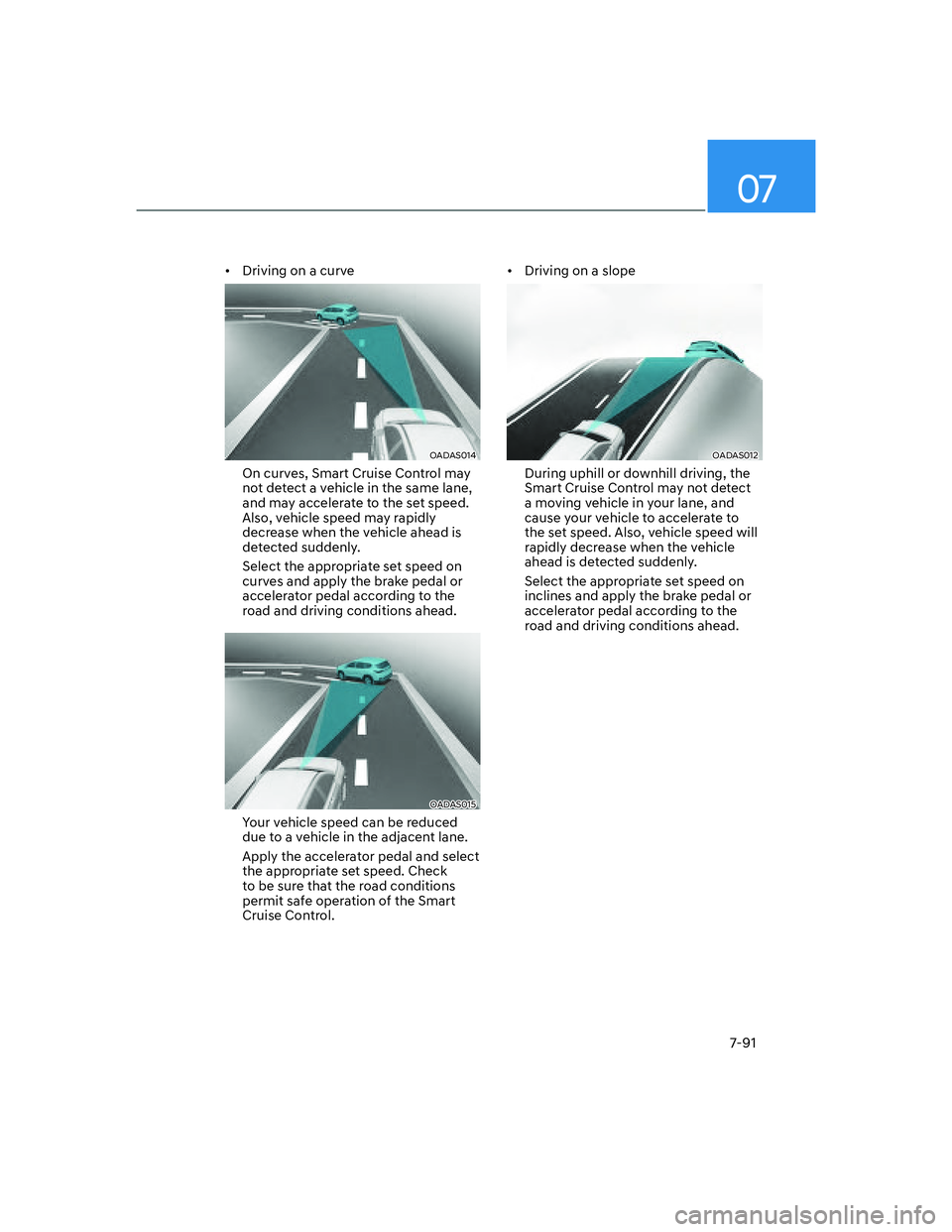

07
7-91

[Driving on a curve
OADAS014
On curves, Smart Cruise Control may
not detect a vehicle in the same lane,
and may accelerate to the set speed.
Also, vehicle speed may rapidly
decrease when the vehicle ahead is
detected suddenly.
Select the appropriate set speed on
curves and apply the brake pedal or
accelerator pedal according to the
road and driving conditions ahead.
OADAS015
Your vehicle speed can be reduced
due to a vehicle in the adjacent lane.
Apply the accelerator pedal and select
the appropriate set speed. Check
to be sure that the road conditions
permit safe operation of the Smart
Cruise Control.
[Driving on a slope
OADAS012
During uphill or downhill driving, the
Smart Cruise Control may not detect
a moving vehicle in your lane, and
cause your vehicle to accelerate to
the set speed. Also, vehicle speed will
rapidly decrease when the vehicle
ahead is detected suddenly.
Select the appropriate set speed on
inclines and apply the brake pedal or
accelerator pedal according to the
road and driving conditions ahead.

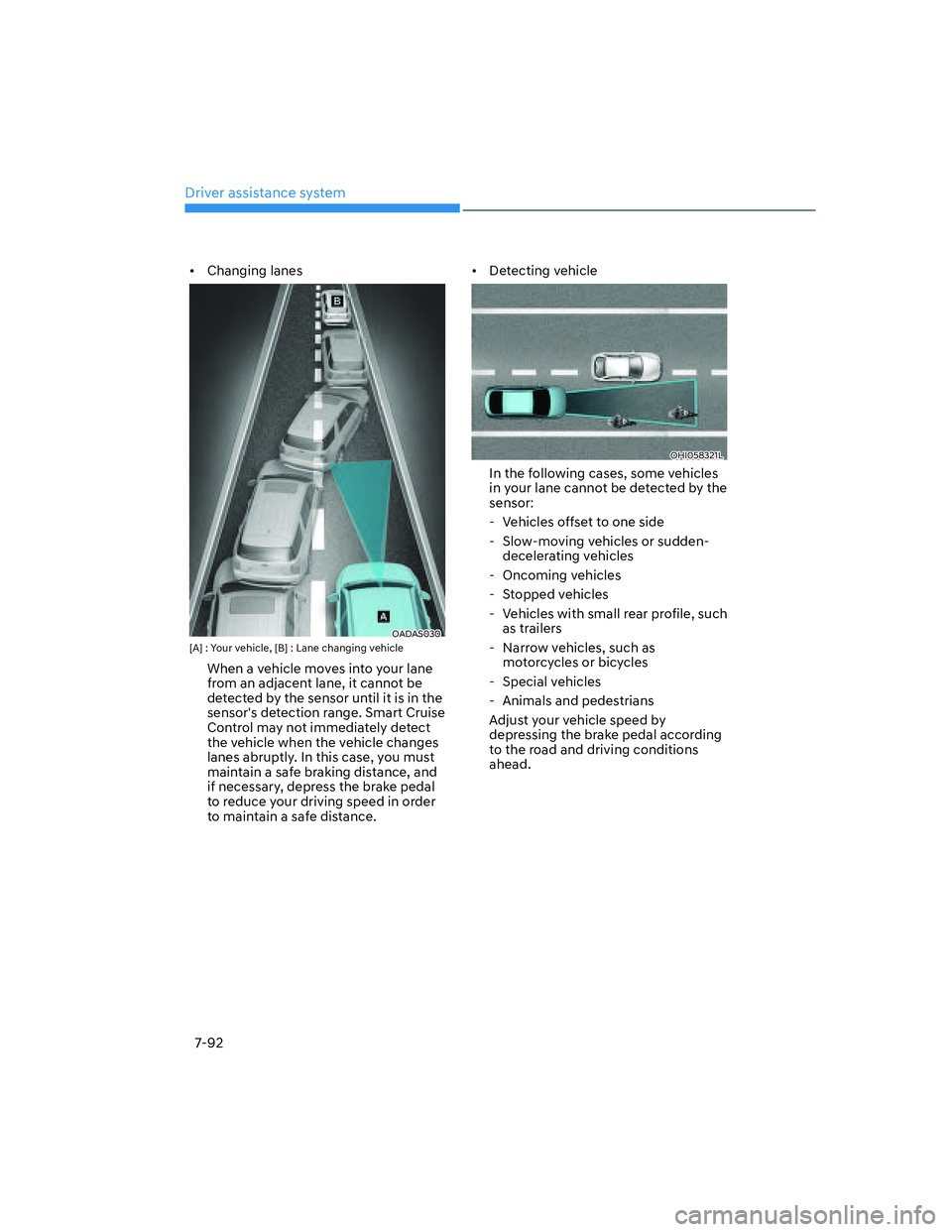

Driver assistance system
7-92

[Changing lanes
OADAS030 [A] : Your vehicle, [B] : Lane changing vehicle
When a vehicle moves into your lane
from an adjacent lane, it cannot be
detected by the sensor until it is in the
sensor's detection range. Smart Cruise
Control may not immediately detect
the vehicle when the vehicle changes
lanes abruptly. In this case, you must
maintain a safe braking distance, and
if necessary, depress the brake pedal
to reduce your driving speed in order
to maintain a safe distance.
[Detecting vehicle
OHI058321L
In the following cases, some vehicles
in your lane cannot be detected by the
sensor:
- Vehicles offset to one side
- Slow-moving vehicles or sudden-
decelerating vehicles
- Oncoming vehicles
- Stopped vehicles
- Vehicles with small rear profile, such
as trailers
- Narrow vehicles, such as
motorcycles or bicycles
- Special vehicles
- Animals and pedestrians
Adjust your vehicle speed by
depressing the brake pedal according
to the road and driving conditions
ahead.
