HYUNDAI ELANTRA 2023 Owners Manual

Driver Assistance System7-44

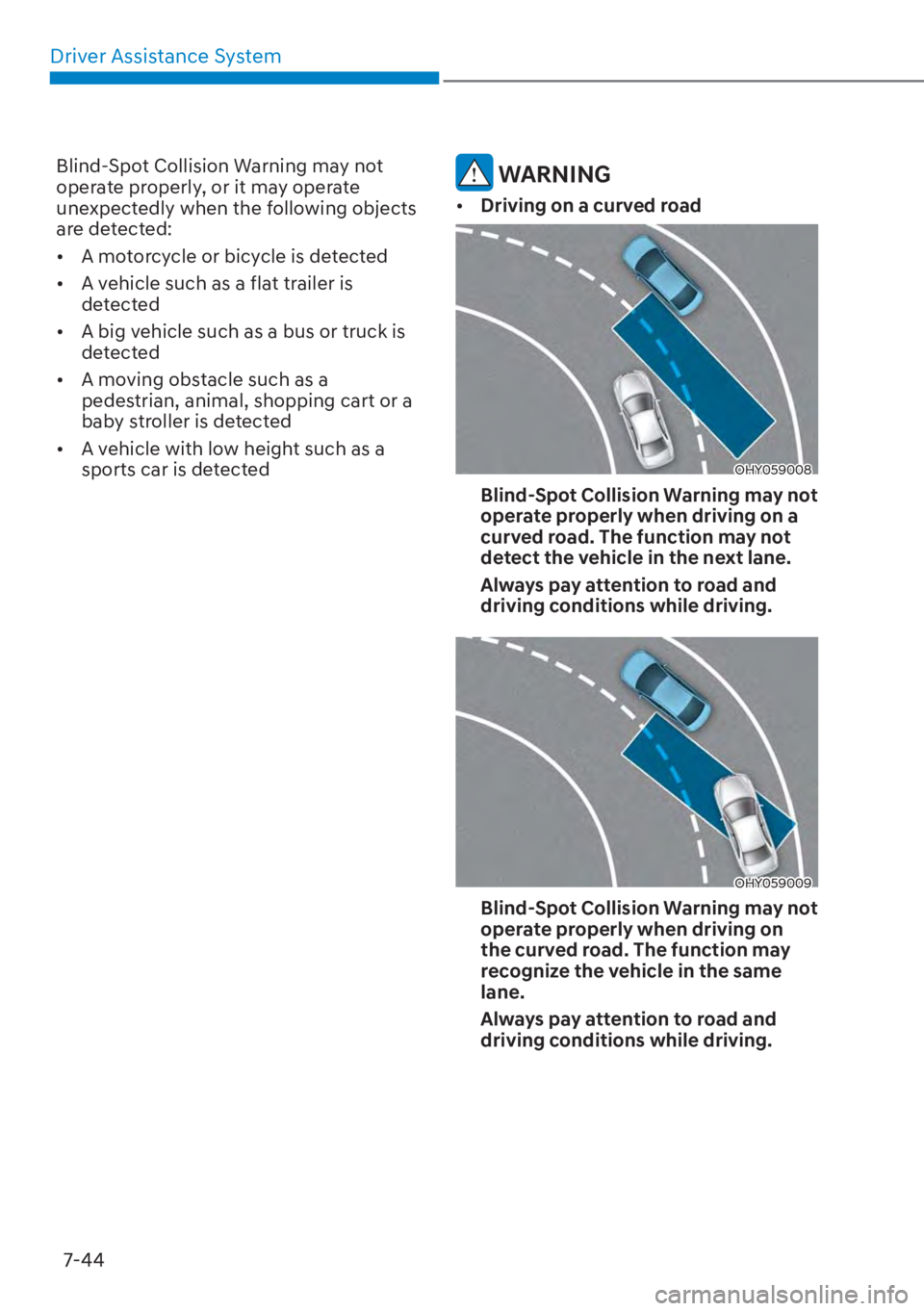

Blind-Spot Collision Warning may not
operate properly, or it may operate
unexpectedly when the following objects
are detected:

[ A motorcycle or bicycle is detected

[ A vehicle such as a flat trailer is
detected

[ A big vehicle such as a bus or truck is
detected

[ A moving obstacle such as a
pedestrian, animal, shopping cart or a
baby stroller is detected

[ A vehicle with low height such as a
sports car is detected WARNING

[Driving on a curved road
OHY059008
Blind-Spot Collision Warning may not
operate properly when driving on a
curved road. The function may not
detect the vehicle in the next lane.
Always pay attention to road and
driving conditions while driving.
OHY059009
Blind-Spot Collision Warning may not
operate properly when driving on
the curved road. The function may
recognize the vehicle in the same
lane.
Always pay attention to road and
driving conditions while driving.

07
7-45

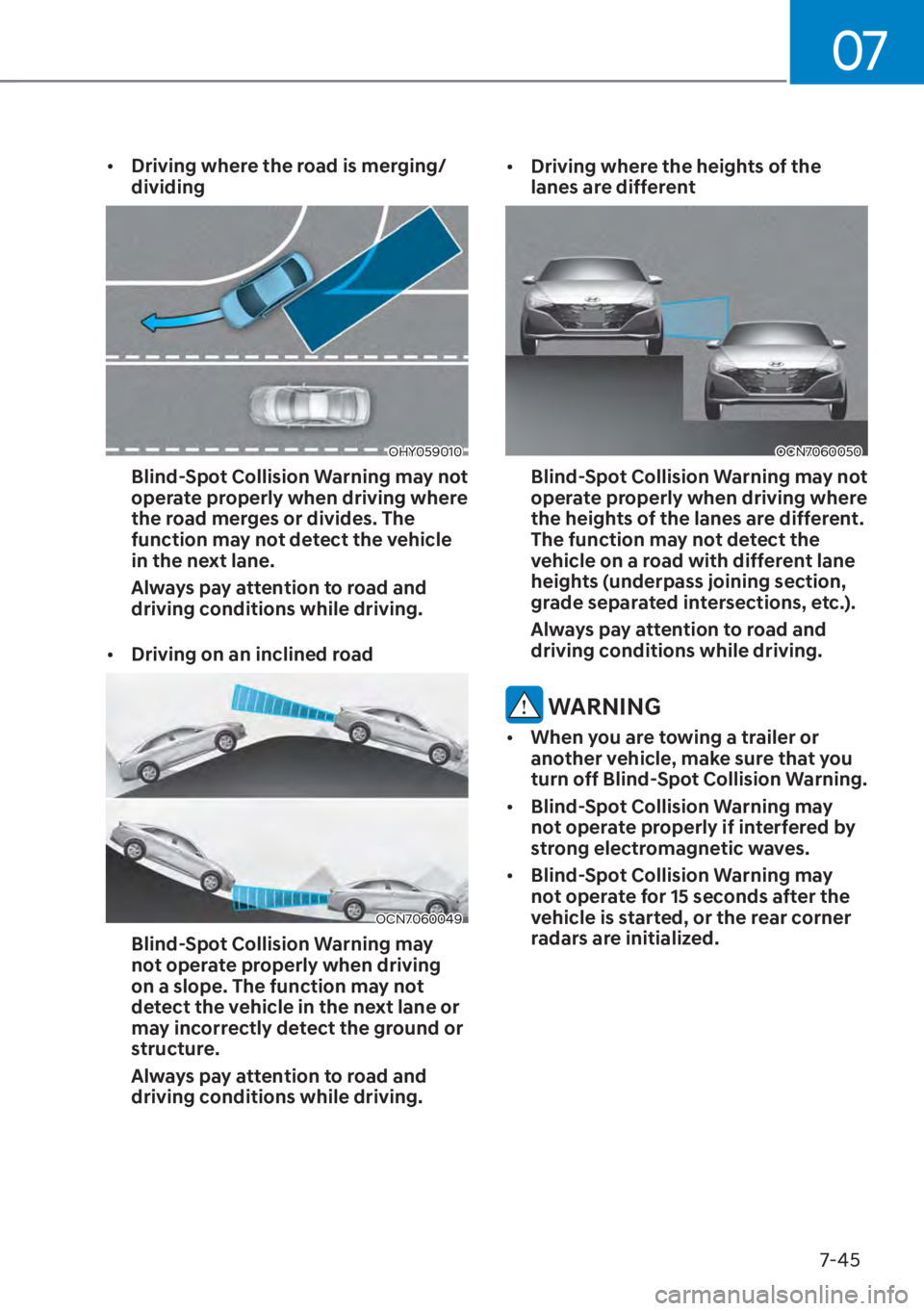

[Driving where the road is merging/
dividing
OHY059010
Blind-Spot Collision Warning may not
operate properly when driving where
the road merges or divides. The
function may not detect the vehicle
in the next lane.
Always pay attention to road and
driving conditions while driving.

[ Driving on an inclined road
OCN7060049
Blind-Spot Collision Warning may
not operate properly when driving
on a slope. The function may not
detect the vehicle in the next lane or
may incorrectly detect the ground or
structure.
Always pay attention to road and
driving conditions while driving.
[
Driving where the heights of the
lanes are different
OCN7060050
Blind-Spot Collision Warning may not
operate properly when driving where
the heights of the lanes are different.
The function may not detect the
vehicle on a road with different lane
heights (underpass joining section,
grade separated intersections, etc.).
Always pay attention to road and
driving conditions while driving.
WARNING

[When you are towing a trailer or
another vehicle, make sure that you
turn off Blind-Spot Collision Warning.

[ Blind-Spot Collision Warning may
not operate properly if interfered by
strong electromagnetic waves.

[ Blind-Spot Collision Warning may
not operate for 15 seconds after the
vehicle is started, or the rear corner
radars are initialized.

Driver Assistance System7-46
%/,1'

07
7-47
OHY059004
When you are driving forward out of a
parking space, if Blind-Spot Collision-
Avoidance Assist detects that there is a
collision risk with an approaching vehicle
in the blind spot, it can help avoid a
collision by applying the brake.
Detecting sensor
OCN7061030L
OCN7061046L[1] : Front view camera
Refer to the picture above for the
detailed location of the detecting
sensors.
CAUTION
Take the following precautions to
maintain optimal performance of the
detecting sensor:

[Never disassemble the rear corner
radar or radar assembly, or cause any
damage to it.

[ If the rear corner radar or near the
radar has been damaged or impacted
in any way, even though the warning
message Collision-Avoidance Assist
on the cluster, Blind-Spot Safety
system may not operate properly.
Have the vehicle inspected by an
authorized HYUNDAI dealer.

Driver Assistance System7-48

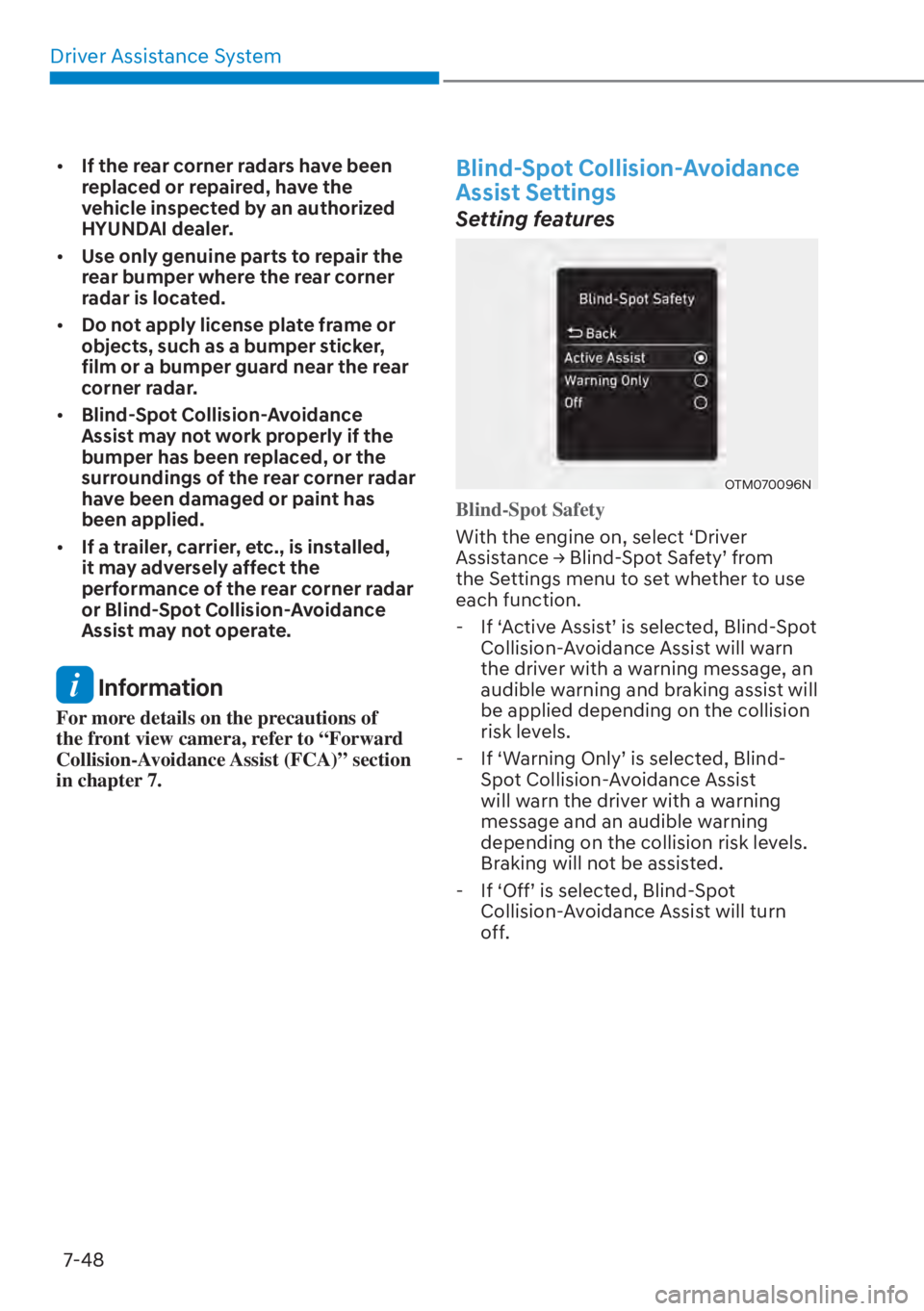

[ If the rear corner radars have been
replaced or repaired, have the
vehicle inspected by an authorized
HYUNDAI dealer.

[ Use only genuine parts to repair the
rear bumper where the rear corner
radar is located.

[ Do not apply license plate frame or
objects, such as a bumper sticker,
film or a bumper guard near the rear
corner radar.

[ Blind-Spot Collision-Avoidance
Assist may not work properly if the
bumper has been replaced, or the
surroundings of the rear corner radar
have been damaged or paint has
been applied.

[ If a trailer, carrier, etc., is installed,
it may adversely affect the
performance of the rear corner radar
or Blind-Spot Collision-Avoidance
Assist may not operate.
Information
For more details on the precautions of
the front view camera, refer to “Forward
Collision-Avoidance Assist (FCA)” section
in chapter 7.
Blind-Spot Collision-Avoidance
Assist Settings
Setting features
OTM070096N
Blind-Spot Safety
With the engine on, select ‘Driver
$VVLV

WDQFH

07
7-49

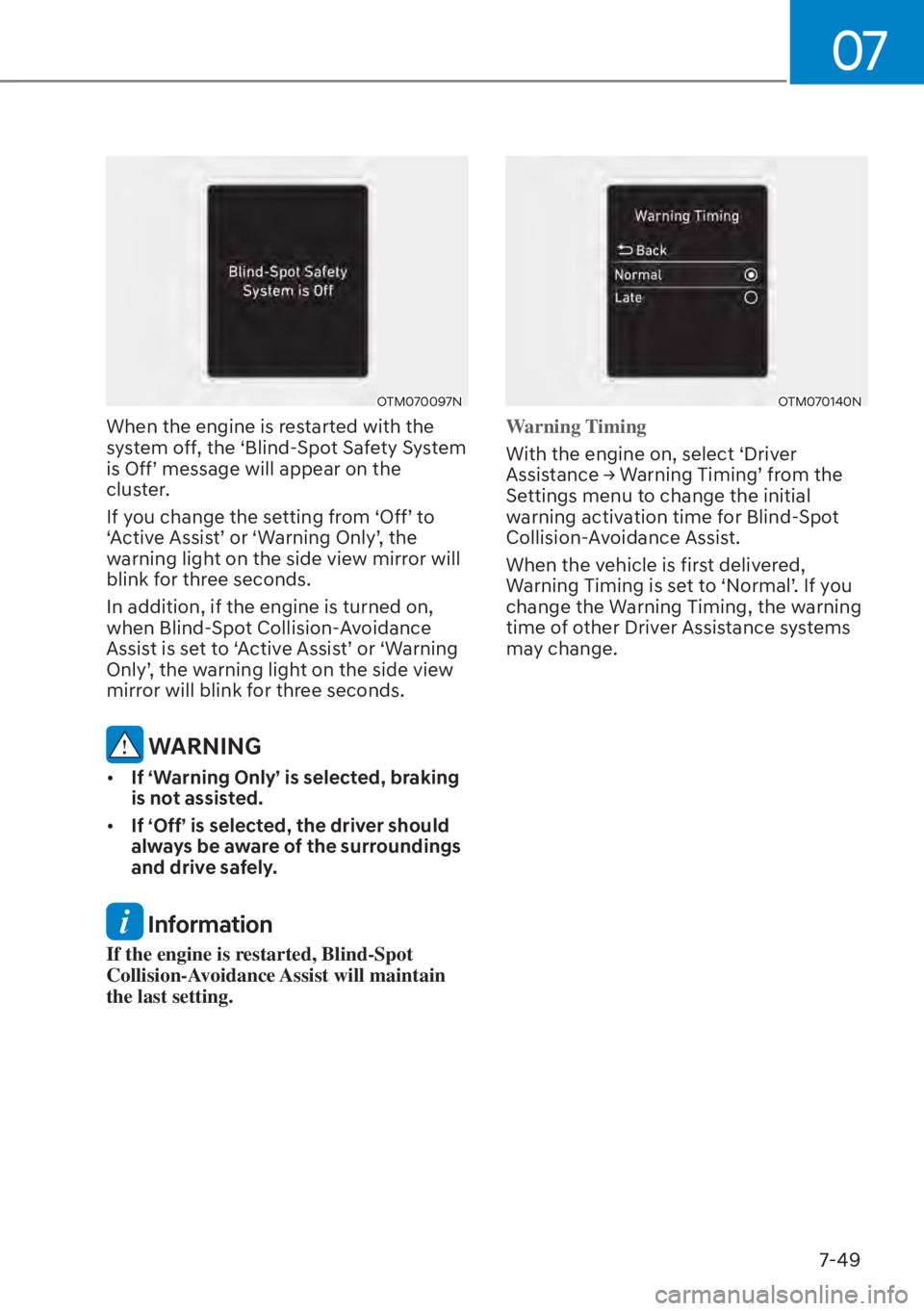

OTM070097N
When the engine is restarted with the
system off, the ‘Blind-Spot Safety System
LV2II
TPHVVDJHZLOODSSHDURQWKH
cluster.
,I\RXFKDQJHWKHVHWWLQJIURP
S2II
TWR

S$FWLYH$VVLVW
TRU
S:DUQLQJ2QO\
TWKH
warning light on the side view mirror will
blink for three seconds.
In addition, if the engine is turned on,
when Blind-Spot Collision-Avoidance
$VVLVWLVVHWWR
S$FWLYH$VVLVW
TRU
S:DUQLQJ
2QO\
TWKHZDUQLQJOLJKWRQWKHVLGHYLHZ
mirror will blink for three seconds.
WARNING

[If ‘Warning Only’ is selected, braking
is not assisted.

[ If ‘Off’ is selected, the driver should
always be aware of the surroundings
and drive safely.
Information
If the engine is restarted, Blind-Spot
Collision-Avoidance Assist will maintain
the last setting.
OTM070140N
Warning Timing
With the engine on, select ‘Driver
$VVLV

WDQFH

Driver Assistance System7-50

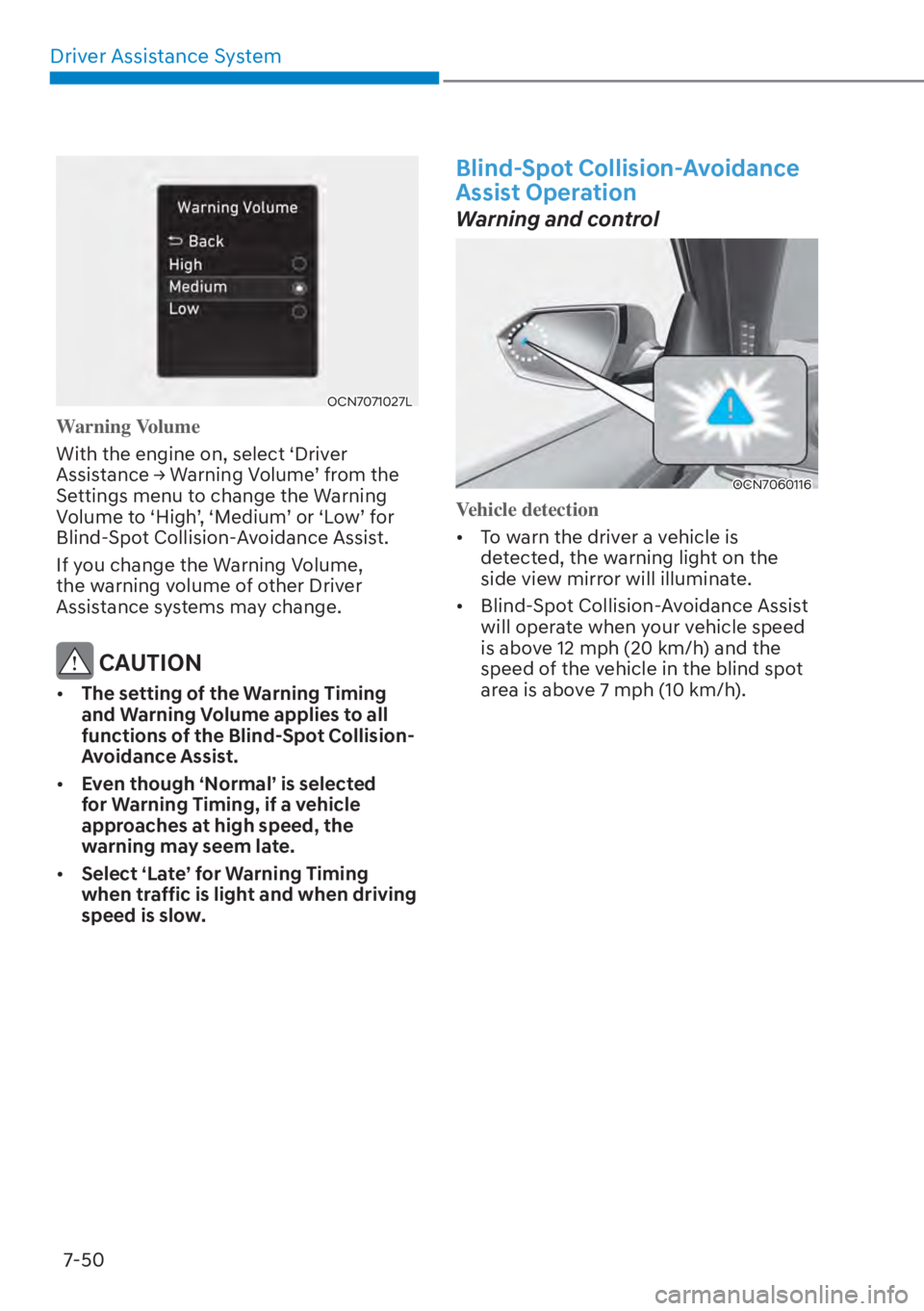

OCN7071027L
Warning Volume
With the engine on, select ‘Driver
$VVLV
WDQFH

07
7-51

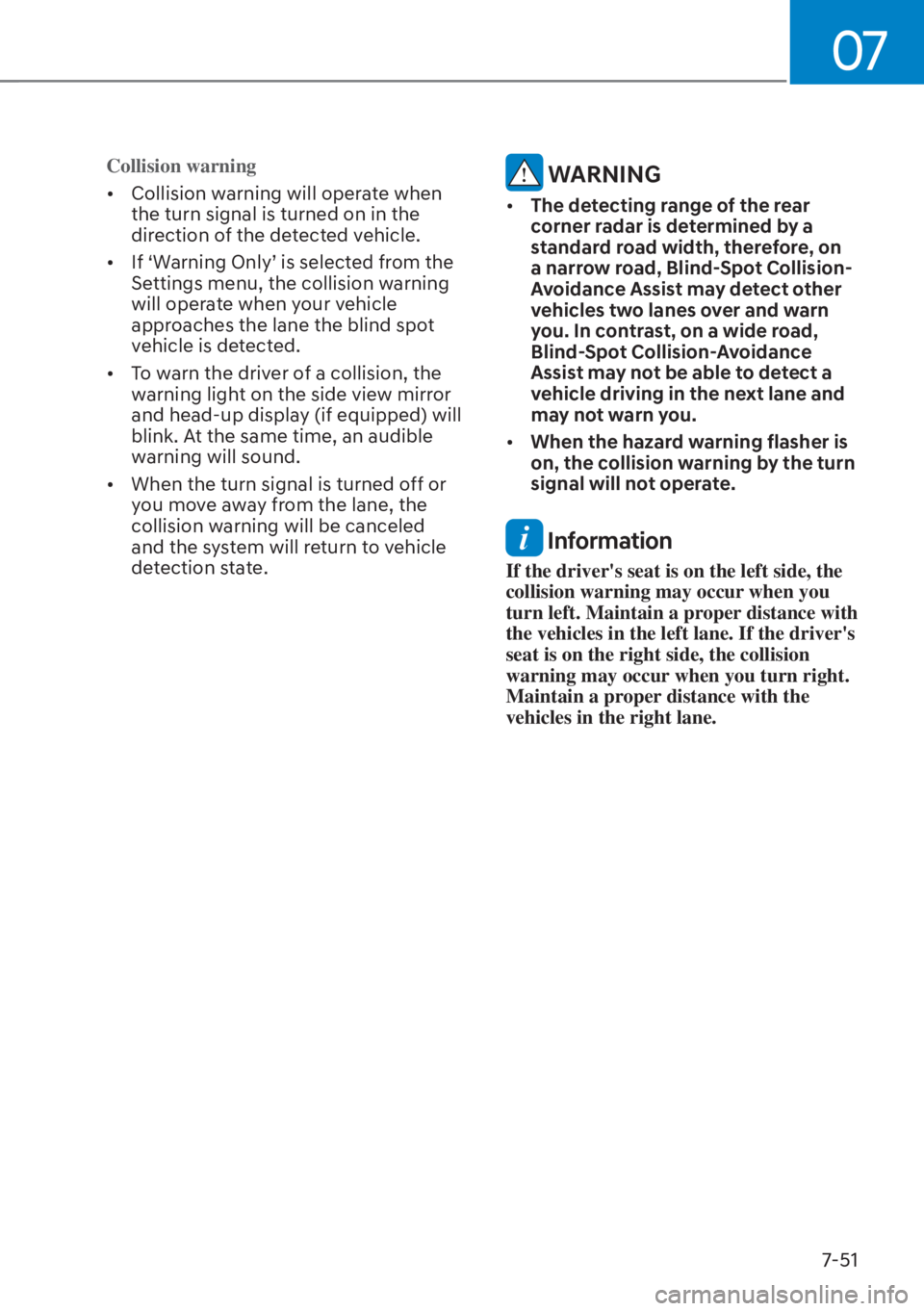

Collision warning

[Collision w
arning will operate when
the turn signal is turned on in the
direction of the detected vehicle.

[ ,I
S:DUQLQJ2QO\
TLVVHOHFWHGIURPWKH Settings menu, the collision warning
will operate when your vehicle
approaches the lane the blind spot
vehicle is detected.

[ To warn the driver of a collision, the
warning light on the side view mirror
and head-up display (if equipped) will
blink. At the same time, an audible
warning will sound.

[ When the turn signal is turned off or
you move away from the lane, the
collision warning will be canceled
and the system will return to vehicle
detection state. WARNING

[The detecting range of the rear
corner radar is determined by a
standard road width, therefore, on
a narrow road, Blind-Spot Collision-
Avoidance Assist may detect other
vehicles two lanes over and warn
you. In contrast, on a wide road,
Blind-Spot Collision-Avoidance
Assist may not be able to detect a
vehicle driving in the next lane and
may not warn you.

[ When the hazard warning flasher is
on, the collision warning by the turn
signal will not operate.
Information
If the driver's seat is on the left side, the
collision warning may occur when you
turn left. Maintain a proper distance with
the vehicles in the left lane. If the driver's
seat is on the right side, the collision
warning may occur when you turn right.
Maintain a proper distance with the
vehicles in the right lane.

Driver Assistance System7-52

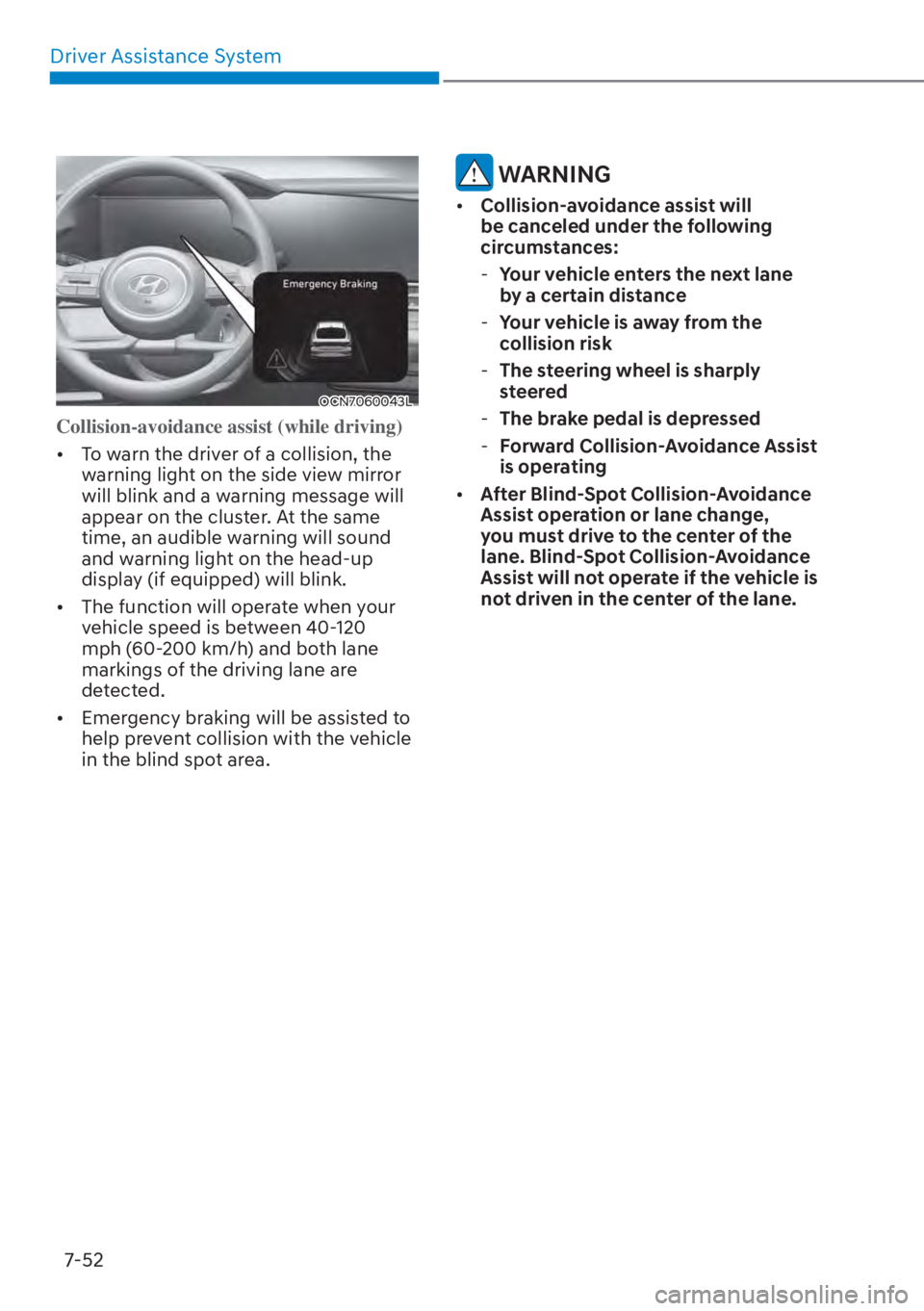

OCN7060043L
Collision-avoidance assist (while driving)

[ T
o warn the driver of a collision, the
warning light on the side view mirror
will blink and a warning message will
appear on the cluster. At the same
time, an audible warning will sound
and warning light on the head-up
display (if equipped) will blink.

[ The function will operate when your
vehicle speed is between 40-120
mph (60-200 km/h) and both lane
markings of the driving lane are
detected.

[ Emergency braking will be assisted to
help prevent collision with the vehicle
in the blind spot area.
WARNING

[Collision-avoidance assist will
be canceled under the following
circumstances:
- Your vehicle enters the next lane
by a certain distance
- Your vehicle is away from the
collision risk
- The steering wheel is sharply
steered
- The brake pedal is depressed
- Forward Collision-Avoidance Assist
is operating

[ After Blind-Spot Collision-Avoidance
Assist operation or lane change,
you must drive to the center of the
lane. Blind-Spot Collision-Avoidance
Assist will not operate if the vehicle is
not driven in the center of the lane.

07
7-53
OCN7060043L
Collision-avoidance assist (while
departing)

[T
o warn the driver of a collision, the
warning light on the side view mirror
will blink and a warning message will
appear on the cluster. At the same
time, an audible warning will sound
and warning light on the head-up
display (if equipped) will blink.

[ Blind-Spot Collision-Avoidance Assist
will operate when your vehicle speed
is below 2 mph (3 km/h) and the
speed of the vehicle in the blind spot
area is above 3 mph (5 km/h).

[ Emergency braking will be assisted to
help prevent collision with the vehicle
in the blind spot area.
OCN7071129L
Stopping vehicle and ending brake control

[When the v
ehicle is stopped due
to emergency braking, the ‘Drive
FDUHIXOO\
TZDUQLQJPHVVDJHZLOO
appear on the cluster.
For your safety, the driver should
depress the brake pedal immediately
and check the surroundings.

[ Brake control will end after the vehicle
is stopped by emergency braking for
approximately 2 seconds.
