HYUNDAI ELANTRA 2023 Manual Online

3-51
03
Air bag collision sensors
OCN7030045/OCN7030046/OCN7030047/OCN7030048/OCN7030062
1. SRS control module/Rollover sensor
2. Front impact sensors
3. Side impact sensors (acceleration)
4. Side impact sensors (pressure)

Seats & Safety System3-52
Air bag inflation conditions
OCN7030050
Front air bags
Front air bags are designed to inflate
in a fr
ontal collision depending on the
severity of impact of the front collision.
OCN7030049
OCN7030042
Side and curtain air bags
Side and curtain air bags are designed
t
o inflate when an impact is detected by
side collision sensors depending on the
severity of impact resulting from a side
impact collision.
Although the driver’s and front
passenger’s air bags are designed to
inflate only in frontal collisions, they also
may inflate in other types of collisions
if the front impact sensors detect a
sufficient impact. Side and curtain air
bags are designed to inflate only in side
impact collisions or rollover situations,
but they may inflate in other collisions
if the side impact sensors detect a
sufficient impact.
If the vehicle chassis is impacted by
bumps or objects on unimproved roads,
the air bags may deploy. Drive carefully
on unimproved roads or on surfaces not
designed for vehicle traffic to prevent
unintended air bag deployment.
Air bag non-inflation conditions
OCN7030051
In certain low-speed collisions the air
bags may not deploy. The air bags are
designed not to deploy in such cases
because they may not provide benefits
beyond the protection of the seat belts.

03
3-53
OCN7030052
Front air bags are not designed to inflate
in rear collisions, because occupants
are moved backward by the force of the
impact. In this case, inflated air bags
would not provide any additional benefit.
OCN7030049
Front air bags may not inflate in side
impact collisions, because occupants
move in the direction of the collision,
and thus in side impacts, front air bag
deployment would not provide additional
occupant protection.
However, side and curtain air bags may
inflate depending on the severity of
impact.
OCN7030053
In an angled collision, the force of impact
may direct the occupants in a direction
where the air bags would not be able to
provide any additional benefit, and thus
the sensors may not deploy any air bags.
OCN7030054
Just before impact, drivers often brake
heavily. Such heavy braking lowers the
front portion of the vehicle causing it
to “ride” under a vehicle with a higher
ground clearance. Air bags may not
inflate in this “underride” situation
because deceleration forces that are
detected by sensors may be significantly
reduced by such “underride” collisions.

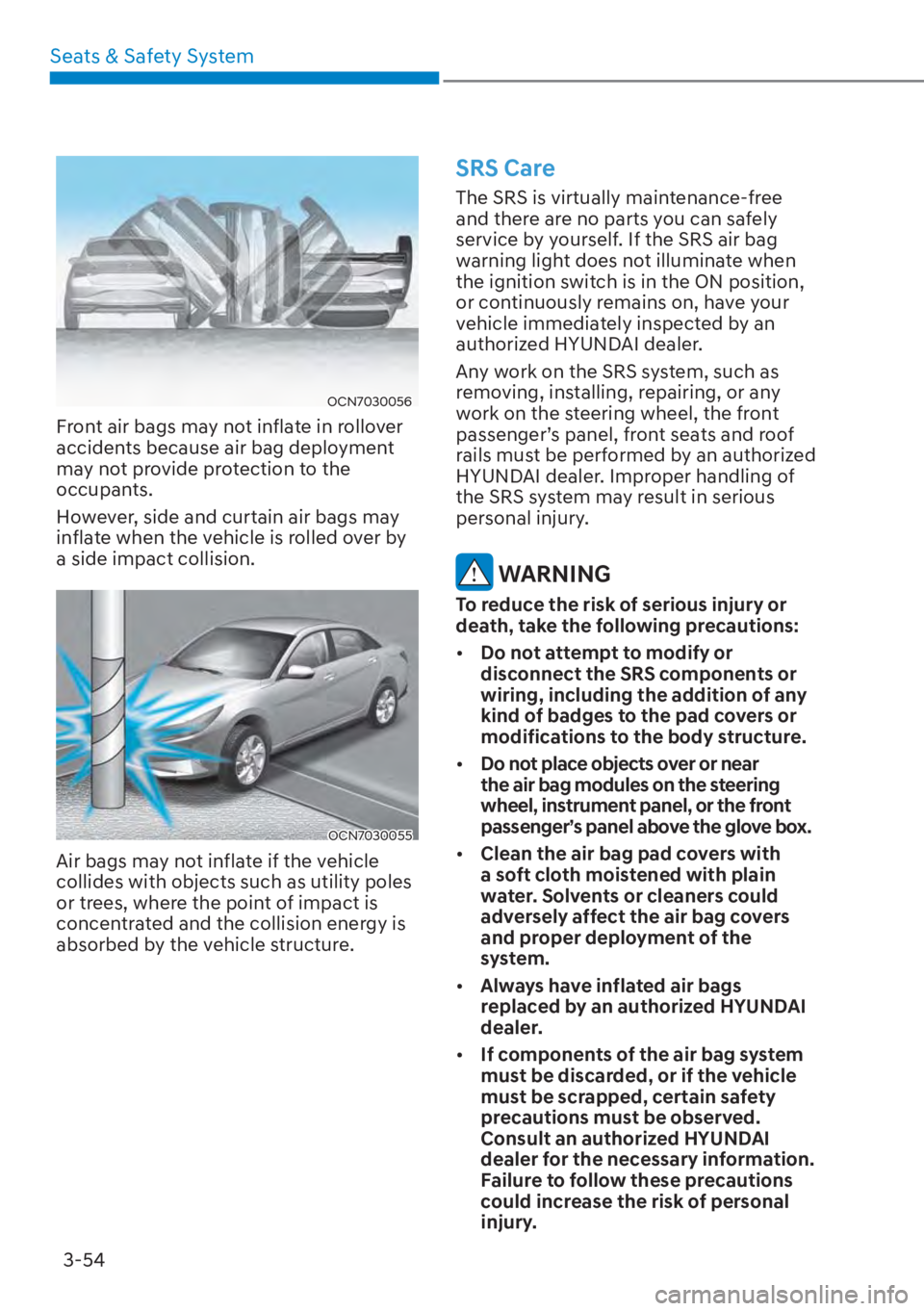

Seats & Safety System3-54
OCN7030056
Front air bags may not inflate in rollover
accidents because air bag deployment
may not provide protection to the
occupants.
However, side and curtain air bags may
inflate when the vehicle is rolled over by
a side impact collision.
OCN7030055
Air bags may not inflate if the vehicle
collides with objects such as utility poles
or trees, where the point of impact is
concentrated and the collision energy is
absorbed by the vehicle structure.
SRS Care
The SRS is virtually maintenance-free
and there are no parts you can safely
service by yourself. If the SRS air bag
warning light does not illuminate when
the ignition switch is in the ON position,
or continuously remains on, have your
vehicle immediately inspected by an
authorized HYUNDAI dealer.
Any work on the SRS system, such as
removing, installing, repairing, or any
work on the steering wheel, the front
passenger’s panel, front seats and roof
rails must be performed by an authorized
HYUNDAI dealer. Improper handling of
the SRS system may result in serious
personal injury.
WARNING
To reduce the risk of serious injury or
death, take the following precautions:

[ Do not attempt to modify or
disconnect the SRS components or
wiring, including the addition of any
kind of badges to the pad covers or
modifications to the body structure.

[ Do not place objects over or near
the air bag modules on the steering
wheel, instrument panel, or the front
passenger’s panel above the glove box.

[ Clean the air bag pad covers with
a soft cloth moistened with plain
water. Solvents or cleaners could
adversely affect the air bag covers
and proper deployment of the
system.

[ Always have inflated air bags
replaced by an authorized HYUNDAI
dealer.

[ If components of the air bag system
must be discarded, or if the vehicle
must be scrapped, certain safety
precautions must be observed.
Consult an authorized HYUNDAI
dealer for the necessary information.
Failure to follow these precautions
could increase the risk of personal
injury.

03
3-55

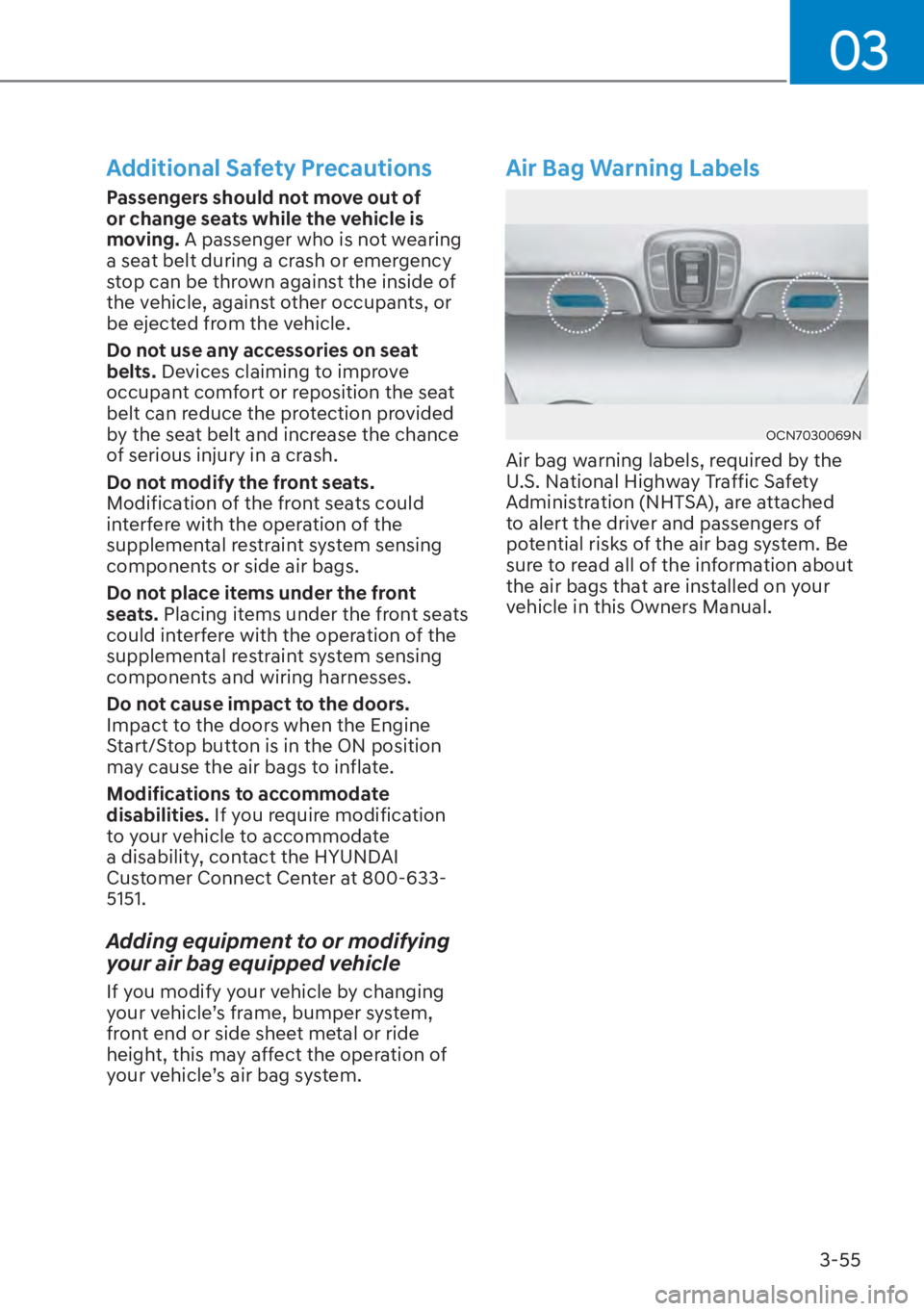

Additional Safety Precautions
Passengers should not move out of
or change seats while the vehicle is
moving. A passenger who is not wearing
a seat belt during a crash or emergency
stop can be thrown against the inside of
the vehicle, against other occupants, or
be ejected from the vehicle.
Do not use any accessories on seat
belts. Devices claiming to improve
occupant comfort or reposition the seat
belt can reduce the protection provided
by the seat belt and increase the chance
of serious injury in a crash.
Do not modify the front seats.
Modification of the front seats could
interfere with the operation of the
supplemental restraint system sensing
components or side air bags.
Do not place items under the front
seats. Placing items under the front seats
could interfere with the operation of the
supplemental restraint system sensing
components and wiring harnesses.
Do not cause impact to the doors.
Impact to the doors when the Engine
Start/Stop button is in the ON position
may cause the air bags to inflate.
Modifications to accommodate
disabilities. If you require modification
to your vehicle to accommodate
a disability, contact the HYUNDAI
Customer Connect Center at 800-633-
5151.
Adding equipment to or modifying
your air bag equipped vehicle
If you modify your vehicle by changing
your vehicle’s frame, bumper system,
front end or side sheet metal or ride
height, this may affect the operation of
your vehicle’s air bag system.
Air Bag Warning Labels
OCN7030069N
Air bag warning labels, required by the
U.S. National Highway Traffic Safety
Administration (NHTSA), are attached
to alert the driver and passengers of
potential risks of the air bag system. Be
sure to read all of the information about
the air bags that are installed on your
vehicle in this Owners Manual.

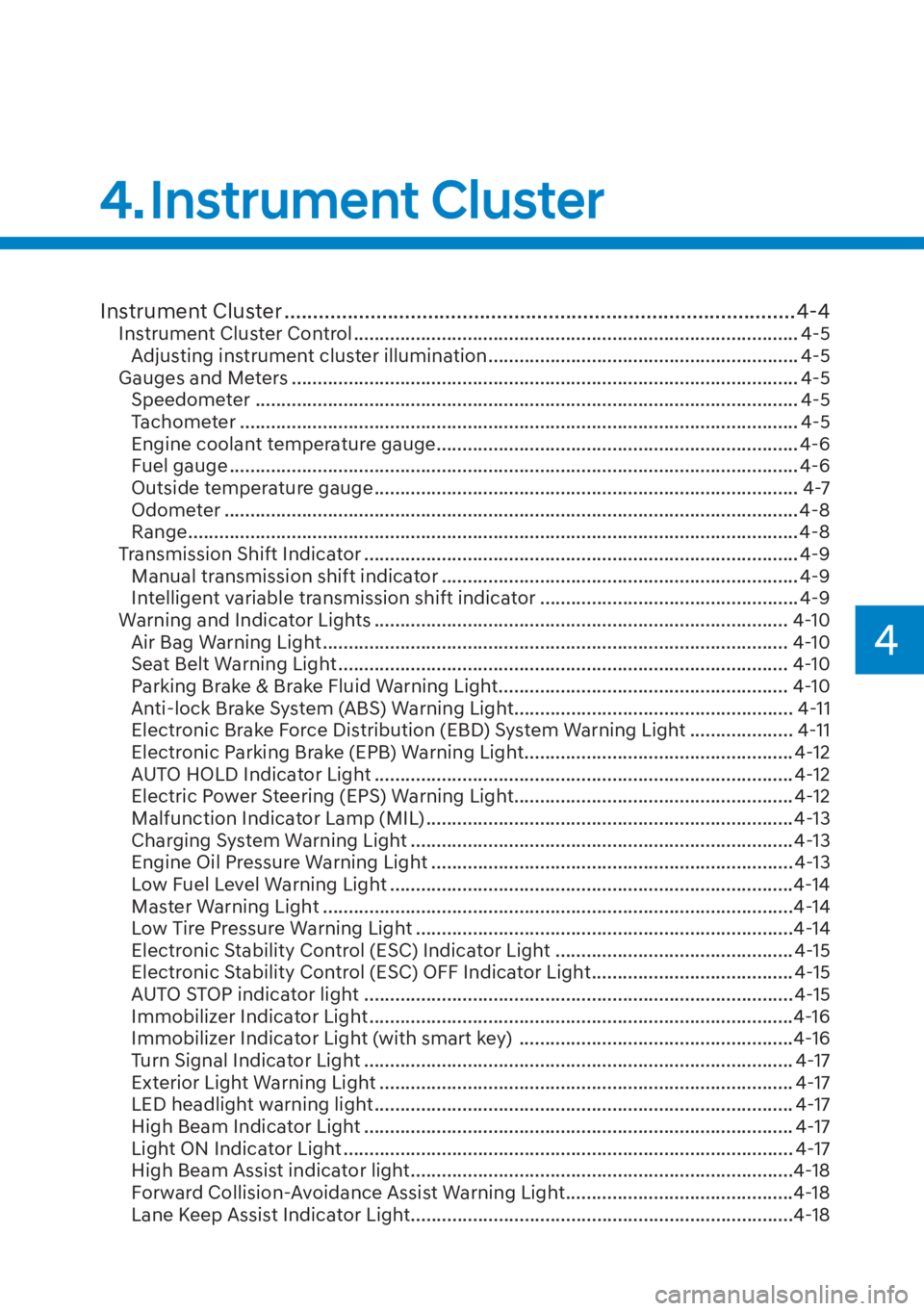

4

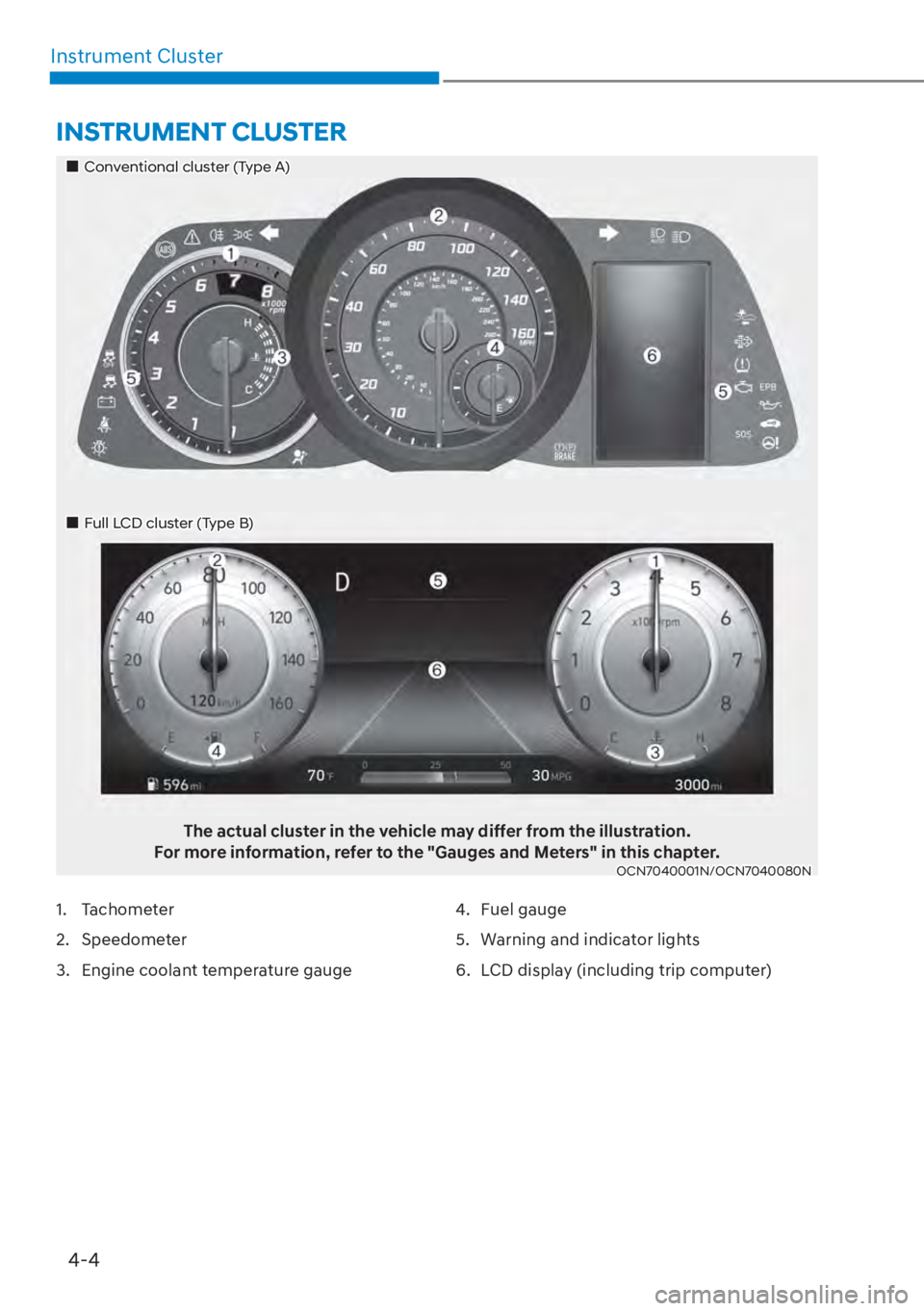

Instrument Cluster ........................................................................\
................. 4-4Instrument Cluster Control ........................................................................\
.............. 4-5Adjusting instrument cluster illumination ............................................................ 4-5
Gauges and Meters ........................................................................\
.......................... 4-5 Speedometer .....................................................................\
.................................... 4-5
Tachometer .....................................................................\
....................................... 4-5
Engine coolant temperature gauge ...................................................................... 4-6
Fuel gauge ........................................................................\
...................................... 4-6
Outside temperature gauge ........................................................................\
.......... 4-7
Odometer .....................................................................\
.......................................... 4-8
Range ..................................................................\
.................................................... 4-8
Transmission Shift Indicator ........................................................................\
............ 4-9 Manual transmission shift indicator ..................................................................... 4-9
Intelligent variable transmission shift indicator .................................................. 4-9
Warning and Indicator Lights ........................................................................\
........ 4-10 Air Bag Warning Light ........................................................................\
.................. 4-10
Seat Belt Warning Light ........................................................................\
............... 4-10
Parking Brake & Brake Fluid Warning Light ........................................................ 4-10
Anti-lock Brake System (ABS) Warning Light ...................................................... 4-11
Electronic Brake Force Distribution (EBD) System Warning Light .................... 4-11
Electronic Parking Brake (EPB) Warning Light .................................................... 4-12
AUTO HOLD Indicator Light ........................................................................\
......... 4-12
Electric Power Steering (EPS) Warning Light ...................................................... 4-12
Malfunction Indicator Lamp (MIL) ....................................................................... 4-13
Charging System Warning Light ........................................................................\
.. 4-13
Engine Oil Pressure Warning Light ...................................................................... 4-13
Low Fuel Level Warning Light ........................................................................\
......4-14
Master Warning Light ........................................................................\
...................4-14
Low Tire Pressure Warning Light ........................................................................\
.4-14
Electronic Stability Control (ESC) Indicator Light .............................................. 4-15
Electronic Stability Control (ESC) OFF Indicator Light ....................................... 4-15
AUTO STOP indicator light ........................................................................\
........... 4-15
Immobilizer Indicator Light ........................................................................\
..........4-16
Immobilizer Indicator Light (with smart key) .....................................................4-16
Turn Signal Indicator Light ........................................................................\
........... 4-17
Exterior Light Warning Light ........................................................................\
........ 4-17
LED headlight warning light ........................................................................\
......... 4-17
High Beam Indicator Light ........................................................................\
........... 4-17
Light ON Indicator Light ........................................................................\
............... 4-17
High Beam Assist indicator light ........................................................................\
..4-18
Forward Collision-Avoidance Assist Warning Light ............................................4-18
Lane Keep Assist Indicator Light................................................................\
..........4-18

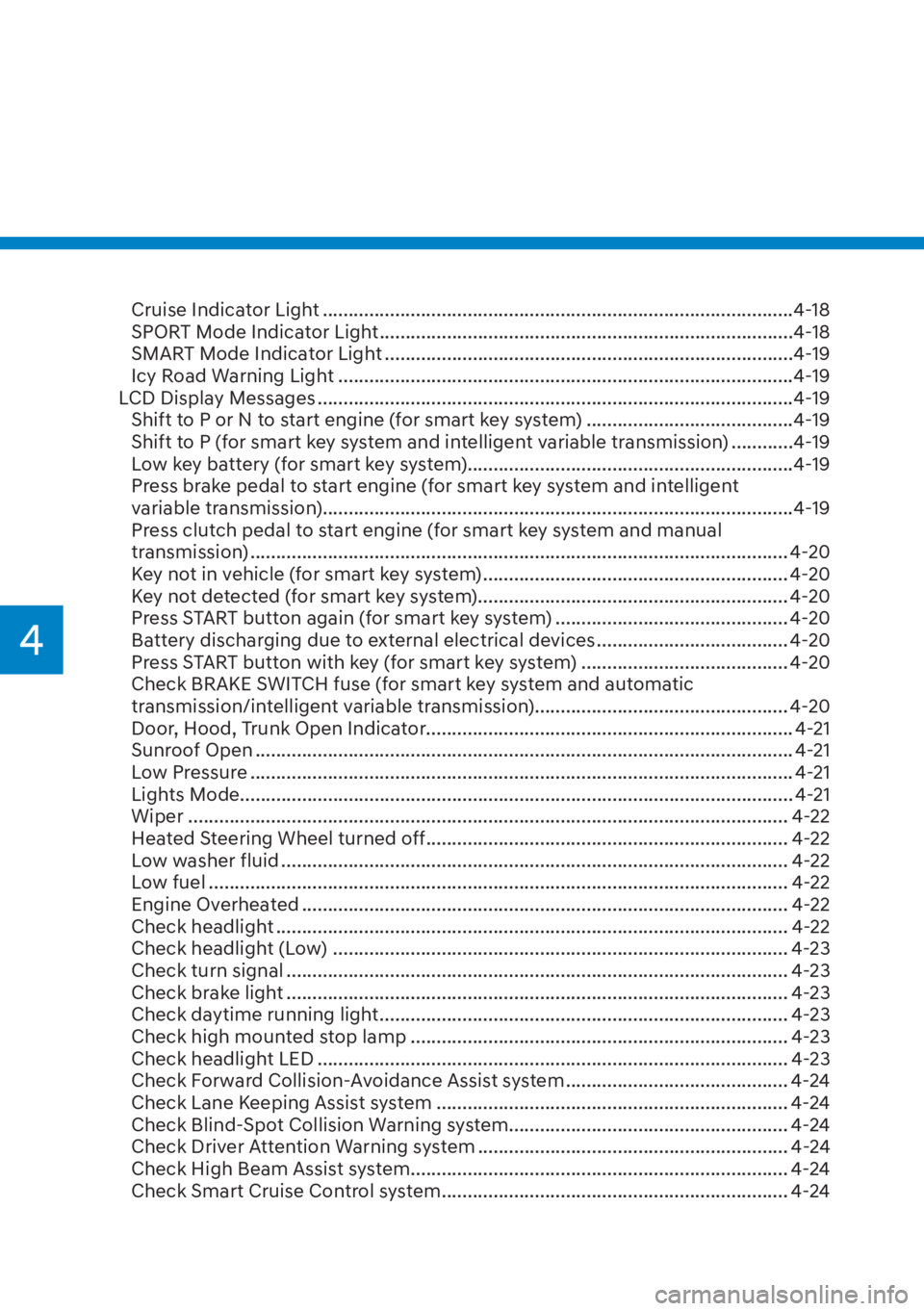

4. Instrument Cluster

4
Cruise Indicator Light ........................................................................\
...................4-18
SPORT Mode Indicator Light ........................................................................\
........4-18
SMART Mode Indicator Light ........................................................................\
.......4-19
Icy Road Warning Light ........................................................................\
................4-19
LCD Display Messages ........................................................................\
....................4-19 Shift to P or N to start engine (for smart key system) ........................................4-19
Shift to P (for smart key system and intelligent variable transmission) ............4-19
Low key battery (for smart key system)...............................................................4-19
Press brake pedal to start engine (for smart key system and intelligent
variable transmission)......................................................................\
.....................4-19
Press clutch pedal to start engine (for smart key system and manual
transmission) .....................................................................\
................................... 4-20
Key not in vehicle (for smart key system) ........................................................... 4-20
Key not detected (for smart key system)............................................................ 4-20
Press START button again (for smart key system) ............................................. 4-20
Battery discharging due to external electrical devices ..................................... 4-20
Press START button with key (for smart key system) ........................................ 4-20
Check BRAKE SWITCH fuse (for smart key system and automatic
transmission/intelligent variable transmission)................................................. 4-20
Door, Hood, Trunk Open Indicator....................................................................... 4-21
Sunroof Open ........................................................................\
................................ 4-21
Low Pressure ........................................................................\
................................. 4-21
Lights Mode........................................................................\
................................... 4-21
Wiper ..................................................................\
.................................................. 4-22
Heated Steering Wheel turned off ...................................................................... 4-22
Low washer fluid ........................................................................\
.......................... 4-22
Low fuel ........................................................................\
........................................ 4-22
Engine Overheated ........................................................................\
...................... 4-22
Check headlight ........................................................................\
........................... 4-22
Check headlight (Low) ........................................................................\
................ 4-23
Check turn signal ........................................................................\
......................... 4-23
Check brake light ........................................................................\
......................... 4-23
Check daytime running light ........................................................................\
....... 4-23
Check high mounted stop lamp ........................................................................\
. 4-23
Check headlight LED ........................................................................\
................... 4-23
Check Forward Collision-Avoidance Assist system ........................................... 4-24
Check Lane Keeping Assist system .................................................................... 4-24
Check Blind-Spot Collision Warning system...................................................... 4-24
Check Driver Attention Warning system ............................................................ 4-24
Check High Beam Assist system ........................................................................\
. 4-24
Check Smart Cruise Control system ................................................................... 4-24

4

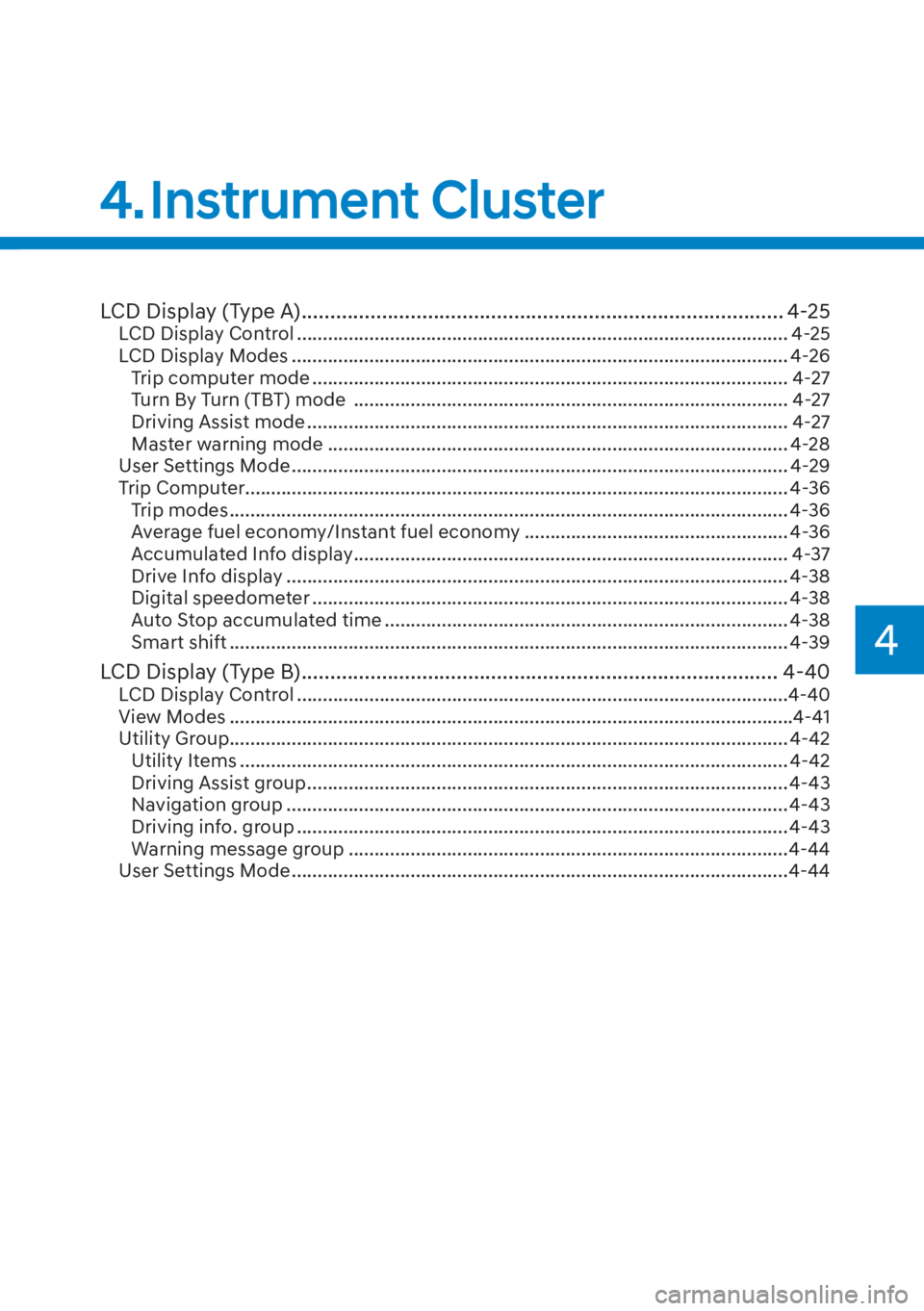

LCD Display (Type A) ........................................................................\
............ 4-25LCD Display Control ........................................................................\
....................... 4-25
LCD Display Modes ........................................................................\
........................ 4-26Trip computer mode ........................................................................\
.................... 4-27
Turn By Turn (TBT) mode ........................................................................\
............ 4-27
Driving Assist mode ........................................................................\
..................... 4-27
Master warning mode ........................................................................\
................. 4-28
User Settings Mode ........................................................................\
........................ 4-29
Trip Computer......................................................................\
................................... 4-36 Trip modes ........................................................................\
.................................... 4-36
Average fuel economy/Instant fuel economy ................................................... 4-36
Accumulated Info display ........................................................................\
............ 4-37
Drive Info display ........................................................................\
......................... 4-38
Digital speedometer ........................................................................\
.................... 4-38
Auto Stop accumulated time ........................................................................\
...... 4-38
Smart shift ........................................................................\
.................................... 4-39
LCD Display (Type B) ........................................................................\
........... 4-40LCD Display Control ........................................................................\
.......................4-40
View Modes ........................................................................\
.....................................4-41
Utility Group........................................................................\
.................................... 4-42Utility Items ........................................................................\
.................................. 4-42
Driving Assist group ........................................................................\
..................... 4-43
Navigation group ........................................................................\
......................... 4-43
Driving info. group ........................................................................\
....................... 4-43
Warning message group ........................................................................\
.............4-44
User Settings Mode ........................................................................\
........................4-44
4. Instrument Cluster

4-4
Instrument Cluster
The actual cluster in the vehicle may differ from the illustration.
For more information, refer to the "Gauges and Meters" in this chapter.
OCN7040001N/OCN7040080N
INSTRUMENT CLUSTER
1. Tachometer
2. Speedometer
3. Engine coolant temperature gauge 4. Fuel gauge
5. Warning and indicator lights
6. LCD display (including trip computer)
„Conventional cluster (Type A)

„Full LCD cluster (Type B)

04
4-5

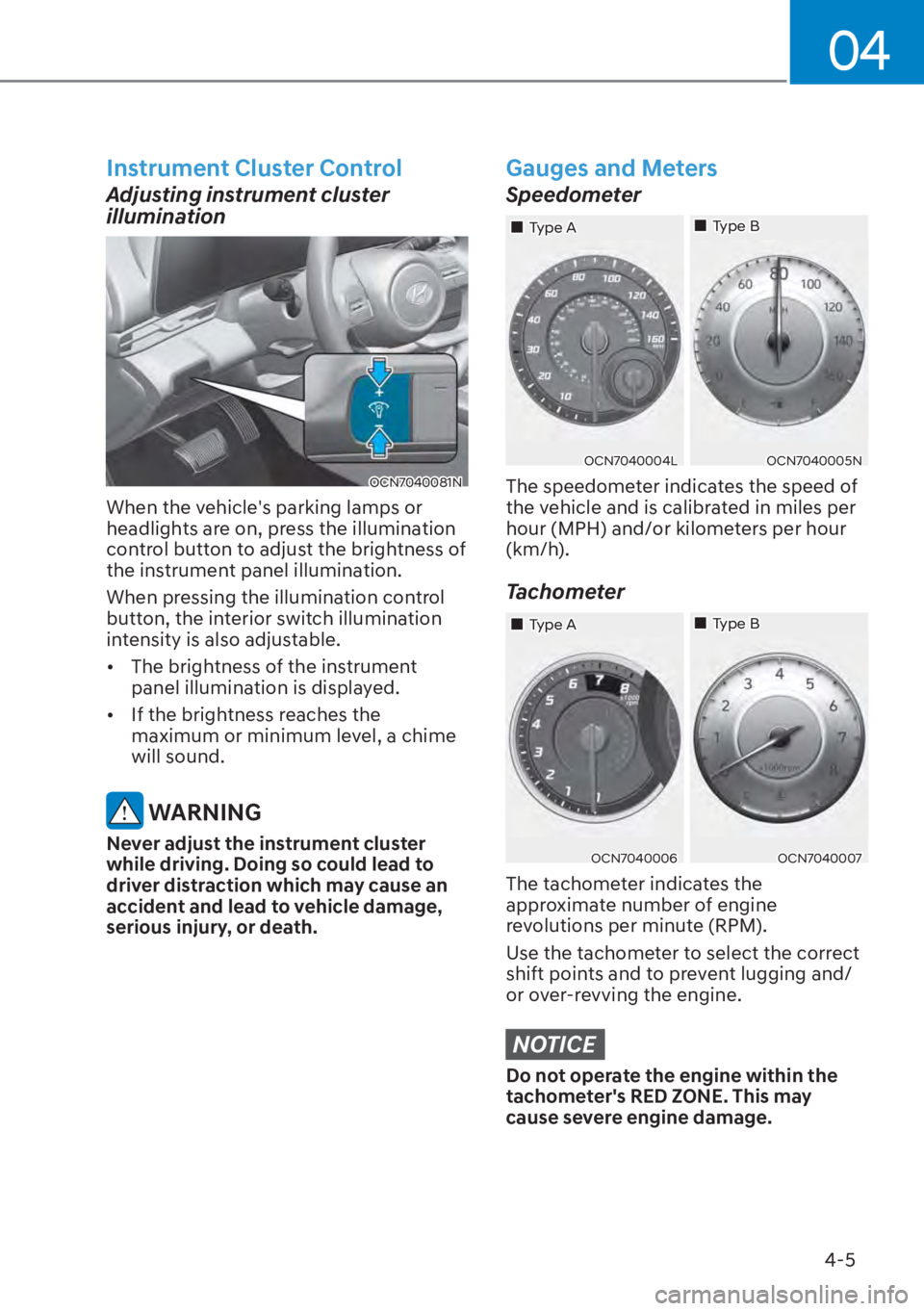

Instrument Cluster Control
Adjusting instrument cluster
illumination
OCN7040081N
When the vehicle's parking lamps or
headlights are on, press the illumination
control button to adjust the brightness of
the instrument panel illumination.
When pressing the illumination control
button, the interior switch illumination
intensity is also adjustable.

[The brightness of the instrument
panel illumination is displayed.

[ If the brightness reaches the
maximum or minimum level, a chime
will sound.
WARNING
Never adjust the instrument cluster
while driving. Doing so could lead to
driver distraction which may cause an
accident and lead to vehicle damage,
serious injury, or death.
Gauges and Meters
Speedometer
OCN7040004LOCN7040005N
„Type A „Type B
The speedometer indicates the speed of
the vehicle and is calibrated in miles per
hour (MPH) and/or kilometers per hour
(km/h).
Tachometer
OCN7040006OCN7040007
„Type A„Type B
The tachometer indicates the
approximate number of engine
revolutions per minute (RPM).
Use the tachometer to select the correct
shift points and to prevent lugging and/
or over-revving the engine.
NOTICE
Do not operate the engine within the
tachometer's RED ZONE. This may
cause severe engine damage.
