Introduction
4 1

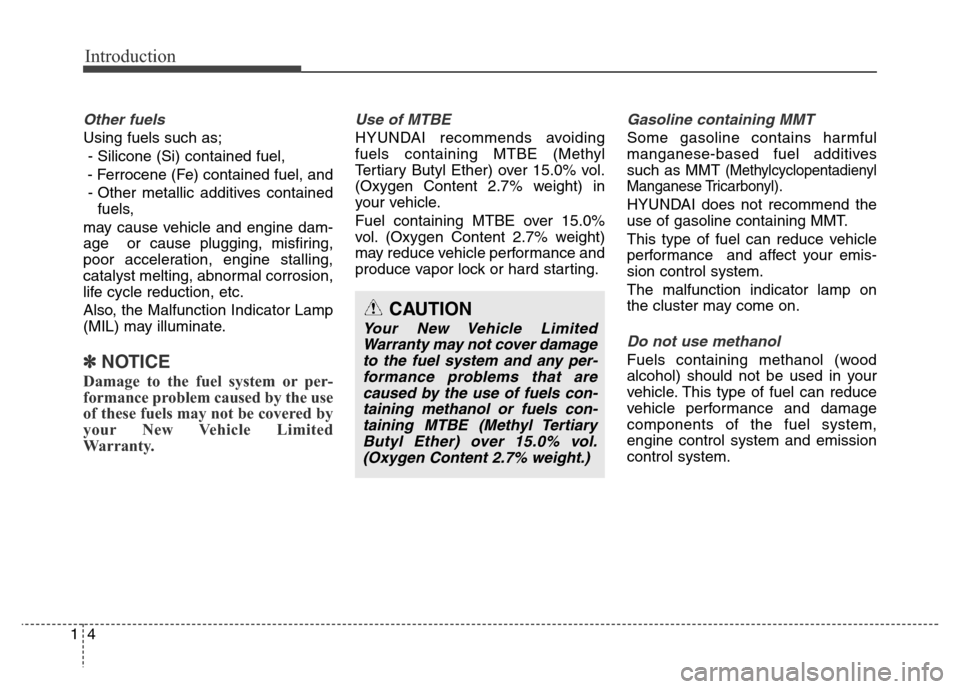

Other fuels
Using fuels such as;
- Silicone (Si) contained fuel,
- Ferrocene (Fe) contained fuel, and
- Other metallic additives contained
fuels,
may cause vehicle and engine dam-
age or cause plugging, misfiring,
poor acceleration, engine stalling,
catalyst melting, abnormal corrosion,
life cycle reduction, etc.
Also, the Malfunction Indicator Lamp
(MIL) may illuminate.
✽NOTICE
Damage to the fuel system or per-
formance problem caused by the use
of these fuels may not be covered by
your New Vehicle Limited
Wa r r a n t y.
Use of MTBE
HYUNDAI recommends avoiding
fuels containing MTBE (Methyl
Tertiary Butyl Ether) over 15.0% vol.
(Oxygen Content 2.7% weight) in
your vehicle.
Fuel containing MTBE over 15.0%
vol. (Oxygen Content 2.7% weight)
may reduce vehicle performance and
produce vapor lock or hard starting.
Gasoline containing MMT
Some gasoline contains harmful
manganese-based fuel additives
such as MMT
(Methylcyclopentadienyl
Manganese Tricarbonyl).
HYUNDAI does not recommend the
use of gasoline containing MMT.
This type of fuel can reduce vehicle
performance and affect your emis-
sion control system.
The malfunction indicator lamp on
the cluster may come on.
Do not use methanol
Fuels containing methanol (wood
alcohol) should not be used in your
vehicle. This type of fuel can reduce
vehicle performance and damage
components of the fuel system,
engine control system and emission
control system.
CAUTION
Your New Vehicle Limited
Warranty may not cover damage
to the fuel system and any per-
formance problems that are
caused by the use of fuels con-
taining methanol or fuels con-
taining MTBE (Methyl Tertiary
Butyl Ether) over 15.0% vol.
(Oxygen Content 2.7% weight.)
Page 12 of 526
15
Introduction

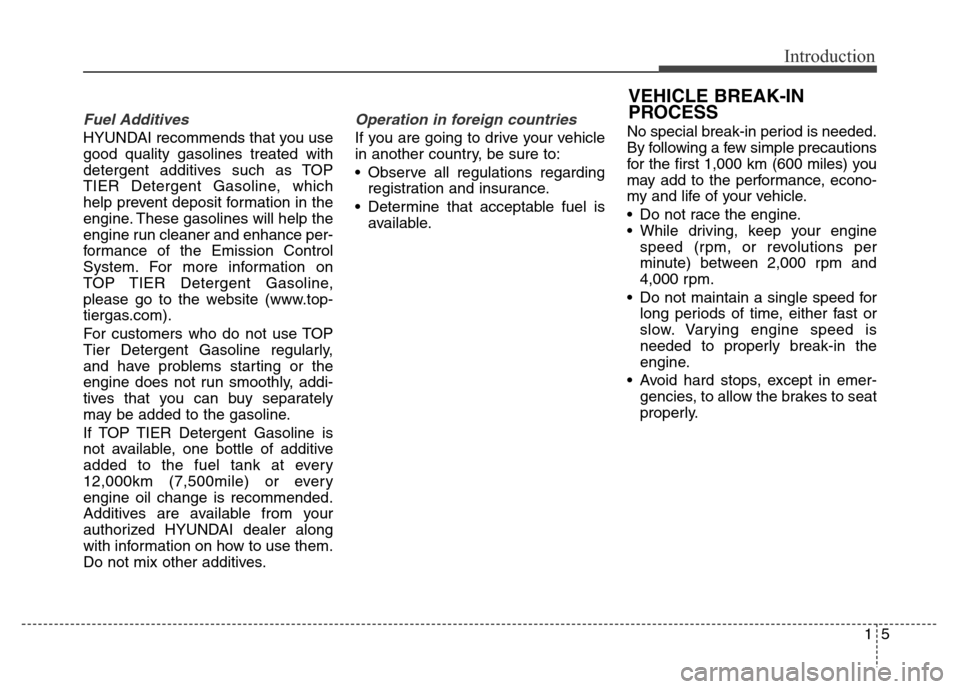

Fuel Additives
HYUNDAI recommends that you use
good quality gasolines treated with
detergent additives such as TOP
TIER Detergent Gasoline, which
help prevent deposit formation in the
engine. These gasolines will help the
engine run cleaner and enhance per-
formance of the Emission Control
System. For more information on
TOP TIER Detergent Gasoline,
please go to the website (www.top-
tiergas.com).
For customers who do not use TOP
Tier Detergent Gasoline regularly,
and have problems starting or the
engine does not run smoothly, addi-
tives that you can buy separately
may be added to the gasoline.
If TOP TIER Detergent Gasoline is
not available, one bottle of additive
added to the fuel tank at every
12,000km (7,500mile) or every
engine oil change is recommended.
Additives are available from your
authorized HYUNDAI dealer along
with information on how to use them.
Do not mix other additives.
Operation in foreign countries
If you are going to drive your vehicle
in another country, be sure to:
• Observe all regulations regarding
registration and insurance.
• Determine that acceptable fuel is
available.No special break-in period is needed.
By following a few simple precautions
for the first 1,000 km (600 miles) you
may add to the performance, econo-
my and life of your vehicle.
• Do not race the engine.
• While driving, keep your engine
speed (rpm, or revolutions per
minute) between 2,000 rpm and
4,000 rpm.
• Do not maintain a single speed for
long periods of time, either fast or
slow. Varying engine speed is
needed to properly break-in the
engine.
• Avoid hard stops, except in emer-
gencies, to allow the brakes to seat
properly.
VEHICLE BREAK-IN
PROCESS
Page 13 of 526
Introduction
6 1

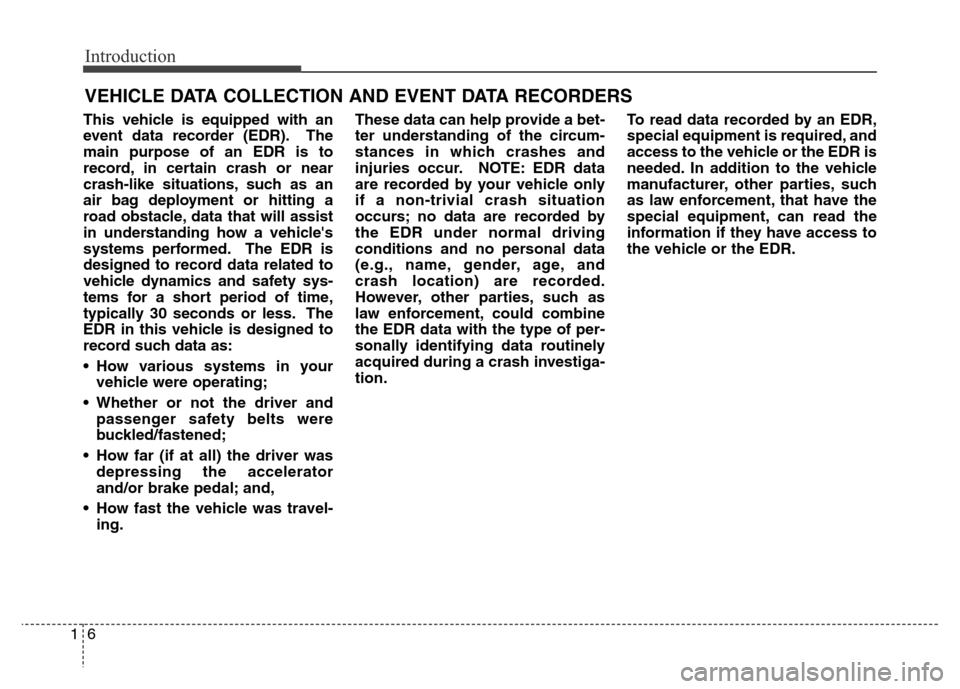

This vehicle is equipped with an
event data recorder (EDR). The
main purpose of an EDR is to
record, in certain crash or near
crash-like situations, such as an
air bag deployment or hitting a
road obstacle, data that will assist
in understanding how a vehicle's
systems performed. The EDR is
designed to record data related to
vehicle dynamics and safety sys-
tems for a short period of time,
typically 30 seconds or less. The
EDR in this vehicle is designed to
record such data as:
• How various systems in your
vehicle were operating;
• Whether or not the driver and
passenger safety belts were
buckled/fastened;
• How far (if at all) the driver was
depressing the accelerator
and/or brake pedal; and,
• How fast the vehicle was travel-
ing.These data can help provide a bet-
ter understanding of the circum-
stances in which crashes and
injuries occur. NOTE: EDR data
are recorded by your vehicle only
if a non-trivial crash situation
occurs; no data are recorded by
the EDR under normal driving
conditions and no personal data
(e.g., name, gender, age, and
crash location) are recorded.
However, other parties, such as
law enforcement, could combine
the EDR data with the type of per-
sonally identifying data routinely
acquired during a crash investiga-
tion.To read data recorded by an EDR,
special equipment is required, and
access to the vehicle or the EDR is
needed. In addition to the vehicle
manufacturer, other parties, such
as law enforcement, that have the
special equipment, can read the
information if they have access to
the vehicle or the EDR.
VEHICLE DATA COLLECTION AND EVENT DATA RECORDERS
Page 14 of 526

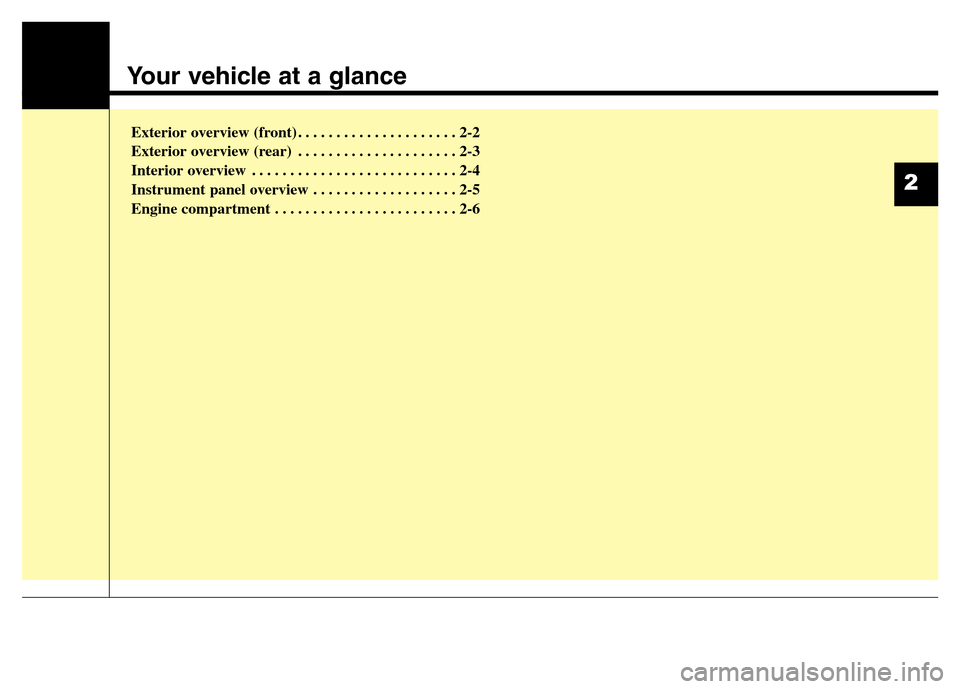

Your vehicle at a glance
Exterior overview (front) . . . . . . . . . . . . . . . . . . . . . 2-2
Exterior overview (rear) . . . . . . . . . . . . . . . . . . . . . 2-3
Interior overview . . . . . . . . . . . . . . . . . . . . . . . . . . . 2-4
Instrument panel overview . . . . . . . . . . . . . . . . . . . 2-5
Engine compartment . . . . . . . . . . . . . . . . . . . . . . . . 2-6
2
Page 15 of 526
Your vehicle at a glance
2 2

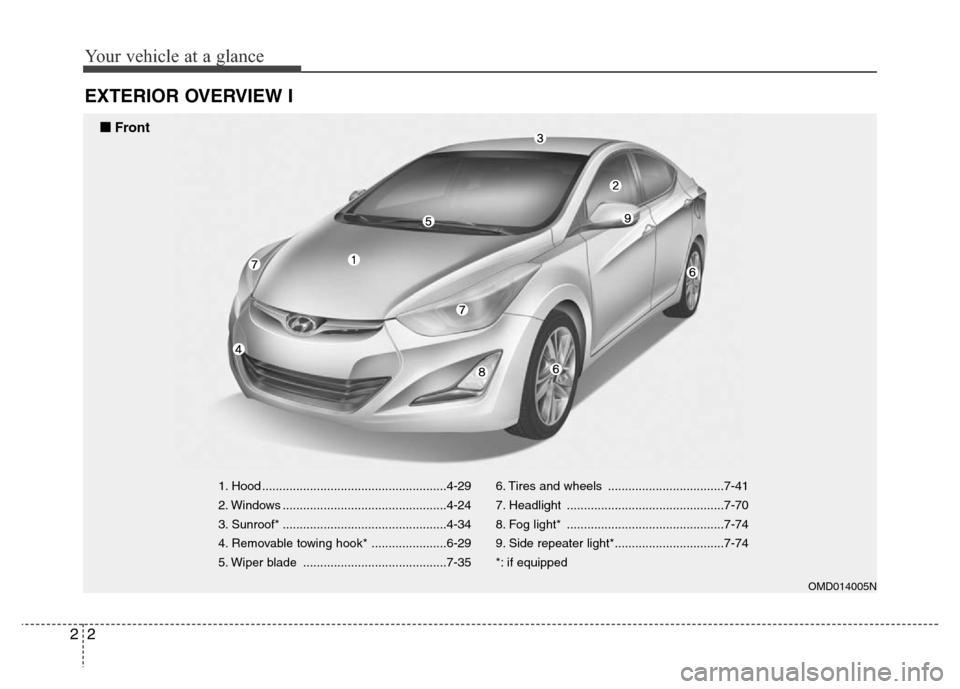

EXTERIOR OVERVIEW I
1. Hood ......................................................4-29
2. Windows ................................................4-24
3. Sunroof* ................................................4-34
4. Removable towing hook* ......................6-29
5. Wiper blade ..........................................7-356. Tires and wheels ..................................7-41
7. Headlight ..............................................7-70
8. Fog light* ..............................................7-74
9. Side repeater light*................................7-74
*: if equipped
OMD014005N
■ Front
Page 16 of 526
23
Your vehicle at a glance

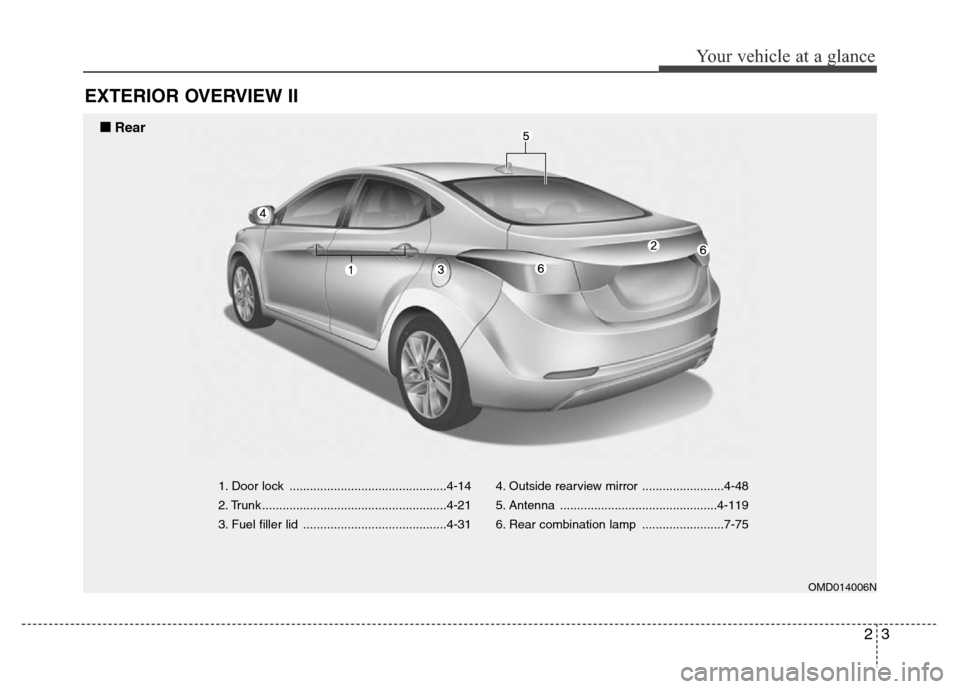

EXTERIOR OVERVIEW II
1. Door lock ..............................................4-14
2. Trunk ......................................................4-21
3. Fuel filler lid ..........................................4-314. Outside rearview mirror ........................4-48
5. Antenna ..............................................4-119
6. Rear combination lamp ........................7-75
OMD014006N
■ Rear
Page 17 of 526
Your vehicle at a glance
4 2

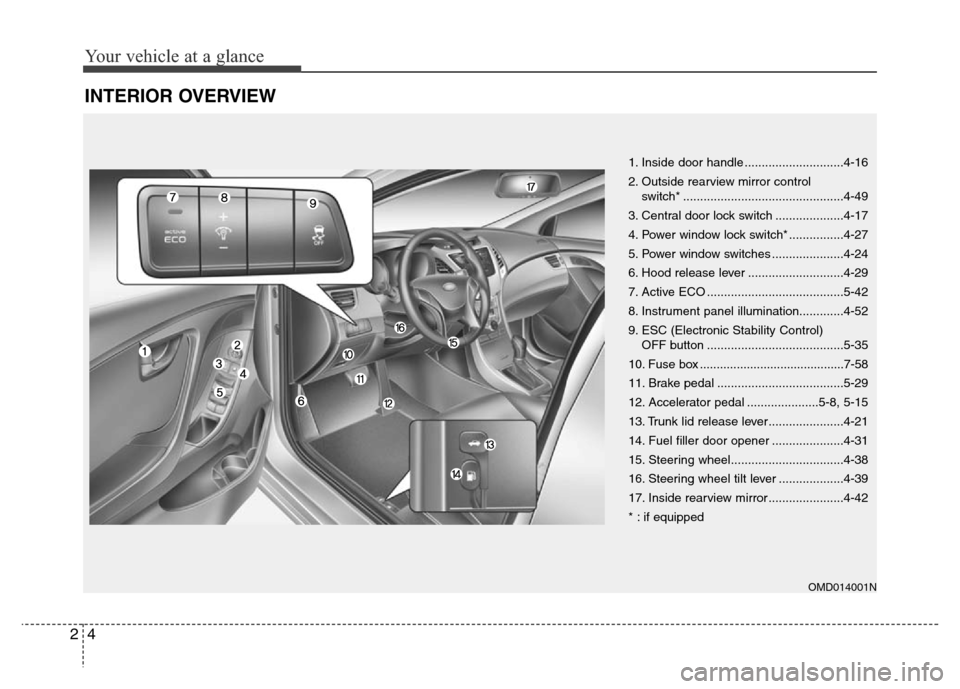

INTERIOR OVERVIEW
OMD014001N
1. Inside door handle .............................4-16
2. Outside rearview mirror control
switch* ...............................................4-49
3. Central door lock switch ....................4-17
4. Power window lock switch* ................4-27
5. Power window switches .....................4-24
6. Hood release lever ............................4-29
7. Active ECO ........................................5-42
8. Instrument panel illumination.............4-52
9. ESC (Electronic Stability Control)
OFF button ........................................5-35
10. Fuse box ...........................................7-58
11. Brake pedal .....................................5-29
12. Accelerator pedal .....................5-8, 5-15
13. Trunk lid release lever......................4-21
14. Fuel filler door opener .....................4-31
15. Steering wheel.................................4-38
16. Steering wheel tilt lever ...................4-39
17. Inside rearview mirror ......................4-42
* : if equipped
Page 18 of 526
25
Your vehicle at a glance

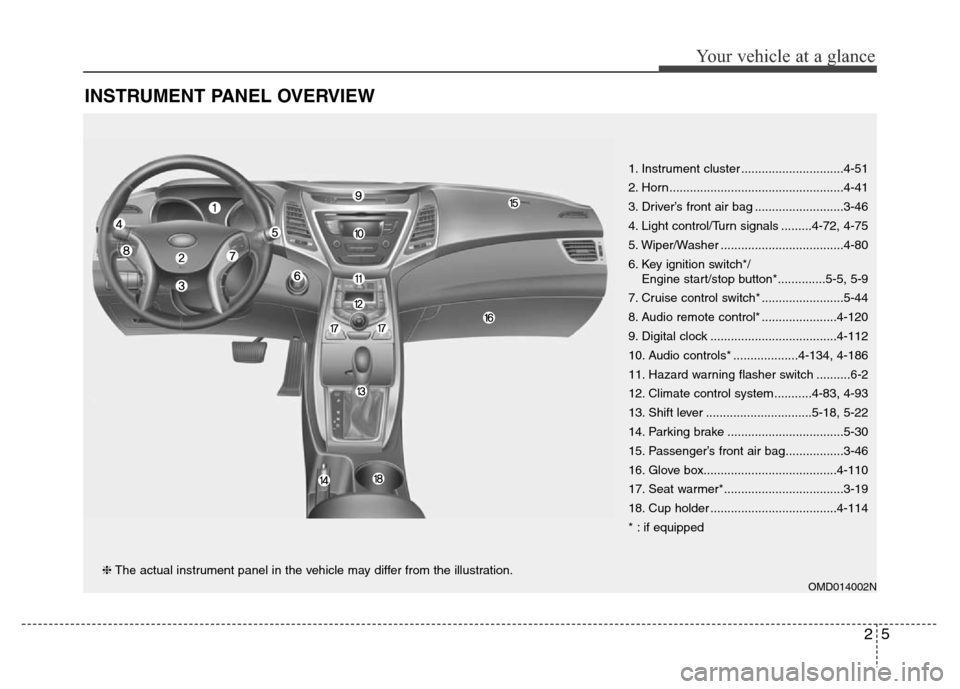

INSTRUMENT PANEL OVERVIEW
OMD014002N
1. Instrument cluster ..............................4-51
2. Horn...................................................4-41
3. Driver’s front air bag ..........................3-46
4. Light control/Turn signals .........4-72, 4-75
5. Wiper/Washer ....................................4-80
6. Key ignition switch*/
Engine start/stop button*..............5-5, 5-9
7. Cruise control switch* ........................5-44
8. Audio remote control* ......................4-120
9. Digital clock .....................................4-112
10. Audio controls* ...................4-134, 4-186
11. Hazard warning flasher switch ..........6-2
12. Climate control system ...........4-83, 4-93
13. Shift lever ...............................5-18, 5-22
14. Parking brake ..................................5-30
15. Passenger’s front air bag.................3-46
16. Glove box.......................................4-110
17. Seat warmer*...................................3-19
18. Cup holder .....................................4-114
* : if equipped
❈The actual instrument panel in the vehicle may differ from the illustration.
Page 19 of 526
Your vehicle at a glance
6 2

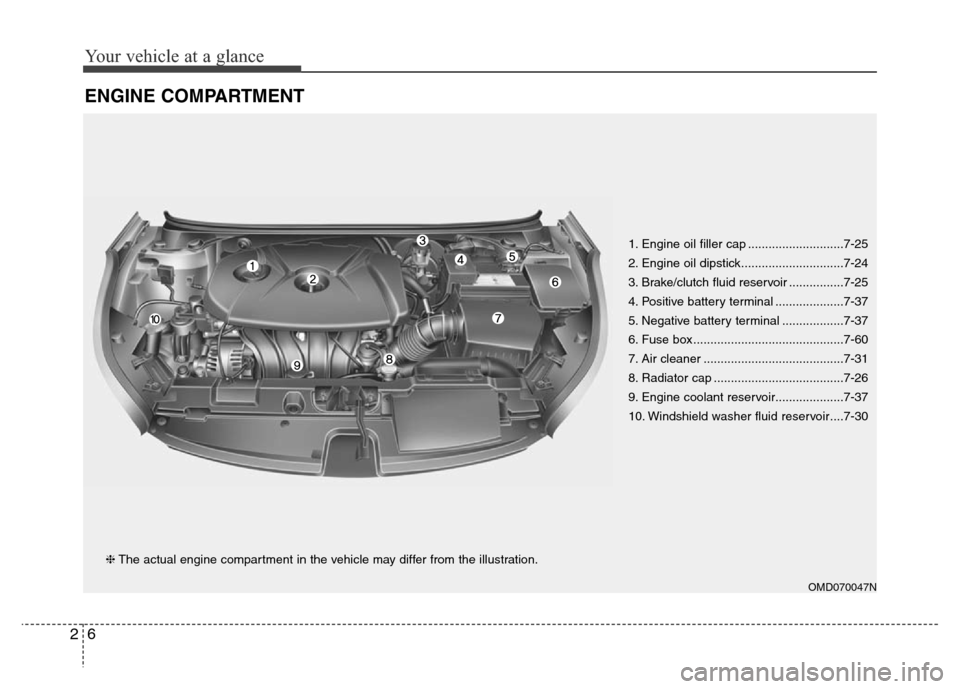

ENGINE COMPARTMENT
OMD070047N
❈The actual engine compartment in the vehicle may differ from the illustration.1. Engine oil filler cap ............................7-25
2. Engine oil dipstick..............................7-24
3. Brake/clutch fluid reservoir ................7-25
4. Positive battery terminal ....................7-37
5. Negative battery terminal ..................7-37
6. Fuse box ............................................7-60
7. Air cleaner .........................................7-31
8. Radiator cap ......................................7-26
9. Engine coolant reservoir....................7-37
10. Windshield washer fluid reservoir ....7-30
Page 20 of 526

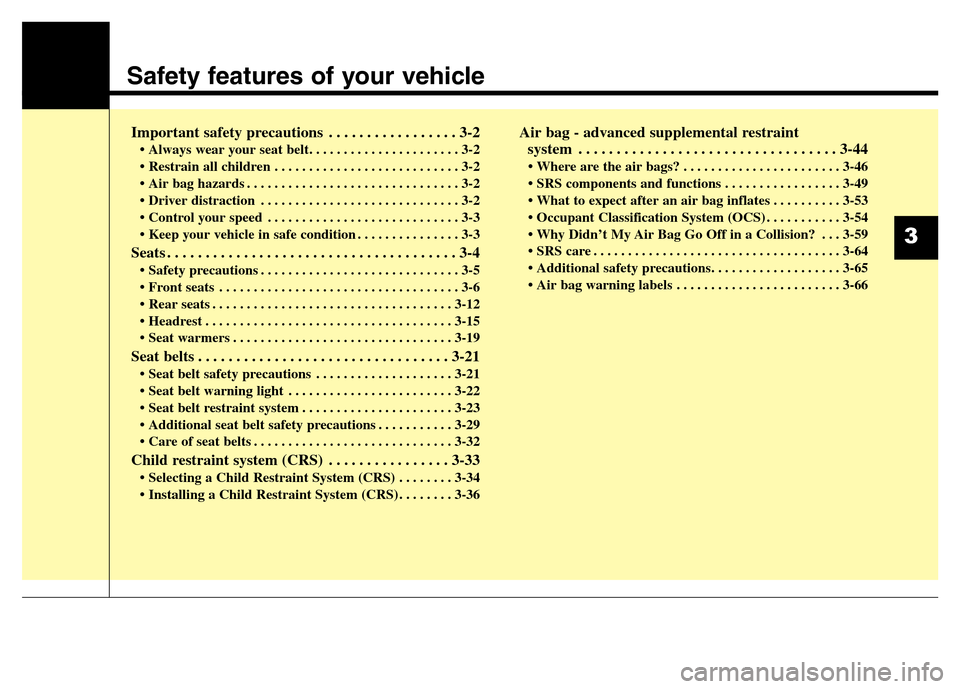

Safety features of your vehicle
Important safety precautions . . . . . . . . . . . . . . . . . 3-2
• Always wear your seat belt. . . . . . . . . . . . . . . . . . . . . . 3-2
• Restrain all children . . . . . . . . . . . . . . . . . . . . . . . . . . . 3-2
• Air bag hazards . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3-2
• Driver distraction . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3-2
• Control your speed . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3-3
• Keep your vehicle in safe condition . . . . . . . . . . . . . . . 3-3
Seats . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3-4
• Safety precautions . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3-5
• Front seats . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3-6
• Rear seats . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3-12
• Headrest . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3-15
• Seat warmers . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3-19
Seat belts . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3-21
• Seat belt safety precautions . . . . . . . . . . . . . . . . . . . . 3-21
• Seat belt warning light . . . . . . . . . . . . . . . . . . . . . . . . 3-22
• Seat belt restraint system . . . . . . . . . . . . . . . . . . . . . . 3-23
• Additional seat belt safety precautions . . . . . . . . . . . 3-29
• Care of seat belts . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3-32
Child restraint system (CRS) . . . . . . . . . . . . . . . . 3-33
• Selecting a Child Restraint System (CRS) . . . . . . . . 3-34
• Installing a Child Restraint System (CRS) . . . . . . . . 3-36
Air bag - advanced supplemental restraint
system . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3-44
• Where are the air bags? . . . . . . . . . . . . . . . . . . . . . . . 3-46
• SRS components and functions . . . . . . . . . . . . . . . . . 3-49
• What to expect after an air bag inflates . . . . . . . . . . 3-53
• Occupant Classification System (OCS) . . . . . . . . . . . 3-54
• Why Didn’t My Air Bag Go Off in a Collision? . . . 3-59
• SRS care . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3-64
• Additional safety precautions. . . . . . . . . . . . . . . . . . . 3-65
• Air bag warning labels . . . . . . . . . . . . . . . . . . . . . . . . 3-66
3
