Hyundai Elantra GT 2016 Owner's Manual

87
Specifications, Consumer information, Reporting safety defects

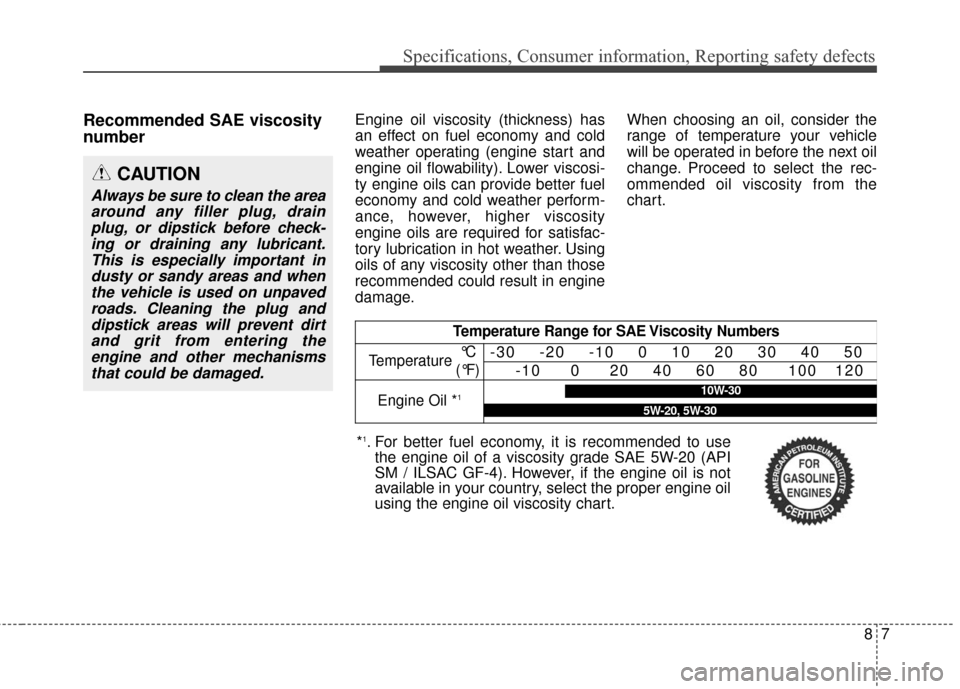

Recommended SAE viscosity
numberEngine oil viscosity (thickness) has
an effect on fuel economy and cold
weather operating (engine start and
engine oil flowability). Lower viscosi-
ty engine oils can provide better fuel
economy and cold weather perform-
ance, however, higher viscosity
engine oils are required for satisfac-
tory lubrication in hot weather. Using
oils of any viscosity other than those
recommended could result in engine
damage.When choosing an oil, consider the
range of temperature your vehicle
will be operated in before the next oil
change. Proceed to select the rec-
ommended oil viscosity from the
chart.
CAUTION
Always be sure to clean the area
around any filler plug, drainplug, or dipstick before check-ing or draining any lubricant.This is especially important industy or sandy areas and whenthe vehicle is used on unpavedroads. Cleaning the plug anddipstick areas will prevent dirtand grit from entering theengine and other mechanismsthat could be damaged.
*1. For better fuel economy, it is recommended to use the engine oil of a viscosity grade SAE 5W-20 (API
SM / ILSAC GF-4). However, if the engine oil is not
available in your country, select the proper engine oil
using the engine oil viscosity chart.
Temperature Range for SAE Viscosity Numbers
Temperature -30 -20 -10 0 10 20 30 40 50
-10 0 20 40 60 80 100 120
Engine Oil *110W-30
5W-20, 5W-30
°C
(°F)

Specifications, Consumer information, Reporting safety defects
88

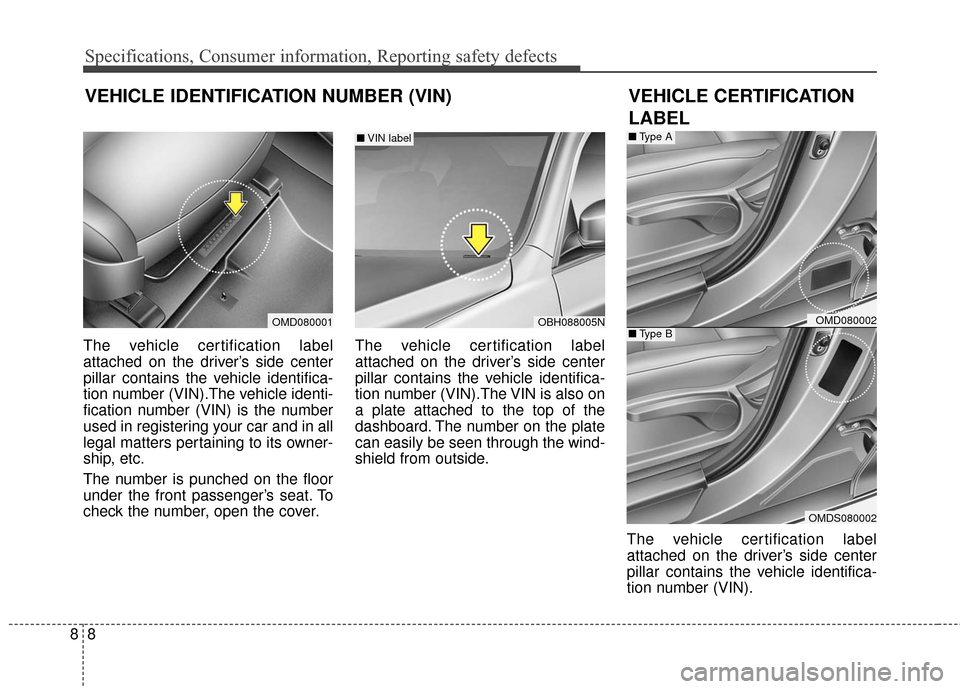

The vehicle certification label
attached on the driver’s side center
pillar contains the vehicle identifica-
tion number (VIN).The vehicle identi-
fication number (VIN) is the number
used in registering your car and in all
legal matters pertaining to its owner-
ship, etc.
The number is punched on the floor
under the front passenger’s seat. To
check the number, open the cover.The vehicle certification label
attached on the driver’s side center
pillar contains the vehicle identifica-
tion number (VIN).The VIN is also on
a plate attached to the top of the
dashboard. The number on the plate
can easily be seen through the wind-
shield from outside.
The vehicle certification label
attached on the driver’s side center
pillar contains the vehicle identifica-
tion number (VIN).
VEHICLE IDENTIFICATION NUMBER (VIN)
OBH088005N
■VIN label
OMD080001OMD080002
OMDS080002
■Type A
■Type B
VEHICLE CERTIFICATION
LABEL

89
Specifications, Consumer information, Reporting safety defects

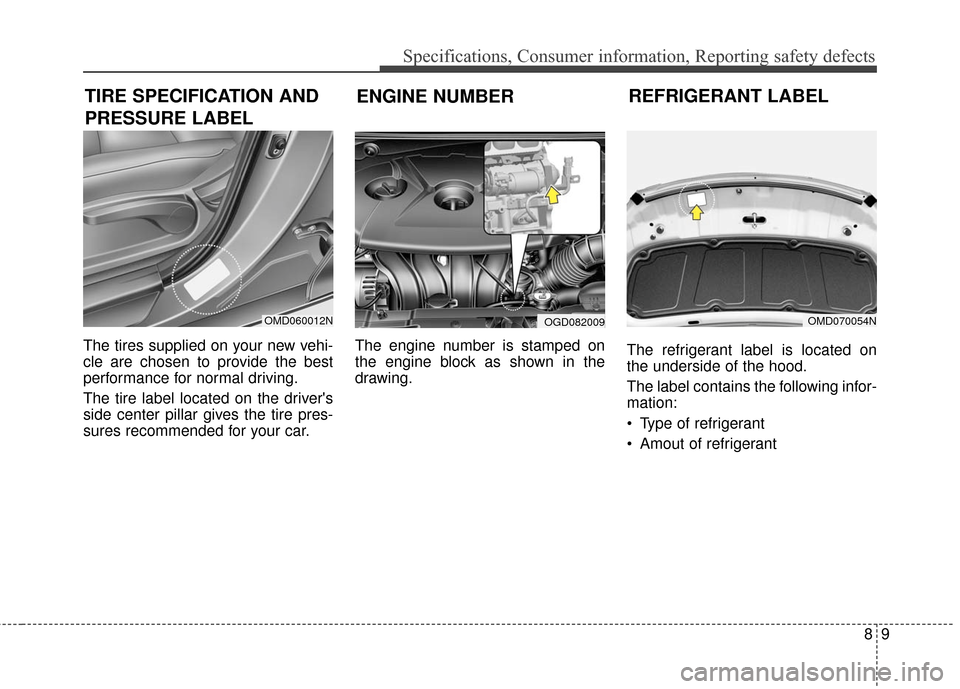

The tires supplied on your new vehi-
cle are chosen to provide the best
performance for normal driving.
The tire label located on the driver's
side center pillar gives the tire pres-
sures recommended for your car.The engine number is stamped on
the engine block as shown in the
drawing.
The refrigerant label is located on
the underside of the hood.
The label contains the following infor-
mation:
Type of refrigerant
Amout of refrigerant
TIRE SPECIFICATION AND
PRESSURE LABEL
OMD060012NOMD070054N
REFRIGERANT LABEL
ENGINE NUMBER
OGD082009

Specifications, Consumer information, Reporting safety defects
10
8

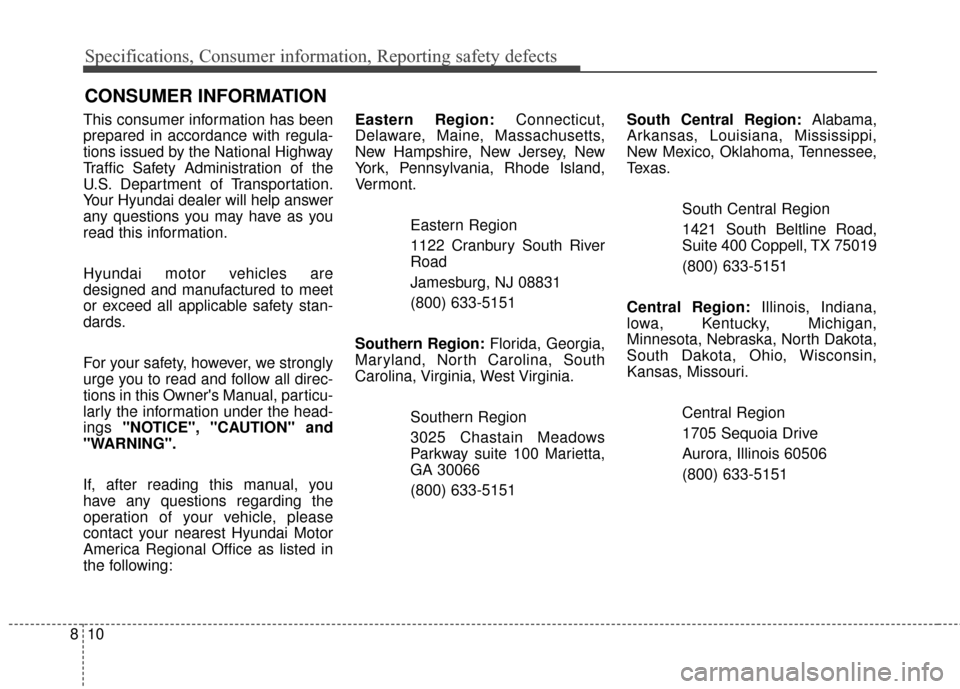

This consumer information has been
prepared in accordance with regula-
tions issued by the National Highway
Traffic Safety Administration of the
U.S. Department of Transportation.
Your Hyundai dealer will help answer
any questions you may have as you
read this information.
Hyundai motor vehicles are
designed and manufactured to meet
or exceed all applicable safety stan-
dards.
For your safety, however, we strongly
urge you to read and follow all direc-
tions in this Owner's Manual, particu-
larly the information under the head-
ings "NOTICE", "CAUTION" and
"WARNING".
If, after reading this manual, you
have any questions regarding the
operation of your vehicle, please
contact your nearest Hyundai Motor
America Regional Office as listed in
the following: Eastern Region:
Connecticut,
Delaware, Maine, Massachusetts,
New Hampshire, New Jersey, New
York, Pennsylvania, Rhode Island,
Vermont.
Eastern Region
1122 Cranbury South River
Road
Jamesburg, NJ 08831
(800) 633-5151
Southern Region: Florida, Georgia,
Maryland, North Carolina, South
Carolina, Virginia, West Virginia.
Southern Region
3025 Chastain Meadows
Parkway suite 100 Marietta,
GA 30066
(800) 633-5151 South Central Region:
Alabama,
Arkansas, Louisiana, Mississippi,
New Mexico, Oklahoma, Tennessee,
Texas.
South Central Region
1421 South Beltline Road,
Suite 400 Coppell, TX 75019
(800) 633-5151
Central Region: Illinois, Indiana,
lowa, Kentucky, Michigan,
Minnesota, Nebraska, North Dakota,
South Dakota, Ohio, Wisconsin,
Kansas, Missouri.
Central Region
1705 Sequoia Drive
Aurora, Illinois 60506
(800) 633-5151
CONSUMER INFORMATION

811
Specifications, Consumer information, Reporting safety defects

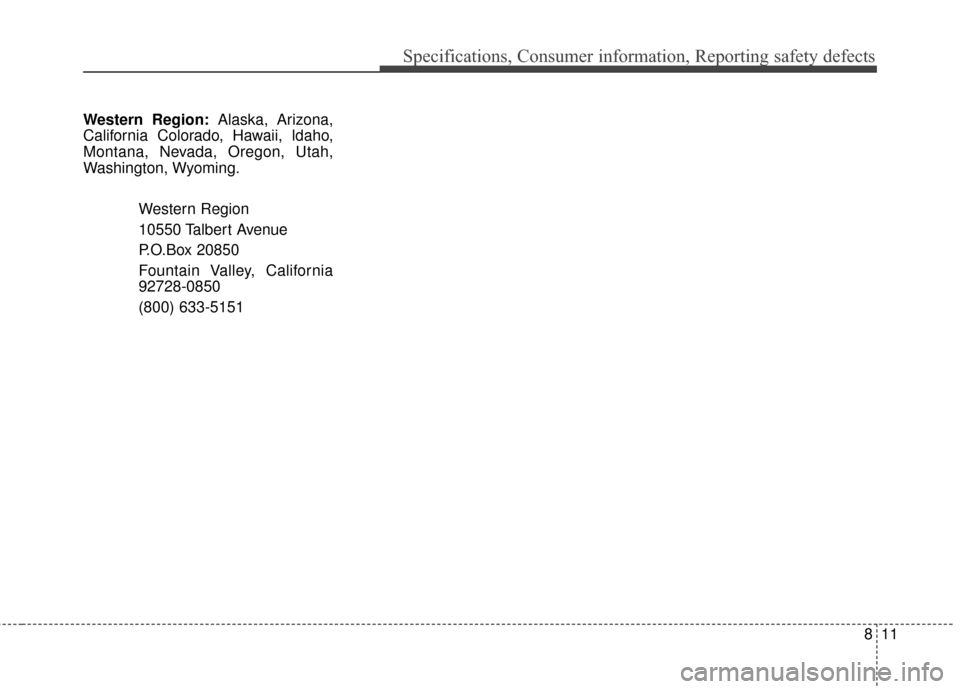

Western Region:Alaska, Arizona,
California Colorado, Hawaii, ldaho,
Montana, Nevada, Oregon, Utah,
Washington, Wyoming.
Western Region
10550 Talbert Avenue
P.O.Box 20850
Fountain Valley, California
92728-0850
(800) 633-5151

812
Specifications, Consumer information, Reporting safety defects

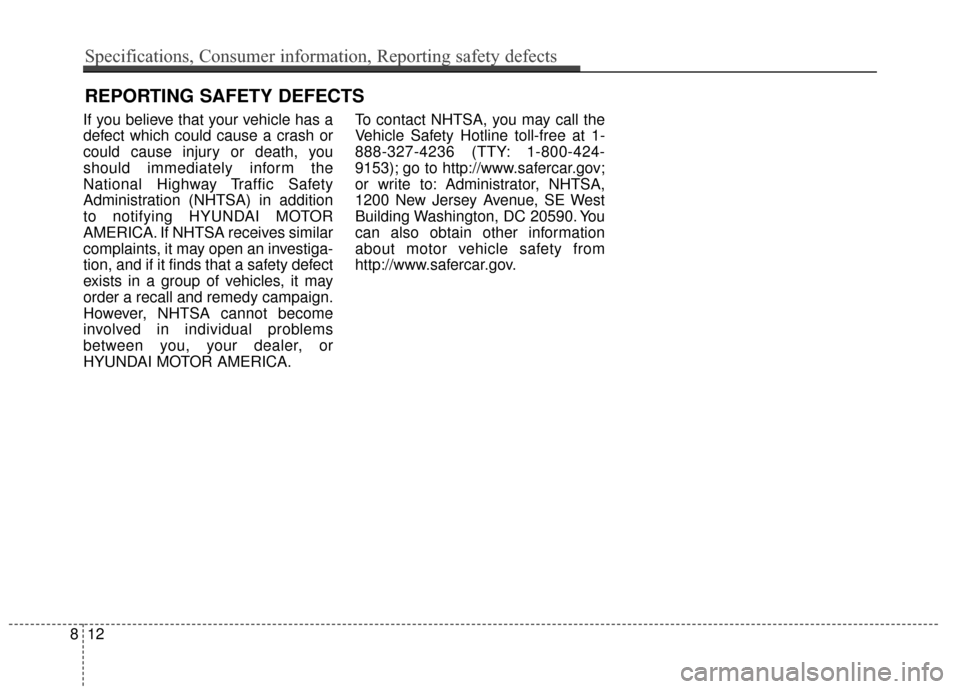

If you believe that your vehicle has a
defect which could cause a crash or
could cause injury or death, you
should immediately inform the
National Highway Traffic Safety
Administration (NHTSA) in addition
to notifying HYUNDAI MOTOR
AMERICA. If NHTSA receives similar
complaints, it may open an investiga-
tion, and if it finds that a safety defect
exists in a group of vehicles, it may
order a recall and remedy campaign.
However, NHTSA cannot become
involved in individual problems
between you, your dealer, or
HYUNDAI MOTOR AMERICA.To contact NHTSA, you may call the
Vehicle Safety Hotline toll-free at 1-
888-327-4236 (TTY: 1-800-424-
9153); go to http://www.safercar.gov;
or write to: Administrator, NHTSA,
1200 New Jersey Avenue, SE West
Building Washington, DC 20590. You
can also obtain other information
about motor vehicle safety from
http://www.safercar.gov.
REPORTING SAFETY DEFECTS

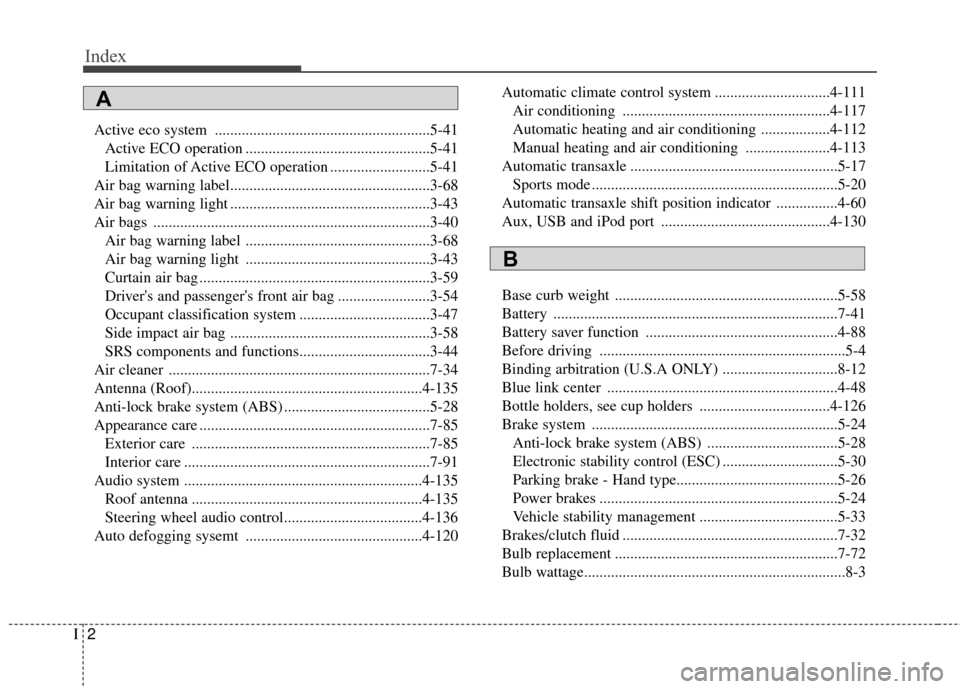

Index
I

Index
2I
Active eco system ........................................................5-41Active ECO operation ................................................5-41
Limitation of Active ECO operation ..........................5-41
Air bag warning label....................................................3-68
Air bag warning light ....................................................3-43
Air bags ........................................................................\
3-40 Air bag warning label ................................................3-68
Air bag warning light ................................................3-43
Curtain air bag ............................................................3-59
Driver's and passenger's front air bag ........................3-54
Occupant classification system ..................................3-47
Side impact air bag ....................................................3-58
SRS components and functions..................................3-44
Air cleaner ....................................................................7-34\
Antenna (Roof)............................................................4-135
Anti-lock brake system (ABS) ......................................5-28
Appearance care ............................................................7-85 Exterior care ..............................................................7-85
Interior care ................................................................7-91
Audio system ..............................................................4-135 Roof antenna ............................................................4-135
Steering wheel audio control....................................4-136
Auto defogging sysemt ..............................................4-120 Automatic climate control system ..............................4-111
Air conditioning ......................................................4-117
Automatic heating and air conditioning ..................4-112
Manual heating and air conditioning ......................4-113
Automatic transaxle ......................................................5-17 Sports mode ................................................................5-20
Automatic transaxle shift position indicator ................4-60
Aux, USB and iPod port ............................................4-130
Base curb weight ..........................................................5-58
Battery ........................................................................\
..7-41
Battery saver function ..................................................4-88
Before driving ................................................................5-4
Binding arbitration (U.S.A ONLY) ..............................8-12
Blue link center ............................................................4-48
Bottle holders, see cup holders ..................................4-126
Brake system ................................................................5-24 Anti-lock brake system (ABS) ..................................5-28
Electronic stability control (ESC) ..............................5-30
Parking brake - Hand type..........................................5-26
Power brakes ..............................................................5-24
Vehicle stability management ....................................5-33
Brakes/clutch fluid ........................................................7-32
Bulb replacement ..........................................................7-72
Bulb wattage....................................................................8-3
A
B

I3
Index

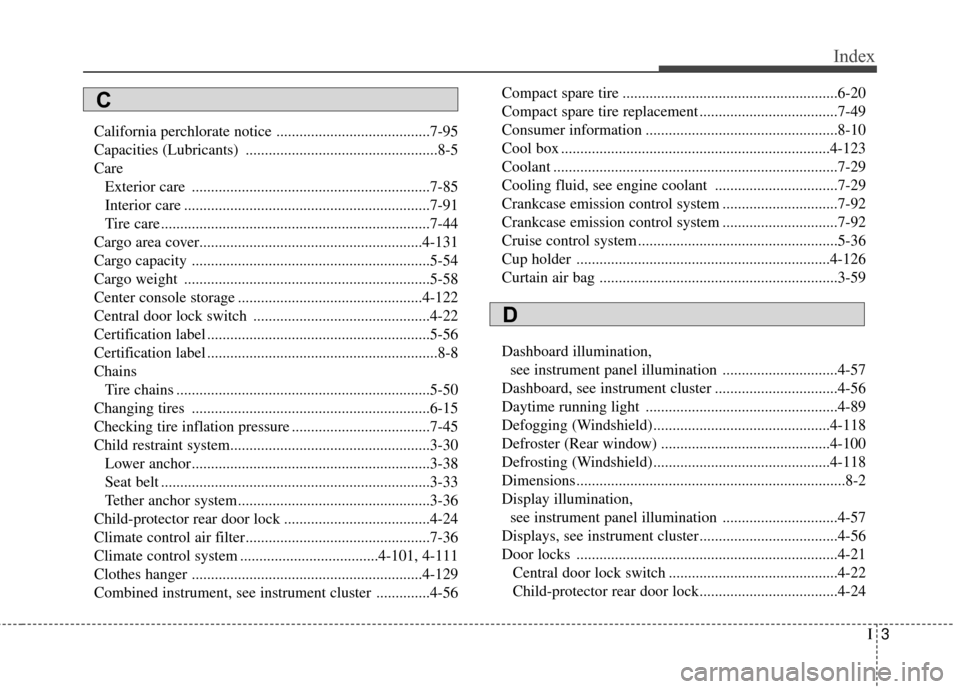

California perchlorate notice ........................................7-95
Capacities (Lubricants) ..................................................8-5
CareExterior care ..............................................................7-85
Interior care ................................................................7-91
Tire care ......................................................................7-\
44
Cargo area cover..........................................................4-131
Cargo capacity ..............................................................5-54
Cargo weight ................................................................5-58
Center console storage ................................................4-122
Central door lock switch ..............................................4-22
Certification label ..........................................................5-56
Certification label ............................................................8-8
Chains Tire chains ..................................................................5-50
Changing tires ..............................................................6-15
Checking tire inflation pressure ....................................7-45
Child restraint system....................................................3-30 Lower anchor..............................................................3-38
Seat belt ......................................................................3-\
33
Tether anchor system..................................................3-36
Child-protector rear door lock ......................................4-24
Climate control air filter................................................7-36
Climate control system ....................................4-101, 4-111
Clothes hanger ............................................................4-129
Combined instrument, see instrument cluster ..............4-56 Compact spare tire ........................................................6-20
Compact spare tire replacement ....................................7-49
Consumer information ..................................................8-10
Cool box ......................................................................4-\
123
Coolant ........................................................................\
..7-29
Cooling fluid, see engine coolant ................................7-29
Crankcase emission control system ..............................7-92
Crankcase emission control system ..............................7-92
Cruise control system ....................................................5-36
Cup holder ..................................................................4-126
Curtain air bag ..............................................................3-59
Dashboard illumination,
see instrument panel illumination ..............................4-57
Dashboard, see instrument cluster ................................4-56
Daytime running light ..................................................4-89
Defogging (Windshield)..............................................4-118
Defroster (Rear window) ............................................4-100
Defrosting (Windshield)..............................................4-118
Dimensions ......................................................................8-\
2
Display illumination, see instrument panel illumination ..............................4-57
Displays, see instrument cluster....................................4-56
Door locks ....................................................................4-21\
Central door lock switch ............................................4-22
Child-protector rear door lock....................................4-24
C
D

Index
4I

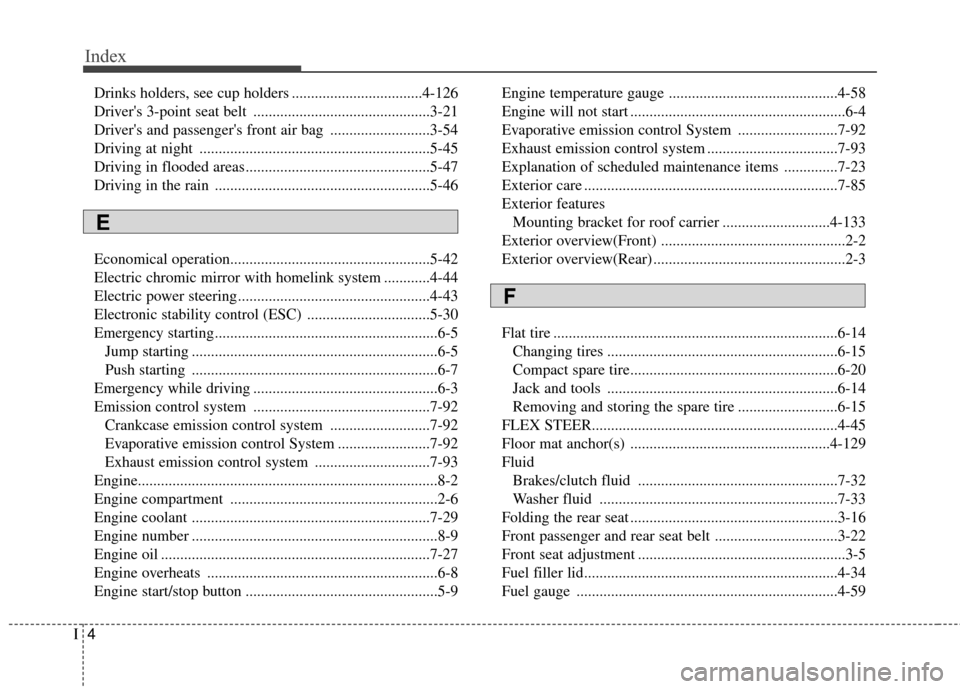

Drinks holders, see cup holders ..................................4-126
Driver's 3-point seat belt ..............................................3-21
Driver's and passenger's front air bag ..........................3-54
Driving at night ............................................................5-45
Driving in flooded areas................................................5-47
Driving in the rain ........................................................5-46
Economical operation....................................................5-42
Electric chromic mirror with homelink system ............4-44
Electric power steering..................................................4-43
Electronic stability control (ESC) ................................5-30
Emergency starting..........................................................6-5Jump starting ................................................................6-5
Push starting ................................................................6-7
Emergency while driving ................................................6-3
Emission control system ..............................................7-92 Crankcase emission control system ..........................7-92
Evaporative emission control System ........................7-92
Exhaust emission control system ..............................7-93
Engine..................................................................\
............8-2
Engine compartment ......................................................2-6
Engine coolant ..............................................................7-29
Engine number ................................................................8-9
Engine oil ......................................................................7-\
27
Engine overheats ............................................................6-8
Engine start/stop button ..................................................5-9 Engine temperature gauge ............................................4-58
Engine will not start ........................................................6-4
Evaporative emission control System ..........................7-92
Exhaust emission control system ..................................7-93
Explanation of scheduled maintenance items ..............7-23
Exterior care ..................................................................7-85
Exterior features
Mounting bracket for roof carrier ............................4-133
Exterior overview(Front) ................................................2-2
Exterior overview(Rear) ..................................................2-3
Flat tire ........................................................................\
..6-14 Changing tires ............................................................6-15
Compact spare tire......................................................6-20
Jack and tools ............................................................6-14
Removing and storing the spare tire ..........................6-15
FLEX STEER................................................................4-45
Floor mat anchor(s) ....................................................4-129
Fluid Brakes/clutch fluid ....................................................7-32
Washer fluid ..............................................................7-33
Folding the rear seat ......................................................3-16
Front passenger and rear seat belt ................................3-22
Front seat adjustment ......................................................3-5
Fuel filler lid..................................................................4-34
Fuel gauge ....................................................................4-59\
F
E
