Maintenance
62
7

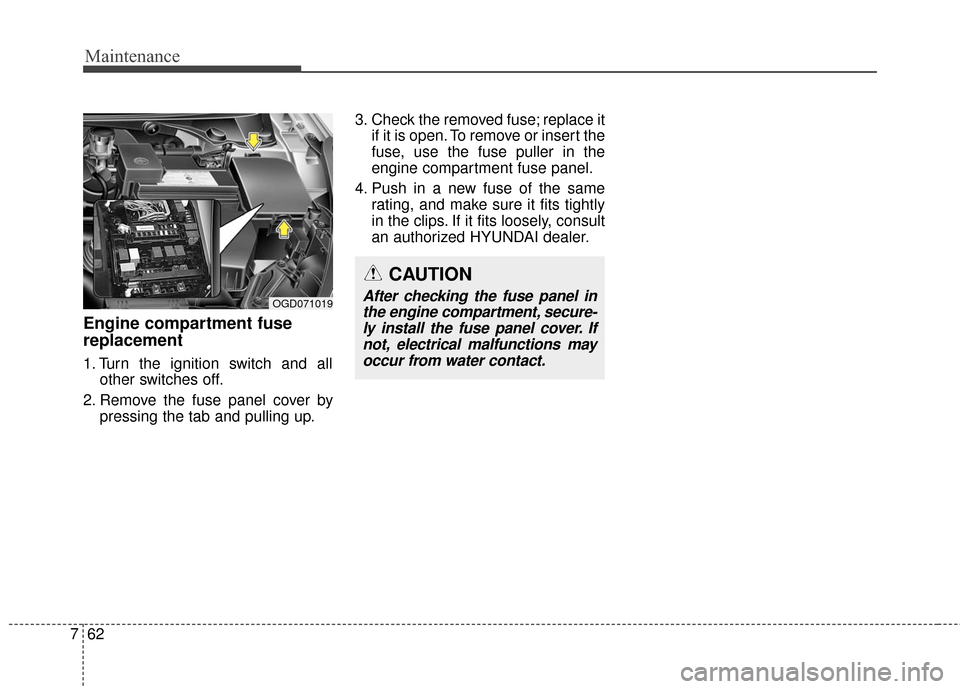

Engine compartment fuse
replacement
1. Turn the ignition switch and all
other switches off.
2. Remove the fuse panel cover by pressing the tab and pulling up. 3. Check the removed fuse; replace it
if it is open. To remove or insert the
fuse, use the fuse puller in the
engine compartment fuse panel.
4. Push in a new fuse of the same rating, and make sure it fits tightly
in the clips. If it fits loosely, consult
an authorized HYUNDAI dealer.
OGD071019
CAUTION
After checking the fuse panel inthe engine compartment, secure-ly install the fuse panel cover. Ifnot, electrical malfunctions mayoccur from water contact.

763
Maintenance

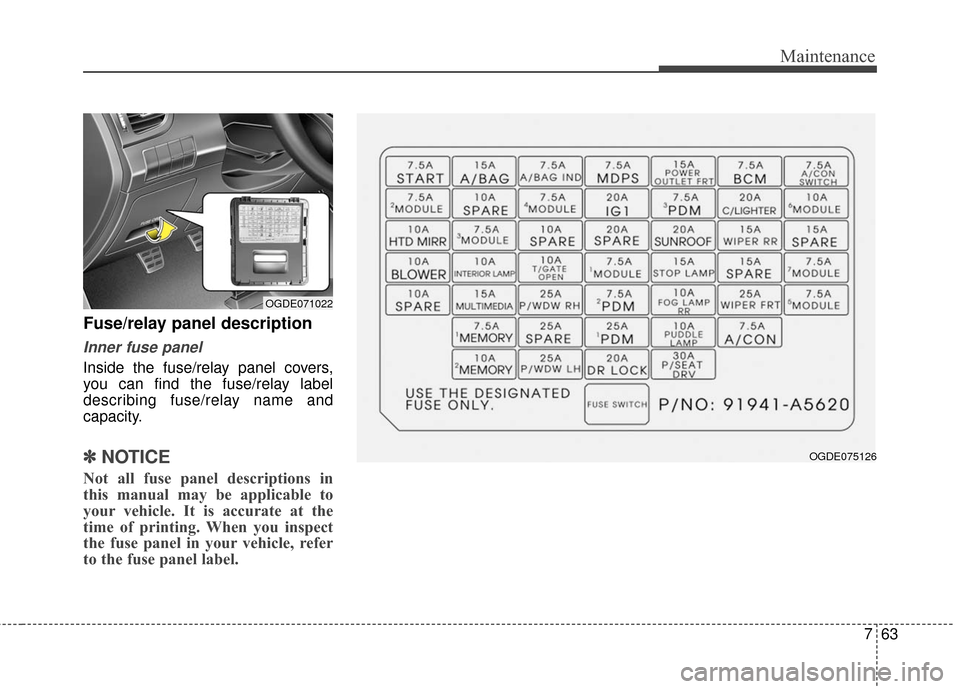

Fuse/relay panel description
Inner fuse panel
Inside the fuse/relay panel covers,
you can find the fuse/relay label
describing fuse/relay name and
capacity.
✽ ✽NOTICE
Not all fuse panel descriptions in
this manual may be applicable to
your vehicle. It is accurate at the
time of printing. When you inspect
the fuse panel in your vehicle, refer
to the fuse panel label.
OGDE071022
OGDE075126

Maintenance
64
7
Instrument panel (Driver’s side fuse panel)
DescriptionFuse ratingProtected component
C/LIGHTER20AConsole Cigar Light, Rear Power Outlet
1 MODULE7.5ASport Mode Switch
4 MODULE 7.5AA/C Control Module, Head Lamp Leveling Device Actuator LH/RH,
Fuel Filter Warning Sensor(D4FD), Rear Parking Assist System
3 MODULE7.5AInstrument Cluster, BCM, Tire Pressure Monitoring Module, Audio,
Driver/Passenger Seat Warmer Module, ATM shift lever Ind
POWER
OUTLET FRT15AFront Power Outlet
HTD MIRR10ADriver/Passenger Power Outside Mirror, A/C Control Module, ECU
WIPER FRT25AICM Relay Box (Rain Sensor Relay), Multifunction Switch,
E/R Fuse & Relay Box (RLY. 7) Front Wiper Motor
A/CON7.5AA/C Control Module, E/R Fuse & Relay Box (RLY. 4)
P/WDW LH25AP/WDW LH Relay, Driver Safety Power Window Module (LHD)
T/GATE OPEN10ATail Gate, Rear Camera Open Actuator
P/SEAT DRV30ADriver Manual Switch
2 MODULE7.5AICM Relay Box, Rear Camera Module, Electro Chromic Mirror

765
Maintenance
DescriptionFuse ratingProtected component
WIPER RR15ARear Wiper Relay, Rear Wiper Motor, Multifunction Switch
STOP LAMP15AStop Lamp Switch
P/WDW RH25AP/WDW RH Relay, Driver Safety Power Window Module (RHD)
2 PDM7.5ASmart Key Control Module, Start/Stop Button Switch, Ultrasonic Instruction Protection Sensor
5 MODULE7.5AEMS BOX (Head Lamp Washer Relay), Ionizer Unit, Panorama Sunroof, DSL BOX (PTC Relay),
E/R Fuse & Relay BOX(RLY. ), Driver/Passenger Seat Warmer Module
IG120AE/R Fuse & Relay Box (Fuse – F)
6 MODULE10AOutside Mirror Switch, Audio, Navigation Head Unit, Digital Clock
MDPS7.5AEPS Control Module
DR LOCK20ADoor Lock/Unlock Relay, ICM Relay BOX (Dead Lock Relay),
Driver/Passenger Door Lock Actuator, Fuel filler actuator, Door Lock Actuator LH/RH
INTERIOR LAMP10AVanity Lamp LH/RH, Overhead Console Lamp, Room Lamp, Luggage Lamp,
DR Warning Switch
MULTI MEDIA15AAudio, Navigation Head Unit
A/BAG15ASRS Control Module

Maintenance
66
7
DescriptionFuse ratingProtected component
1 MEMORY7.5AInstrument Cluster
A/BAG IND7.5AInstrument Cluster
3 PDM7.5ASmart Key Control Module, Ultrasonic instrusion Protection Sensor
2 MEMORY10AOutside Mirror Switch, Tire Pressure Monitoring Module, BCM, Auto Light & Photo Sensor,
OBD, Digital Clock, A/C Control Module
1 PDM25ASmart Key Control Module
START7.5AW/O Button Start : E/R Fuse & Relay Box (RLY. ) Ignition Lock Switch,
Transaxle Range Switch
With Button Start : ECM/PCM, Transaxle Range Switch
SUNROOF20APanorama Sunroof
BCM7.5ABCM, Smart Key Control Module
A/CON SWITCH7.5AA/C Control Module
7 MODULE7.5ABCM, Smart Key Control Module
FOG LAMP RR10ARear Fog Lamp
PUDDLE LAMP10ADriver/Passenger Power Outside Mirror

767
Maintenance

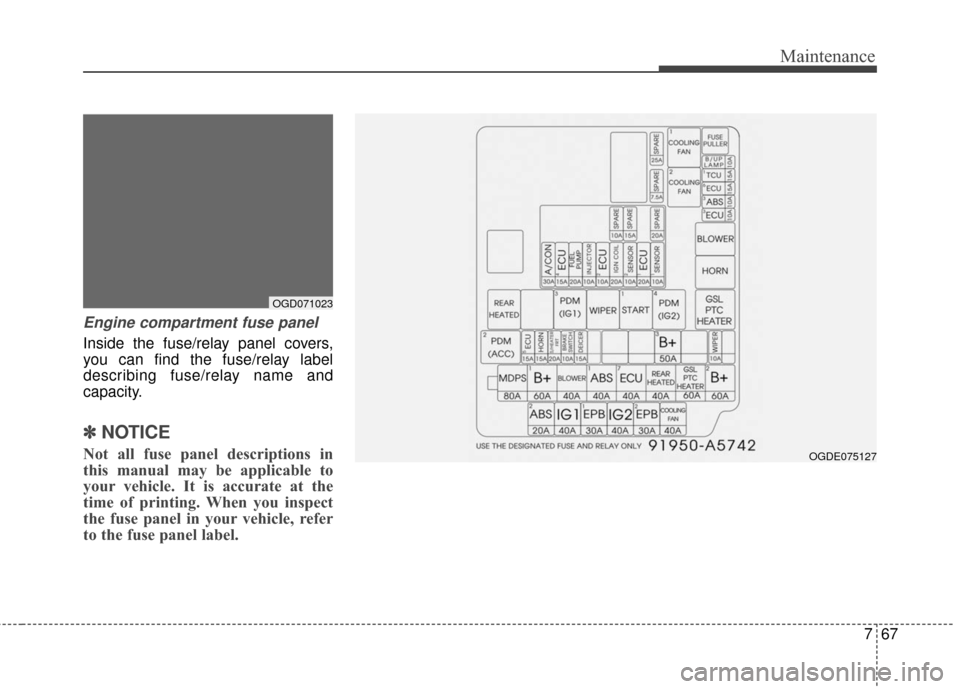

Engine compartment fuse panel
Inside the fuse/relay panel covers,
you can find the fuse/relay label
describing fuse/relay name and
capacity.
✽ ✽NOTICE
Not all fuse panel descriptions in
this manual may be applicable to
your vehicle. It is accurate at the
time of printing. When you inspect
the fuse panel in your vehicle, refer
to the fuse panel label.
OGD071023
OGDE075127

Maintenance
68
7

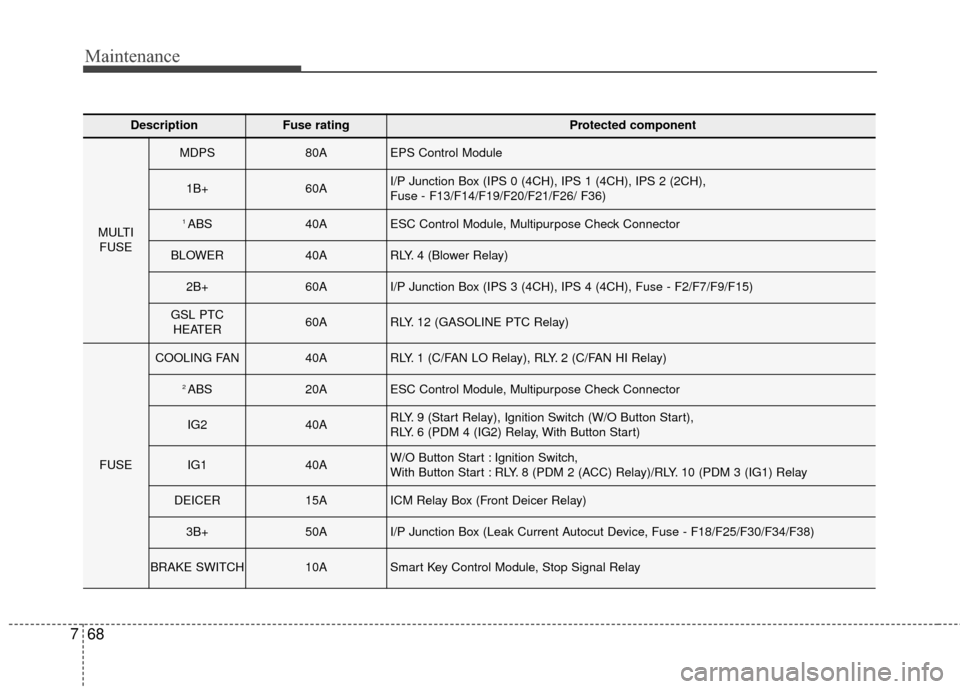

DescriptionFuse ratingProtected component
MULTI
FUSE
MDPS80AEPS Control Module
1B+60AI/P Junction Box (IPS 0 (4CH), IPS 1 (4CH), IPS 2 (2CH),
Fuse - F13/F14/F19/F20/F21/F26/ F36)
1 ABS40AESC Control Module, Multipurpose Check Connector
BLOWER40ARLY. 4 (Blower Relay)
2B+60AI/P Junction Box (IPS 3 (4CH), IPS 4 (4CH), Fuse - F2/F7/F9/F15)
GSL PTC HEATER60ARLY. 12 (GASOLINE PTC Relay)
FUSE
COOLING FAN40ARLY. 1 (C/FAN LO Relay), RLY. 2 (C/FAN HI Relay)
2 ABS20AESC Control Module, Multipurpose Check Connector
IG240ARLY. 9 (Start Relay), Ignition Switch (W/O Button Start),
RLY. 6 (PDM 4 (IG2) Relay, With Button Start)
IG140AW/O Button Start : Ignition Switch,
With Button Start : RLY. 8 (PDM 2 (ACC) Relay)/RLY. 10 (PDM 3 (IG1) Relay
DEICER15AICM Relay Box (Front Deicer Relay)
3B+50AI/P Junction Box (Leak Current Autocut Device, Fuse - F18/F25/F30/F34/F38)
BRAKE SWITCH10ASmart Key Control Module, Stop Signal Relay

769
Maintenance
DescriptionFuse ratingProtected component
FUSE
S/HEATER FRT20ADriver/Passenger Seat Warmer Module
WIPER10APCM/ECM
HORN15ARLY. 5 (Horn Relay), ICM Relay Box (B/A Horn Relay)
1 TCU15AA/T - TCM (D4FD), Transaxle Range Switch
6 ECU15ARLY. 9 (D4FD, Start Relay), ECM/PCM
3 ABS10AESC Control Module, Multipurpose Check Connector
3 ECU10AECM/PCM, Air Flow Sensor, Stop Lamp Switch
B/UP
LAMP10AM/T - Back-Up Lamp Switch, A/T - Rear Combination Lamp (IN) LH/RH,
Rear Curtain Module, Navigation Head Unit, Electro Chromic Mirror, IPS Control Module

Maintenance
70
7
DescriptionFuse ratingProtected component
FUSE
1 ECU20AG4FD/D4FD : ECM
G4NA/G4NC : PCM (A/T), ECM (M/T)
IGN COIL20AG4NA : Ignition Coil #1/#2/#3/#4, Condenser
2 SENSOR10A
G4FD : Oxygen Sensor (UP/DOWN), Variable Intake Solenoid Valve,
Purge Control Solenoid Valve
G4NA/G4NC : Oxygen Sensor (UP/DOWN), Variable Intake Solenoid Valve, Purge Control Solenoid Valve
D4FD : Camshaft Position Sensor, EGR Cooling Bypass Solenoid Valve, Diesel Box (Glow Relay)
1 SENSOR10A
G4FD : Oil Control Valve #1/ #2, Oil Level Sensor, E/R Fuse & Relay Box (RLY. 1)
G4NA/G4NC : Oil Control Valve #1/ #2, Camshaft Position Sensor (Intake/Exhaust), E/R Fuse & Relay Box (RLY. 1)
D4FD : E/R Fuse & Relay Box (RLY. 1), Diesel Box (PTC Heater Relay#1), Lambda Sensor, VGT Control Solenoid Valve
2 ECU10AG4FD : ECM G4NA : Fuel Pump Relay G4NC : Fuel Pump Relay, PCM (A/T), ECM (M/T)
D4FD : Oil Level Sensor, Fuel Pressure Regulating Valve
INJECTOR10AG4NA - Injector #1/#2/#3/#4
4 ECU15AG4NA/G4NC : PCM (A/T), ECM (M/T)
FUEL PUMP20AEMS Box (Fuel Pump Relay)
A/CON30AEMS Box (Air Conditionor)
EMS40AEMS Box

771
Maintenance

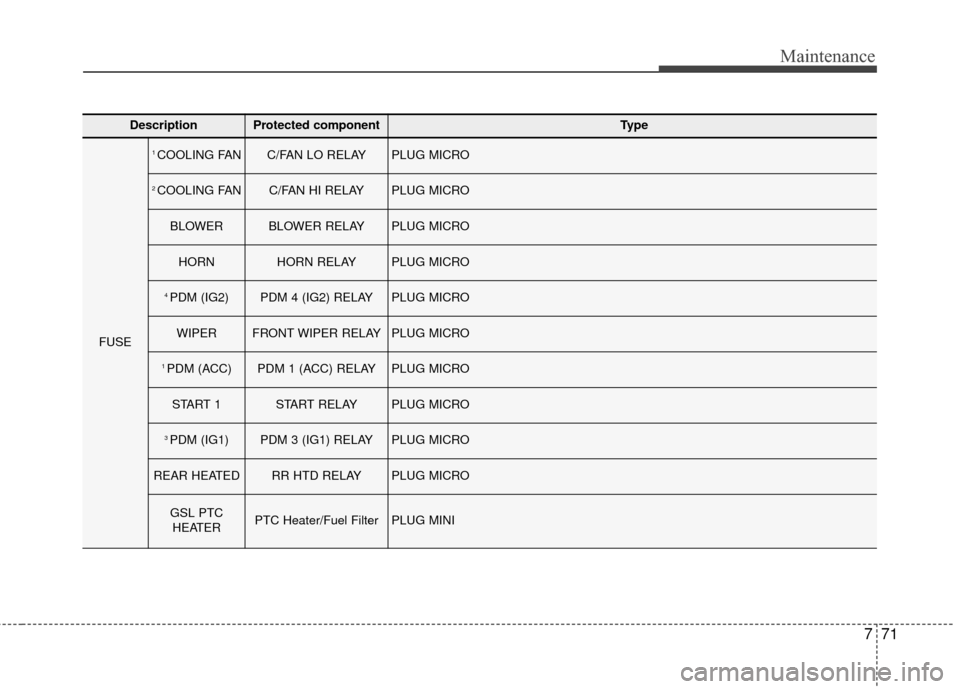

DescriptionProtected componentType
FUSE
1 COOLING FANC/FAN LO RELAY PLUG MICRO
2 COOLING FANC/FAN HI RELAY PLUG MICRO
BLOWERBLOWER RELAY PLUG MICRO
HORNHORN RELAY PLUG MICRO
4 PDM (IG2)PDM 4 (IG2) RELAY PLUG MICRO
WIPERFRONT WIPER RELAY PLUG MICRO
1 PDM (ACC)PDM 1 (ACC) RELAY PLUG MICRO
START 1START RELAY PLUG MICRO
3 PDM (IG1)PDM 3 (IG1) RELAY PLUG MICRO
REAR HEATEDRR HTD RELAY PLUG MICRO
GSL PTCHEATERPTC Heater/Fuel FilterPLUG MINI
