Hyundai Elantra GT 2017 Owner's Manual

Features of your vehicle
154
4

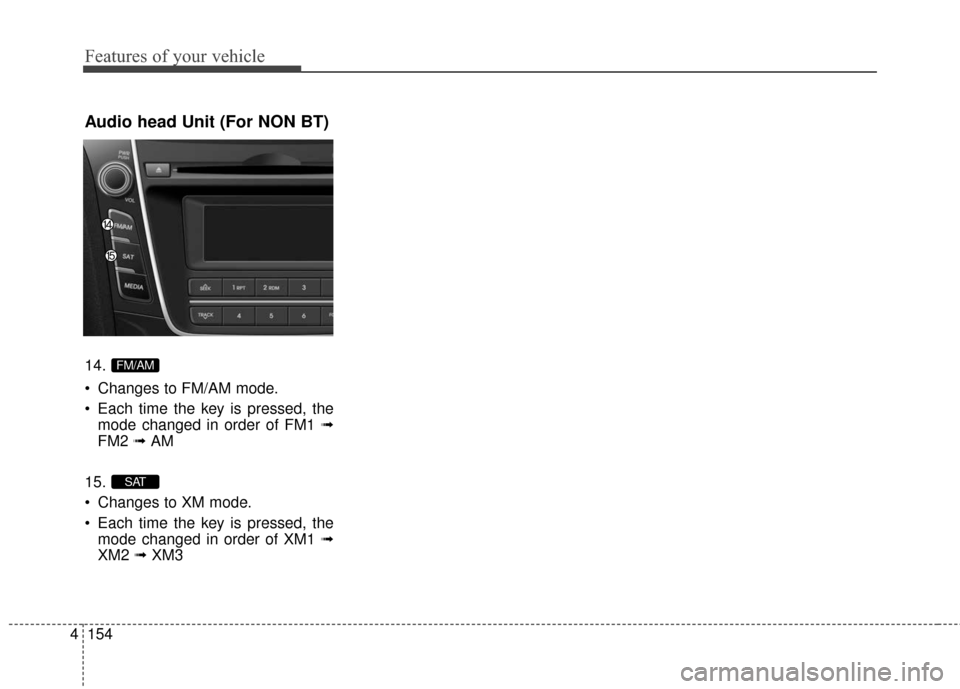

Audio head Unit (For NON BT)
14.
Changes to FM/AM mode.
Each time the key is pressed, the
mode changed in order of FM1 ➟
FM2 ➟AM
15.
Changes to XM mode.
Each time the key is pressed, the mode changed in order of XM1 ➟
XM2 ➟XM3
SAT
FM/AM

4155
Features of your vehicle
■

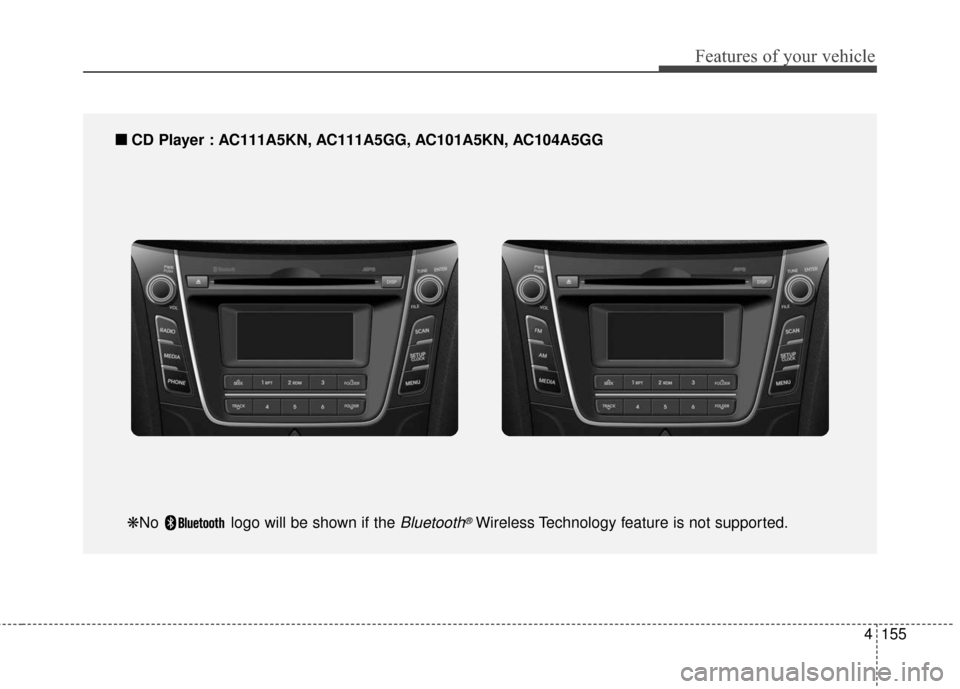

■CD Player : AC111A5KN, AC111A5GG, AC101A5KN, AC104A5GG
❋No logo will be shown if the Bluetooth®Wireless Technology feature is not supported.

Features of your vehicle
156
4

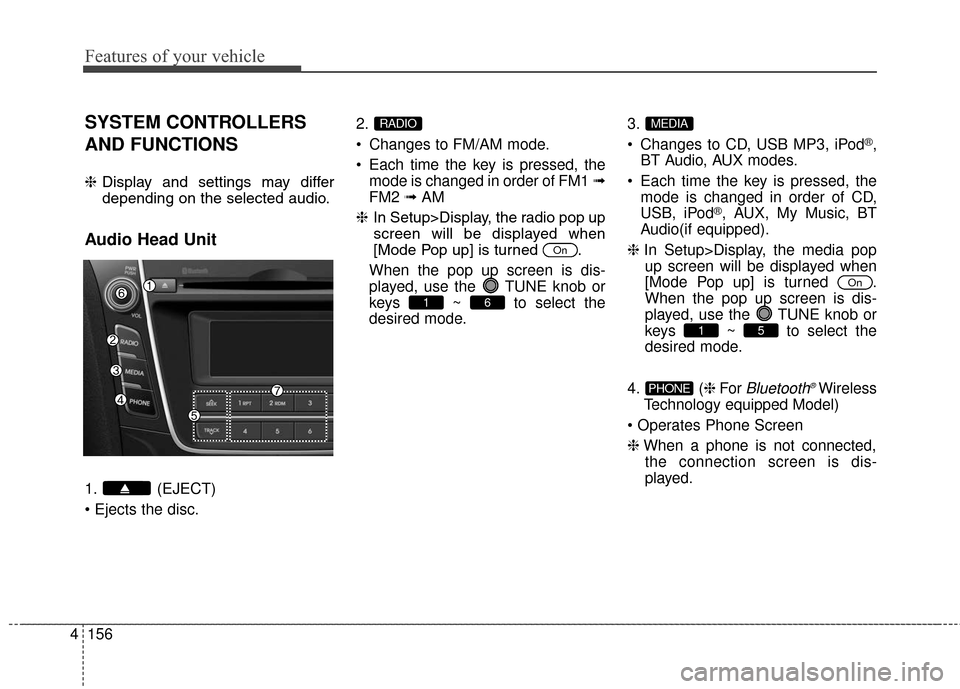

SYSTEM CONTROLLERS
AND FUNCTIONS
❈ Display and settings may differ
depending on the selected audio.
Audio Head Unit
1. (EJECT)
2.
Changes to FM/AM mode.
Each time the key is pressed, the
mode is changed in order of FM1 ➟
FM2 ➟AM
❈ In Setup>Display, the radio pop up
screen will be displayed when
[Mode Pop up] is turned .
When the pop up screen is dis-
played, use the TUNE knob or
keys ~ to select the
desired mode. 3.
Changes to CD, USB MP3, iPod
®,
BT Audio, AUX modes.
Each time the key is pressed, the mode is changed in order of CD,
USB, iPod
®, AUX, My Music, BT
Audio(if equipped).
❈ In Setup>Display, the media pop
up screen will be displayed when
[Mode Pop up] is turned .
When the pop up screen is dis-
played, use the TUNE knob or
keys ~ to select the
desired mode.
4. ( ❈For
Bluetooth®Wireless
Technology equipped Model)

❈ When a phone is not connected,
the connection screen is dis-
played.PHONE
51
On
MEDIA
61
On
RADIO

4157
Features of your vehicle

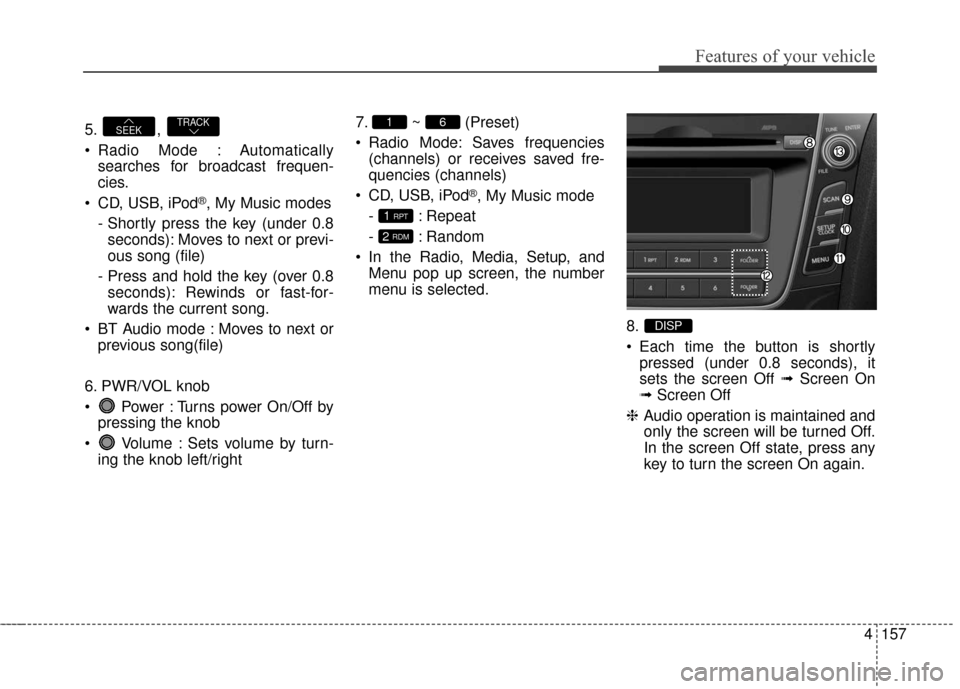

5. ,
Radio Mode : Automaticallysearches for broadcast frequen-
cies.
CD, USB, iPod
®, My Music modes
- Shortly press the key (under 0.8 seconds): Moves to next or previ-
ous song (file)
- Press and hold the key (over 0.8 seconds): Rewinds or fast-for-
wards the current song.
BT Audio mode : Moves to next or previous song(file)
6. PWR/VOL knob
Power : Turns power On/Off by pressing the knob
Volume : Sets volume by turn- ing the knob left/right 7. ~ (Preset)
Radio Mode: Saves frequencies
(channels) or receives saved fre-
quencies (channels)
CD, USB, iPod®, My Music mode
- : Repeat
- : Random
In the Radio, Media, Setup, and Menu pop up screen, the number
menu is selected.
8.
Each time the button is shortlypressed (under 0.8 seconds), it
sets the screen Off ➟ Screen On
➟ Screen Off
❈ Audio operation is maintained and
only the screen will be turned Off.
In the screen Off state, press any
key to turn the screen On again.
DISP
2 RDM
1 RPT
61TRACKSEEK

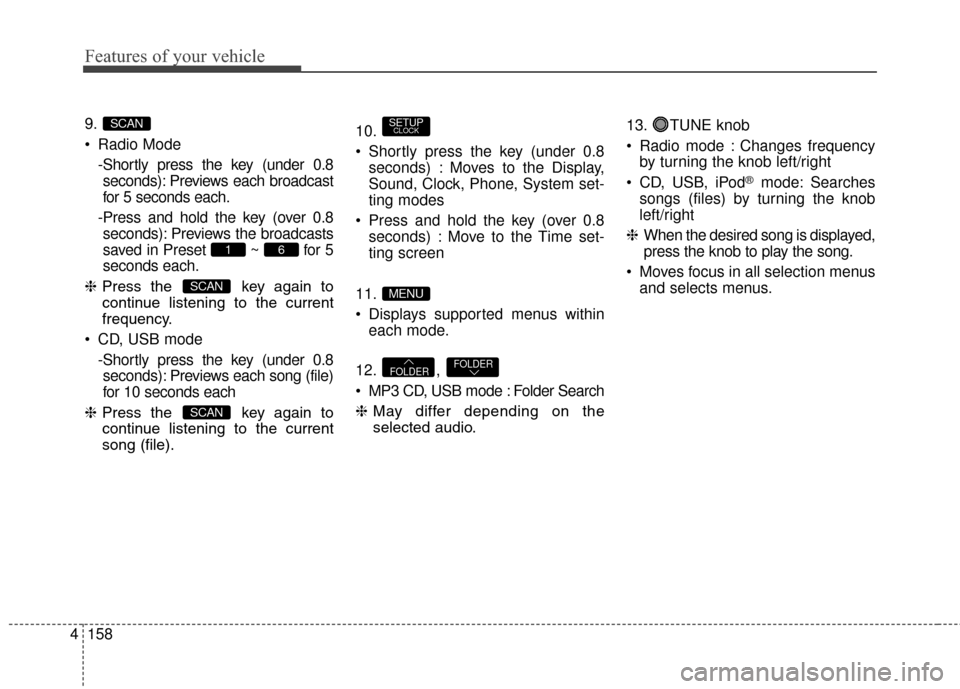

Features of your vehicle
158
4
9.
Radio Mode
-Shortly press the key (under 0.8seconds): Previews each broadcast
for 5 seconds each.
-Press and hold the key (over 0.8 seconds): Previews the broadcasts
saved in Preset ~ for 5
seconds each.
❈ Press the key again to
continue listening to the current
frequency.
CD, USB mode -Shortly press the key (under 0.8seconds): Previews each song (file)
for 10 seconds each
❈ Press the key again to
continue listening to the current
song (file). 10.
Shortly press the key (under 0.8
seconds) : Moves to the Display,
Sound, Clock, Phone, System set-
ting modes
Press and hold the key (over 0.8 seconds) : Move to the Time set-
ting screen
11.
Displays supported menus within each mode.
12. ,
MP3 CD, USB mode : Folder Search
❈ May differ depending on the
selected audio. 13. TUNE knob
Radio mode : Changes frequency
by turning the knob left/right
CD, USB, iPod
®mode: Searches
songs (files) by turning the knob
left/right
❈ When the desired song is displayed,
press the knob to play the song.
Moves focus in all selection menus and selects menus.
FOLDERFOLDER
MENU
SETUPCLOCK
SCAN
SCAN
61
SCAN

4159
Features of your vehicle
Audio head Unit (For NON BT)
14.
Changes to FM mode.
Each time the key is pressed, themode changed in order of FM1 ➟
FM2 ➟FM1.
15.
Changes to AM mode.
AM
FM

Features of your vehicle
160
4

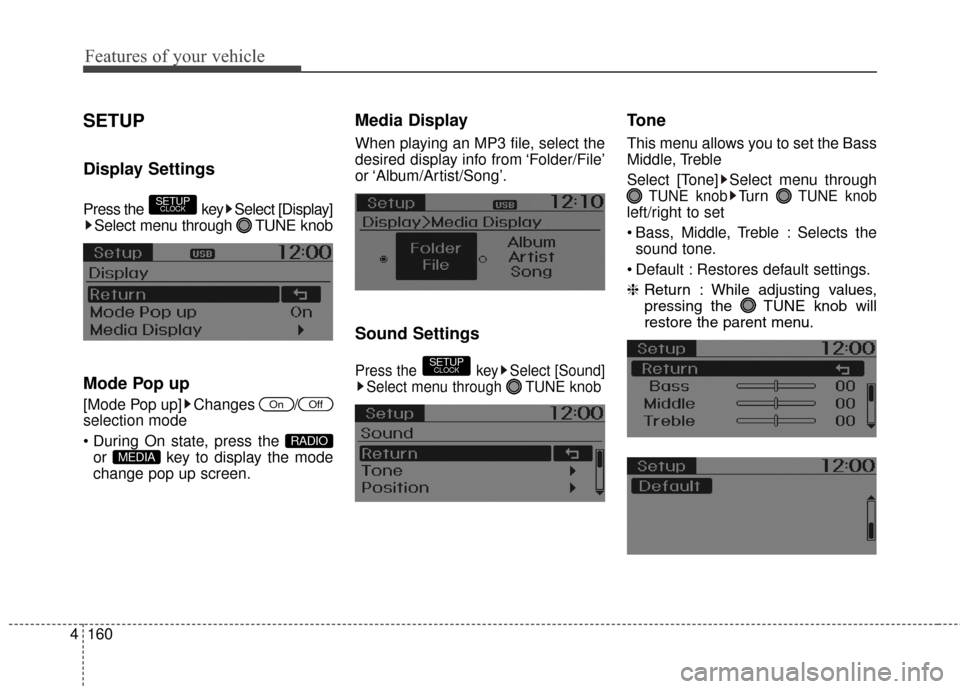

SETUP
Display Settings
Press the key Select [Display]
Select menu through TUNE knob
Mode Pop up
[Mode Pop up] Changes /
selection mode
or key to display the mode
change pop up screen.
Media Display
When playing an MP3 file, select the
desired display info from ‘Folder/File’
or ‘Album/Artist/Song’.
Sound Settings
Press the key Select [Sound] Select menu through TUNE knob
Tone
This menu allows you to set the Bass
Middle, Treble
Select [Tone] Select menu through
TUNE knobTu r n TUNE knob
left/right to set
Bass, Middle, Treble : Selects thesound tone.
Default : Restores default settings.
❈ Return : While adjusting values,
pressing the TUNE knob will
restore the parent menu.
SETUPCLOCK
MEDIA
RADIO
OffOn
SETUPCLOCK

4161
Features of your vehicle

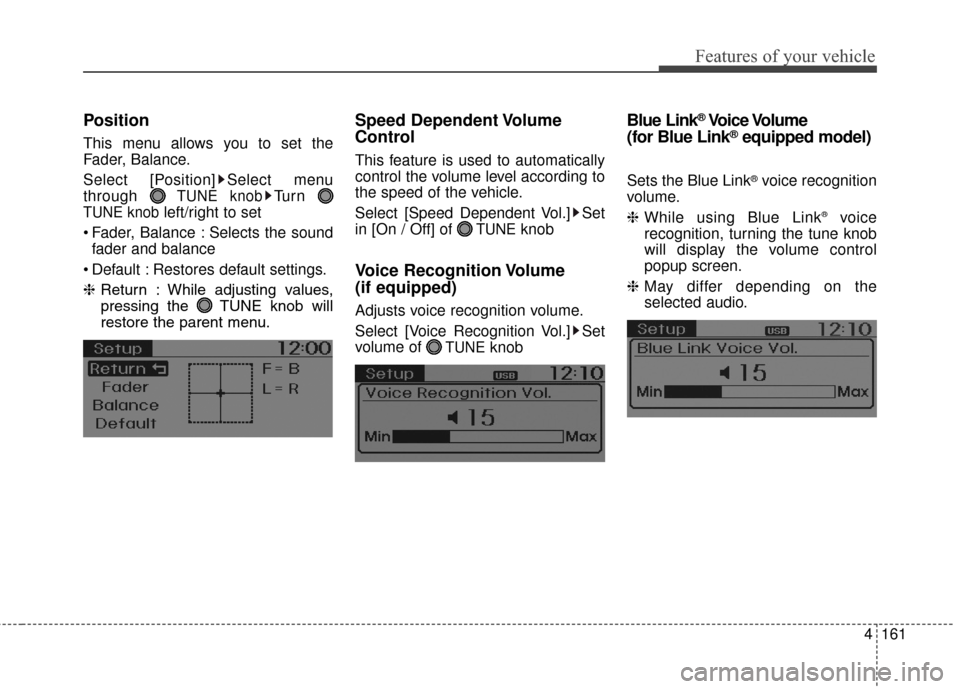

Position
This menu allows you to set the
Fader, Balance.
Select [Position] Select menu
through
TUNE knobTu r n
TUNE knobleft/right to set
Fader, Balance : Selects the sound fader and balance
Default : Restores default settings.
❈ Return : While adjusting values,
pressing the TUNE knob will
restore the parent menu.
Speed Dependent Volume
Control
This feature is used to automatically
control the volume level according to
the speed of the vehicle.
Select [Speed Dependent Vol.] Set
in [On / Off] of
TUNEknob
Voice Recognition Volume
(if equipped)
Adjusts voice recognition volume.
Select [Voice Recognition Vol.] Set
volume of
TUNEknob
Blue Link®Voice Volume
(for Blue Link®equipped model)
Sets the Blue Link®voice recognition
volume.
❈ While using Blue Link
®voice
recognition, turning the tune knob
will display the volume control
popup screen.
❈ May differ depending on the
selected audio.

Features of your vehicle
162
4

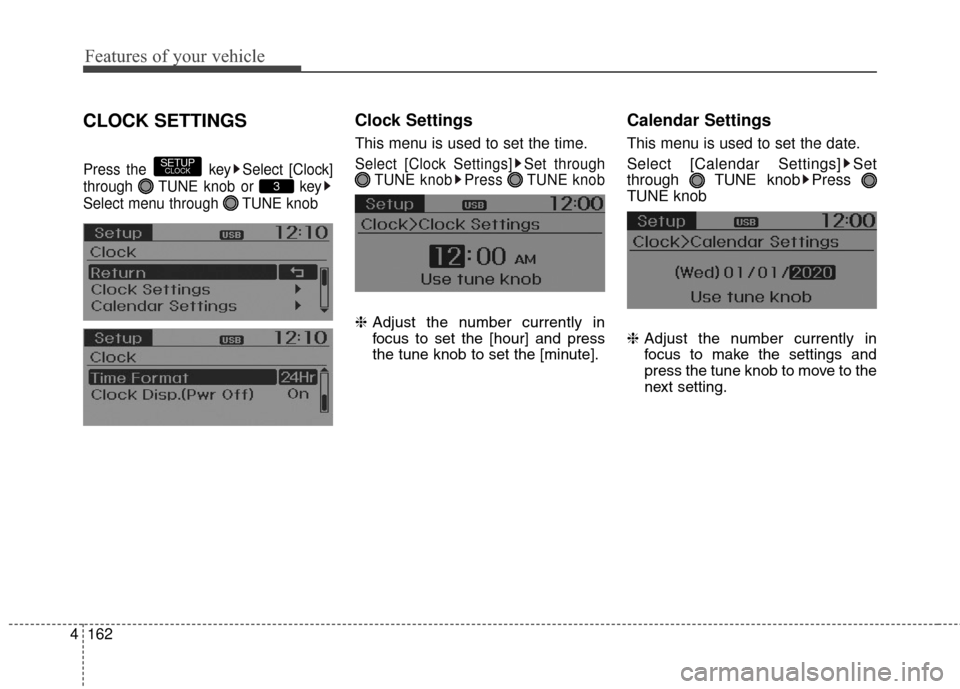

CLOCK SETTINGS
Press the key Select [Clock]
through TUNE knob or key
Select menu through TUNE knob
Clock Settings
This menu is used to set the time.
Select [Clock Settings] Set through
TUNE knob Press TUNE knob
❈Adjust the number currently in
focus to set the [hour] and press
the tune knob to set the [minute].
Calendar Settings
This menu is used to set the date.
Select [Calendar Settings] Set
through TUNE knob Press
TUNE knob
❈ Adjust the number currently in
focus to make the settings and
press the tune knob to move to the
next setting.
3
SETUPCLOCK

4163
Features of your vehicle

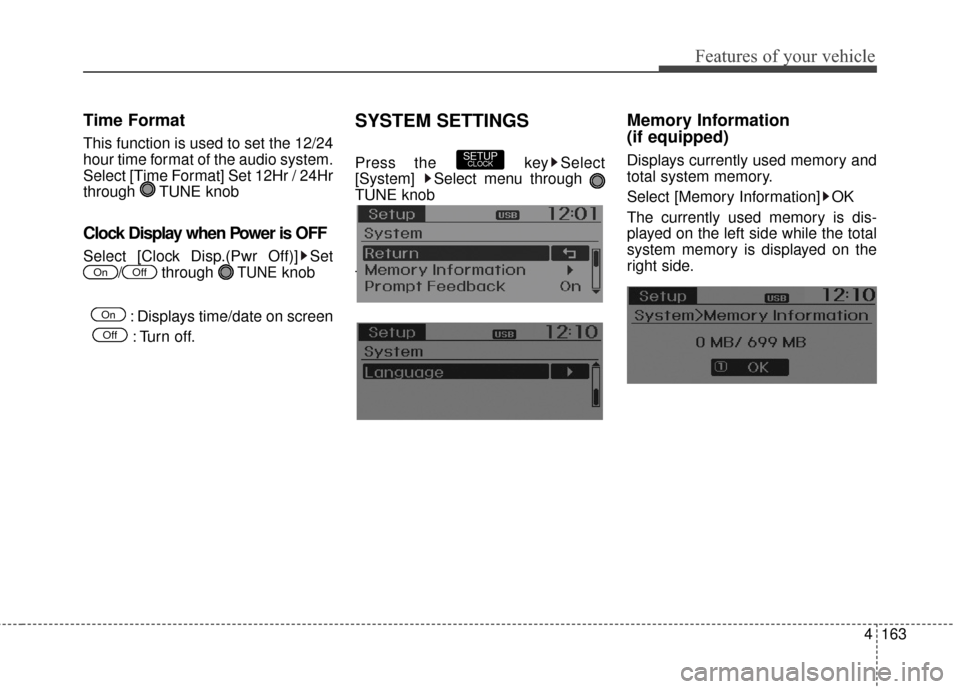

Time Format
This function is used to set the 12/24
hour time format of the audio system.
Select [Time Format] Set 12Hr / 24Hr
through TUNE knob
Clock Display when Power is OFF
Select [Clock Disp.(Pwr Off)] Set
/through TUNEknob
: Displays time/date on screen : Turn off.
SYSTEM SETTINGS
Press the key Select
[System] Select menu through
TUNE knob
TUNE knob
Memory Information
(if equipped)
Displays currently used memory and
total system memory.
Select [Memory Information] OK
The currently used memory is dis-
played on the left side while the total
system memory is displayed on the
right side.SETUPCLOCK
Off
On
OffOn
