3-88
Convenient features of your vehicle
Turn signals and lane changesignals
To signal a turn, push down on the
lever for a left turn or up for a right
turn in position (A).
If an indicator stays on and does not
flash or if it flashes abnormally, one
of the turn signal bulbs may be
burned out and will require replace-ment.
Onetouch turn signal function
To activate the One Touch Turn
Signal function, push the turn signal
lever up or down to position (B) andthen release it.
The lane change signals will blink 3,
5 or 7 times.
You can activate or deactivate the
One Touch Turn Signal function or
choose the number of blinks (3, 5, or7) from the User Settings mode
(Light) on the LCD display.
For more information, refer to the
"LCD Display" section in this
chapter.
Battery saver function
The purpose of this feature is to pre-
vent the battery from being dis-
charged. The system automatically
turns off the parking lamp when the
driver turns the vehicle off and opens
the driver-side door.
With this feature, the parking lamps
will turn off automatically if the driver
parks on the side of road at night.
If necessary, to keep the lamps on
when the vehicle is turned off, per-
form the following:
1) Open the driver-side door.
2) Turn the parking lamps OFF and ON again using the light switch on
the steering column.
OAD045188C

7

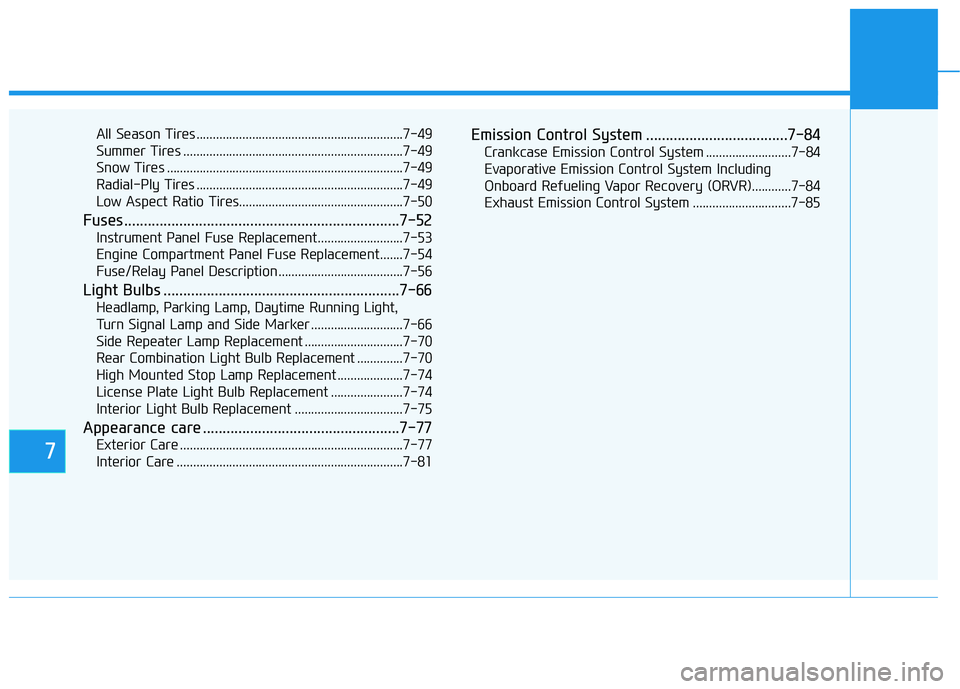

All Season Tires ...............................................................7-49
Summer Tires ...................................................................7-49
Snow Tires ........................................................................7-49
Radial-Ply Tires ...............................................................7-49
Low Aspect Ratio Tires..................................................7-50
Fuses ......................................................................7-52 Instrument Panel Fuse Replacement..........................7-53
Engine Compartment Panel Fuse Replacement.......7-54
Fuse/Relay Panel Description ......................................7-56
Light Bulbs ............................................................7-66 Headlamp, Parking Lamp, Daytime Running Light,
Turn Signal Lamp and Side Marker ............................7-66Side Repeater Lamp Replacement ..............................7-70
Rear Combination Light Bulb Replacement ..............7-70
High Mounted Stop Lamp Replacement ....................7-74
License Plate Light Bulb Replacement ......................7-74
Interior Light Bulb Replacement .................................7-75
Appearance care ..................................................7-77 Exterior Care ....................................................................7-77
Interior Care .....................................................................7-81 Emission Control System ....................................7-84
Crankcase Emission Control System ..........................7-84
Evaporative Emission Control System Including
Onboard Refueling Vapor Recovery (ORVR)............7-84 Exhaust Emission Control System ..............................7-85

7-66
MaintenanceL
L IIGG HH TT BB UU LLBB SS
Consult an authorized HYUNDAI
dealer to replace most vehicle light
bulbs. It is difficult to replace vehicle
light bulbs because other parts of the
vehicle must be removed before you
can get to the bulb. This is especially
true for removing the headlamp
assembly to get to the bulb(s).
Removing/installing the headlamp
assembly can result in damage to
the vehicle.
Information
After heavy driving, rain or washing,
headlamp and trunk lenses could
appear frosty. This condition is caused
by the temperature difference
between the lamp inside and the out-
side temperature. This is similar to the
condensation on your windows inside
your vehicle during the rain and does-
n ’t indicate a problem with your vehi-
cle. If the water leaks into the lamp
bulb circuitry, have your vehicle
checked by an authorized HYUNDAI
dealer.Headlamp, Parking Lamp,
Daytime Running Light, TurnSignal Lamp and Side Marker
Type A
Type B (N line)
i
Prior to replacing a lamp,
depress the foot brake, move
the shift lever into P (Park)
apply the parking brake, place
the ignition switch to the
LOCK/OFF position, and take
the key with you when leaving
the vehicle to avoid sudden
movement of the vehicle and
to prevent possible electric
shock.
Be aware the bulbs may be
hot and may burn your fin-
gers.
WARNING
OPD076042
OPDE078130

7-67
7
Maintenance
(1) Headlamp (Low) (2) Headlamp (High)
(3) Turn signal lamp
(4) Parking lamp & Daytime running light
(5) Side marker Always handle them carefully, and
avoid scratches and abrasions. If
the bulbs are lit, avoid contact with
liquids.
Never touch the glass with bare hands. Residual oil may cause the
bulb to overheat and burst when lit.
A bulb should be operated only when installed in a headlamp.
If a bulb becomes damaged or cracked, replace it immediatelyand carefully dispose of it.
Handle halogen bulbs with
care. Halogen bulbs contain
pressurized gas that will pro-
duce flying pieces of glassthat could cause injuries if
broken.
Wear eye protection when
changing a bulb. Allow the
bulb to cool down before han-dling it.
WARNING
OLMB073042L

7-68
Maintenance
Headlamp
1. Open the hood.
2. Disconnect the negative batterycable.
3. Remove the headlamp bulb cover by turning it counterclockwise.
4. Disconnect the headlamp bulb socket-connector.
5. Remove the bulb from the head- lamp assembly.
6. Install a new headlamp bulb and snap the headlamp bulb retaining
wire into position by aligning the
wire with the groove on the bulb. 7. Connect the headlamp bulb sock-
et-connector.
8. Install the headlamp bulb cover by turning it clockwise.
Information
The headlamp aiming should be
adjusted after an accident or after the
headlamp assembly is reinstalled at an
authorized HYUNDAI dealer.
Turn signal
1. Open the hood.
2. Disconnect the negative battery cable.
3. Remove the socket from the assembly by turning the socket
counterclockwise until the tabs on
the socket align with the slots on
the assembly.
4. Remove the bulb from the socket by pressing it in and rotating it
counterclockwise until the tabs on
the bulb align with the slots in the
socket. Pull the bulb out of the
socket.
i
OPDE076077OPDE076076
■High/Low beam
High
Low

7-70
Maintenance
(1) Headlamp (Low) (2) Headlamp (High)
(3) Parking lamp & Turn signal lamp& Daytime running light
(4) Side marker lamp
Headlamp, parking lamp, turn sig-
nal lamp, daytime running light
and side marker
Your vehicle is equipped with LED
lamps. LED lamps do not have
replaceable bulbs. If the LED lamp
does not operate, have the vehicle
checked by an authorized HYUNDAI
dealer.
Side Repeater Lamp Replacement
If the light bulb does not operate,
have the vehicle checked by an
authorized HYUNDAI dealer.
Rear combination lamp bulb replacement
Type A
Type B
OPD076044
OPD076045
OPD076046

7-72
Maintenance
6. Remove the socket from theassembly by turning the socket
counterclockwise until the tabs on
the socket align with the slots on
the assembly. 7. Remove the bulb from the socket
by pressing it in and rotating it
counterclockwise until the tabs on
the bulb align with the slots in the
socket. Pull the bulb out of the
socket.
8. Insert a new bulb by inserting it into the socket and rotating it until
it locks into place.
9. Install the socket into the assem- bly by aligning the tabs on the
socket with the slots in the assem-
bly. Push the socket into the
assembly and turn the socket
clockwise.
10. Reinstall the lamp assembly to the body of the vehicle.
Stop/Tail lamp (Type B, Type C)
If the LED lamp does not operate, we
recommend that you have the vehi-
cle checked by an authorized
HYUNDAI dealer.
OPD076049
Stop/tail lamp
Turn signal lamp
OPD076064
Turn signal lamp
■Type A
■Type B, Type C

BBUU LLBB WW AATTTTAA GG EE
8-3
88
Specifications
Light Bulb Bulb Type Wattage
Front Type A, B
Headlamp
Low H7LL 60
High HB3 65
Parking lamp LED LED
Turn signal lamp PY28W 28
Side marker W5W 5
Daytime running light LED LED
Type C, D Headlamp
Low LED LED
High LED LED
Position lamp LED LED
Turn signal lamp LED LED
Side marker LED LED
Daytime running light LED LED
Side repeater lamp LED LED

8-4
Specifications
Light BulbBulb Type Wattage
Rear Stop/Tail lamp
Type A P28/8WLL 28/8
Type B, C LED LED
Stop lamp Type B, C LED LED
Tail lamp Type A W5W 5
Type B, C LED LED
Turn signal lamp PY27W 27
Backup lamp W16W 16
High mounted stop light LED LED
Sider marker LED LED
Interior Map lamp
W10W 10
Room lamp Type A FESTOON 8
Type B LED LED
Vanity mirror lamp FESTOON 5
Luggage compartment lamp FESTOON 10License plate lamp W5W 5

I-3
Automatic transmission ..................................................5-19
Good driving practices ...............................................5-23
Manual shift mode......................................................5-21
Parking........................................................................5-23
Shift lock system ........................................................5-22
Shift-lock release ........................................................5-22
Transmission ranges ...................................................5-20
Automatic ventilation ...................................................3-122
Aux, USB and iPod ..........................................................4-2
Basic troubleshooting guide ...........................................6-24
Battery .............................................................................7-32 Battery recharging ......................................................7-33
Battery saver function .....................................................3-88
Before driving ...................................................................5-4
Blade type fuse ...............................................................7-54
Blind-spot Collision Warning (BCW) system ................5-57
BlueLink ®
center ............................................................3-23
Bluetooth ®
Wireless Technology hands-free ....................4-4
Bottle holder .................................................................3-125 Brake system ...................................................................5-35
Anti-lock brake system (ABS) ...................................5-47
Auto hold ....................................................................5-43
Disc brakes wear indicator .........................................5-36
Electronic parking brake (EPB) .................................5-38
Electronic stability control (ESC) ..............................5-49
Good braking practices ..............................................5-54
Hill-start assist control (HAC) ...................................5-53
Parking brake (hand type) ..........................................5-36
Power brakes ..............................................................5-35
Vehicle stability management (VSM) ........................5-52
Brake/clutch fluid ...........................................................7-24
Bulb replacement Daytime running light (DRL) ....................................7-66
Front side marker .......................................................7-66
Front turn signal lamp ................................................7-66
Headlamp....................................................................7-66
High mounted stop lamp ............................................7-74
Interior light bulb .......................................................7-75
License plate light bulb ..............................................7-74
Parking lamp ..............................................................7-66
Rear combination light bulb .......................................7-70
Side repeater lamp ......................................................7-70
Bulb wattage .....................................................................8-3
Button Start/Stop, see Engine Start/Stop button ...............5-9
I
Index
B
