HYUNDAI ELANTRA HYBRID 2022 Owners Manual

Maintenance
9-42

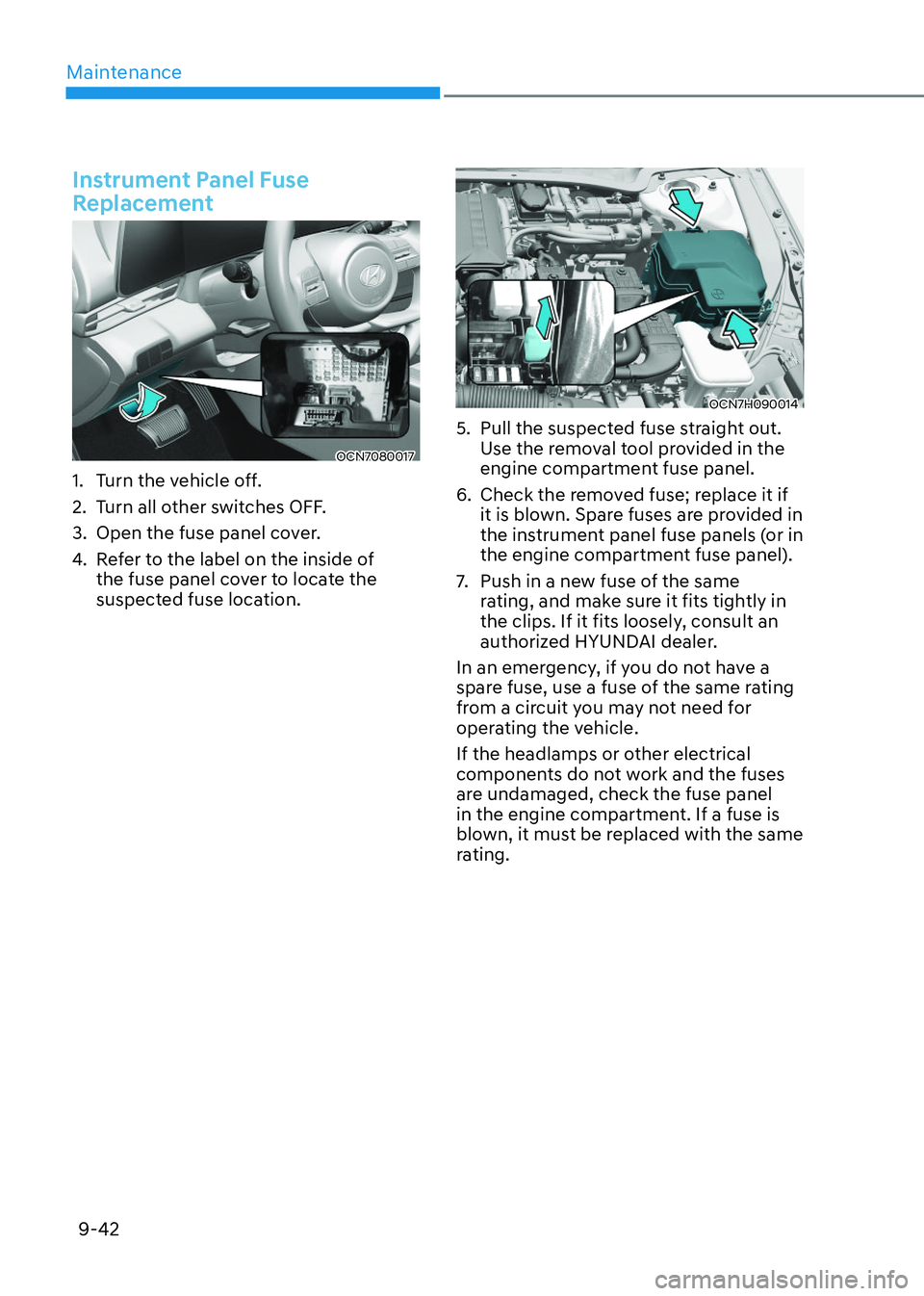

Instrument Panel Fuse
Replacement
OCN7080017OCN7080017
1. Turn the vehicle off.
2. Turn all other switches OFF.
3. Open the fuse panel cover.
4. Refer to the label on the inside of the fuse panel cover to locate the
suspected fuse location.
OCN7H090014OCN7H090014
5. Pull the suspected fuse straight out. Use the removal tool provided in the
engine compartment fuse panel.
6. Check the removed fuse; replace it if it is blown. Spare fuses are provided in
the instrument panel fuse panels (or in
the engine compartment fuse panel).
7. Push in a new fuse of the same rating, and make sure it fits tightly in
the clips. If it fits loosely, consult an
authorized HYUNDAI dealer.
In an emergency, if you do not have a
spare fuse, use a fuse of the same rating
from a circuit you may not need for
operating the vehicle.
If the headlamps or other electrical
components do not work and the fuses
are undamaged, check the fuse panel
in the engine compartment. If a fuse is
blown, it must be replaced with the same
rating.

09
9-43

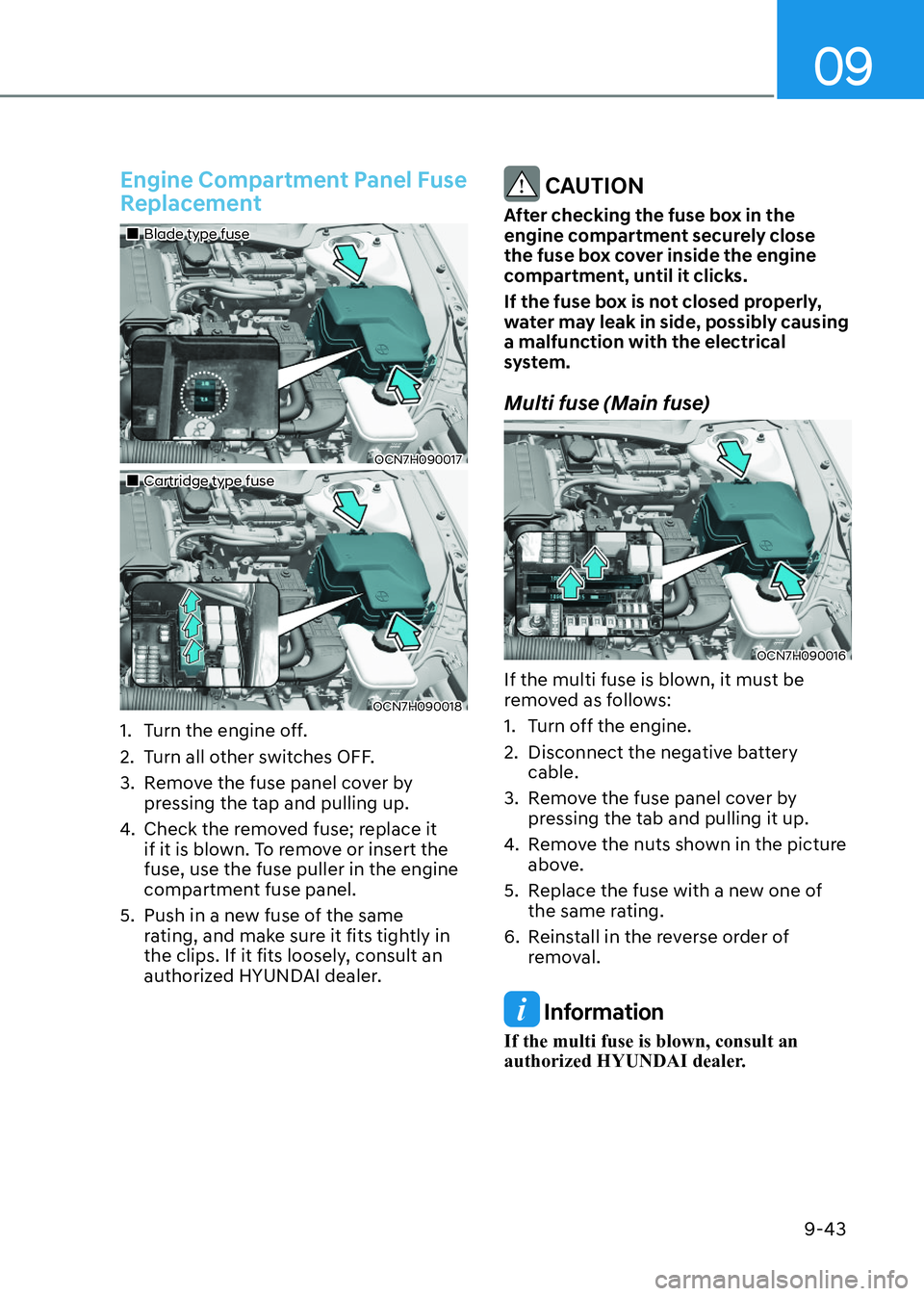

Engine Compartment Panel Fuse
Replacement
Blade type fuseBlade type fuse
OCN7H090017OCN7H090017
Cartridge type fuseCartridge type fuse
OCN7H090018OCN7H090018
1. Turn the engine off.
2. Turn all other switches OFF.
3. Remove the fuse panel cover by pressing the tap and pulling up.
4. Check the removed fuse; replace it if it is blown. To remove or insert the fuse, use the fuse puller in the engine
compartment fuse panel.
5. Push in a new fuse of the same rating, and make sure it fits tightly in
the clips. If it fits loosely, consult an
authorized HYUNDAI dealer.
CAUTION
After checking the fuse box in the
engine compartment securely close
the fuse box cover inside the engine
compartment, until it clicks.
If the fuse box is not closed properly,
water may leak in side, possibly causing a malfunction with the electrical
system.
Multi fuse (Main fuse)
OCN7H090016OCN7H090016
If the multi fuse is blown, it must be
removed as follows:
1. Turn off the engine.
2. Disconnect the negative battery cable.
3. Remove the fuse panel cover by pressing the tab and pulling it up.
4. Remove the nuts shown in the picture above.
5. Replace the fuse with a new one of the same rating.
6. Reinstall in the reverse order of removal.
Information
If the multi fuse is blown, consult an
authorized HYUNDAI dealer.

Maintenance
9-44
OCN7H090027NOCN7H090027N

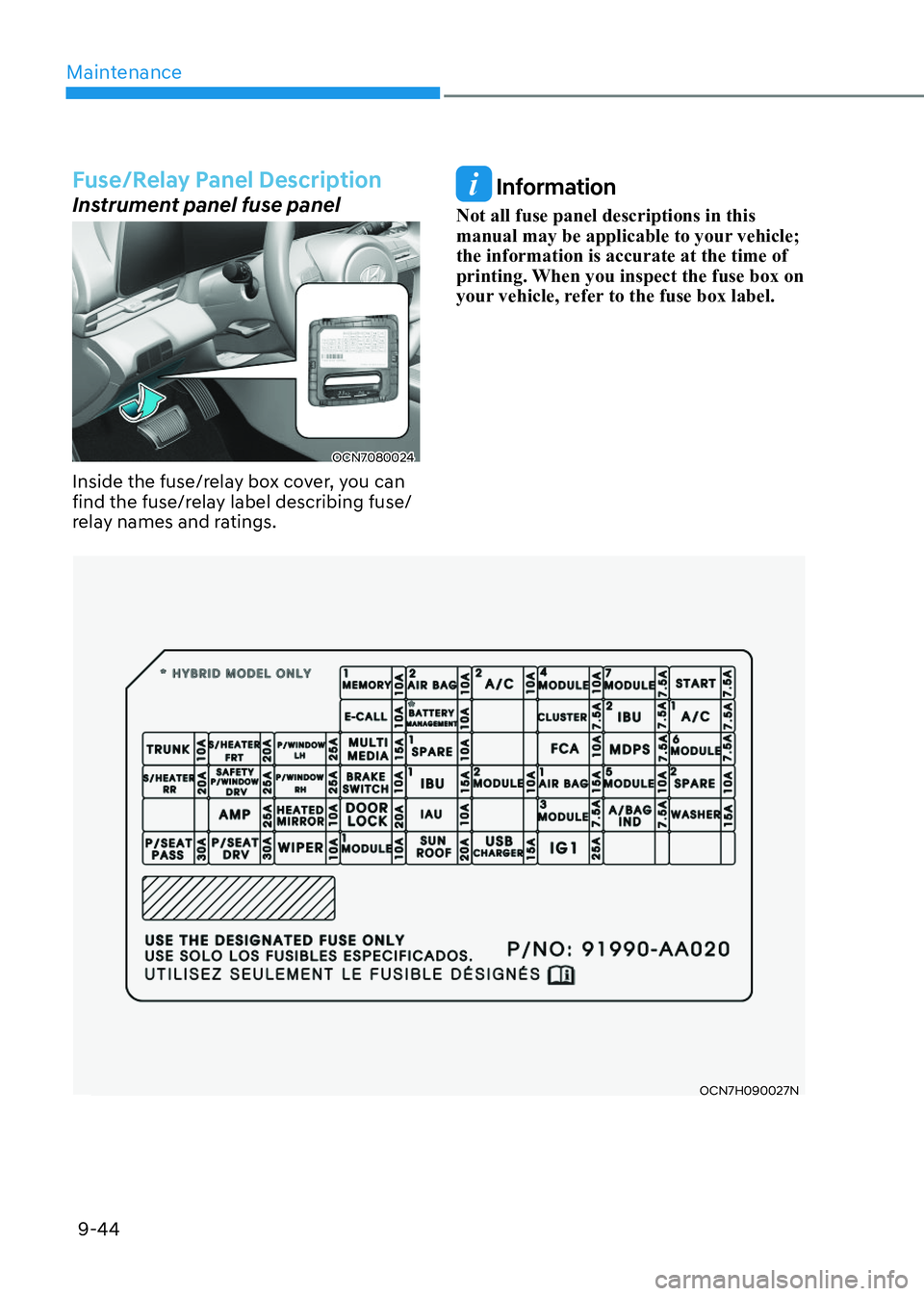

Fuse/Relay Panel Description
Instrument panel fuse panel
OCN7080024OCN7080024
Inside the fuse/relay box cover, you can
find the fuse/relay label describing fuse/
relay names and ratings.
Information
Not all fuse panel descriptions in this
manual may be applicable to your vehicle; the information is accurate at the time of
printing. When you inspect the fuse box on
your vehicle, refer to the fuse box label.

09
9-45

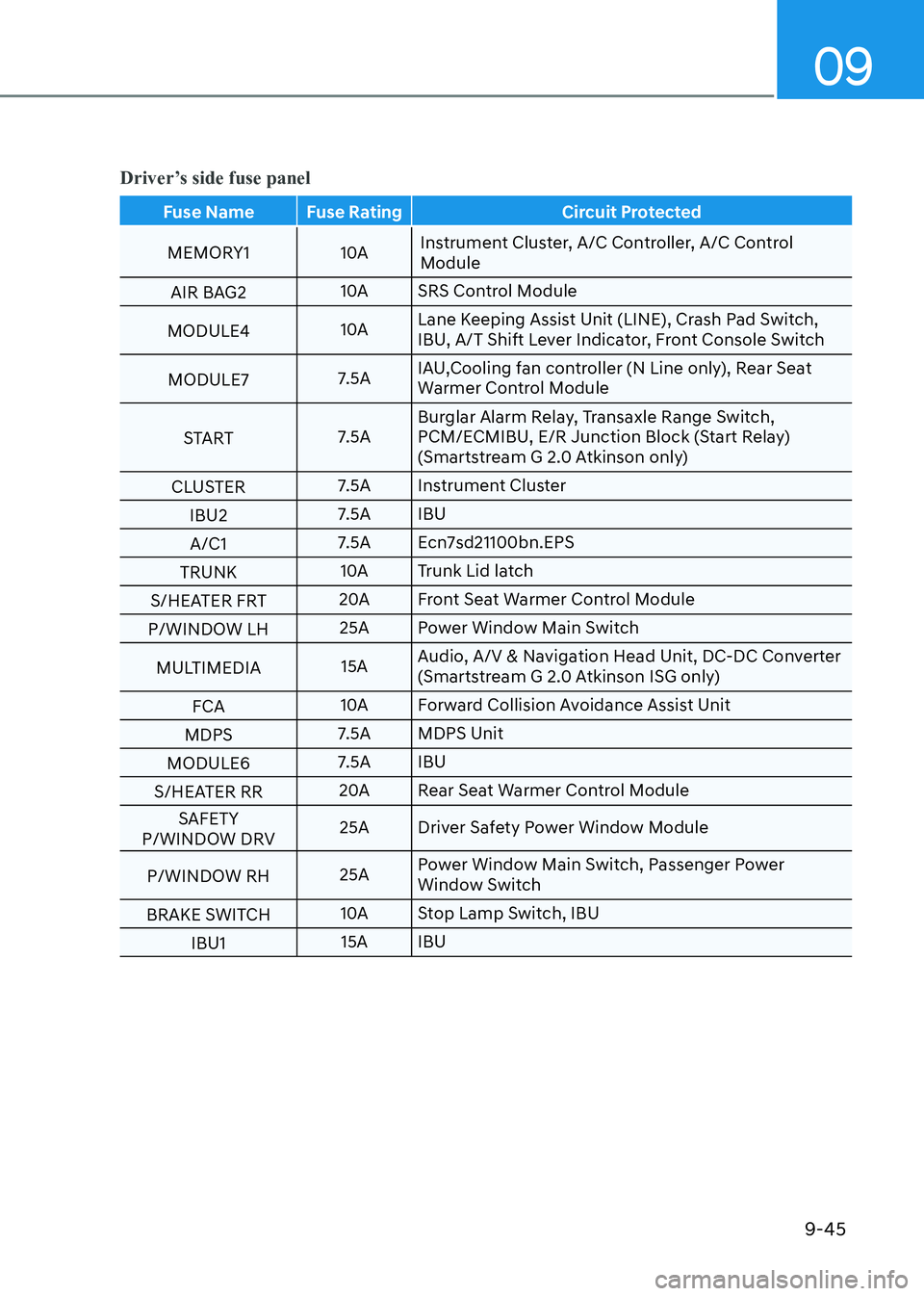

Driver’s side fuse panel
Fuse Name Fuse Rating Circuit Protected
MEMORY1 10AInstrument Cluster, A/C Controller, A/C Control
Module
AIR BAG2 10A SRS Control Module
MODULE4 10ALane Keeping Assist Unit (LINE), Crash Pad Switch,
IBU, A/T Shift Lever Indicator, Front Console Switch
MODULE7 7.5AIAU, Cooling fan controller (N Line only), Rear Seat
Warmer Control Module
START 7.5ABurglar Alarm Relay, Transaxle Range Switch,
PCM/ECM IBU, E/R Junction Block (Start Relay)
(Smartstream G 2.0 Atkinson only)
CLUSTER 7.5A Instrument Cluster
IBU2 7.5A IBU
A/C1 7.5A Ecn7sd21100bn.EPS
TRUNK 10A Trunk Lid latch
S/HEATER FRT 20A Front Seat Warmer Control Module
P/WINDOW LH 25A Power Window Main Switch
MULTIMEDIA 15AAudio, A/V & Navigation Head Unit, DC-DC Converter
(Smartstream G 2.0 Atkinson ISG only)
FCA 10A Forward Collision Avoidance Assist Unit
MDPS 7.5A MDPS Unit
MODULE6 7.5A IBU
S/HEATER RR 20A Rear Seat Warmer Control Module
SAFETY
P/WINDOW DRV 25A Driver Safety Power Window Module
P/WINDOW RH 25APower Window Main Switch, Passenger Power
Window Switch
BRAKE SWITCH 10A Stop Lamp Switch, IBU
IBU1 15A IBU

Maintenance
9-46
Driver’s side fuse panel
Fuse Name Fuse Rating Circuit Protected
MODULE2 10AE/R Junction Block (Power Outlet Relay), AMP, IBU,
IAU, Audio, Power Outside Mirror Switch, DC-DC
Converter (Smartstream G 2.0 Atkinson ISG only),
A/V & Navigation Head Unit
AIR BAG1 15ASRS Control Module, Passenger Occupant Detection Sensor
MODULE5 10AA/T Shift Lever Indicator, Front Wireless Charger,
A/C Controller, Electro Chromic Mirror, A/C Control
Module, Audio, A/V & Navigation Head Unit, AMP,
DC-DC Converter (Smartstream G 2.0 Atkinson ISG
only), Data Link Connector, Rear Seat Warmer Control
Module, Front Seat Warmer Control Module
AMP 25AAMP, DC-DC Converter (Smartstream G 2.0 Atkinson
ISG only)
HEATED MIRROR 10ADriver/Passenger Outside Mirror Heated, A/C Control
Module, A/C Controller, ECU (N Line only)
DOOR LOCK 20A Door Lock/Unlock Actuator
IAU 10A BLE Unit, IAU, Driver/Passenger Door NFC Module
MODULE3 7.5A Sport Mode Switch, Stop Lamp Switch, IAU
A/BAG IND 7.5A Instrument Cluster, Overhead Console Lamp
WASHER 15A Multifunction Switch
P/SEAT PASS 30A Passenger Power Seat
P/SEAT DRV 30A Passenger Power Seat
WIPER 10A PCM/ECM, IBU
MODULE1 10ADriver/Passenger Smart Key Outside Handle, Crash
Pad Switch, Sport Mode Switch, Data Link Connector,
Hazard Switch, Key Solenoid
SUNROOF 20A Sunroof Motor
USB CHARGER 15A Front USB Charger
IG1 25A PCB Block (Fuse - ABS3, ECU5, EOP2, TCU2)

09
9-47

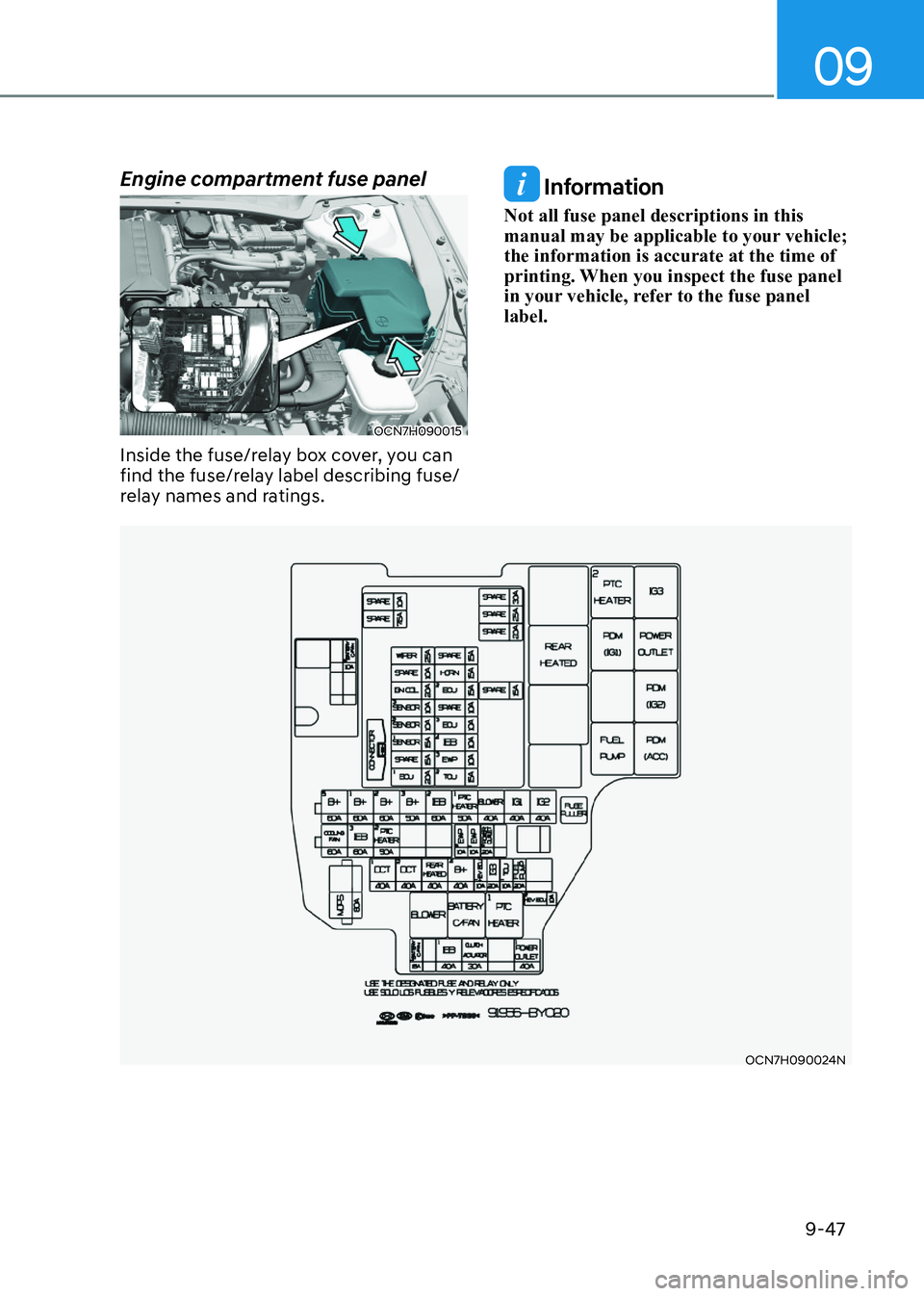

Engine compartment fuse panel
OCN7H090015OCN7H090015
Inside the fuse/relay box cover, you can
find the fuse/relay label describing fuse/
relay names and ratings.
OCN7H090024NOCN7H090024N
Information
Not all fuse panel descriptions in this
manual may be applicable to your vehicle; the information is accurate at the time of
printing. When you inspect the fuse panel
in your vehicle, refer to the fuse panel label.

Maintenance
9-48

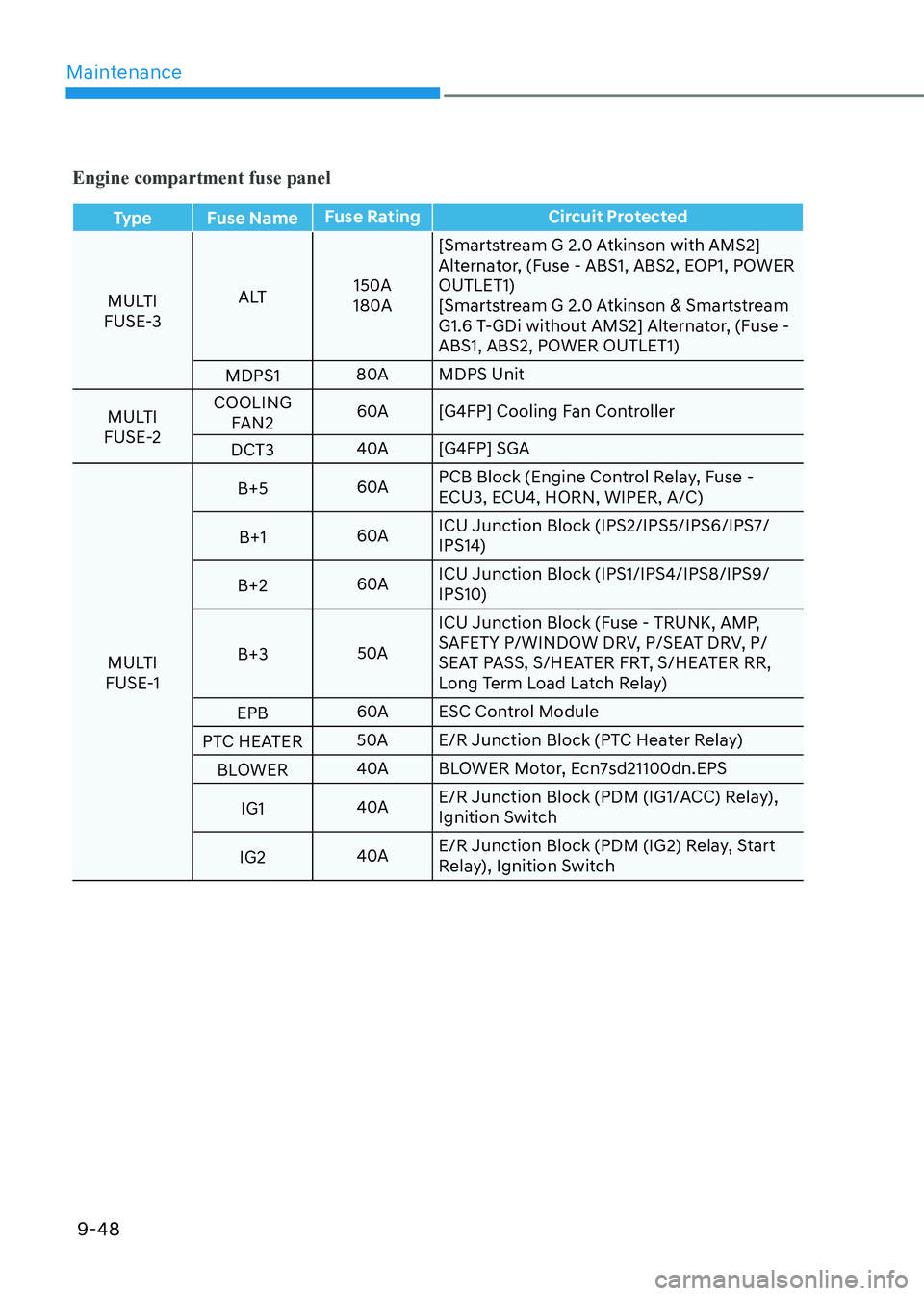

Engine compartment fuse panel
Type Fuse NameFuse Rating Circuit Protected
MULTI
FUSE-3 ALT
150A
180A [Smartstream G 2.0 Atkinson with AMS2]
Alternator, (Fuse - ABS1, ABS2, EOP1, POWER OUTLET1)
[Smartstream G 2.0 Atkinson & Smartstream
G1.6 T-GDi without AMS2] Alternator, (Fuse -
ABS1, ABS2, POWER OUTLET1)
MDPS1 80A MDPS Unit
MULTI
FUSE-2 COOLING
FAN2 60A [G4FP] Cooling Fan Controller
DCT3 40A [G4FP] SGA
MULTI
FUSE-1 B+5
60APCB Block (Engine Control Relay, Fuse -
ECU3, ECU4, HORN, WIPER, A/C)
B+1 60AICU Junction Block (IPS2/IPS5/IPS6/IPS7/
IPS14)
B+2 60AICU Junction Block (IPS1/IPS4/IPS8/IPS9/
IPS10)
B+3 50AICU Junction Block (Fuse - TRUNK, AMP,
SAFETY P/WINDOW DRV, P/SEAT DRV, P/
SEAT PASS, S/HEATER FRT, S/HEATER RR,
Long Term Load Latch Relay)
EPB 60A ESC Control Module
PTC HEATER 50A E/R Junction Block (PTC Heater Relay)
BLOWER 40A BLOWER Motor, Ecn7sd21100dn.EPS
IG1 40AE/R Junction Block (PDM (IG1/ACC) Relay),
Ignition Switch
IG2 40AE/R Junction Block (PDM (IG2) Relay, Start
Relay), Ignition Switch

09
9-49

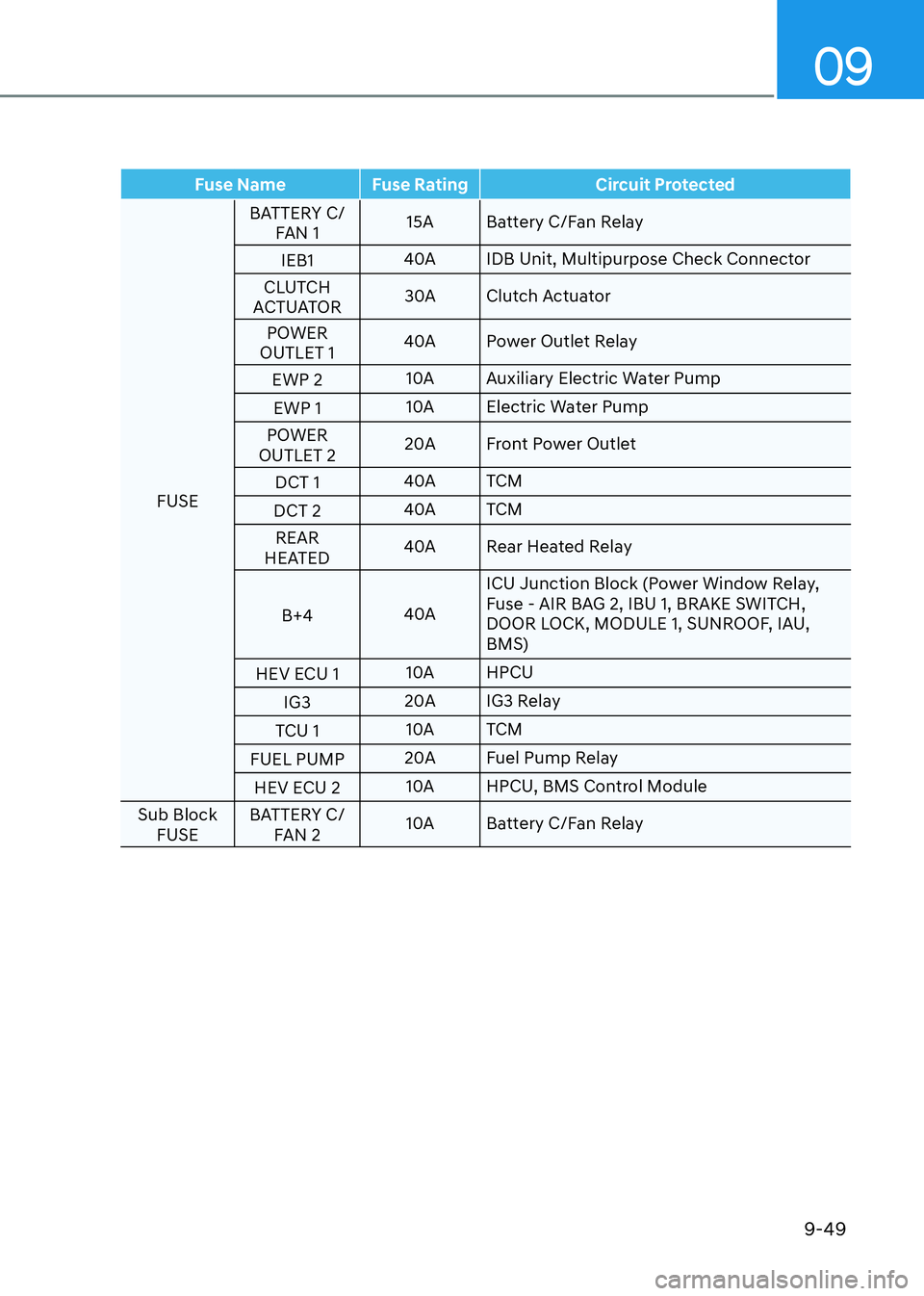

Fuse Name Fuse Rating Circuit Protected
FUSEBATTERY C/
FAN 1 15A Battery C/Fan Relay
IEB1 40A IDB Unit, Multipurpose Check Connector
CLUTCH
ACTUATOR 30A Clutch Actuator
POWER
OUTLET 1 40A Power Outlet Relay
EWP 2 10A Auxiliary Electric Water Pump
EWP 1 10A Electric Water Pump
POWER
OUTLET 2 20A Front Power Outlet
DCT 1 40A TCM
DCT 2 40A TCM
REAR
HEATED 40A Rear Heated Relay
B+4 40AICU Junction Block (Power Window Relay,
Fuse - AIR BAG 2, IBU 1, BRAKE SWITCH,
DOOR LOCK, MODULE 1, SUNROOF, IAU, BMS)
HEV ECU 1 10A HPCU
IG3 20A IG3 Relay
TCU 1 10A TCM
FUEL PUMP 20A Fuel Pump Relay
HEV ECU 2 10A HPCU, BMS Control Module
Sub Block FUSE BATTERY C/
FAN 2 10A Battery C/Fan Relay

Maintenance
9-50
Fuse NameFuse Rating Circuit Protected
WIPER
25A Wiper Relay
HORN 15A Horn Relay
IGN COIL 20A Ignition Coil #1~#4
ECU 2 15A ECM
SENSOR 3 10A E/R Junction Block (Fuel Pump Relay)
SENSOR 2 10ACamshaft Position Sensor #1/#2 (Intake/Exhaust), Mass
Air Flow Sensor, ELCM, Oil Control Valve #1/#2 (Intake/
Exhaust), Purge Control Solenoid Valve
ECU 3 10A ECM, HPCU, Clutch Actuator
SENSOR 1 15A Oxygen Sensor (Up/Down)
IEB 4 10A IDB Unit, Multipurpose Check Connector
EWP 3 10A Auxiliary Electric Water Pump
ECU 1 20A ECM
TCU 2 15A Transaxle Range Switch, TCM

09
9-51

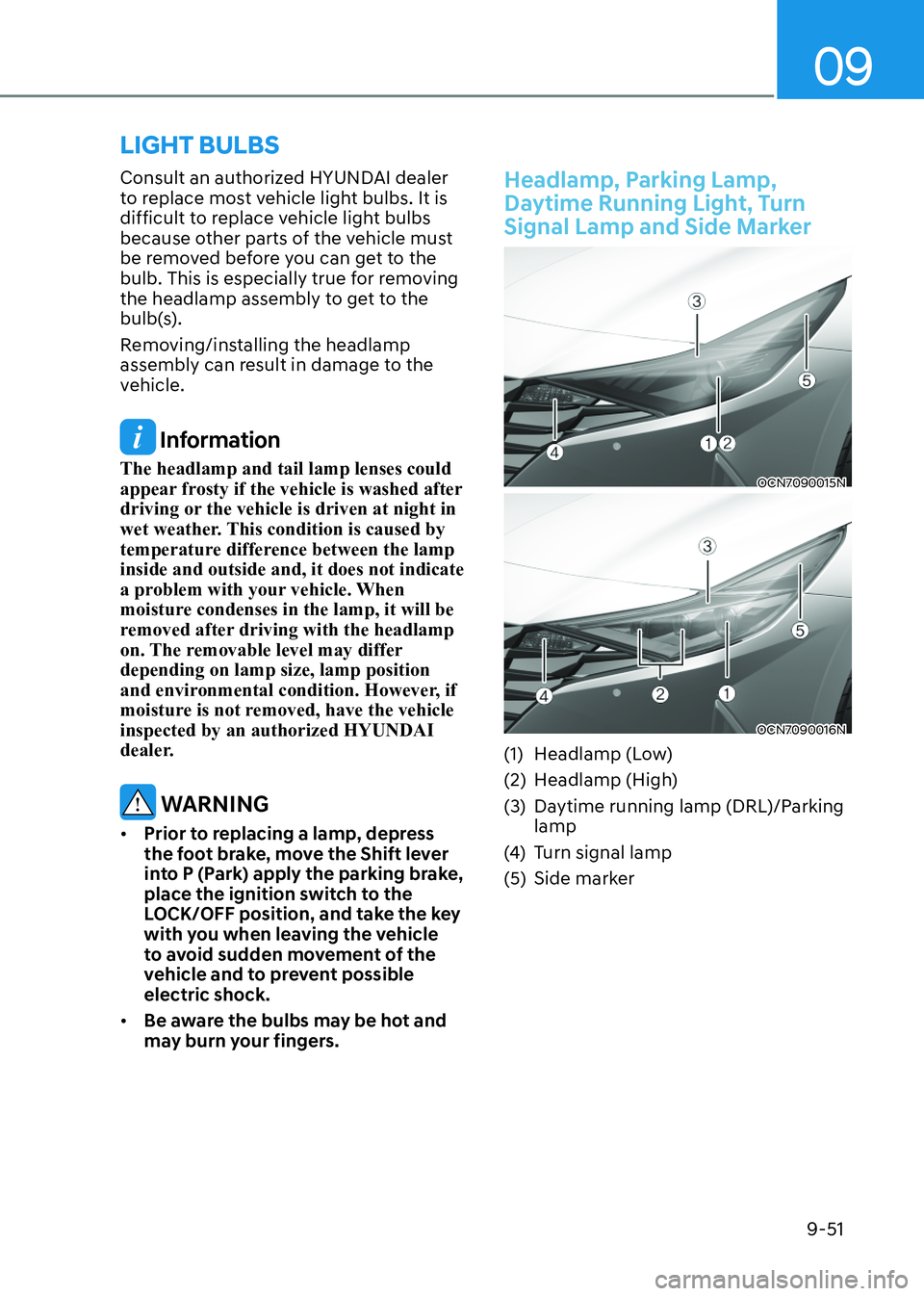

Consult an authorized HYUNDAI dealer
to replace most vehicle light bulbs. It is
difficult to replace vehicle light bulbs
because other parts of the vehicle must
be removed before you can get to the
bulb. This is especially true for removing
the headlamp assembly to get to the
bulb(s).
Removing/installing the headlamp
assembly can result in damage to the
vehicle.
Information
The headlamp and tail lamp lenses could
appear frosty if the vehicle is washed after
driving or the vehicle is driven at night in
wet weather. This condition is caused by
temperature difference between the lamp inside and outside and, it does not indicate
a problem with your vehicle. When
moisture condenses in the lamp, it will be
removed after driving with the headlamp
on. The removable level may differ depending on lamp size, lamp position
and environmental condition. However, if
moisture is not removed, have the vehicle inspected by an authorized HYUNDAI
dealer.
