HYUNDAI ELANTRA HYBRID 2022 Owners Manual

Maintenance

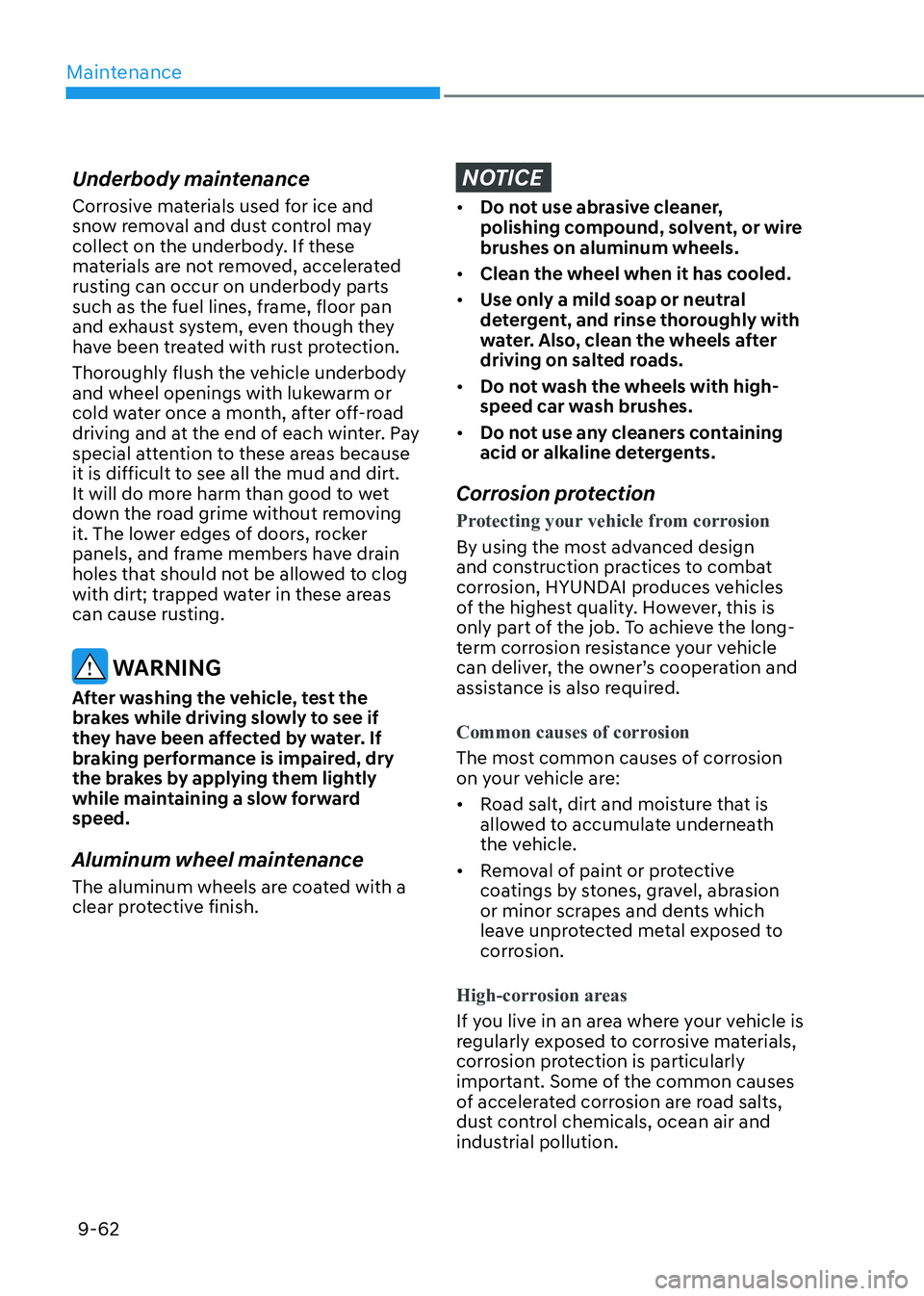

9-62
Underbody maintenance
Corrosive materials used for ice and
snow removal and dust control may
collect on the underbody. If these
materials are not removed, accelerated
rusting can occur on underbody parts
such as the fuel lines, frame, floor pan
and exhaust system, even though they
have been treated with rust protection.
Thoroughly flush the vehicle underbody
and wheel openings with lukewarm or
cold water once a month, after off-road
driving and at the end of each winter. Pay
special attention to these areas because
it is difficult to see all the mud and dirt.
It will do more harm than good to wet
down the road grime without removing
it. The lower edges of doors, rocker
panels, and frame members have drain
holes that should not be allowed to clog
with dirt; trapped water in these areas
can cause rusting.
WARNING
After washing the vehicle, test the
brakes while driving slowly to see if
they have been affected by water. If
braking performance is impaired, dry
the brakes by applying them lightly
while maintaining a slow forward speed.
Aluminum wheel maintenance
The aluminum wheels are coated with a
clear protective finish.
NOTICE

09

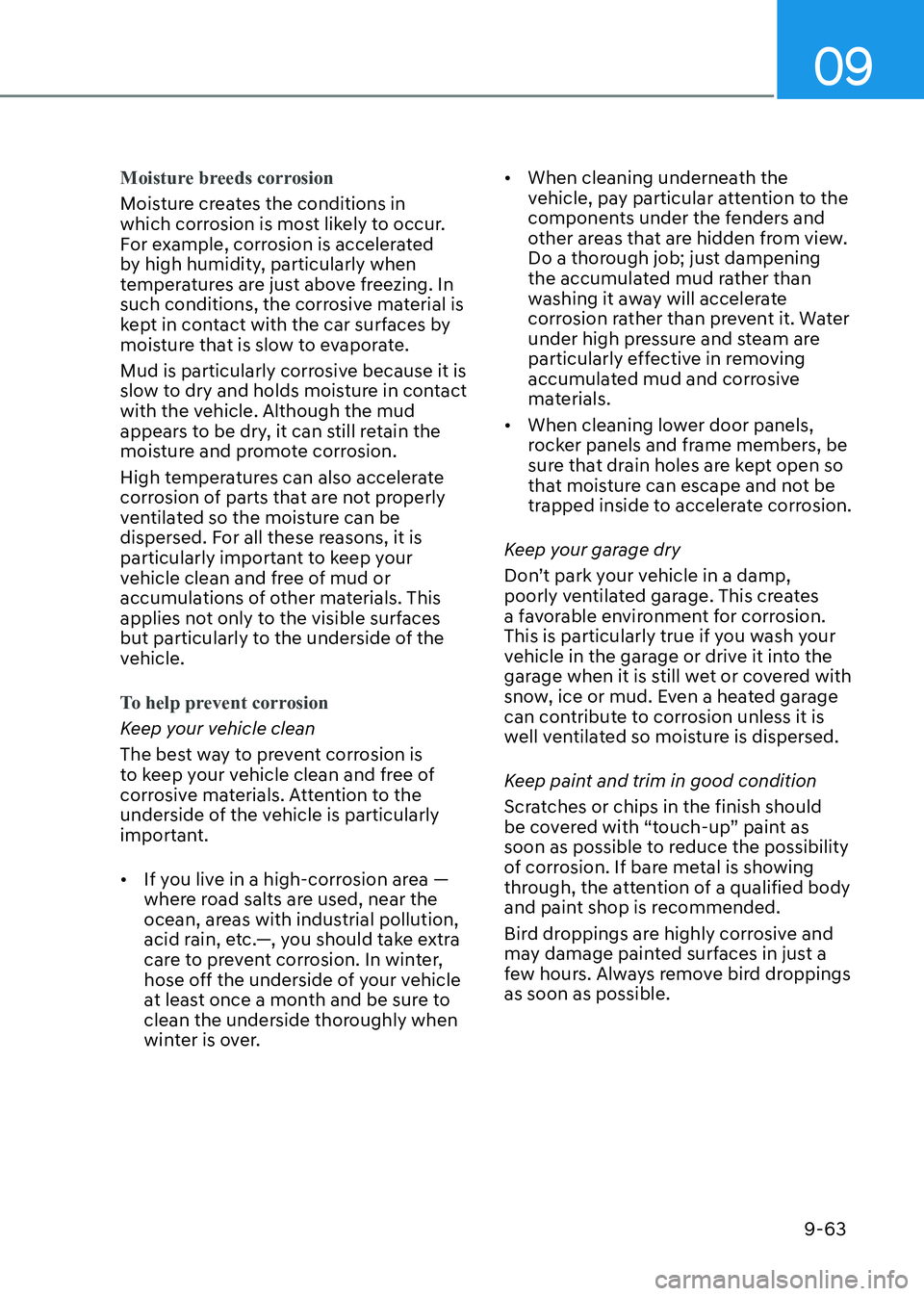

9-63
Moisture breeds corrosion
Moisture creates the conditions in
which corrosion is most likely to occur.
For example, corrosion is accelerated
by high humidity, particularly when
temperatures are just above freezing. In
such conditions, the corrosive material is
kept in contact with the car surfaces by
moisture that is slow to evaporate.
Mud is particularly corrosive because it is
slow to dry and holds moisture in contact
with the vehicle. Although the mud
appears to be dry, it can still retain the
moisture and promote corrosion.
High temperatures can also accelerate
corrosion of parts that are not properly
ventilated so the moisture can be
dispersed. For all these reasons, it is
particularly important to keep your
vehicle clean and free of mud or
accumulations of other materials. This
applies not only to the visible surfaces
but particularly to the underside of the
vehicle.
To help prevent corrosion
Keep your vehicle clean
The best way to prevent corrosion is
to keep your vehicle clean and free of
corrosive materials. Attention to the
underside of the vehicle is particularly important.

Maintenance

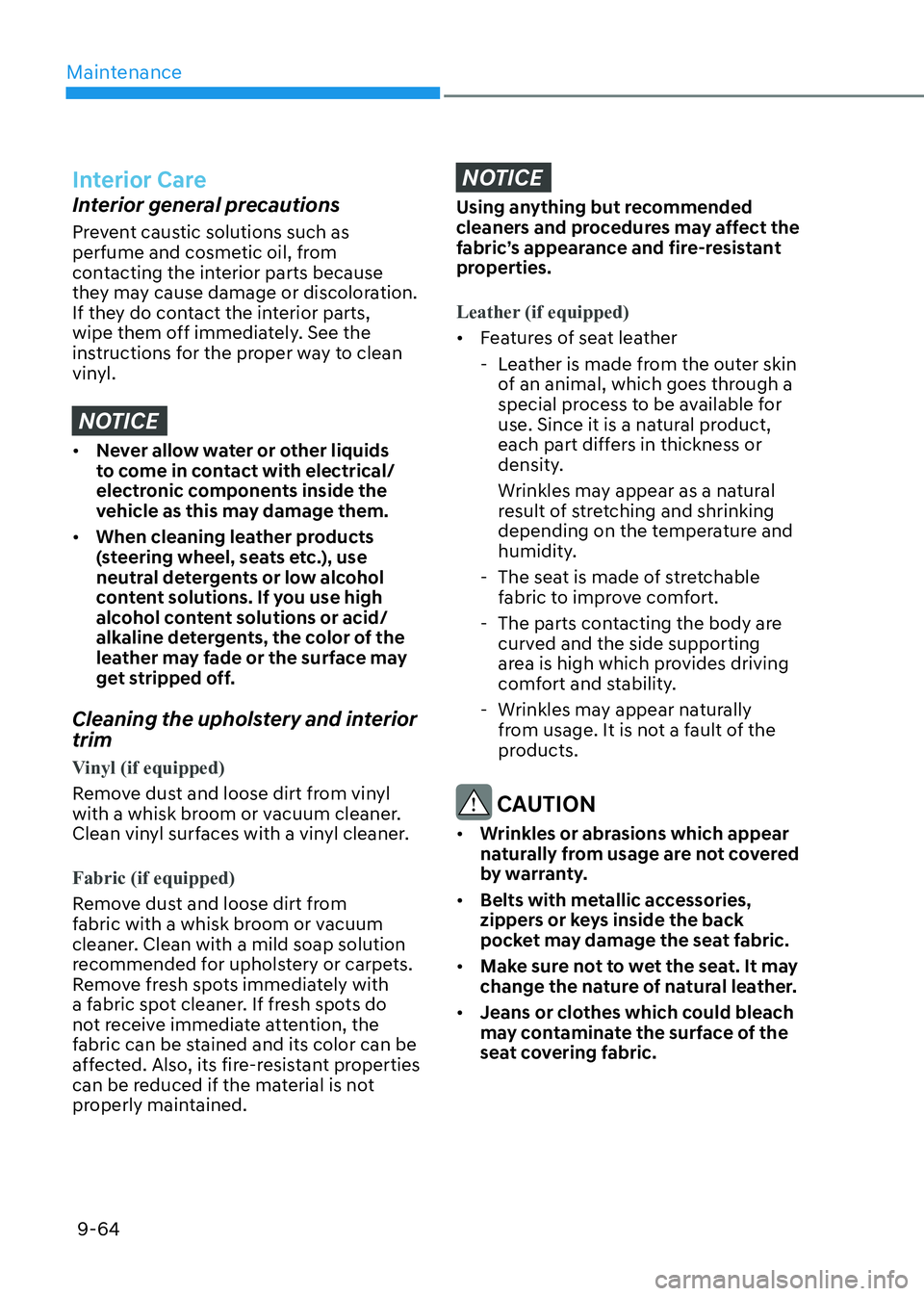

9-64
Interior Care
Interior general precautions
Prevent caustic solutions such as
perfume and cosmetic oil, from
contacting the interior parts because
they may cause damage or discoloration.
If they do contact the interior parts,
wipe them off immediately. See the
instructions for the proper way to clean
vinyl.
NOTICE

09
9-65

Maintenance

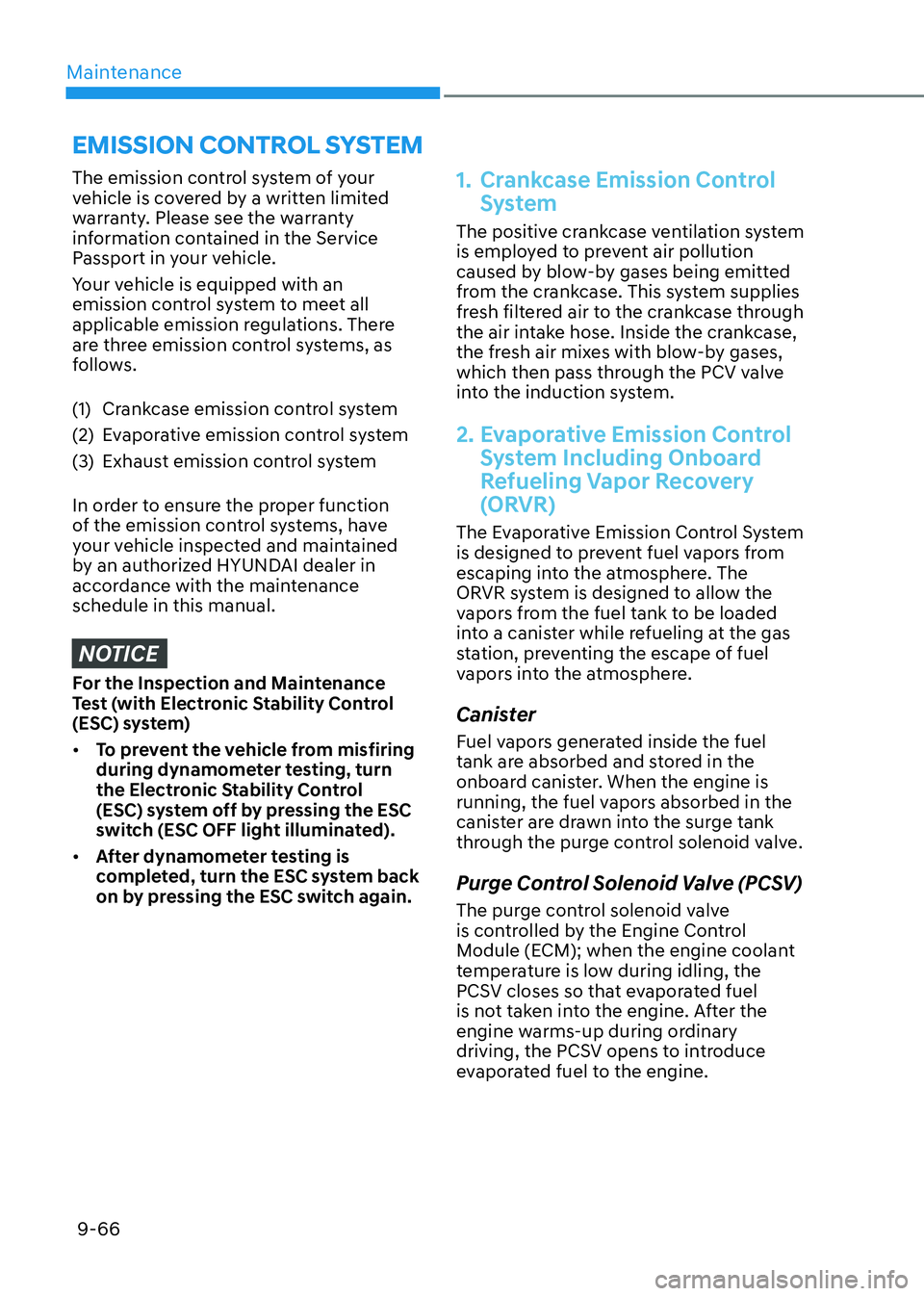

9-66
The emission control system of your
vehicle is covered by a written limited
warranty. Please see the warranty
information contained in the Service
Passport in your vehicle.
Your vehicle is equipped with an
emission control system to meet all
applicable emission regulations. There
are three emission control systems, as
follows.
(1) Crankcase emission control system
(2) Evaporative emission control system
(3) Exhaust emission control system
In order to ensure the proper function
of the emission control systems, have
your vehicle inspected and maintained
by an authorized HYUNDAI dealer in
accordance with the maintenance schedule in this manual.
NOTICE
For the Inspection and Maintenance
Test (with Electronic Stability Control
(ESC) system)

09

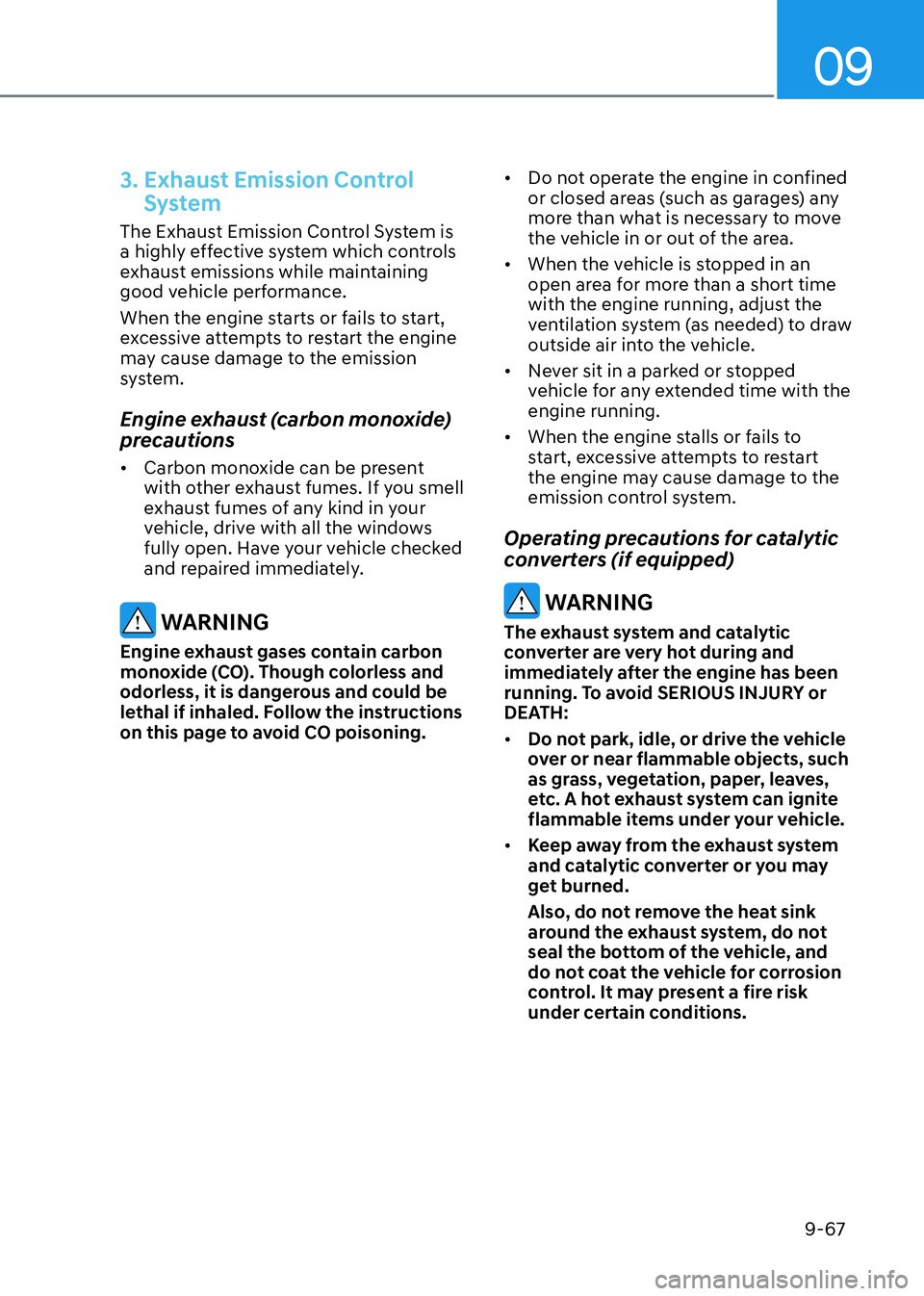

9-67
3. Exhaust Emission Control System
The Exhaust Emission Control System is
a highly effective system which controls
exhaust emissions while maintaining
good vehicle performance.
When the engine starts or fails to start,
excessive attempts to restart the engine
may cause damage to the emission
system.
Engine exhaust (carbon monoxide)
precautions

Maintenance

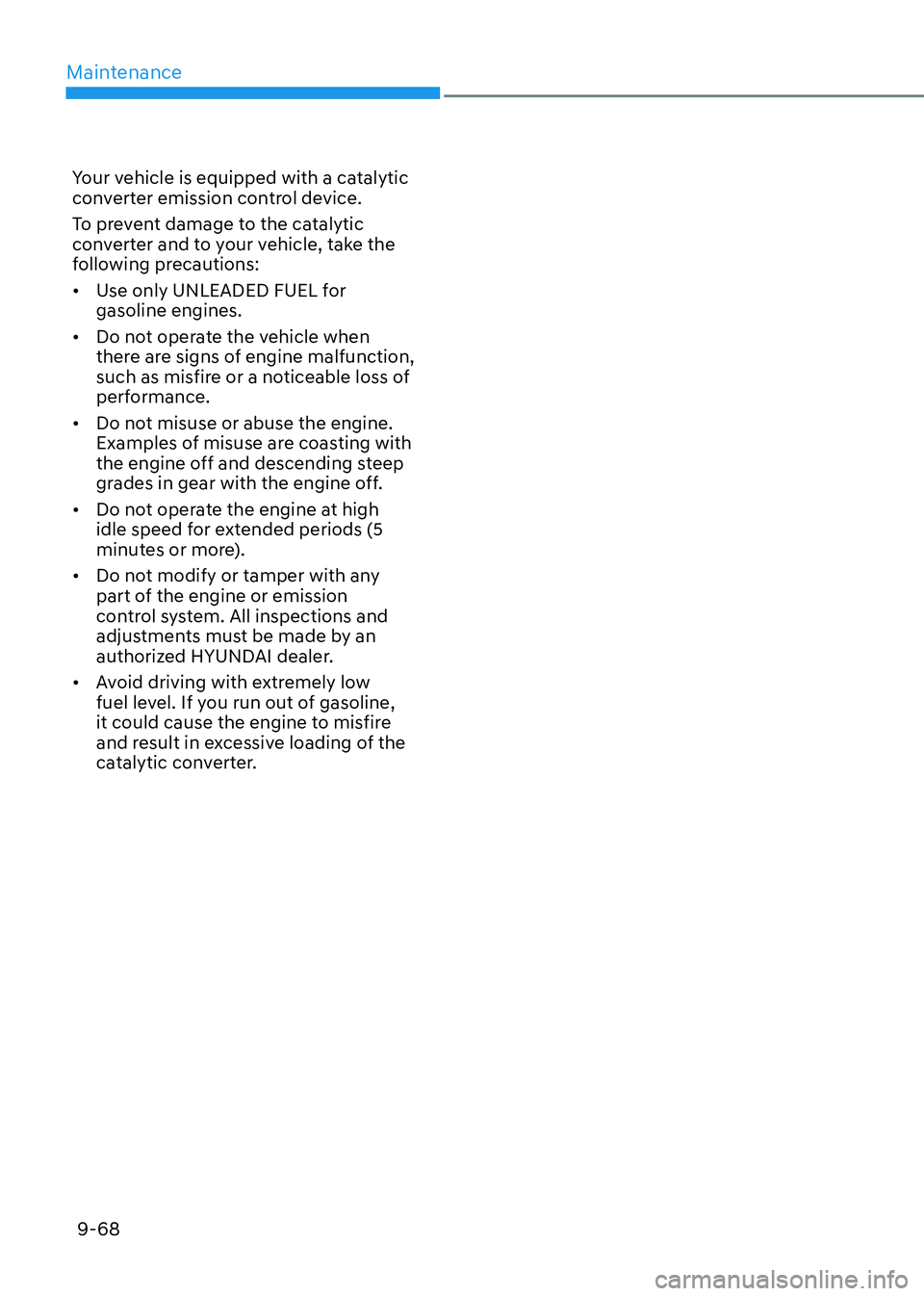

9-68
Your vehicle is equipped with a catalytic
converter emission control device.
To prevent damage to the catalytic
converter and to your vehicle, take the
following precautions:

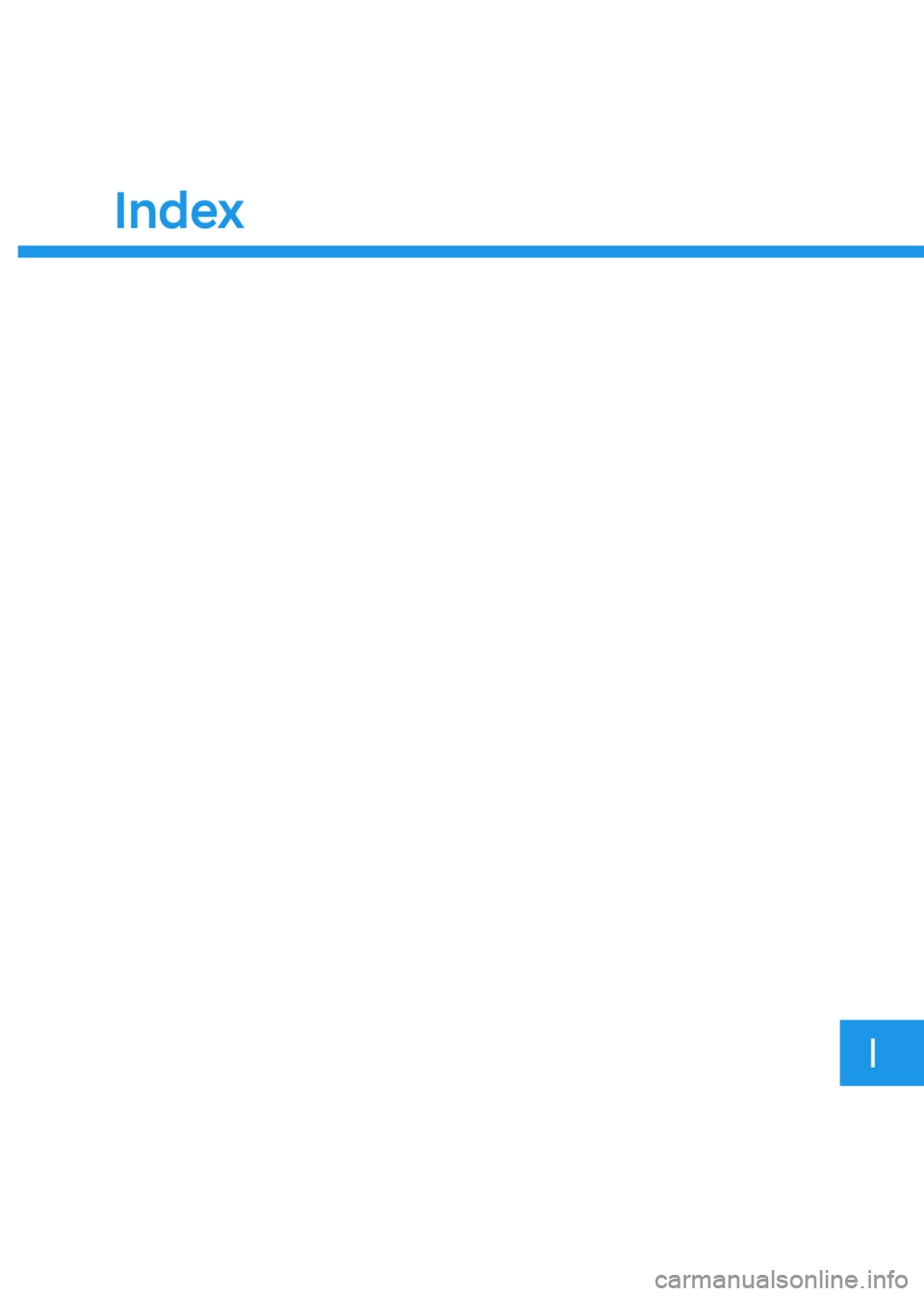

I
Index

Index
I-2
A
Accessing Your Vehicle ......................................................................................... 5-4
Immobilizer System ........................................................................................ 5-14
Remote Key ........................................................................................................ 5-4
Smart Key ........................................................................................................... 5-7
Air Bag - Advanced Supplemental Restraint System ..........................................3-36
Additional Safety Precautions .......................................................................... 3-56
Air Bag Warning Labels ................................................................................... 3-56
How Does the Air Bag System Operate? .........................................................3-41
Occupant Classification System (OCS) ...........................................................3-46
SRS Care .......................................................................................................... 3-55
What to Expect After an Air Bag Inflates ........................................................3-45
Where Are the Air Bags? .................................................................................. 3-38
Why Didn’t My Air Bag Go Off in a Collision? ..............................................3-51
Air Cleaner........................................................................................................... 9-22
Filter Replacement ........................................................................................... 9-22
Air Conditioning System ..................................................................................... 2-10
Anti-Lock Brake System (ABS) .......................................................................... 6-32
Electronic Stability Control (ESC) ................................................................... 6-33
Good Braking Practices .................................................................................... 6-37
Hill-Start Assist Control (HAC) ....................................................................... 6-36
Vehicle Stability Management (VSM) .............................................................6-35
Appearance Care .................................................................................................. 9-57
Interior Care ..................................................................................................... 9-62
Automatic Climate Control System ..................................................................... 5-68
Automatic Heating and Air Conditioning ........................................................5-69
Manual Heating and Air Conditioning .............................................................5-70
System Maintenance ........................................................................................ 5-78
System Operation ............................................................................................. 5-76
B
Basic Troubleshooting Guide .............................................................................. 8-27
Before Driving ....................................................................................................... 6-4
Before Entering the Vehicle ............................................................................... 6-4
Before Starting ................................................................................................... 6-4
Blind-Spot Collision-Avoidance Assist (BCA) ..................................................7-36
Detecting sensor ............................................................................................... 7-37
Limitations of Blind-Spot Collision-Avoidance Assist ....................................7-45

I
I-3
Brake System ....................................................................................................... 6-24
Auto Hold ......................................................................................................... 6-29
Disc Brakes Wear Indicator .............................................................................. 6-24
Electronic Parking Brake (EPB) ...................................................................... 6-25
Power Brakes .................................................................................................... 6-24
Brake/Clutch Fluid .............................................................................................. 9-20
Checking the Brake/Clutch Fluid Level ...........................................................9-20
Bulb Wattage .......................................................................................................... 2-8
CABIN Air Filter ................................................................................................. 9-24
Filter Inspection ................................................................................................ 9-24
Filter Replacement ........................................................................................... 9-24
C Child Restraint System (CRS) ............................................................................. 3-28
Children Always in the Rear ............................................................................ 3-28
Installing a Child Restraint System (CRS) .......................................................3-30
Selecting a Child Restraint System (CRS) .......................................................3-29
Climate Control Additional Features ................................................................... 5-85
Auto Comfort Control (for driver’s seat) ........................................................5-85
Automatic Ventilation ...................................................................................... 5-85
Sunroof Inside Air Recirculation ...................................................................... 5-85
Coasting Guide .................................................................................................... 6-23
Cruise Control (CC) ............................................................................................ 7-61
DDeclaration of Conormity .................................................................................. 7-124
Dimensions ............................................................................................................ 2-7
Door Locks .......................................................................................................... 5-16
Automatic Door Lock and Unlock Features ....................................................5-20
Child-Protector Rear Door Locks .................................................................... 5-20
Operating Door Locks from Inside the Vehicle................................................ 5-17
Operating Door Locks from Outside the Vehicle .............................................5-16
Drive Mode Integrated Control System ............................................................... 6-38
Drive Mode ...................................................................................................... 6-38
Smart shift on trip computer ............................................................................. 6-41
Driver Attention Warning (DAW) ...................................................................... 7-55
Detecting sensor ............................................................................................... 7-55
Limitations of Driver Attention Warning ........................................................7-58
Driver position memory system........................................................................... 5-23
