HYUNDAI ELANTRA HYBRID 2023 Owner's Guide

2-3
02
9. Door ........................................................ 5-31
10. Fuel filler door ....................................... 5-69
11. Rear combination lamp........................ 9-57
12. Trunk ...................................................... 5-6413. Defroster / Glass antenna ........ 5-100/5-110
14. High mounted stop lamp .....................9-60
15. Antenna ................................................ 5-110
16. Rear view camera ................................. 7-99
„Rear view
The actual shape may differ from the illustration.OCN7H010001K

2-4
Vehicle Information
The actual shape may differ from the illustration.OCN7H010003N
1. Inside door handle ................................ 5-33
2. Seat position memory system ............. 5-38
3. Side view mirror control switch ........... 5-53
4. Central door lock switch ...................... 5-33
5. Power window switches ...................... 5-54
6. Power window lock button ...................5-57
7. Steering wheel tilt/telescopic lever .... 5-42
8. Steering wheel ....................................... 5-41
9. Instrument panel illumination control
switch ...................................................... 4-5 10. 12V battery reset button ......................... 8-4
11. Lane Safety button ................................ 7-31
12. ESC OFF button .................................... 6-33
13. Fuel filler door release lever ................. 6-33
14. Trunk release lever ................................ 5-64
15. Hood release lever ................................ 5-62
16. Light control/ Turn signals .................... 5-72
17. Seat adjusting switch ............................. 3-3
18. Wiper/Washer switch ........................... 5-83
INTERIOR OVERVIEW

2-5
02
The actual shape may differ from the illustration.OCN7010004N
INSTRUMENT PANEL OVERVIEW
1. Instrument cluster .................................. 4-4
2. Driver’s front air bag ............................. 3-38
3. Engine start button..................................6-7
4. Key ignition switch ................................. 6-4
5. Infotainment system ...........................5-109
6. Hazard warning flasher switch .............. 8-2
7. Climate control system ........................ 5-85 8. Passenger’s front air bag ..................... 3-38
9. Glove box ............................................. 5-102
10. Transmission shift lever ........................... 6-12
11. Drive mode button ............................... 6-38
12. Parking/View button ........................... 7-100
13. Electronic parking brake switch .......... 6-24
14. AUTO HOLD button .............................. 6-28

2-6
Vehicle Information
„Gasoline 1.6 GDi HEV
The actual engine room in the vehicle may differ from the illustration.OCN7H091001L
ENGINE COMPARTMENT
1. Engine coolant reservoir ....................... 9-19
2. Engine coolant reservoir cap ............... 9-20
3. Inverter coolant reservoir...................... 9-19
4. Brake fluid reservoir ............................. 9-24
5. Air cleaner ............................................. 9-25
6. Engine oil dipstick ................................. 9-16
7. Engine oil filler cap ................................ 9-16
8. Windshield washer fluid reservoir ....... 9-25
9. Fuse box ................................................ 9-44

02
2-7
DIMENSIONS
Itemsin. (mm)
Overall length 183.
1 (4,650)
Overall width 72 (1,825)
Overall height 55.9 (1,420)
Front tread 205/55 R16
62.4 (1,585)
225/45 R17 62.2 (1,579)
Rear tread 205/55 R16
62.8 (1,596)
225/45 R17 62.6 (1,590)
Wheelbase 107 (2,720)
ENGINE SPECIFICATION
ItemGasoline 1.6 GDi HEV
Displacement cu. in. (
cc) 96.42 (1,580)
Bore x Stroke in. (mm)2.83 X 3.82 (72.0 X 97.0)
Firing order 1-3-4-2
No. of cylinders 4, in-line

Vehicle Information2-8

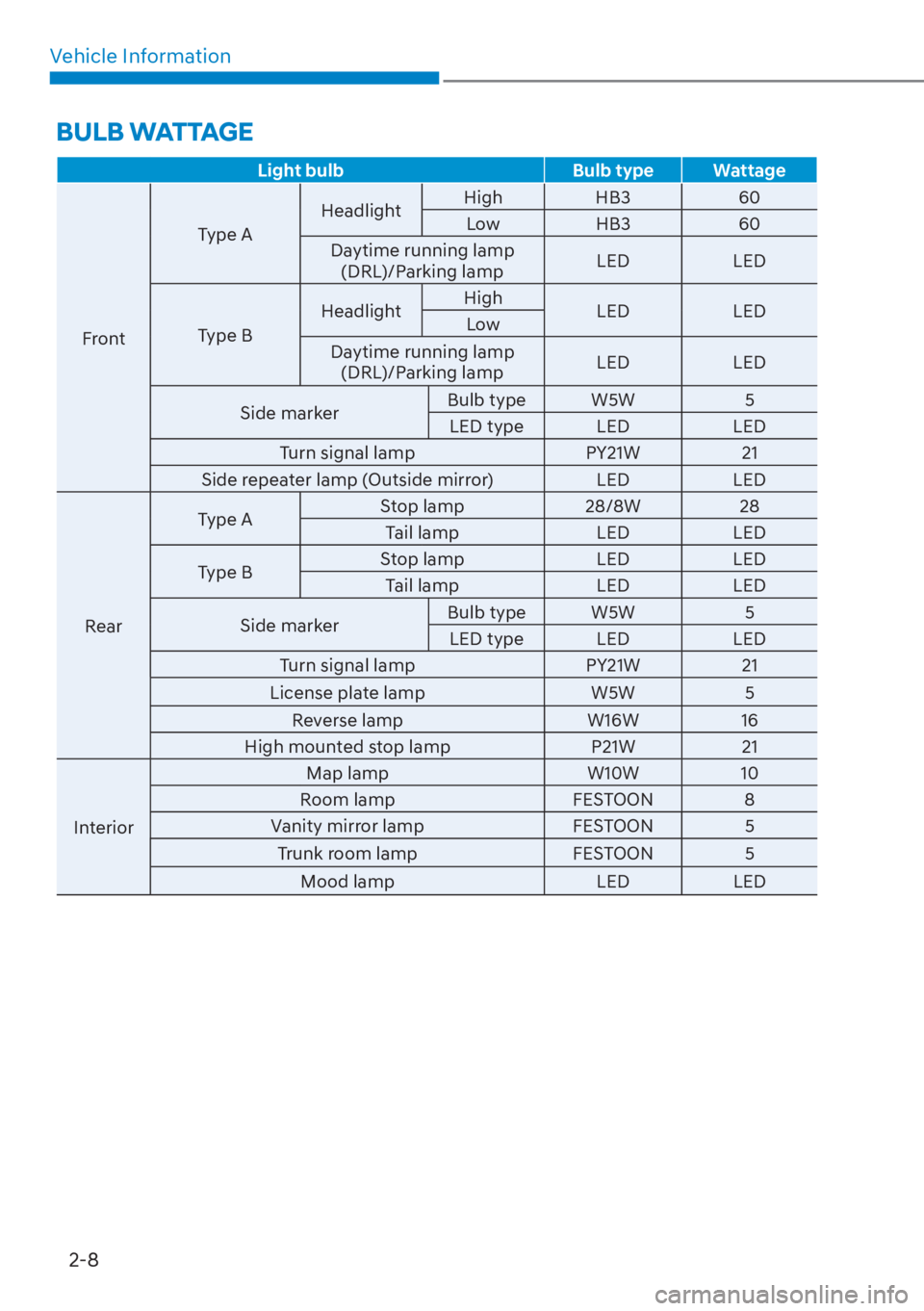

BULB WATTAGE
Light bulb Bulb type Wattage
Front T
ype A
Headlight
High HB3 60
Low HB3 60
Daytime running lamp (DRL)/Parking lamp LED LED
Type B Headlight
High
LED LED
Low
Daytime running lamp (DRL)/Parking lamp LED LED
Side marker Bulb type W5W 5
LED type LED LED
Turn signal lamp PY21W 21
Side repeater lamp (Outside mirror) LED LED
Rear Type A
Stop lamp 28/8W 28
Tail lamp LED LED
Type B Stop lamp
LEDLED
Tail lamp LEDLED
Side marker Bulb type W5W
5
LED type LED LED
Turn signal lamp PY21W21
License plate lamp W5W5
Reverse lamp W16W16
High mounted stop lamp P21W21
Interior Map lamp
W10W10
Room lamp FESTOON 8
Vanity mirror lamp FESTOON 5
Trunk room lamp FESTOON 5
Mood lamp LEDLED

02
2-9

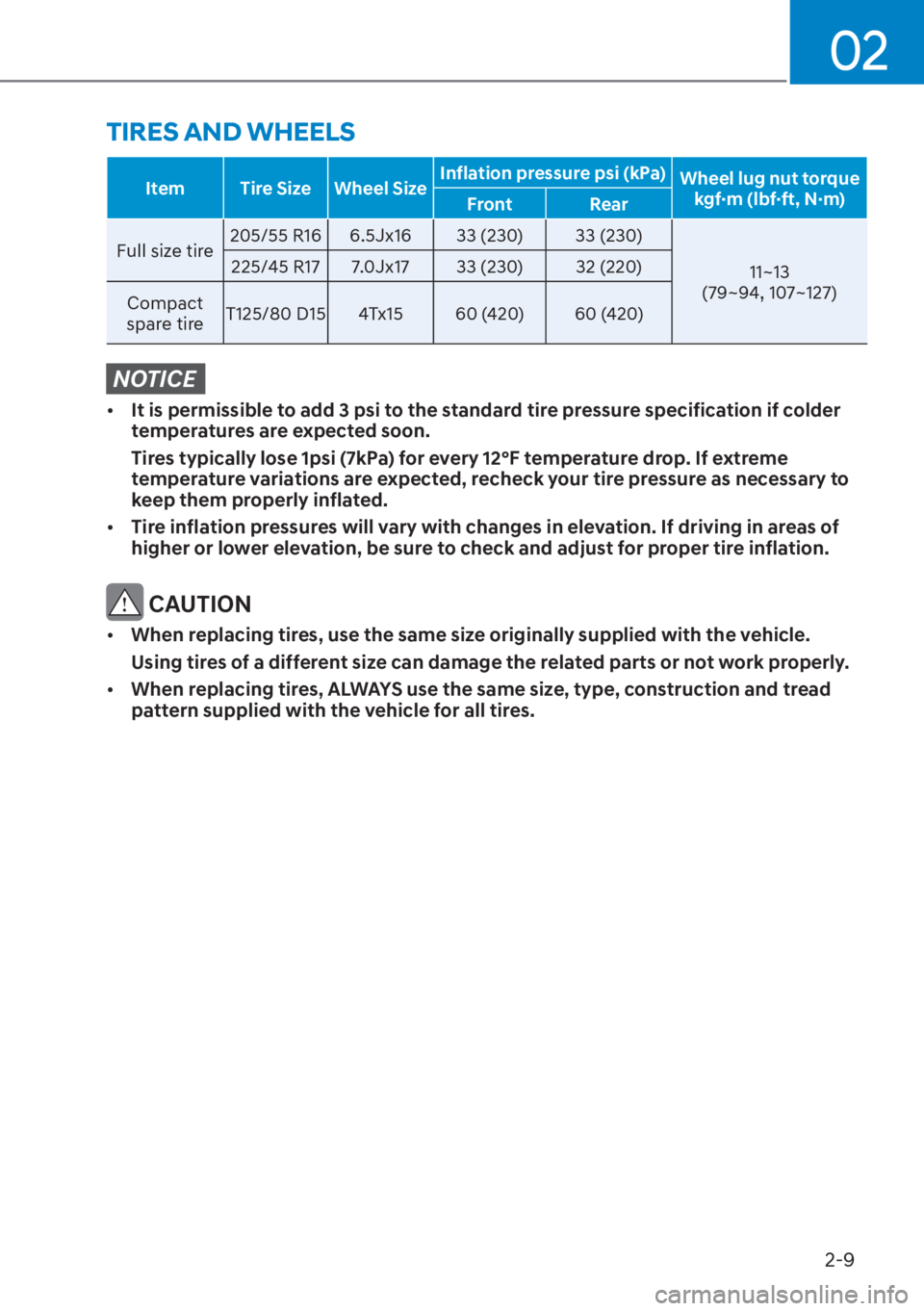

TIRES AND WHEELS
Item Tire Size Wheel SizeInflation pressure psi (kPa)
Wheel lug nut torque
kgf·m (lbf·ft, N·m)
Front Rear
Full size tire 205/55 R16
6.5Jx16 33 (230) 33 (230)
11~13
(79~94, 107~127)
225/45 R17
7.0Jx17 33 (230) 32 (220)
Compact
spare tire T125/80 D15 4Tx15 60 (420) 60 (420)
NOTICE

[
It is permissible to add 3 psi to the standard tire pressure specification if colder
temperatures are expected soon.
Tires typically lose 1psi (7kPa) for every 12°F temperature drop. If extreme
temperature variations are expected, recheck your tire pressure as necessary to
keep them properly inflated.

[ Tire inflation pressures will vary with changes in elevation. If driving in areas of
higher or lower elevation, be sure to check and adjust for proper tire inflation.
CAUTION

[When replacing tires, use the same size originally supplied with the vehicle.
Using tires of a different size can damage the related parts or not work properly.

[ When replacing tires, ALWAYS use the same size, type, construction and tread
pattern supplied with the vehicle for all tires.

Vehicle Information2-10

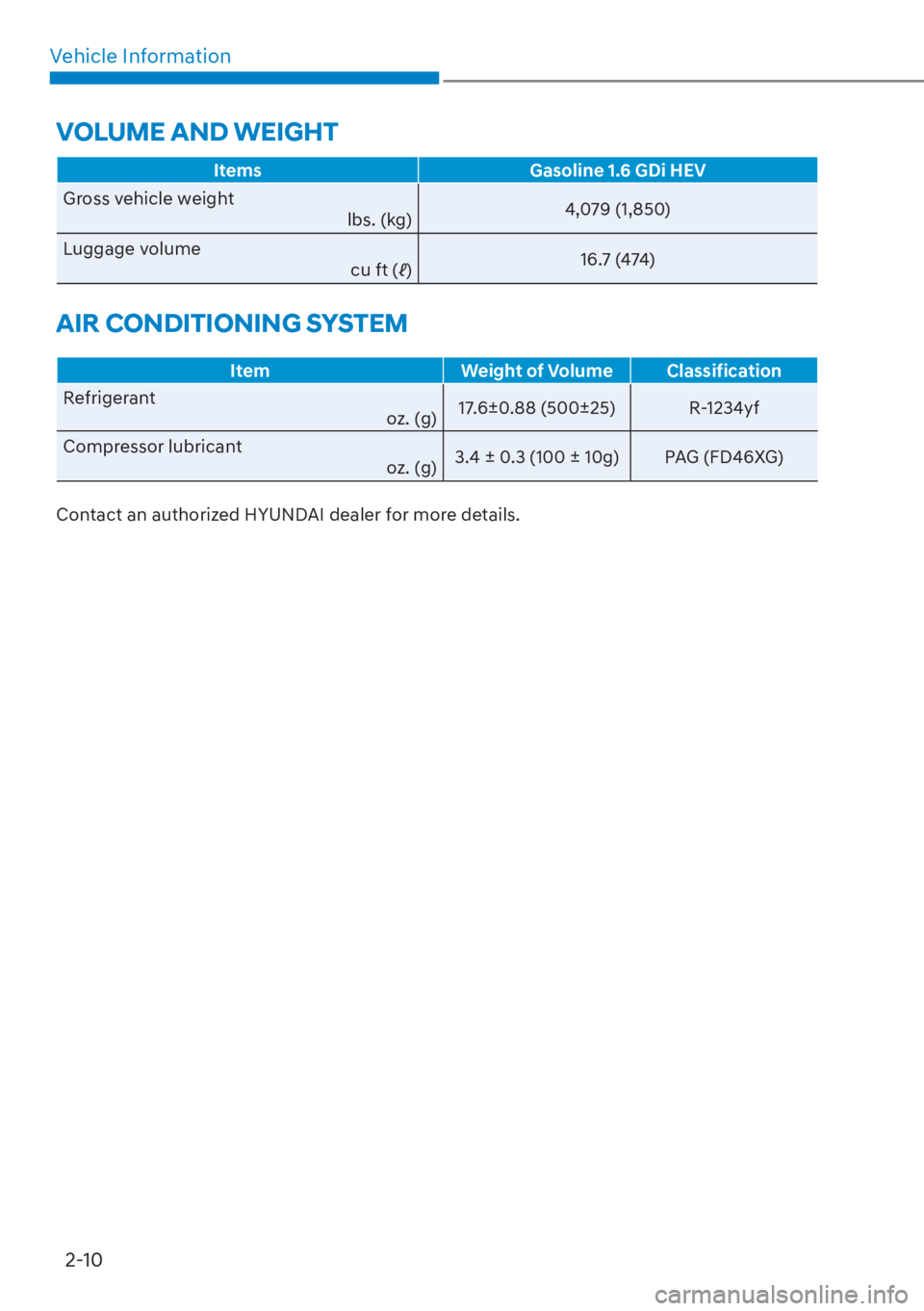

VOLUME AND WEIGHT
Items Gasoline 1.6 GDi HEV
Gross vehicle weight lbs. (k
g)4,079 (1,850)
Luggage volume cu ft (
b)16.7 (474)
AIR CONDITIONING SYSTEM
Item
Weight of Volume Classification
Refrigerant o
z. (g)17.6±0.88 (500±25) R-1234yf
Compressor lubricant oz. (g)3.4 ± 0.3 (100 ± 10g) PAG (FD46XG)
Contact an authorized HYUNDAI dealer for more details.

02
2-11

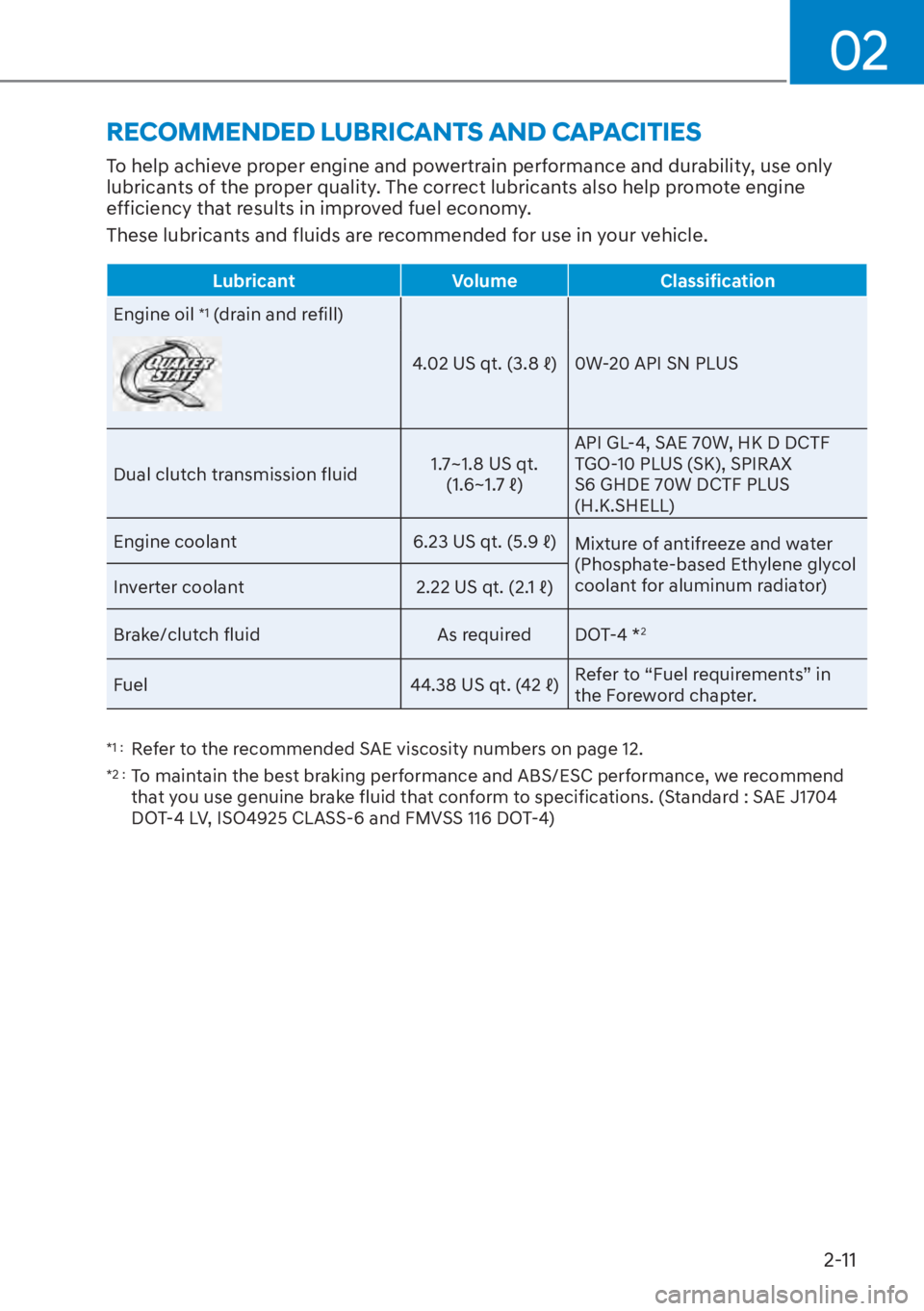

RECOMMENDED LUBRICANTS AND CAPACITIES
To help achieve proper engine and powertrain performance and durability, use only
lubricants of the proper quality. The correct lubricants also help promote engine
efficiency that results in improved fuel economy.
These lubricants and fluids are recommended for use in your vehicle.
LubricantVolumeClassification
Engine oil
*1 (drain and refill)
86TW
b0W-20 API SN PLUS
Dual clutch transmission fluid 1.7~1.8 US qt.
a
b API GL-4, SAE 70W, HK D DCTF
TGO-10 PLUS (SK), SPIRAX
S6 GHDE 70W DCTF PLUS
(H.K.SHELL)
Engine coolant 86TW
b
Mixture of antifreeze and water
(Phosphate-based Ethylene glycol
coolant for aluminum radiator)
Inverter coolant 86TW
b
Brake/clutch fluid As required DOT-4 *
2
Fuel 86TW
bRefer to “Fuel requirements” in
the Foreword chapter.
*1 : Refer to the recommended SAE viscosity numbers on page 12.
*2 : To maintain the best braking performance and ABS/ESC performance, we recommend
that you use genuine brake fluid that conform to specifications. (Standard : SAE J1704
DOT-4 LV, ISO4925 CLASS-6 and FMVSS 116 DOT-4)

Vehicle Information2-12

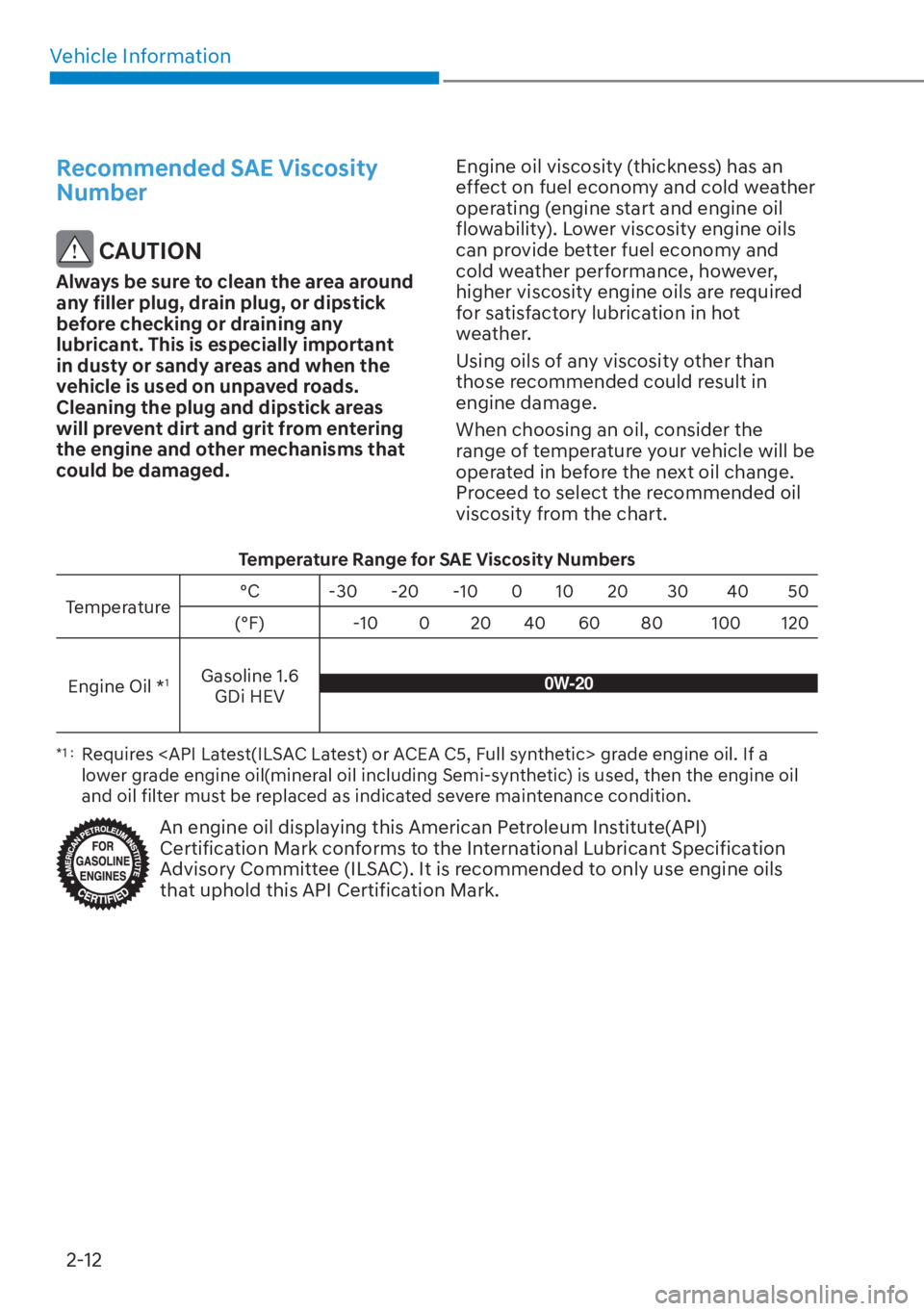

Recommended SAE Viscosity
Number
CAUTION
Always be sure to clean the area around
any filler plug, drain plug, or dipstick
before checking or draining any
lubricant. This is especially important
in dusty or sandy areas and when the
vehicle is used on unpaved roads.
Cleaning the plug and dipstick areas
will prevent dirt and grit from entering
the engine and other mechanisms that
could be damaged. Engine oil viscosity (thickness) has an
effect on fuel economy and cold weather
operating (engine start and engine oil
flowability). Lower viscosity engine oils
can provide better fuel economy and
cold weather performance, however,
higher viscosity engine oils are required
for satisfactory lubrication in hot
weather.
Using oils of any viscosity other than
those recommended could result in
engine damage.
When choosing an oil, consider the
range of temperature your vehicle will be
operated in before the next oil change.
Proceed to select the recommended oil
viscosity from the chart.
Temperature Range for SAE Viscosity Numbers
Temperature °C -30 -20 -10 0 10 20 30 40 50
(°F) -10 0 20 40 60 80 100 120
Engine Oil *
1Gasoline 1.6 GDi HEV0W-20
*1 : Requires grade engine oil. If a
lower grade engine oil(mineral oil including Semi-synthetic) is used, then the engine oil
and oil filter must be replaced as indicated severe maintenance condition.
An engine oil displaying this American Petroleum Institute(API)
Certification Mark conforms to the International Lubricant Specification
Advisory Committee (ILSAC). It is recommended to only use engine oils
that uphold this API Certification Mark.
