HYUNDAI ELANTRA HYBRID 2023 Owners Manual

07
7-101

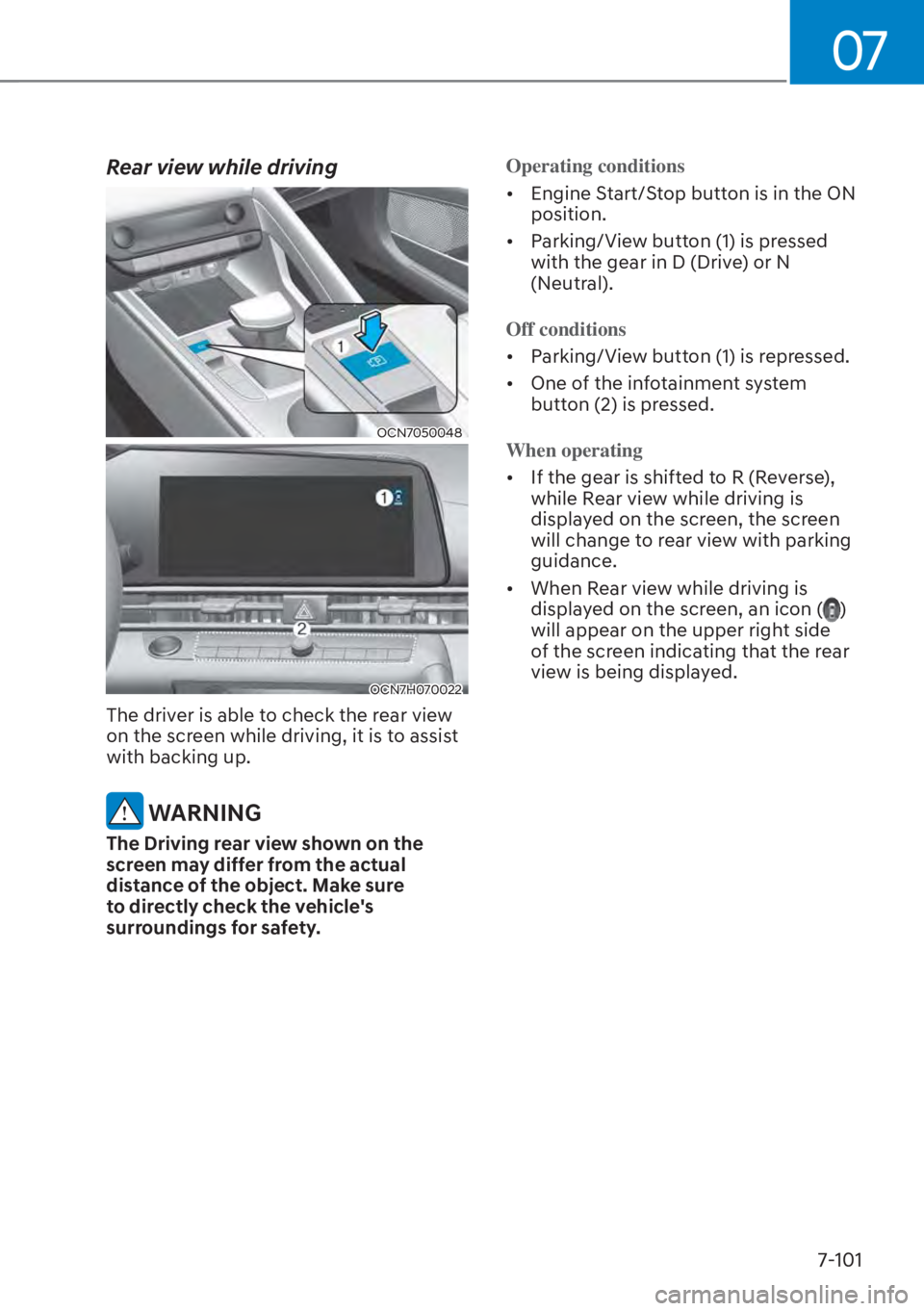

Rear view while driving
OCN7050048
OCN7H070022
The driver is able to check the rear view
on the screen while driving, it is to assist
with backing up.
WARNING
The Driving rear view shown on the
screen may differ from the actual
distance of the object. Make sure
to directly check the vehicle's
surroundings for safety.Operating conditions

[
E
ngine Start/Stop button is in the ON
position.

[ Parking/View button (1) is pressed
with the gear in D (Drive) or N
(Neutral).
Off conditions

[ P
arking/View button (1) is repressed.

[One of the infotainment system
button (2) is pressed.
When operating

[ If the gear is shift
ed to R (Reverse),
while Rear view while driving is
displayed on the screen, the screen
will change to rear view with parking
guidance.

[ When Rear view while driving is
displayed on the screen, an icon (
)
will appear on the upper right side
of the screen indicating that the rear
view is being displayed.

Driver Assistance System7-102

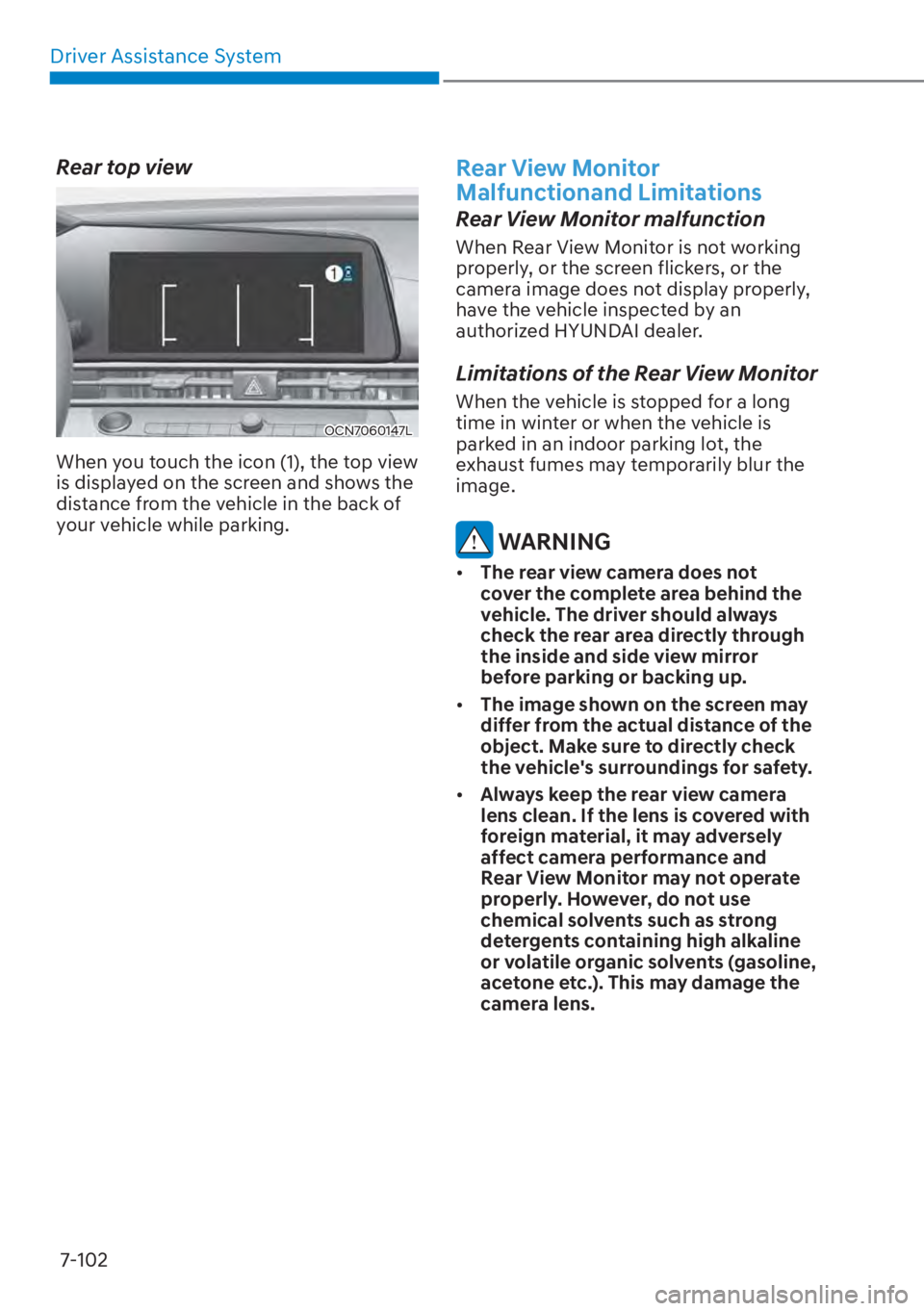

Rear top view
OCN7060147L
When you touch the icon (1), the top view
is displayed on the screen and shows the
distance from the vehicle in the back of
your vehicle while parking.
Rear View Monitor
Malfunctionand Limitations
Rear View Monitor malfunction
When Rear View Monitor is not working
properly, or the screen flickers, or the
camera image does not display properly,
have the vehicle inspected by an
authorized HYUNDAI dealer.
Limitations of the Rear View Monitor
When the vehicle is stopped for a long
time in winter or when the vehicle is
parked in an indoor parking lot, the
exhaust fumes may temporarily blur the
image.
WARNING

[ The rear view camera does not
cover the complete area behind the
vehicle. The driver should always
check the rear area directly through
the inside and side view mirror
before parking or backing up.

[ The image shown on the screen may
differ from the actual distance of the
object. Make sure to directly check
the vehicle's surroundings for safety.

[ Always keep the rear view camera
lens clean. If the lens is covered with
foreign material, it may adversely
affect camera performance and
Rear View Monitor may not operate
properly. However, do not use
chemical solvents such as strong
detergents containing high alkaline
or volatile organic solvents (gasoline,
acetone etc.). This may damage the
camera lens.

07
7-103
5($5&5266

Driver Assistance System7-104

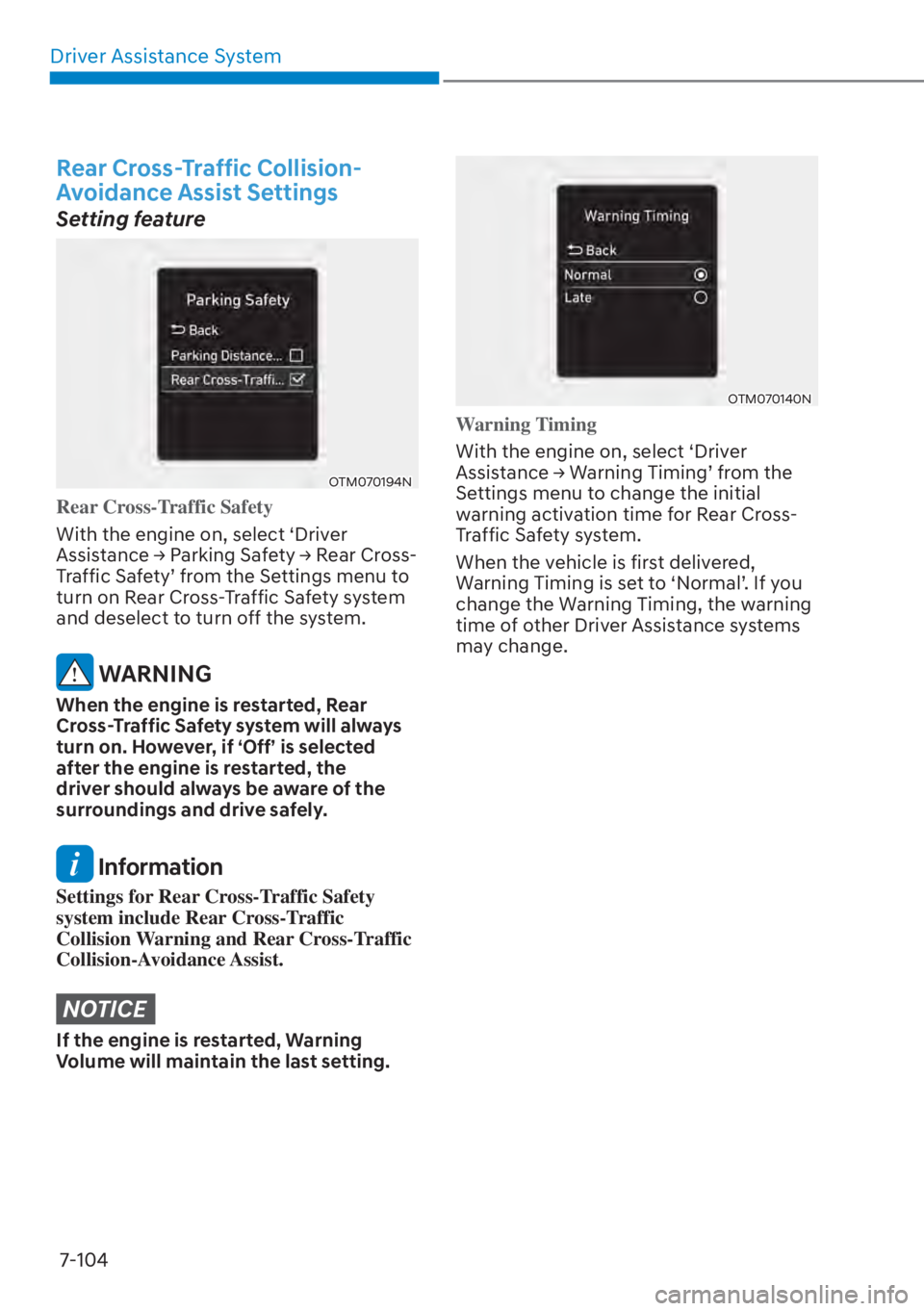

Rear Cross-Traffic Collision-
Avoidance Assist Settings
Setting feature
OTM070194N
Rear Cross-Traffic Safety
With the engine on, select ‘Driver
$VVLV
WDQFH

07
7-105

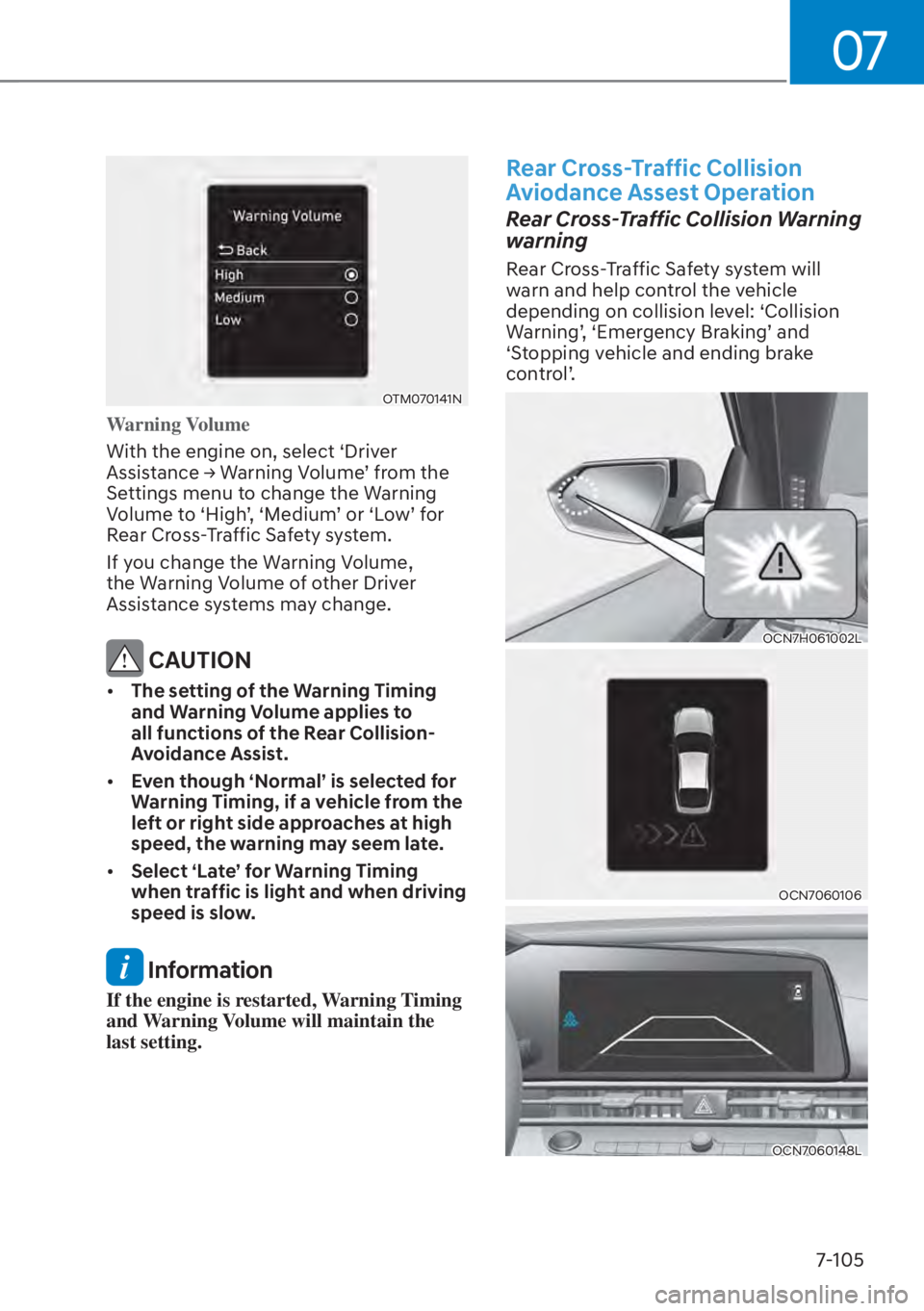

OTM070141N
Warning Volume
With the engine on, select ‘Driver
$VVLV
WDQFH

Driver Assistance System7-106

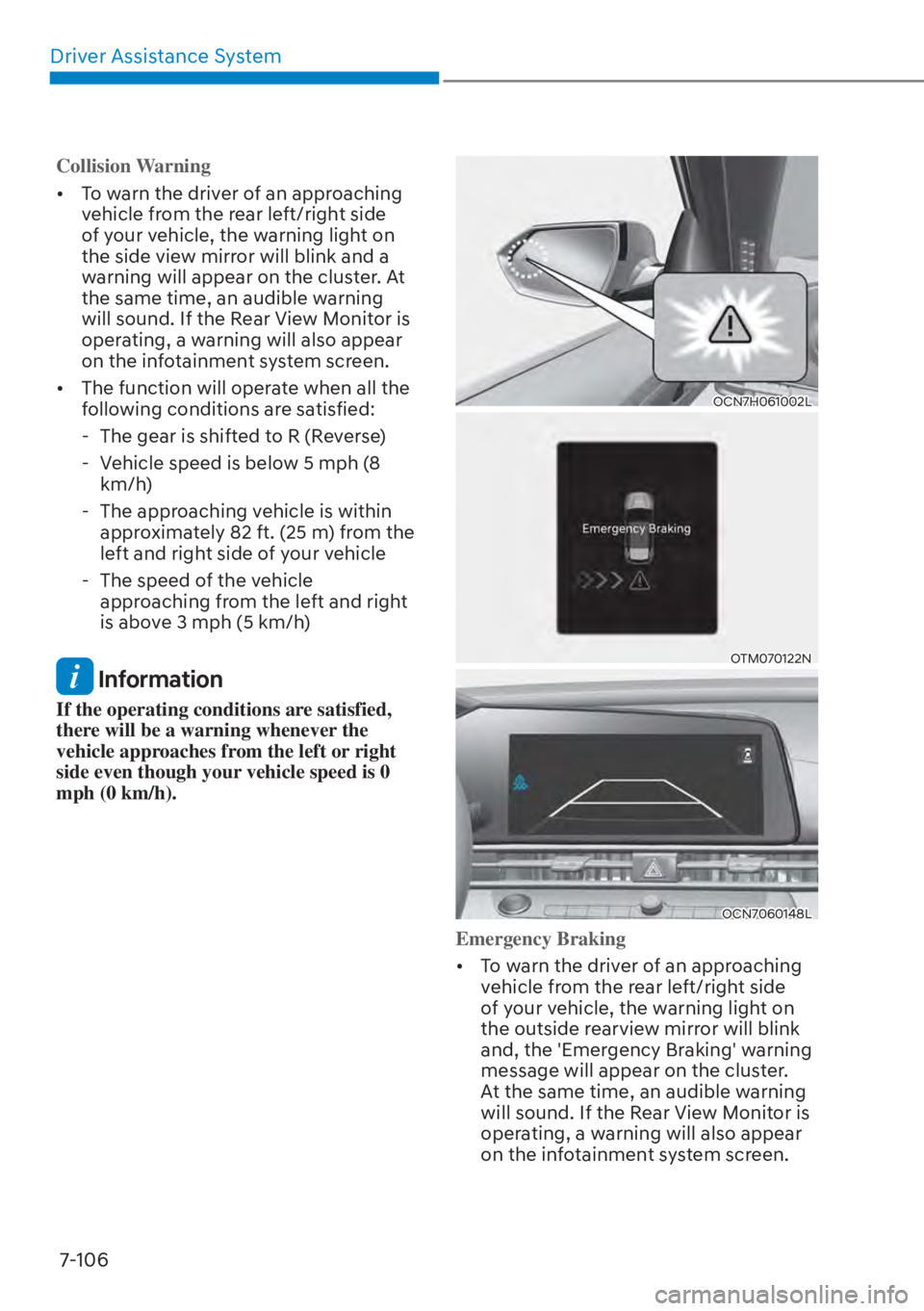

Collision Warning

[ T
o warn the driver of an approaching
vehicle from the rear left/right side
of your vehicle, the warning light on
the side view mirror will blink and a
warning will appear on the cluster. At
the same time, an audible warning
will sound. If the Rear View Monitor is
operating, a warning will also appear
on the infotainment system screen.

[ The function will operate when all the
following conditions are satisfied:
- The gear is shifted to R (Reverse)
- Vehicle speed is below 5 mph (8 km/h)
- The approaching vehicle is within approximately 82 ft. (25 m) from the
left and right side of your vehicle
- The speed of the vehicle approaching from the left and right
is above 3 mph (5 km/h)
Information
If the operating conditions are satisfied,
there will be a warning whenever the
vehicle approaches from the left or right
side even though your vehicle speed is 0
mph (0 km/h).
OCN7H061002L
OTM070122N
OCN7060148L
Emergency Braking

[ T
o warn the driver of an approaching
vehicle from the rear left/right side
of your vehicle, the warning light on
the outside rearview mirror will blink
and, the 'Emergency Braking' warning
message will appear on the cluster.
At the same time, an audible warning
will sound. If the Rear View Monitor is
operating, a warning will also appear
on the infotainment system screen.

07
7-107

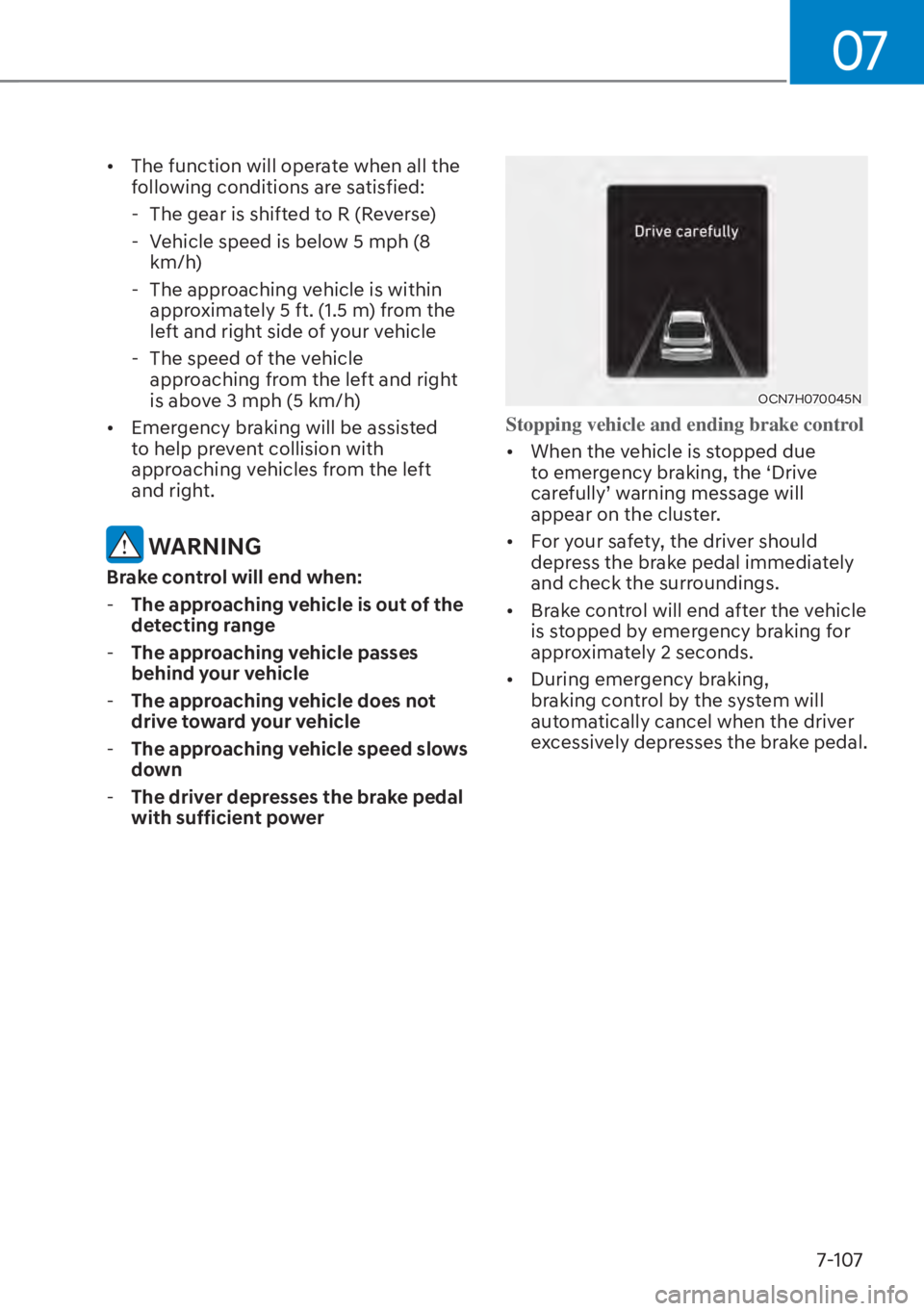

[The function will operate when all the
following conditions are satisfied:
- The gear is shifted to R (Reverse)
- Vehicle speed is below 5 mph (8 km/h)
- The approaching vehicle is within approximately 5 ft. (1.5 m) from the
left and right side of your vehicle
- The speed of the vehicle approaching from the left and right
is above 3 mph (5 km/h)

[ Emergency braking will be assisted
to help prevent collision with
approaching vehicles from the left
and right.
WARNING
Brake control will end when:
- The approaching vehicle is out of the
detecting range
- The approaching vehicle passes
behind your vehicle
- The approaching vehicle does not
drive toward your vehicle
- The approaching vehicle speed slows
down
- The driver depresses the brake pedal
with sufficient power
OCN7H070045N
Stopping vehicle and ending brake control

[ When the v
ehicle is stopped due
to emergency braking, the ‘Drive
FDUHIXOO\
TZDUQLQJPHVVDJHZLOO
appear on the cluster.

[ For your safety, the driver should
depress the brake pedal immediately
and check the surroundings.

[ Brake control will end after the vehicle
is stopped by emergency braking for
approximately 2 seconds.

[ During emergency braking,
braking control by the system will
automatically cancel when the driver
excessively depresses the brake pedal.

Driver Assistance System7-108

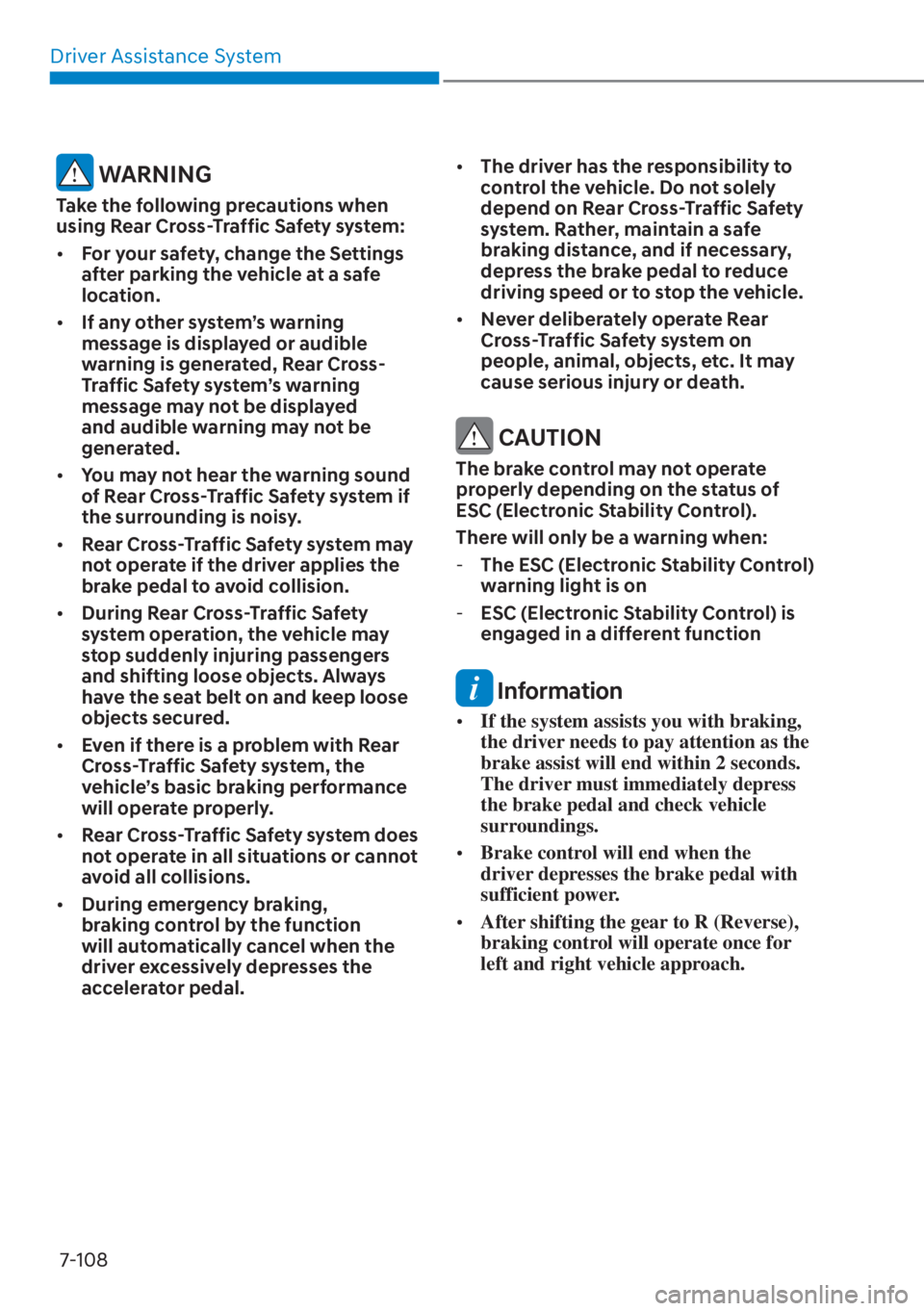

WARNING
Take the following precautions when
using Rear Cross-Traffic Safety system:

[ For your safety, change the Settings
after parking the vehicle at a safe
location.

[ If any other system’s warning
message is displayed or audible
warning is generated, Rear Cross-
Traffic Safety system’s warning
message may not be displayed
and audible warning may not be
generated.

[ You may not hear the warning sound
of Rear Cross-Traffic Safety system if
the surrounding is noisy.

[ Rear Cross-Traffic Safety system may
not operate if the driver applies the
brake pedal to avoid collision.

[ During Rear Cross-Traffic Safety
system operation, the vehicle may
stop suddenly injuring passengers
and shifting loose objects. Always
have the seat belt on and keep loose
objects secured.

[ Even if there is a problem with Rear
Cross-Traffic Safety system, the
vehicle’s basic braking performance
will operate properly.

[ Rear Cross-Traffic Safety system does
not operate in all situations or cannot
avoid all collisions.

[ During emergency braking,
braking control by the function
will automatically cancel when the
driver excessively depresses the
accelerator pedal.
[
The driver has the responsibility to
control the vehicle. Do not solely
depend on Rear Cross-Traffic Safety
system. Rather, maintain a safe
braking distance, and if necessary,
depress the brake pedal to reduce
driving speed or to stop the vehicle.

[ Never deliberately operate Rear
Cross-Traffic Safety system on
people, animal, objects, etc. It may
cause serious injury or death.
CAUTION
The brake control may not operate
properly depending on the status of
ESC (Electronic Stability Control).
There will only be a warning when:
- The ESC (Electronic Stability Control)
warning light is on
- ESC (Electronic Stability Control) is
engaged in a different function
Information

[ If the system assists you with braking,
the driver needs to pay attention as the
brake assist will end within 2 seconds.
The driver must immediately depress
the brake pedal and check vehicle
surroundings.

[ Brake control will end when the
driver depresses the brake pedal with
sufficient power.

[ After shifting the gear to R (Reverse),
braking control will operate once for
left and right vehicle approach.

07
7-109

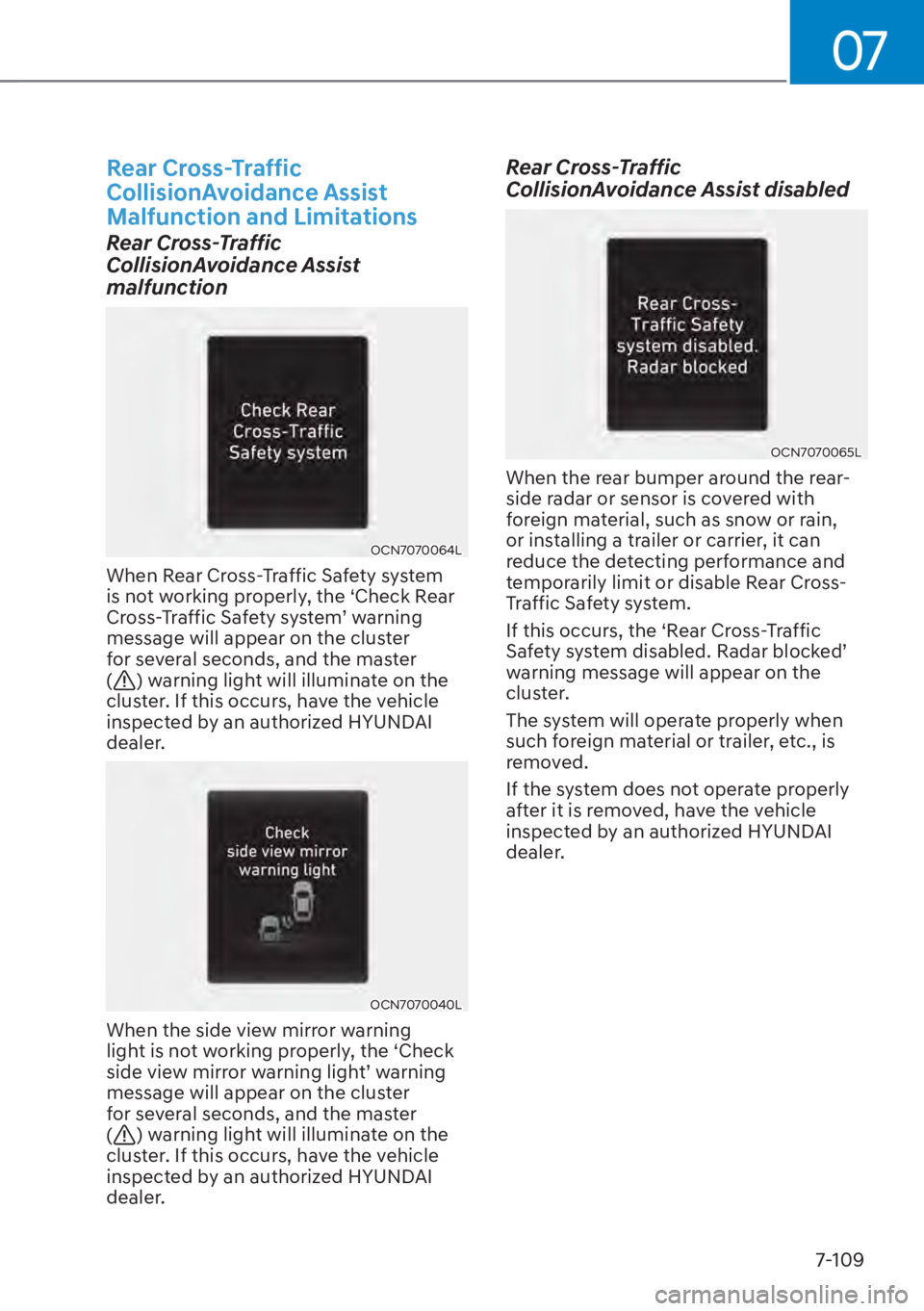

Rear Cross-Traffic
CollisionAvoidance Assist
Malfunction and Limitations
Rear Cross-Traffic
CollisionAvoidance Assist
malfunction
OCN7070064L
When Rear Cross-Traffic Safety system
is not working properly, the ‘Check Rear
&URVV7UDIILF6DIHW\V\VWHP
TZDUQLQJ
message will appear on the cluster
for several seconds, and the master
(
) warning light will illuminate on the
cluster. If this occurs, have the vehicle
inspected by an authorized HYUNDAI
dealer.
OCN7070040L
When the side view mirror warning
light is not working properly, the ‘Check
VLGHYLHZPLUURUZDUQLQJOLJKW
TZDUQLQJ
message will appear on the cluster
for several seconds, and the master
(
) warning light will illuminate on the
cluster. If this occurs, have the vehicle
inspected by an authorized HYUNDAI
dealer.
Rear Cross-Traffic
CollisionAvoidance Assist disabled
OCN7070065L
When the rear bumper around the rear-
side radar or sensor is covered with
foreign material, such as snow or rain,
or installing a trailer or carrier, it can
reduce the detecting performance and
temporarily limit or disable Rear Cross-
Traffic Safety system.
If this occurs, the ‘Rear Cross-Traffic
6DIHW\V\VWHPGLVDEOHG5DGDUEORFNHG
T
warning message will appear on the
cluster.
The system will operate properly when
such foreign material or trailer, etc., is
removed.
If the system does not operate properly
after it is removed, have the vehicle
inspected by an authorized HYUNDAI
dealer.

Driver Assistance System7-110

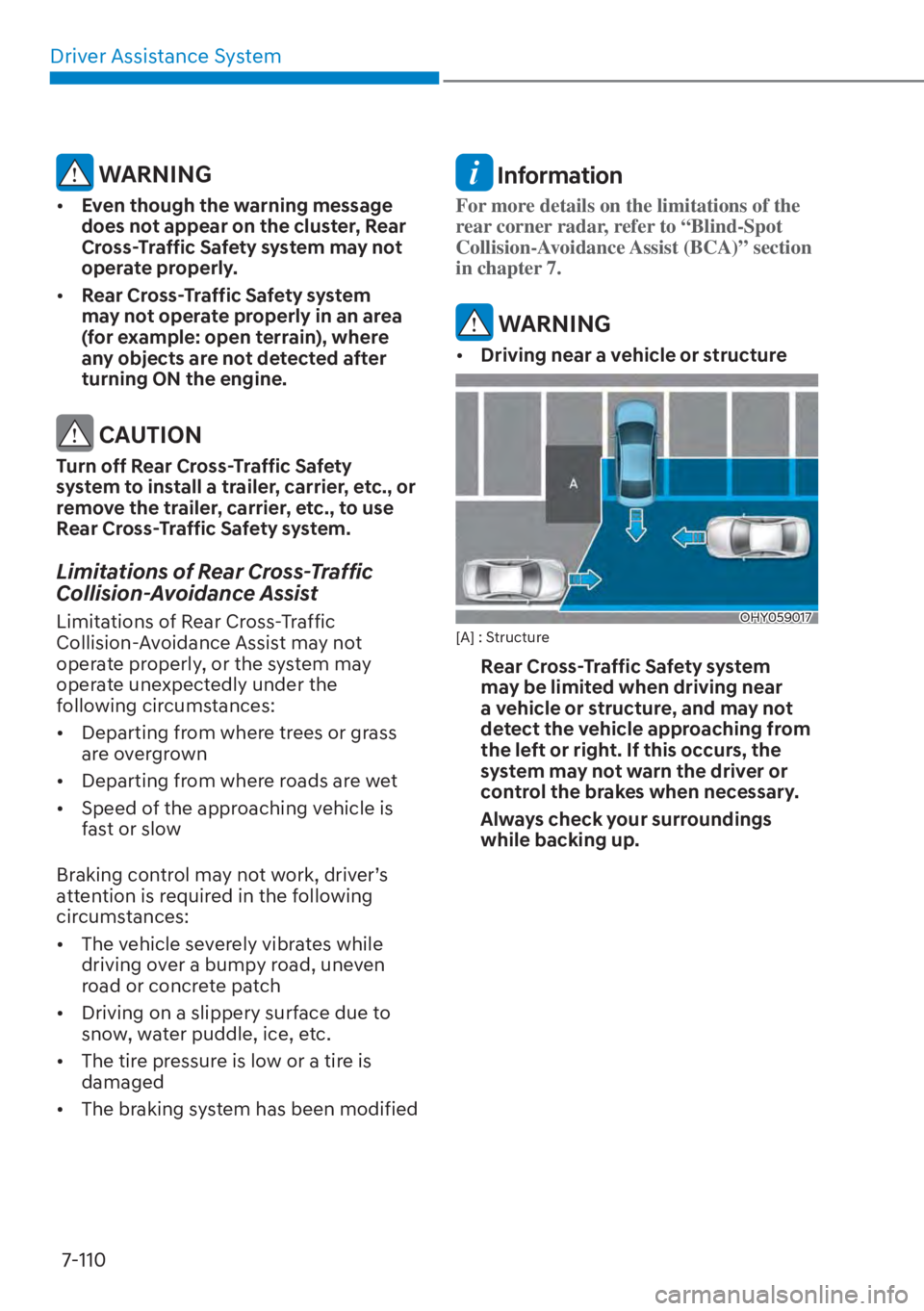

WARNING

[ Even though the warning message
does not appear on the cluster, Rear
Cross-Traffic Safety system may not
operate properly.

[ Rear Cross-Traffic Safety system
may not operate properly in an area
(for example: open terrain), where
any objects are not detected after
turning ON the engine.
CAUTION
Turn off Rear Cross-Traffic Safety
system to install a trailer, carrier, etc., or
remove the trailer, carrier, etc., to use
Rear Cross-Traffic Safety system.
Limitations of Rear Cross-Traffic
Collision-Avoidance Assist
Limitations of Rear Cross-Traffic
Collision-Avoidance Assist may not
operate properly, or the system may
operate unexpectedly under the
following circumstances:

[Departing from where trees or grass
are overgrown

[ Departing from where roads are wet

[ Speed of the approaching vehicle is
fast or slow
%UDNLQJFRQWUROPD\QRWZRUNGULYHU
TV
attention is required in the following
circumstances:

[ The vehicle severely vibrates while
driving over a bumpy road, uneven
road or concrete patch

[ Driving on a slippery surface due to
snow, water puddle, ice, etc.

[ The tire pressure is low or a tire is
damaged

[ The braking system has been modified
Information
For more details on the limitations of the
rear corner radar, refer to “Blind-Spot
Collision-Avoidance Assist (BCA)” section
in chapter 7.
WARNING

[Driving near a vehicle or structure
OHY059017[A] : Structure
Rear Cross-Traffic Safety system
may be limited when driving near
a vehicle or structure, and may not
detect the vehicle approaching from
the left or right. If this occurs, the
system may not warn the driver or
control the brakes when necessary.
Always check your surroundings
while backing up.
