HYUNDAI ELANTRA HYBRID 2023 Owners Manual

07
7-61
OTM058156E

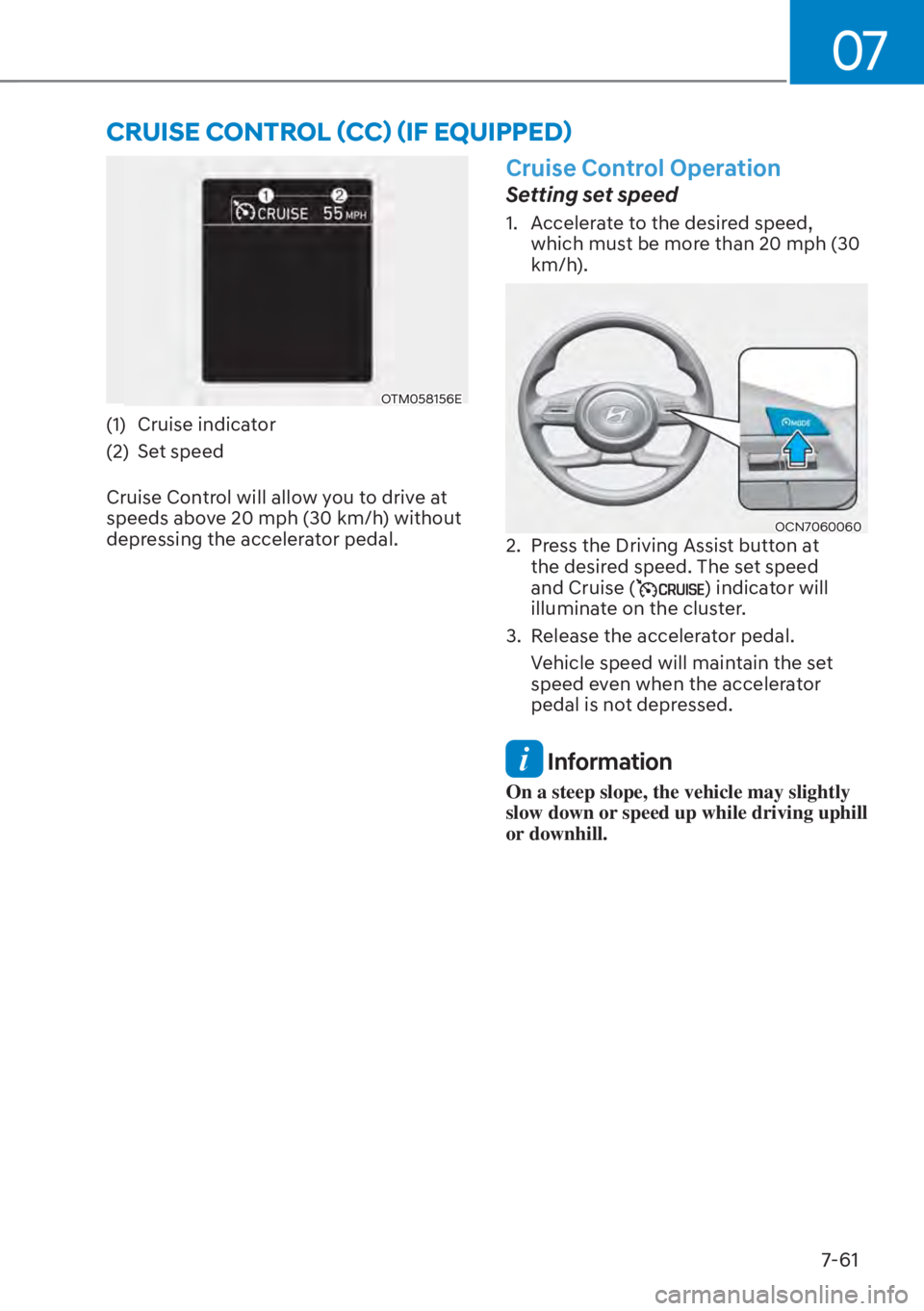

(1) Cruise indicator
(2) Set speed
Cruise Control will allow you to drive at
speeds above 20 mph (30 km/h) without
depressing the accelerator pedal.
Cruise Control Operation
Setting set speed
1. Accelerate to the desired speed, which must be more than 20 mph (30
km/h).
OCN70600602. Press the Driving Assist button at the desired speed. The set speed
and Cruise (
) indicator will
illuminate on the cluster.
3. Release the accelerator pedal.
Vehicle speed will maintain the set
speed even when the accelerator
pedal is not depressed.
Information
On a steep slope, the vehicle may slightly
slow down or speed up while driving uphill
or downhill.
&58,6(&21752/

Driver Assistance System7-62

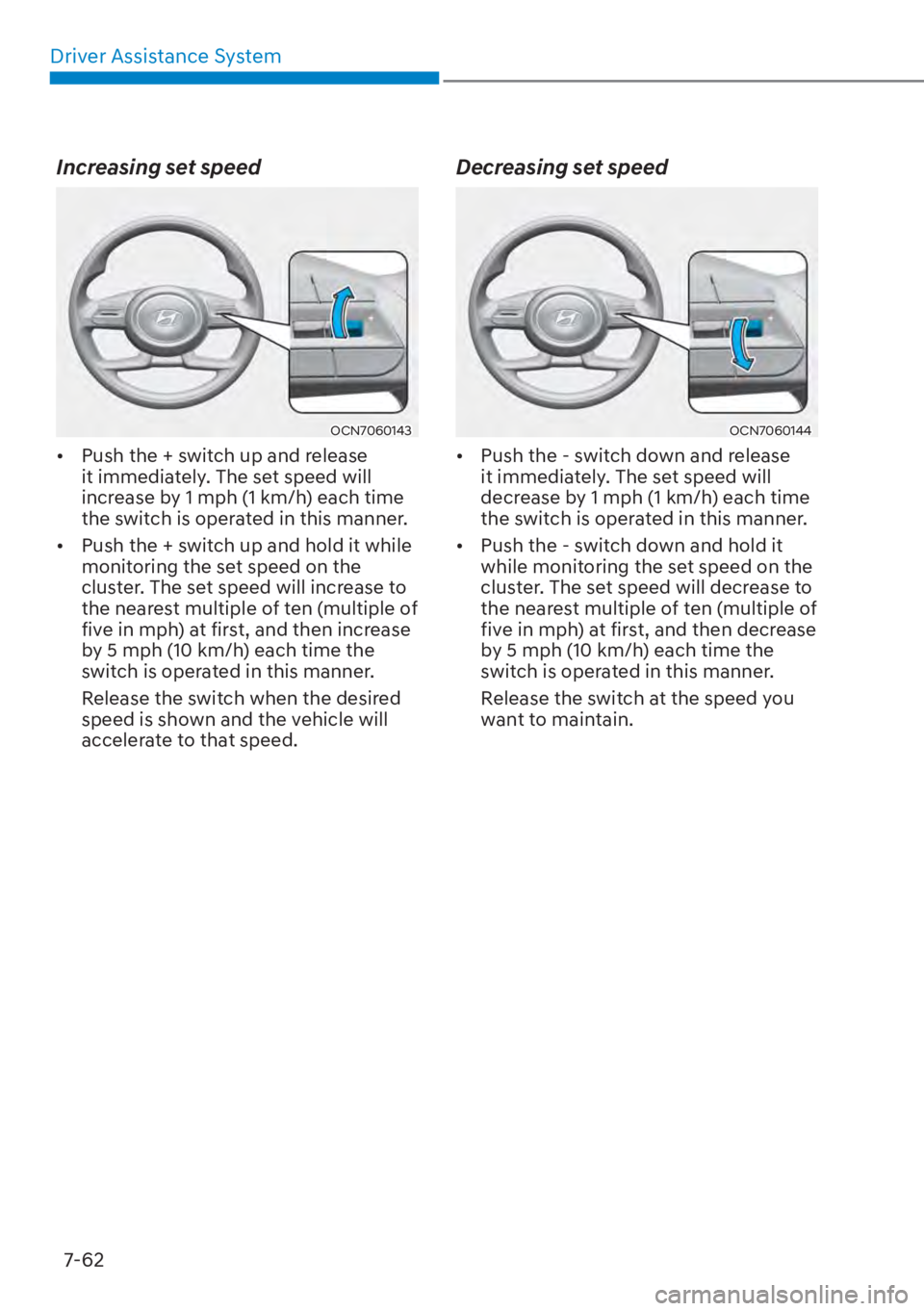

Increasing set speed
OCN7060143

[ Push the + switch up and release
it immediately. The set speed will
increase by 1 mph (1 km/h) each time
the switch is operated in this manner.

[ Push the + switch up and hold it while
monitoring the set speed on the
cluster. The set speed will increase to
the nearest multiple of ten (multiple of
five in mph) at first, and then increase
by 5 mph (10 km/h) each time the
switch is operated in this manner.
Release the switch when the desired
speed is shown and the vehicle will
accelerate to that speed.
Decreasing set speed
OCN7060144

[Push the - switch down and release
it immediately. The set speed will
decrease by 1 mph (1 km/h) each time
the switch is operated in this manner.

[ Push the - switch down and hold it
while monitoring the set speed on the
cluster. The set speed will decrease to
the nearest multiple of ten (multiple of
five in mph) at first, and then decrease
by 5 mph (10 km/h) each time the
switch is operated in this manner.
Release the switch at the speed you
want to maintain.

07
7-63

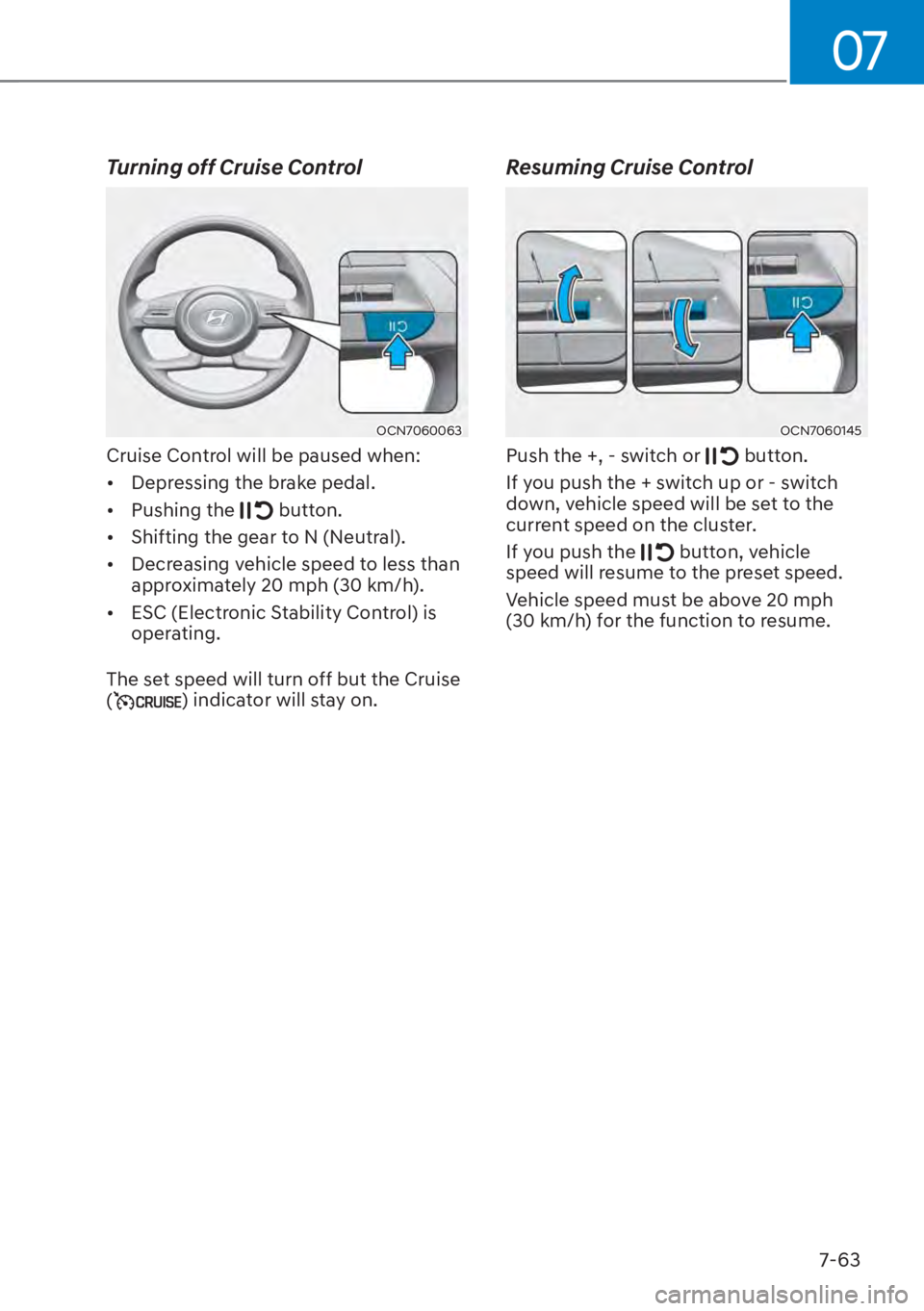

Turning off Cruise Control
OCN7060063
Cruise Control will be paused when:

[Depressing the brake pedal.

[ Pushing the
button.

[ Shifting the gear to N (Neutral).

[ Decreasing vehicle speed to less than
approximately 20 mph (30 km/h).

[ ESC (Electronic Stability Control) is
operating.
The set speed will turn off but the Cruise
(
) indicator will stay on.
Resuming Cruise Control
OCN7060145
Push the +, - switch or button.
If you push the + switch up or - switch
down, vehicle speed will be set to the
current speed on the cluster.
If you push the
button, vehicle
speed will resume to the preset speed.
Vehicle speed must be above 20 mph
(30 km/h) for the function to resume.

Driver Assistance System7-64

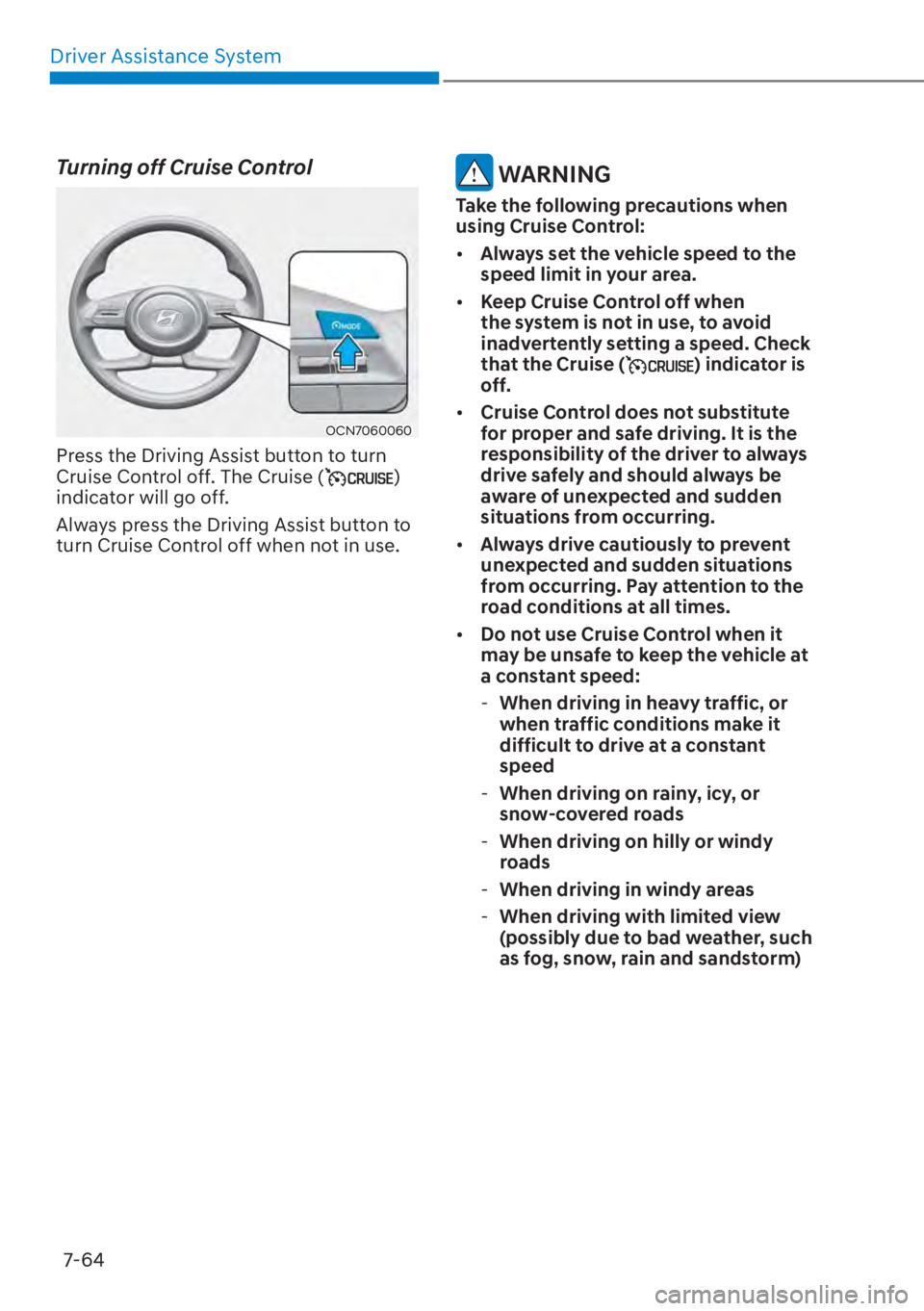

Turning off Cruise Control
OCN7060060
Press the Driving Assist button to turn
Cruise Control off. The Cruise ()
indicator will go off.
Always press the Driving Assist button to
turn Cruise Control off when not in use.
WARNING
Take the following precautions when
using Cruise Control:

[ Always set the vehicle speed to the
speed limit in your area.

[ Keep Cruise Control off when
the system is not in use, to avoid
inadvertently setting a speed. Check
that the Cruise (
) indicator is
off.

[ Cruise Control does not substitute
for proper and safe driving. It is the
responsibility of the driver to always
drive safely and should always be
aware of unexpected and sudden
situations from occurring.

[ Always drive cautiously to prevent
unexpected and sudden situations
from occurring. Pay attention to the
road conditions at all times.

[ Do not use Cruise Control when it
may be unsafe to keep the vehicle at
a constant speed:
- When driving in heavy traffic, or
when traffic conditions make it
difficult to drive at a constant
speed
- When driving on rainy, icy, or
snow-covered roads
- When driving on hilly or windy
roads
- When driving in windy areas
- When driving with limited view
(possibly due to bad weather, such
as fog, snow, rain and sandstorm)

07
7-65

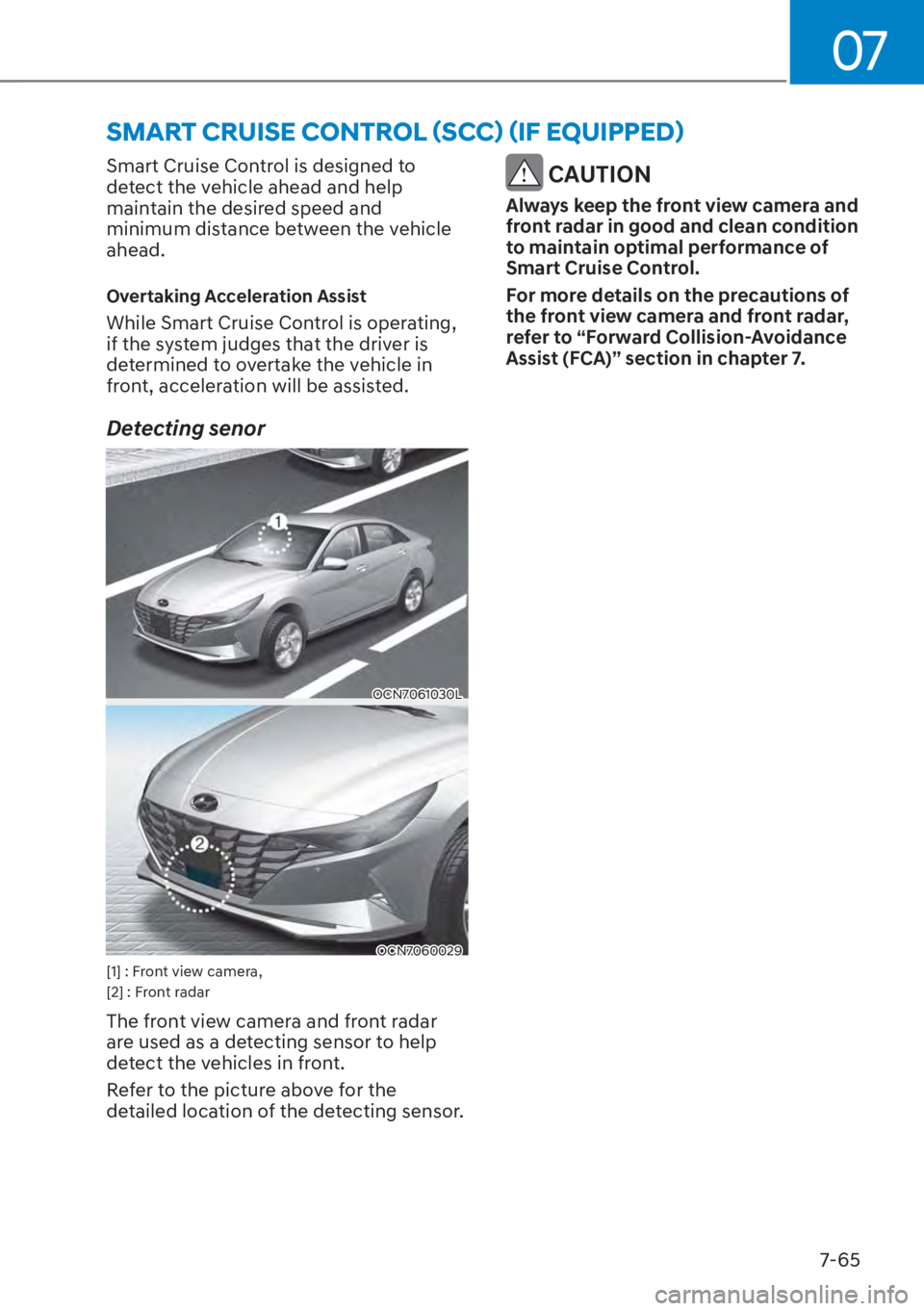

Smart Cruise Control is designed to
detect the vehicle ahead and help
maintain the desired speed and
minimum distance between the vehicle
ahead.
Overtaking Acceleration Assist
While Smart Cruise Control is operating,
if the system judges that the driver is
determined to overtake the vehicle in
front, acceleration will be assisted.
Detecting senor
OCN7061030L
OCN7060029[1] : Front view camera,
[2] : Front radar
The front view camera and front radar
are used as a detecting sensor to help
detect the vehicles in front.
Refer to the picture above for the
detailed location of the detecting sensor.
CAUTION
Always keep the front view camera and
front radar in good and clean condition
to maintain optimal performance of
Smart Cruise Control.
For more details on the precautions of
the front view camera and front radar,
refer to “Forward Collision-Avoidance
Assist (FCA)” section in chapter 7.
60$57&58,6(&21752/

Driver Assistance System7-66

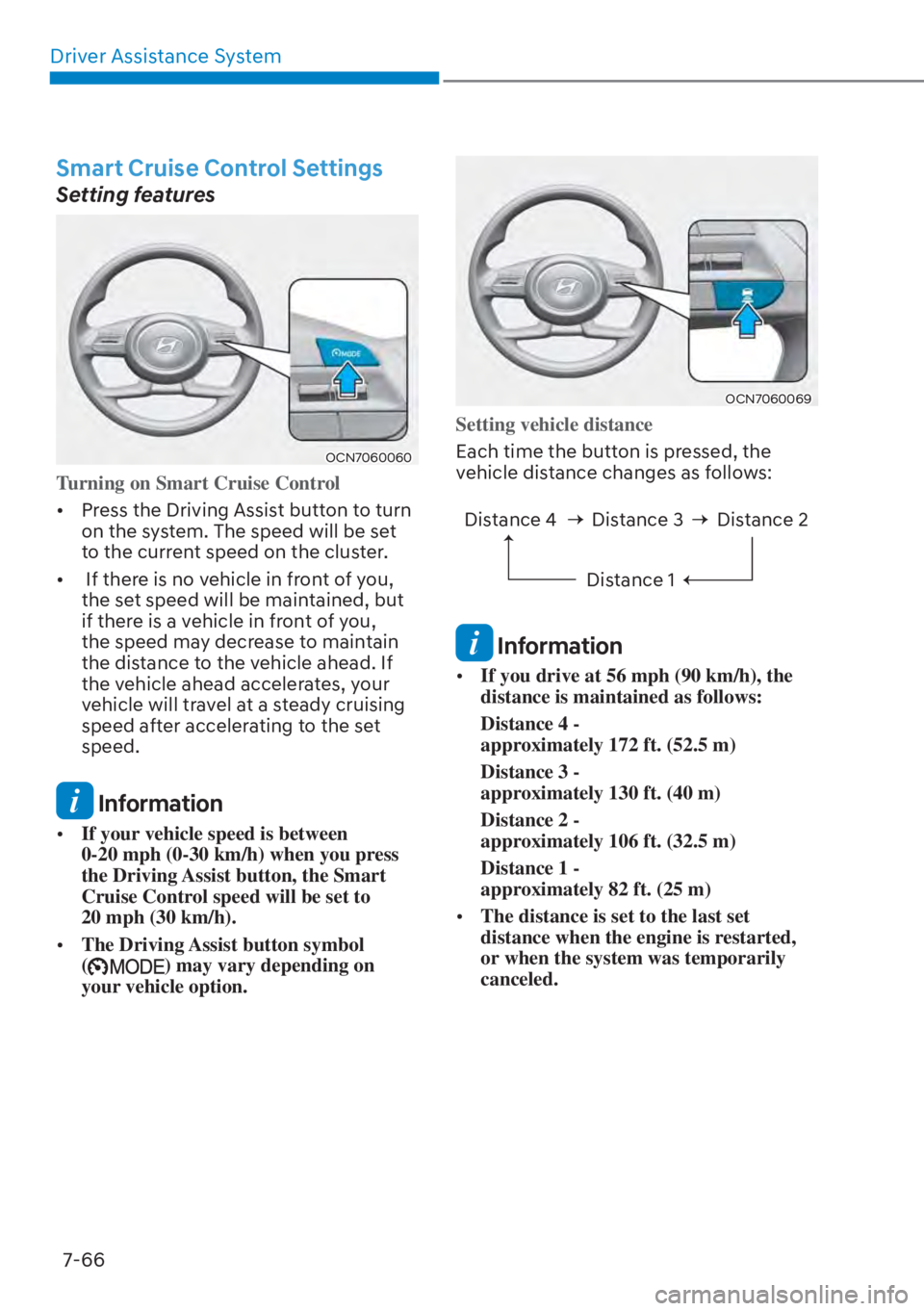

Smart Cruise Control Settings
Setting features
OCN7060060
Turning on Smart Cruise Control

[ Pr
ess the Driving Assist button to turn
on the system. The speed will be set
to the current speed on the cluster.

[ If there is no vehicle in front of you,
the set speed will be maintained, but
if there is a vehicle in front of you,
the speed may decrease to maintain
the distance to the vehicle ahead. If
the vehicle ahead accelerates, your
vehicle will travel at a steady cruising
speed after accelerating to the set
speed.
Information

[If your vehicle speed is between
0-20 mph (0-30 km/h) when you press
the Driving Assist button, the Smart
Cruise Control speed will be set to
20 mph (30 km/h).

[ The Driving Assist button symbol
(
) may vary depending on
your vehicle option.
OCN7060069
Setting vehicle distance
Each time the button is pressed, the
v
ehicle distance changes as follows:
Distance 4 Distance 3
Dis
tance 1Distance 2
Information

[If you drive at 56 mph (90 km/h), the
distance is maintained as follows:
Distance 4 -
approximately 172 ft. (52.5 m)
Distance 3 -
approximately 130 ft. (40 m)
Distance 2 -
approximately 106 ft. (32.5 m)
Distance 1 -
approximately 82 ft. (25 m)

[ The distance is set to the last set
distance when the engine is restarted,
or when the system was temporarily
canceled.

07
7-67
OCN7060061

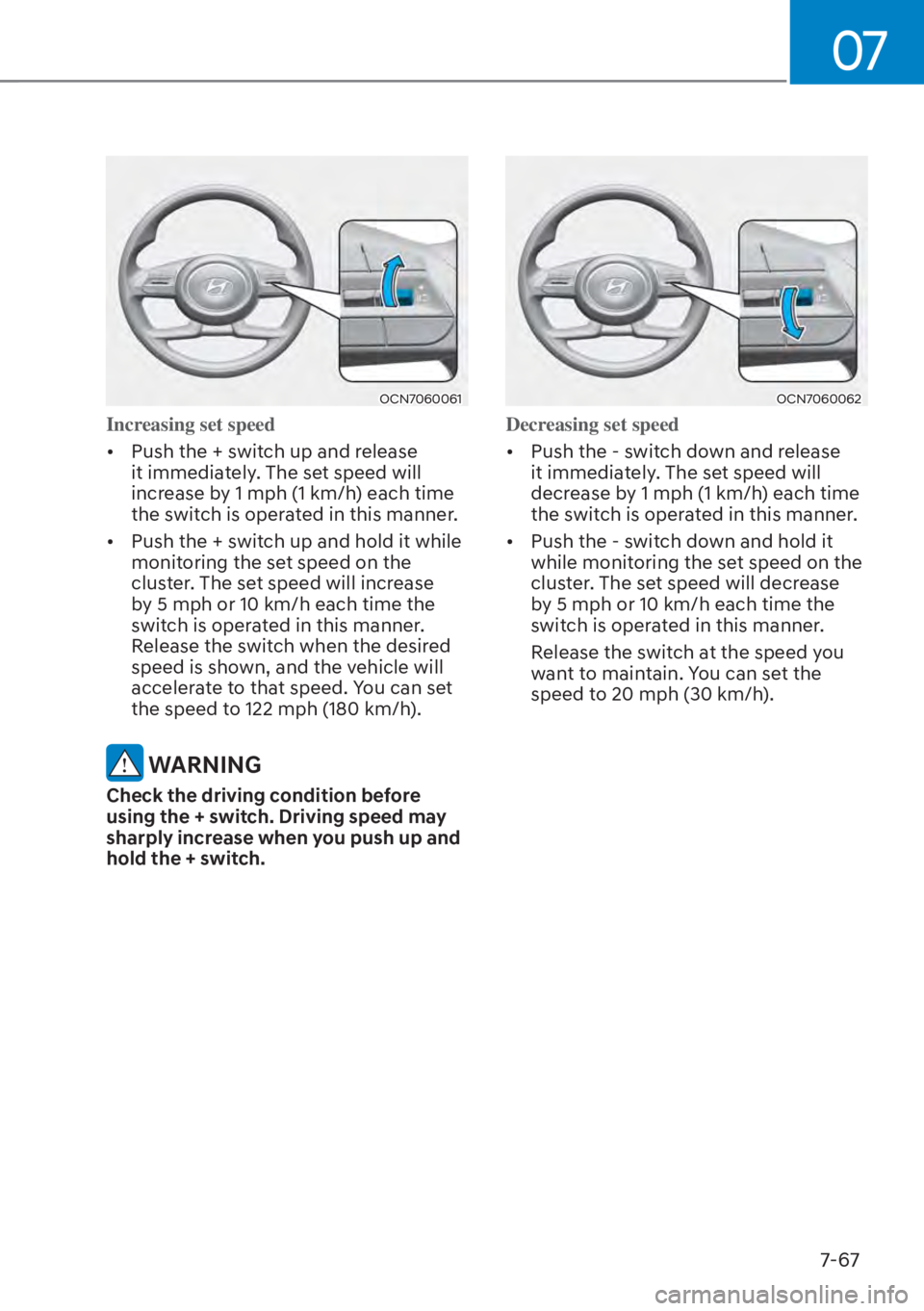

Increasing set speed

[Push the + s
witch up and release
it immediately. The set speed will
increase by 1 mph (1 km/h) each time
the switch is operated in this manner.

[ Push the + switch up and hold it while
monitoring the set speed on the
cluster. The set speed will increase
by 5 mph or 10 km/h each time the
switch is operated in this manner.
Release the switch when the desired
speed is shown, and the vehicle will
accelerate to that speed. You can set
the speed to 122 mph (180 km/h).
WARNING
Check the driving condition before
using the + switch. Driving speed may
sharply increase when you push up and
hold the + switch.
OCN7060062
Decreasing set speed

[Push the - s
witch down and release
it immediately. The set speed will
decrease by 1 mph (1 km/h) each time
the switch is operated in this manner.

[ Push the - switch down and hold it
while monitoring the set speed on the
cluster. The set speed will decrease
by 5 mph or 10 km/h each time the
switch is operated in this manner.
Release the switch at the speed you
want to maintain. You can set the
speed to 20 mph (30 km/h).

Driver Assistance System7-68
OCN7060120

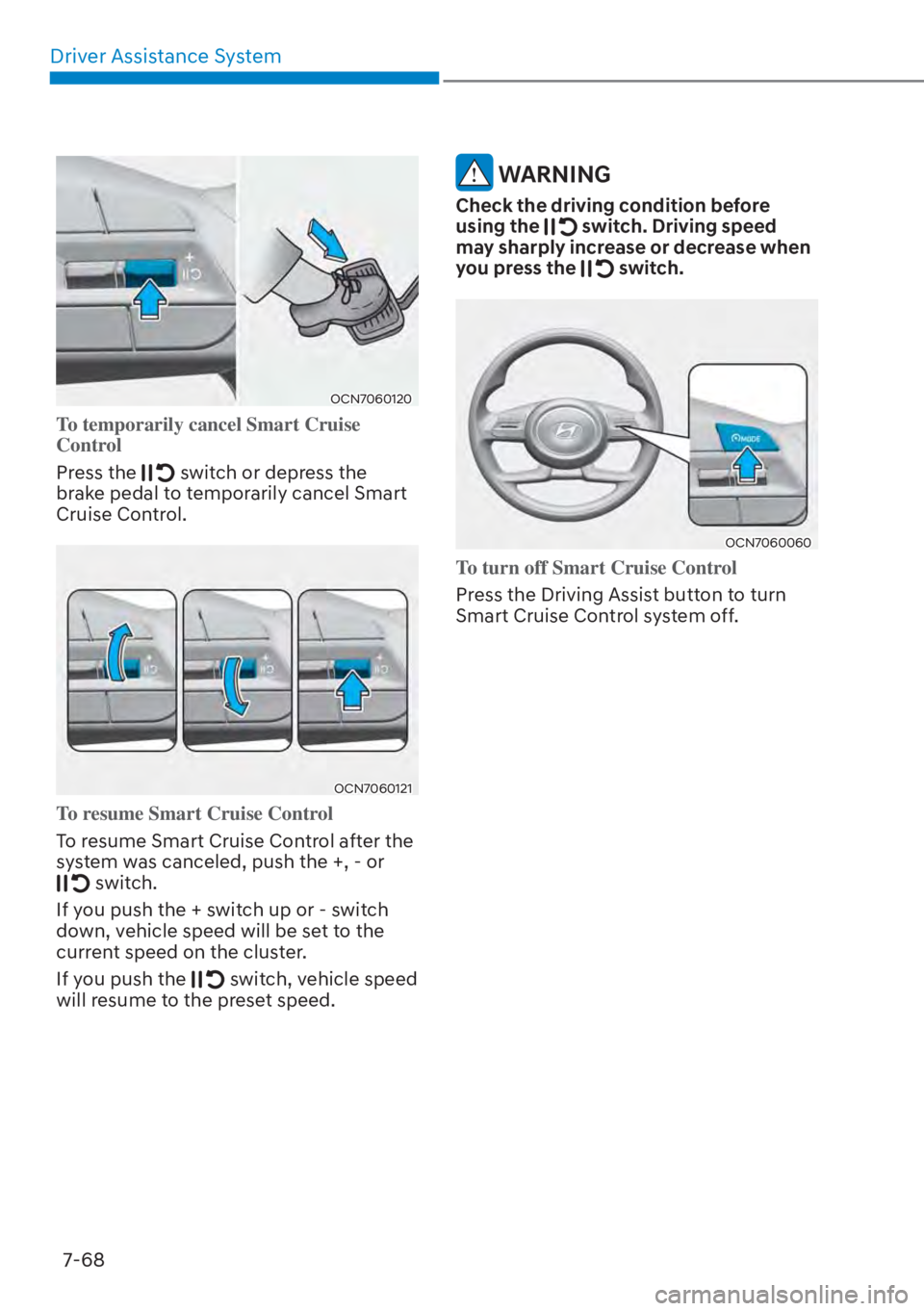

To temporarily cancel Smart Cruise
Control
Press the
switch or depress the
brake pedal to temporarily cancel Smart
Cruise Control.
OCN7060121
To resume Smart Cruise Control
To resume Smart Cruise Control after the
s
ystem was canceled, push the +, - or
switch.
If you push the + switch up or - switch
down, vehicle speed will be set to the
current speed on the cluster.
If you push the
switch, vehicle speed
will resume to the preset speed.
WARNING
Check the driving condition before
using the switch. Driving speed
may sharply increase or decrease when
you press the
switch.
OCN7060060
To turn off Smart Cruise Control
Press the Driving Assist button to turn
Smart Cruise Con
trol system off.

07
7-69
OTM070142N

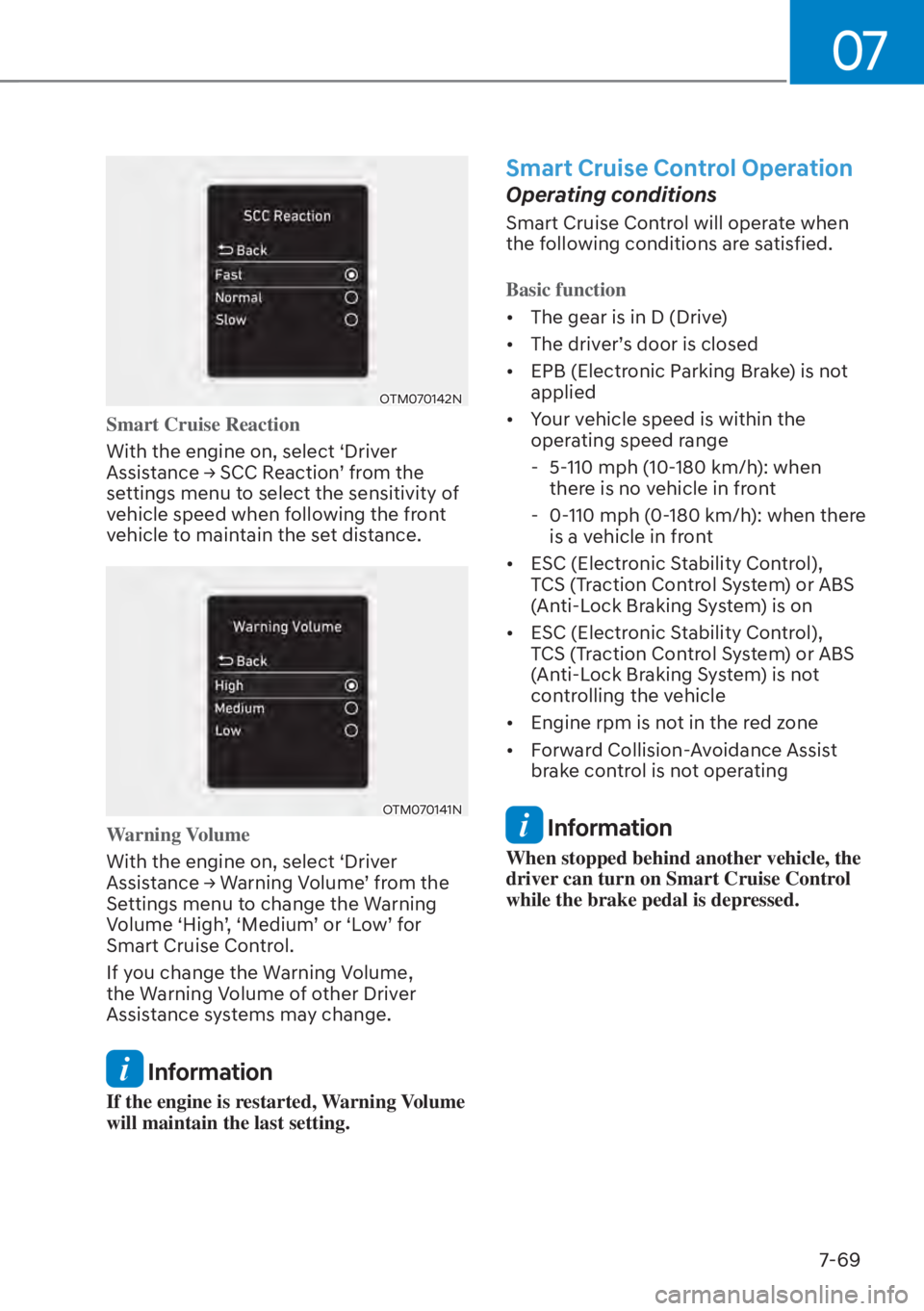

Smart Cruise Reaction
With the engine on, select ‘Driver
$VVLV
WDQFH

Driver Assistance System7-70

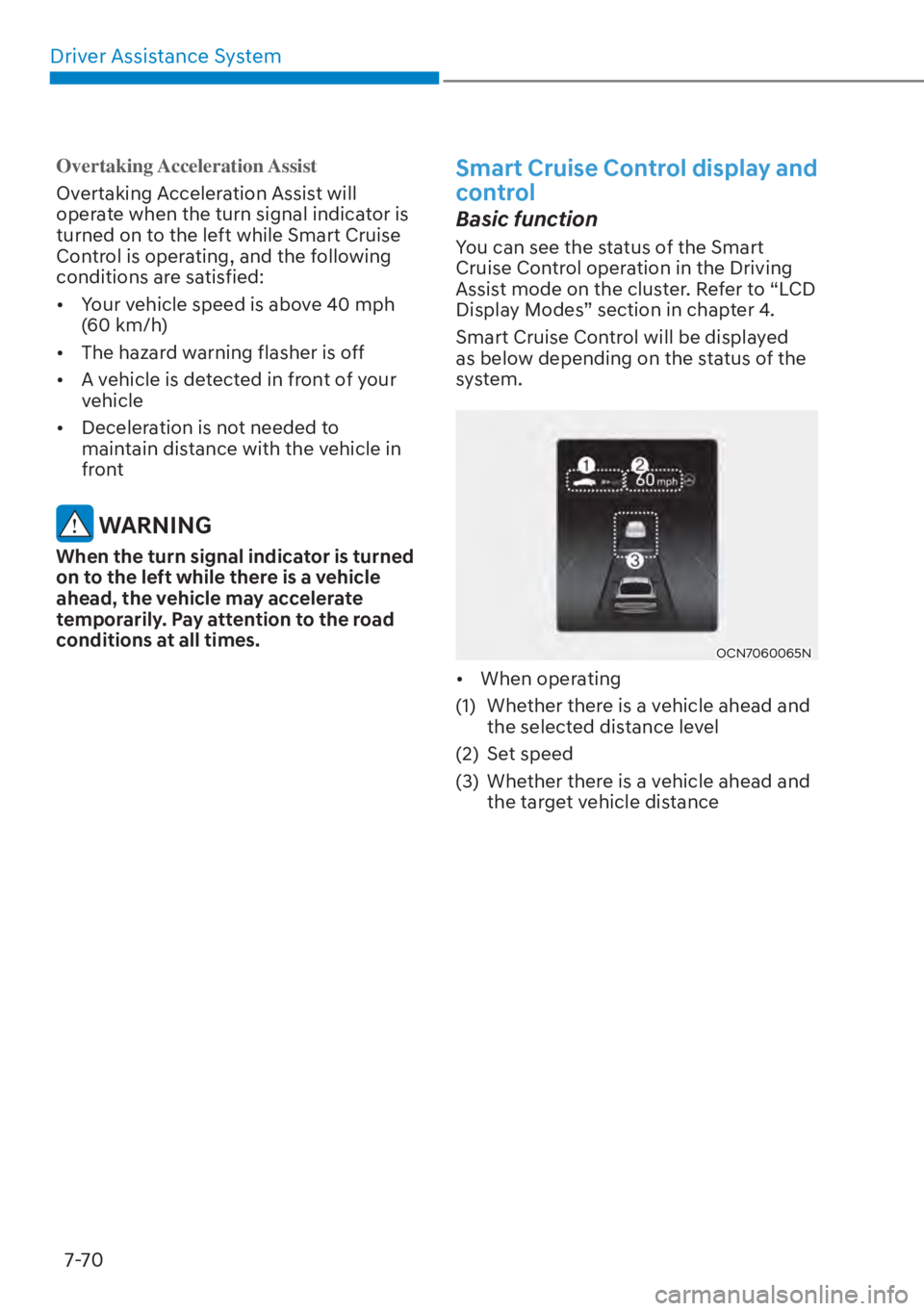

Overtaking Acceleration Assist
Overtaking Acceleration Assist will
oper
ate when the turn signal indicator is
turned on to the left while Smart Cruise
Control is operating, and the following
conditions are satisfied:

[ Your vehicle speed is above 40 mph
(60 km/h)

[ The hazard warning flasher is off

[ A vehicle is detected in front of your
vehicle

[ Deceleration is not needed to
maintain distance with the vehicle in
front
WARNING
When the turn signal indicator is turned
on to the left while there is a vehicle
ahead, the vehicle may accelerate
temporarily. Pay attention to the road
conditions at all times.
Smart Cruise Control display and
control
Basic function
You can see the status of the Smart
Cruise Control operation in the Driving
Assist mode on the cluster. Refer to “LCD
Display Modes” section in chapter 4.
Smart Cruise Control will be displayed
as below depending on the status of the
system.
OCN7060065N

[When operating
(1) Whether there is a vehicle ahead and the selected distance level
(2) Set speed
(3) Whether there is a vehicle ahead and the target vehicle distance
