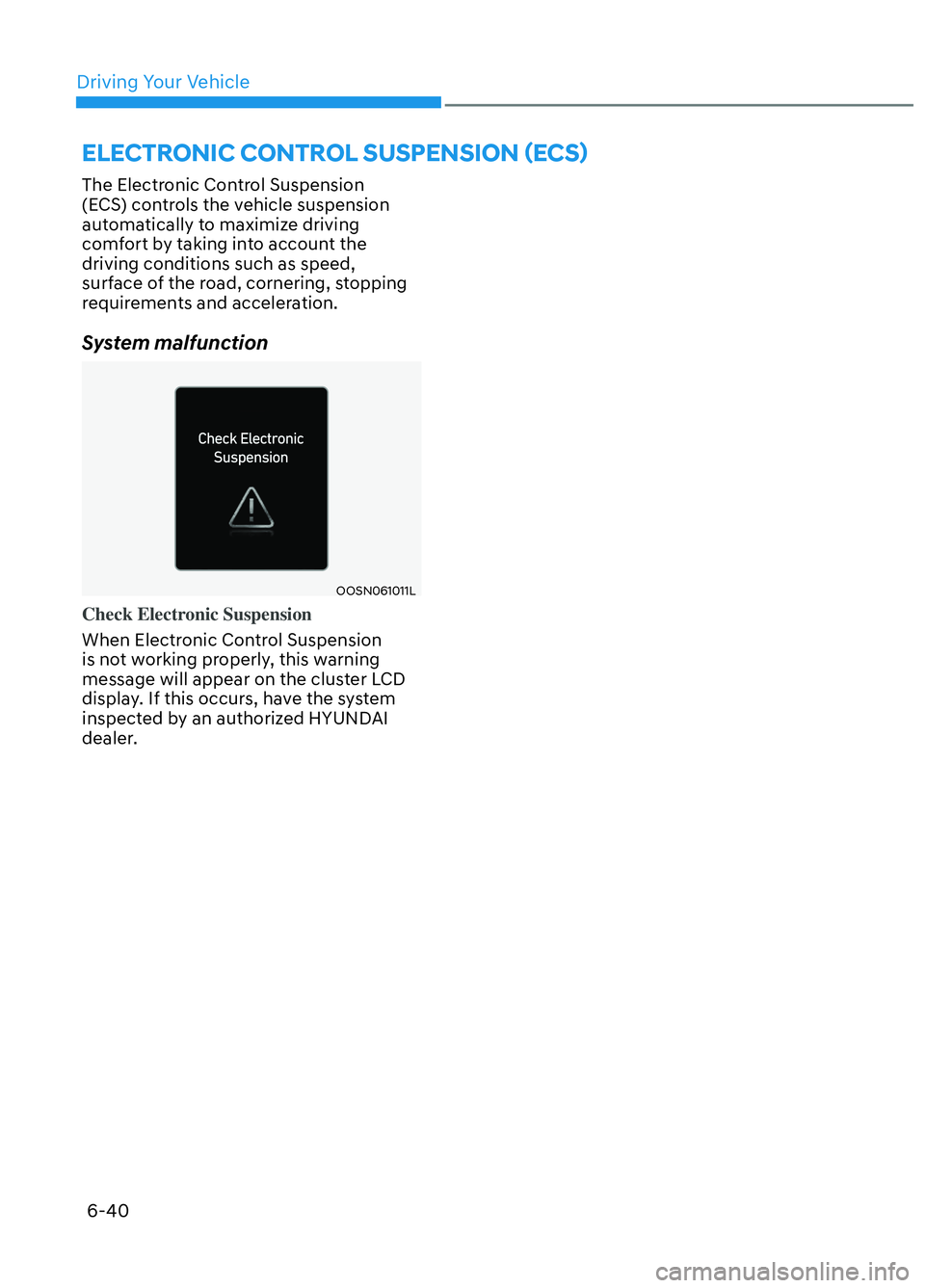

ELECTRONIC CONTROL SUSPENSION (ECS)
The Electronic Control Suspension
(ECS) controls the vehicle suspension
automatically to maximize driving
comfort by taking into account the
driving conditions such as speed,
surface of the road, cornering, stopping
requirements and acceleration.
System malfunction
OOSN061011LOOSN061011L
Check Electronic Suspension
When Electronic Control Suspension
is no
t working properly, this warning
message will appear on the cluster LCD
display. If this occurs, have the system
inspected by an authorized HYUNDAI
dealer.
CN7 N HMA 6.indd 6-40 2021-09-14  9:42:29

06
6-41

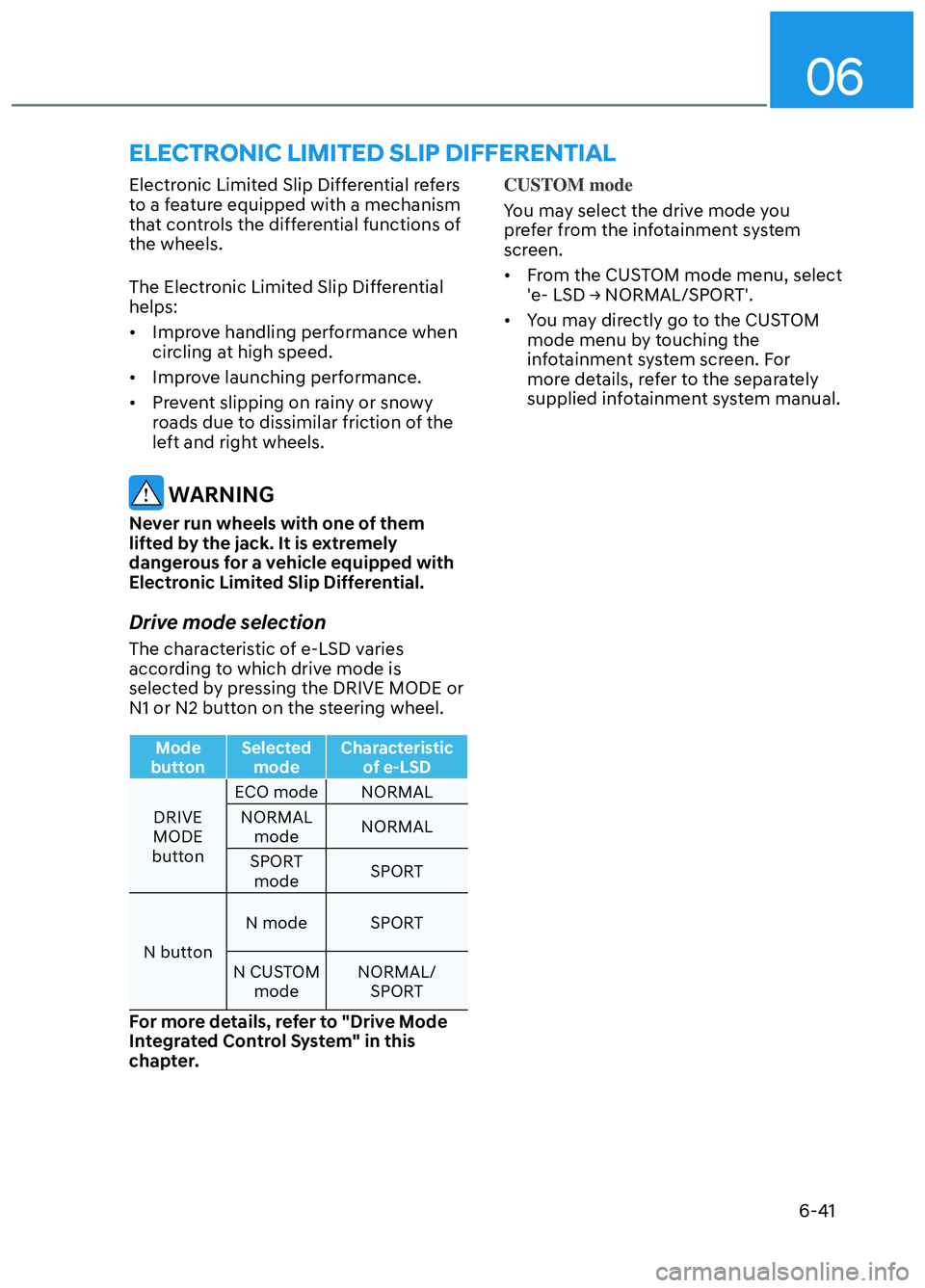

ELECTRONIC LIMITED SLIP DIFFERENTIAL
Electronic Limited Slip Differential refers
to a feature equipped with a mechanism
that controls the differential functions of
the wheels.
The Electronic Limited Slip Differential
helps:
• Improve handling performance when circling at high speed.
• Improve launching performance.
• Prevent slipping on rainy or snowy roads due to dissimilar friction of the
left and right wheels.
WARNING
Never run wheels with one of them
lifted by the jack. It is extremely
dangerous for a vehicle equipped with
Electronic Limited Slip Differential.
Drive mode selection
The characteristic of e-LSD varies
according to which drive mode is
selected by pressing the DRIVE MODE or
N1 or N2 button on the steering wheel.
Mode
button Selected
mode Characteristic
of e-LSD
DRIVE
MODE
butt

on ECO mode NORMAL
NORMAL mode NORMAL
SPORT mode SPORT
N button N mode SPORT
N CUSTOM mode NORMAL/
SPORT
For more details, refer to "Drive Mode
Integrated Control System" in this
chapter. CUSTOM mode
You may select the drive mode you
pr

efer from the infotainment system
screen.
• From the CUSTOM mode menu, select 'e- LSD → NORMAL/SPORT'.
• You may directly go to the CUSTOM mode menu by touching the
infotainment system screen. For
more details, refer to the separately
supplied infotainment system manual.
CN7 N HMA 6.indd 6-41 2021-09-14  9:42:30

Driving Your Vehicle6-42

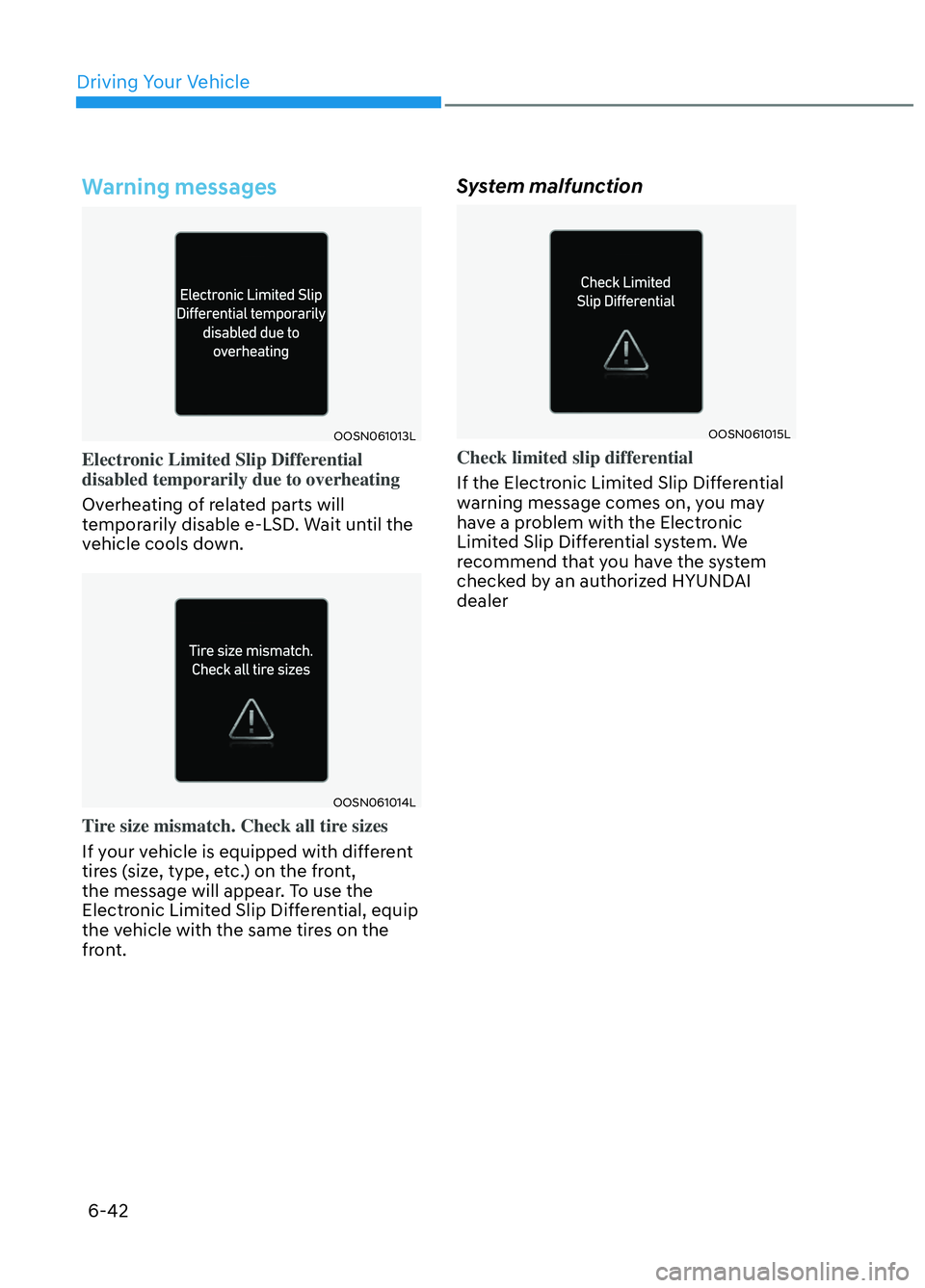

Warning messages
OOSN061013LOOSN061013L
Electronic Limited Slip Differential
disabled temporarily due to overheating
Overheating of related parts will
t
emporarily disable e-LSD. Wait until the
vehicle cools down.
OOSN061014LOOSN061014L
Tire size mismatch. Check all tire sizes
If your vehicle is equipped with different
tir
es (size, type, etc.) on the front,
the message will appear. To use the
Electronic Limited Slip Differential, equip
the vehicle with the same tires on the
front.
System malfunction
OOSN061015LOOSN061015L
Check limited slip differential
If the Electronic Limited Slip Differential
w
arning message comes on, you may
have a problem with the Electronic
Limited Slip Differential system. We
recommend that you have the system
checked by an authorized HYUNDAI
dealer
CN7 N HMA 6.indd 6-42 2021-09-14  9:42:30

06
6-43
N BUTTON

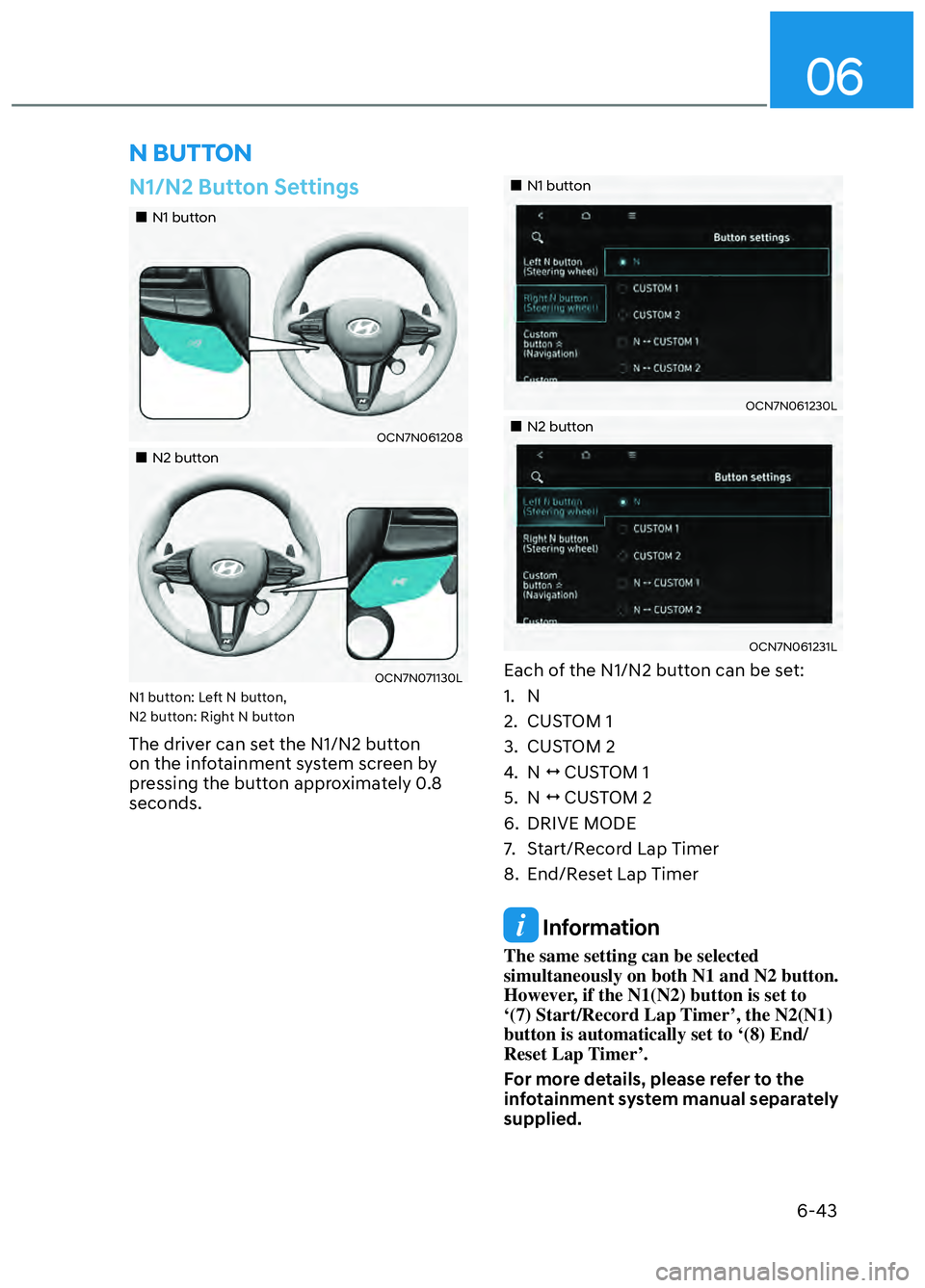

N1/N2 Button Settings
N1 buttonN1 button
OCN7N061208OCN7N061208
N2 buttonN2 button
OCN7N071130L OCN7N071130L N1 button: Left N button,
N2 button: Right N button
The driver can set the N1/N2 button
on the infotainment system screen by
pressing the button approximately 0.8
seconds.
N1 buttonN1 button
OCN7N061230LOCN7N061230L
N2 buttonN2 button
OCN7N061231LOCN7N061231L
Each of the N1/N2 button can be set:
1. N
2. CUSTOM 1
3. CUSTOM 2
4. N  CUSTOM 1
5. N  CUSTOM 2
6. DRIVE MODE
7. Start/Record Lap Timer
8. End/Reset Lap Timer
Information
The same setting can be selected
simultaneously on both N1 and N2 button.
However, if the N1(N2) button is set to
‘(7) Start/Record Lap Timer’, the N2(N1)
button is automatically set to ‘(8) End/
Reset Lap Timer’.
For more details, please refer to the
infotainment system manual separately
supplied.
CN7 N HMA 6.indd 6-43 2021-09-14  9:42:30

Driving Your Vehicle6-44

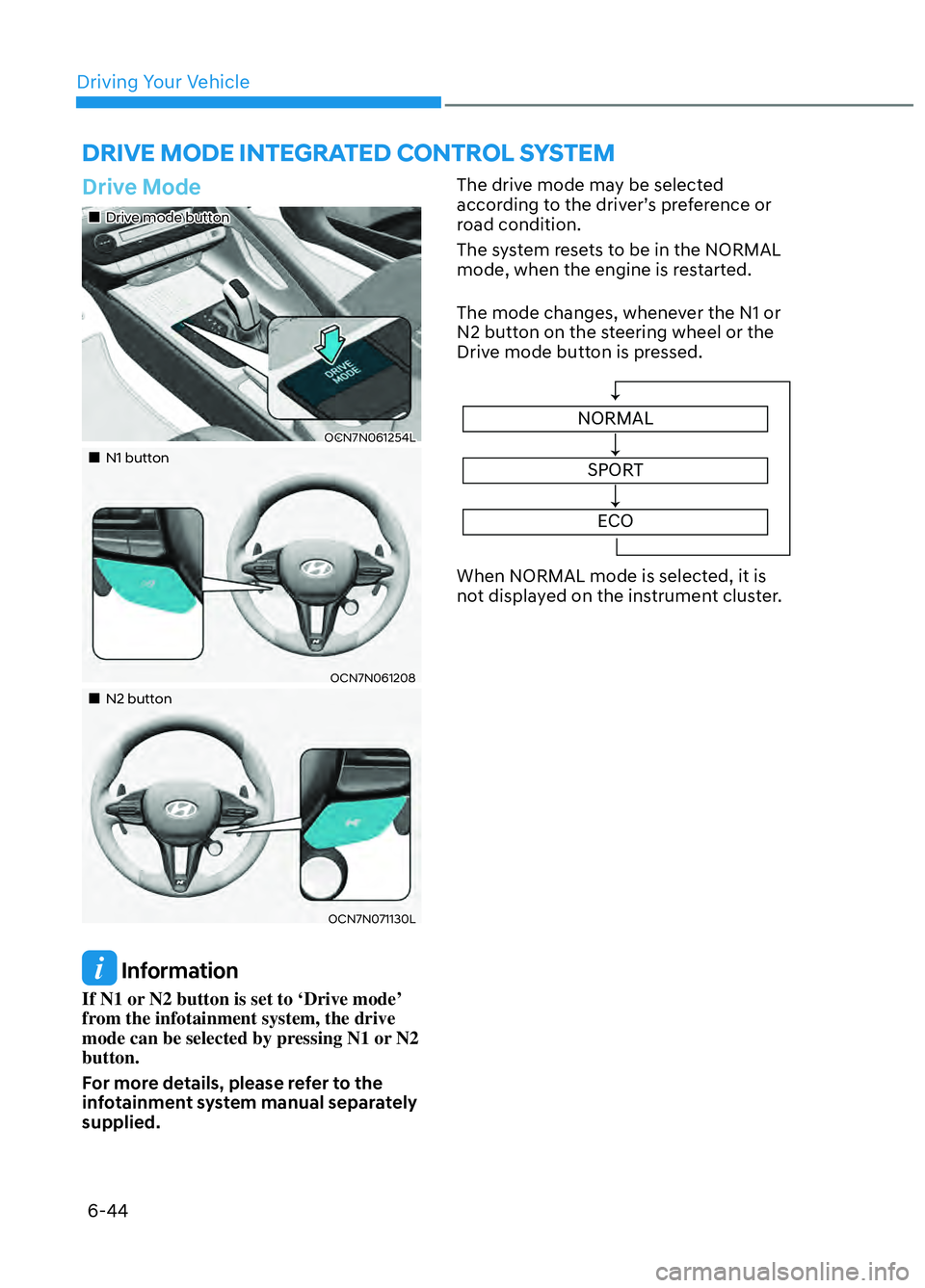

Drive Mode
Drive mode buttonDrive mode button
OCN7N061254LOCN7N061254L
N1 buttonN1 button
OCN7N061208 OCN7N061208
N2 buttonN2 button
OCN7N071130L OCN7N071130L
Information
If N1 or N2 button is set to ‘Drive mode’
from the infotainment system, the drive
mode can be selected by pressing N1 or N2
button.
For more details, please refer to the
infotainment system manual separately
supplied. The drive mode may be selected
according to the driver’s preference or
road condition.
The system resets to be in the NORMAL
mode, when the engine is restarted.
The mode changes, whenever the N1 or
N2 button on the steering wheel or the
Drive mode button is pressed.
NORMAL
SPORT
ECO
When NORMAL mode is selected, it is
not displayed on the instrument cluster.
DRIVE MODE INTEGRATED CONTROL SYSTEM
CN7 N HMA 6.indd 6-44 2021-09-14  9:42:31

06
6-45
When the Drive Mode is set
to ECO mode, the engine and
transmission control logic are
changed to maximize fuel
efficiency.
• When the ECO mode is selected, the ECO indicator will illuminate.
• If the vehicle is set to ECO mode, when the engine is turned OFF and
restarted, the Drive Mode setting will
change to NORMAL mode.
Information
Fuel efficiency depends on the driver’s
driving habit and road condition.
When ECO mode is activated:
• The acceleration response may be slightly r
educed as the accelerator
pedal is depressed moderately.
• The air conditioner performance may be limited.
• The engine noise may get louder.
The above situations are normal
conditions when ECO mode is activated,
to improve fuel efficiency. Limitation of ECO mode operation:
If the following conditions occur while
E

CO mode is operating, the system
operation is limited even though there is
no change in ECO indicator.
• When the coolant temperature is low:
The system will be limited until engine
performance becomes normal.
• When driving up a hill: The system will be limited to gain
power when driving uphill because
engine torque is restricted.
The system will be limited due to the
shift location.
• When the accelerator pedal is deeply depressed for a few seconds:
The system will be limited, judging
that the driver wants to speed up.
CN7 N HMA 6.indd 6-45 2021-09-14  9:42:31

Driving Your Vehicle6-46

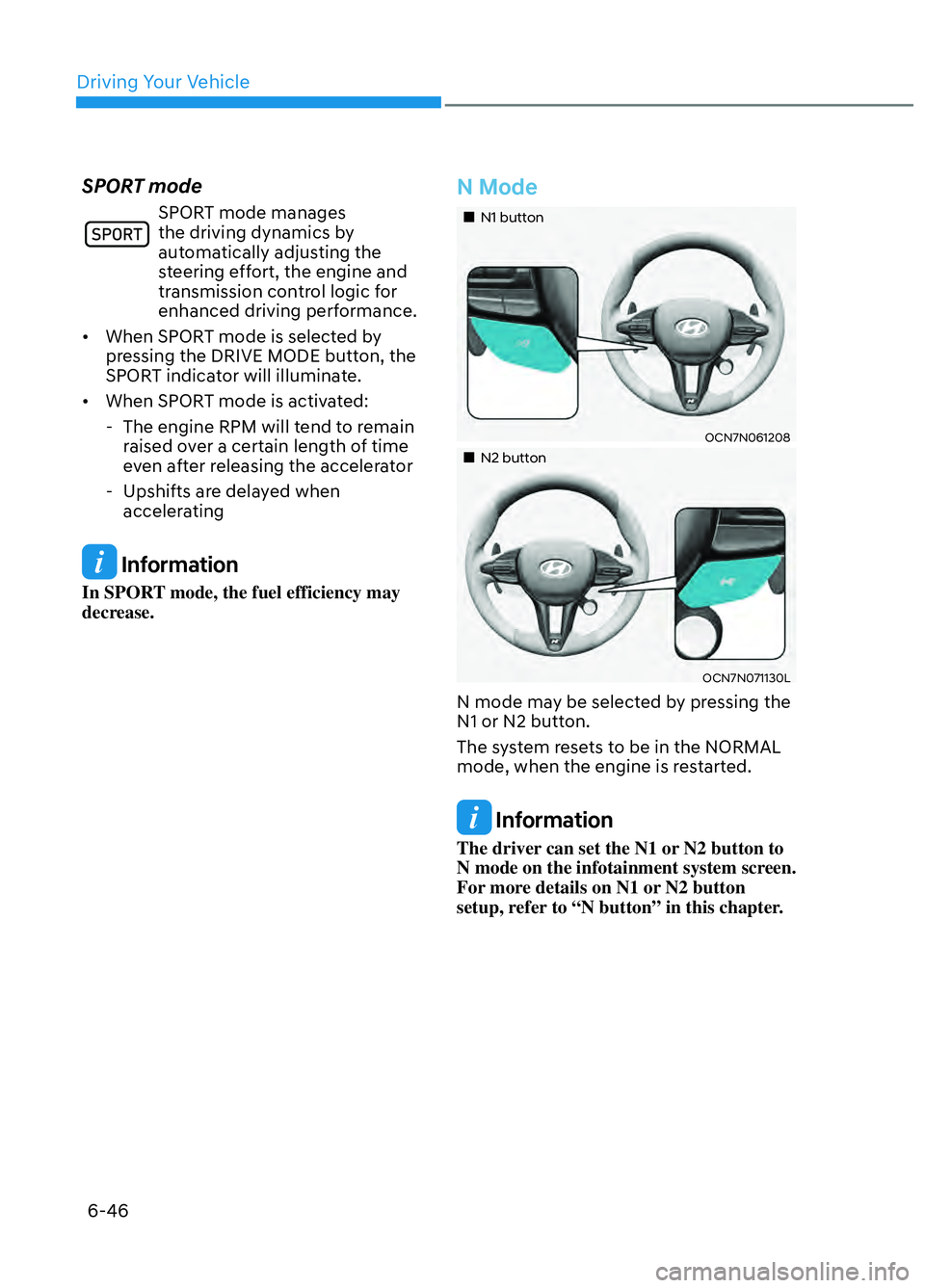

SPORT mode
SPORT mode manages
the driving dynamics by
automatically adjusting the
steering effort, the engine and
transmission control logic for
enhanced driving performance.
• When SPORT mode is selected by pressing the DRIVE MODE button, the
SPORT indicator will illuminate.
• When SPORT mode is activated: - The engine RPM will tend to remain raised over a certain length of time
even after releasing the accelerator
- Upshifts are delayed when accelerating
Information
In SPORT mode, the fuel efficiency may
decrease.
N Mode
N1 buttonN1 button
OCN7N061208 OCN7N061208
N2 buttonN2 button
OCN7N071130L OCN7N071130L
N mode may be selected by pressing the
N1 or N2 button.
The system resets to be in the NORMAL
mode, when the engine is restarted.
Information
The driver can set the N1 or N2 button to
N mode on the infotainment system screen.
For more details on N1 or N2 button
setup, refer to “N button” in this chapter.
CN7 N HMA 6.indd 6-46 2021-09-14  9:42:31

06
6-47

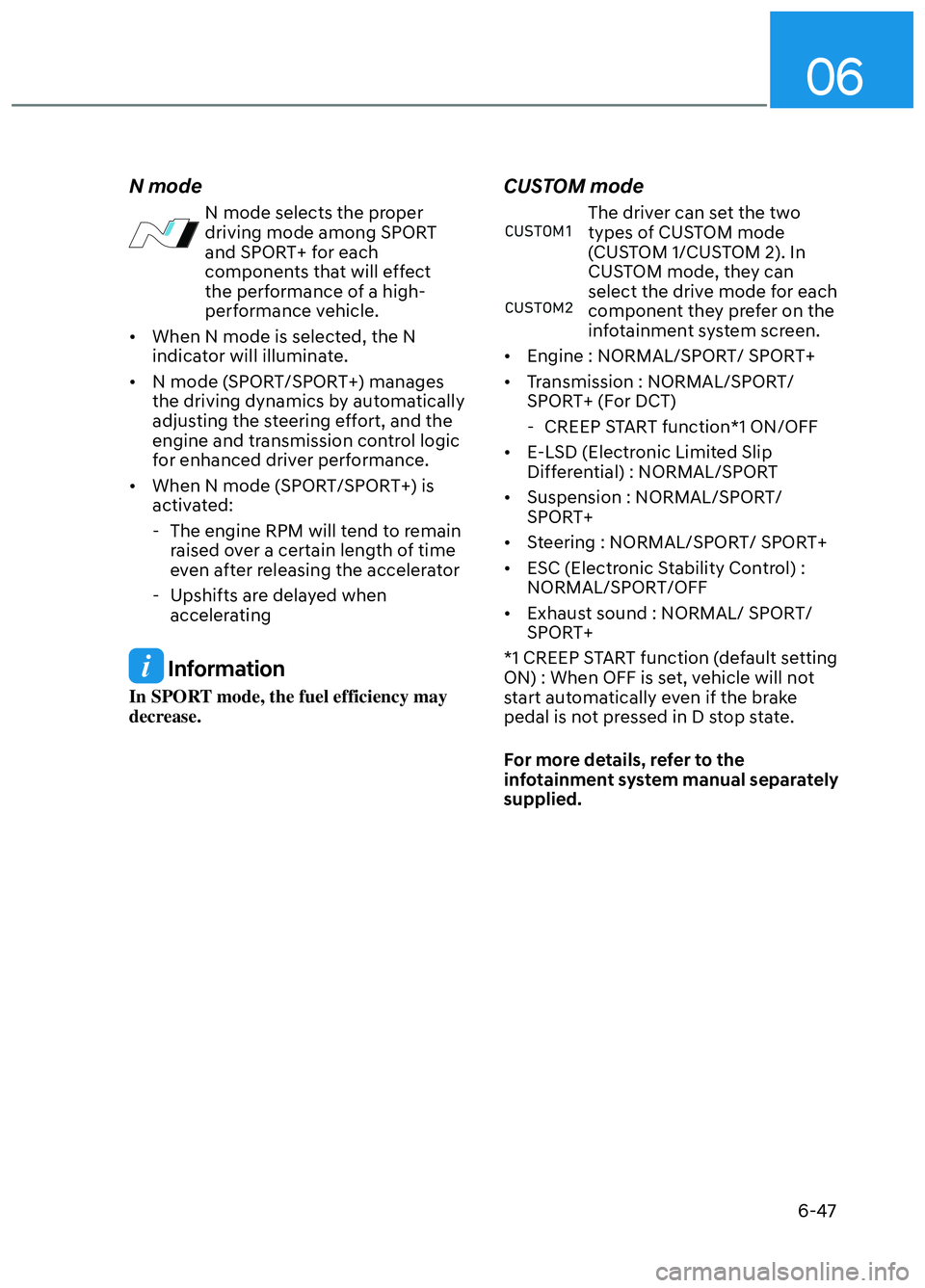

N mode
N mode selects the proper
driving mode among SPORT
and SPORT+ for each
components that will effect
the performance of a high-
performance vehicle.
• When N mode is selected, the N indicator will illuminate.
• N mode (SPORT/SPORT+) manages the driving dynamics by automatically
adjusting the steering effort, and the
engine and transmission control logic
for enhanced driver performance.
• When N mode (SPORT/SPORT+) is activated:
- The engine RPM will tend to remain raised over a certain length of time
even after releasing the accelerator
- Upshifts are delayed when accelerating
Information
In SPORT mode, the fuel efficiency may
decrease.
CUSTOM mode
The driver can set the two
types of CUSTOM mode
(CUSTOM 1/CUSTOM 2). In
CUSTOM mode, they can
select the drive mode for each
component they prefer on the
infotainment system screen.
• Engine : NORMAL/SPORT/ SPORT+
• Transmission : NORMAL/SPORT/ SPORT+ (For DCT)
- CREEP START function*1 ON/OFF
• E-LSD (Electronic Limited Slip Differential) : NORMAL/SPORT
• Suspension : NORMAL/SPORT/ SPORT+
• Steering : NORMAL/SPORT/ SPORT+
• ESC (Electronic Stability Control) : NORMAL/SPORT/OFF
• Exhaust sound : NORMAL/ SPORT/ SPORT+
*1 CREEP START function (default setting
ON) : When OFF is set, vehicle will not
start automatically even if the brake
pedal is not pressed in D stop state.
For more details, refer to the
infotainment system manual separately
supplied.
CN7 N HMA 6.indd 6-47 2021-09-14  9:42:32

Driving Your Vehicle6-48

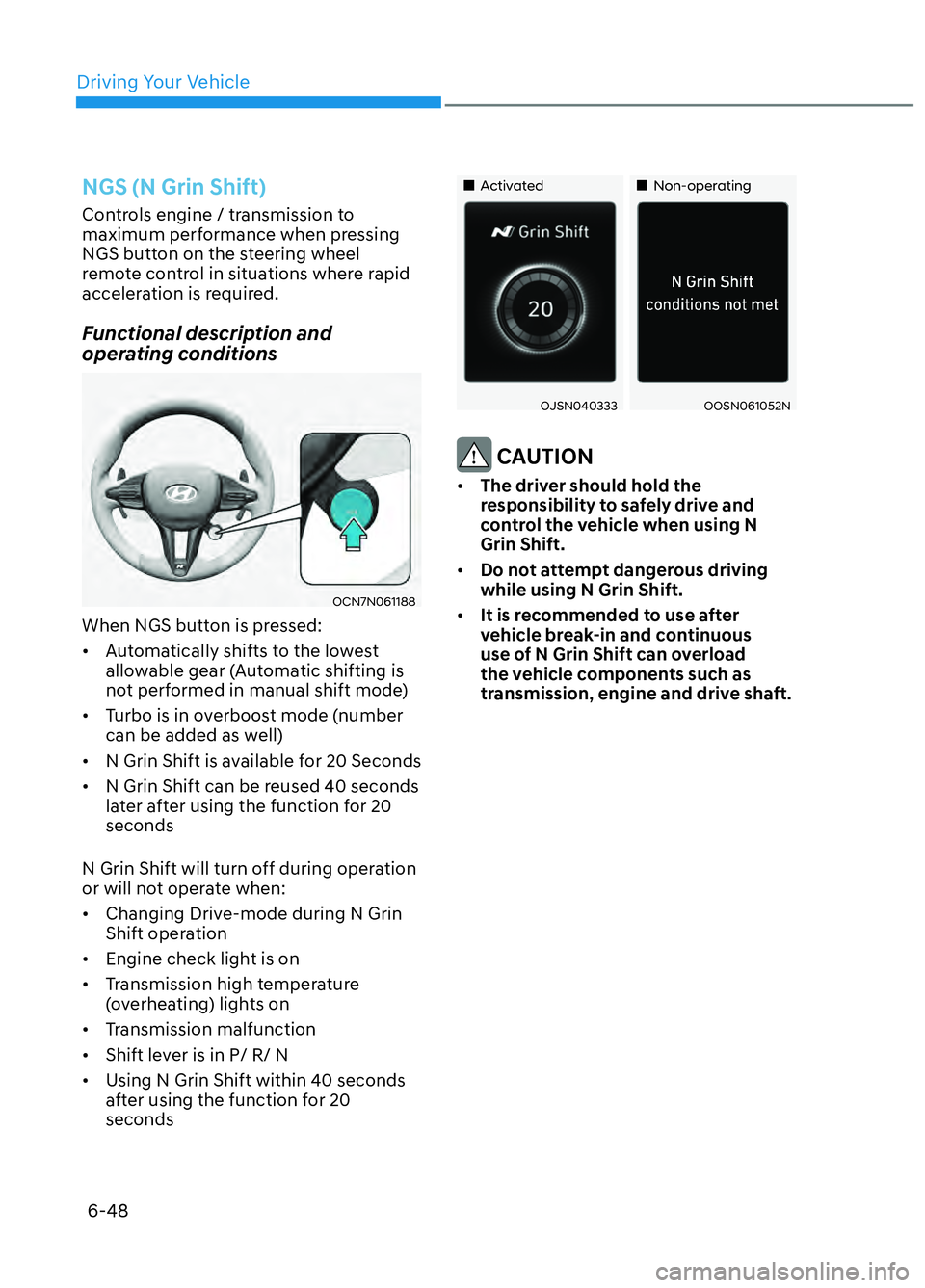

NGS (N Grin Shift)
Controls engine / transmission to
maximum performance when pressing
NGS button on the steering wheel
remote control in situations where rapid
acceleration is required.
Functional description and
operating conditions
OCN7N061188 OCN7N061188
When NGS button is pressed:
• Automatically shifts to the lowest allowable gear (Automatic shifting is
not performed in manual shift mode)
• Turbo is in overboost mode (number can be added as well)
• N Grin Shift is available for 20 Seconds
• N Grin Shift can be reused 40 seconds later after using the function for 20
seconds
N Grin Shift will turn off during operation
or will not operate when:
• Changing Drive-mode during N Grin Shift operation
• Engine check light is on
• Transmission high temperature (overheating) lights on
• Transmission malfunction
• Shift lever is in P/ R/ N
• Using N Grin Shift within 40 seconds after using the function for 20
seconds
ActivatedActivatedNon-operatingNon-operating
OJSN040333OJSN040333OOSN061052NOOSN061052N
CAUTION
• The driver should hold the
responsibility to safely drive and
control the vehicle when using N
Grin Shift.
• Do not attempt dangerous driving
while using N Grin Shift.
• It is recommended to use after
vehicle break-in and continuous
use of N Grin Shift can overload
the vehicle components such as
transmission, engine and drive shaft.
CN7 N HMA 6.indd 6-48 2021-09-14  9:42:32

06
6-49

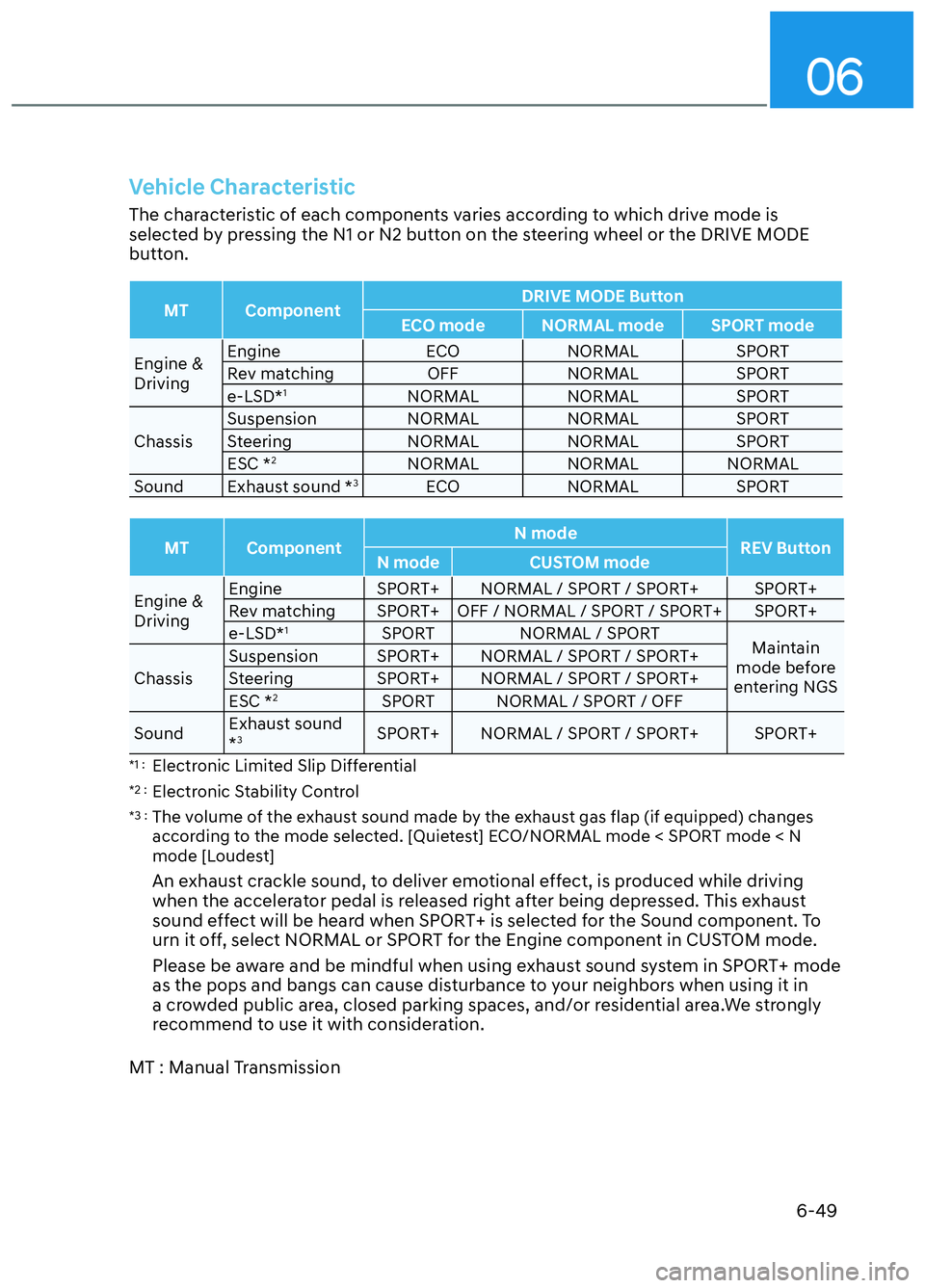

Vehicle Characteristic
The characteristic of each components varies according to which drive mode is
selected by pressing the N1 or N2 button on the steering wheel or the DRIVE MODE
button.
MT ComponentDRIVE MODE Button
ECO mode NORMAL mode SPORT mode
Engine &
Driving E

ngine
ECONORMAL SPORT
Rev matching OFFNORMAL SPORT
e-LSD*
1NORMAL NORMAL SPORT
Chassis Suspension
NORMALNORMAL SPORT
Steering NORMALNORMAL SPORT
ESC *
2NORMAL NORMALNORMAL
Sound Exhaust sound *3ECO NORMAL SPORT
MT Component N mode
REV Button
N mode CUSTOM mode
Engine &
Driving E

ngine
SPORT+ NORMAL / SPORT / SPORT+ SPORT+
Rev matching SPORT+ OFF / NORMAL / SPORT / SPORT+ SPORT+
e-LSD*
1SPORT NORMAL / SPORT Maintain
mode before
entering NGS
Chassis Suspension SPORT+ NORMAL / SPORT / SPORT+
Steering SPORT+ NORMAL / SPORT / SPORT+
ESC *
2SPORT NORMAL / SPORT / OFF
Sound Exhaust sound
*
3SPORT+ NORMAL / SPORT / SPORT+ SPORT+
*1 : Electronic Limited Slip Differential
*2 : Electronic Stability Control
*3 : The volume of the exhaust sound made by the exhaust gas flap (if equipped) changes
according to the mode selected. [Quietest] ECO/NORMAL mode < SPORT mode < N
mode [Loudest]
An exhaust crackle sound, to deliver emotional effect, is produced while driving
when the accelerator pedal is released right after being depressed. This exhaust
sound effect will be heard when SPORT+ is selected for the Sound component. To
urn it off, select NORMAL or SPORT for the Engine component in CUSTOM mode.
Please be aware and be mindful when using exhaust sound system in SPORT+ mode
as the pops and bangs can cause disturbance to your neighbors when using it in
a crowded public area, closed parking spaces, and/or residential area.We strongly
recommend to use it with consideration.
MT : Manual Transmission
CN7 N HMA 6.indd 6-49 2021-09-14  9:42:32
