2-7
02
2.0 T-GDi2.0 T-GDi
The actual engine compartment in the vehicle may differ from the illustration.
OCN7N091001 OCN7N091001
1. Engine coolant reservoir .......................9-18
2. Brake/clutch fluid reservoir ................. 9-22
3. Air cleaner ............................................. 9-24
4. Engine oil dipstick ................................. 9-15
5. Engine oil filler cap ................................ 9-156. Windshield washer fluid reservoir ....... 9-23
7. Fuse box ................................................ 9-48
8. Battery ................................................... 9-30
9. Engine coolant cap ................................ 9-19
ENGINE COMPARTMENT
CN7 N HMA 2.indd 2-7
2021-09-14  9:30:00

4
N Mode Indicator Light ...............................................................\
........................ 4-20
CUSTOM Mode Indicator Light ........................................................................\
... 4-20
REV (Rev Matching) Indicator Light ................................................................... 4-20
Icy Road Warning Light ........................................................................\
............... 4-20
LCD Display Messages ........................................................................\
.................... 4-21 Key not in vehicle (for smart key system) ............................................................ 4-21
Key not detected (for smart key system)............................................................. 4-21
Press START button with key (for smart key system) ......................................... 4-21
Press START button again (for smart key system) .............................................. 4-21
Low Key Battery (for smart key system) .............................................................. 4-21
Shift to P (for smart key system and dual clutch transmission)......................... 4-21
Press brake pedal to start engine (for smart key system and dual clutch
transmission) .....................................................................\
.................................... 4-21
Press clutch pedal to start engine (for smart key system and manual
transmission) .....................................................................\
.................................... 4-21
Press START button again (for smart key system) .............................................. 4-21
Check BRAKE SWITCH fuse (for smart key system and dual clutch
transmission) .....................................................................\
................................... 4-22
Shift to P or N to start engine (for smart key system and dual clutch
transmission) .....................................................................\
................................... 4-22
Battery discharging due to external electrical devices ..................................... 4-22
Door, Hood, Trunk open indicator ...................................................................... 4-22
Sunroof open indicator ........................................................................\
................ 4-22
Lights mode ............................................................\
............................................. 4-23
Wiper mode ........................................................................\
.................................. 4-23
Low pressure ........................................................................\
................................ 4-23
Heated Steering Wheel turned off ...................................................................... 4-23
Low washer fluid ........................................................................\
.......................... 4-23
Low fuel ........................................................................\
........................................ 4-24
Engine Overheated ........................................................................\
...................... 4-24
Check headlight (High) ........................................................................\
............... 4-24
Check headlight (Low) ........................................................................\
................. 4-24
Check turn signal ........................................................................\
......................... 4-24
Check brake light ........................................................................\
......................... 4-24
Check daytime running light ........................................................................\
....... 4-24
Check high mounted brake light ........................................................................\
4-24
Check headlight LED ........................................................................\
................... 4-24
CN7 N HMA 4.indd 4-2 2021-09-14  9:32:02

04
4-23
Lights mode
OIK040075LOIK040075L
This indicator displays which exterior
light is selected using the lighting
control.
Wiper mode
OIK040077LOIK040077L
This indicator displays which wiper speed
is selected using the wiper control.
Low pressure
OCN7N041026LOCN7N041026L
This warning message is displayed if the
tire pressure is low. The corresponding
tire on the vehicle will be illuminated.
For more details, refer to “Tire Pressure
Monitoring System (TPMS)” in chapter
8.
Heated Steering Wheel turned off (if
equipped)
This message is displayed if you turn off
the heated steering wheel.
For more details, refer to “Heated
Steering Wheel” in chapter 5.
Low washer fluid (if equipped)
This warning message is displayed if
the washer fluid level in the reservoir is
nearly empty.
Have the washer fluid reservoir refilled.
CN7 N HMA 4.indd 4-232021-09-14  9:32:42

05
5-77
Windshield Washers
ODN8059209KODN8059209K
In the OFF position, pull the lever gently
toward you to spray washer fluid on the
windshield and to run the wipers 1-3
cycles. The spray and wiper operation
will continue until you release the lever. If
the washer does not work, you may need
to add washer fluid to the washer fluid
reservoir.
WARNING
When the outside temperature is below
freezing, ALWAYS warm the windshield
using the defroster to help prevent
the washer fluid from freezing on the
windshield and obscuring your vision
which could result in an accident and
serious injury or death.
NOTICE
• To prevent possible damage to the
washer pump, do not operate the
washer when the fluid reservoir is
empty.
• To prevent possible damage to the
wipers or windshield, do not operate
the wipers when the windshield is
dry.
• To prevent damage to the wiper
arms and other components, do
not attempt to move the wipers
manually.
• To prevent possible damage to the
wipers and washer system, use anti-
freezing washer fluids in the winter
season or cold weather.
CN7 N HMA 5.indd 5-77 2021-09-06  3:06:37

Driving Your Vehicle6-68
Use approved window washer anti-
freeze in system
To keep the water in the window washer
system from freezing, add an approved
window washer anti-freeze solution in
accordance with instructions on the
container.
Window washer anti-freeze is available
from an authorized HYUNDAI dealer
and most auto parts outlets. Do not
use engine coolant or other types of
antifreeze as these may damage the
paint finish.
Do not let your parking brake freeze
Under some conditions your parking
brake can freeze in the engaged position.
This is most likely to happen when
there is an accumulation of snow or
ice around or near the rear brakes or
if the brakes are wet. If there is a risk
the parking brake may freeze, apply
it only temporarily while you put the
gear selector lever in P and block the
rear wheels so the car cannot roll. Then
release the parking brake.
Do not let ice and snow accumulate
underneath
Under some conditions, snow and ice
can build up under the fenders and
interfere with the steering. When driving
in severe winter conditions where this
may happen, you should periodically
check underneath the car to be sure the
movement of the front wheels and the
steering components is not obstructed.
Don't place foreign objects
or materials in the engine
compartment
Placement of foreign object or materials
which prevent cooling of the engine, in
the engine compartment, may cause a
failure or combustion. The manufacturer
is not responsible for the damage caused
by such placement.
To keep locks from freezing
To keep the locks from freezing, squirt
an approved de-icer fluid or glycerine
into the key opening. If a lock is covered
with ice, squirt it with an approved de-
icing fluid to remove the ice. If the lock
is frozen internally, you may be able to
thaw it out by using a heated key. Handle
the heated key with care to avoid injury.
CN7 N HMA 6.indd 6-68 2021-09-14  9:42:42

Driver Assistance System7-8
Forward Collision-Avoidance Assist
disabled
OTM070093NOTM070093N
When the front windshield where the
front view camera is located or the
sensor is covered with foreign material,
such as snow or rain, it can reduce the
detecting performance and temporarily
limit or disable Forward Collision-
Avoidance Assist.
If this occurs the ‘Forward Safety system
disabled. Camera obscured’ warning
message, and the
and warning
lights will illuminate on the cluster.
Forward Collision-Avoidance Assist will
operate properly when such snow, rain or
foreign material is removed.
If Forward Collision-Avoidance Assist
does not operate properly after
obstruction (snow, rain, or foreign
material) is removed, have the vehicle
inspected by an authorized HYUNDAI
dealer.
WARNING
• Even though the warning message or
warning light does not appear on the
cluster, Forward Collision-Avoidance
Assist may not properly operate.
• Forward Collision-Avoidance Assist
may not properly operate in an area
(for example, open terrain), where
any objects are not detected after
turning ON the engine.
Limitations of Forward Collision-
Avoidance Assist
Forward Collision-Avoidance Assist may
not operate properly, or it may operate
unexpectedly under the following
circumstances:
• The detecting sensor or the
surroundings are contaminated or
damaged
• The temperature around the front view camera is high or low due to
surrounding environment
• The camera lens is contaminated due to tinted, filmed or coated windshield,
damaged glass, or sticky foreign
material (sticker, bug, etc.) on the
glass
• Moisture is not removed or frozen on the windshield
• Washer fluid is continuously sprayed, or the wiper is on
• Driving in heavy rain or snow, or thick fog
• The field of view of the front view camera is obstructed by sun glare
• Street light or light from an oncoming traffic is reflected on the wet road
surface, such as a puddle on the road
• An object is placed on the dashboard
• Your vehicle is being towed
• The surrounding is very bright
• The surrounding is very dark, such as in a tunnel, etc.
• The brightness changes suddenly, for example when entering or exiting a
tunnel
• The brightness outside is low, and the headlamps are not on or are not bright
CN7 N HMA 7.indd 7-8 2021-09-14  9:44:32

Engine Compartment ........................................................................\
............ 9-3
Maintenance Services ........................................................................\
...........9-4
Owner’s Responsibility ........................................................................\
.................... 9-4
Owner Maintenance Precautions ........................................................................\
.... 9-4
Owner Maintenance ........................................................................\
.............. 9-5Owner Maintenance Schedule ........................................................................\
........ 9-5
Scheduled Maintenance Services ................................................................ 9-7Normal Maintenance Schedule ........................................................................\
....... 9-9
Maintenance Under Severe Usage Conditions ..................................................... 9-12
Explanation of Scheduled Maintenance Items .......................................... 9-14Dual clutch transmission fluid ........................................................................\
....... 9-15
Drive Axle Shafts and Boots ........................................................................\
........... 9-15
Engine Oil ........................................................................\
............................. 9-16Checking the Engine Oil Level ........................................................................\
........9-16
Checking the Engine Oil and Filter ........................................................................\
9-17
Engine Coolant ........................................................................\
..................... 9-19Checking the Engine Coolant Level .......................................................................9\
-19
Changing Engine Coolant ........................................................................\
.............. 9-22
Brake/Clutch Fluid ........................................................................\
............... 9-23Checking the Brake/Clutch Fluid Level ................................................................ 9-23
Washer Fluid ........................................................................\
......................... 9-24
Checking the Washer Fluid Level ........................................................................\
.. 9-24
Parking Brake ........................................................................\
....................... 9-24Checking the Parking Brake ........................................................................\
.......... 9-24
Air Cleaner ........................................................................\
............................ 9-25Filter Replacement ........................................................................\
......................... 9-25
Cabin Air Filter ........................................................................\
...................... 9-27
Filter Inspection........................................................................\
.............................. 9-27
Filter Replacement ........................................................................\
......................... 9-27
Wiper Blades ........................................................................\
........................ 9-28Blade Inspection ........................................................................\
............................ 9-28
Blade Replacement ........................................................................\
........................ 9-28
Battery ....................................................................\
......................................9-30For Best Battery Service ........................................................................\
................. 9-31
Battery Capacity Label ........................................................................\
.................... 9-31
Battery Recharging ........................................................................\
........................ 9-32
Reset Items ........................................................................\
..................................... 9-32
9. Maintenance
9
CN7 N HMA 9.indd 9-12021-09-08  9:30:04

9-3
09
1. Engine coolant reservoir
2. Brake/clutch fluid reservoir
3. Air cleaner
4. Engine oil dipstick5. Engine oil filler cap
6. Windshield washer fluid reservoir
7. Fuse box
8. Battery
9. Engine coolant cap
2.0 T-GDi2.0 T-GDi
The actual engine compartment in the vehicle may differ from the illustration.
OCN7N091001 OCN7N091001
ENGINE COMPARTMENT
CN7 N HMA 9.indd 9-3
2021-09-08  9:30:13

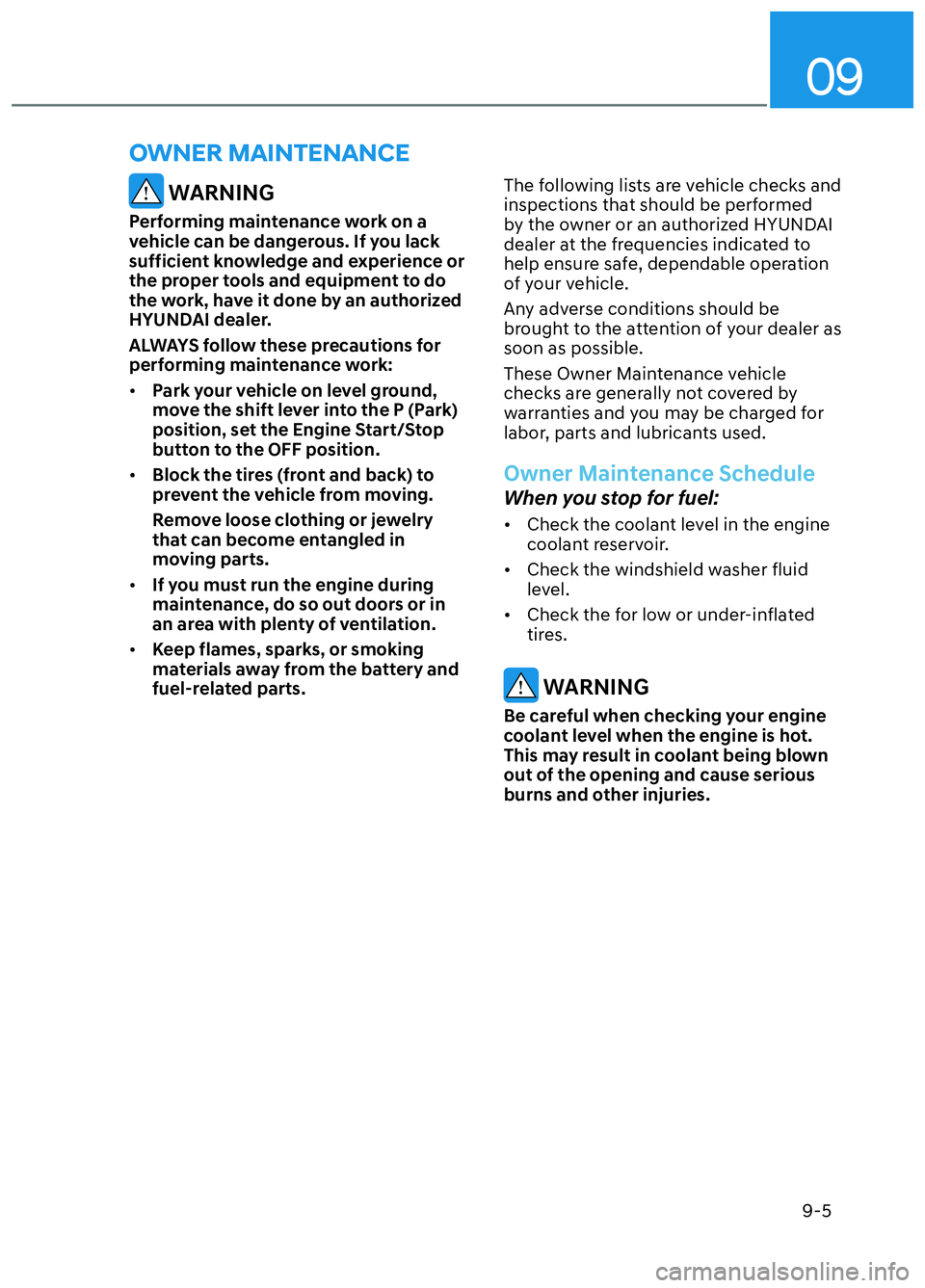

09
9-5
WARNING
Performing maintenance work on a
vehicle can be dangerous. If you lack
sufficient knowledge and experience or
the proper tools and equipment to do
the work, have it done by an authorized
HYUNDAI dealer.
ALWAYS follow these precautions for
performing maintenance work:
• Park your vehicle on level ground,
move the shift lever into the P (Park)
position, set the Engine Start/Stop
button to the OFF position.
• Block the tires (front and back) to
prevent the vehicle from moving.
Remove loose clothing or jewelry
that can become entangled in
moving parts.
• If you must run the engine during
maintenance, do so out doors or in
an area with plenty of ventilation.
• Keep flames, sparks, or smoking
materials away from the battery and
fuel-related parts. The following lists are vehicle checks and
inspections that should be performed
by the owner or an authorized HYUNDAI
dealer at the frequencies indicated to
help ensure safe, dependable operation
of your vehicle.
Any adverse conditions should be
brought to the attention of your dealer as
soon as possible.
These Owner Maintenance vehicle
checks are generally not covered by
warranties and you may be charged for
labor, parts and lubricants used.
Owner Maintenance Schedule
When you stop for fuel:
• Check the coolant level in the engine
coolant reservoir.
• Check the windshield washer fluid level.
• Check the for low or under-inflated tires.
WARNING
Be careful when checking your engine
coolant level when the engine is hot.
This may result in coolant being blown
out of the opening and cause serious
burns and other injuries.
OWNER MAINTENANCE
CN7 N HMA 9.indd 9-5 2021-09-08  9:30:13

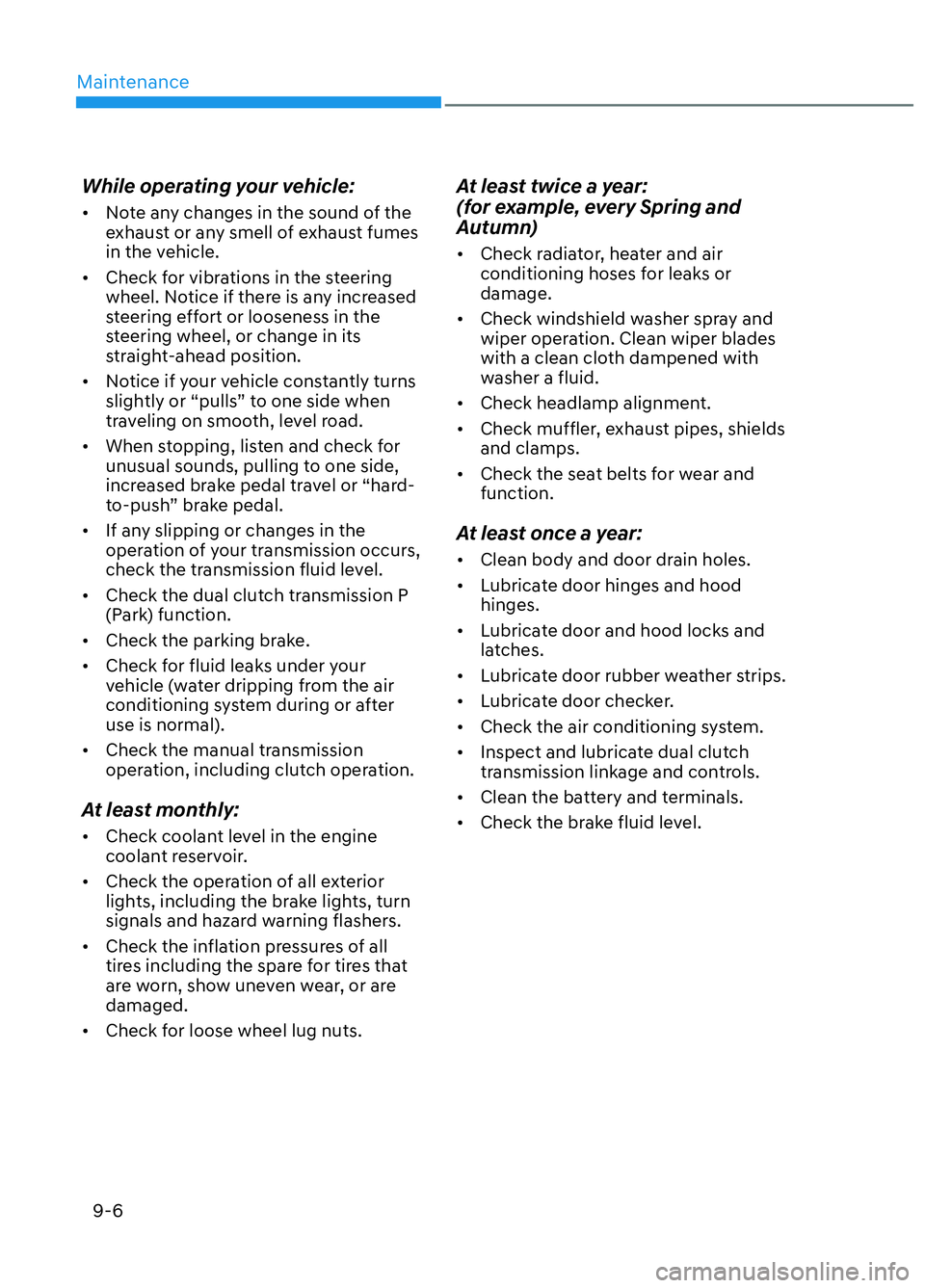

Maintenance9-6
While operating your vehicle:
• Note any changes in the sound of the exhaust or any smell of exhaust fumes
in the vehicle.
• Check for vibrations in the steering wheel. Notice if there is any increased
steering effort or looseness in the
steering wheel, or change in its
straight-ahead position.
• Notice if your vehicle constantly turns slightly or “pulls” to one side when
traveling on smooth, level road.
• When stopping, listen and check for unusual sounds, pulling to one side,
increased brake pedal travel or “hard-
to-push” brake pedal.
• If any slipping or changes in the operation of your transmission occurs,
check the transmission fluid level.
• Check the dual clutch transmission P (Park) function.
• Check the parking brake.
• Check for fluid leaks under your vehicle (water dripping from the air
conditioning system during or after
use is normal).
• Check the manual transmission operation, including clutch operation.
At least monthly:
• Check coolant level in the engine coolant reservoir.
• Check the operation of all exterior lights, including the brake lights, turn
signals and hazard warning flashers.
• Check the inflation pressures of all tires including the spare for tires that
are worn, show uneven wear, or are
damaged.
• Check for loose wheel lug nuts.
At least twice a year:
(for example, every Spring and
Autumn)
• Check radiator, heater and air conditioning hoses for leaks or
damage.
• Check windshield washer spray and wiper operation. Clean wiper blades
with a clean cloth dampened with
washer a fluid.
• Check headlamp alignment.
• Check muffler, exhaust pipes, shields and clamps.
• Check the seat belts for wear and function.
At least once a year:
• Clean body and door drain holes.
• Lubricate door hinges and hood hinges.
• Lubricate door and hood locks and latches.
• Lubricate door rubber weather strips.
• Lubricate door checker.
• Check the air conditioning system.
• Inspect and lubricate dual clutch transmission linkage and controls.
• Clean the battery and terminals.
• Check the brake fluid level.
CN7 N HMA 9.indd 9-6 2021-09-08  9:30:14
