Vehicle Information
„„Smartstream G 2.0 Atkinson
The actual engine room in the vehicle may differ from the illustration.OCN7080064L

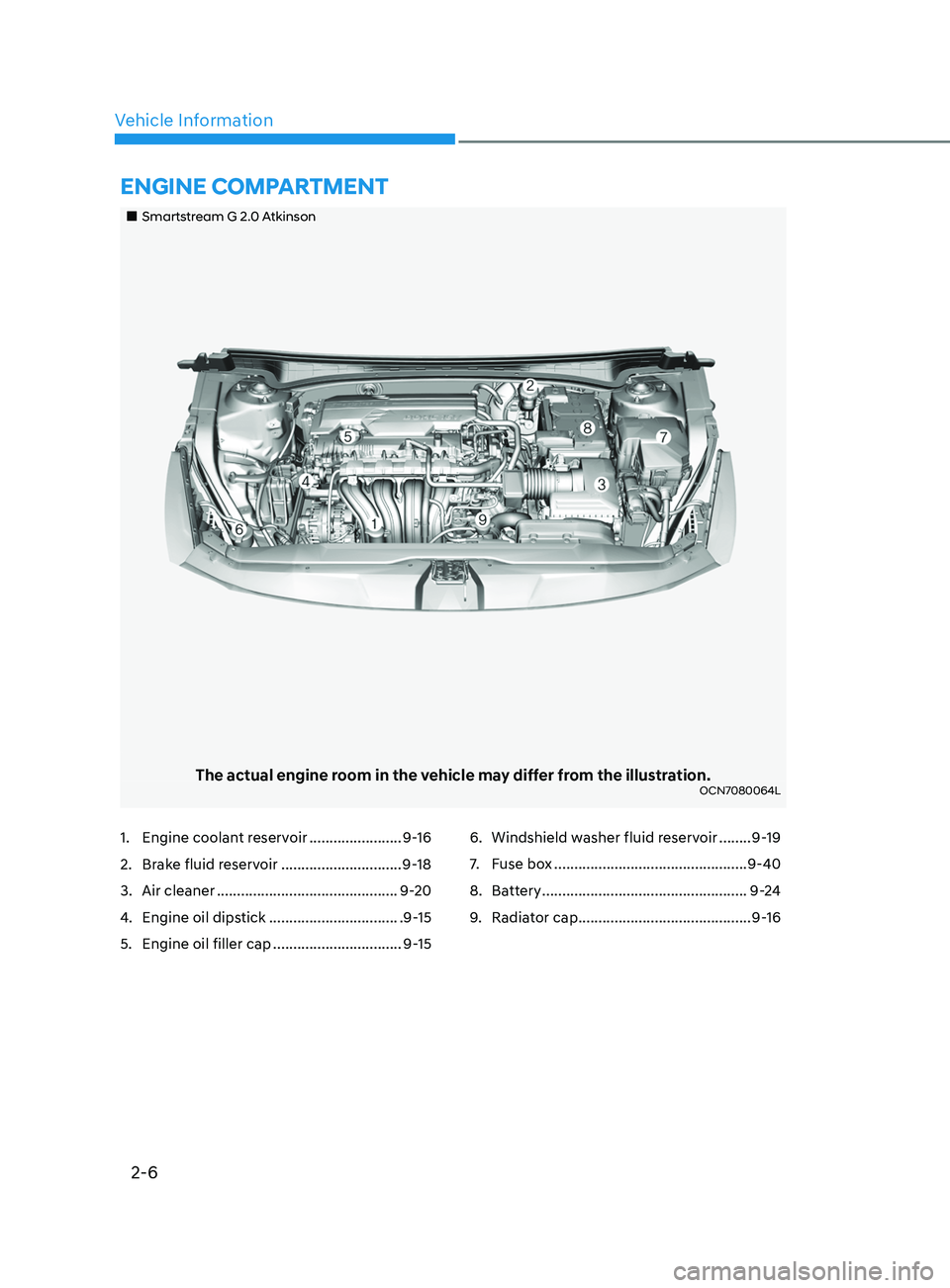

EnginE ComPartmEnt
1. Engine coolant reservoir .......................9- 16
2.
Brak
e fluid reservoir
.............................. 9-

18
3.
Air cleaner ............................................. 9-

20
4.
Engine oil dips

tick
................................ .9-

15
5.
Engine oil filler cap ................................ 9-

156. Windshield washer fluid r
eservoir ........
9- 19
7.
Fuse bo
x
................................................9-40
8.
Batt

ery
...................................................9-2

4
9.
Radiat

or cap
...........................................9-

16

02
2-7

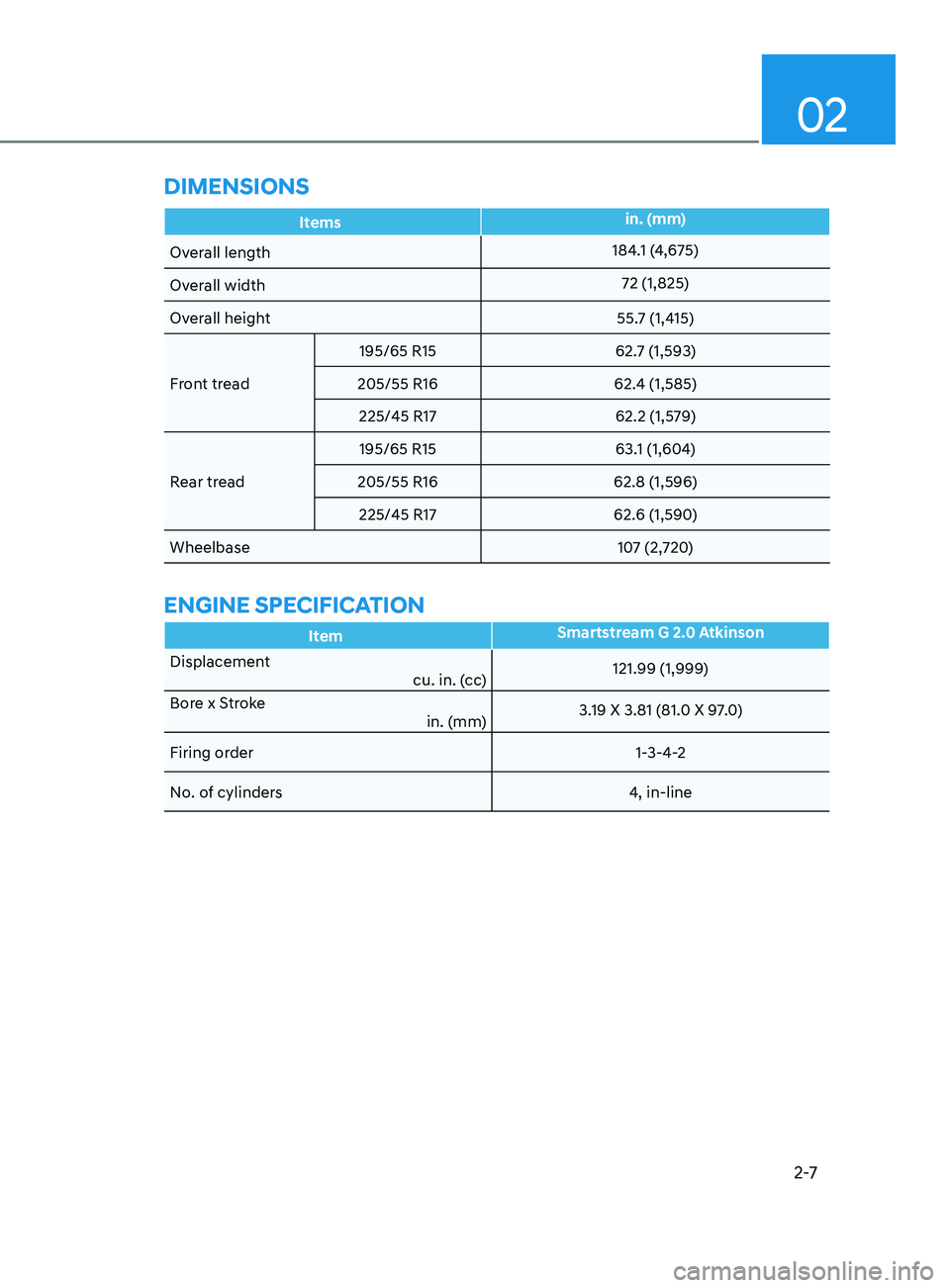

DimEnsions
Itemsin. (mm)
Overall length 184.1 (4,675)
Overall width 72 (1,825)
Overall height 55.7 (1,415)
Front tread 195/65 R15
62.7 (1,593)
205/55 R16 62.4 (1,585)
225/45 R17 62.2 (1,579)
Rear tread 195/65 R15
63.1 (1,604)
205/55 R16 62.8 (1,596)
225/45 R17 62.6 (1,590)
Wheelbase 107 (2,720)
EnginE sPECifiCation
ItemSmartstream G 2.0 Atkinson
Displacement cu. in. (cc) 121.99 (1,999)
Bore x Stroke in. (mm)3.19 X 3.81 (81.0 X 97.0)
Firing order 1-3-4-2
No. of cylinders 4, in-line

Vehicle Information
2-8

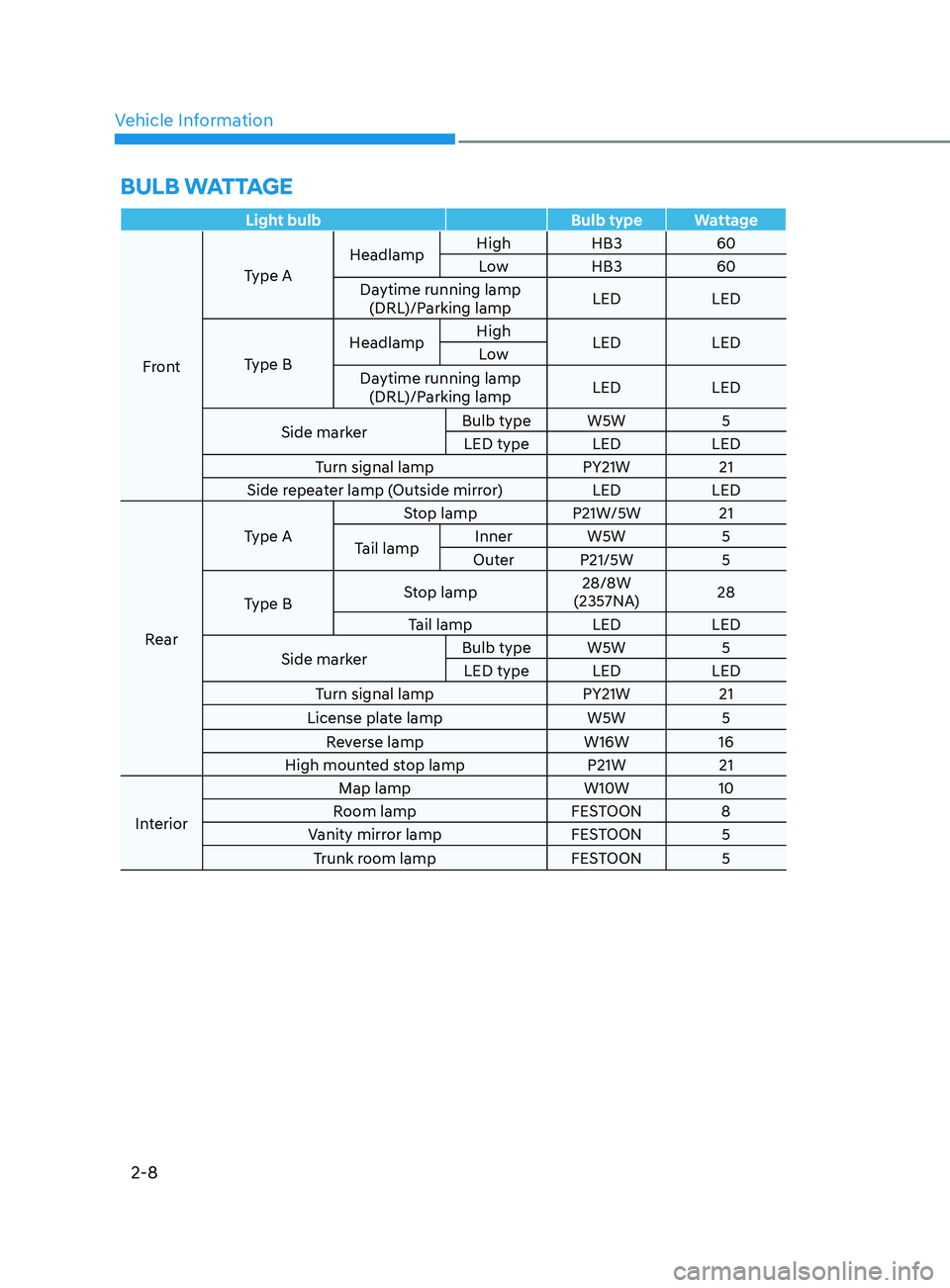

BulB wattagE
Light bulbBulb type Wattage
Front Type A
Headlamp
High HB3
60
Low HB3 60
Daytime running lamp (DRL)/Parking lamp LED
LED
Type B Headlamp
High
LED LED
Low
Daytime running lamp (DRL)/Parking lamp LED
LED
Side marker Bulb type W5W
5
LED type LED LED
Turn signal lamp PY21W21
Side repeater lamp (Outside mirror) LEDLED
Rear Type A
Stop lamp
P21W/5W 21
Tail lamp Inner W5W
5
Outer P21/5W 5
Type B Stop lamp
28/8W
(2357NA) 28
Tail lamp LEDLED
Side marker Bulb type W5W
5
LED type LED LED
Turn signal lamp PY21W21
License plate lamp W5W5
Reverse lamp W16W16
High mounted stop lamp P21W21
Interior Map lamp
W10W10
Room lamp FESTOON 8
Vanity mirror lamp FESTOON 5
Trunk room lamp FESTOON 5

02
2-9

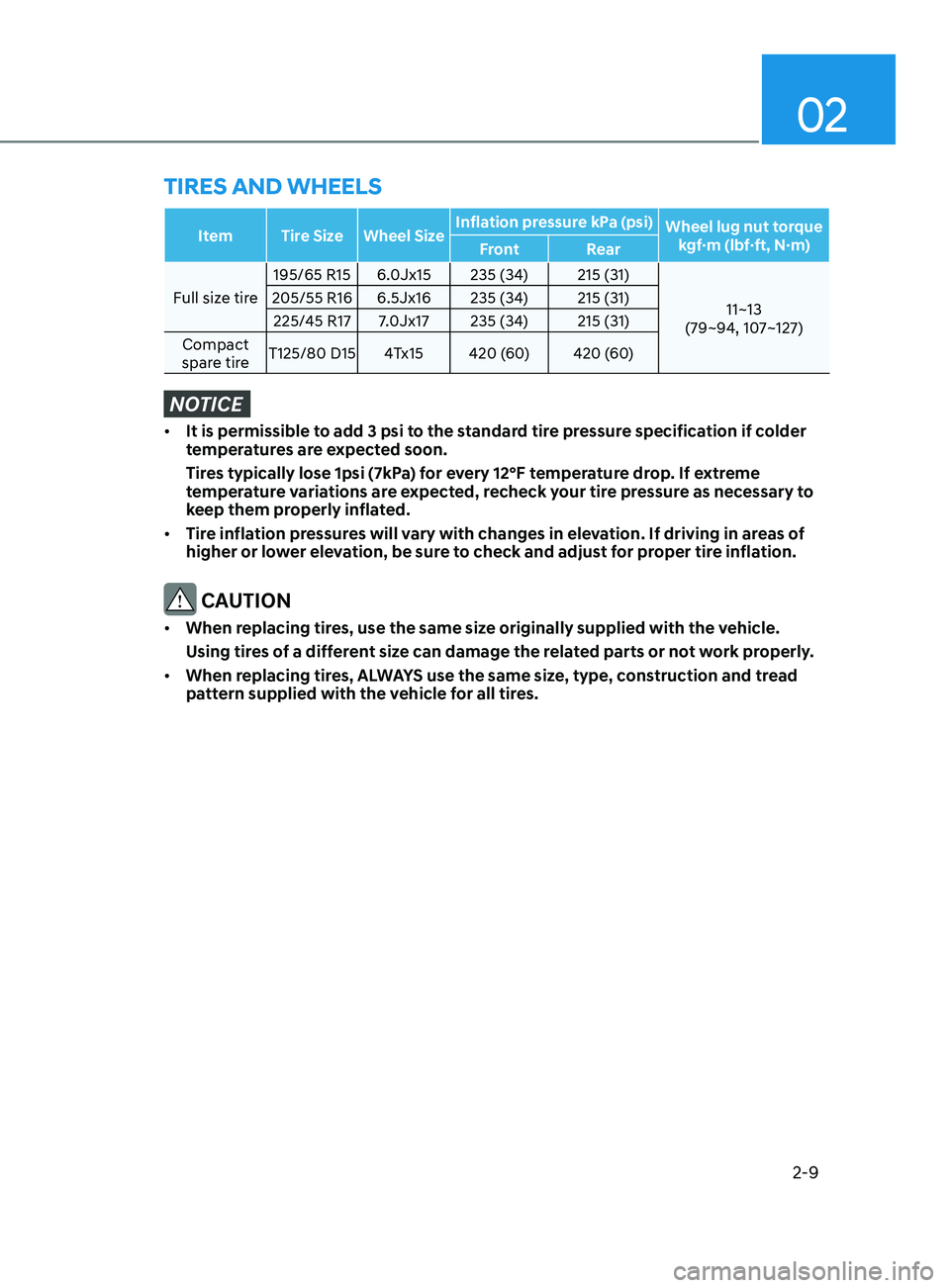

tirEs anD whEEls
Item Tire Size Wheel SizeInflation pressure kPa (psi)
Wheel lug nut torque
kgf·m (lbf·ft, N·m)
Front Rear
Full size tire 195/65 R15 6.0Jx15 235 (34) 215 (31)
11~13
(79~94, 107~127)
205/55 R16 6.5Jx16 235 (34) 215 (31)
225/45 R17 7.0Jx17 235 (34) 215 (31)
Compact
spare tire T125/80 D15 4Tx15 420 (60) 420 (60)
NOTICE
•
It is permissible to add 3 psi to the standard tire pressure specification if colder
temperatures are expected soon.
Tires typically lose 1psi (7kPa) for every 12°F temperature drop. If extreme
temperature variations are expected, recheck your tire pressure as necessary to
keep them properly inflated.
• Tire inflation pressures will vary with changes in elevation. If driving in areas of
higher or lower elevation, be sure to check and adjust for proper tire inflation.
CAUTION
•When replacing tires, use the same size originally supplied with the vehicle.
Using tires of a different size can damage the related parts or not work properly.
• When replacing tires, ALWAYS use the same size, type, construction and tread
pattern supplied with the vehicle for all tires.

Vehicle Information
2-10

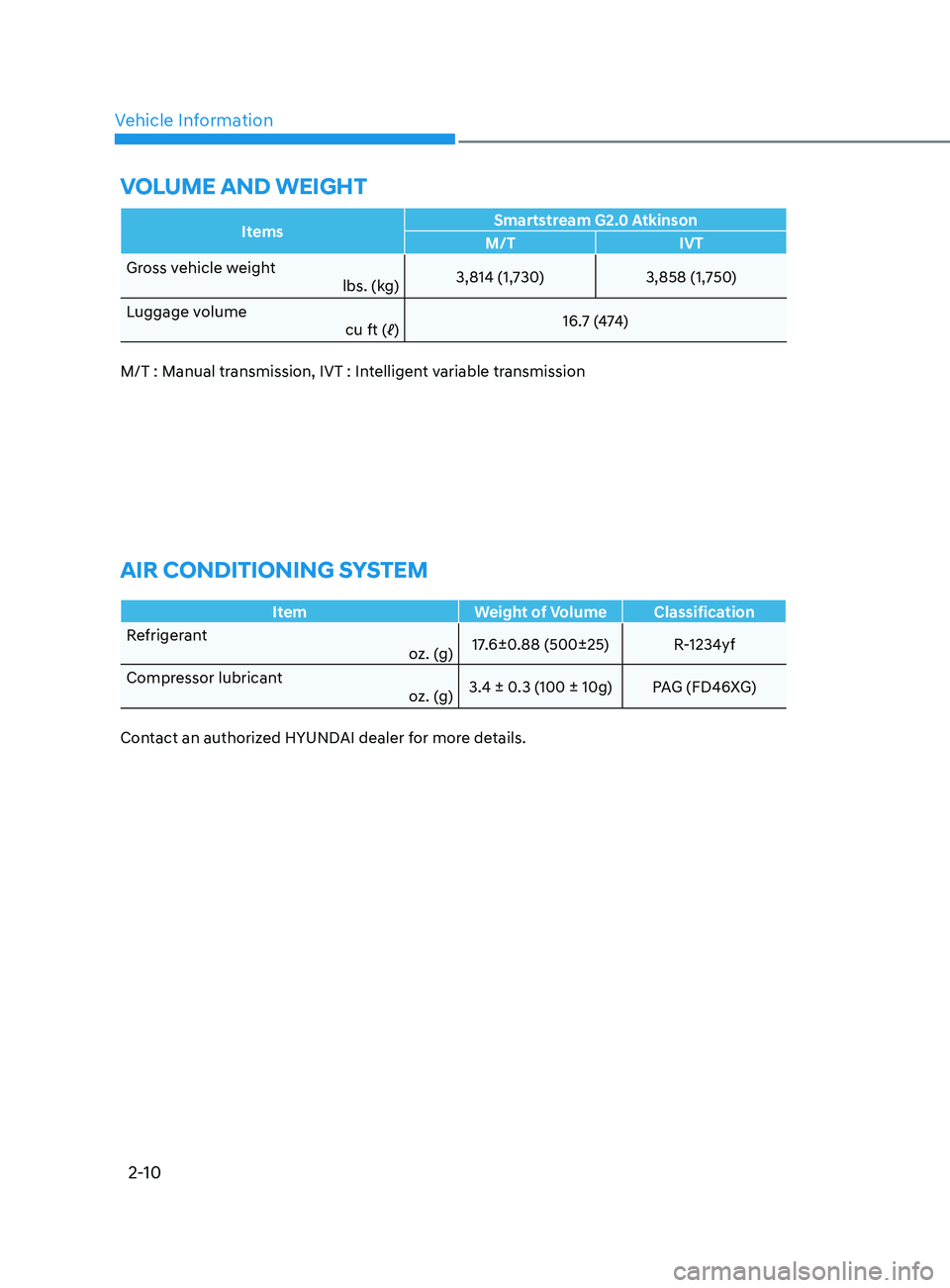

volumE anD wEight
ItemsSmartstream G2.0 Atkinson
M/T IVT
Gross vehicle weight lbs. (kg)3,814 (1,730)
3,858 (1,750)
Luggage volume cu ft (ℓ)16.7 (474)
M/T : Manual transmission, IVT : Intelligent variable transmission
air ConDitioning sys tEm
Item Weight of Volume Classification
Refrigerant oz. (g)17.6±0.88 (500±25) R-1234yf
Compressor lubricant oz. (g)3.4 ± 0.3 (100 ± 10g) PAG (FD46XG)
Contact an authorized HYUNDAI dealer for more details.

02
2-11

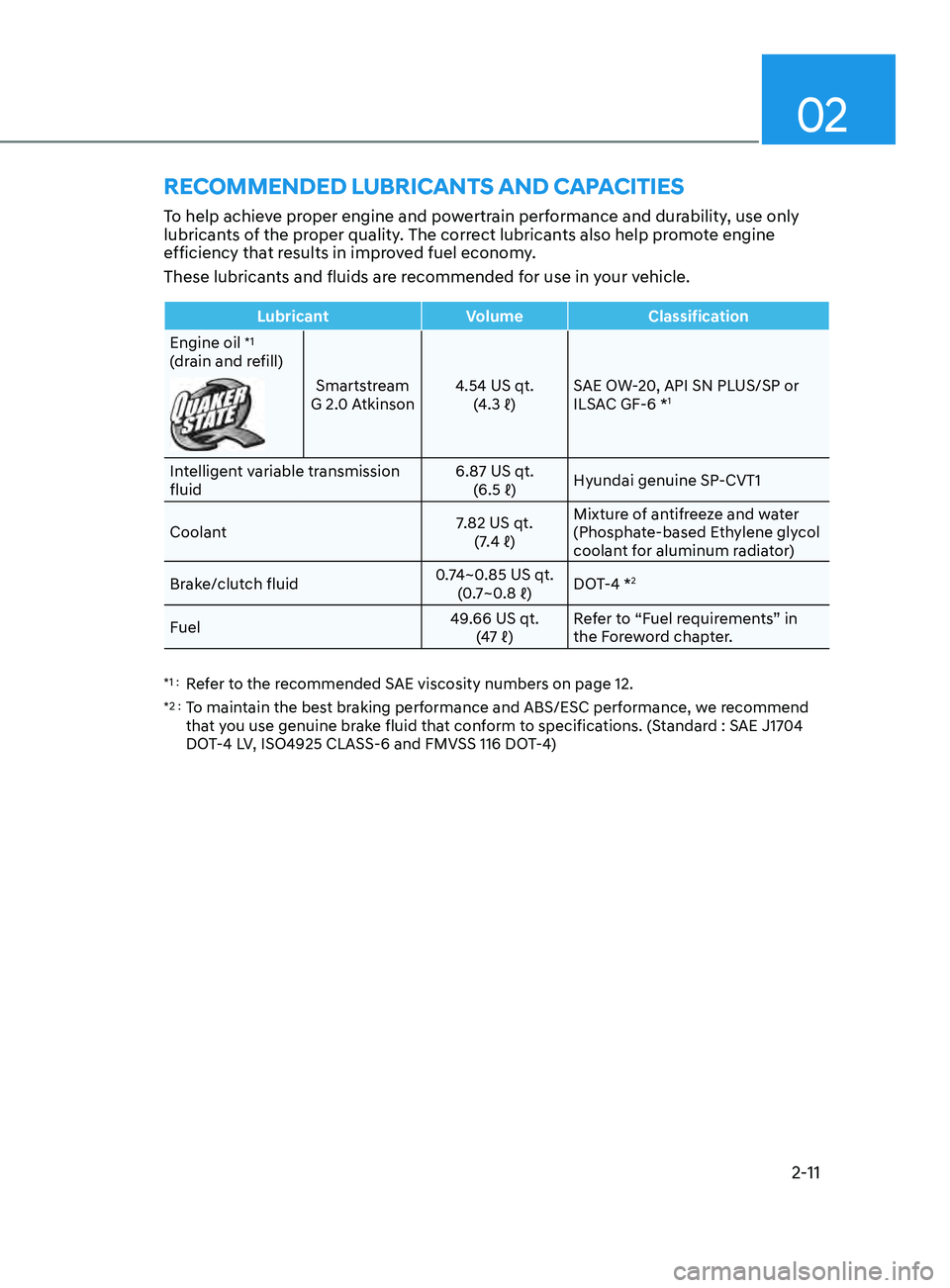

rECommEnDED luBriCants anD CaPaCitiEs
To help achieve proper engine and powertrain performance and durability, use only
lubricants of the proper quality. The correct lubricants also help promote engine
efficiency that results in improved fuel economy.
These lubricants and fluids are recommended for use in your vehicle.
LubricantVolumeClassification
Engine oil
*1
(drain and refill)
Smartstream
G 2.0 Atkinson 4.54 US qt.
(4.3
ℓ) SAE O

W-20, API SN PLUS/SP or
ILSAC GF-6 *
1
Intelligent variable transmission
fluid 6.87 US qt.
(6.5 ℓ) Hyundai genuine SP-CVT1
Coolan
t 7.82 US qt.
(7.4
ℓ)
Mixture o

f antifreeze and water
(Phosphate-based Ethylene glycol
coolant for aluminum radiator)
Brake/clutch fluid
0.

74~0.85 US qt.(0.7~0.8
ℓ) DOT

-4 *
2
Fuel 49.66 US qt.
(47
ℓ) R

efer to “Fuel requirements” in
the Foreword chapter.
*1 : Refer to the recommended SAE viscosity numbers on page 12.
*2 : To maintain the best braking performance and ABS/ESC performance, we recommend
that you use genuine brake fluid that conform to specifications. (Standard : SAE J1704
DOT-4 LV, ISO4925 CLASS-6 and FMVSS 116 DOT-4)

Vehicle Information
2-12

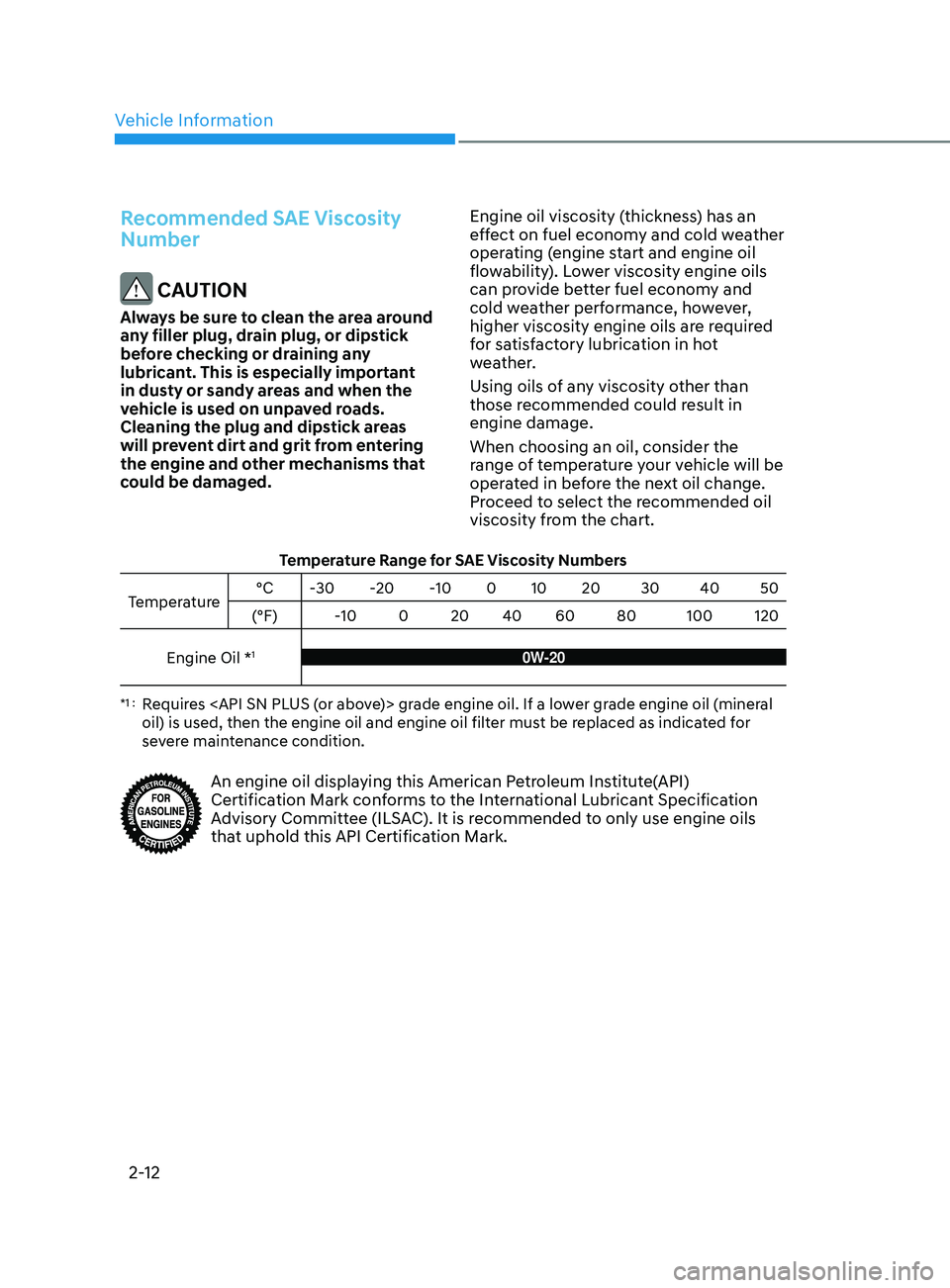

Recommended SAE Viscosity
Number
CAUTION
Always be sure to clean the area around
any filler plug, drain plug, or dipstick
before checking or draining any
lubricant. This is especially important
in dusty or sandy areas and when the
vehicle is used on unpaved roads.
Cleaning the plug and dipstick areas
will prevent dirt and grit from entering
the engine and other mechanisms that
could be damaged.Engine oil viscosity (thickness) has an
effect on fuel economy and cold weather
operating (engine start and engine oil
flowability). Lower viscosity engine oils
can provide better fuel economy and
cold weather performance, however,
higher viscosity engine oils are required
for satisfactory lubrication in hot
weather.
Using oils of any viscosity other than
those recommended could result in
engine damage.
When choosing an oil, consider the
range of temperature your vehicle will be
operated in before the next oil change.
Proceed to select the recommended oil
viscosity from the chart.
Temperature Range for SAE Viscosity Numbers
Temperature °C
-30 -20 -10 0 10 20 30 40 50
(°F) -10 0 20 40 60 80 100 120
Engine Oil *
10W-20
*1 : Requires grade engine oil. If a lower grade engine oil (mineral
oil) is used, then the engine oil and engine oil filter must be replaced as indicated for
severe maintenance condition.
An engine oil displaying this American Petroleum Institute(API)
Certification Mark conforms to the International Lubricant Specification
Advisory Committee (ILSAC). It is recommended to only use engine oils
that uphold this API Certification Mark.

02
2-13

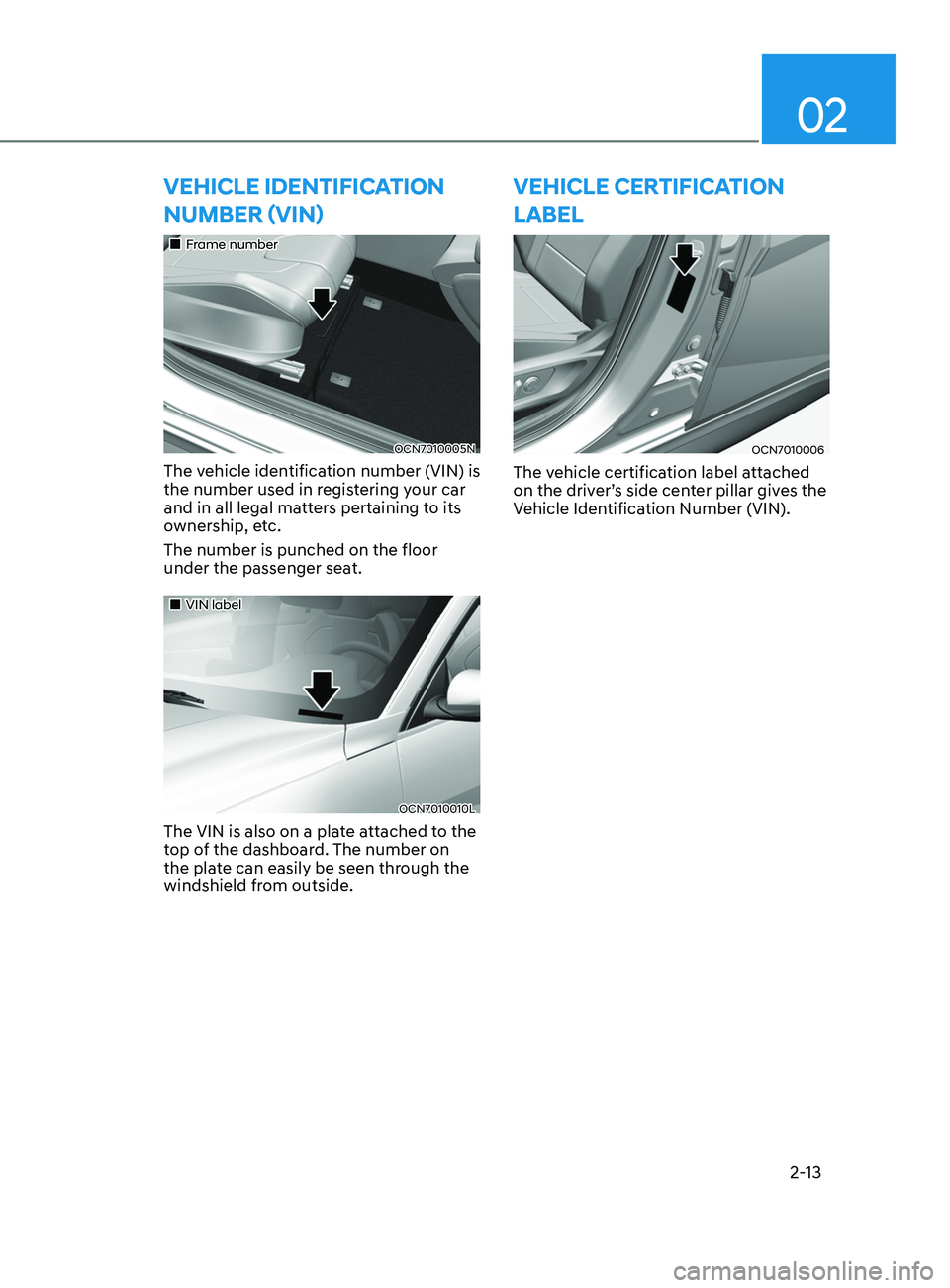

vEhiClE iDEntifiCation
Number (vi
N)
„„Frame number
OCN7010005N
The vehicle identification number (VIN) is
the number used in registering your car
and in all legal matters pertaining to its
ownership, etc.
The number is punched on the floor
under the passenger seat.
„„VIN label
OCN7010010L
The VIN is also on a plate attached to the
top of the dashboard. The number on
the plate can easily be seen through the
windshield from outside.
vEhiClE CErtifiCation
laBEl
OCN7010006
The vehicle certification label attached
on the driver’s side center pillar gives the
Vehicle Identification Number (VIN).

Vehicle Information2-14

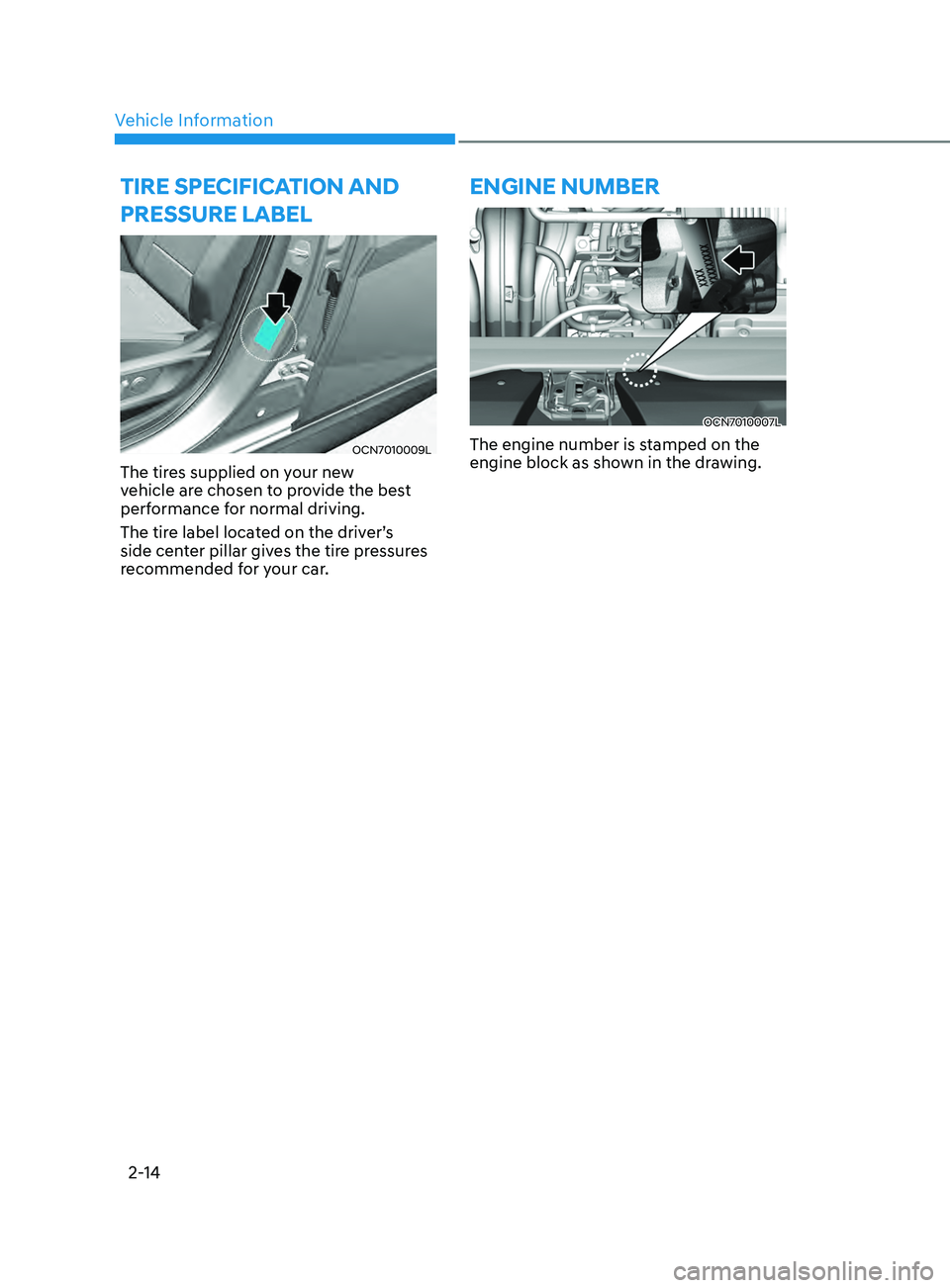

tirE sPECifiCation anD
Pr
EssurE laBEl
OCN7010009L
The tires supplied on your new
vehicle are chosen to provide the best
performance for normal driving.
The tire label located on the driver’s
side center pillar gives the tire pressures
recommended for your car.
EnginE numBEr
OCN7010007L
The engine number is stamped on the
engine block as shown in the drawing.

02
2-15

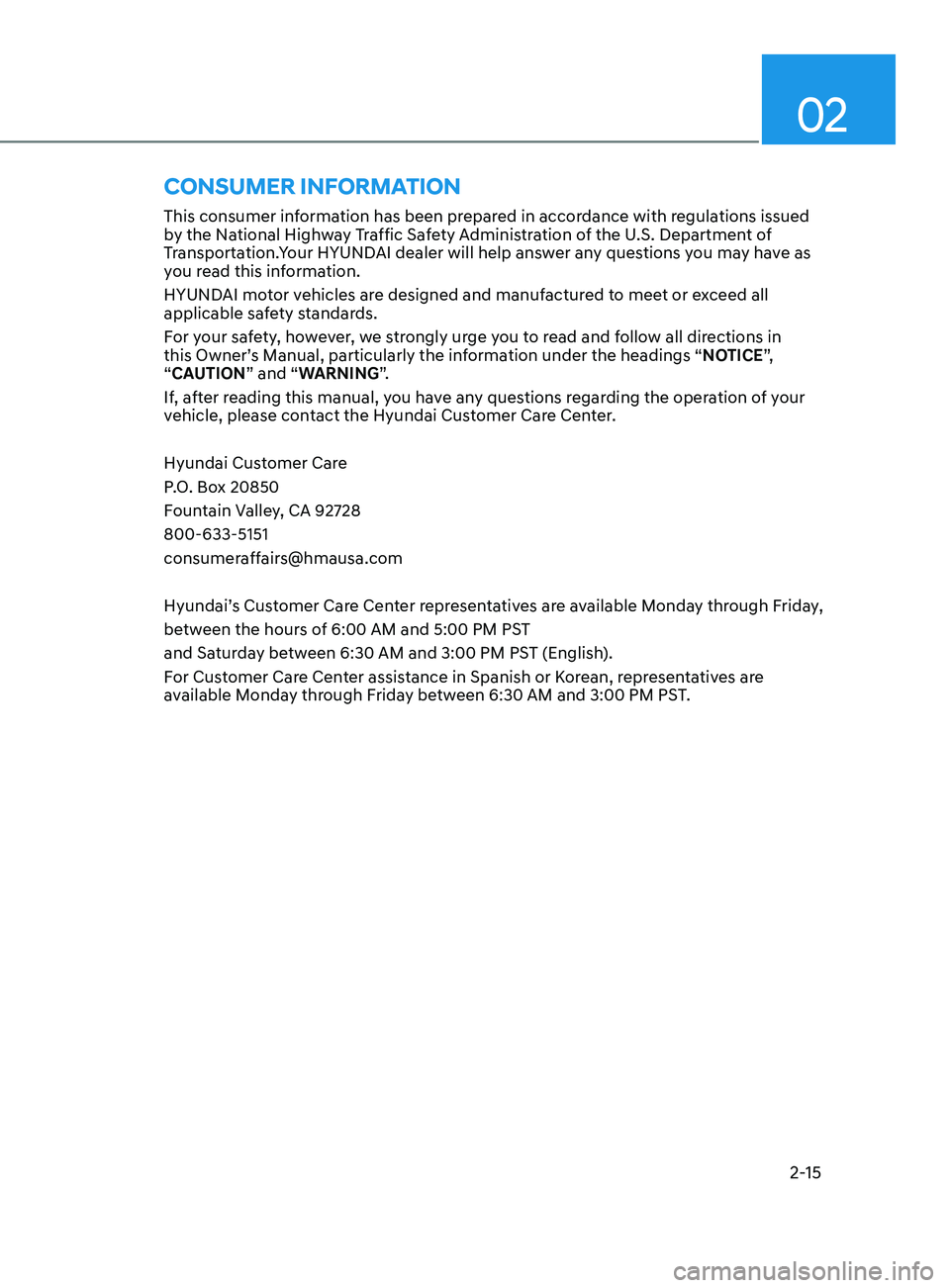

ConsumEr information
This consumer information has been prepared in accordance with regulations issued
by the National Highway Traffic Safety Administration of the U.S. Department of
Transportation.Your HYUNDAI dealer will help answer any questions you may have as
you read this information.
HYUNDAI motor vehicles are designed and manufactured to meet or exceed all
applicable safety standards.
For your safety, however, we strongly urge you to read and follow all directions in
this Owner’s Manual, particularly the information under the headings “NOTICE”,
“CAUTION” and “WARNING”.
If, after reading this manual, you have any questions regarding the operation of your
vehicle, please contact the Hyundai Customer Care Center.
Hyundai Customer Care
P.O. Box 20850
Fountain Valley, CA 92728
800-633-5151
[email protected]
Hyundai’s Customer Care Center representatives are available Monday through Friday,
between the hours of 6:00 AM and 5:00 PM PST
and Saturday between 6:30 AM and 3:00 PM PST (English).
For Customer Care Center assistance in Spanish or Korean, representatives are
available Monday through Friday between 6:30 AM and 3:00 PM PST.
