HYUNDAI ELANTRA SEL 2021 Owners Manual

Driver assistance system
7-118

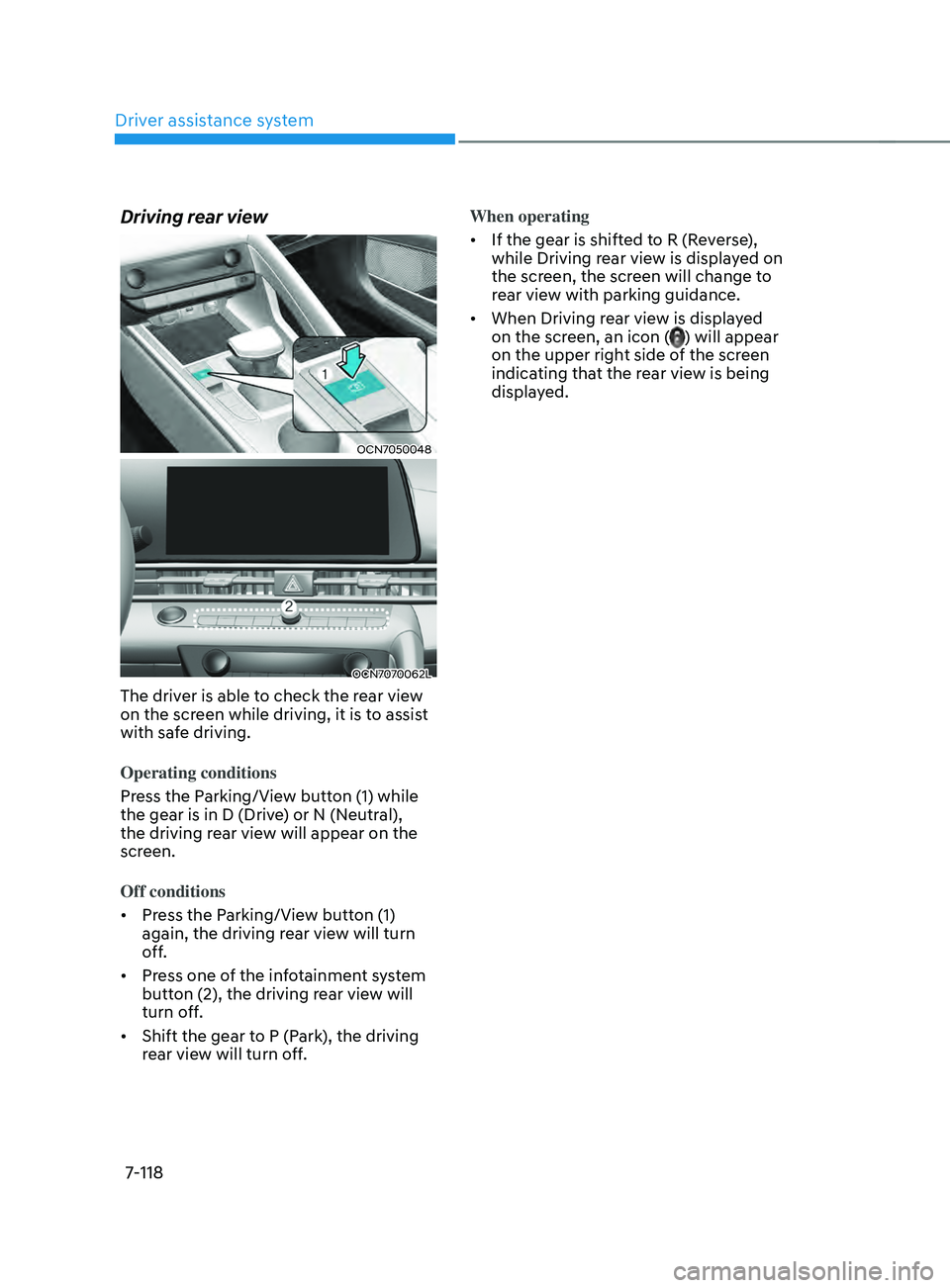

Driving rear view
OCN7050048
OCN7070062L
The driver is able to check the rear view
on the screen while driving, it is to assist
with safe driving.
Operating conditions
Press the Parking/View button (1) while
the gear is in D (Drive) or N (Neutral),
the driving rear view will appear on the
screen.
Off conditions
• Press the Parking/View button (1)
again, the driving rear view will turn
off.
• Press one of the infotainment system
button (2), the driving rear view will
turn off.
• Shift the gear to P (Park), the driving
rear view will turn off. When operating
•
If the gear is shifted to R (Reverse),
while Driving rear view is displayed on
the screen, the screen will change to
rear view with parking guidance.
• When Driving rear view is displayed
on the screen, an icon (
) will appear
on the upper right side of the screen
indicating that the rear view is being
displayed.

07
7-119

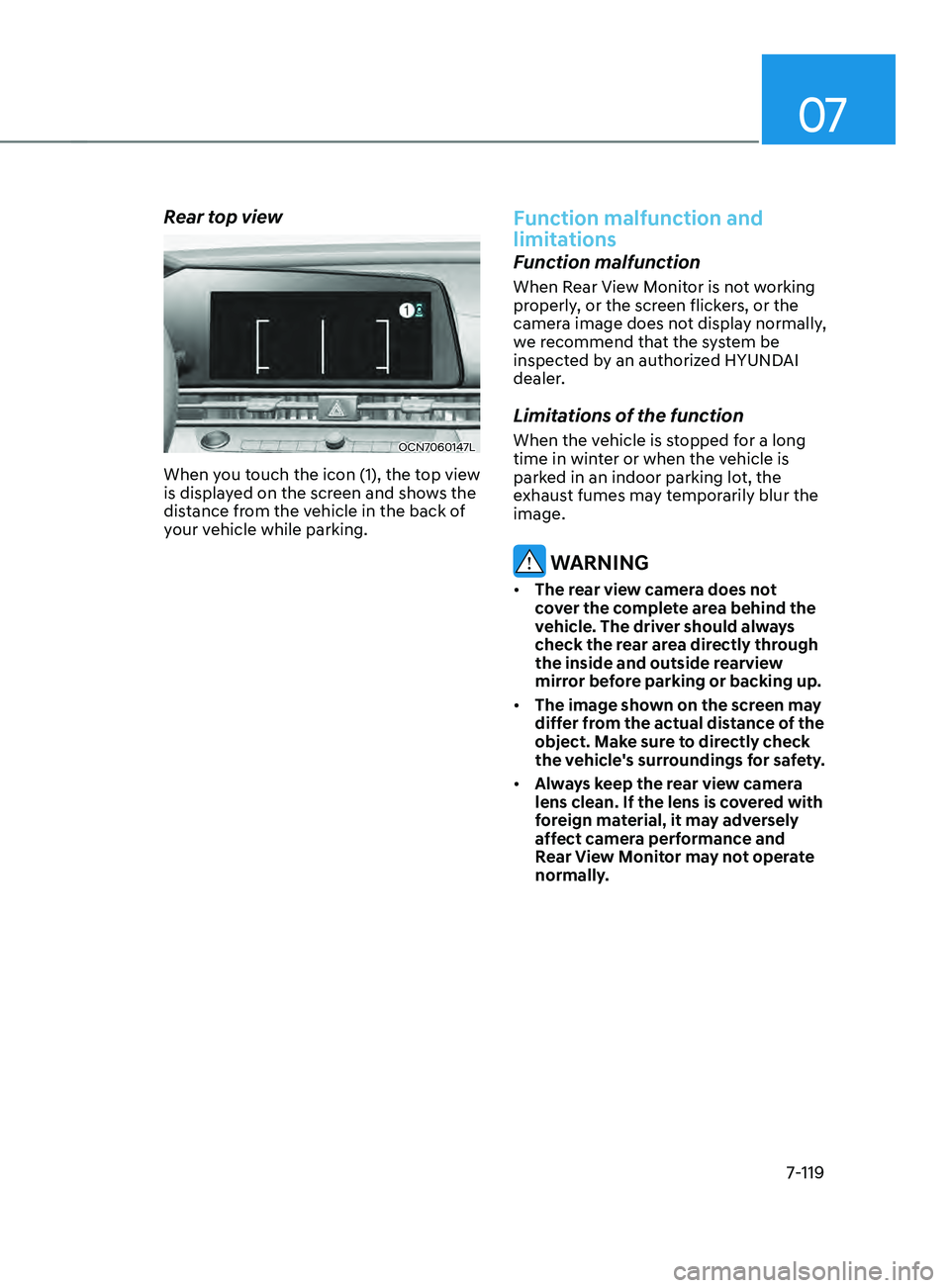

Rear top view
OCN7060147L
When you touch the icon (1), the top view
is displayed on the screen and shows the
distance from the vehicle in the back of
your vehicle while parking.
Function malfunction and
limitations
Function malfunction
When Rear View Monitor is not working
properly, or the screen flickers, or the
camera image does not display normally,
we recommend that the system be
inspected by an authorized HYUNDAI
dealer.
Limitations of the function
When the vehicle is stopped for a long
time in winter or when the vehicle is
parked in an indoor parking lot, the
exhaust fumes may temporarily blur the
image.
WARNING
• The rear view camera does not
cover the complete area behind the
vehicle. The driver should always
check the rear area directly through
the inside and outside rearview
mirror before parking or backing up.
• The image shown on the screen may
differ from the actual distance of the
object. Make sure to directly check
the vehicle's surroundings for safety.
• Always keep the rear view camera
lens clean. If the lens is covered with
foreign material, it may adversely
affect camera performance and
Rear View Monitor may not operate
normally.

Driver assistance system
7-120

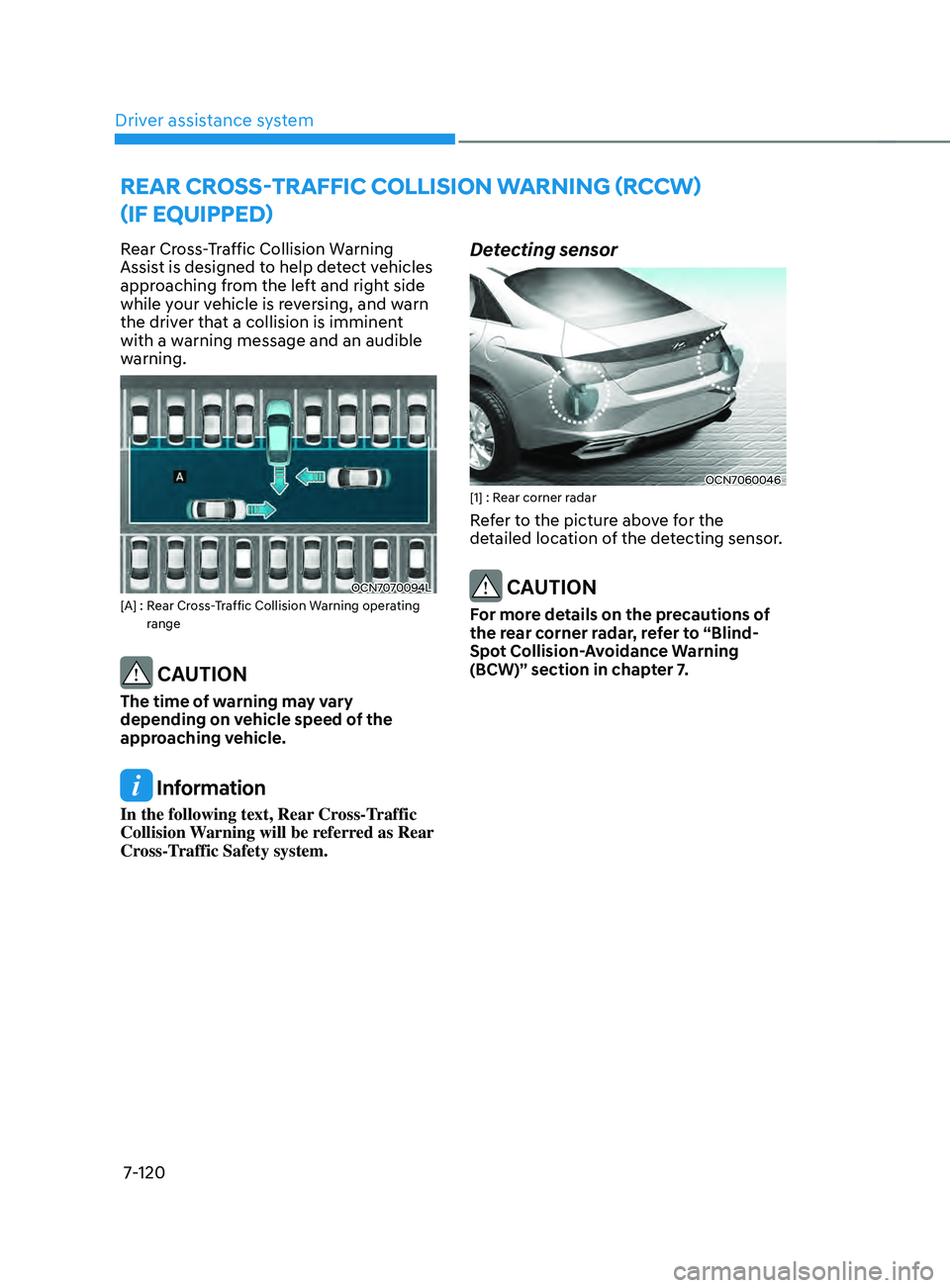

Rear Cross-Traffic Collision Warning
Assist is designed to help detect vehicles
approaching from the left and right side
while your vehicle is reversing, and warn
the driver that a collision is imminent
with a warning message and an audible
warning.
OCN7070094L[A] : Rear Cross-Traffic Collision Warning operating
range
CAUTION
The time of warning may vary
depending on vehicle speed of the
approaching vehicle.
Information
In the following text, Rear Cross-Traffic
Collision Warning will be referred as Rear
Cross-Traffic Safety system.
Detecting sensor
OCN7060046[1] : Rear corner radar
Refer to the picture above for the
detailed location of the detecting sensor.
CAUTION
For more details on the precautions of
the rear corner radar, refer to “Blind-
Spot Collision-Avoidance Warning
(BCW)” section in chapter 7.
rear Cross-traFFiC Collision warning (rCCw)
(i
F e
quipped)

07
7-121

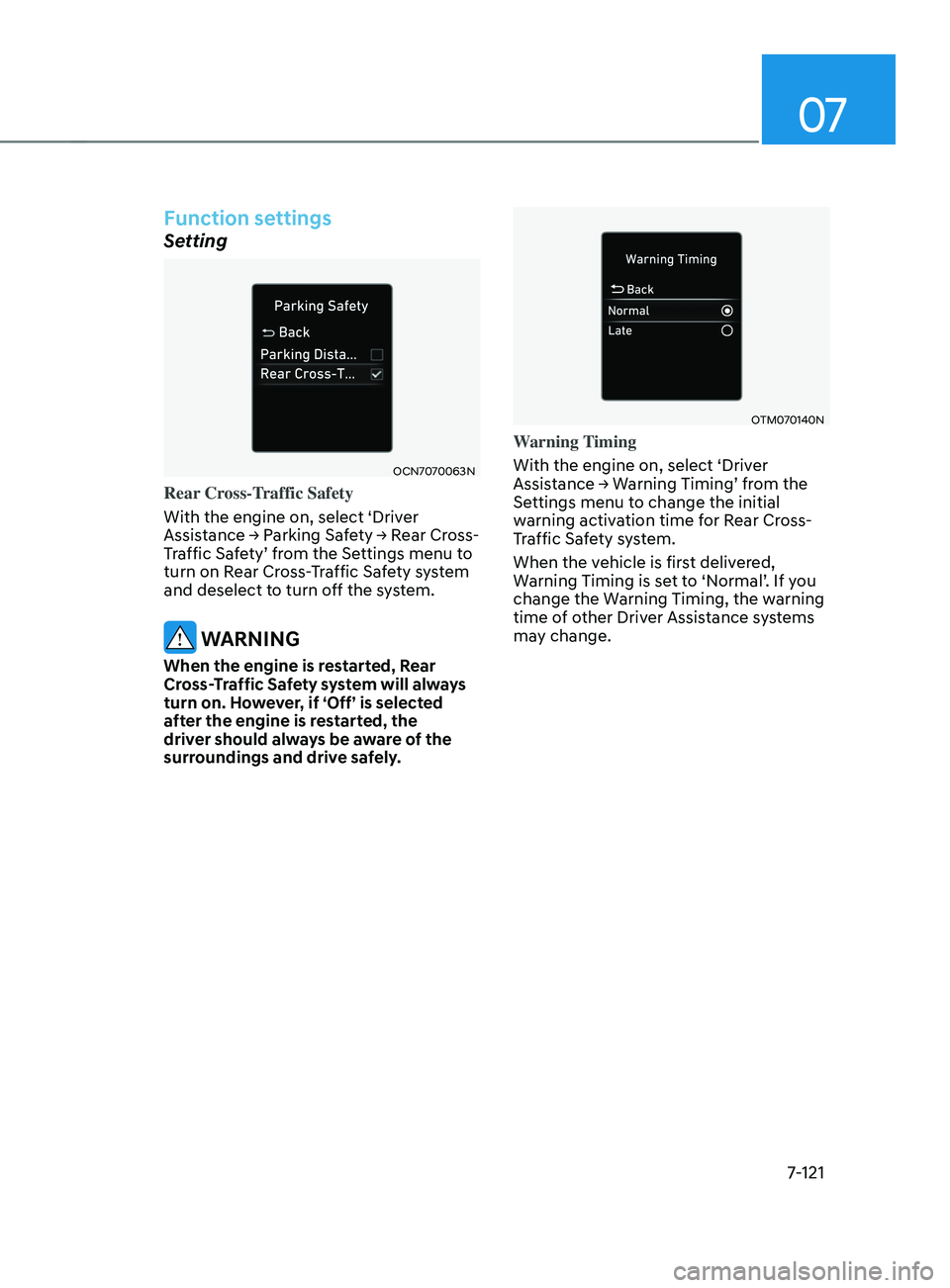

Function settings
Setting
OCN7070063N
Rear Cross-Traffic Safety
With the engine on, select ‘Driver
Assistance
→ P
arking
Sa
fety
→ R
ear
Cr
oss-
Traffic
Sa

fety’
fr
om
the Se
ttings
menu t
o
turn on Rear Cr

oss-Traffic Safety system
and deselect to turn off the system.
WARNING
When the engine is restarted, Rear
Cross-Traffic Safety system will always
turn on. However, if ‘Off’ is selected
after the engine is restarted, the
driver should always be aware of the
surroundings and drive safely.
OTM070140N
Warning Timing
With the engine on, select ‘Driver
Assistance
→ W

arning
Timing’ fr
om
the Settings menu t

o change the initial
warning activation time for Rear Cross-
Traffic Safety system.
When the vehicle is first delivered,
Warning
Timing is se

t
t
o
‘N
ormal’.
If y
ou
change the Warning Timing, the w

arning
time of other Driver Assistance systems
may change.

Driver assistance system
7-122
OTM070141N

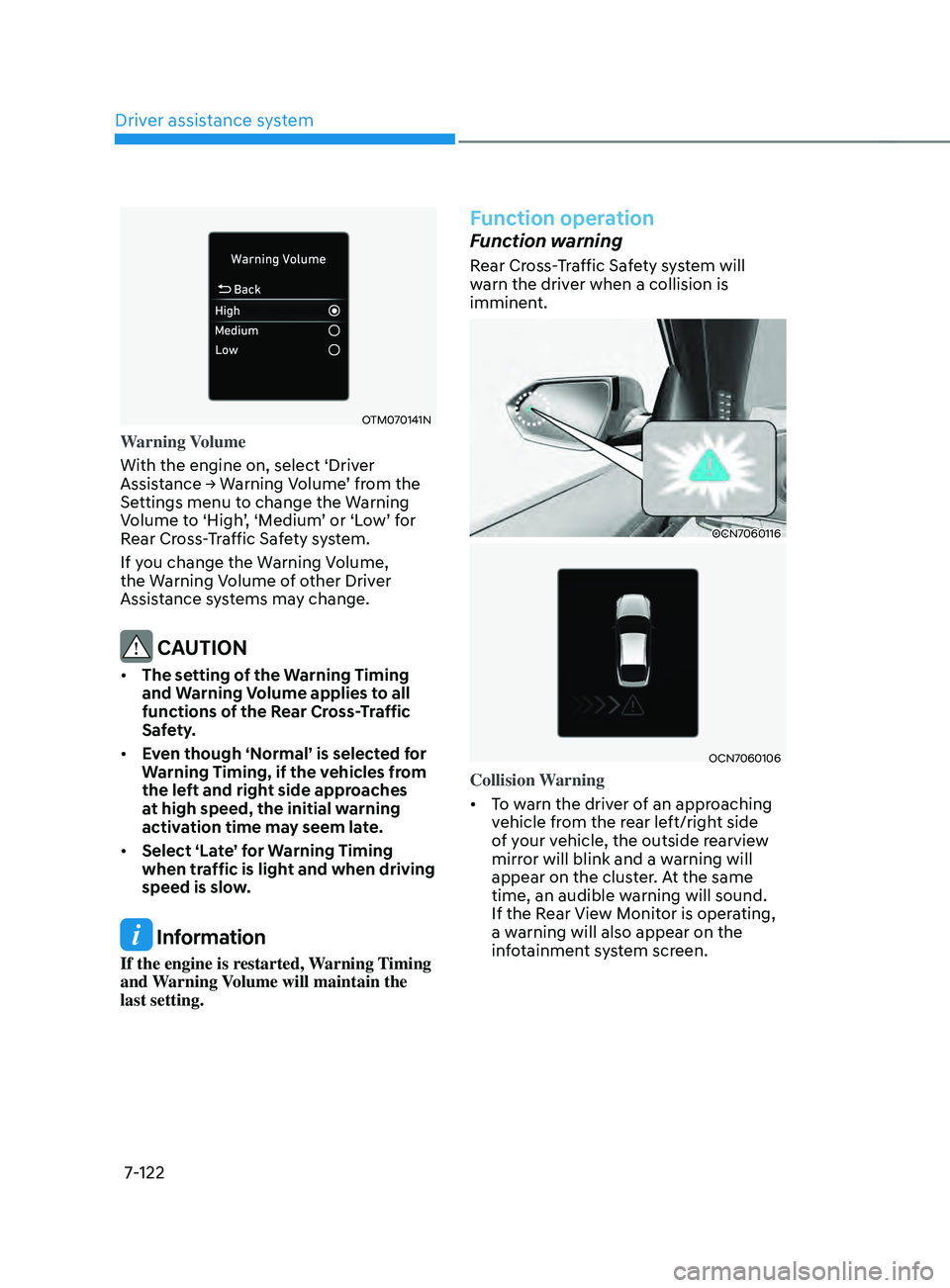

Warning Volume
With the engine on, select ‘Driver
Assistance
→ W
arning
V
olume’
fr
om
the Settings menu t

o change the Warning
Volume
t

o
‘High
’,
‘M
edium’
or ‘L
ow’
f
or
Rear Cr

oss-Traffic Safety system.
If you change the Warning Volume,
the Warning Volume of other Driver
Assistance systems may change.
CAUTION
• The setting of the Warning Timing
and Warning Volume applies to all
functions of the Rear Cross-Traffic
Safety.
• Even though ‘Normal’ is selected for
Warning Timing, if the vehicles from
the left and right side approaches
at high speed, the initial warning
activation time may seem late.
• Select ‘Late’ for Warning Timing
when traffic is light and when driving
speed is slow.
Information
If the engine is restarted, Warning Timing
and Warning Volume will maintain the
last setting.
Function operation
Function warning
Rear Cross-Traffic Safety system will
warn the driver when a collision is
imminent.
OCN7060116
OCN7060106
Collision Warning
• To warn the driver of an approaching
vehicle from the rear left/right side
of your vehicle, the outside rearview
mirror will blink and a warning will
appear on the cluster. At the same
time, an audible warning will sound.
If the Rear View Monitor is operating,
a warning will also appear on the
infotainment system screen.

07
7-123

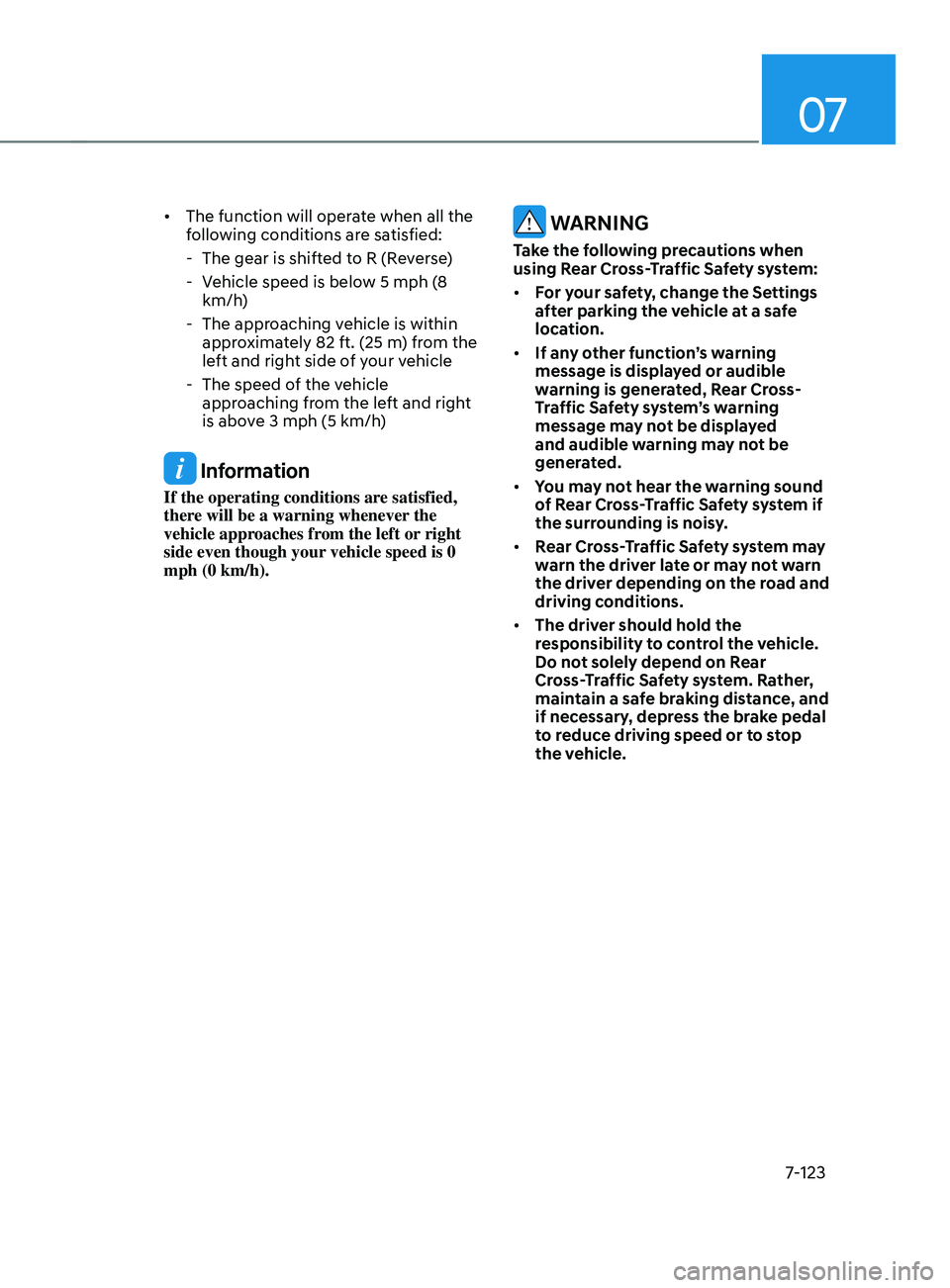

• The function will operate when all the
following conditions are satisfied:
- The gear is shifted t

o R (Reverse)
- Vehicle speed is belo

w 5
mph (
8
km/h)
- The approaching v

ehicle is within
approximately 82 ft. (25 m) from the
left and right side of your vehicle
- The speed of the v

ehicle
approaching from the left and right
is above 3 mph (5 km/h)
Information
If the operating conditions are satisfied,
there will be a warning whenever the
vehicle approaches from the left or right
side even though your vehicle speed is 0
mph (0
km/h).
WARNING
Take the following precautions when
using Rear Cross-Traffic Safety system:
• For your safety, change the Settings
after parking the vehicle at a safe
location.
• If any other function’s warning
message is displayed or audible
warning is generated, Rear Cross-
Traffic Safety system’s warning
message may not be displayed
and audible warning may not be
generated.
• You may not hear the warning sound
of Rear Cross-Traffic Safety system if
the surrounding is noisy.
• Rear Cross-Traffic Safety system may
warn the driver late or may not warn
the driver depending on the road and
driving conditions.
• The driver should hold the
responsibility to control the vehicle.
Do not solely depend on Rear
Cross-Traffic Safety system. Rather,
maintain a safe braking distance, and
if necessary, depress the brake pedal
to reduce driving speed or to stop
the vehicle.

Driver assistance system
7-124

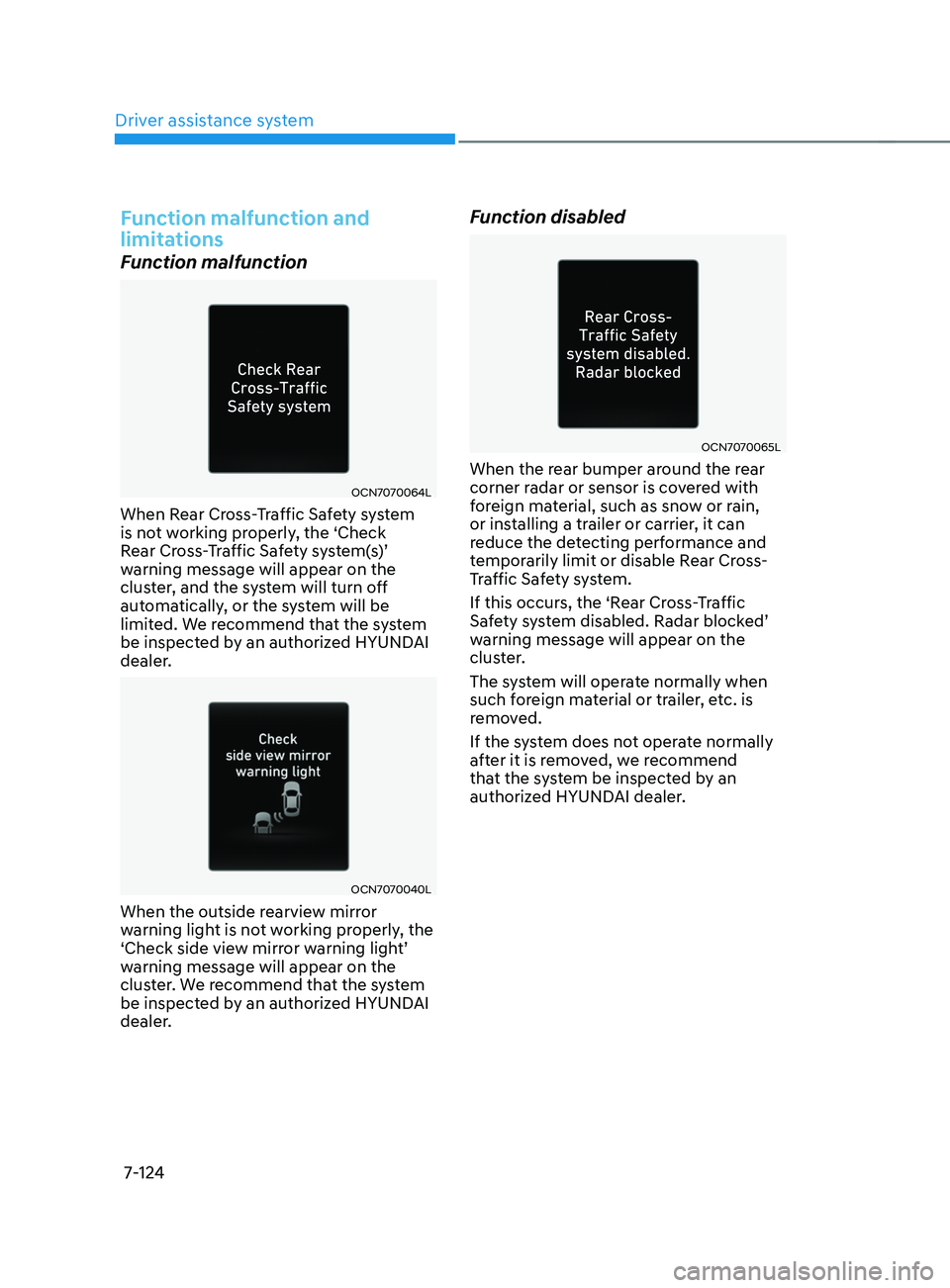

Function malfunction and
limitations
Function malfunction
OCN7070064L
When Rear Cross-Traffic Safety system
is not working properly, the ‘Check
Rear
Cr
oss-Traffic
Sa
fety
s
ystem(s)’
warning message will appear on the
clus

ter, and the system will turn off
automatically, or the system will be
limited. We recommend that the system
be inspected by an authorized HYUNDAI
dealer.
OCN7070040L
When the outside rearview mirror
warning light is not working properly, the
‘Check
side vie

w
mirr
or
w
arning
ligh
t’
warning message will appear on the
clus

ter. We recommend that the system
be inspected by an authorized HYUNDAI
dealer.
Function disabled
OCN7070065L
When the rear bumper around the rear
corner radar or sensor is covered with
foreign material, such as snow or rain,
or installing a trailer or carrier, it can
reduce the detecting performance and
temporarily limit or disable Rear Cross-
Traffic Safety system.
If this occurs, the ‘Rear Cross-Traffic
Safety
s

ystem
disabled. Radar block
ed’
warning message will appear on the
clus

ter.
The system will operate normally when
such foreign material or trailer, etc. is
removed.
If the system does not operate normally
after it is removed, we recommend
that the system be inspected by an
authorized HYUNDAI dealer.

07
7-125

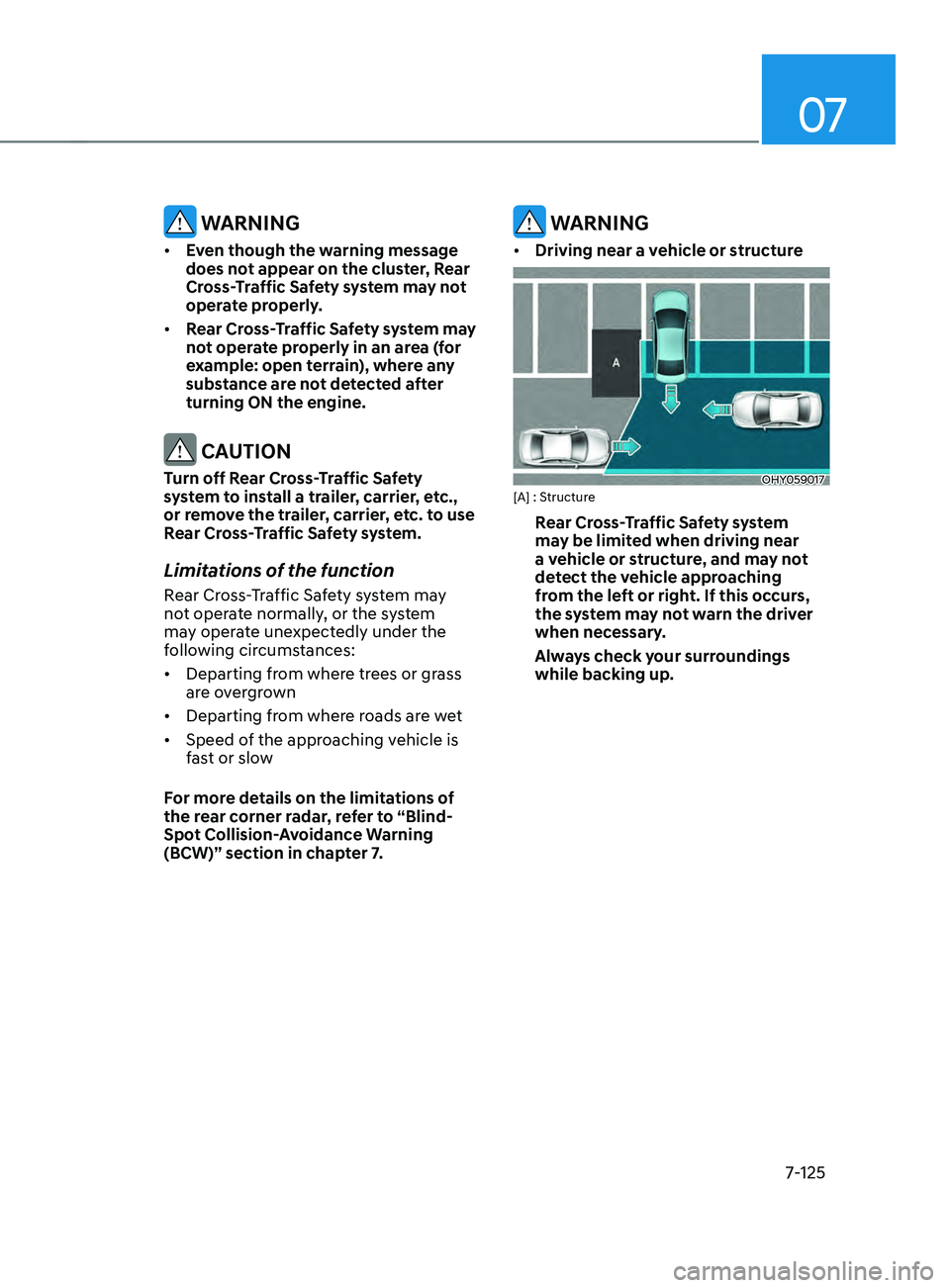

WARNING
• Even though the warning message
does not appear on the cluster, Rear
Cross-Traffic Safety system may not
operate properly.
• Rear Cross-Traffic Safety system may
not operate properly in an area (for
example: open terrain), where any
substance are not detected after
turning ON the engine.
CAUTION
Turn off Rear Cross-Traffic Safety
system to install a trailer, carrier, etc.,
or remove the trailer, carrier, etc. to use
Rear Cross-Traffic Safety system.
Limitations of the function
Rear Cross-Traffic Safety system may
not operate normally, or the system
may operate unexpectedly under the
following circumstances:
• Departing from where trees or grass
are overgrown
• Departing from where roads are wet
• Speed of the approaching vehicle is
fast or slow
For more details on the limitations of
the rear corner radar, refer to “Blind-
Spot Collision-Avoidance Warning
(BCW)” section in chapter 7.
WARNING
• Driving near a vehicle or structure
OHY059017[A] : Structure
Rear Cross-Traffic Safety system
may be limited when driving near
a vehicle or structure, and may not
detect the vehicle approaching
from the left or right. If this occurs,
the system may not warn the driver
when necessary.
Always check your surroundings
while backing up.

Driver assistance system
7-126

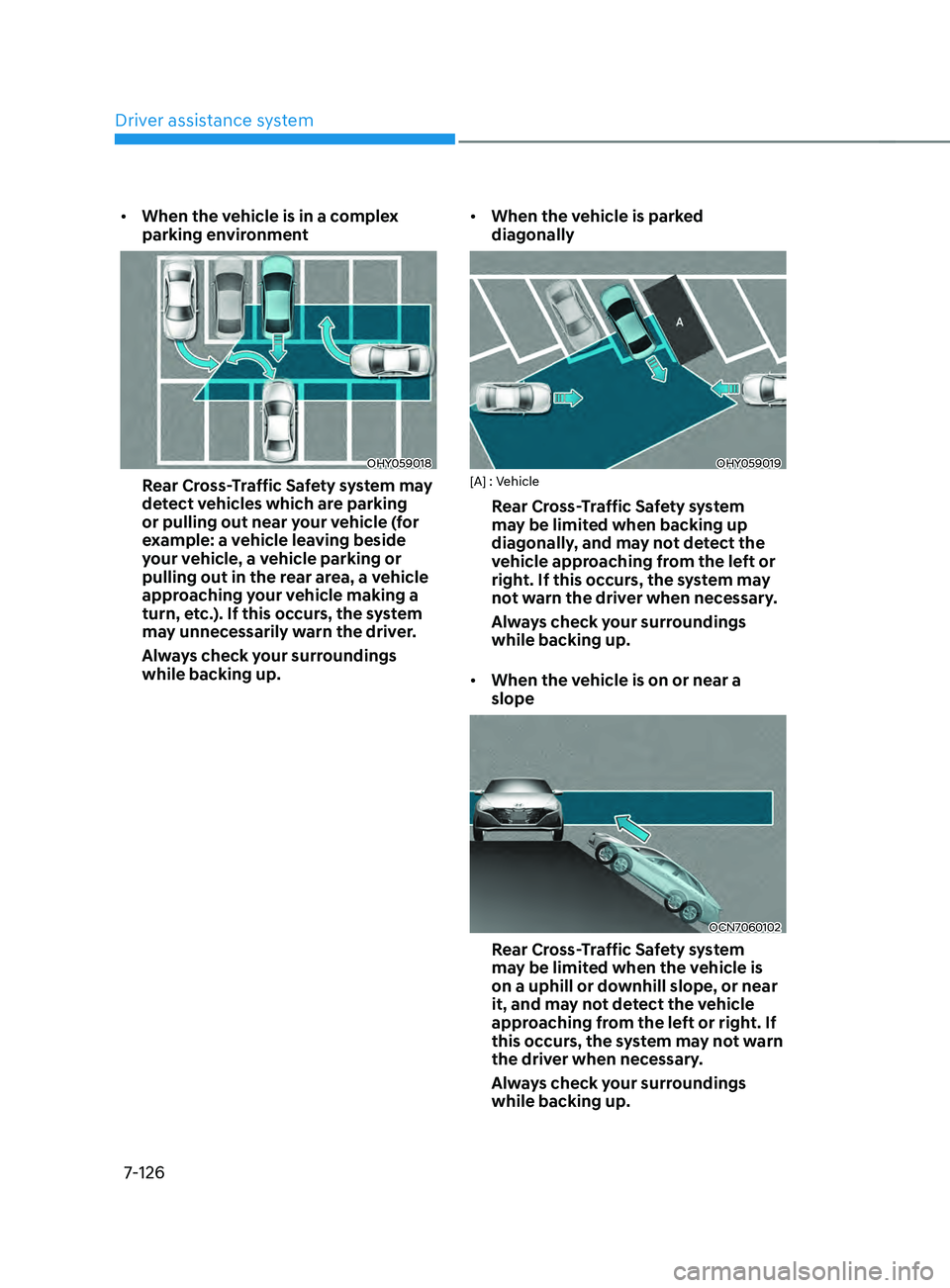

• When the vehicle is in a complex
parking environment
OHY059018
Rear Cross-Traffic Safety system may
detect vehicles which are parking
or pulling out near your vehicle (for
example: a vehicle leaving beside
your vehicle, a vehicle parking or
pulling out in the rear area, a vehicle
approaching your vehicle making a
turn, etc.). If this occurs, the system
may unnecessarily warn the driver.
Always check your surroundings
while backing up. •
When the vehicle is parked
diagonally
OHY059019[A] : Vehicle
Rear Cross-Traffic Safety system
may be limited when backing up
diagonally, and may not detect the
vehicle approaching from the left or
right. If this occurs, the system may
not warn the driver when necessary.
Always check your surroundings
while backing up.
• When the vehicle is on or near a
slope
OCN7060102
Rear Cross-Traffic Safety system
may be limited when the vehicle is
on a uphill or downhill slope, or near
it, and may not detect the vehicle
approaching from the left or right. If
this occurs, the system may not warn
the driver when necessary.
Always check your surroundings
while backing up.

07
7-127

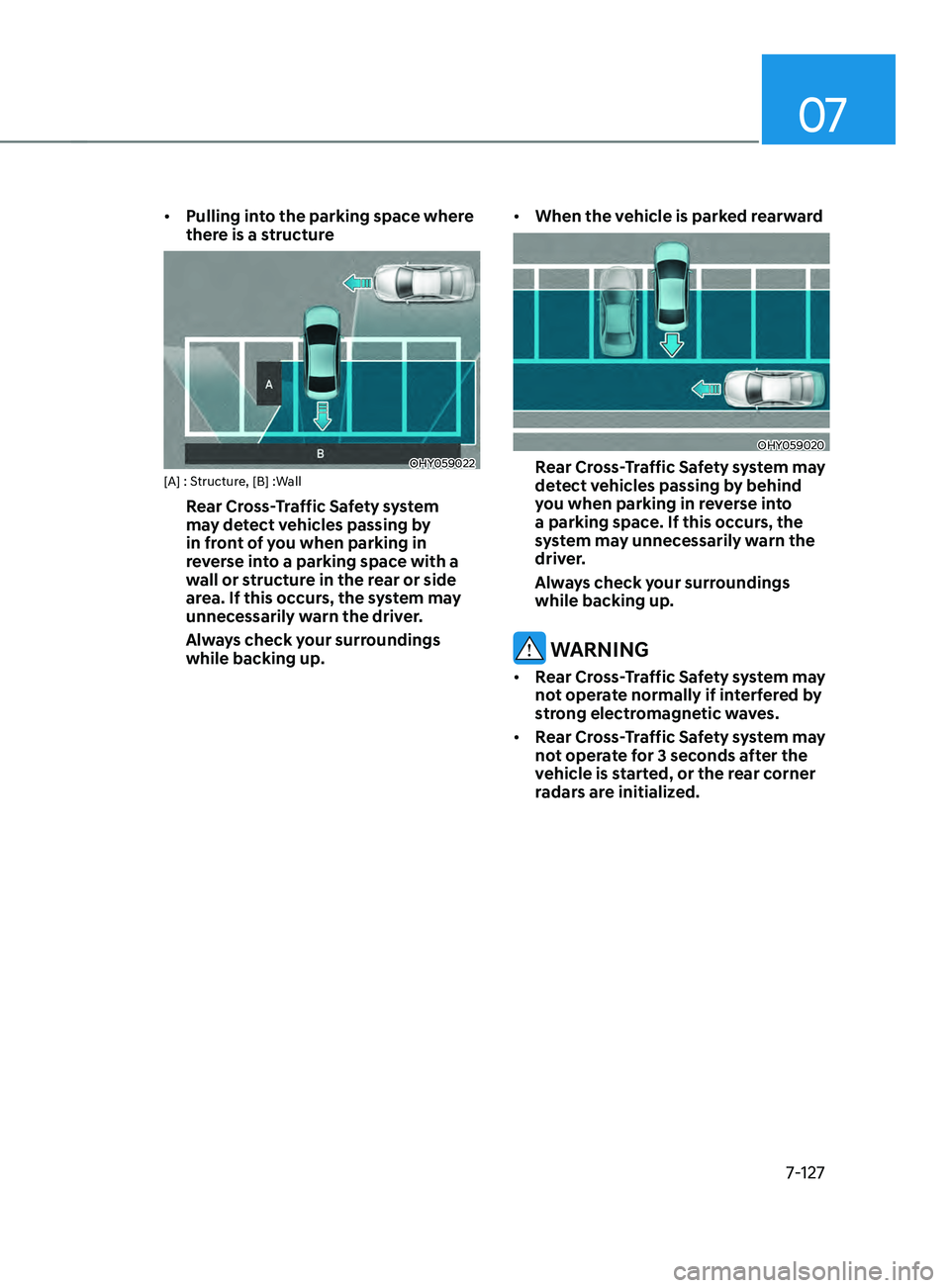

• Pulling into the parking space where
there is a structure
OHY059022[A] : Structure, [B] :Wall
Rear Cross-Traffic Safety system
may detect vehicles passing by
in front of you when parking in
reverse into a parking space with a
wall or structure in the rear or side
area. If this occurs, the system may
unnecessarily warn the driver.
Always check your surroundings
while backing up. •
When the vehicle is parked rearward
OHY059020
Rear Cross-Traffic Safety system may
detect vehicles passing by behind
you when parking in reverse into
a parking space. If this occurs, the
system may unnecessarily warn the
driver.
Always check your surroundings
while backing up.
WARNING
• Rear Cross-Traffic Safety system may
not operate normally if interfered by
strong electromagnetic waves.
• Rear Cross-Traffic Safety system may
not operate for 3 seconds after the
vehicle is started, or the rear corner
radars are initialized.
