Page 321 of 402

Hyundai Elantra Touring 2011  Owners Manual Maintenance
6 7
G030103AUN
At least monthly:
 Check coolant level in the engine
coolant reservoir.
 Check the operation of all exterior
lights, including the stoplights, turn sig-
nals and hazard warn

Page 322 of 402

Hyundai Elantra Touring 2011  Owners Manual 77
Maintenance
SCHEDULED MAINTENANCE SERVICE
G040000AUN-EU
Follow Normal Maintenance     Schedule
if the vehicle is usually operated where
none of the following conditions apply. If
any of the follo

Page 323 of 402

Hyundai Elantra Touring 2011  Owners Manual Maintenance
8 7
NORMAL MAINTENANCE SCHEDULE
The following maintenance services must be performed to ensure good emission control and performance. Keep receipts for all
vehicle emission services to pro

Page 324 of 402

Hyundai Elantra Touring 2011  Owners Manual 79
Maintenance
No.
1
2
3
4
5
6
7
8
9
10
11
NORMAL MAINTENANCE SCHEDULE (CONT.)
DESCRIPTION
7.5 15 22.5 30 37.5 45 52.5 60 67.5 75 82.5 90 97.5 105 112.5 120 127.5 135 142.5 150
12 24 36 48 60 72 84 96

Page 325 of 402

Hyundai Elantra Touring 2011  Owners Manual Maintenance
10 7

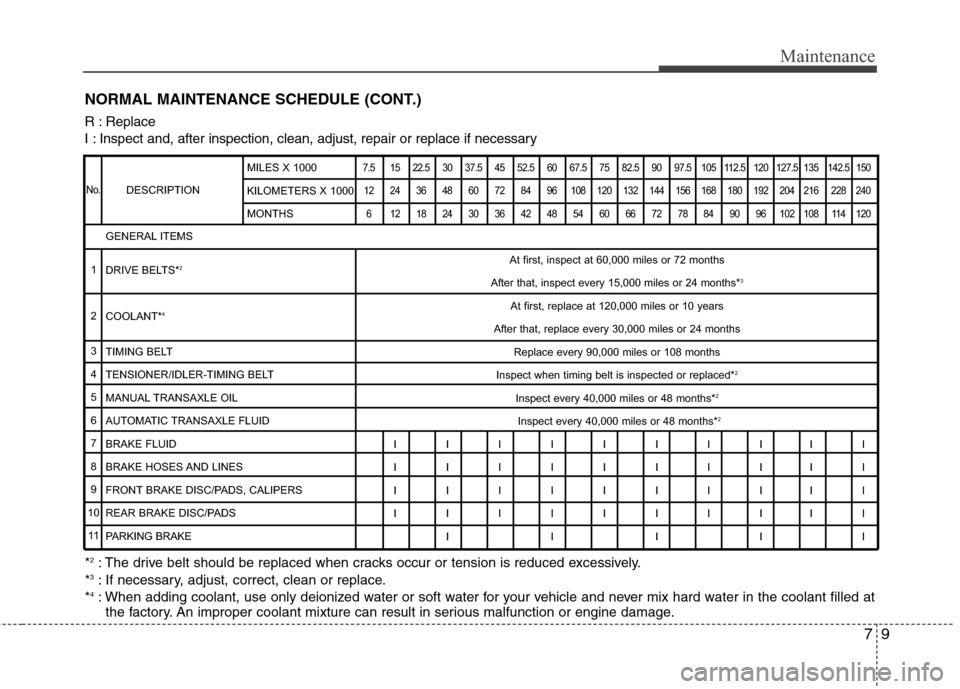

NORMAL MAINTENANCE SCHEDULE (CONT.)
R : Replace
I : Inspect and, after inspection, clean, adjust, repair or replace if necessary
DESCRIPTION
7.5 15 22.5 30 37.5 45 52.5 60 67.5 75

Page 326 of 402

Hyundai Elantra Touring 2011  Owners Manual 711
Maintenance

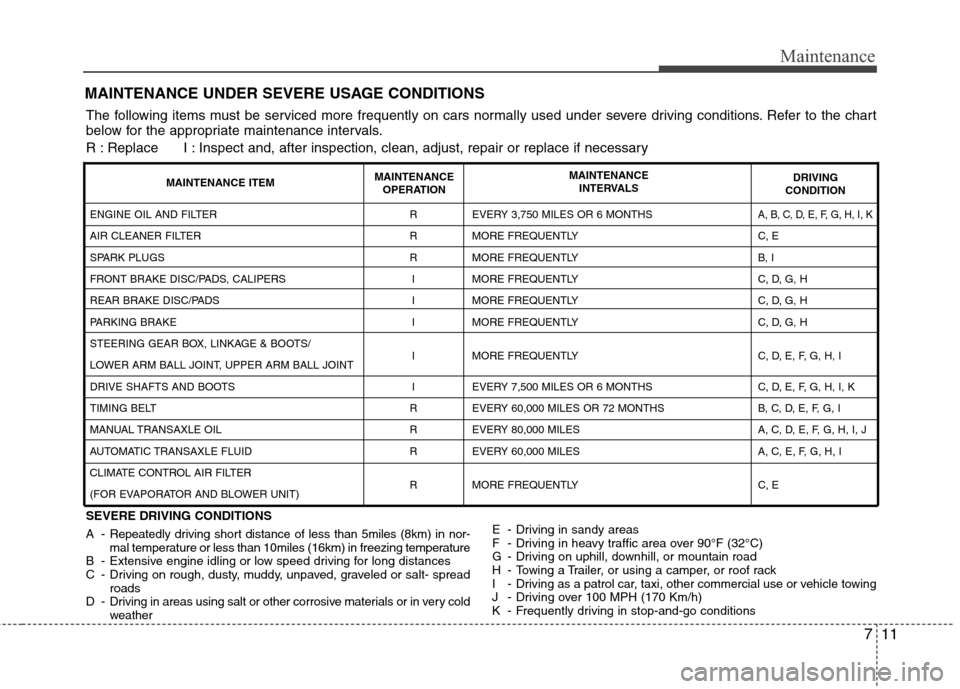

MAINTENANCE UNDER SEVERE USAGE CONDITIONS
SEVERE DRIVING CONDITIONS
A - Repeatedly driving short distance of less than 5miles (8km) in nor-
mal temperature or less than 10miles (16km)

Page 327 of 402

Hyundai Elantra Touring 2011  Owners Manual Maintenance
12 7

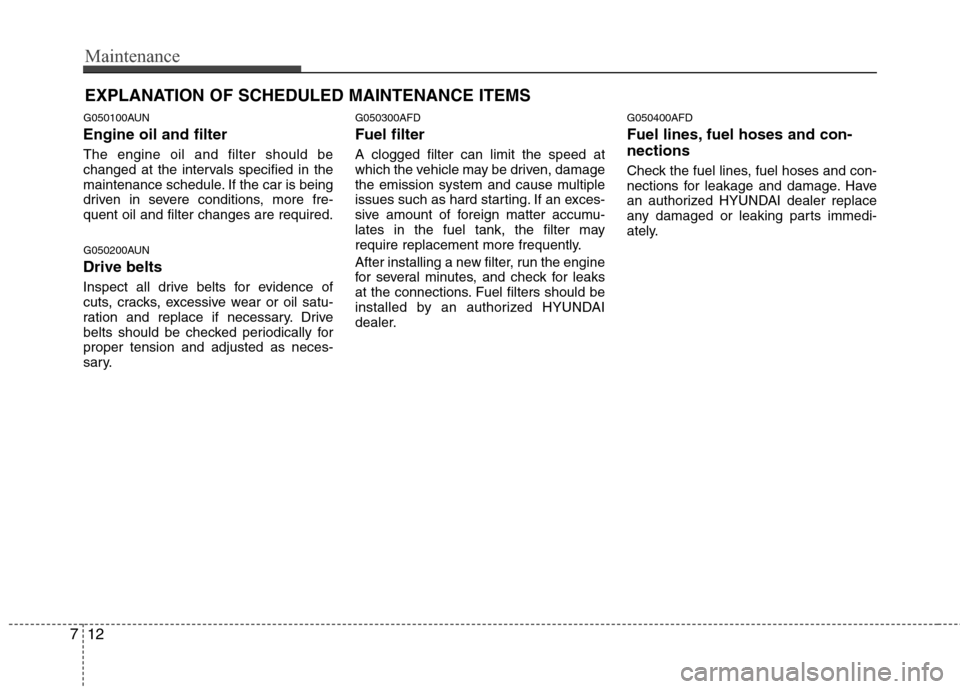

EXPLANATION OF SCHEDULED MAINTENANCE ITEMS
G050100AUN
Engine oil and filter
The engine oil and filter should be
changed at the intervals specified in the
maintenance schedule. If the

Page 328 of 402

Hyundai Elantra Touring 2011  Owners Manual 713
Maintenance
G050500AUN
Timing belt
Inspect all parts related to the timing belt
for damage and deformation. Replace
any damaged parts immediately.
G050600AUN
Vapor hose and fuel filler cap
The vap

Page 329 of 402

Hyundai Elantra Touring 2011  Owners Manual Maintenance
14 7

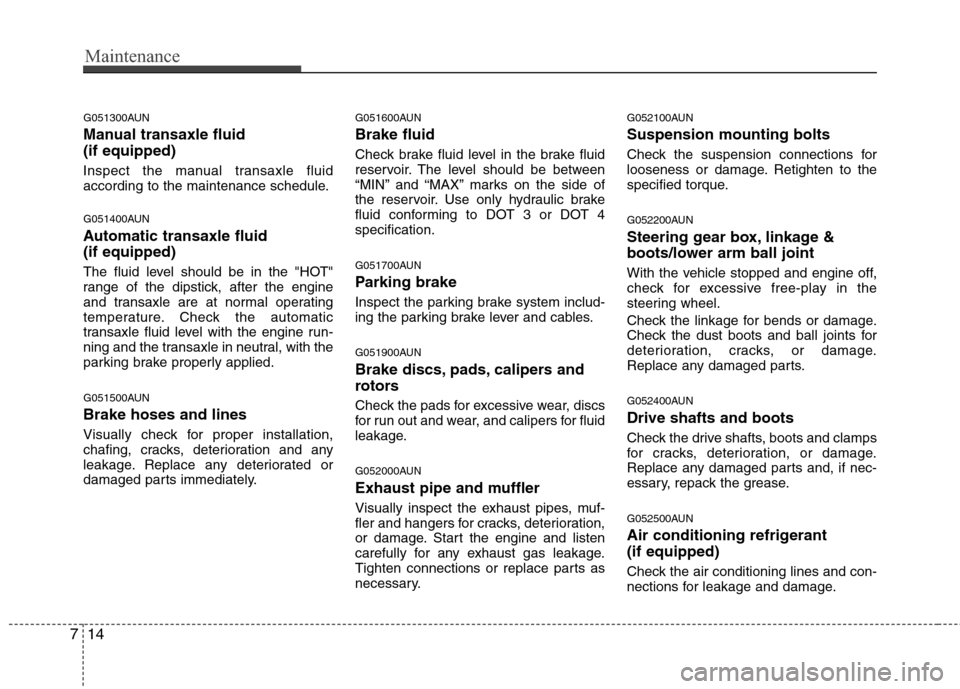

G051300AUN
Manual transaxle fluid
(if equipped)
Inspect the manual transaxle fluid
according to the maintenance schedule.
G051400AUN
Automatic transaxle fluid
(if equipped)
The flui

Page 330 of 402

Hyundai Elantra Touring 2011  Owners Manual 715
Maintenance

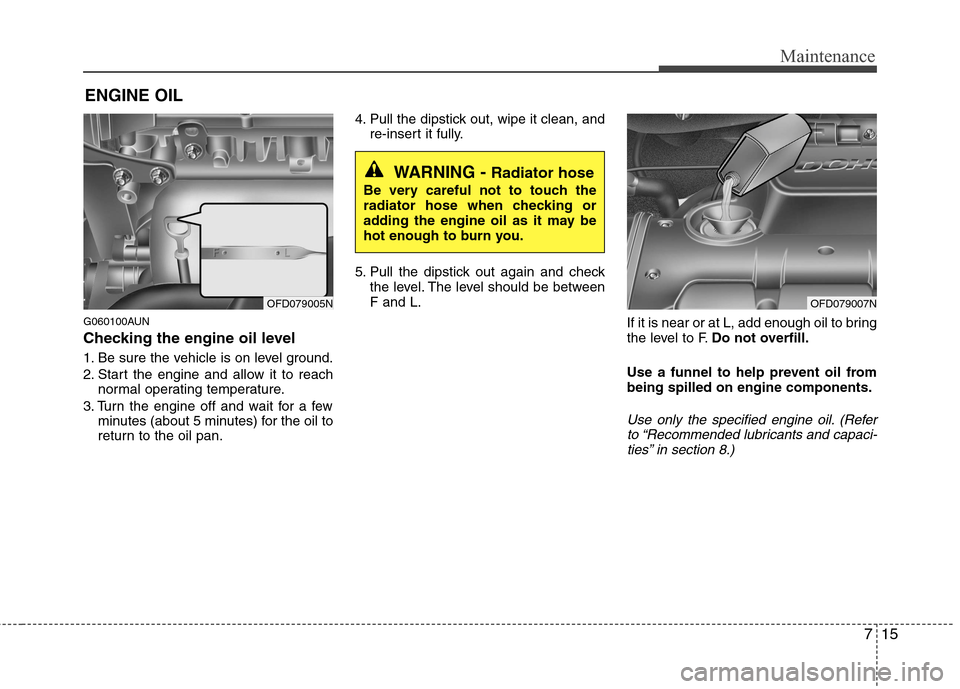

ENGINE OIL
G060100AUN
Checking the engine oil level
1. Be sure the vehicle is on level ground.
2. Start the engine and allow it to reach
normal operating temperature.
3. Turn the eng
