HYUNDAI ENTOURAGE 2007 User Guide

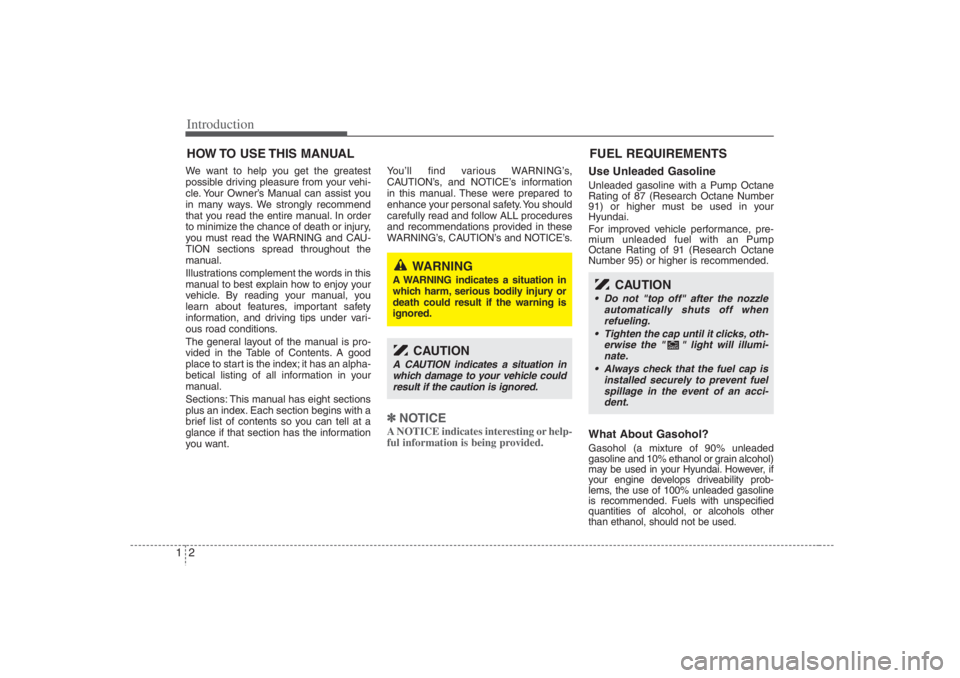

Introduction2 1We want to help you get the greatest
possible driving pleasure from your vehi-
cle. Your Owner’s Manual can assist you
in many ways. We strongly recommend
that you read the entire manual. In order
to minimize the chance of death or injury,
you must read the WARNING and CAU-
TION sections spread throughout the
manual.
Illustrations complement the words in this
manual to best explain how to enjoy your
vehicle. By reading your manual, you
learn about features, important safety
information, and driving tips under vari-
ous road conditions.
The general layout of the manual is pro-
vided in the Table of Contents. A good
place to start is the index; it has an alpha-
betical listing of all information in your
manual.
Sections: This manual has eight sections
plus an index. Each section begins with a
brief list of contents so you can tell at a
glance if that section has the information
you want.You’ll find various WARNING’s,
CAUTION’s, and NOTICE’s information
in this manual. These were prepared to
enhance your personal safety. You should
carefully read and follow ALL procedures
and recommendations provided in these
WARNING’s, CAUTION’s and NOTICE’s.
✽ ✽

NOTICEA NOTICE indicates interesting or help-
ful information is being provided.
Use Unleaded GasolineUnleaded gasoline with a Pump Octane
Rating of 87 (Research Octane Number
91) or higher must be used in your
Hyundai.
For improved vehicle performance, pre-
mium unleaded fuel with an Pump
Octane Rating of 91 (Research Octane
Number 95) or higher is recommended.What About Gasohol?Gasohol (a mixture of 90% unleaded
gasoline and 10% ethanol or grain alcohol)
may be used in your Hyundai. However, if
your engine develops driveability prob-
lems, the use of 100% unleaded gasoline
is recommended. Fuels with unspecified
quantities of alcohol, or alcohols other
than ethanol, should not be used.
HOW TO USE THIS MANUAL
WARNING
A WARNING indicates a situation in
which harm, serious bodily injury or
death could result if the warning is
ignored.
CAUTION
A CAUTION indicates a situation in
which damage to your vehicle could
result if the caution is ignored.
CAUTION
• Do not "top off" after the nozzle
automatically shuts off when
refueling.
 Tighten the cap until it clicks, oth-
erwise the " " light will illumi-
nate.
 Always check that the fuel cap is
installed securely to prevent fuel
spillage in the event of an acci-
dent.FUEL REQUIREMENTS

13
Introduction

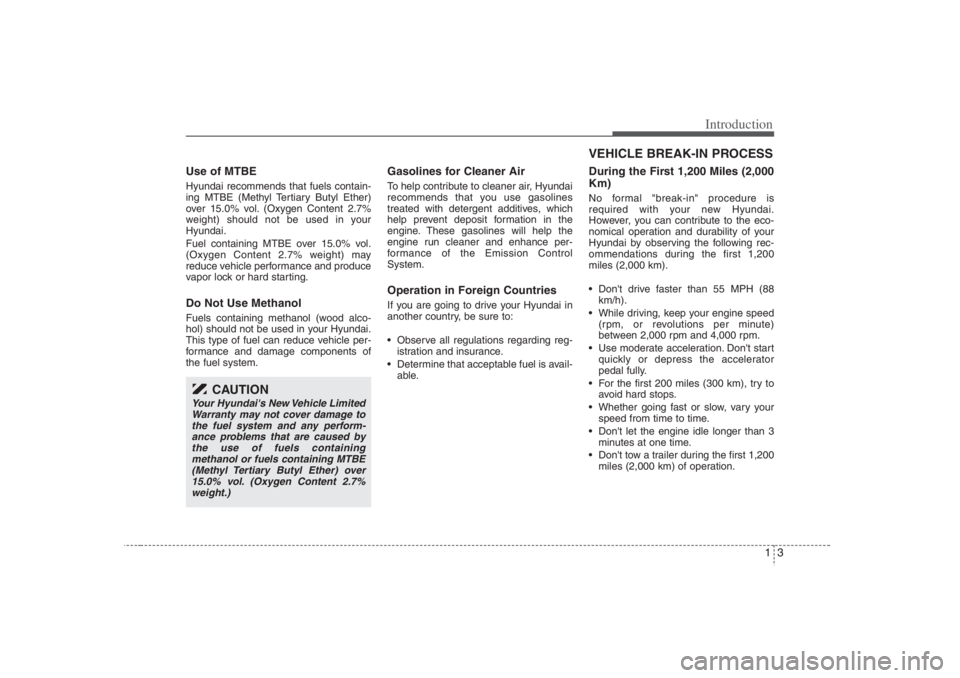

Use of MTBEHyundai recommends that fuels contain-
ing MTBE (Methyl Tertiary Butyl Ether)
over 15.0% vol. (Oxygen Content 2.7%
weight) should not be used in your
Hyundai.
Fuel containing MTBE over 15.0% vol.
(Oxygen Content 2.7% weight) may
reduce vehicle performance and produce
vapor lock or hard starting.Do Not Use MethanolFuels containing methanol (wood alco-
hol) should not be used in your Hyundai.
This type of fuel can reduce vehicle per-
formance and damage components of
the fuel system.
Gasolines for Cleaner AirTo help contribute to cleaner air, Hyundai
recommends that you use gasolines
treated with detergent additives, which
help prevent deposit formation in the
engine. These gasolines will help the
engine run cleaner and enhance per-
formance of the Emission Control
System.Operation in Foreign CountriesIf you are going to drive your Hyundai in
another country, be sure to:
 Observe all regulations regarding reg-
istration and insurance.
 Determine that acceptable fuel is avail-
able.
During the First 1,200 Miles (2,000
Km)No formal "break-in" procedure is
required with your new Hyundai.
However, you can contribute to the eco-
nomical operation and durability of your
Hyundai by observing the following rec-
ommendations during the first 1,200
miles (2,000 km).
 Don't drive faster than 55 MPH (88
km/h).
 While driving, keep your engine speed
(rpm, or revolutions per minute)
between 2,000 rpm and 4,000 rpm.
 Use moderate acceleration. Don't start
quickly or depress the accelerator
pedal fully.
 For the first 200 miles (300 km), try to
avoid hard stops.
 Whether going fast or slow, vary your
speed from time to time.
 Don't let the engine idle longer than 3
minutes at one time.
 Don't tow a trailer during the first 1,200
miles (2,000 km) of operation.
CAUTION
Your Hyundai's New Vehicle Limited
Warranty may not cover damage to
the fuel system and any perform-
ance problems that are caused by
the use of fuels containing
methanol or fuels containing MTBE
(Methyl Tertiary Butyl Ether) over
15.0% vol. (Oxygen Content 2.7%
weight.)
VEHICLE BREAK-IN PROCESS

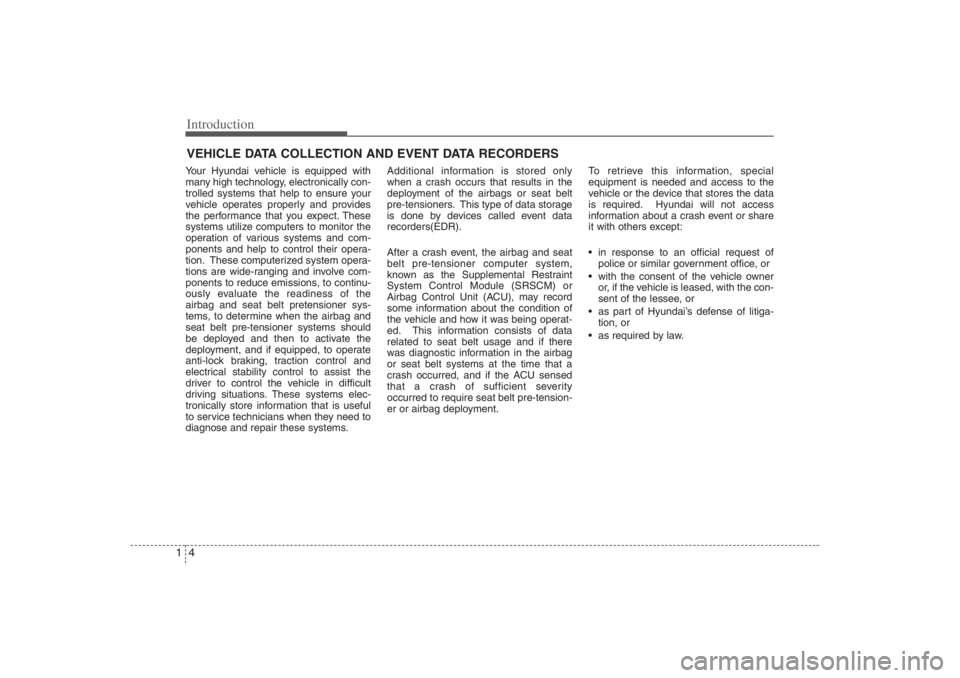

Introduction4 1Your Hyundai vehicle is equipped with
many high technology, electronically con-
trolled systems that help to ensure your
vehicle operates properly and provides
the performance that you expect. These
systems utilize computers to monitor the
operation of various systems and com-
ponents and help to control their opera-
tion. These computerized system opera-
tions are wide-ranging and involve com-
ponents to reduce emissions, to continu-
ously evaluate the readiness of the
airbag and seat belt pretensioner sys-
tems, to determine when the airbag and
seat belt pre-tensioner systems should
be deployed and then to activate the
deployment, and if equipped, to operate
anti-lock braking, traction control and
electrical stability control to assist the
driver to control the vehicle in difficult
driving situations. These systems elec-
tronically store information that is useful
to service technicians when they need to
diagnose and repair these systems.Additional information is stored only
when a crash occurs that results in the
deployment of the airbags or seat belt
pre-tensioners. This type of data storage
is done by devices called event data
recorders(EDR).
After a crash event, the airbag and seat
belt pre-tensioner computer system,
known as the Supplemental Restraint
System Control Module (SRSCM) or
Airbag Control Unit (ACU), may record
some information about the condition of
the vehicle and how it was being operat-
ed. This information consists of data
related to seat belt usage and if there
was diagnostic information in the airbag
or seat belt systems at the time that a
crash occurred, and if the ACU sensed
that a crash of sufficient severity
occurred to require seat belt pre-tension-
er or airbag deployment.To retrieve this information, special
equipment is needed and access to the
vehicle or the device that stores the data
is required. Hyundai will not access
information about a crash event or share
it with others except:
 in response to an official request of
police or similar government office, or
 with the consent of the vehicle owner
or, if the vehicle is leased, with the con-
sent of the lessee, or
 as part of Hyundai’s defense of litiga-
tion, or
 as required by law.VEHICLE DATA COLLECTION AND EVENT DATA RECORDERS

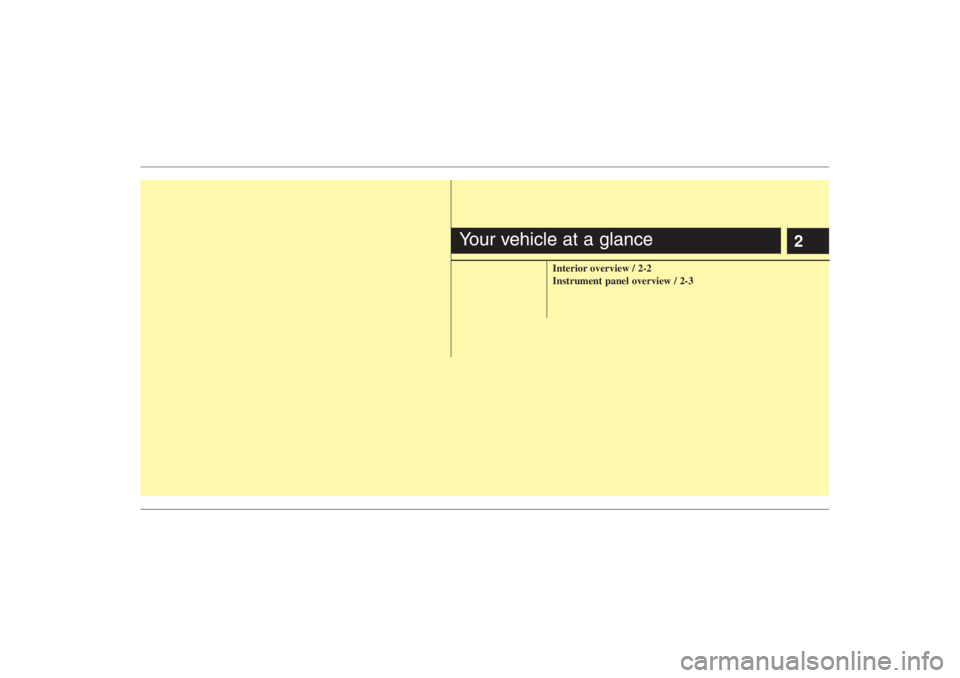

2
Interior overview / 2-2
Instrument panel overview / 2-3
Your vehicle at a glance

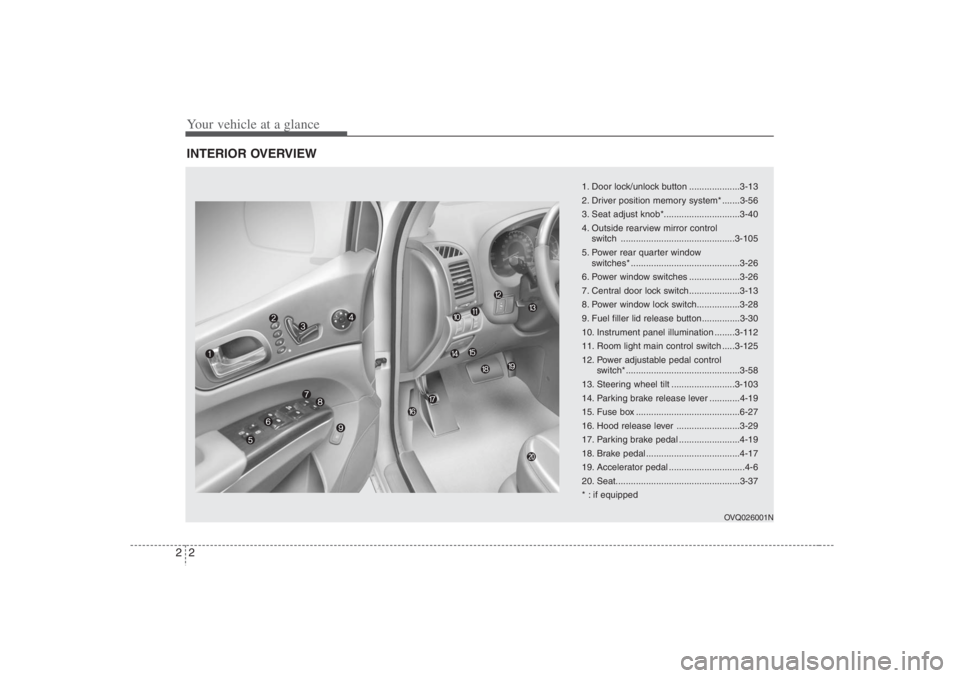

Your vehicle at a glance2 2INTERIOR OVERVIEW
OVQ026001N
1. Door lock/unlock button ....................3-13
2. Driver position memory system* .......3-56
3. Seat adjust knob*..............................3-40
4. Outside rearview mirror control
switch .............................................3-105
5. Power rear quarter window
switches* ...........................................3-26
6. Power window switches ....................3-26
7. Central door lock switch....................3-13
8. Power window lock switch.................3-28
9. Fuel filler lid release button...............3-30
10. Instrument panel illumination ........3-112
11. Room light main control switch .....3-125
12. Power adjustable pedal control
switch*.............................................3-58
13. Steering wheel tilt .........................3-103
14. Parking brake release lever ............4-19
15. Fuse box .........................................6-27
16. Hood release lever .........................3-29
17. Parking brake pedal ........................4-19
18. Brake pedal .....................................4-17
19. Accelerator pedal ..............................4-6
20. Seat.................................................3-37
* : if equipped

23
Your vehicle at a glance

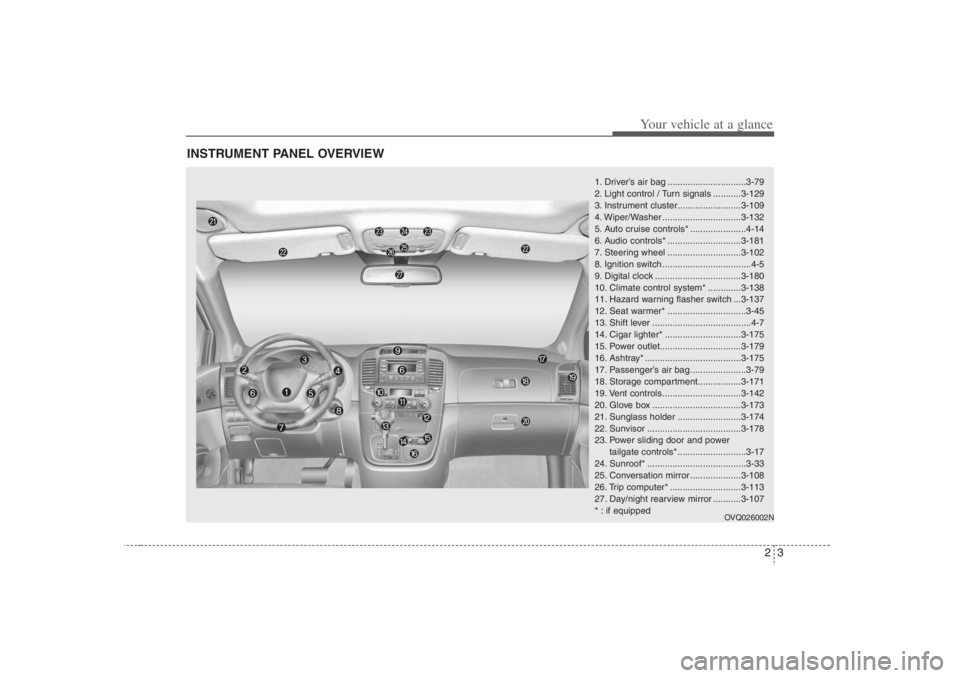

INSTRUMENT PANEL OVERVIEW
1. Driver’s air bag ...............................3-79
2. Light control / Turn signals ...........3-129
3. Instrument cluster.........................3-109
4. Wiper/Washer ...............................3-132
5. Auto cruise controls* ......................4-14
6. Audio controls* .............................3-181
7. Steering wheel .............................3-102
8. Ignition switch ...................................4-5
9. Digital clock ..................................3-180
10. Climate control system* .............3-138
11. Hazard warning flasher switch ...3-137
12. Seat warmer* ...............................3-45
13. Shift lever .......................................4-7
14. Cigar lighter* ..............................3-175
15. Power outlet................................3-179
16. Ashtray* ......................................3-175
17. Passenger’s air bag ......................3-79
18. Storage compartment.................3-171
19. Vent controls ...............................3-142
20. Glove box ...................................3-173
21. Sunglass holder .........................3-174
22. Sunvisor .....................................3-178
23. Power sliding door and power
tailgate controls* ...........................3-17
24. Sunroof* .......................................3-33
25. Conversation mirror ....................3-108
26. Trip computer* ............................3-113
27. Day/night rearview mirror ...........3-107
* : if equipped
OVQ026002N

3

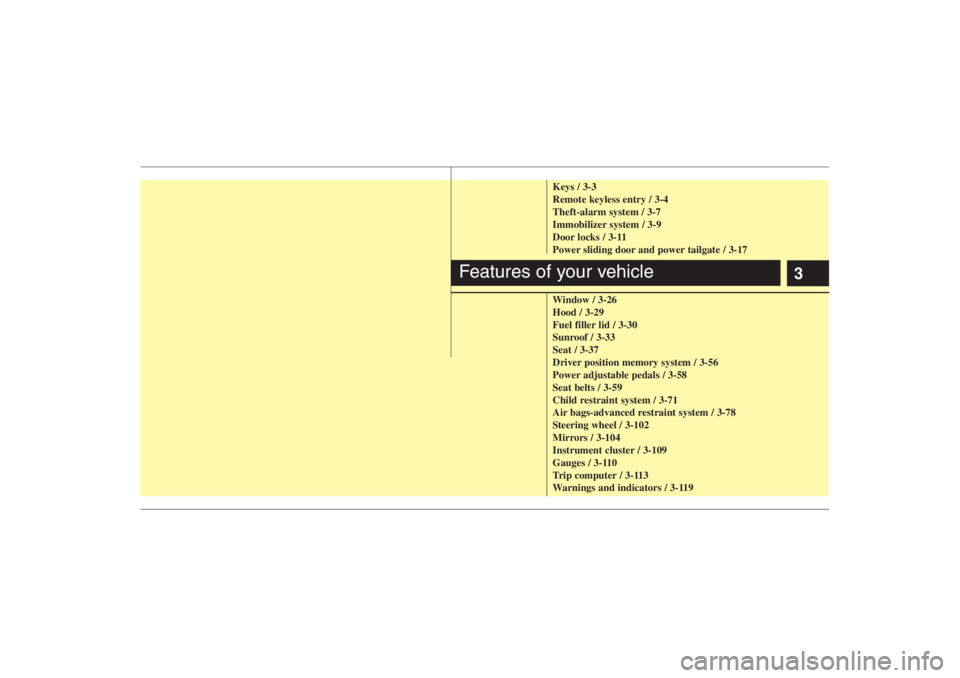

Keys / 3-3
Remote keyless entry / 3-4
Theft-alarm system / 3-7
Immobilizer system / 3-9
Door locks / 3-11
Power sliding door and power tailgate / 3-17
Window / 3-26
Hood / 3-29
Fuel filler lid / 3-30
Sunroof / 3-33
Seat / 3-37
Driver position memory system / 3-56
Power adjustable pedals / 3-58
Seat belts / 3-59
Child restraint system / 3-71
Air bags-advanced restraint system / 3-78
Steering wheel / 3-102
Mirrors / 3-104
Instrument cluster / 3-109
Gauges / 3-110
Trip computer / 3-113
Warnings and indicators / 3-119
Features of your vehicle

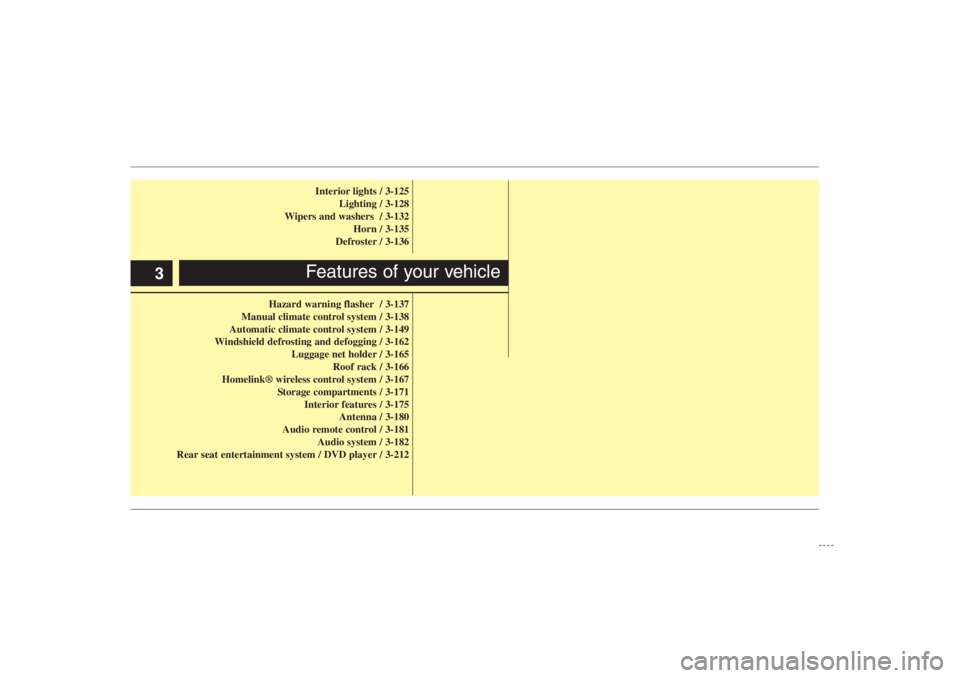

Interior lights / 3-125
Lighting / 3-128
Wipers and washers / 3-132
Horn / 3-135
Defroster / 3-136
Hazard warning flasher / 3-137
Manual climate control system / 3-138
Automatic climate control system / 3-149
Windshield defrosting and defogging / 3-162
Luggage net holder / 3-165
Roof rack / 3-166
Homelink® wireless control system / 3-167
Storage compartments / 3-171
Interior features / 3-175
Antenna / 3-180
Audio remote control / 3-181
Audio system / 3-182
Rear seat entertainment system / DVD player / 3-212Features of your vehicle
3

33
Features of your vehicle

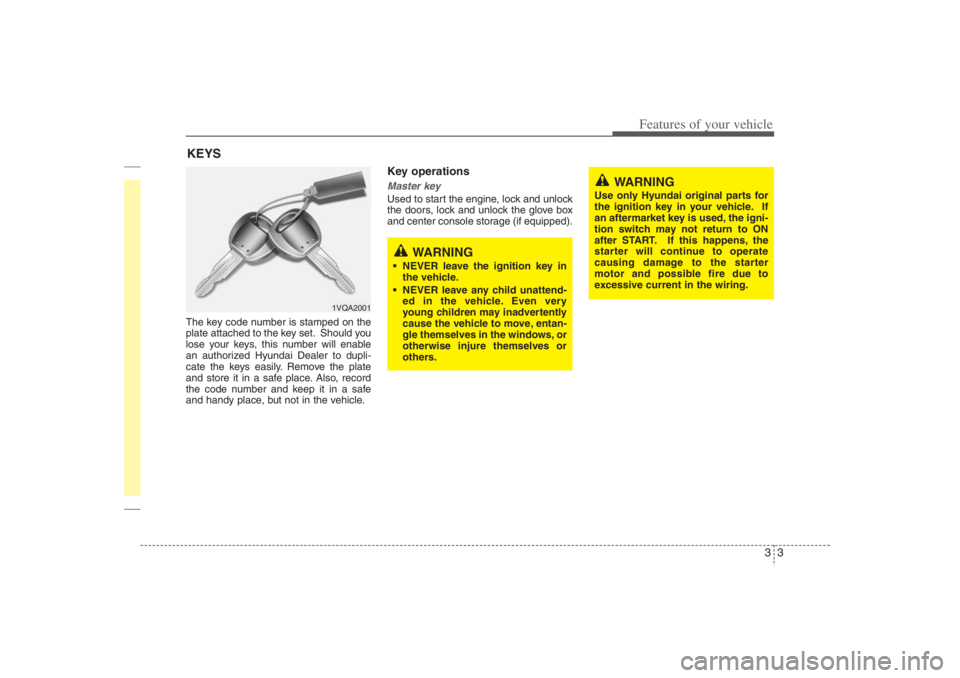

The key code number is stamped on the
plate attached to the key set. Should you
lose your keys, this number will enable
an authorized Hyundai Dealer to dupli-
cate the keys easily. Remove the plate
and store it in a safe place. Also, record
the code number and keep it in a safe
and handy place, but not in the vehicle.
Key operationsMaster keyUsed to start the engine, lock and unlock
the doors, lock and unlock the glove box
and center console storage (if equipped).
KEYS
WARNING
• NEVER leave the ignition key in
the vehicle.
 NEVER leave any child unattend-
ed in the vehicle. Even very
young children may inadvertently
cause the vehicle to move, entan-
gle themselves in the windows, or
otherwise injure themselves or
others.
1VQA2001
WARNING
Use only Hyundai original parts for
the ignition key in your vehicle. If
an aftermarket key is used, the igni-
tion switch may not return to ON
after START. If this happens, the
starter will continue to operate
causing damage to the starter
motor and possible fire due to
excessive current in the wiring.

Features of your vehicle4 3
(1) Lock ( )
All doors are locked if the lock button
is pressed.
If all doors and engine hood are
closed, the hazard warning lights
blink once to indicate that all doors
are locked. However, if any door or
engine hood remains open, the haz-
ard warning lights are not operated.
After this, if all door and engine hood
are closed, the hazard warning lights
blink.
(2) Unlock ( )
Driver's door is unlocked if the unlock
button is pressed once.
The hazard warning lights will blink
twice to indicate that the driver's door
is unlocked.
All doors are unlocked if the unlock
button is pressed twice within 3 sec-
onds.
The hazard warning lights will blink
twice again to indicate that all doors
are unlocked.
After depressing this button, the
doors will be locked automatically
unless you open any door within 30
seconds.(3) Power tailgate opening or closing
( , if equipped)
The tailgate is opened or closed
automatically if the button is pressed.
The hazard warning lights will blink
and the chime will sound 3 times to
indicate that the tailgate will swing
upward or downward.
(4) Left power sliding door opening or
closing (
, if equipped)
The left sliding door is opened or
closed automatically if the button is
pressed.
(5) Right power sliding door opening or
closing ( , if equipped)
The right sliding door is opened or
closed automatically if the button is
pressed.
REMOTE KEYLESS ENTRY (IF EQUIPPED)
1VQA2002B1VQA2002A1VQA2002
Type B Type A
Type C
