Introduction
4
1
Do not use methanol
Fuels containing methanol (wood alco-
hol) should not be used in your vehicle.
This type of fuel can reduce vehicle per-
formance and damage components ofthe fuel system.
Gasolines for cleaner air
To help contribute to cleaner air,
HYUNDAI recommends that you usegasolines treated with detergent addi-
tives, which help prevent deposit forma-
tion in the engine. These gasolines will
help the engine run cleaner and enhance
performance of the Emission ControlSystem.
Operation in foreign countries
If you are going to drive your vehicle in
another country, be sure to:
Observe all regulations regarding reg-
istration and insurance.
Determine that acceptable fuel is avail- able. No special break-in period is needed. By
following a few simple precautions for the
first 1,000 km (600 miles) you may add to
the performance, economy and life of
your vehicle.
Do not race the engine.
While driving, keep your engine speed
(rpm, or revolutions per minute)
between 2,000 rpm and 4,000 rpm.
Do not maintain a single speed for long
periods of time, either fast or slow.
Varying engine speed is needed to
properly break-in the engine.
Avoid hard stops, except in emergen- cies, to allow the brakes to seat prop-
erly.
Don't let the engine idle longer than 3
minutes at one time.
Don't tow a trailer during the first 2,000 km (1,200 miles) of operation.

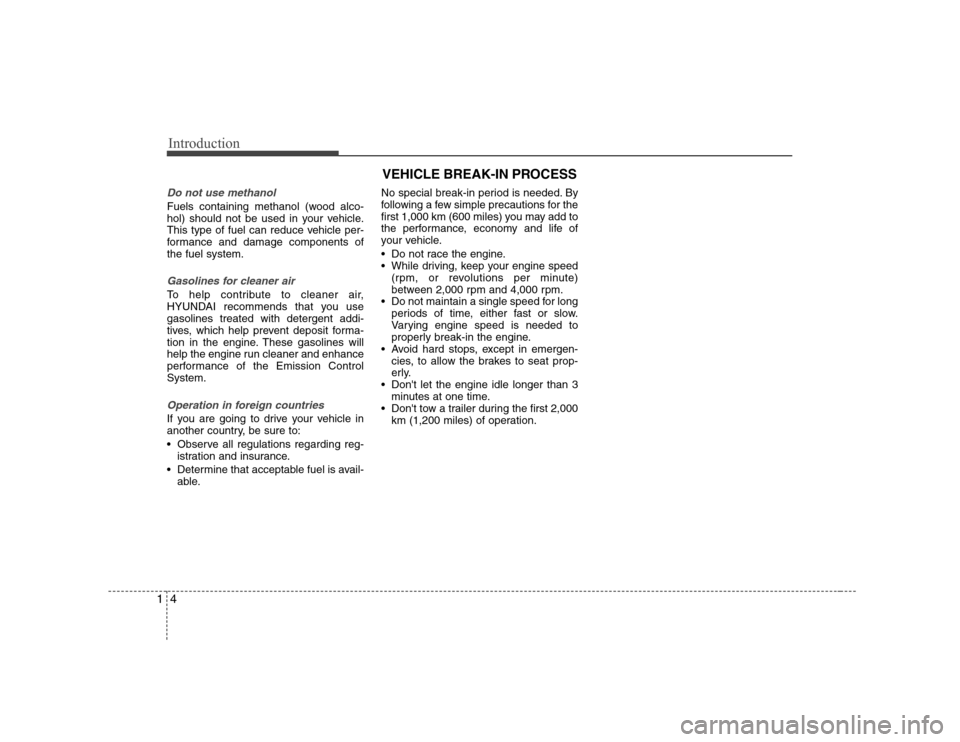

VEHICLE BREAK-IN PROCESS
Page 12 of 374
15
Introduction

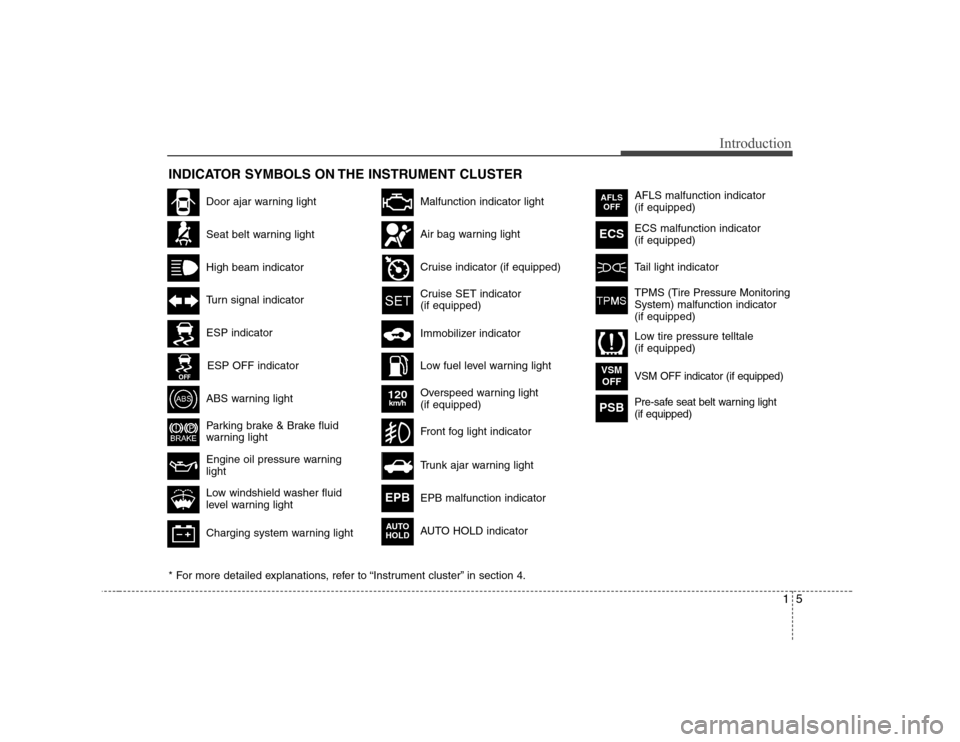

INDICATOR SYMBOLS ON THE INSTRUMENT CLUSTER
Seat belt warning light
High beam indicator
Turn signal indicator
ABS warning light
Parking brake & Brake fluid
warning light
Engine oil pressure warning light
ESP indicator
ESP OFF indicator
Malfunction indicator light
Air bag warning light
Cruise indicator (if equipped)
Cruise SET indicator (if equipped)
Immobilizer indicator
Low fuel level warning light
* For more detailed explanations, refer to “Instrument cluster” in section 4.
Charging system warning light
Low windshield washer fluid
level warning light
Door ajar warning light Overspeed warning light (if equipped)
120km/h
AFLS malfunction indicator (if equipped) ECS malfunction indicator (if equipped)
Tail light indicator
Trunk ajar warning light
Front fog light indicator
AFLSOFF
ECS
EPB malfunction indicator
AUTO HOLD indicator EPB
VSM OFF indicator (if equipped)VSM
OFF
Pre-safe seat belt warning light (if equipped)PSB
AUTO
HOLD
TPMS (Tire Pressure Monitoring System) malfunction indicator(if equipped)
Low tire pressure telltale (if equipped)
Page 13 of 374
Introduction
6
1

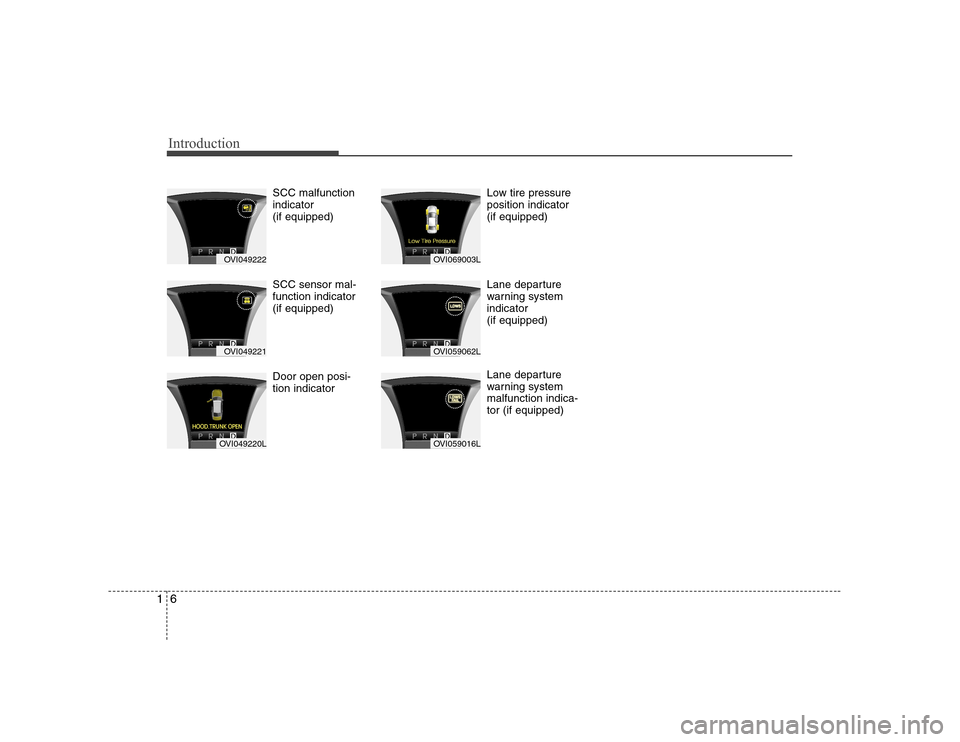

SCC malfunction indicator (if equipped) SCC sensor mal- function indicator (if equipped) Door open posi- tion indicator Low tire pressureposition indicator (if equipped)
Lane departure
warning systemindicator (if equipped)
Lane departure
warning systemmalfunction indica-tor (if equipped)
OVI049222
OVI049221
OVI049220L
OVI069003L
OVI059062L
OVI059016L
Page 14 of 374
2
Interior overview / 2-2
Instrument panel overview / 2-3
Engine compartment / 2-4
Your vehicle at a glance
Page 15 of 374
Your vehicle at a glance
2
2

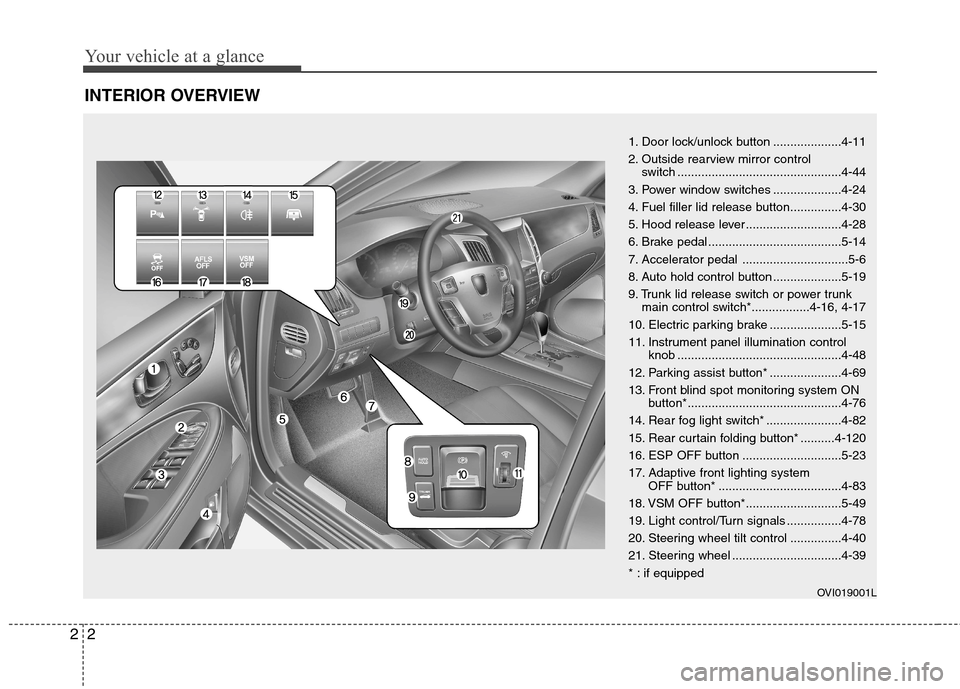

INTERIOR OVERVIEW
1. Door lock/unlock button ....................4-11
2. Outside rearview mirror control
switch ................................................4-44
3. Power window switches ....................4-24
4. Fuel filler lid release button...............4-30
5. Hood release lever ............................4-28
6. Brake pedal .......................................5-14
7. Accelerator pedal ...............................5-6
8. Auto hold control button ....................5-19
9. Trunk lid release switch or power trunk main control switch*.................4-16, 4-17
10. Electric parking brake .....................5-15
11. Instrument panel illumination control knob ................................................4-48
12. Parking assist button* .....................4-69
13. Front blind spot monitoring system ON button*.............................................4-76
14. Rear fog light switch* ......................4-82
15. Rear curtain folding button* ..........4-120
16. ESP OFF button .............................5-23
17. Adaptive front lighting system OFF button* ....................................4-83
18. VSM OFF button*............................5-49
19. Light control/Turn signals ................4-78
20. Steering wheel tilt control ...............4-40
21. Steering wheel ................................4-39
* : if equipped
OVI019001L
Page 16 of 374
23
Your vehicle at a glance

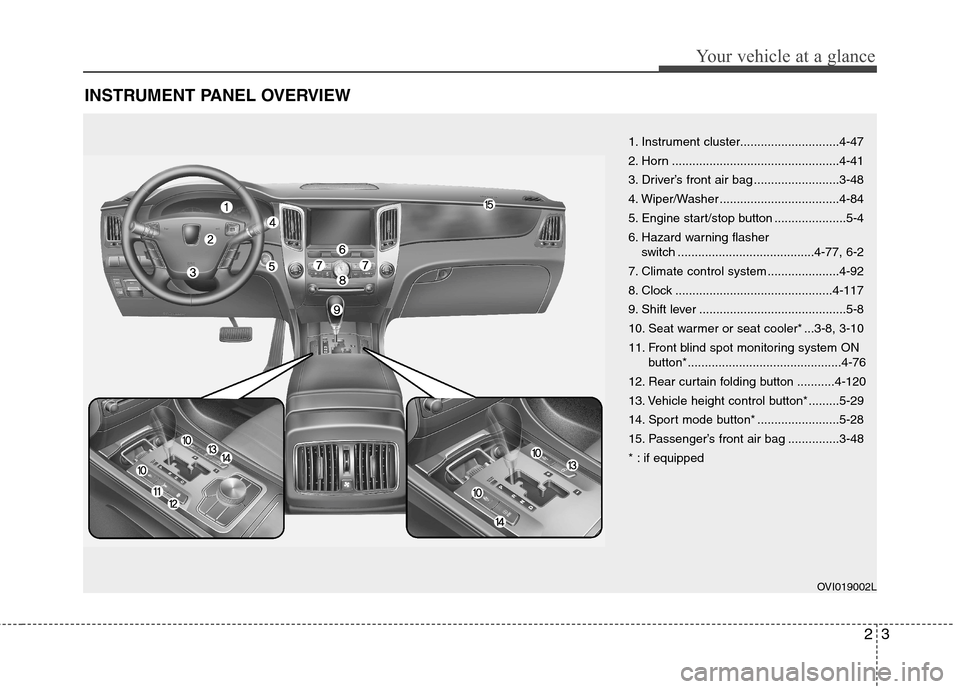

INSTRUMENT PANEL OVERVIEW
1. Instrument cluster.............................4-47
2. Horn .................................................4-41
3. Driver’s front air bag .........................3-48
4. Wiper/Washer ...................................4-84
5. Engine start/stop button .....................5-4
6. Hazard warning flasher switch ........................................4-77, 6-2
7. Climate control system .....................4-92
8. Clock ..............................................4-117
9. Shift lever ...........................................5-8
10. Seat warmer or seat cooler* ...3-8, 3-10
11. Front blind spot monitoring system ON button*.............................................4-76
12. Rear curtain folding button ...........4-120
13. Vehicle height control button* .........5-29
14. Sport mode button* ........................5-28
15. Passenger’s front air bag ...............3-48
* : if equipped
OVI019002L
Page 17 of 374
Your vehicle at a glance
4
2

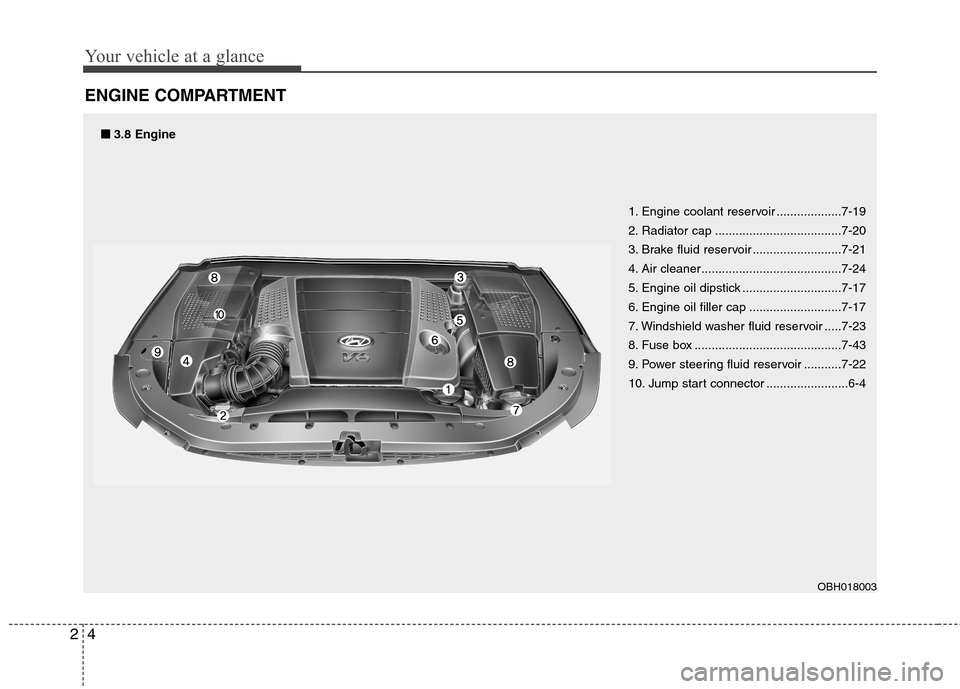

ENGINE COMPARTMENT
1. Engine coolant reservoir ...................7-19
2. Radiator cap .....................................7-20
3. Brake fluid reservoir ..........................7-21
4. Air cleaner.........................................7-24
5. Engine oil dipstick .............................7-17
6. Engine oil filler cap ...........................7-17
7. Windshield washer fluid reservoir .....7-23
8. Fuse box ...........................................7-43
9. Power steering fluid reservoir ...........7-22
10. Jump start connector ........................6-4
OBH018003
■■3.8 Engine
Page 18 of 374
25
Your vehicle at a glance
OVI079001
1. Engine coolant reservoir ...................7-19
2. Radiator cap .....................................7-20
3. Brake fluid reservoir ..........................7-21
4. Air cleaner.........................................7-24
5. Engine oil dipstick .............................7-17
6. Engine oil filler cap ...........................7-17
7. Windshield washer fluid reservoir .....7-23
8. Fuse box ...........................................7-43
9. Power steering fluid reservoir ...........7-22
10. Jump start connector ........................6-4
■
■

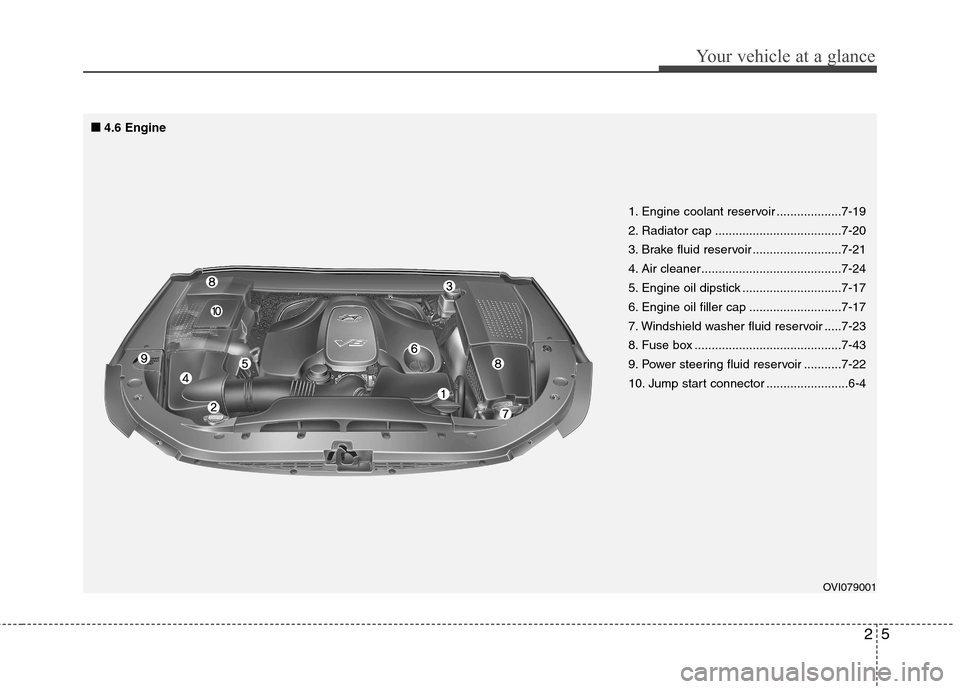

4.6 Engine
Page 19 of 374
3
Seats / 3-2
Seat belts / 3-21
Child restraint system / 3-33
Air bag - supplemental restraint system / 3-42
Safety features of your vehicle
Page 20 of 374
Safety features of your vehicle
2
3
Driver’s seat
(1) Seat sliding forward or backward** /
Seat height and cushion tilting adjust- ment
(2) Seat cushion length adjustment
(3) Seatback angle adjustment
(4) Head restraint height adjustment
(5) Driver position memory system
(6) Seat warmer or seat cooler*
(7) Lumbar support adjustment
Front passenger’s seat (8) Seat sliding forward or backward adjustment
(9) Seatback angle adjustment
(10) Head restraint height adjustment
(11) Seat warmer or seat cooler* Rear seat
(12) Seat sliding forward or backward adjustment with seatback angle adjustment
(13) Seat sliding forward or backward adjustment with seatback angleadjustment
(14) Head restraint height adjustment*
(15) Easy access ON/OFF toggle switch

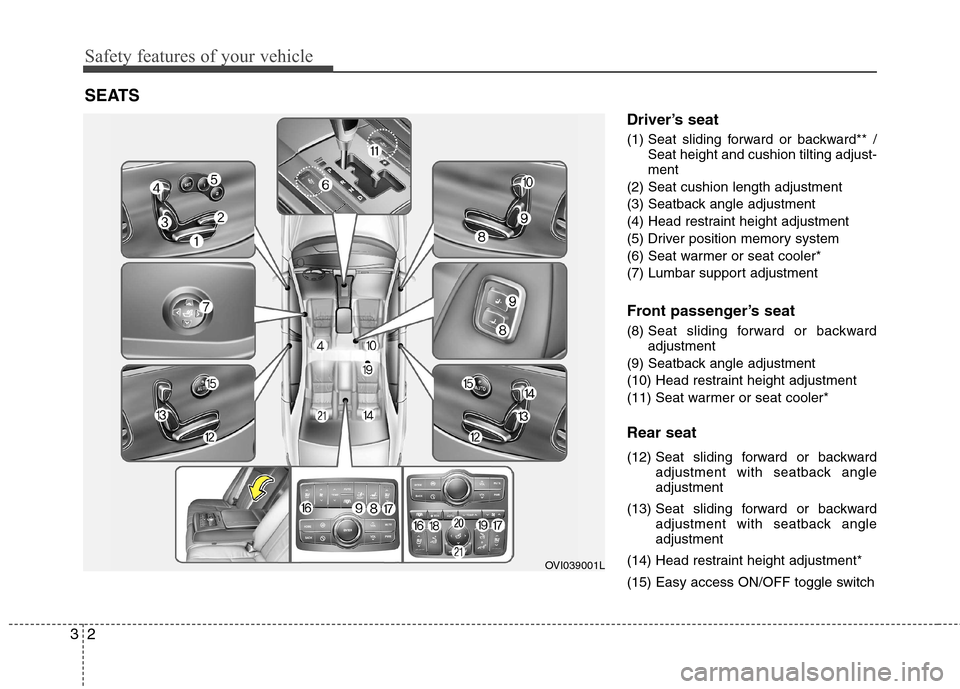

SEATS
OVI039001L
