Page 21 of 374
33
Safety features of your vehicle

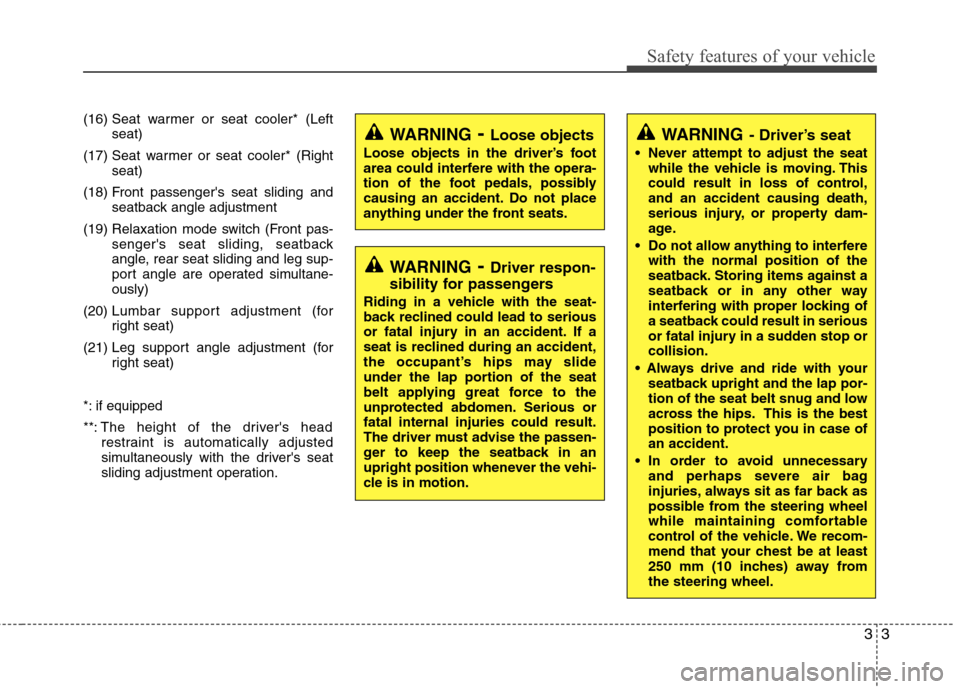

(16) Seat warmer or seat cooler* (Leftseat)
(17) Seat warmer or seat cooler* (Right seat)
(18) Front passenger's seat sliding and seatback angle adjustment
(19) Relaxation mode switch (Front pas- senger's seat sliding, seatback
angle, rear seat sliding and leg sup-
port angle are operated simultane-ously)
(20) Lumbar support adjustment (for
right seat)
(21) Leg support angle adjustment (for right seat)
*: if equipped
**: The height of the driver's headrestraint is automatically adjusted
simultaneously with the driver's seat
sliding adjustment operation.
WARNING - Driver’s seat
Never attempt to adjust the seat while the vehicle is moving. This
could result in loss of control,and an accident causing death,
serious injury, or property dam-
age.
Do not allow anything to interfere with the normal position of the
seatback. Storing items against a
seatback or in any other way
interfering with proper locking of
a seatback could result in serious
or fatal injury in a sudden stop orcollision.
seatback upright and the lap por-
tion of the seat belt snug and low
across the hips. This is the best
position to protect you in case ofan accident.
In order to avoid unnecessary and perhaps severe air bag
injuries, always sit as far back as
possible from the steering wheel
while maintaining comfortable
control of the vehicle. We recom-
mend that your chest be at least
250 mm (10 inches) away fromthe steering wheel.WARNING - Loose objects
Loose objects in the driver’s foot
area could interfere with the opera-
tion of the foot pedals, possibly
causing an accident. Do not place
anything under the front seats.
WARNING - Driver respon-
sibility for passengers
Riding in a vehicle with the seat-
back reclined could lead to serious
or fatal injury in an accident. If a
seat is reclined during an accident,
the occupant’s hips may slide
under the lap portion of the seat
belt applying great force to the
unprotected abdomen. Serious orfatal internal injuries could result.
The driver must advise the passen-
ger to keep the seatback in an
upright position whenever the vehi-
cle is in motion.
Page 22 of 374
Safety features of your vehicle
4
3

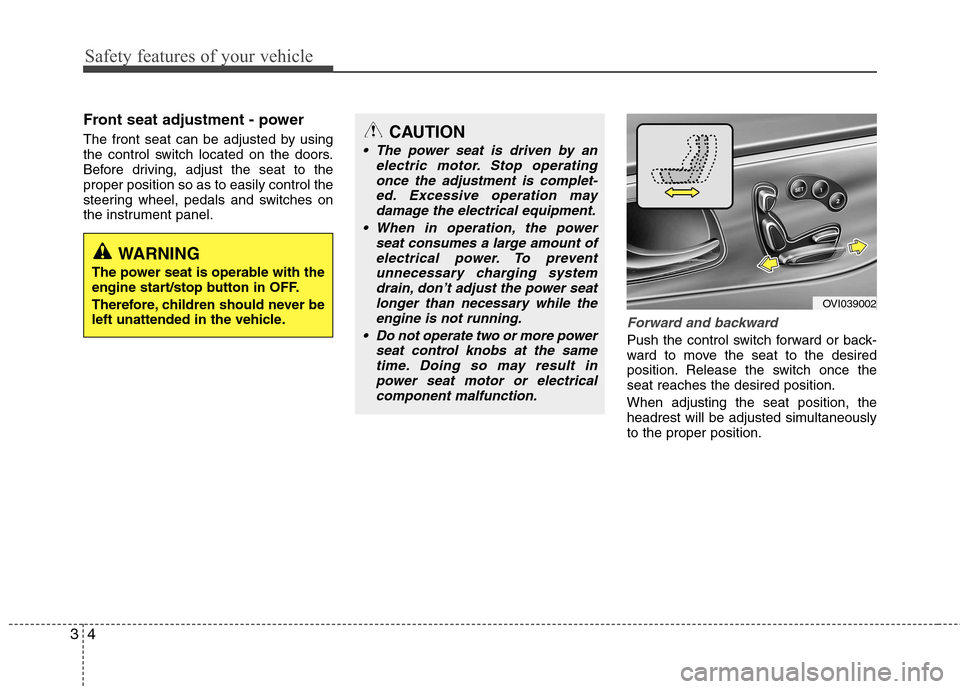

Front seat adjustment - power
The front seat can be adjusted by using
the control switch located on the doors.
Before driving, adjust the seat to theproper position so as to easily control the
steering wheel, pedals and switches on
the instrument panel.
Forward and backward
Push the control switch forward or back-
ward to move the seat to the desired
position. Release the switch once theseat reaches the desired position. When adjusting the seat position, the
headrest will be adjusted simultaneouslyto the proper position.
OVI039002
CAUTION
The power seat is driven by an
electric motor. Stop operating
once the adjustment is complet-ed. Excessive operation maydamage the electrical equipment.
When in operation, the power seat consumes a large amount ofelectrical power. To preventunnecessary charging systemdrain, don’t adjust the power seat
longer than necessary while the engine is not running.
Do not operate two or more power seat control knobs at the sametime. Doing so may result in
power seat motor or electricalcomponent malfunction.
WARNING
The power seat is operable with the
engine start/stop button in OFF.
Therefore, children should never be
left unattended in the vehicle.
Page 23 of 374
35
Safety features of your vehicle

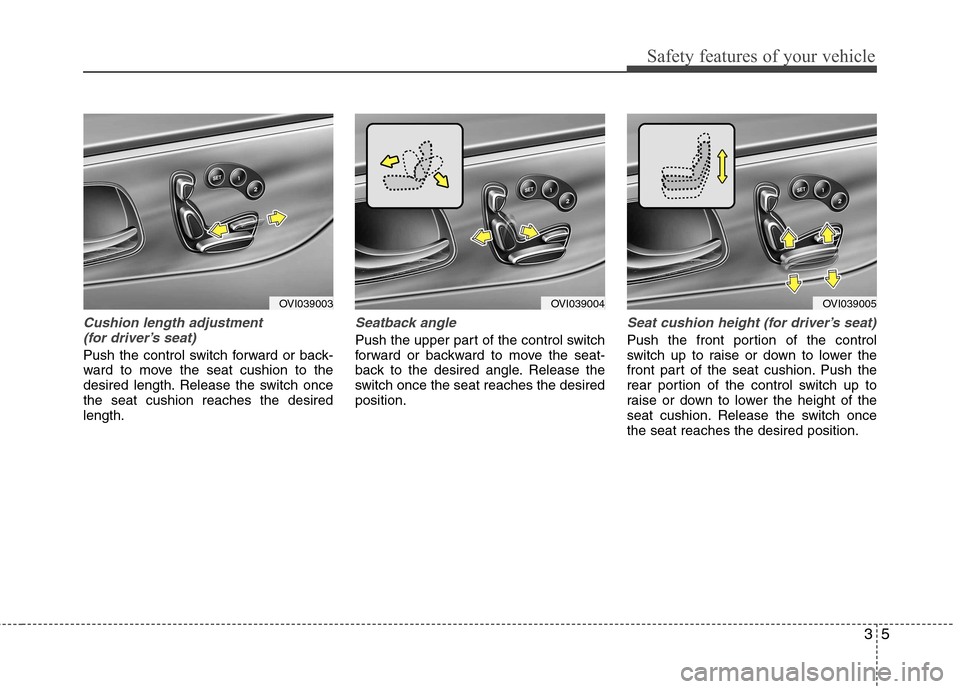

Cushion length adjustment (for driver’s seat)
Push the control switch forward or back-
ward to move the seat cushion to the
desired length. Release the switch oncethe seat cushion reaches the desiredlength.
Seatback angle
Push the upper part of the control switch
forward or backward to move the seat-
back to the desired angle. Release the
switch once the seat reaches the desiredposition.
Seat cushion height (for driver’s seat)
Push the front portion of the control
switch up to raise or down to lower the
front part of the seat cushion. Push the
rear portion of the control switch up to
raise or down to lower the height of the
seat cushion. Release the switch oncethe seat reaches the desired position.
OVI039003OVI039004OVI039005
Page 24 of 374
Safety features of your vehicle
6
3

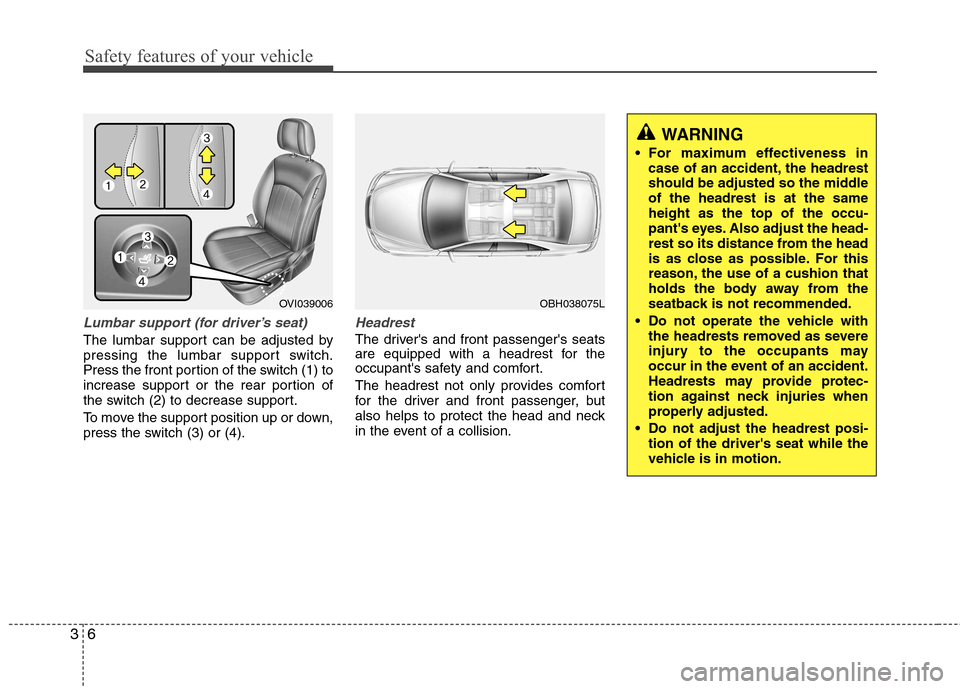

Lumbar support (for driver’s seat)
The lumbar support can be adjusted by
pressing the lumbar support switch.
Press the front portion of the switch (1) to
increase support or the rear portion of
the switch (2) to decrease support.
To move the support position up or down,
press the switch (3) or (4).
Headrest
The driver's and front passenger's seats
are equipped with a headrest for the
occupant's safety and comfort.
The headrest not only provides comfort
for the driver and front passenger, but
also helps to protect the head and neck
in the event of a collision.
WARNING
For maximum effectiveness in case of an accident, the headrest
should be adjusted so the middleof the headrest is at the sameheight as the top of the occu-
pant's eyes. Also adjust the head-
rest so its distance from the head
is as close as possible. For this
reason, the use of a cushion that
holds the body away from the
seatback is not recommended.
Do not operate the vehicle with the headrests removed as severe
injury to the occupants may
occur in the event of an accident.
Headrests may provide protec-
tion against neck injuries when
properly adjusted.
Do not adjust the headrest posi- tion of the driver's seat while the
vehicle is in motion.
OBH038075LOVI039006
Page 25 of 374
37
Safety features of your vehicle

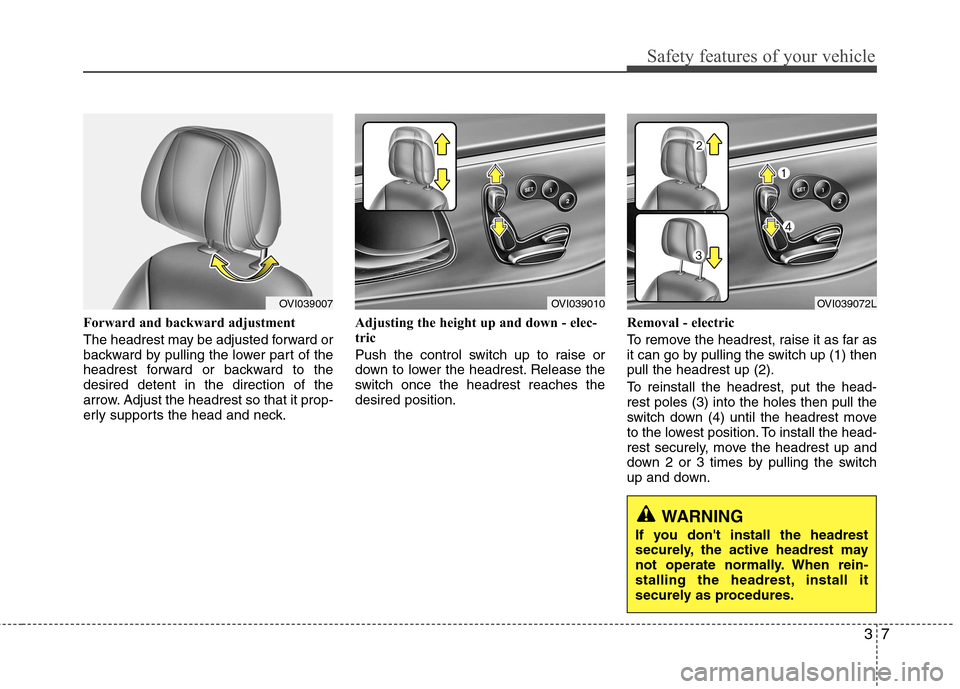

Forward and backward adjustment
The headrest may be adjusted forward or
backward by pulling the lower part of the
headrest forward or backward to thedesired detent in the direction of the
arrow. Adjust the headrest so that it prop-
erly supports the head and neck.Adjusting the height up and down - elec-
tric
Push the control switch up to raise or
down to lower the headrest. Release the
switch once the headrest reaches thedesired position.
Removal - electric
To remove the headrest, raise it as far as
it can go by pulling the switch up (1) thenpull the headrest up (2).
To reinstall the headrest, put the head- rest poles (3) into the holes then pull the
switch down (4) until the headrest move
to the lowest position. To install the head-
rest securely, move the headrest up and
down 2 or 3 times by pulling the switch
up and down.
OVI039010OVI039007OVI039072L
WARNING
If you don't install the headrest
securely, the active headrest may
not operate normally. When rein-
stalling the headrest, install it
securely as procedures.
Page 26 of 374
Safety features of your vehicle
8
3

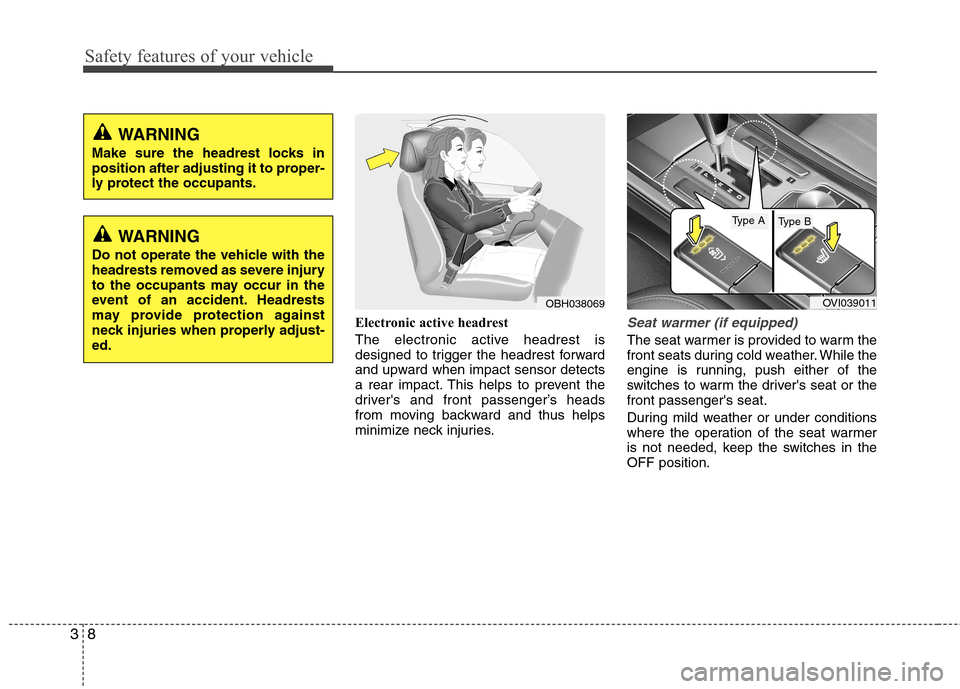

Electronic active headrest
The electronic active headrest is
designed to trigger the headrest forward
and upward when impact sensor detects
a rear impact. This helps to prevent the
driver's and front passenger’s heads
from moving backward and thus helps
minimize neck injuries.Seat warmer (if equipped)
The seat warmer is provided to warm the
front seats during cold weather. While the
engine is running, push either of the
switches to warm the driver's seat or thefront passenger's seat.
During mild weather or under conditions
where the operation of the seat warmer
is not needed, keep the switches in theOFF position.
OBH038069OVI039011
WARNING
Do not operate the vehicle with the
headrests removed as severe injury
to the occupants may occur in the
event of an accident. Headrests
may provide protection against
neck injuries when properly adjust-ed.
WARNING
Make sure the headrest locks in
position after adjusting it to proper-
ly protect the occupants.
Type BType A
Page 27 of 374
39
Safety features of your vehicle

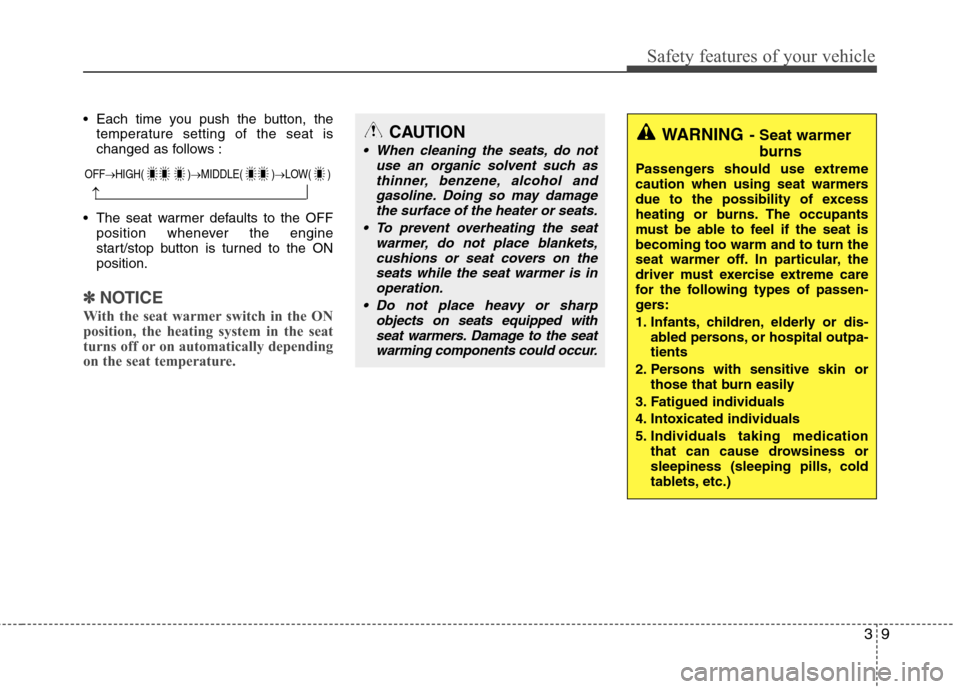

Each time you push the button, thetemperature setting of the seat is
changed as follows :
The seat warmer defaults to the OFF position whenever the engine
start/stop button is turned to the ONposition.
✽✽ NOTICE
With the seat warmer switch in the ON
position, the heating system in the seat
turns off or on automatically depending
on the seat temperature.
OFF HIGH( ) MIDDLE( ) LOW( )
CAUTION
When cleaning the seats, do not
use an organic solvent such as
thinner, benzene, alcohol andgasoline. Doing so may damagethe surface of the heater or seats.
To prevent overheating the seat warmer, do not place blankets,cushions or seat covers on theseats while the seat warmer is inoperation.
Do not place heavy or sharp objects on seats equipped withseat warmers. Damage to the seat warming components could occur.WARNING - Seat warmer
burns
Passengers should use extreme
caution when using seat warmers
due to the possibility of excess
heating or burns. The occupants
must be able to feel if the seat isbecoming too warm and to turn the
seat warmer off. In particular, the
driver must exercise extreme care
for the following types of passen-
gers:
1. Infants, children, elderly or dis- abled persons, or hospital outpa- tients
2. Persons with sensitive skin or those that burn easily
3. Fatigued individuals
4. Intoxicated individuals
5. Individuals taking medication that can cause drowsiness or
sleepiness (sleeping pills, cold
tablets, etc.)
Page 28 of 374
Safety features of your vehicle
10
3

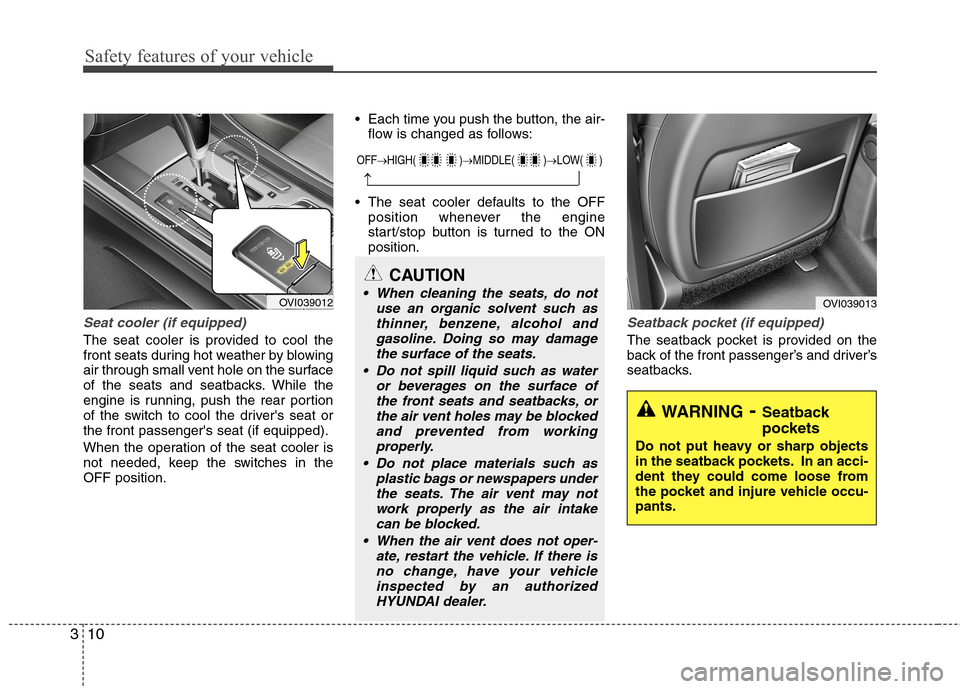

Seat cooler (if equipped)
The seat cooler is provided to cool the
front seats during hot weather by blowing
air through small vent hole on the surface
of the seats and seatbacks. While the
engine is running, push the rear portion
of the switch to cool the driver's seat orthe front passenger's seat (if equipped).
When the operation of the seat cooler is
not needed, keep the switches in theOFF position. Each time you push the button, the air-
flow is changed as follows:
The seat cooler defaults to the OFF position whenever the engine
start/stop button is turned to the ONposition.
Seatback pocket (if equipped)
The seatback pocket is provided on the
back of the front passenger’s and driver’s
seatbacks.
OVI039012
WARNING - Seatback
pockets
Do not put heavy or sharp objects
in the seatback pockets. In an acci-
dent they could come loose from
the pocket and injure vehicle occu-pants.
OVI039013
OFF HIGH( ) MIDDLE( ) LOW( )
CAUTION
When cleaning the seats, do not
use an organic solvent such asthinner, benzene, alcohol and
gasoline. Doing so may damagethe surface of the seats.
Do not spill liquid such as water or beverages on the surface ofthe front seats and seatbacks, or
the air vent holes may be blockedand prevented from working properly.
Do not place materials such as plastic bags or newspapers under
the seats. The air vent may notwork properly as the air intakecan be blocked.
When the air vent does not oper- ate, restart the vehicle. If there isno change, have your vehicleinspected by an authorizedHYUNDAI dealer.
Page 29 of 374
311
Safety features of your vehicle

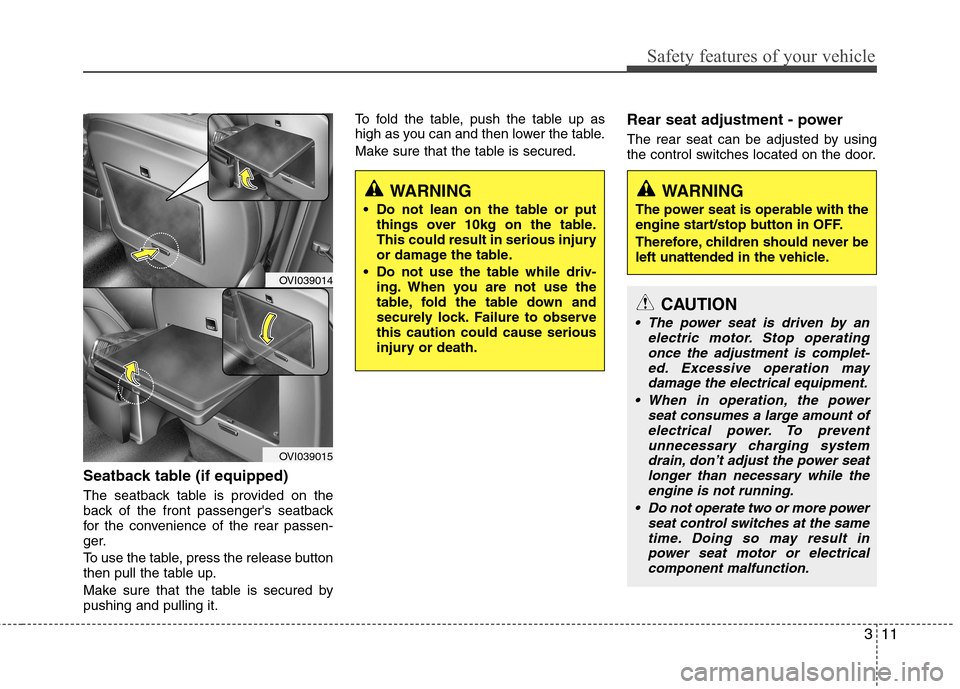

Seatback table (if equipped)
The seatback table is provided on the
back of the front passenger's seatback
for the convenience of the rear passen-
ger.
To use the table, press the release button
then pull the table up.
Make sure that the table is secured by pushing and pulling it.To fold the table, push the table up as
high as you can and then lower the table.
Make sure that the table is secured.
Rear seat adjustment - power
The rear seat can be adjusted by using
the control switches located on the door.
OVI039014
OVI039015
WARNING
Do not lean on the table or put things over 10kg on the table.
This could result in serious injury
or damage the table.
Do not use the table while driv- ing. When you are not use the
table, fold the table down and
securely lock. Failure to observethis caution could cause serious
injury or death.WARNING
The power seat is operable with the
engine start/stop button in OFF.
Therefore, children should never be
left unattended in the vehicle.
CAUTION
The power seat is driven by an electric motor. Stop operatingonce the adjustment is complet- ed. Excessive operation may
damage the electrical equipment.
When in operation, the power seat consumes a large amount ofelectrical power. To prevent unnecessary charging system
drain, don’t adjust the power seatlonger than necessary while the engine is not running.
Do not operate two or more power seat control switches at the same
time. Doing so may result inpower seat motor or electrical component malfunction.
Page 30 of 374
Safety features of your vehicle
12
3

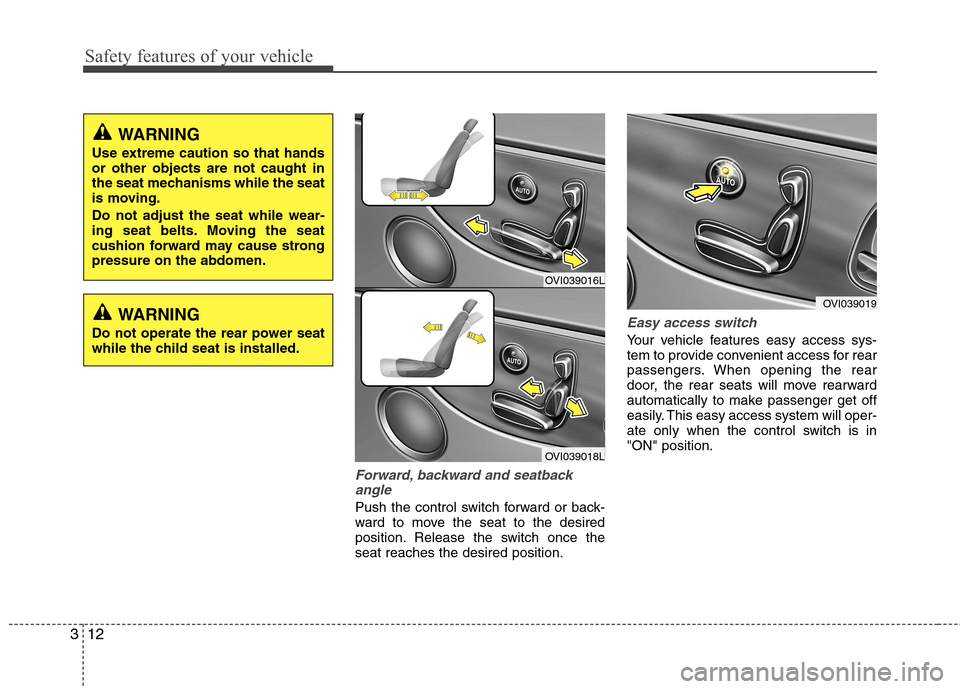

Forward, backward and seatback
angle
Push the control switch forward or back-
ward to move the seat to the desired
position. Release the switch once theseat reaches the desired position.
Easy access switch
Your vehicle features easy access sys-
tem to provide convenient access for rear
passengers. When opening the rear
door, the rear seats will move rearward
automatically to make passenger get off
easily. This easy access system will oper-
ate only when the control switch is in"ON" position.
WARNING
Use extreme caution so that hands or other objects are not caught in
the seat mechanisms while the seat
is moving. Do not adjust the seat while wear-
ing seat belts. Moving the seat
cushion forward may cause strongpressure on the abdomen.
OVI039019
OVI039016L
OVI039018L
WARNING
Do not operate the rear power seat
while the child seat is installed.
