Hyundai Equus 2010 Owner's Manual

Maintenance
50
7

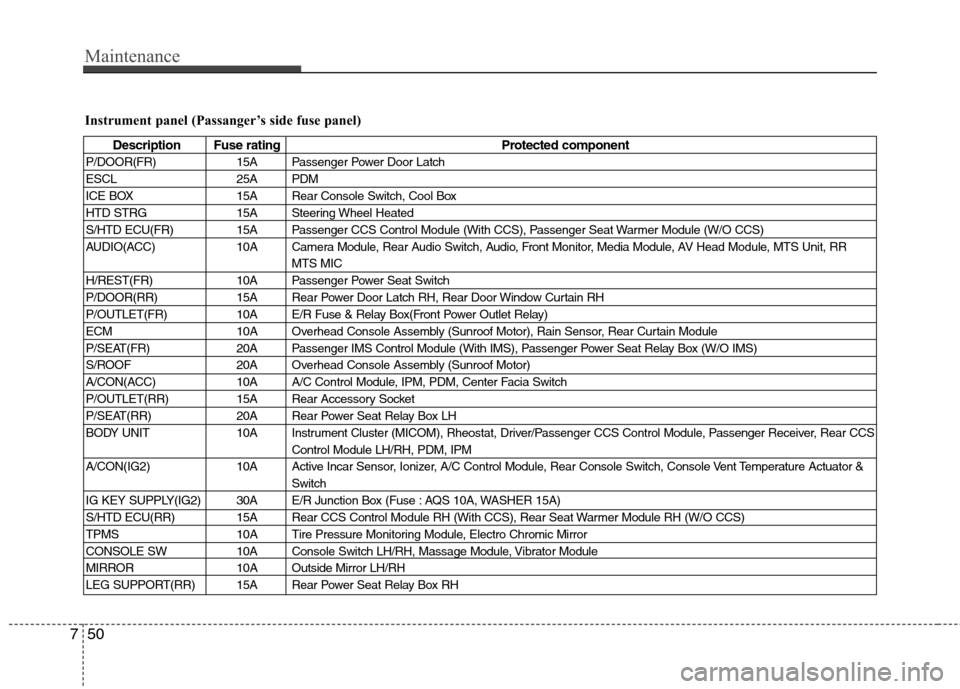

Instrument panel (Passanger’s side fuse panel)
Description Fuse rating Protected component
P/DOOR(FR) 15A Passenger Power Door Latch
ESCL 25A PDM
ICE BOX 15A Rear Console Switch, Cool Box
HTD STRG 15A Steering Wheel Heated
S/HTD ECU(FR) 15A Passenger CCS Control Module (With CCS), Passenger Seat Warmer Module (W/O CCS)
AUDIO(ACC) 10A Camera Module, Rear Audio Switch, Audio, Front Monitor, Media Module, AV Head Module, MTS Unit, RR MTS MIC
H/REST(FR) 10A Passenger Power Seat Switch
P/DOOR(RR) 15A Rear Power Door Latch RH, Rear Door Window Curtain RH
P/OUTLET(FR) 10A E/R Fuse & Relay Box(Front Power Outlet Relay)
ECM 10A Overhead Console Assembly (Sunroof Motor), Rain Sensor, Rear Curtain Module
P/SEAT(FR) 20A Passenger IMS Control Module (With IMS), Passenger Power Seat Relay Box (W/O IMS)
S/ROOF 20A Overhead Console Assembly (Sunroof Motor)
A/CON(ACC) 10A A/C Control Module, IPM, PDM, Center Facia Switch
P/OUTLET(RR) 15A Rear Accessory Socket
P/SEAT(RR) 20A Rear Power Seat Relay Box LH
BODY UNIT 10A Instrument Cluster (MICOM), Rheostat, Driver/Passenger CCS Control Module, Passenger Receiver, Rear CCS Control Module LH/RH, PDM, IPM
A/CON(IG2) 10A Active Incar Sensor, Ionizer, A/C Control Module, Rear Console Switch, Console Vent Temperature Actuator & Switch
IG KEY SUPPLY(IG2) 30A E/R Junction Box (Fuse : AQS 10A, WASHER 15A)
S/HTD ECU(RR) 15A Rear CCS Control Module RH (With CCS), Rear Seat Warmer Module RH (W/O CCS)
TPMS 10A Tire Pressure Monitoring Module, Electro Chromic Mirror
CONSOLE SW 10A Console Switch LH/RH, Massage Module, Vibrator Module
MIRROR 10A Outside Mirror LH/RH
LEG SUPPORT(RR) 15A Rear Power Seat Relay Box RH

751
Maintenance

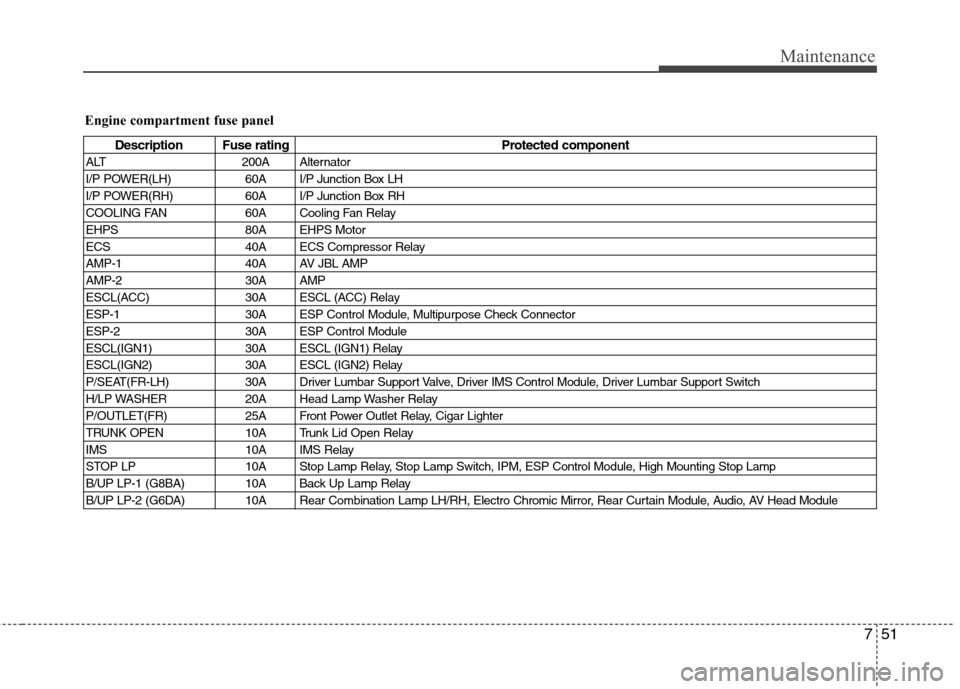

Engine compartment fuse panel
Description Fuse rating Protected component
ALT 200A Alternator
I/P POWER(LH) 60A I/P Junction Box LH
I/P POWER(RH) 60A I/P Junction Box RH
COOLING FAN 60A Cooling Fan Relay
EHPS 80A EHPS Motor
ECS 40A ECS Compressor Relay
AMP-1 40A AV JBL AMP
AMP-2 30A AMP
ESCL(ACC) 30A ESCL (ACC) Relay
ESP-1 30A ESP Control Module, Multipurpose Check Connector
ESP-2 30A ESP Control Module
ESCL(IGN1) 30A ESCL (IGN1) Relay
ESCL(IGN2) 30A ESCL (IGN2) Relay
P/SEAT(FR-LH) 30A Driver Lumbar Support Valve, Driver IMS Control Module, Driver Lumbar Support Switch
H/LP WASHER 20A Head Lamp Washer Relay
P/OUTLET(FR) 25A Front Power Outlet Relay, Cigar Lighter
TRUNK OPEN 10A Trunk Lid Open Relay
IMS 10A IMS Relay
STOP LP 10A Stop Lamp Relay, Stop Lamp Switch, IPM, ESP Control Module, High Mounting Stop Lamp
B/UP LP-1 (G8BA) 10A Back Up Lamp Relay
B/UP LP-2 (G6DA) 10A Rear Combination Lamp LH/RH, Electro Chromic Mirror, Rear Curtain Module, Audio, AV Head Module

Maintenance
52
7

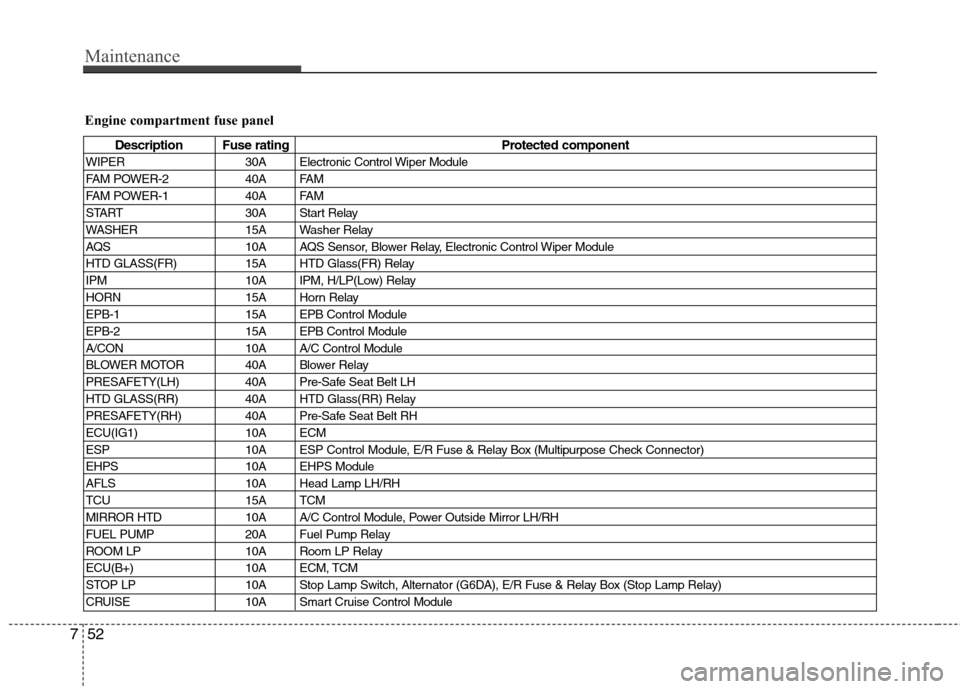

Engine compartment fuse panel
Description Fuse rating Protected component
WIPER 30A Electronic Control Wiper Module
FAM POWER-2 40A FAM
FAM POWER-1 40A FAM
START 30A Start Relay
WASHER 15A Washer Relay
AQS 10A AQS Sensor, Blower Relay, Electronic Control Wiper Module
HTD GLASS(FR) 15A HTD Glass(FR) Relay
IPM 10A IPM, H/LP(Low) Relay
HORN 15A Horn Relay
EPB-1 15A EPB Control Module
EPB-2 15A EPB Control Module
A/CON 10A A/C Control Module
BLOWER MOTOR 40A Blower Relay
PRESAFETY(LH) 40A Pre-Safe Seat Belt LH
HTD GLASS(RR) 40A HTD Glass(RR) Relay
PRESAFETY(RH) 40A Pre-Safe Seat Belt RH
ECU(IG1) 10A ECM
ESP 10A ESP Control Module, E/R Fuse & Relay Box (Multipurpose Check Connector)
EHPS 10A EHPS Module
AFLS 10A Head Lamp LH/RH
TCU 15A TCM
MIRROR HTD 10A A/C Control Module, Power Outside Mirror LH/RH
FUEL PUMP 20A Fuel Pump Relay
ROOM LP 10A Room LP Relay
ECU(B+) 10A ECM, TCM
STOP LP 10A Stop Lamp Switch, Alternator (G6DA), E/R Fuse & Relay Box (Stop Lamp Relay)
CRUISE 10A Smart Cruise Control Module

753
Maintenance

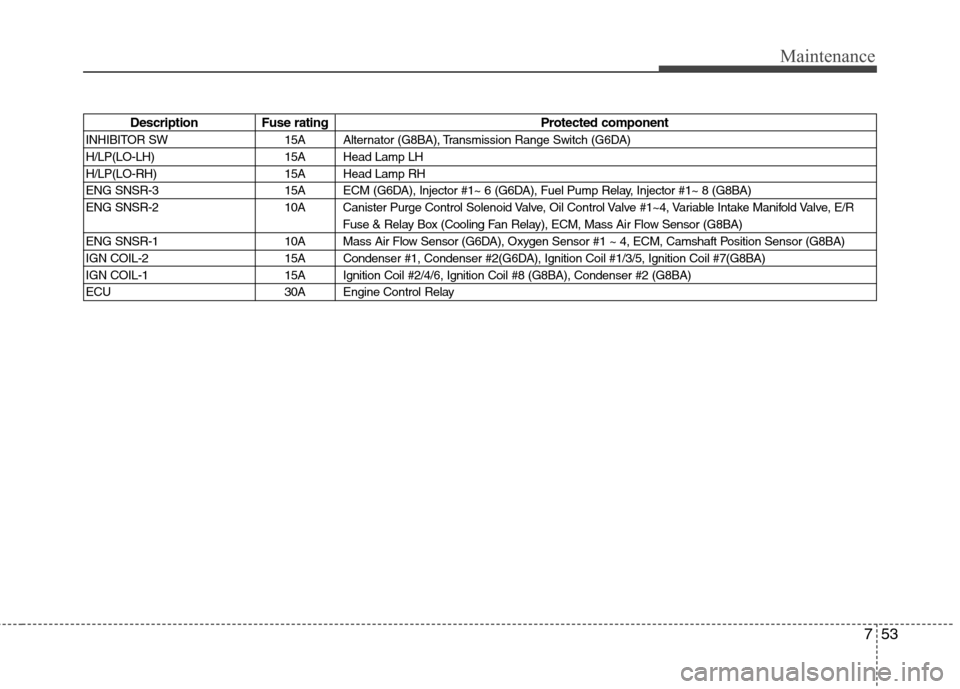

Description Fuse rating Protected component
INHIBITOR SW 15A Alternator (G8BA), Transmission Range Switch (G6DA)
H/LP(LO-LH) 15A Head Lamp LH
H/LP(LO-RH) 15A Head Lamp RH
ENG SNSR-3 15A ECM (G6DA), Injector #1~ 6 (G6DA), Fuel Pump Relay, Injector #1~ 8 (G8BA)
ENG SNSR-2 10A Canister Purge Control Solenoid Valve, Oil Control Valve #1~4, Variable Intake Manifold Valve, E/R Fuse & Relay Box (Cooling Fan Relay), ECM, Mass Air Flow Sensor (G8BA)
ENG SNSR-1 10A Mass Air Flow Sensor (G6DA), Oxygen Sensor #1 ~ 4, ECM, Camshaft Position Sensor (G8BA)
IGN COIL-2 15A Condenser #1, Condenser #2(G6DA), Ignition Coil #1/3/5, Ignition Coil #7(G8BA)
IGN COIL-1 15A Ignition Coil #2/4/6, Ignition Coil #8 (G8BA), Condenser #2 (G8BA)
ECU 30A Engine Control Relay

Maintenance
54
7

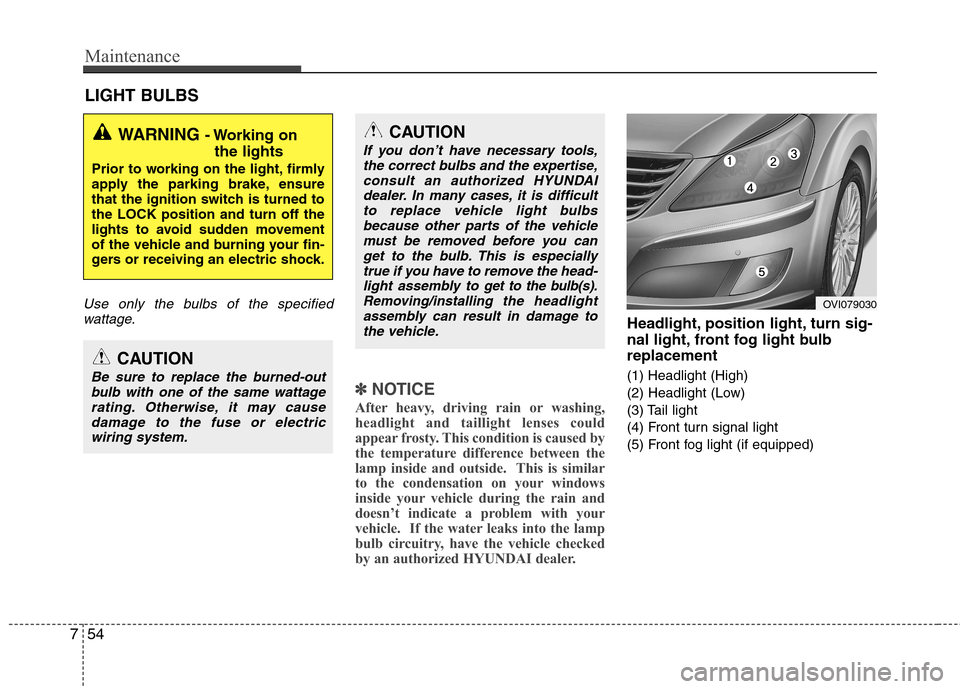

LIGHT BULBS
Use only the bulbs of the specified
wattage.
✽✽ NOTICE
After heavy, driving rain or washing,
headlight and taillight lenses could
appear frosty. This condition is caused by
the temperature difference between the
lamp inside and outside. This is similar
to the condensation on your windows
inside your vehicle during the rain and
doesn’t indicate a problem with your
vehicle. If the water leaks into the lamp
bulb circuitry, have the vehicle checked
by an authorized HYUNDAI dealer.
Headlight, position light, turn sig-
nal light, front fog light bulbreplacement
(1) Headlight (High)
(2) Headlight (Low)
(3) Tail light
(4) Front turn signal light
(5) Front fog light (if equipped)
WARNING - Working on
the lights
Prior to working on the light, firmly
apply the parking brake, ensure
that the ignition switch is turned tothe LOCK position and turn off the
lights to avoid sudden movement
of the vehicle and burning your fin-
gers or receiving an electric shock.
CAUTION
Be sure to replace the burned-out bulb with one of the same wattage
rating. Otherwise, it may causedamage to the fuse or electricwiring system.
CAUTION
If you don’t have necessary tools,the correct bulbs and the expertise,
consult an authorized HYUNDAIdealer. In many cases, it is difficultto replace vehicle light bulbs because other parts of the vehicle
must be removed before you canget to the bulb. This is especiallytrue if you have to remove the head-
light assembly to
get to the bulb(s).
Removing/installingthe headlight
assembly can result in damage to the vehicle.OVI079030

755
Maintenance

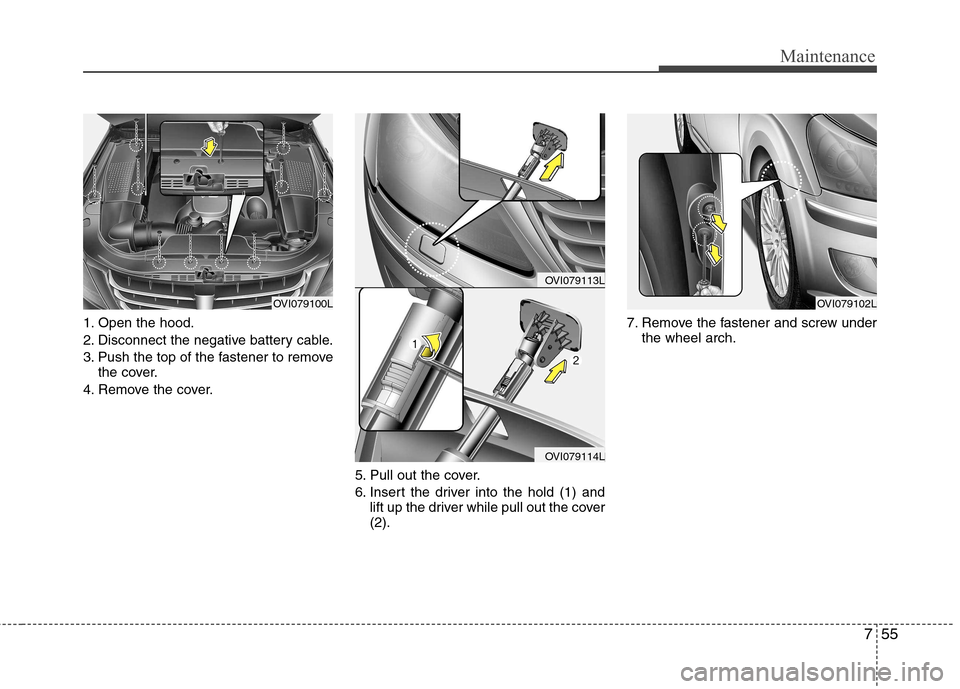

1. Open the hood.
2. Disconnect the negative battery cable.
3. Push the top of the fastener to removethe cover.
4. Remove the cover.
5. Pull out the cover.
6. Insert the driver into the hold (1) andlift up the driver while pull out the cover (2). 7. Remove the fastener and screw under
the wheel arch.
OVI079100LOVI079102L
OVI079113L
OVI079114L

Maintenance
56
7

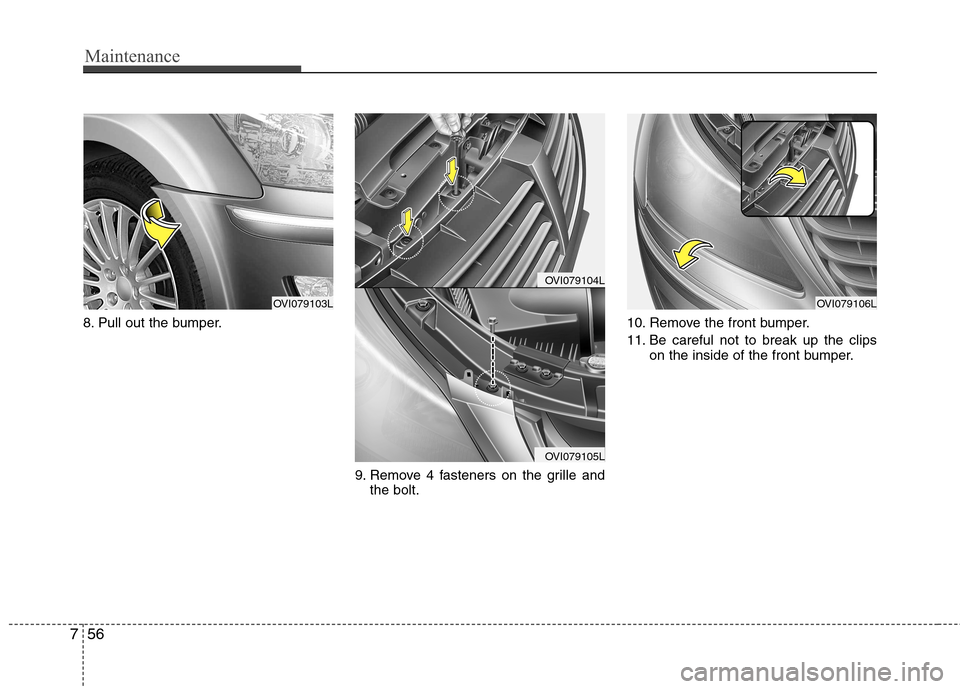

8. Pull out the bumper.
9. Remove 4 fasteners on the grille andthe bolt. 10. Remove the front bumper.
11. Be careful not to break up the clips
on the inside of the front bumper.
OVI079103LOVI079106L
OVI079104L
OVI079105L

757
Maintenance
12. If you want to replace the right sidehead lamp, remove the bolts then
remove the air cleaner. 13. Remove the mounting bolts. 14. Pull the headlight assembly out to the
front of the vehicle.
OVI079107LOVI079108LOVI079109L

Maintenance
58
7

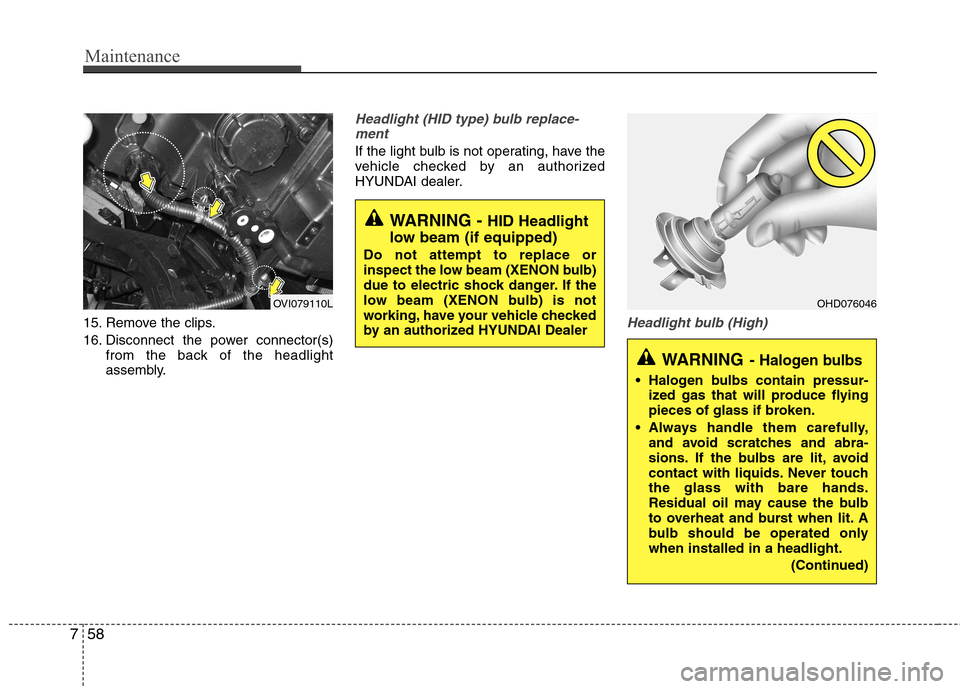

15. Remove the clips.
16. Disconnect the power connector(s)
from the back of the headlight
assembly.
Headlight (HID type) bulb replace-
ment
If the light bulb is not operating, have the
vehicle checked by an authorized
HYUNDAI dealer.
Headlight bulb (High)
OVI079110LOHD076046
WARNING - Halogen bulbs
Halogen bulbs contain pressur-
ized gas that will produce flying
pieces of glass if broken.
Always handle them carefully, and avoid scratches and abra-
sions. If the bulbs are lit, avoid
contact with liquids. Never touchthe glass with bare hands.
Residual oil may cause the bulb
to overheat and burst when lit. A
bulb should be operated onlywhen installed in a headlight.
(Continued)
WARNING - HID Headlight
low beam (if equipped)
Do not attempt to replace or
inspect the low beam (XENON bulb)
due to electric shock danger. If the
low beam (XENON bulb) is not
working, have your vehicle checked
by an authorized HYUNDAI Dealer

759
Maintenance

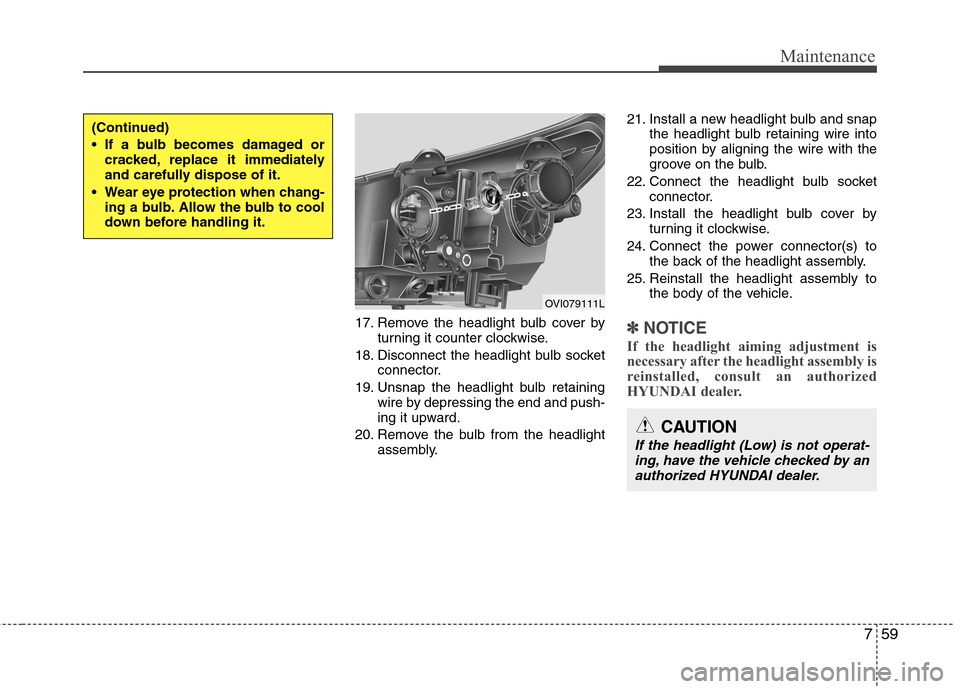

17. Remove the headlight bulb cover byturning it counter clockwise.
18. Disconnect the headlight bulb socket connector.
19. Unsnap the headlight bulb retaining wire by depressing the end and push-
ing it upward.
20. Remove the bulb from the headlight assembly. 21. Install a new headlight bulb and snap
the headlight bulb retaining wire into
position by aligning the wire with the
groove on the bulb.
22. Connect the headlight bulb socket connector.
23. Install the headlight bulb cover by turning it clockwise.
24. Connect the power connector(s) to the back of the headlight assembly.
25. Reinstall the headlight assembly to the body of the vehicle.✽✽NOTICE
If the headlight aiming adjustment is
necessary after the headlight assembly is
reinstalled, consult an authorized
HYUNDAI dealer.
OVI079111L
(Continued)
If a bulb becomes damaged or cracked, replace it immediately
and carefully dispose of it.
Wear eye protection when chang- ing a bulb. Allow the bulb to cool
down before handling it.
CAUTION
If the headlight (Low) is not operat-
ing, have the vehicle checked by an authorized HYUNDAI dealer.
