Hyundai Equus 2011 Owner's Manual

419
Features of your vehicle
Power trunk open button
Pressing the power trunk open button
opens the power trunk automatically.
To open the power trunk with all doors
closed and locked, press the power trunk
open button while carrying the smart key.
Power trunk close button
Pressing the power trunk close button
while the power trunk is opened, closes
the power trunk automatically.
Power trunk lock button
Pressing the power trunk lock button
while carrying the smart key, closes the
power trunk automatically, locks all
doors, and arms the system.
The chime sound will operate if you
press the power trunk lock button when:
- Any door is open.
- The engine start/stop button is not in
the OFF position.
- The smart key is in the vehicle.
OVI049014OVI049015OVI049016

Features of your vehicle
20 4

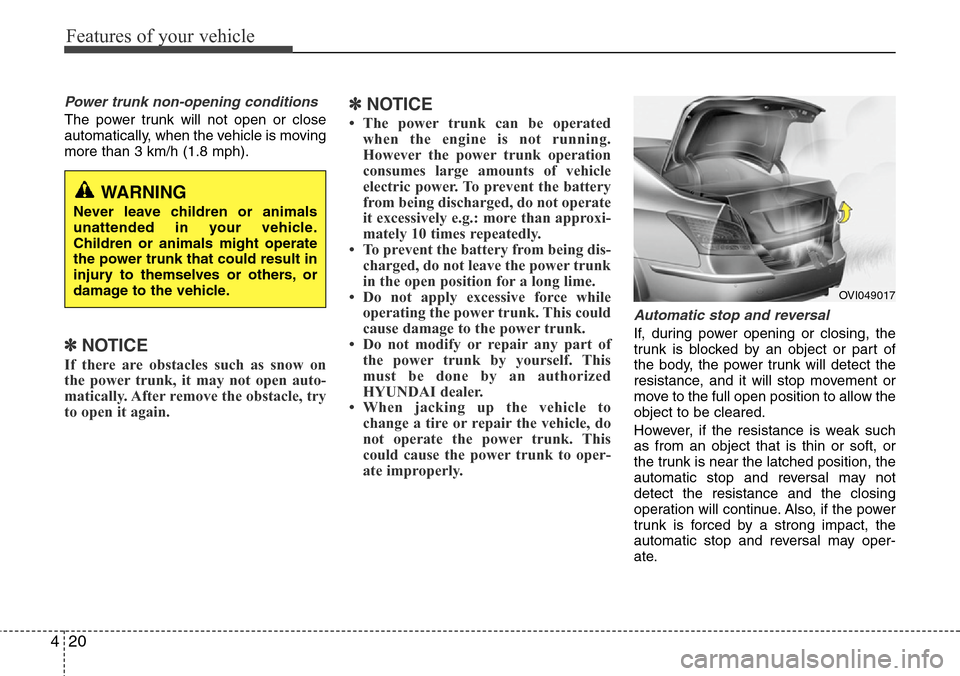

Power trunk non-opening conditions
The power trunk will not open or close
automatically, when the vehicle is moving
more than 3 km/h (1.8 mph).
✽NOTICE
If there are obstacles such as snow on
the power trunk, it may not open auto-
matically. After remove the obstacle, try
to open it again.
✽NOTICE
• The power trunk can be operated
when the engine is not running.
However the power trunk operation
consumes large amounts of vehicle
electric power. To prevent the battery
from being discharged, do not operate
it excessively e.g.: more than approxi-
mately 10 times repeatedly.
• To prevent the battery from being dis-
charged, do not leave the power trunk
in the open position for a long lime.
• Do not apply excessive force while
operating the power trunk. This could
cause damage to the power trunk.
• Do not modify or repair any part of
the power trunk by yourself. This
must be done by an authorized
HYUNDAI dealer.
• When jacking up the vehicle to
change a tire or repair the vehicle, do
not operate the power trunk. This
could cause the power trunk to oper-
ate improperly.
Automatic stop and reversal
If, during power opening or closing, the
trunk is blocked by an object or part of
the body, the power trunk will detect the
resistance, and it will stop movement or
move to the full open position to allow the
object to be cleared.
However, if the resistance is weak such
as from an object that is thin or soft, or
the trunk is near the latched position, the
automatic stop and reversal may not
detect the resistance and the closing
operation will continue. Also, if the power
trunk is forced by a strong impact, the
automatic stop and reversal may oper-
ate.
WARNING
Never leave children or animals
unattended in your vehicle.
Children or animals might operate
the power trunk that could result in
injury to themselves or others, or
damage to the vehicle.
OVI049017

421
Features of your vehicle

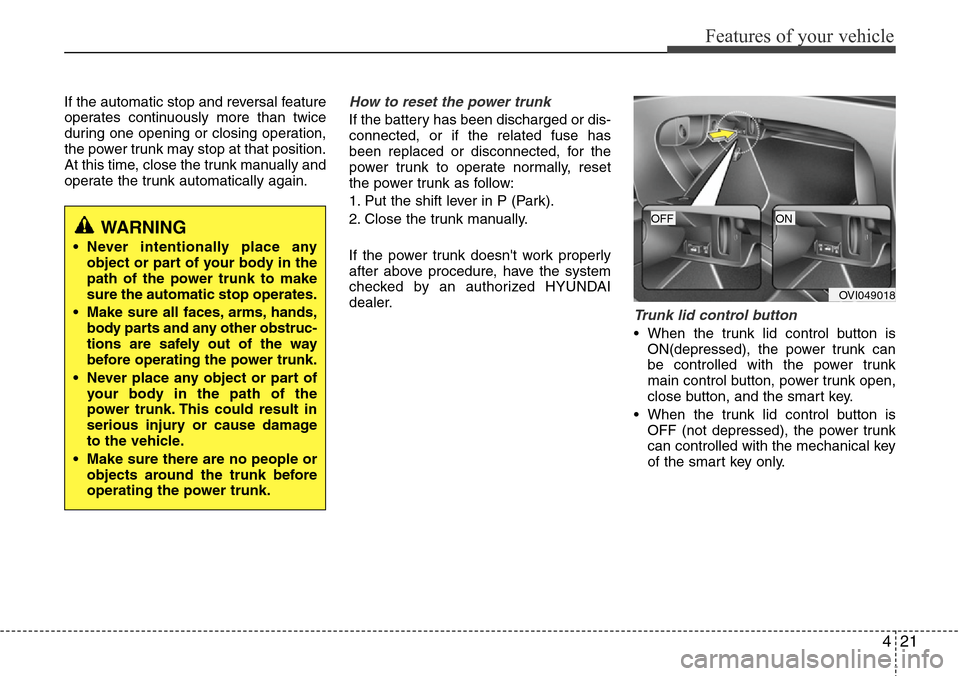

If the automatic stop and reversal feature
operates continuously more than twice
during one opening or closing operation,
the power trunk may stop at that position.
At this time, close the trunk manually and
operate the trunk automatically again.How to reset the power trunk
If the battery has been discharged or dis-
connected, or if the related fuse has
been replaced or disconnected, for the
power trunk to operate normally, reset
the power trunk as follow:
1. Put the shift lever in P (Park).
2. Close the trunk manually.
If the power trunk doesn't work properly
after above procedure, have the system
checked by an authorized HYUNDAI
dealer.
Trunk lid control button
• When the trunk lid control button is
ON(depressed), the power trunk can
be controlled with the power trunk
main control button, power trunk open,
close button, and the smart key.
• When the trunk lid control button is
OFF (not depressed), the power trunk
can controlled with the mechanical key
of the smart key only.
WARNING
• Never intentionally place any
object or part of your body in the
path of the power trunk to make
sure the automatic stop operates.
• Make sure all faces, arms, hands,
body parts and any other obstruc-
tions are safely out of the way
before operating the power trunk.
• Never place any object or part of
your body in the path of the
power trunk. This could result in
serious injury or cause damage
to the vehicle.
• Make sure there are no people or
objects around the trunk before
operating the power trunk.
OVI049018
OFFON

Features of your vehicle
22 4

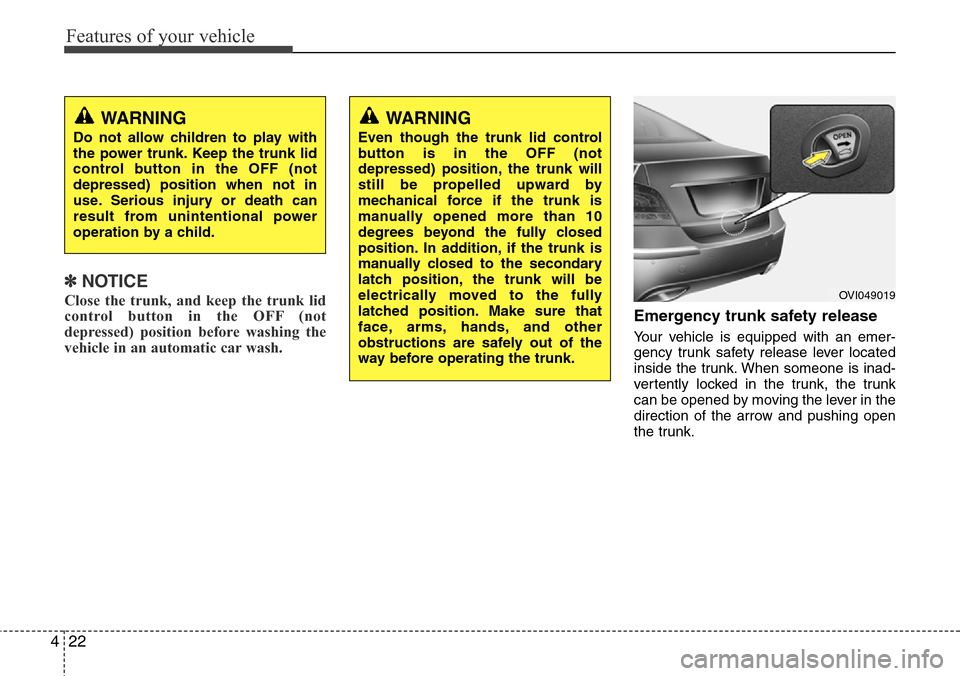

✽NOTICE
Close the trunk, and keep the trunk lid
control button in the OFF (not
depressed) position before washing the
vehicle in an automatic car wash.Emergency trunk safety release
Your vehicle is equipped with an emer-
gency trunk safety release lever located
inside the trunk. When someone is inad-
vertently locked in the trunk, the trunk
can be opened by moving the lever in the
direction of the arrow and pushing open
the trunk.
WARNING
Do not allow children to play with
the power trunk. Keep the trunk lid
control button in the OFF (not
depressed) position when not in
use. Serious injury or death can
result from unintentional power
operation by a child.
WARNING
Even though the trunk lid control
button is in the OFF (not
depressed) position, the trunk will
still be propelled upward by
mechanical force if the trunk is
manually opened more than 10
degrees beyond the fully closed
position. In addition, if the trunk is
manually closed to the secondary
latch position, the trunk will be
electrically moved to the fully
latched position. Make sure that
face, arms, hands, and other
obstructions are safely out of the
way before operating the trunk.
OVI049019

423
Features of your vehicle

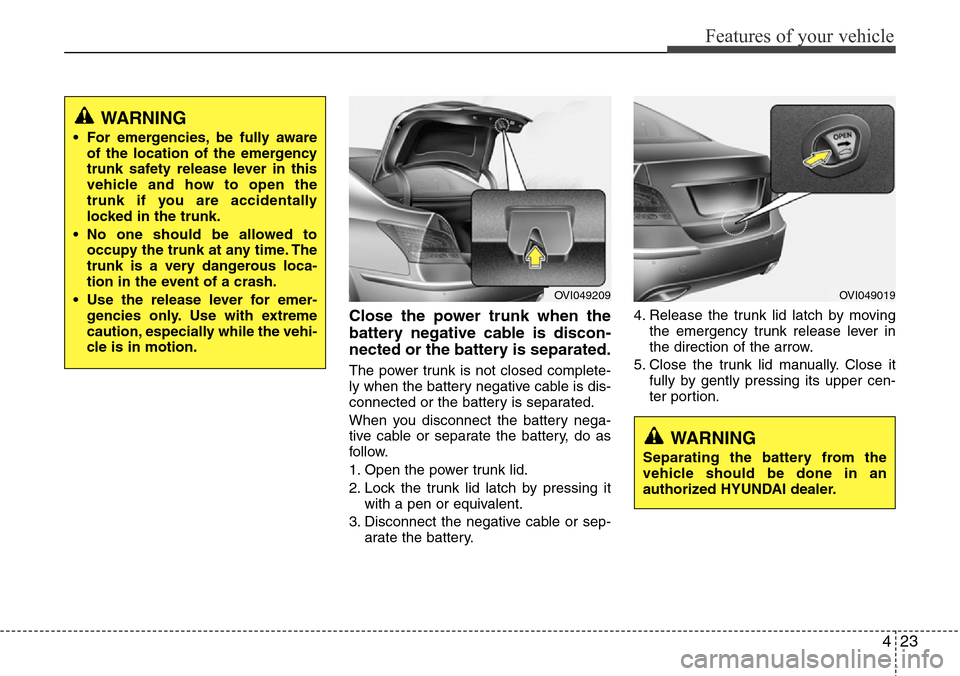

Close the power trunk when the
battery negative cable is discon-
nected or the battery is separated.
The power trunk is not closed complete-
ly when the battery negative cable is dis-
connected or the battery is separated.
When you disconnect the battery nega-
tive cable or separate the battery, do as
follow.
1. Open the power trunk lid.
2. Lock the trunk lid latch by pressing it
with a pen or equivalent.
3. Disconnect the negative cable or sep-
arate the battery.4. Release the trunk lid latch by moving
the emergency trunk release lever in
the direction of the arrow.
5. Close the trunk lid manually. Close it
fully by gently pressing its upper cen-
ter portion.
OVI049209OVI049019
WARNING
Separating the battery from the
vehicle should be done in an
authorized HYUNDAI dealer.
WARNING
• For emergencies, be fully aware
of the location of the emergency
trunk safety release lever in this
vehicle and how to open the
trunk if you are accidentally
locked in the trunk.
• No one should be allowed to
occupy the trunk at any time. The
trunk is a very dangerous loca-
tion in the event of a crash.
• Use the release lever for emer-
gencies only. Use with extreme
caution, especially while the vehi-
cle is in motion.

Features of your vehicle
24 4
(1) Driver’s door power window switch
(2) Front passenger’s door power win-
dow switch
(3) Rear door (left) power window switch
and curtain switch (if equipped)
(4) Rear door (right) power window switch
and curtain switch (if equipped)
(5) Window opening and closing
(6) Automatic power window up/down
(7) Power window lock switch
✽NOTICE
In cold and wet climates, power windows
may not work properly due to freezing
conditions.
WINDOWS
OVI049020L

425
Features of your vehicle

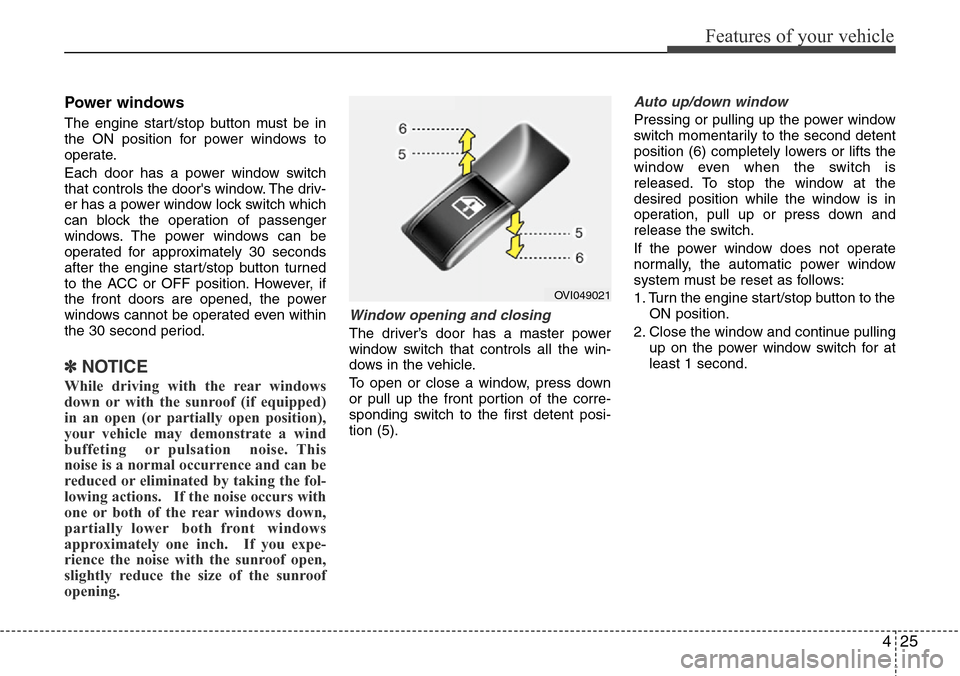

Power windows
The engine start/stop button must be in
the ON position for power windows to
operate.
Each door has a power window switch
that controls the door's window. The driv-
er has a power window lock switch which
can block the operation of passenger
windows. The power windows can be
operated for approximately 30 seconds
after the engine start/stop button turned
to the ACC or OFF position. However, if
the front doors are opened, the power
windows cannot be operated even within
the 30 second period.
✽NOTICE
While driving with the rear windows
down or with the sunroof (if equipped)
in an open (or partially open position),
your vehicle may demonstrate a wind
buffeting or pulsation noise. This
noise is a normal occurrence and can be
reduced or eliminated by taking the fol-
lowing actions. If the noise occurs with
one or both of the rear windows down,
partially lower both front windows
approximately one inch. If you expe-
rience the noise with the sunroof open,
slightly reduce the size of the sunroof
opening.
Window opening and closing
The driver’s door has a master power
window switch that controls all the win-
dows in the vehicle.
To open or close a window, press down
or pull up the front portion of the corre-
sponding switch to the first detent posi-
tion (5).
Auto up/down window
Pressing or pulling up the power window
switch momentarily to the second detent
position (6) completely lowers or lifts the
window even when the switch is
released. To stop the window at the
desired position while the window is in
operation, pull up or press down and
release the switch.
If the power window does not operate
normally, the automatic power window
system must be reset as follows:
1. Turn the engine start/stop button to the
ON position.
2. Close the window and continue pulling
up on the power window switch for at
least 1 second.
OVI049021

Features of your vehicle
26 4

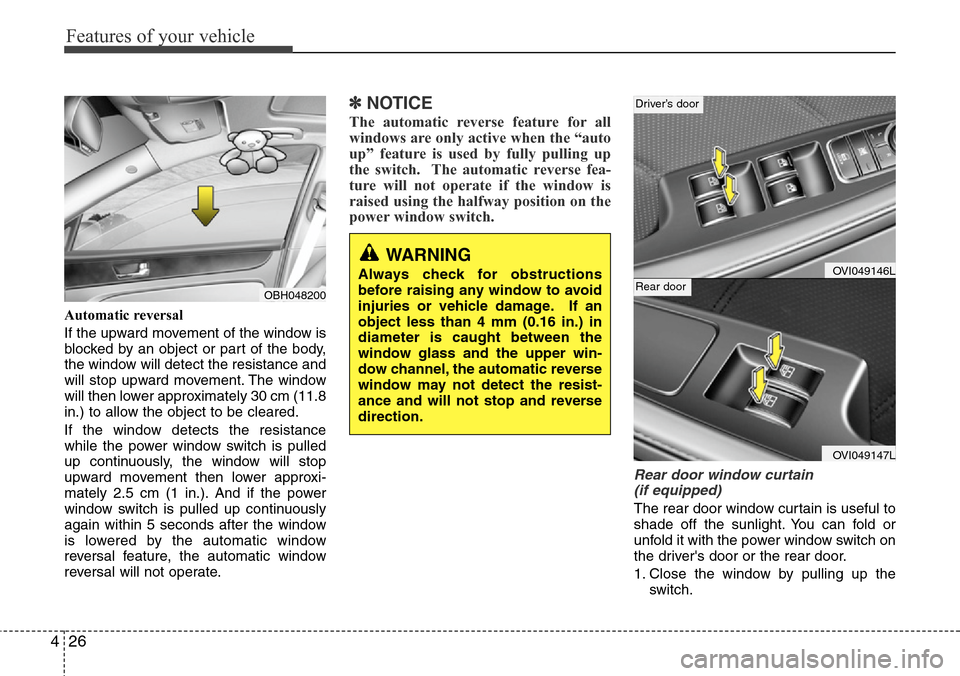

Automatic reversal
If the upward movement of the window is
blocked by an object or part of the body,
the window will detect the resistance and
will stop upward movement. The window
will then lower approximately 30 cm (11.8
in.) to allow the object to be cleared.
If the window detects the resistance
while the power window switch is pulled
up continuously, the window will stop
upward movement then lower approxi-
mately 2.5 cm (1 in.). And if the power
window switch is pulled up continuously
again within 5 seconds after the window
is lowered by the automatic window
reversal feature, the automatic window
reversal will not operate.
✽NOTICE
The automatic reverse feature for all
windows are only active when the “auto
up” feature is used by fully pulling up
the switch. The automatic reverse fea-
ture will not operate if the window is
raised using the halfway position on the
power window switch.
Rear door window curtain
(if equipped)
The rear door window curtain is useful to
shade off the sunlight. You can fold or
unfold it with the power window switch on
the driver's door or the rear door.
1. Close the window by pulling up the
switch.
WARNING
Always check for obstructions
before raising any window to avoid
injuries or vehicle damage. If an
object less than 4 mm (0.16 in.) in
diameter is caught between the
window glass and the upper win-
dow channel, the automatic reverse
window may not detect the resist-
ance and will not stop and reverse
direction.
OBH048200
OVI049146L
OVI049147L
Driver’s door
Rear door

427
Features of your vehicle

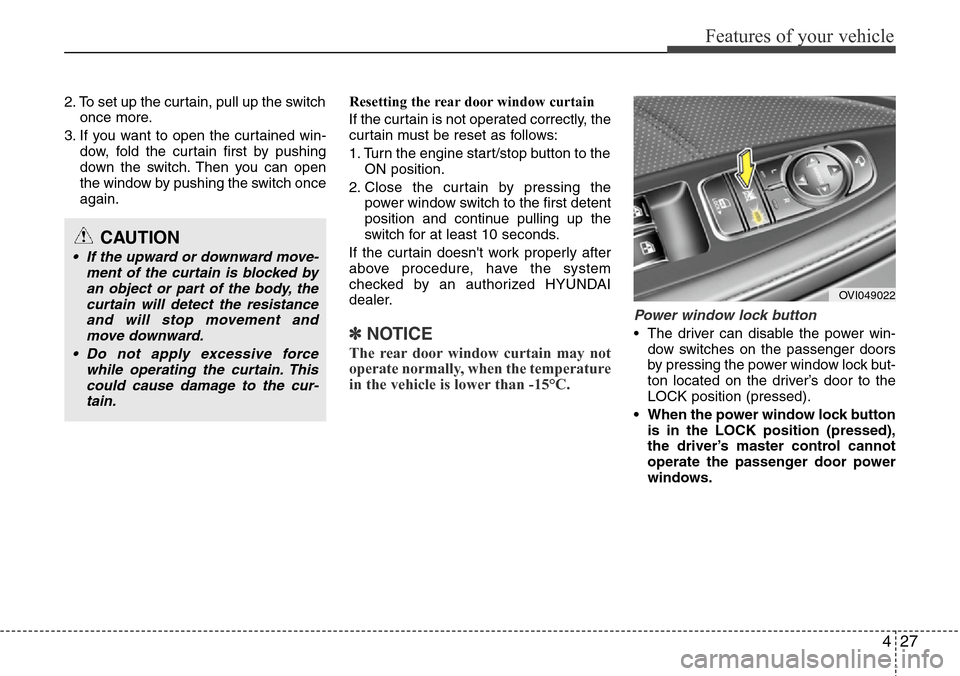

2. To set up the curtain, pull up the switch
once more.
3. If you want to open the curtained win-
dow, fold the curtain first by pushing
down the switch. Then you can open
the window by pushing the switch once
again.Resetting the rear door window curtain
If the curtain is not operated correctly, the
curtain must be reset as follows:
1. Turn the engine start/stop button to the
ON position.
2. Close the curtain by pressing the
power window switch to the first detent
position and continue pulling up the
switch for at least 10 seconds.
If the curtain doesn't work properly after
above procedure, have the system
checked by an authorized HYUNDAI
dealer.
✽NOTICE
The rear door window curtain may not
operate normally, when the temperature
in the vehicle is lower than -15°C.
Power window lock button
• The driver can disable the power win-
dow switches on the passenger doors
by pressing the power window lock but-
ton located on the driver’s door to the
LOCK position (pressed).
• When the power window lock button
is in the LOCK position (pressed),
the driver’s master control cannot
operate the passenger door power
windows.
OVI049022
CAUTION
• If the upward or downward move-
ment of the curtain is blocked by
an object or part of the body, the
curtain will detect the resistance
and will stop movement and
move downward.
• Do not apply excessive force
while operating the curtain. This
could cause damage to the cur-
tain.

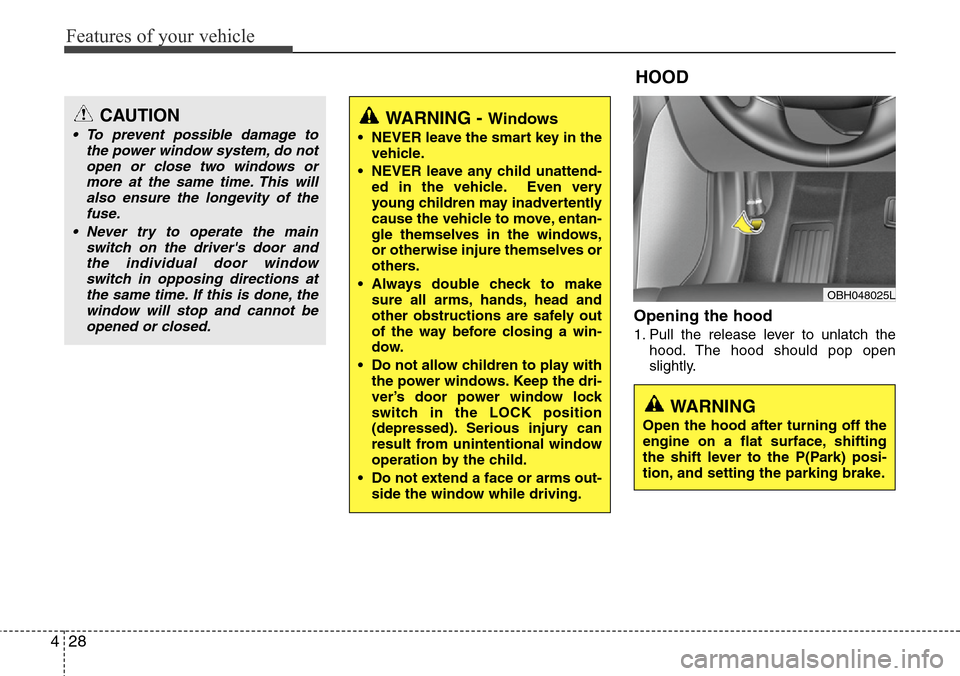

Features of your vehicle
28 4
Opening the hood
1. Pull the release lever to unlatch the
hood. The hood should pop open
slightly.
WARNING - Windows
• NEVER leave the smart key in the
vehicle.
• NEVER leave any child unattend-
ed in the vehicle. Even very
young children may inadvertently
cause the vehicle to move, entan-
gle themselves in the windows,
or otherwise injure themselves or
others.
• Always double check to make
sure all arms, hands, head and
other obstructions are safely out
of the way before closing a win-
dow.
• Do not allow children to play with
the power windows. Keep the dri-
ver’s door power window lock
switch in the LOCK position
(depressed). Serious injury can
result from unintentional window
operation by the child.
• Do not extend a face or arms out-
side the window while driving.
HOOD
OBH048025L
CAUTION
• To prevent possible damage to
the power window system, do not
open or close two windows or
more at the same time. This will
also ensure the longevity of the
fuse.
• Never try to operate the main
switch on the driver's door and
the individual door window
switch in opposing directions at
the same time. If this is done, the
window will stop and cannot be
opened or closed.
WARNING
Open the hood after turning off the
engine on a flat surface, shifting
the shift lever to the P(Park) posi-
tion, and setting the parking brake.
