Safety features of your vehicle
12 3
(Continued)
• Do not place materials such
as plastic bags or newspapers
under the seats. The air vent
may not work properly as the
air intake can be blocked.
• Do not change the seat cover.
It may damage the seat
warmer or climate control sys-
tem seat.
• When the air vent does not
operate, restart the vehicle. If
there is no change, we recom-
mend that the system be
inspected by an authorized

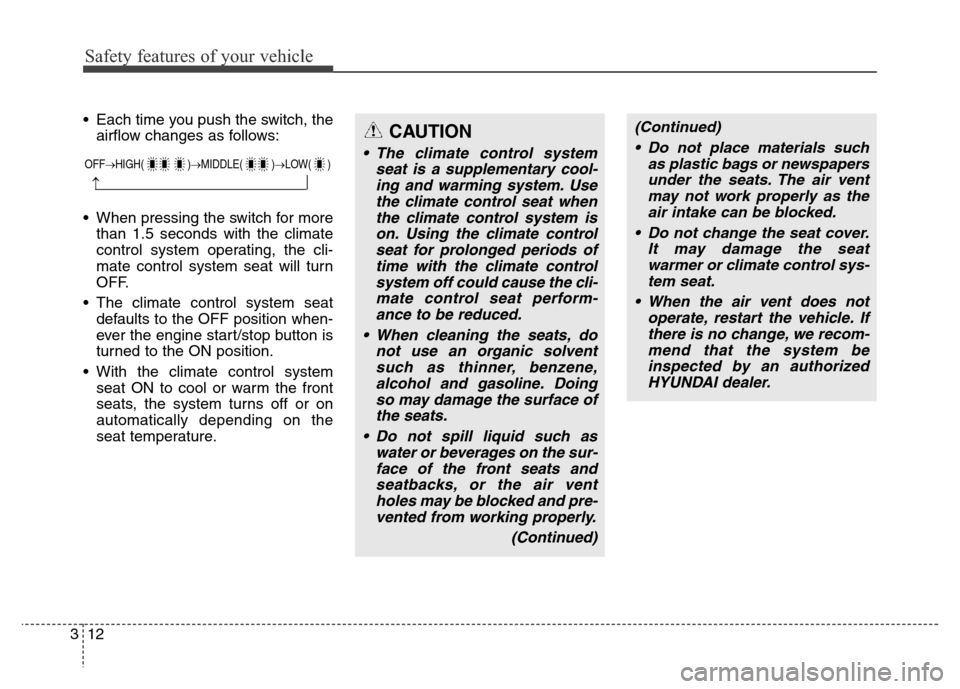

HYUNDAI dealer.• Each time you push the switch, the
airflow changes as follows:
• When pressing the switch for more
than 1.5 seconds with the climate
control system operating, the cli-
mate control system seat will turn
OFF.
• The climate control system seat
defaults to the OFF position when-
ever the engine start/stop button is
turned to the ON position.
• With the climate control system
seat ON to cool or warm the front
seats, the system turns off or on
automatically depending on the
seat temperature.
OFF→HIGH( )→MIDDLE( )→LOW( )
→
CAUTION
• The climate control system
seat is a supplementary cool-
ing and warming system. Use
the climate control seat when
the climate control system is
on. Using the climate control
seat for prolonged periods of
time with the climate control
system off could cause the cli-
mate control seat perform-
ance to be reduced.
• When cleaning the seats, do
not use an organic solvent
such as thinner, benzene,
alcohol and gasoline. Doing
so may damage the surface of
the seats.
• Do not spill liquid such as
water or beverages on the sur-
face of the front seats and
seatbacks, or the air vent
holes may be blocked and pre-
vented from working properly.
(Continued)
Page 32 of 479
313
Safety features of your vehicle

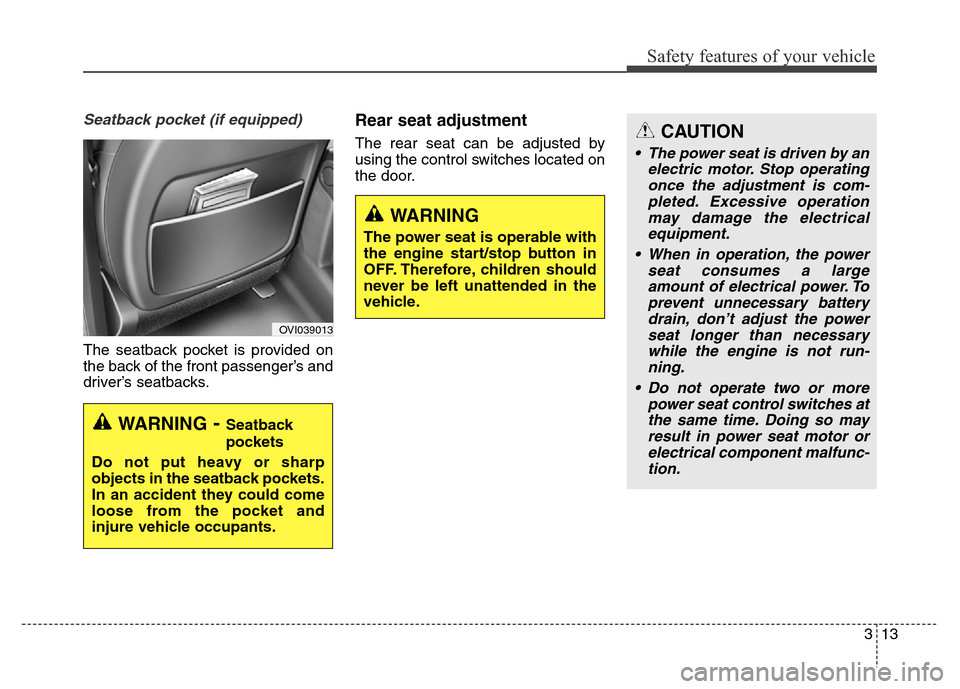

Seatback pocket (if equipped)
The seatback pocket is provided on
the back of the front passenger’s and
driver’s seatbacks.
Rear seat adjustment
The rear seat can be adjusted by
using the control switches located on
the door.
WARNING- Seatback
pockets
Do not put heavy or sharp
objects in the seatback pockets.
In an accident they could come
loose from the pocket and
injure vehicle occupants.
OVI039013
WARNING
The power seat is operable with
the engine start/stop button in
OFF. Therefore, children should
never be left unattended in the
vehicle.
CAUTION
• The power seat is driven by an
electric motor. Stop operating
once the adjustment is com-
pleted. Excessive operation
may damage the electrical
equipment.
• When in operation, the power
seat consumes a large
amount of electrical power. To
prevent unnecessary battery
drain, don’t adjust the power
seat longer than necessary
while the engine is not run-
ning.
• Do not operate two or more
power seat control switches at
the same time. Doing so may
result in power seat motor or
electrical component malfunc-
tion.
Page 33 of 479
Safety features of your vehicle
14 3

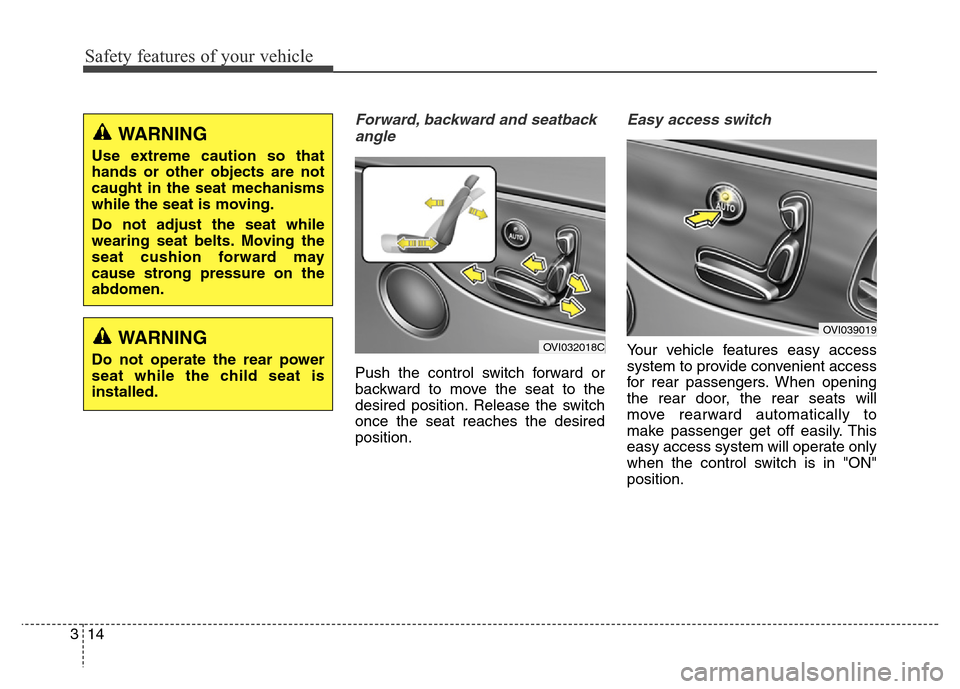

Forward, backward and seatback
angle
Push the control switch forward or
backward to move the seat to the
desired position. Release the switch
once the seat reaches the desired
position.
Easy access switch
Your vehicle features easy access
system to provide convenient access
for rear passengers. When opening
the rear door, the rear seats will
move rearward automatically to
make passenger get off easily. This
easy access system will operate only
when the control switch is in "ON"
position.
WARNING
Use extreme caution so that
hands or other objects are not
caught in the seat mechanisms
while the seat is moving.
Do not adjust the seat while
wearing seat belts. Moving the
seat cushion forward may
cause strong pressure on the
abdomen.
WARNING
Do not operate the rear power
seat while the child seat is
installed.OVI032018C
OVI039019
Page 34 of 479
315
Safety features of your vehicle

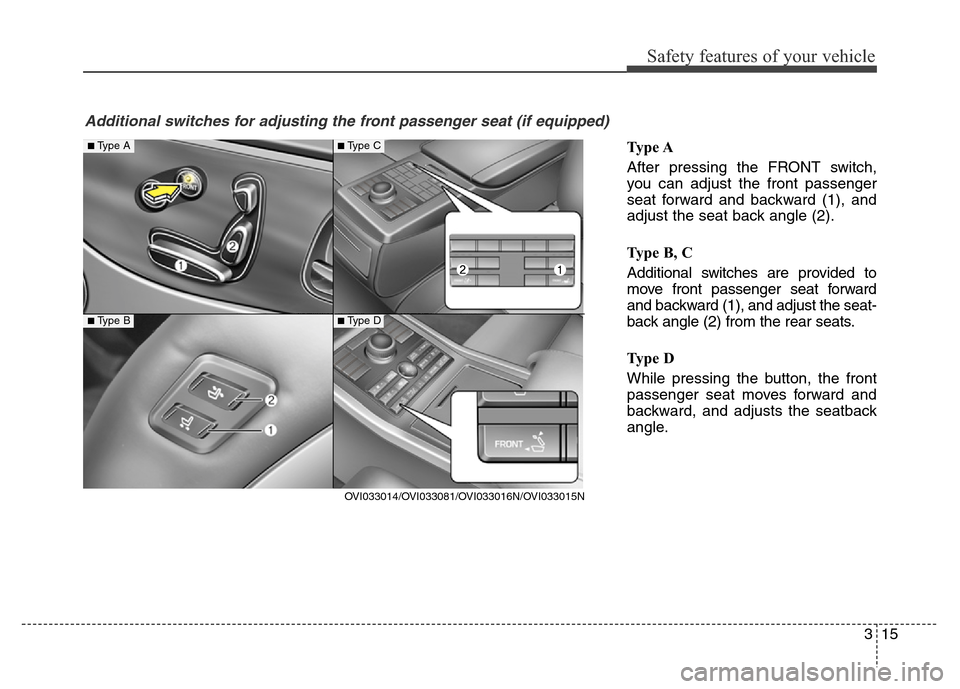

Ty p e A
After pressing the FRONT switch,
you can adjust the front passenger
seat forward and backward (1), and
adjust the seat back angle (2).
Type B, C
Additional switches are provided to
move front passenger seat forward
and backward (1), and adjust the seat-
back angle (2) from the rear seats.
Type D
While pressing the button, the front
passenger seat moves forward and
backward, and adjusts the seatback
angle.
Additional switches for adjusting the front passenger seat (if equipped)
■Type A
■ Type B
OVI033014/OVI033081/OVI033016N/OVI033015N
■Type C
■ Type D
Page 35 of 479
Safety features of your vehicle
16 3

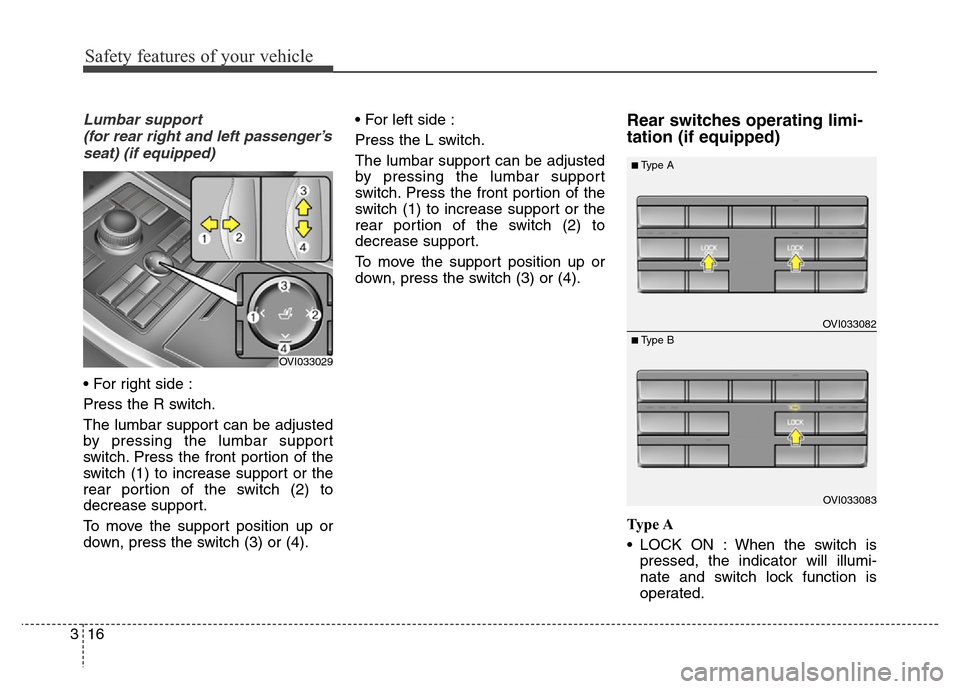

Lumbar support
(for rear right and left passenger’s
seat) (if equipped)
• For right side :
Press the R switch.
The lumbar support can be adjusted
by pressing the lumbar support
switch. Press the front portion of the
switch (1) to increase support or the
rear portion of the switch (2) to
decrease support.
To move the support position up or
down, press the switch (3) or (4).• For left side :
Press the L switch.
The lumbar support can be adjusted
by pressing the lumbar support
switch. Press the front portion of the
switch (1) to increase support or the
rear portion of the switch (2) to
decrease support.
To move the support position up or
down, press the switch (3) or (4).
Rear switches operating limi-
tation (if equipped)
Ty p e A
• LOCK ON : When the switch is
pressed, the indicator will illumi-
nate and switch lock function is
operated.
OVI033029
OVI033082
OVI033083
■Type A
■ Type B
Page 36 of 479

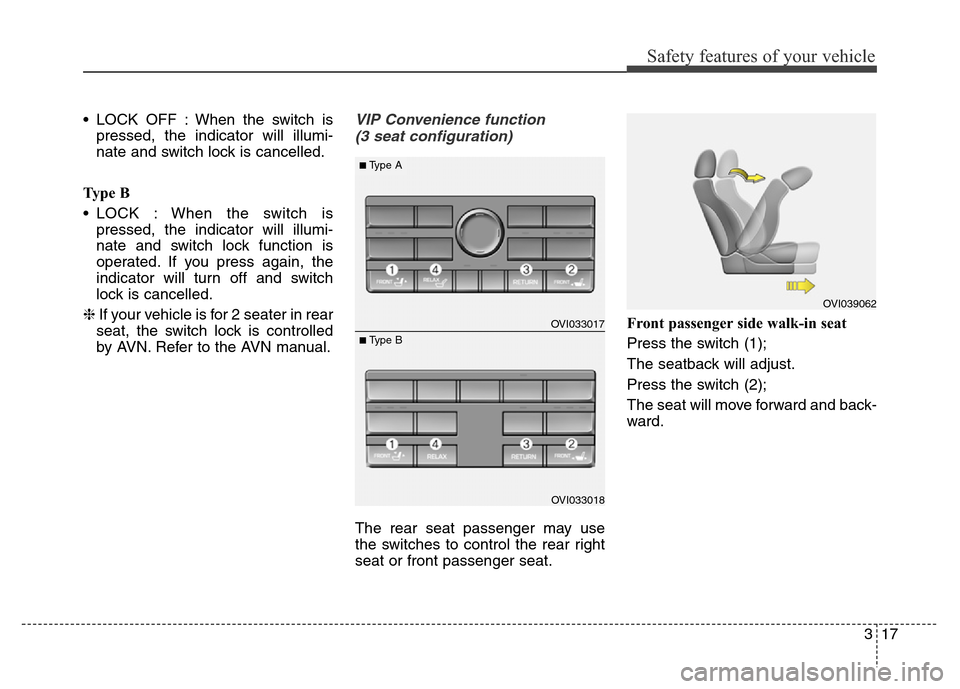

317
Safety features of your vehicle
• LOCK OFF : When the switch is
pressed, the indicator will illumi-
nate and switch lock is cancelled.
Ty p e B
• LOCK : When the switch is
pressed, the indicator will illumi-
nate and switch lock function is
operated. If you press again, the
indicator will turn off and switch
lock is cancelled.
❈If your vehicle is for 2 seater in rear
seat, the switch lock is controlled
by AVN. Refer to the AVN manual.VIP Convenience function
(3 seat configuration)
The rear seat passenger may use
the switches to control the rear right
seat or front passenger seat.Front passenger side walk-in seat
Press the switch (1);
The seatback will adjust.
Press the switch (2);
The seat will move forward and back-
ward.
OVI033017
OVI033018
■Type A
■ Type B
OVI039062
Page 37 of 479
Safety features of your vehicle
18 3

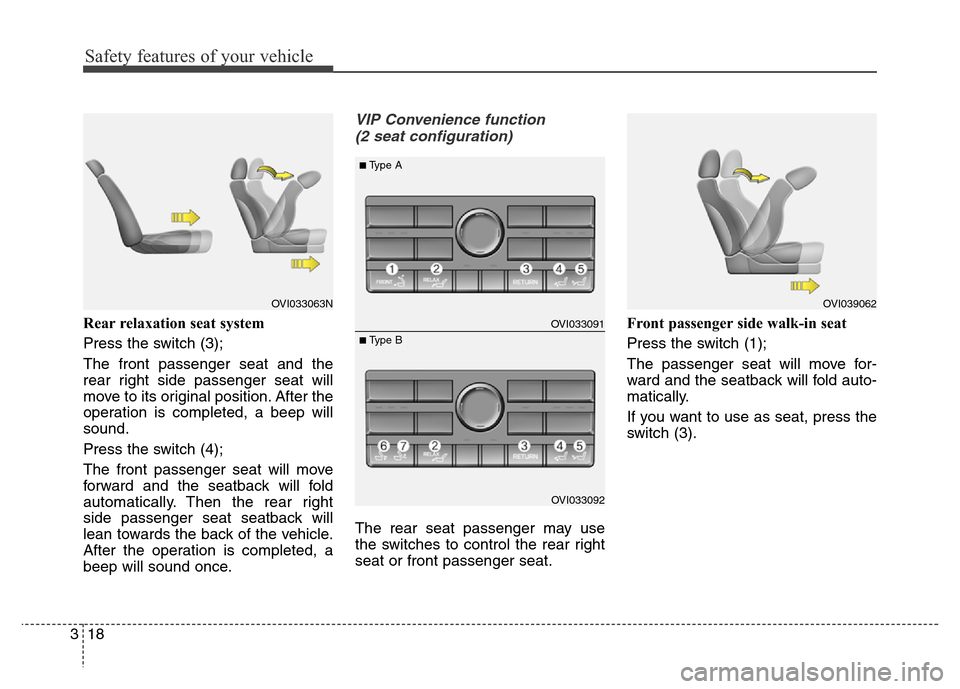

Rear relaxation seat system
Press the switch (3);
The front passenger seat and the
rear right side passenger seat will
move to its original position. After the
operation is completed, a beep will
sound.
Press the switch (4);
The front passenger seat will move
forward and the seatback will fold
automatically. Then the rear right
side passenger seat seatback will
lean towards the back of the vehicle.
After the operation is completed, a
beep will sound once.
VIP Convenience function
(2 seat configuration)
The rear seat passenger may use
the switches to control the rear right
seat or front passenger seat.Front passenger side walk-in seat
Press the switch (1);
The passenger seat will move for-
ward and the seatback will fold auto-
matically.
If you want to use as seat, press the
switch (3).
OVI033091
OVI033092
■Type A
■ Type B
OVI039062OVI033063N

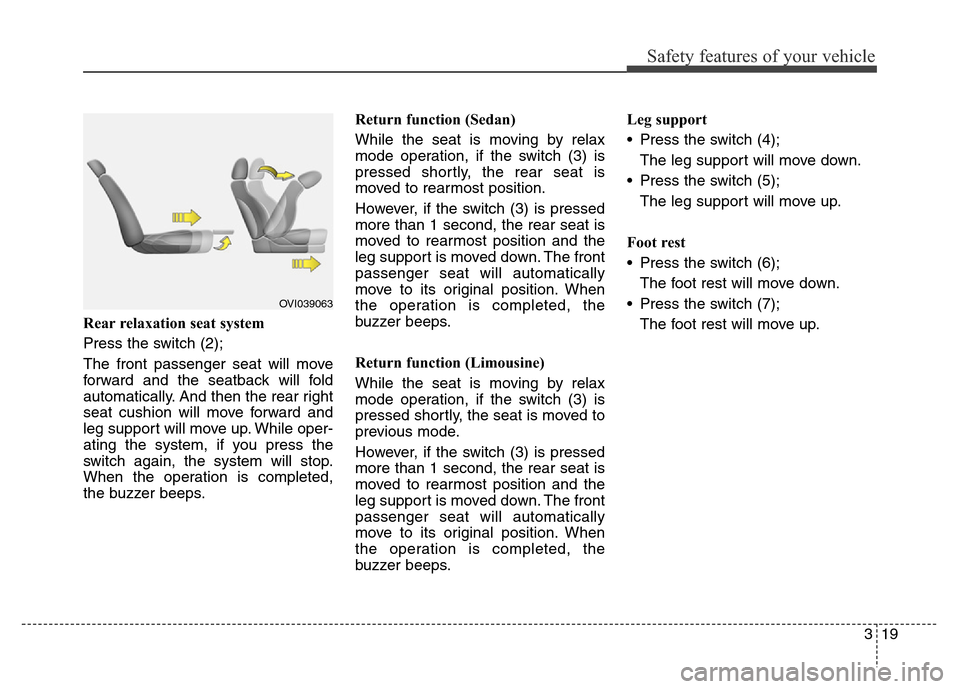

Page 38 of 479
319
Safety features of your vehicle
Rear relaxation seat system
Press the switch (2);
The front passenger seat will move
forward and the seatback will fold
automatically. And then the rear right
seat cushion will move forward and
leg support will move up. While oper-
ating the system, if you press the
switch again, the system will stop.
When the operation is completed,
the buzzer beeps.Return function (Sedan)
While the seat is moving by relax
mode operation, if the switch (3) is
pressed shortly, the rear seat is
moved to rearmost position.
However, if the switch (3) is pressed
more than 1 second, the rear seat is
moved to rearmost position and the
leg support is moved down. The front
passenger seat will automatically
move to its original position. When
the operation is completed, the
buzzer beeps.
Return function (Limousine)
While the seat is moving by relax
mode operation, if the switch (3) is
pressed shortly, the seat is moved to
previous mode.
However, if the switch (3) is pressed
more than 1 second, the rear seat is
moved to rearmost position and the
leg support is moved down. The front
passenger seat will automatically
move to its original position. When
the operation is completed, the
buzzer beeps.Leg support
• Press the switch (4);
The leg support will move down.
• Press the switch (5);
The leg support will move up.
Foot rest
• Press the switch (6);
The foot rest will move down.
• Press the switch (7);
The foot rest will move up.
OVI039063
Page 39 of 479
Safety features of your vehicle
20 3

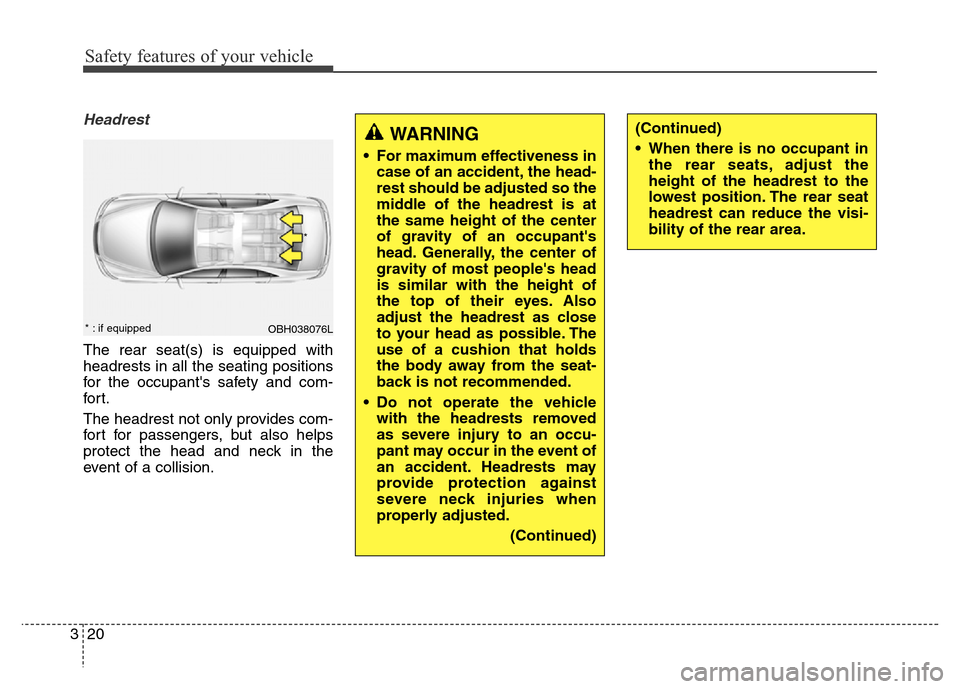

Headrest
The rear seat(s) is equipped with
headrests in all the seating positions
for the occupant's safety and com-
for t.
The headrest not only provides com-
fort for passengers, but also helps
protect the head and neck in the
event of a collision.
OBH038076L * : if equipped*
WARNING
• For maximum effectiveness in
case of an accident, the head-
rest should be adjusted so the
middle of the headrest is at
the same height of the center
of gravity of an occupant's
head. Generally, the center of
gravity of most people's head
is similar with the height of
the top of their eyes. Also
adjust the headrest as close
to your head as possible. The
use of a cushion that holds
the body away from the seat-
back is not recommended.
• Do not operate the vehicle
with the headrests removed
as severe injury to an occu-
pant may occur in the event of
an accident. Headrests may
provide protection against
severe neck injuries when
properly adjusted.
(Continued)
(Continued)
• When there is no occupant in
the rear seats, adjust the
height of the headrest to the
lowest position. The rear seat
headrest can reduce the visi-
bility of the rear area.
Page 40 of 479
321
Safety features of your vehicle

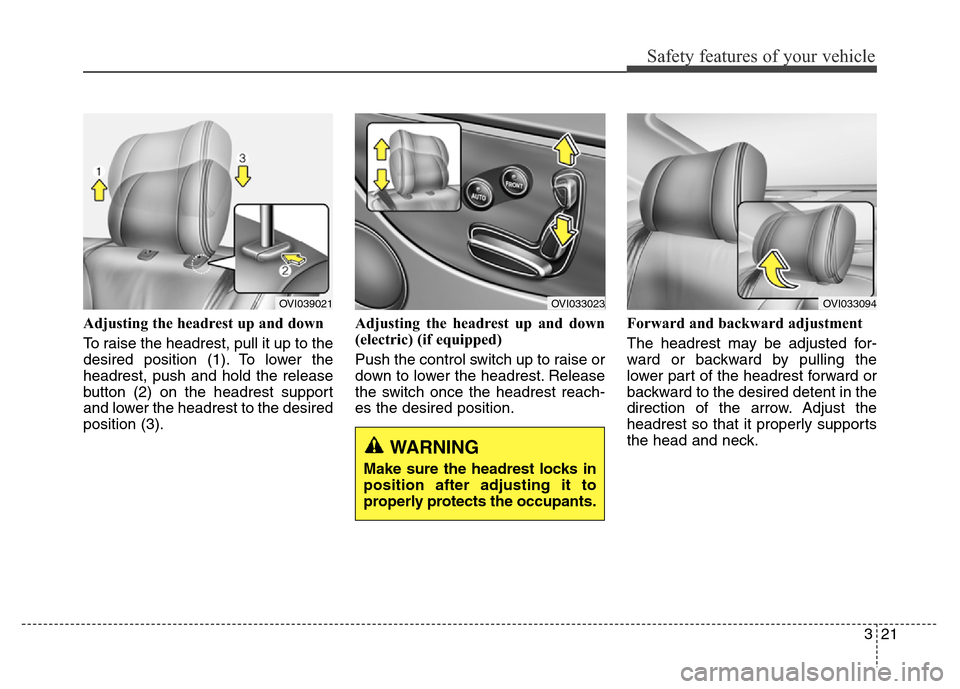

Adjusting the headrest up and down
To raise the headrest, pull it up to the
desired position (1). To lower the
headrest, push and hold the release
button (2) on the headrest support
and lower the headrest to the desired
position (3).Adjusting the headrest up and down
(electric) (if equipped)
Push the control switch up to raise or
down to lower the headrest. Release
the switch once the headrest reach-
es the desired position.Forward and backward adjustment
The headrest may be adjusted for-
ward or backward by pulling the
lower part of the headrest forward or
backward to the desired detent in the
direction of the arrow. Adjust the
headrest so that it properly supports
the head and neck.
OVI033094OVI033023
WARNING
Make sure the headrest locks in
position after adjusting it to
properly protects the occupants.
OVI039021
