Maintenance
66 7

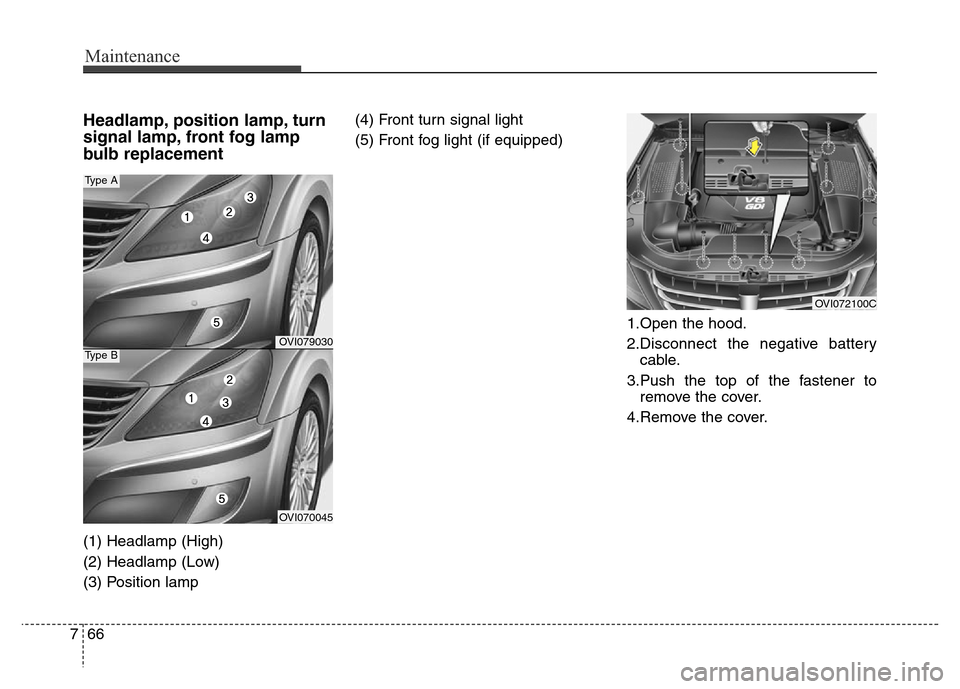

Headlamp, position lamp, turn
signal lamp, front fog lamp
bulb replacement
(1) Headlamp (High)
(2) Headlamp (Low)
(3) Position lamp(4) Front turn signal light
(5) Front fog light (if equipped)
1.Open the hood.
2.Disconnect the negative battery
cable.
3.Push the top of the fastener to
remove the cover.
4.Remove the cover.
OVI072100C
OVI079030
OVI070045
Type A
Type B

767
Maintenance
5. Pull out the cover.
6. Insert the driver into the hold (1)
and lift up the driver while pull out
the cover (2).7. Remove the fastener and screw
under the wheel arch.8. Pull out the bumper.
OVI079113L
OVI079114L
OVI079103LOVI079102L

Maintenance
68 7

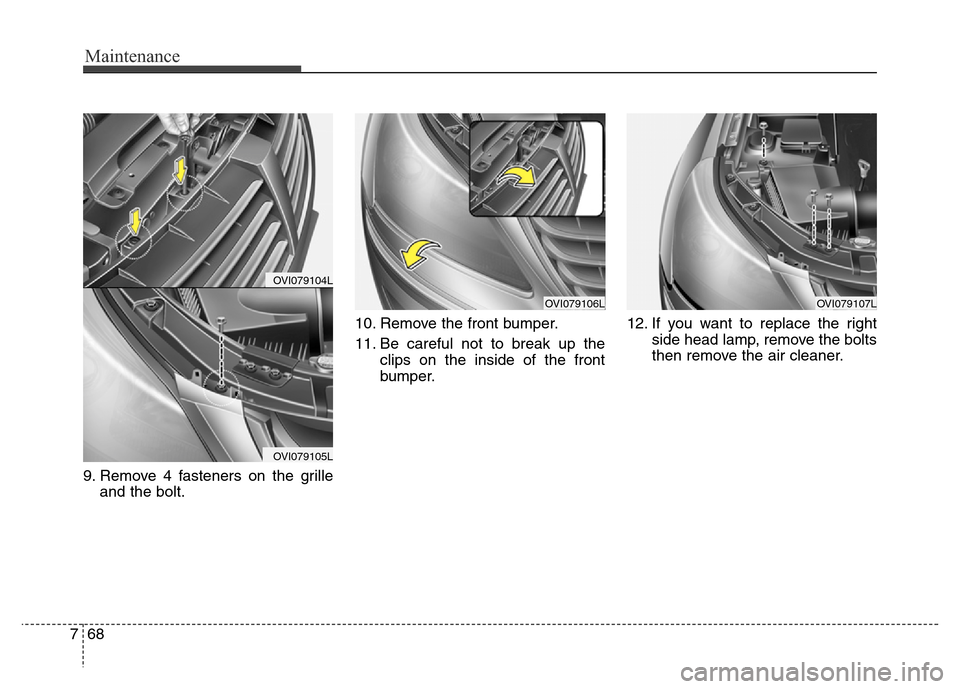

9. Remove 4 fasteners on the grille
and the bolt.10. Remove the front bumper.
11. Be careful not to break up the
clips on the inside of the front
bumper.12. If you want to replace the right
side head lamp, remove the bolts
then remove the air cleaner.
OVI079104L
OVI079105L
OVI079106LOVI079107L

769
Maintenance

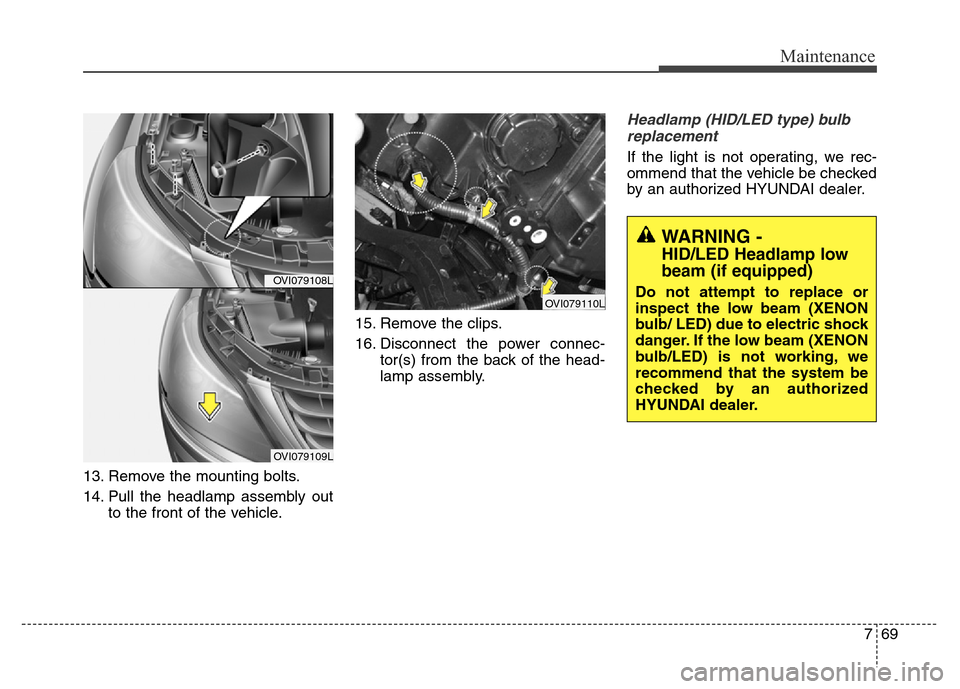

13. Remove the mounting bolts.
14. Pull the headlamp assembly out
to the front of the vehicle.15. Remove the clips.
16. Disconnect the power connec-
tor(s) from the back of the head-
lamp assembly.
Headlamp (HID/LED type) bulb
replacement
If the light is not operating, we rec-
ommend that the vehicle be checked
by an authorized HYUNDAI dealer.
OVI079108L
OVI079109L
OVI079110L
WARNING -
HID/LED Headlamp low
beam (if equipped)
Do not attempt to replace or
inspect the low beam (XENON
bulb/ LED) due to electric shock
danger. If the low beam (XENON
bulb/LED) is not working, we
recommend that the system be
checked by an authorized
HYUNDAI dealer.

Maintenance
70 7

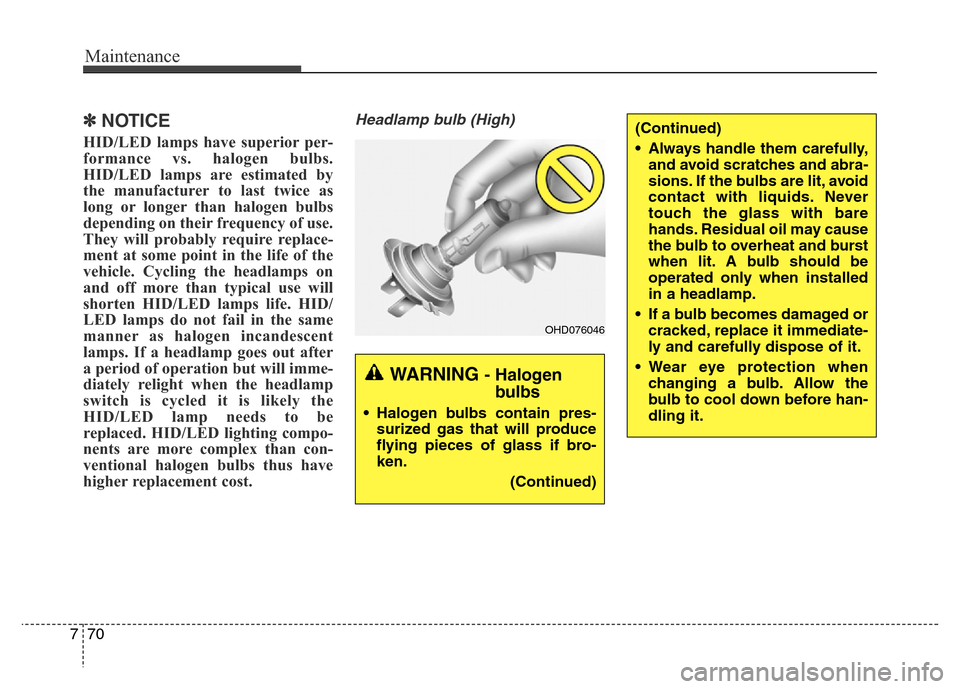

✽NOTICE
HID/LED lamps have superior per-
formance vs. halogen bulbs.
HID/LED lamps are estimated by
the manufacturer to last twice as
long or longer than halogen bulbs
depending on their frequency of use.
They will probably require replace-
ment at some point in the life of the
vehicle. Cycling the headlamps on
and off more than typical use will
shorten HID/LED lamps life. HID/
LED lamps do not fail in the same
manner as halogen incandescent
lamps. If a headlamp goes out after
a period of operation but will imme-
diately relight when the headlamp
switch is cycled it is likely the
HID/LED lamp needs to be
replaced. HID/LED lighting compo-
nents are more complex than con-
ventional halogen bulbs thus have
higher replacement cost.
Headlamp bulb (High)
OHD076046
WARNING - Halogen
bulbs
• Halogen bulbs contain pres-
surized gas that will produce
flying pieces of glass if bro-
ken.
(Continued)
(Continued)
• Always handle them carefully,
and avoid scratches and abra-
sions. If the bulbs are lit, avoid
contact with liquids. Never
touch the glass with bare
hands. Residual oil may cause
the bulb to overheat and burst
when lit. A bulb should be
operated only when installed
in a headlamp.
• If a bulb becomes damaged or
cracked, replace it immediate-
ly and carefully dispose of it.
• Wear eye protection when
changing a bulb. Allow the
bulb to cool down before han-
dling it.

771
Maintenance

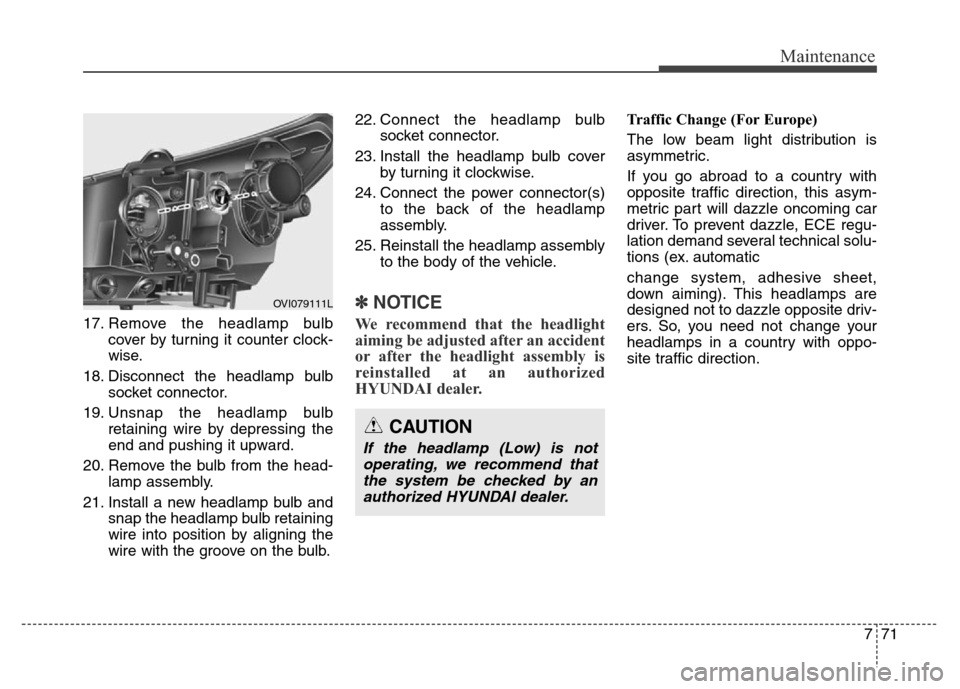

17. Remove the headlamp bulb
cover by turning it counter clock-
wise.
18. Disconnect the headlamp bulb
socket connector.
19. Unsnap the headlamp bulb
retaining wire by depressing the
end and pushing it upward.
20. Remove the bulb from the head-
lamp assembly.
21. Install a new headlamp bulb and
snap the headlamp bulb retaining
wire into position by aligning the
wire with the groove on the bulb.22. Connect the headlamp bulb
socket connector.
23. Install the headlamp bulb cover
by turning it clockwise.
24. Connect the power connector(s)
to the back of the headlamp
assembly.
25. Reinstall the headlamp assembly
to the body of the vehicle.
✽NOTICE
We recommend that the headlight
aiming be adjusted after an accident
or after the headlight assembly is
reinstalled at an authorized
HYUNDAI dealer.
Traffic Change (For Europe)
The low beam light distribution is
asymmetric.
If you go abroad to a country with
opposite traffic direction, this asym-
metric part will dazzle oncoming car
driver. To prevent dazzle, ECE regu-
lation demand several technical solu-
tions (ex. automatic
change system, adhesive sheet,
down aiming). This headlamps are
designed not to dazzle opposite driv-
ers. So, you need not change your
headlamps in a country with oppo-
site traffic direction.
OVI079111L
CAUTION
If the headlamp (Low) is not
operating, we recommend that
the system be checked by an
authorized HYUNDAI dealer.

Maintenance
72 7

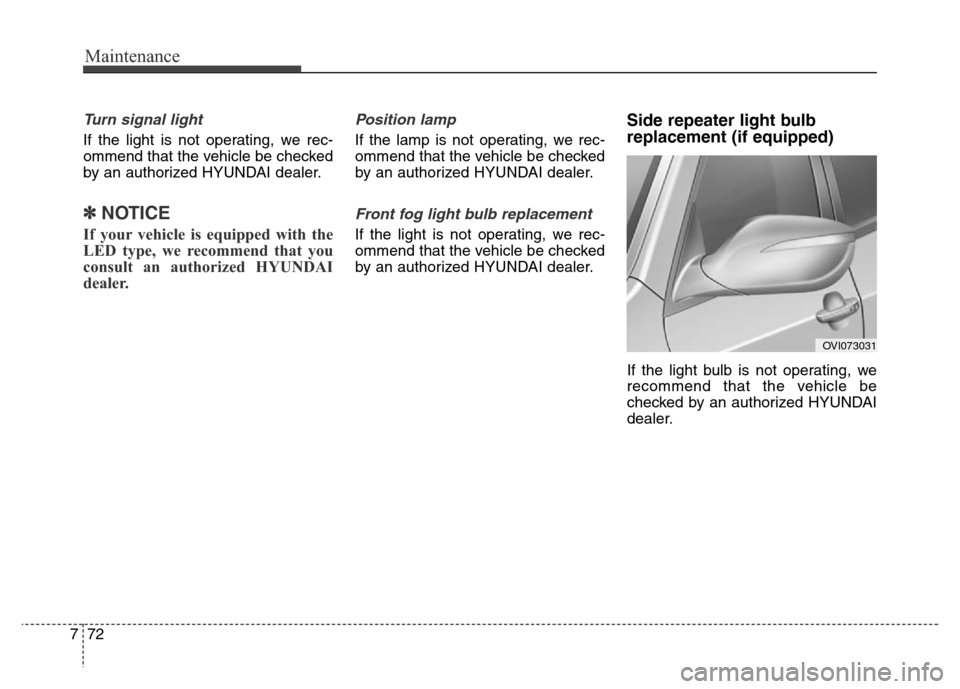

Turn signal light
If the light is not operating, we rec-
ommend that the vehicle be checked
by an authorized HYUNDAI dealer.
✽NOTICE
If your vehicle is equipped with the
LED type, we recommend that you
consult an authorized HYUNDAI
dealer.
Position lamp
If the lamp is not operating, we rec-
ommend that the vehicle be checked
by an authorized HYUNDAI dealer.
Front fog light bulb replacement
If the light is not operating, we rec-
ommend that the vehicle be checked
by an authorized HYUNDAI dealer.
Side repeater light bulb
replacement (if equipped)
If the light bulb is not operating, we
recommend that the vehicle be
checked by an authorized HYUNDAI
dealer.
OVI073031

773
Maintenance

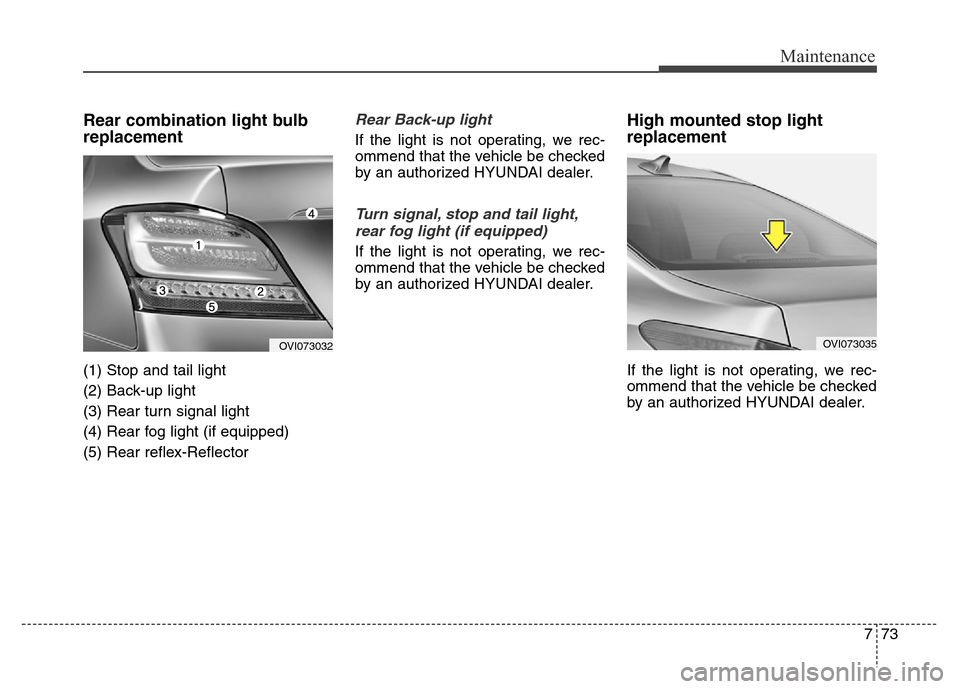

Rear combination light bulb
replacement
(1) Stop and tail light
(2) Back-up light
(3) Rear turn signal light
(4) Rear fog light (if equipped)
(5) Rear reflex-Reflector
Rear Back-up light
If the light is not operating, we rec-
ommend that the vehicle be checked
by an authorized HYUNDAI dealer.
Turn signal, stop and tail light,
rear fog light (if equipped)
If the light is not operating, we rec-
ommend that the vehicle be checked
by an authorized HYUNDAI dealer.
High mounted stop light
replacement
If the light is not operating, we rec-
ommend that the vehicle be checked
by an authorized HYUNDAI dealer.
OVI073032OVI073035

Maintenance
74 7

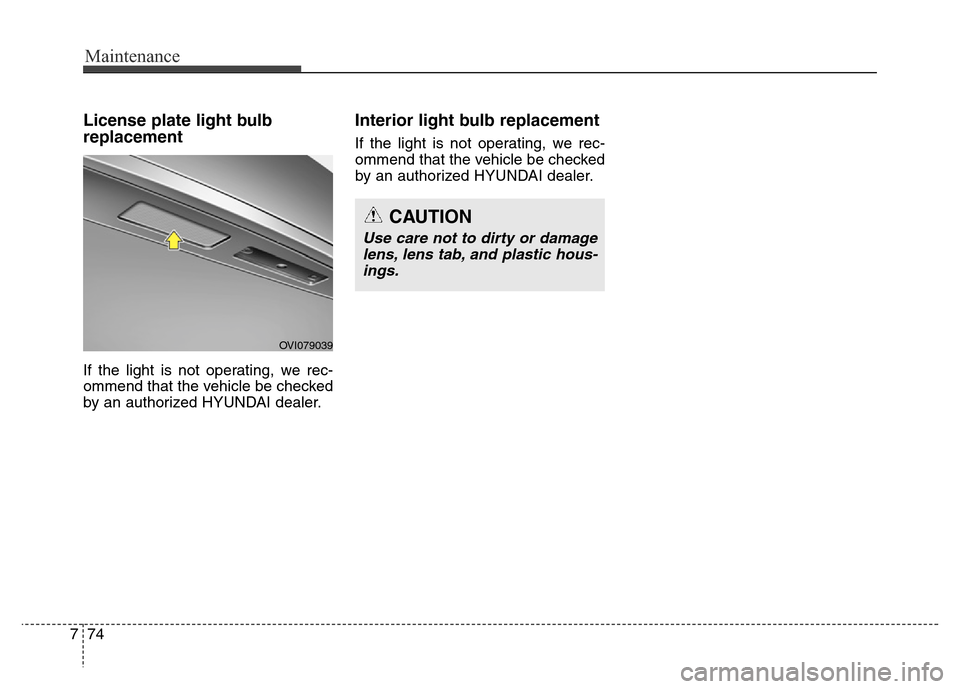

License plate light bulb
replacement
If the light is not operating, we rec-
ommend that the vehicle be checked
by an authorized HYUNDAI dealer.
Interior light bulb replacement
If the light is not operating, we rec-
ommend that the vehicle be checked
by an authorized HYUNDAI dealer.
CAUTION
Use care not to dirty or damage
lens, lens tab, and plastic hous-
ings.
OVI079039

775
Maintenance
Exterior care
Exterior general caution
It is very important to follow the label
directions when using any chemical
cleaner or polish. Read all warning
and caution statements that appear
on the label.
Finish maintenance
Washing
To help protect your vehicle’s finish
from rust and deterioration, wash it
thoroughly and frequently at least
once a month with lukewarm or cold
water.
If you use your vehicle for off-road
driving, you should wash it after each
off-road trip. Pay special attention to
the removal of any accumulation of
salt, dirt, mud, and other foreign
materials. Make sure the drain holes
in the lower edges of the doors and
rocker panels are kept clear and
clean.
Insects, tar, tree sap, bird droppings,
industrial pollution and similar
deposits can damage your vehicle’s
finish if not removed immediately.Even prompt washing with plain
water may not completely remove all
these deposits. A mild soap, safe for
use on painted surfaces, may be
used.
After washing, rinse the vehicle thor-
oughly with lukewarm or cold water.
Do not allow soap to dry on the fin-
ish.

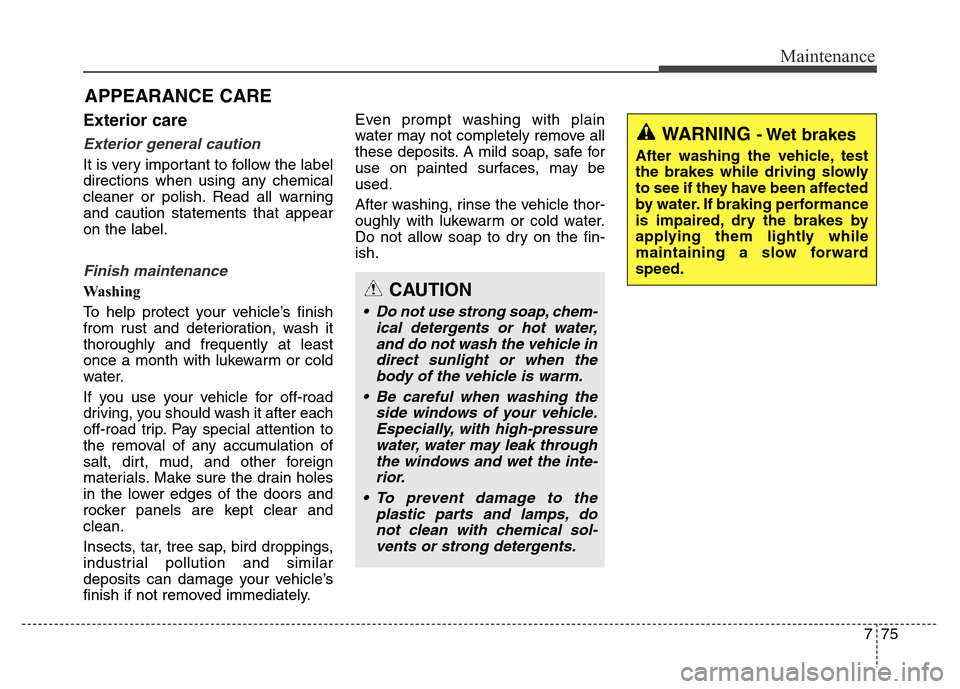

APPEARANCE CARE
CAUTION
• Do not use strong soap, chem-
ical detergents or hot water,
and do not wash the vehicle in
direct sunlight or when the
body of the vehicle is warm.
• Be careful when washing the
side windows of your vehicle.
Especially, with high-pressure
water, water may leak through
the windows and wet the inte-
rior.
• To prevent damage to the
plastic parts and lamps, do
not clean with chemical sol-
vents or strong detergents.
WARNING - Wet brakes
After washing the vehicle, test
the brakes while driving slowly
to see if they have been affected
by water. If braking performance
is impaired, dry the brakes by
applying them lightly while
maintaining a slow forward
speed.
