Hyundai Equus 2015 Owners Manual

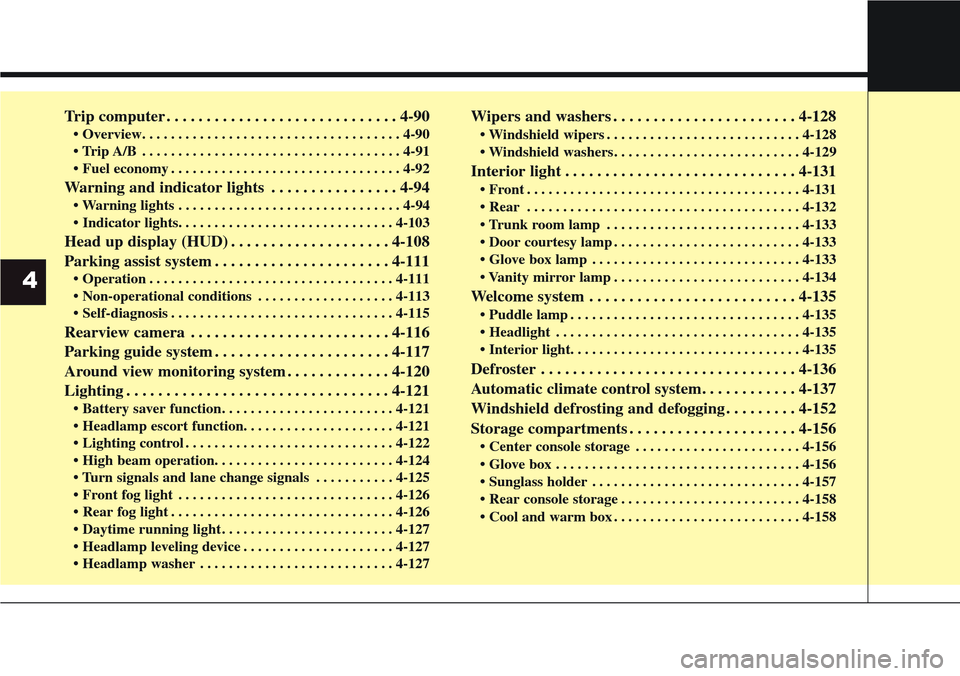

Trip computer . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4-90
• Overview. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4-90
• Trip A/B . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4-91
• Fuel economy . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4-92
Warning and indicator lights . . . . . . . . . . . . . . . . 4-94
• Warning lights . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4-94
• Indicator lights. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4-103
Head up display (HUD) . . . . . . . . . . . . . . . . . . . . 4-108
Parking assist system . . . . . . . . . . . . . . . . . . . . . . 4-111
• Operation . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4-111
• Non-operational conditions . . . . . . . . . . . . . . . . . . . 4-113
• Self-diagnosis . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4-115
Rearview camera . . . . . . . . . . . . . . . . . . . . . . . . . 4-116
Parking guide system . . . . . . . . . . . . . . . . . . . . . . 4-117
Around view monitoring system . . . . . . . . . . . . . 4-120
Lighting . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4-121
• Battery saver function. . . . . . . . . . . . . . . . . . . . . . . . 4-121
• Headlamp escort function. . . . . . . . . . . . . . . . . . . . . 4-121
• Lighting control . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4-122
• High beam operation. . . . . . . . . . . . . . . . . . . . . . . . . 4-124
• Turn signals and lane change signals . . . . . . . . . . . 4-125
• Front fog light . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4-126
• Rear fog light . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4-126
• Daytime running light . . . . . . . . . . . . . . . . . . . . . . . . 4-127
• Headlamp leveling device . . . . . . . . . . . . . . . . . . . . . 4-127
• Headlamp washer . . . . . . . . . . . . . . . . . . . . . . . . . . . 4-127
Wipers and washers . . . . . . . . . . . . . . . . . . . . . . . 4-128
• Windshield wipers . . . . . . . . . . . . . . . . . . . . . . . . . . . 4-128
• Windshield washers. . . . . . . . . . . . . . . . . . . . . . . . . . 4-129
Interior light . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4-131
• Front . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4-131
• Rear . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4-132
• Trunk room lamp . . . . . . . . . . . . . . . . . . . . . . . . . . . 4-133
• Door courtesy lamp . . . . . . . . . . . . . . . . . . . . . . . . . . 4-133
• Glove box lamp . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4-133
• Vanity mirror lamp . . . . . . . . . . . . . . . . . . . . . . . . . . 4-134
Welcome system . . . . . . . . . . . . . . . . . . . . . . . . . . 4-135
• Puddle lamp . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4-135
• Headlight . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4-135
• Interior light. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4-135
Defroster . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4-136
Automatic climate control system. . . . . . . . . . . . 4-137
Windshield defrosting and defogging . . . . . . . . . 4-152
Storage compartments . . . . . . . . . . . . . . . . . . . . . 4-156
• Center console storage . . . . . . . . . . . . . . . . . . . . . . . 4-156
• Glove box . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4-156
• Sunglass holder . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4-157
• Rear console storage . . . . . . . . . . . . . . . . . . . . . . . . . 4-158
• Cool and warm box . . . . . . . . . . . . . . . . . . . . . . . . . . 4-158
4

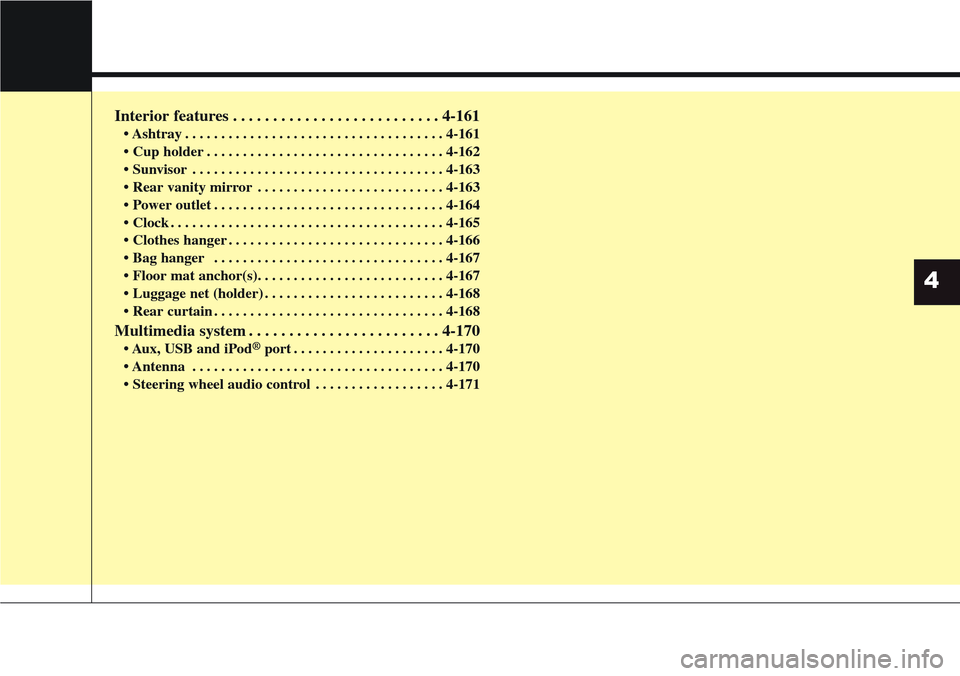

Interior features . . . . . . . . . . . . . . . . . . . . . . . . . . 4-161
• Ashtray . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4-161
• Cup holder . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4-162
• Sunvisor . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4-163
• Rear vanity mirror . . . . . . . . . . . . . . . . . . . . . . . . . . 4-163
• Power outlet . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4-164
• Clock . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4-165
• Clothes hanger . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4-166
• Bag hanger . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4-167
• Floor mat anchor(s). . . . . . . . . . . . . . . . . . . . . . . . . . 4-167
• Luggage net (holder) . . . . . . . . . . . . . . . . . . . . . . . . . 4-168
• Rear curtain . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4-168
Multimedia system . . . . . . . . . . . . . . . . . . . . . . . . 4-170
• Aux, USB and iPod®port . . . . . . . . . . . . . . . . . . . . . 4-170
• Antenna . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4-170
• Steering wheel audio control . . . . . . . . . . . . . . . . . . 4-171
4

Features of your vehicle
4 4

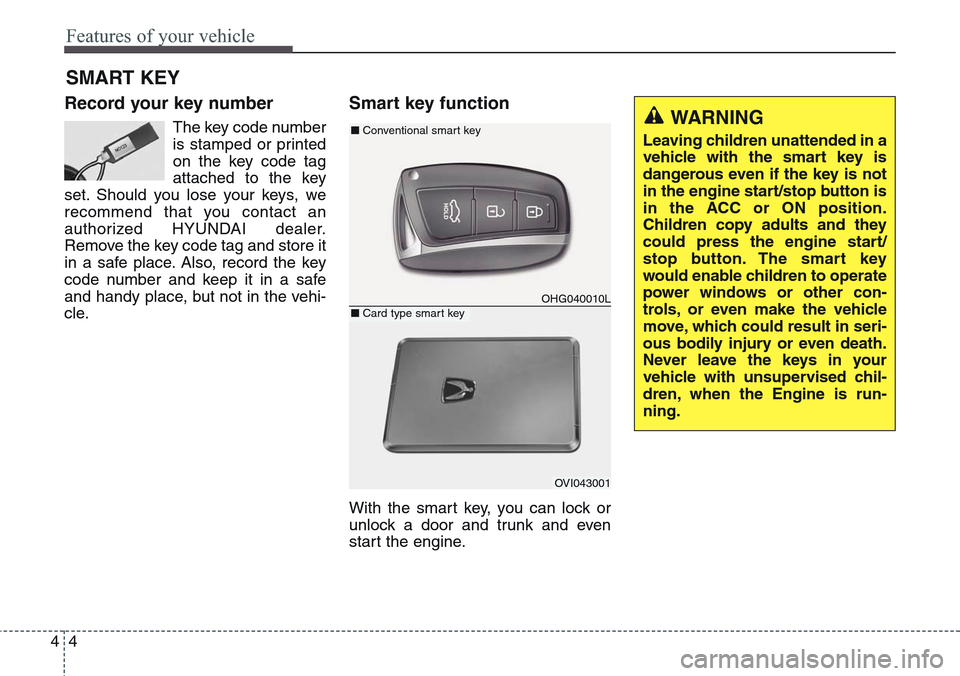

Record your key number
The key code number
is stamped or printed
on the key code tag
attached to the key
set. Should you lose your keys, we
recommend that you contact an
authorized HYUNDAI dealer.
Remove the key code tag and store it
in a safe place. Also, record the key
code number and keep it in a safe
and handy place, but not in the vehi-
cle.
Smart key function
With the smart key, you can lock or
unlock a door and trunk and even
start the engine.
SMART KEY
OHG040010L
■Conventional smart key
OVI043001
■Card type smart key
WARNING
Leaving children unattended in a
vehicle with the smart key is
dangerous even if the key is not
in the engine start/stop button is
in the ACC or ON position.
Children copy adults and they
could press the engine start/
stop button. The smart key
would enable children to operate
power windows or other con-
trols, or even make the vehicle
move, which could result in seri-
ous bodily injury or even death.
Never leave the keys in your
vehicle with unsupervised chil-
dren, when the Engine is run-
ning.

45
Features of your vehicle

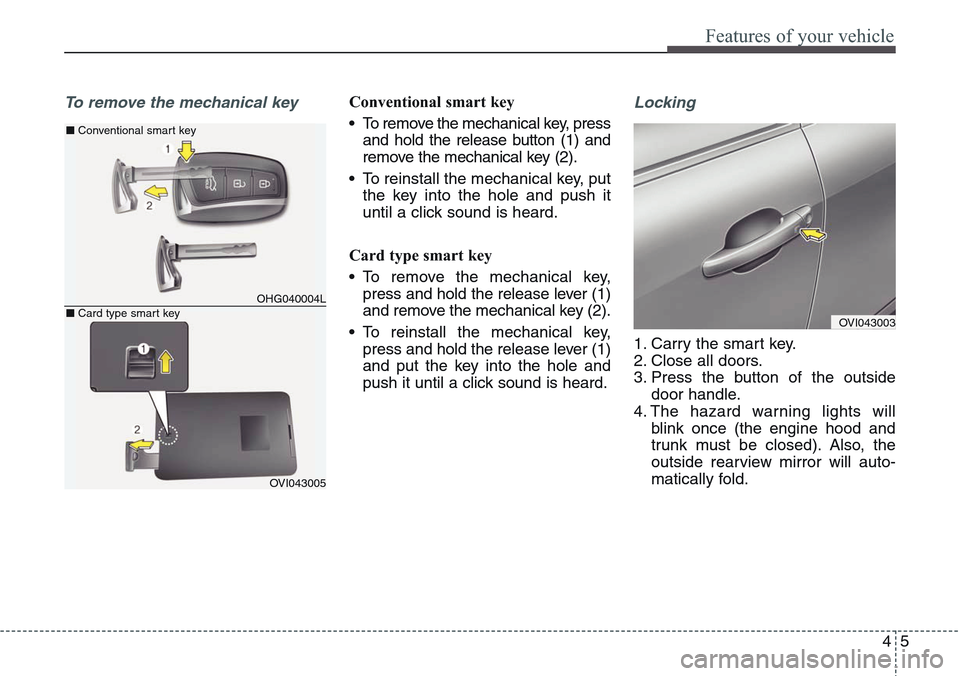

To remove the mechanical keyConventional smart key
• To remove the mechanical key, press
and hold the release button (1) and
remove the mechanical key (2).
• To reinstall the mechanical key, put
the key into the hole and push it
until a click sound is heard.
Card type smart key
• To remove the mechanical key,
press and hold the release lever (1)
and remove the mechanical key (2).
• To reinstall the mechanical key,
press and hold the release lever (1)
and put the key into the hole and
push it until a click sound is heard.Locking
1. Carry the smart key.
2. Close all doors.
3. Press the button of the outside
door handle.
4. The hazard warning lights will
blink once (the engine hood and
trunk must be closed). Also, the
outside rearview mirror will auto-
matically fold.
OHG040004L
■Conventional smart key
OVI043005
■Card type smart keyOVI043003

Features of your vehicle
6 4

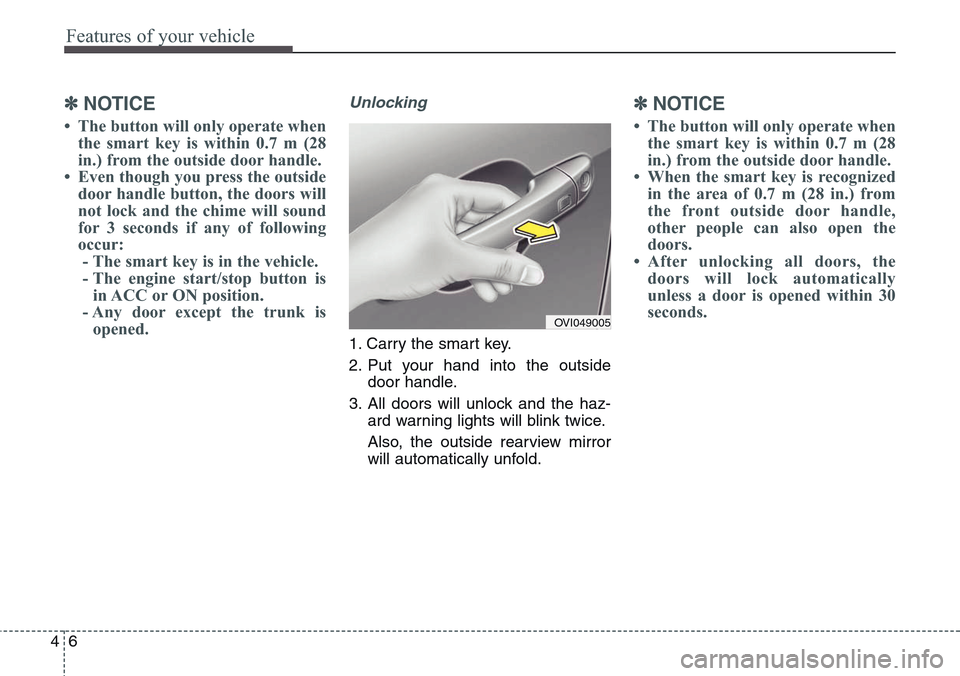

✽NOTICE
• The button will only operate when
the smart key is within 0.7 m (28
in.) from the outside door handle.
• Even though you press the outside
door handle button, the doors will
not lock and the chime will sound
for 3 seconds if any of following
occur:
- The smart key is in the vehicle.
- The engine start/stop button is
in ACC or ON position.
- Any door except the trunk is
opened.
Unlocking
1. Carry the smart key.
2. Put your hand into the outside
door handle.
3. All doors will unlock and the haz-
ard warning lights will blink twice.
Also, the outside rearview mirror
will automatically unfold.
✽NOTICE
• The button will only operate when
the smart key is within 0.7 m (28
in.) from the outside door handle.
• When the smart key is recognized
in the area of 0.7 m (28 in.) from
the front outside door handle,
other people can also open the
doors.
• After unlocking all doors, the
doors will lock automatically
unless a door is opened within 30
seconds.
OVI049005

47
Features of your vehicle

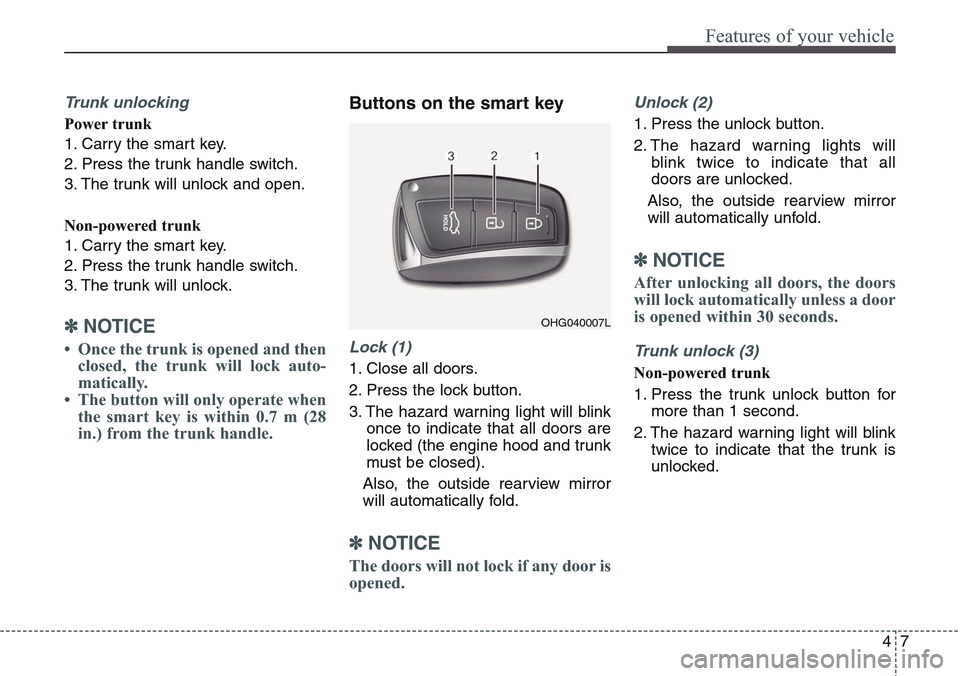

Trunk unlocking
Power trunk
1. Carry the smart key.
2. Press the trunk handle switch.
3. The trunk will unlock and open.
Non-powered trunk
1. Carry the smart key.
2. Press the trunk handle switch.
3. The trunk will unlock.
✽NOTICE
• Once the trunk is opened and then
closed, the trunk will lock auto-
matically.
• The button will only operate when
the smart key is within 0.7 m (28
in.) from the trunk handle.
Buttons on the smart key
Lock (1)
1. Close all doors.
2. Press the lock button.
3. The hazard warning light will blink
once to indicate that all doors are
locked (the engine hood and trunk
must be closed).
Also, the outside rearview mirror
will automatically fold.
✽NOTICE
The doors will not lock if any door is
opened.
Unlock (2)
1. Press the unlock button.
2. The hazard warning lights will
blink twice to indicate that all
doors are unlocked.
Also, the outside rearview mirror
will automatically unfold.
✽NOTICE
After unlocking all doors, the doors
will lock automatically unless a door
is opened within 30 seconds.
Trunk unlock (3)
Non-powered trunk
1. Press the trunk unlock button for
more than 1 second.
2. The hazard warning light will blink
twice to indicate that the trunk is
unlocked.
OHG040007L

Features of your vehicle
8 4

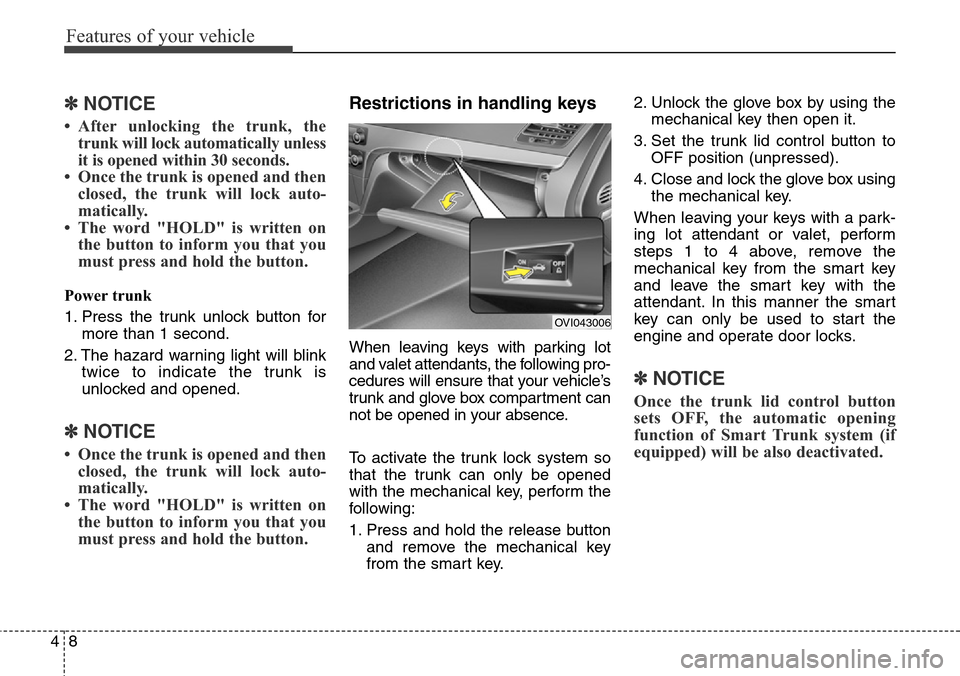

✽NOTICE
• After unlocking the trunk, the
trunk will lock automatically unless
it is opened within 30 seconds.
• Once the trunk is opened and then
closed, the trunk will lock auto-
matically.
• The word "HOLD" is written on
the button to inform you that you
must press and hold the button.
Power trunk
1. Press the trunk unlock button for
more than 1 second.
2. The hazard warning light will blink
twice to indicate the trunk is
unlocked and opened.
✽NOTICE
• Once the trunk is opened and then
closed, the trunk will lock auto-
matically.
• The word "HOLD" is written on
the button to inform you that you
must press and hold the button.
Restrictions in handling keys
When leaving keys with parking lot
and valet attendants, the following pro-
cedures will ensure that your vehicle’s
trunk and glove box compartment can
not be opened in your absence.
To activate the trunk lock system so
that the trunk can only be opened
with the mechanical key, perform the
following:
1. Press and hold the release button
and remove the mechanical key
from the smart key.2. Unlock the glove box by using the
mechanical key then open it.
3. Set the trunk lid control button to
OFF position (unpressed).
4. Close and lock the glove box using
the mechanical key.
When leaving your keys with a park-
ing lot attendant or valet, perform
steps 1 to 4 above, remove the
mechanical key from the smart key
and leave the smart key with the
attendant. In this manner the smart
key can only be used to start the
engine and operate door locks.
✽NOTICE
Once the trunk lid control button
sets OFF, the automatic opening
function of Smart Trunk system (if
equipped) will be also deactivated.
OVI043006

49
Features of your vehicle

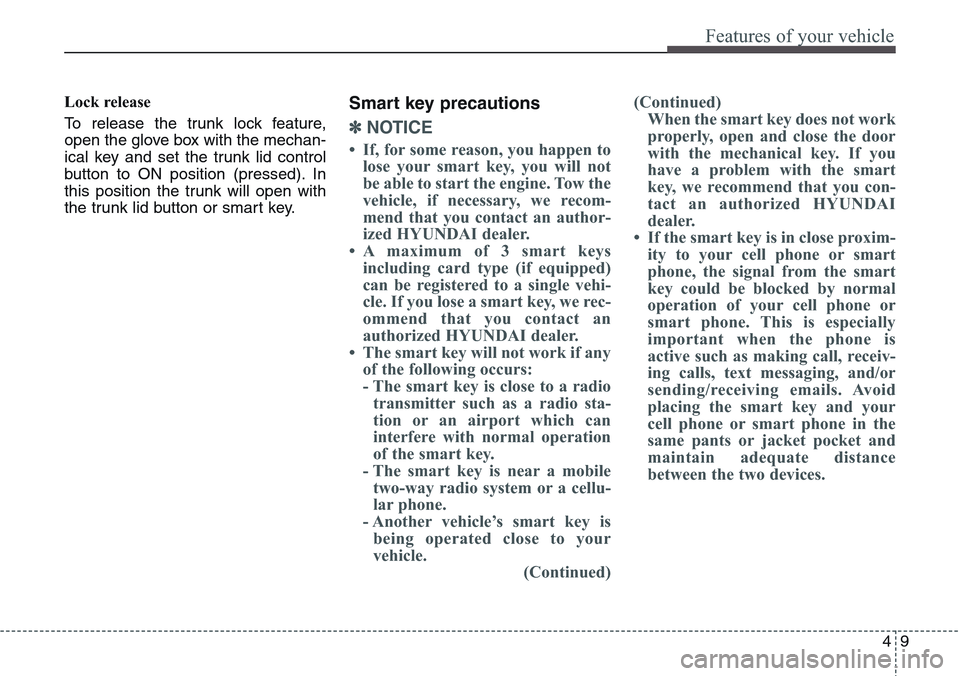

Lock release
To release the trunk lock feature,
open the glove box with the mechan-
ical key and set the trunk lid control
button to ON position (pressed). In
this position the trunk will open with
the trunk lid button or smart key.Smart key precautions
✽NOTICE
• If, for some reason, you happen to
lose your smart key, you will not
be able to start the engine. Tow the
vehicle, if necessary, we recom-
mend that you contact an author-
ized HYUNDAI dealer.
• A maximum of 3 smart keys
including card type (if equipped)
can be registered to a single vehi-
cle. If you lose a smart key, we rec-
ommend that you contact an
authorized HYUNDAI dealer.
• The smart key will not work if any
of the following occurs:
- The smart key is close to a radio
transmitter such as a radio sta-
tion or an airport which can
interfere with normal operation
of the smart key.
- The smart key is near a mobile
two-way radio system or a cellu-
lar phone.
- Another vehicle’s smart key is
being operated close to your
vehicle.
(Continued)(Continued)
When the smart key does not work
properly, open and close the door
with the mechanical key. If you
have a problem with the smart
key, we recommend that you con-
tact an authorized HYUNDAI
dealer.
• If the smart key is in close proxim-
ity to your cell phone or smart
phone, the signal from the smart
key could be blocked by normal
operation of your cell phone or
smart phone. This is especially
important when the phone is
active such as making call, receiv-
ing calls, text messaging, and/or
sending/receiving emails. Avoid
placing the smart key and your
cell phone or smart phone in the
same pants or jacket pocket and
maintain adequate distance
between the two devices.

Features of your vehicle
10 4

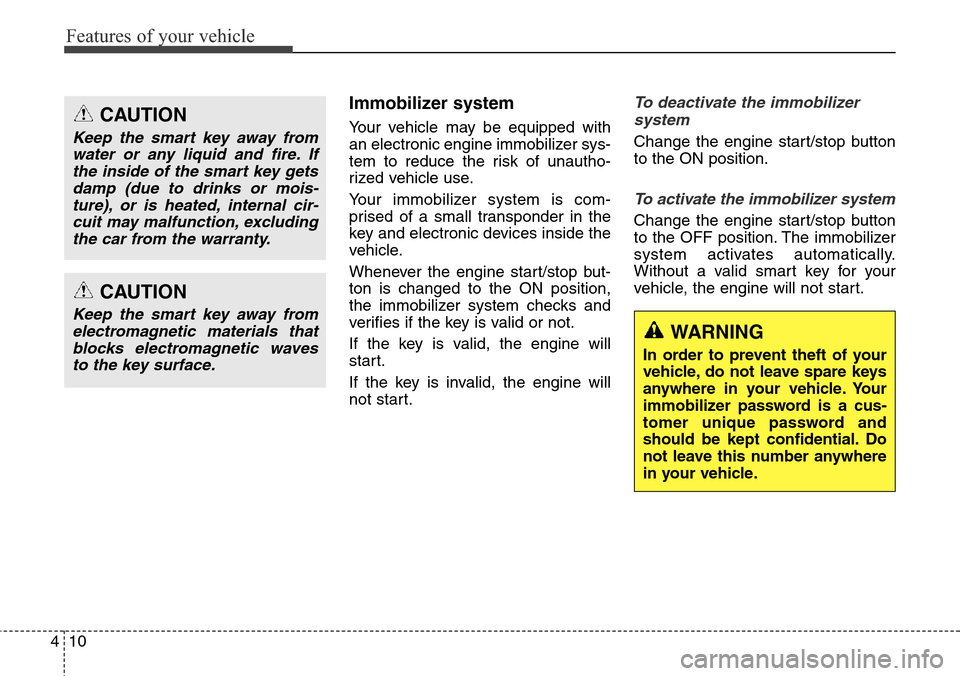

Immobilizer system
Your vehicle may be equipped with
an electronic engine immobilizer sys-
tem to reduce the risk of unautho-
rized vehicle use.
Your immobilizer system is com-
prised of a small transponder in the
key and electronic devices inside the
vehicle.
Whenever the engine start/stop but-
ton is changed to the ON position,
the immobilizer system checks and
verifies if the key is valid or not.
If the key is valid, the engine will
start.
If the key is invalid, the engine will
not start.
To deactivate the immobilizer
system
Change the engine start/stop button
to the ON position.
To activate the immobilizer system
Change the engine start/stop button
to the OFF position. The immobilizer
system activates automatically.
Without a valid smart key for your
vehicle, the engine will not start.
WARNING
In order to prevent theft of your
vehicle, do not leave spare keys
anywhere in your vehicle. Your
immobilizer password is a cus-
tomer unique password and
should be kept confidential. Do
not leave this number anywhere
in your vehicle.
CAUTION
Keep the smart key away from
water or any liquid and fire. If
the inside of the smart key gets
damp (due to drinks or mois-
ture), or is heated, internal cir-
cuit may malfunction, excluding
the car from the warranty.
CAUTION
Keep the smart key away from
electromagnetic materials that
blocks electromagnetic waves
to the key surface.

411
Features of your vehicle

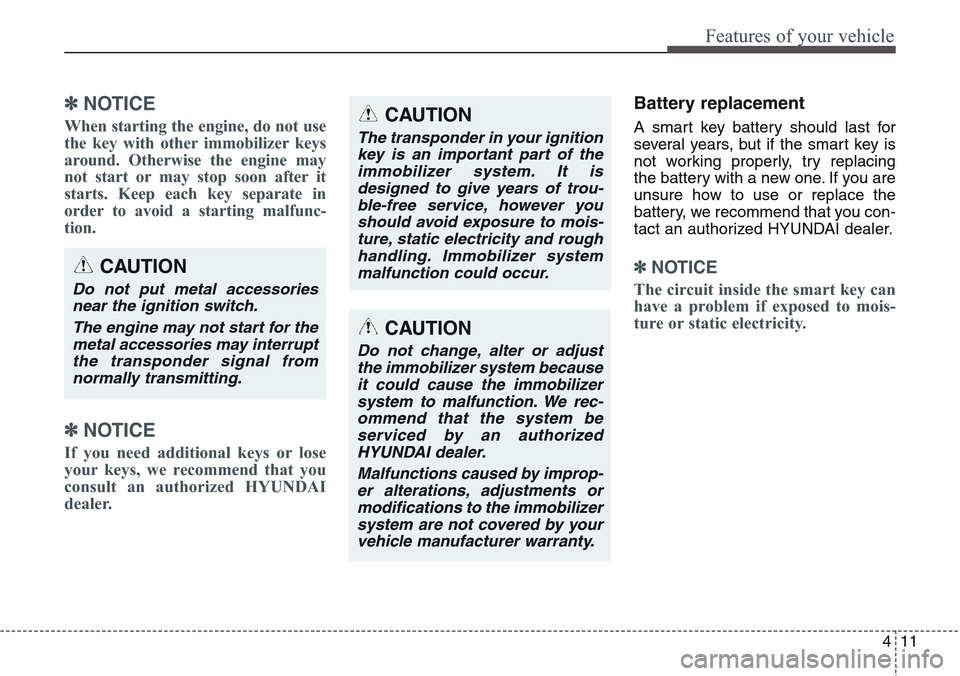

✽NOTICE
When starting the engine, do not use
the key with other immobilizer keys
around. Otherwise the engine may
not start or may stop soon after it
starts. Keep each key separate in
order to avoid a starting malfunc-
tion.
✽NOTICE
If you need additional keys or lose
your keys, we recommend that you
consult an authorized HYUNDAI
dealer.
Battery replacement
A smart key battery should last for
several years, but if the smart key is
not working properly, try replacing
the battery with a new one. If you are
unsure how to use or replace the
battery, we recommend that you con-
tact an authorized HYUNDAI dealer.
✽NOTICE
The circuit inside the smart key can
have a problem if exposed to mois-
ture or static electricity.
CAUTION
Do not put metal accessories
near the ignition switch.
The engine may not start for the
metal accessories may interrupt
the transponder signal from
normally transmitting.
CAUTION
The transponder in your ignition
key is an important part of the
immobilizer system. It is
designed to give years of trou-
ble-free service, however you
should avoid exposure to mois-
ture, static electricity and rough
handling. Immobilizer system
malfunction could occur.
CAUTION
Do not change, alter or adjust
the immobilizer system because
it could cause the immobilizer
system to malfunction. We rec-
ommend that the system be
serviced by an authorized
HYUNDAI dealer.
Malfunctions caused by improp-
er alterations, adjustments or
modifications to the immobilizer
system are not covered by your
vehicle manufacturer warranty.
