Hyundai Equus 2016 Digital Navigation System

Navigation l 3-17
Navigation
Exit/Entrance
Press the DEST key Ü Select
Exit/Entrance .
This search feature is used to search
destinations by entering the Exits and
Entrances of corresponding expressways.
Enter the name of the Freeway corre-
sponding to the desired destination. Once
the search is complete, press the controller
to select the desired location from the list.
Previous Map
Press the DEST key Ü Select
Previous Map .
The previously displayed position is dis-
played on the map and the scrolling func-
tions are available.
No Name Details
ò Set as
Destination
Sets the facility or position
where the cursor is positioned
as the new destination
ó Add
W a
ypoint Sets the facility or position
where the cursor is positioned
as a waypoint
ô Add to My
Places
Adds the facility or position
where the cursor is positioned
to My Places
ò ó ô
)@7*@ŠÙ<64"@/>
1BSUJOEE


 )@7*@ŠÙ<64"@/>
1BSUJOEE




Navigation
3-18

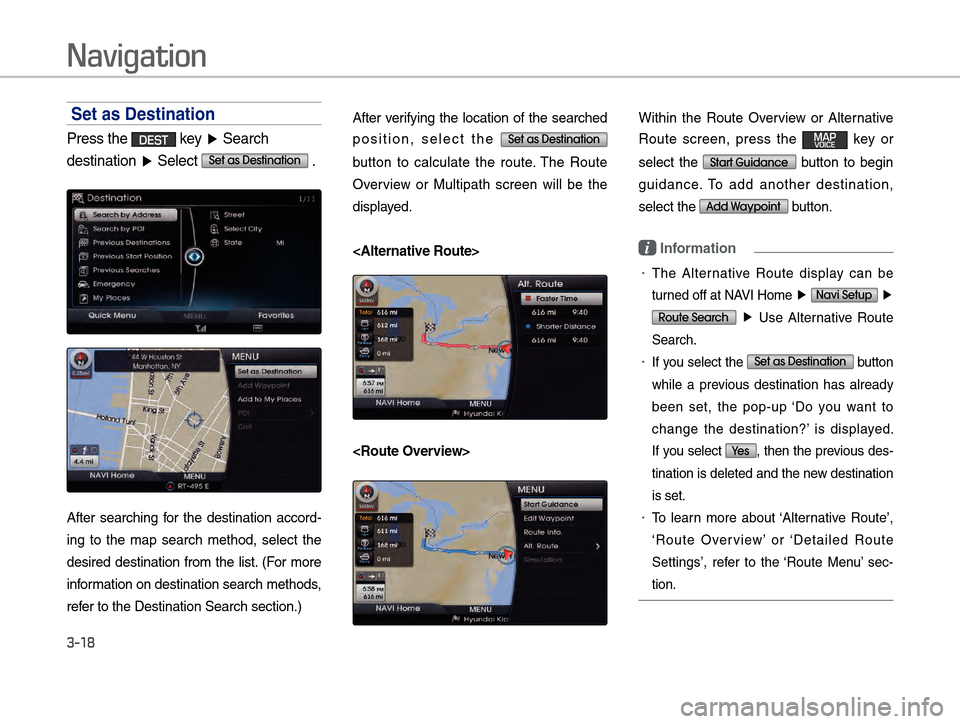

Set as Destination
Press the DEST key Ü Search
destination Ü Select
Set as Destination .
After searching for the destination accord-
ing to the map search method, select the
desired destination from the list. (For more
information on destination search methods,
refer to the Destination Search section.) After verifying the location of the searched
position, select the
Set as Destination
button to calculate the route. The Route
Overview or Multipath screen will be the
displayed.


Within the Route Overview or Alternative
Route screen, press the
MAPVOICE key or
select the
Start Guidance button to begin
guidance. To add another destination,
select the
Add Waypoint button.
i Information
!Ÿ
The Alternative Route display can be
turned off at NAVI Home Ü

Navi Setup Ü

Route Search Ü
Use Alternative Route
Search.
!Ÿ
If you select the Set as Destination button
while a previous destination has already
been set, the pop-up ‘Do you want to
change the destination?’ is displayed.
If you select
Ye s, then the previous des-
tination is deleted and the new destination
is set.
!Ÿ
To learn more about ‘Alternative Route’,
‘Route Overview’ or ‘Detailed Route
Settings’, refer to the ‘Route Menu’ sec-
tion.
)@7*@ŠÙ<64"@/>
1BSUJOEE


 )@7*@ŠÙ<64"@/>
1BSUJOEE




Navigation l 3-19
Navigation
Simulation
Once route calculation is complete, select
the
Simulation button to view a demo of
the route guidance.
During Simulation, pressing the MAPVOICE
key will end the Simulation and display the
current map position. If you start driving the
vehicle while the simulation is in progress,
simulation will end and route guidance will
start.
i Information
!Ÿ
Simulation will not operate after route
guidance has begun. When wishing to
use the simulation feature, do so after
calculating the route but prior to receiving
route guidance.
Add Waypoint
In the map screen Ü Press the MENU
key Ü Select Add Waypoint .
Searching for the destination according
to the map search method, select the
Add Waypoint button to add the waypoint
to the current route.
)@7*@ŠÙ<64"@/>
1BSUJOEE


 )@7*@ŠÙ<64"@/>
1BSUJOEE




Navigation
3-20
Route Options
In the map screen Ü Press the MENU
key Ü Select
Route Options .
Selecting the Route Options will display a
pop up that allows you to change route set-
tings and conditions. Once the settings are
changed, the route will be recalculated by
reflecting the changes.
i Information
!Ÿ
For more information on Faster Time,
Shorter Distance, and other calculating
options, refer to the “Route Option” section.
Cancel Route
In the map screen Ü Press the MENU
key Ü Select
Cancel Route Ü Select
Ye s .
The currently calculated route is canceled
and deleted.
)@7*@ŠÙ<64"@/>
1BSUJOEE


 )@7*@ŠÙ<64"@/>
1BSUJOEE




Navigation l 3-21
Navigation
Route Guidance
The preliminary guidance, intersection
guidance, turn list guidance, Highway
mode screen are displayed depending on
the current road condition.
Within the destination guidance map
screen, if the current position is on route,
then intersection guidance will be provided
when nearby an intersection. In addition,
when nearby an intersection, the intersec-
tion zoom screen is displayed.
i Information
!Ÿ
Within all guidance mode screens, press-
ing
Guidance Mode button will
change the route guidance mode.
!Ÿ
Each time the Guidance Mode
button is selected, the guidance mode
will change in order of single screen ª

Highway guidance(when available) ª

Turn list mode.
!Ÿ
Highway and intersection zoom guidance
are displayed on when receiving guidance
at corresponding roads.
Preliminary Guidance Mode
At the top right side of the screen, the first
and second turn info, remaining distance
to turn, direction and other information are
displayed.
)@7*@ŠÙ<64"@/>
1BSUJOEE


 )@7*@ŠÙ<64"@/>
1BSUJOEE




Navigation
3-22
Intersection Zoom Mode
This mode provides detailed guidance
nearby intersections before an expected
turn. This mode will start displaying before
the intersection.
Tu r n L i s t M o d e
This mode shows turn information for the
current the route.
Highway Mode

Navigation l 3-23
Navigation
Upon entering a Highway during route
guidance, the Highway mode will automati-
cally be displayed. This mode is displayed
when driving on an expected route and
display mainly Highway related POIs.
Selecting the All , Summary at the top
right side of the screen will change the
route guidance mode between All Exit on
route, and maneuver exits.
Press the controller left/right to switch dis-
play mode and press controller in to check
POI info list.
i Information
!Ÿ
Some POIs may not be displayed if
seven(7) or more POIs exist within the
position.
)@7*@ŠÙ<64"@/>
1BSUJOEE


 )@7*@ŠÙ<64"@/>
1BSUJOEE




Navigation
3-24
Route Menu
No NameDetails
ò Cancel Route Cancels the currently set route .

ó Route
Over vie

w View route overview to the current destination.
ô Route
Option Route calculation f
eatures that include v
arious
route calculation options and settings.
õ Edit
W a

ypoint Add/delete/change order of destinations/waypoints.
ö Destination Info. Sho
ws the estimated arr
ival time and remaining
distance to the destination.
÷ Route Info. Detailed inf
o on the route to the current destination
and pro
vides detour routing options.
ø Avoid Area Edit route b
y adding A
void Areas/Editing Avoid
Areas and Deleting Avoid Areas.
ò
ó
ô
õ
ö
÷
ø
)@7*@ŠÙ<64"@/>
1BSUJOEE



)@7*@ŠÙ<64"@/>
1BSUJOEE




Navigation
Navigation l 3-25
Canceling the Route
In the map screen Ü Press the
NAVI Home button Ü Select
Route Ü
Select
Cancel Route Ü Select Ye s .
Guidance to the current route is canceled.
Route Overview
In the map screen Ü Press the
NAVI Home button Ü Select
Route Ü
Select
Route Overview .
No Name Details
ò Start
Guidance Star
ts route guidance to the
destination.

ó Edit
Wa
ypoint Add/delete/change order of
destinations/waypoints.
ô Route
Inf o. Route guidance inf

ormation
to the set destination and
calculate detours.
õ Alt.
Route Displa
ys v
arious alternative
route options to select the
desired route calculation
method.
ö
SimulationRoute simulation to the set
destination.
Within the Route Overview screen,
selecting the
Alt. Route button or set-
ting ‘Calculate Alternative Routes upon
Calculation’ within Navigation Setup will
display alternative routes on the screen.
ò ó ô õ ö
)@7*@ŠÙ<64"@/>
1BSUJOEE


 )@7*@ŠÙ<64"@/>
1BSUJOEE




Navigation
3-26
No NameDetails
ò Faster
Time Recommended route that
re ects distance and tr

af c
conditions.
ó Shorter
Distance The shor
test distance from
star
t point to destination.
Route Option
In the map screen Ü Press the
NAVI Home button Ü Select
Route Ü
Select
Route Option .
Faster Time
This option provides calculates routes by
reflecting the average speed of streets and
roads to the destination.
Shorter Distance
This option provides guidance by calculating
the shortest distance route to the destination.
ò
ó
