Convenient features of your vehicle

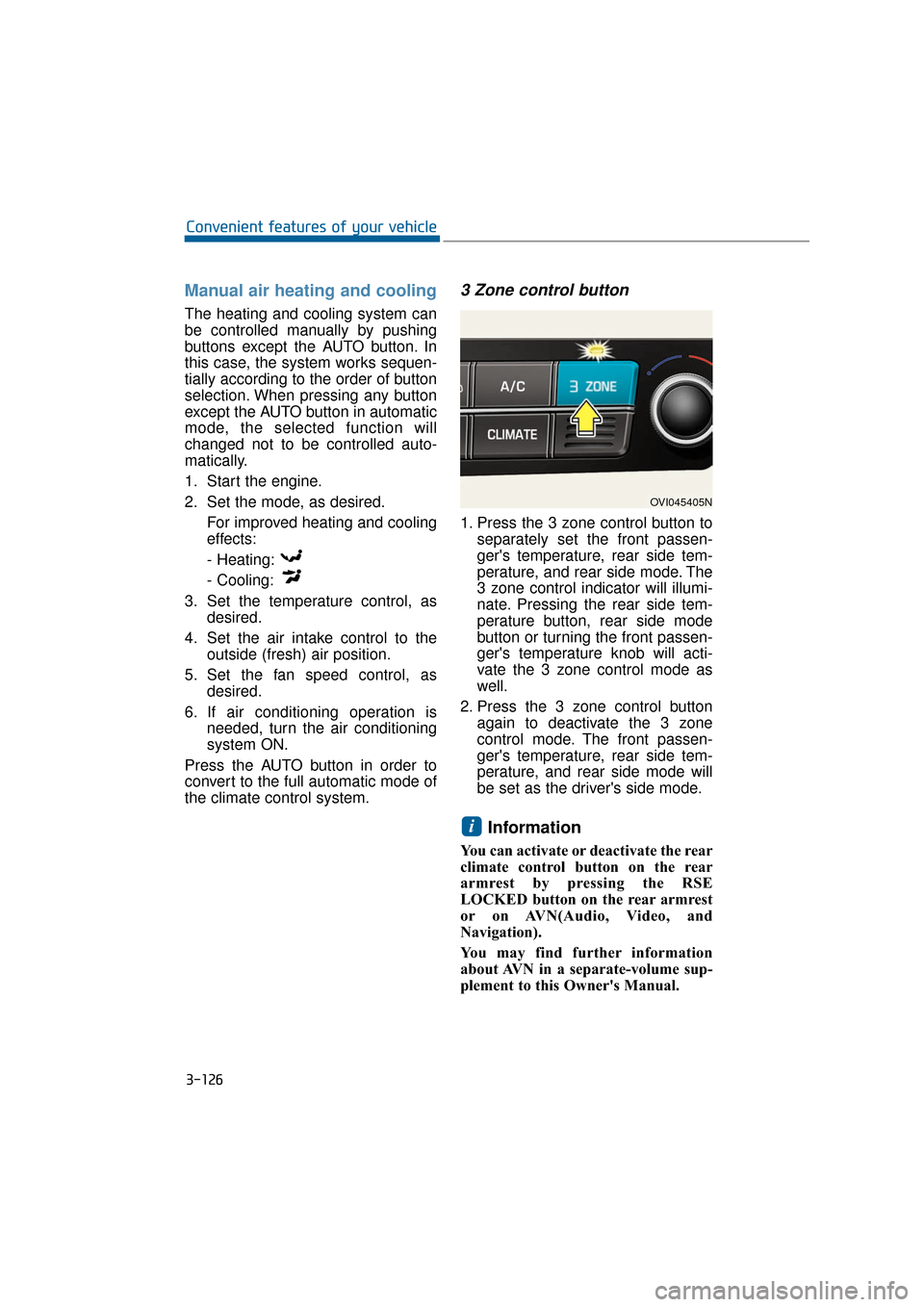

Manual air heating and cooling
The heating and cooling system can
be controlled manually by pushing
buttons except the AUTO button. In
this case, the system works sequen-
tially according to the order of button
selection. When pressing any button
except the AUTO button in automatic
mode, the selected function will
changed not to be controlled auto-
matically.
1. Start the engine.
2. Set the mode, as desired.For improved heating and cooling
effects:- Heating:
- Cooling:
3. Set the temperature control, as desired.
4. Set the air intake control to the outside (fresh) air position.
5. Set the fan speed control, as desired.
6. If air conditioning operation is needed, turn the air conditioning
system ON.
Press the AUTO button in order to
convert to the full automatic mode of
the climate control system.
3 Zone control button
1. Press the 3 zone control button to separately set the front passen-
ger's temperature, rear side tem-
perature, and rear side mode. The
3 zone control indicator will illumi-
nate. Pressing the rear side tem-
perature button, rear side mode
button or turning the front passen-
ger's temperature knob will acti-
vate the 3 zone control mode as
well.
2. Press the 3 zone control button again to deactivate the 3 zone
control mode. The front passen-
ger's temperature, rear side tem-
perature, and rear side mode will
be set as the driver's side mode.
Information
You can activate or deactivate the rear
climate control button on the rear
armrest by pressing the RSE
LOCKED button on the rear armrest
or on AVN(Audio, Video, and
Navigation).
You may find further information
about AVN in a separate-volume sup-
plement to this Owner's Manual.
i
OVI045405N

3-127
Convenient features of your vehicle03

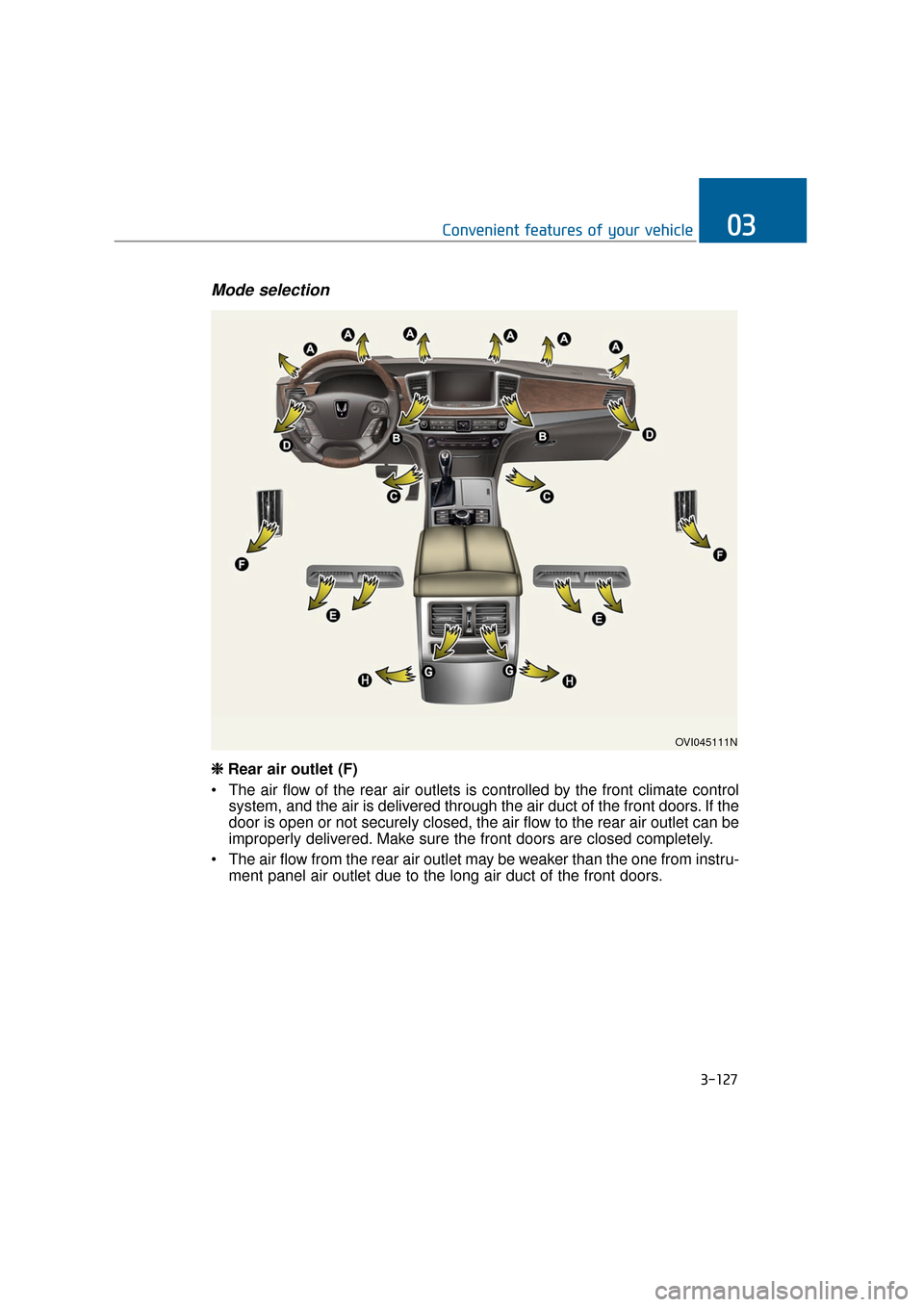

Mode selection
OVI045111N
❈
❈

Rear air outlet (F)
The air flow of the rear air outlets is controlled by the front climate control system, and the air is delivered through the air duct of the front doors. If the
door is open or not securely closed, the air flow to the rear air outlet can be
improperly delivered. Make sure the front doors are closed completely.
The air flow from the rear air outlet may be weaker than the one from instru- ment panel air outlet due to the long air duct of the front doors.

3-128
Convenient features of your vehicle

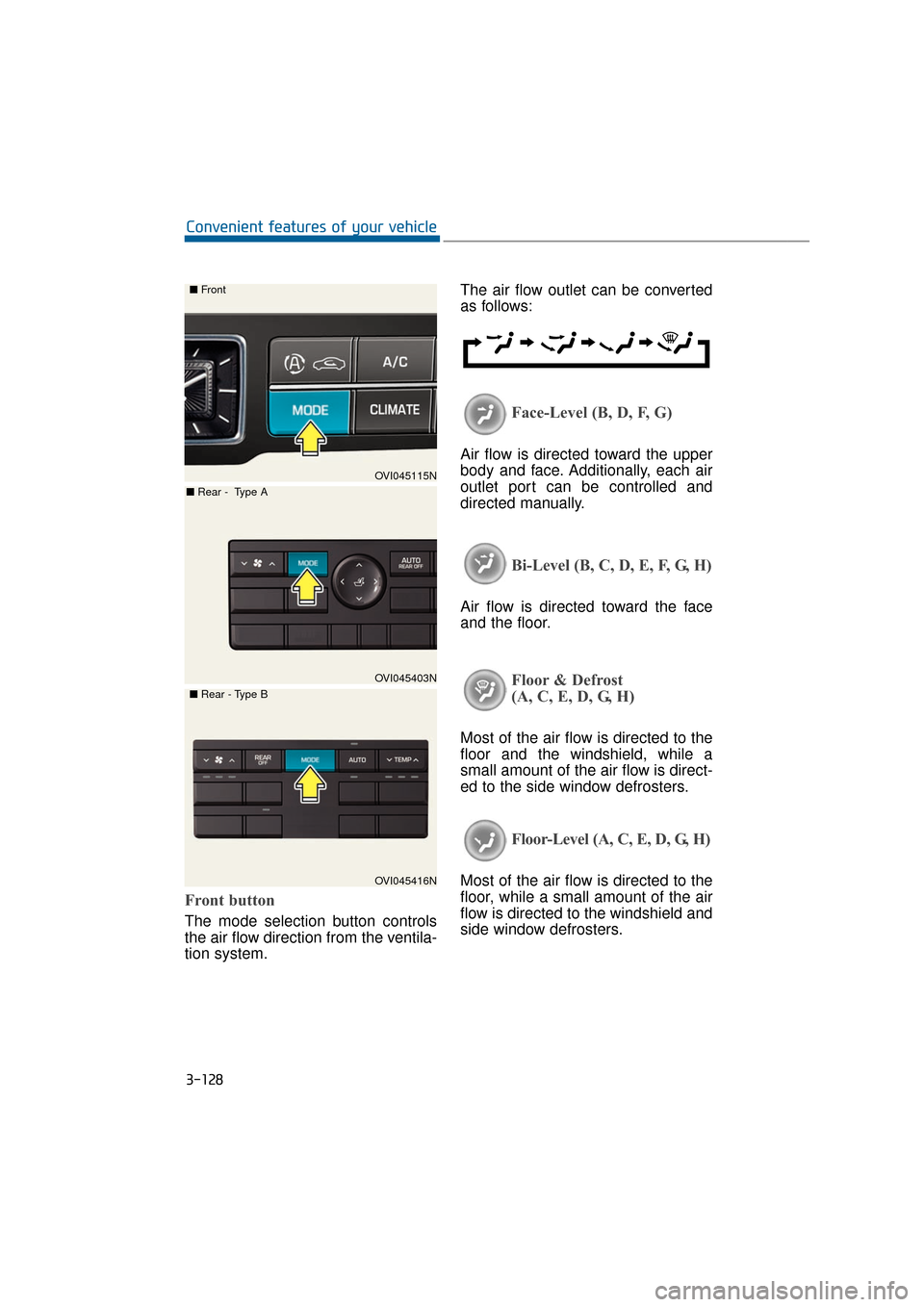

Front button
The mode selection button controls
the air flow direction from the ventila-
tion system.The air flow outlet can be converted
as follows:
Face-Level (B, D, F, G)
Air flow is directed toward the upper
body and face. Additionally, each air
outlet port can be controlled and
directed manually.
Bi-Level (B, C, D, E, F, G, H)
Air flow is directed toward the face
and the floor.
Floor & Defrost
(A, C, E, D, G, H)
Most of the air flow is directed to the
floor and the windshield, while a
small amount of the air flow is direct-
ed to the side window defrosters.
Floor-Level (A, C, E, D, G, H)
Most of the air flow is directed to the
floor, while a small amount of the air
flow is directed to the windshield and
side window defrosters.
OVI045115N
■
Front
OVI045403N
■
Rear - Type A
OVI045416N
■
Rear - Type B

3-129
Convenient features of your vehicle03

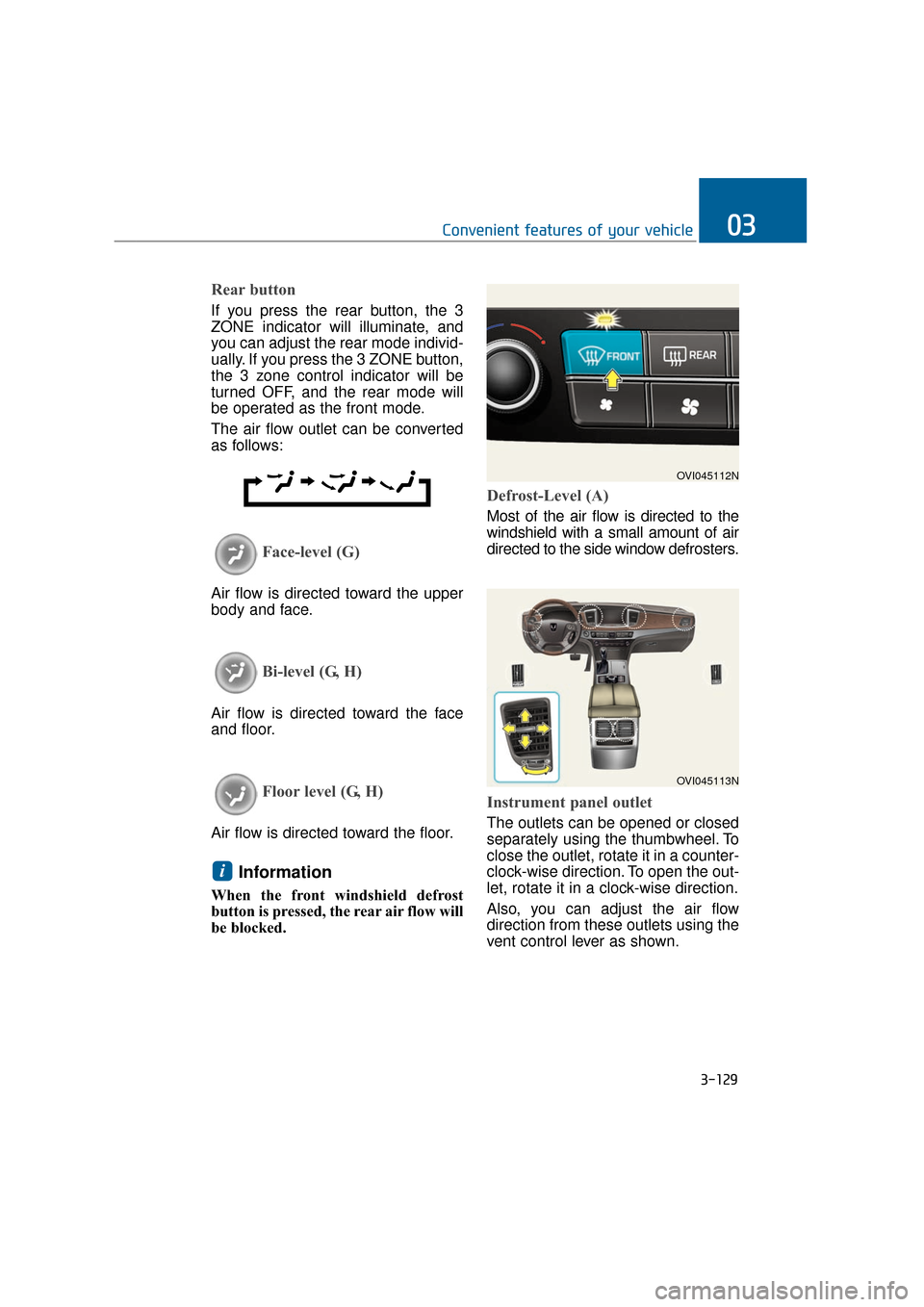

Rear button
If you press the rear button, the 3
ZONE indicator will illuminate, and
you can adjust the rear mode individ-
ually. If you press the 3 ZONE button,
the 3 zone control indicator will be
turned OFF, and the rear mode will
be operated as the front mode.
The air flow outlet can be converted
as follows:
Face-level (G)
Air flow is directed toward the upper
body and face.
Bi-level (G, H)
Air flow is directed toward the face
and floor.
Floor level (G, H)
Air flow is directed toward the floor.
Information
When the front windshield defrost
button is pressed, the rear air flow will
be blocked.
Defrost-Level (A)
Most of the air flow is directed to the
windshield with a small amount of air
directed to the side window defrosters.
Instrument panel outlet
The outlets can be opened or closed
separately using the thumbwheel. To
close the outlet, rotate it in a counter-
clock-wise direction. To open the out-
let, rotate it in a clock-wise direction.
Also, you can adjust the air flow
direction from these outlets using the
vent control lever as shown.
i
OVI045112N
OVI045113N

3-130
Convenient features of your vehicle

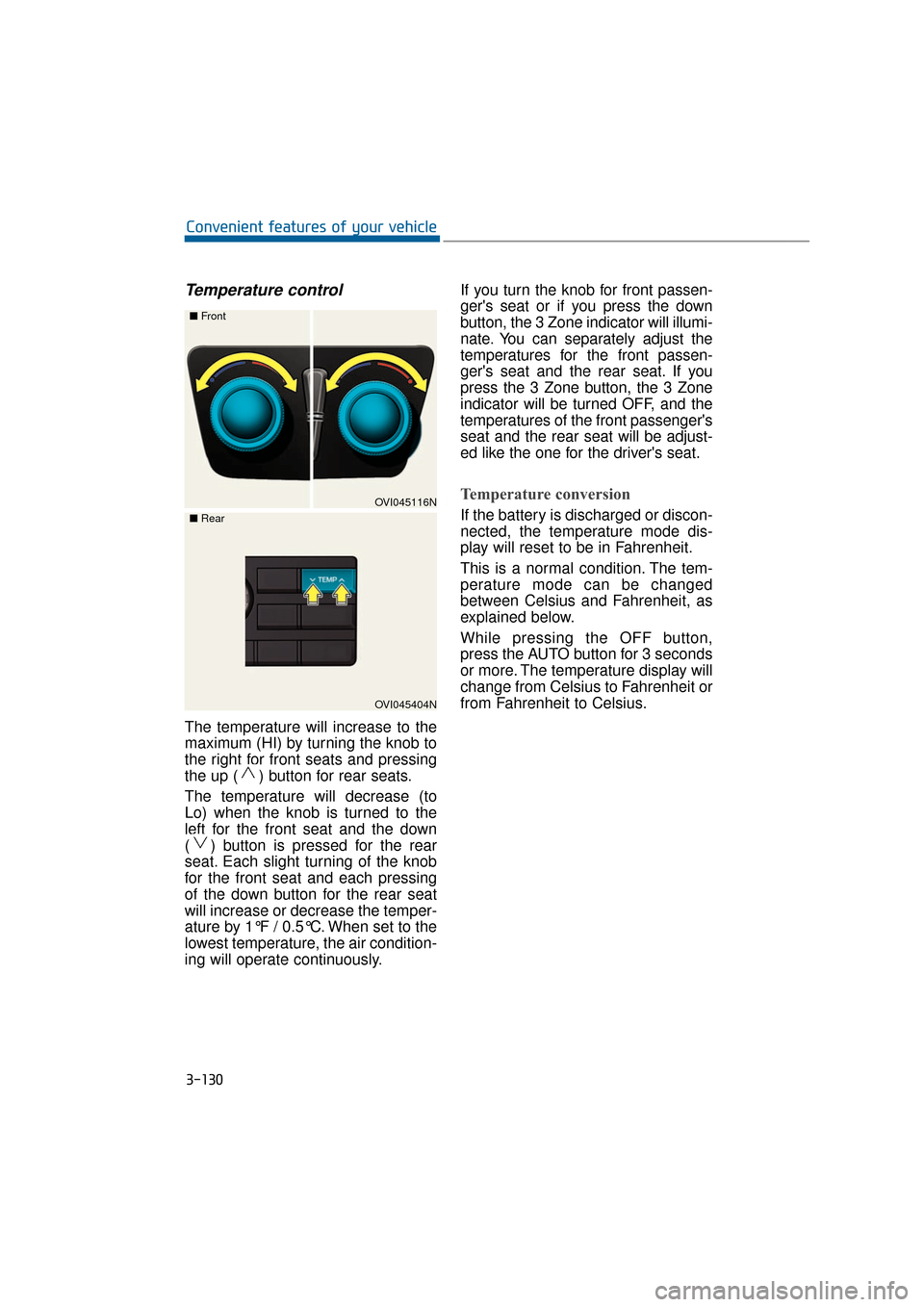

Temperature control
The temperature will increase to the
maximum (HI) by turning the knob to
the right for front seats and pressing
the up ( ) button for rear seats.
The temperature will decrease (to
Lo) when the knob is turned to the
left for the front seat and the down
( ) button is pressed for the rear
seat. Each slight turning of the knob
for the front seat and each pressing
of the down button for the rear seat
will increase or decrease the temper-
ature by 1°F / 0.5°C. When set to the
lowest temperature, the air condition-
ing will operate continuously.If you turn the knob for front passen-
ger's seat or if you press the down
button, the 3 Zone indicator will illumi-
nate. You can separately adjust the
temperatures for the front passen-
ger's seat and the rear seat. If you
press the 3 Zone button, the 3 Zone
indicator will be turned OFF, and the
temperatures of the front passenger's
seat and the rear seat will be adjust-
ed like the one for the driver's seat.
Temperature conversion
If the battery is discharged or discon-
nected, the temperature mode dis-
play will reset to be in Fahrenheit.
This is a normal condition. The tem-
perature mode can be changed
between Celsius and Fahrenheit, as
explained below.
While pressing the OFF button,
press the AUTO button for 3 seconds
or more. The temperature display will
change from Celsius to Fahrenheit or
from Fahrenheit to Celsius.OVI045116N
■
Front
OVI045404N
■
Rear

3-131
Convenient features of your vehicle03

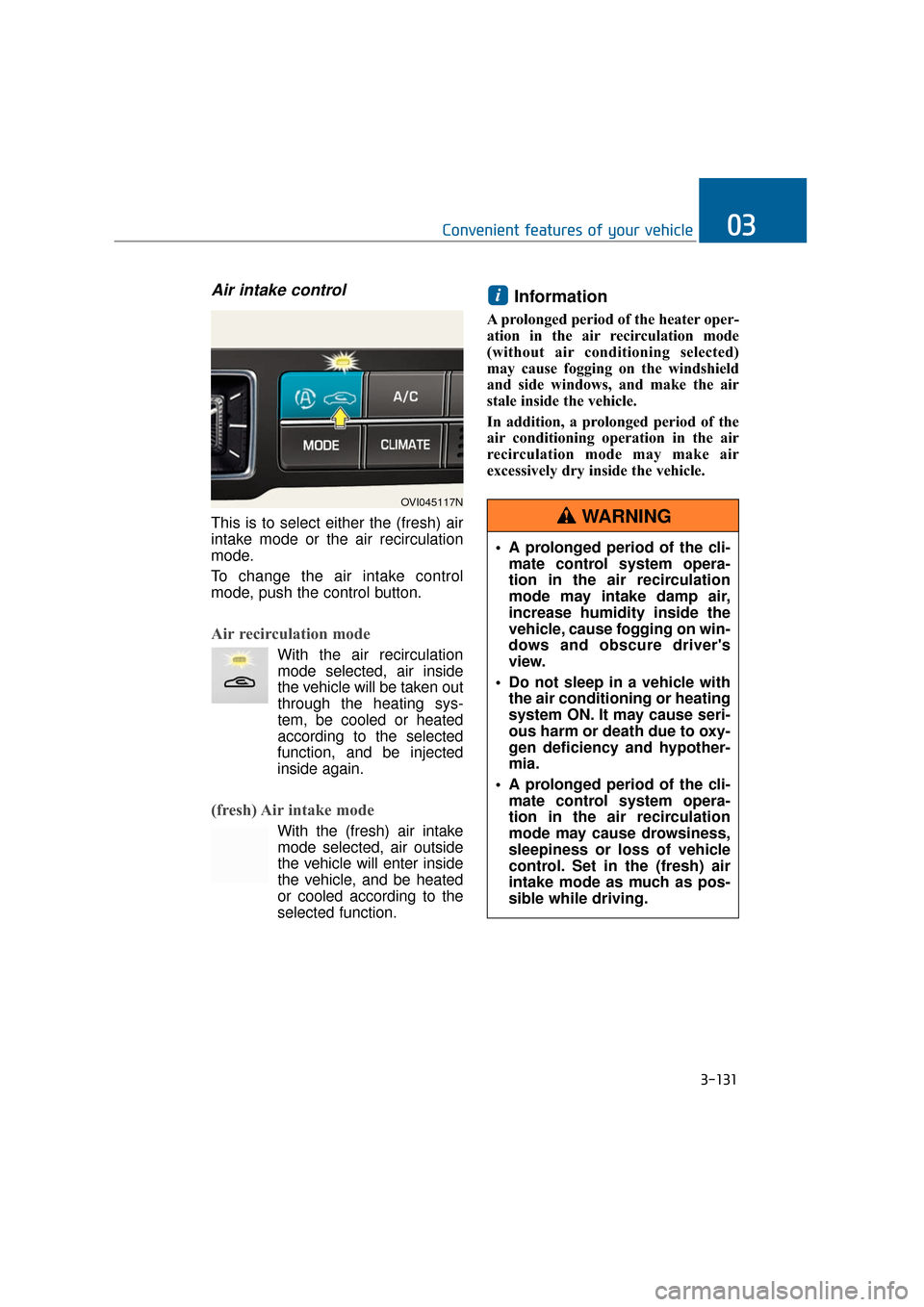

Air intake control
This is to select either the (fresh) air
intake mode or the air recirculation
mode.
To change the air intake control
mode, push the control button.
Air recirculation mode
With the air recirculationmode selected, air inside
the vehicle will be taken out
through the heating sys-
tem, be cooled or heated
according to the selected
function, and be injected
inside again.
(fresh) Air intake mode
With the (fresh) air intake mode selected, air outside
the vehicle will enter inside
the vehicle, and be heated
or cooled according to the
selected function.
Information
A prolonged period of the heater oper-
ation in the air recirculation mode
(without air conditioning selected)
may cause fogging on the windshield
and side windows, and make the air
stale inside the vehicle.
In addition, a prolonged period of the
air conditioning operation in the air
recirculation mode may make air
excessively dry inside the vehicle.
i
OVI045117N
A prolonged period of the cli- mate control system opera-
tion in the air recirculation
mode may intake damp air,
increase humidity inside the
vehicle, cause fogging on win-
dows and obscure driver's
view.
Do not sleep in a vehicle with the air conditioning or heating
system ON. It may cause seri-
ous harm or death due to oxy-
gen deficiency and hypother-
mia.
A prolonged period of the cli- mate control system opera-
tion in the air recirculation
mode may cause drowsiness,
sleepiness or loss of vehicle
control. Set in the (fresh) air
intake mode as much as pos-
sible while driving.
WARNING

3-132
Convenient features of your vehicle

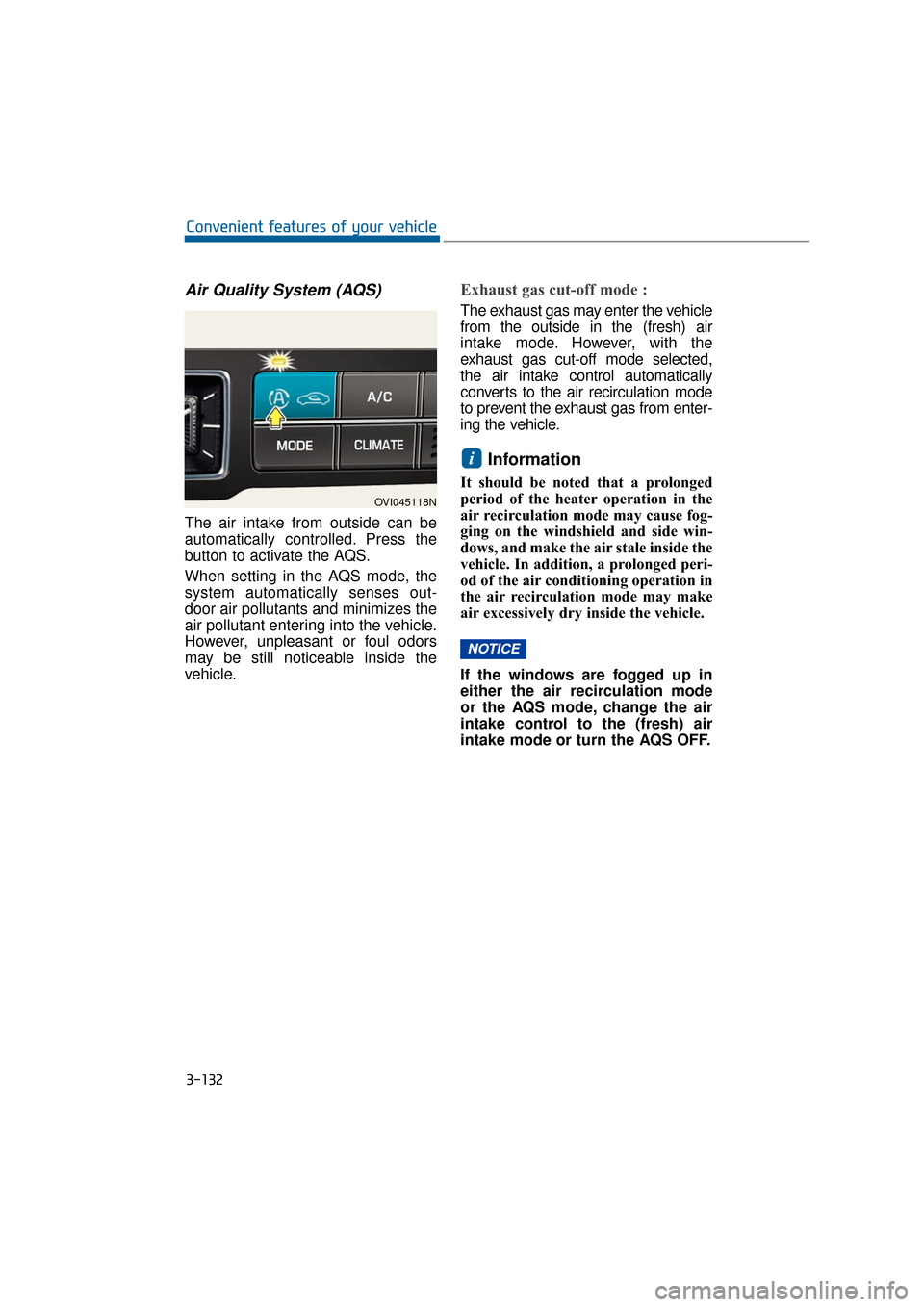

Air Quality System (AQS)
The air intake from outside can be
automatically controlled. Press the
button to activate the AQS.
When setting in the AQS mode, the
system automatically senses out-
door air pollutants and minimizes the
air pollutant entering into the vehicle.
However, unpleasant or foul odors
may be still noticeable inside the
vehicle.
Exhaust gas cut-off mode :
The exhaust gas may enter the vehicle
from the outside in the (fresh) air
intake mode. However, with the
exhaust gas cut-off mode selected,
the air intake control automatically
converts to the air recirculation mode
to prevent the exhaust gas from enter-
ing the vehicle.
Information
It should be noted that a prolonged
period of the heater operation in the
air recirculation mode may cause fog-
ging on the windshield and side win-
dows, and make the air stale inside the
vehicle. In addition, a prolonged peri-
od of the air conditioning operation in
the air recirculation mode may make
air excessively dry inside the vehicle.
If the windows are fogged up in
either the air recirculation mode
or the AQS mode, change the air
intake control to the (fresh) air
intake mode or turn the AQS OFF.
NOTICE
i
OVI045118N

3-133
Convenient features of your vehicle03

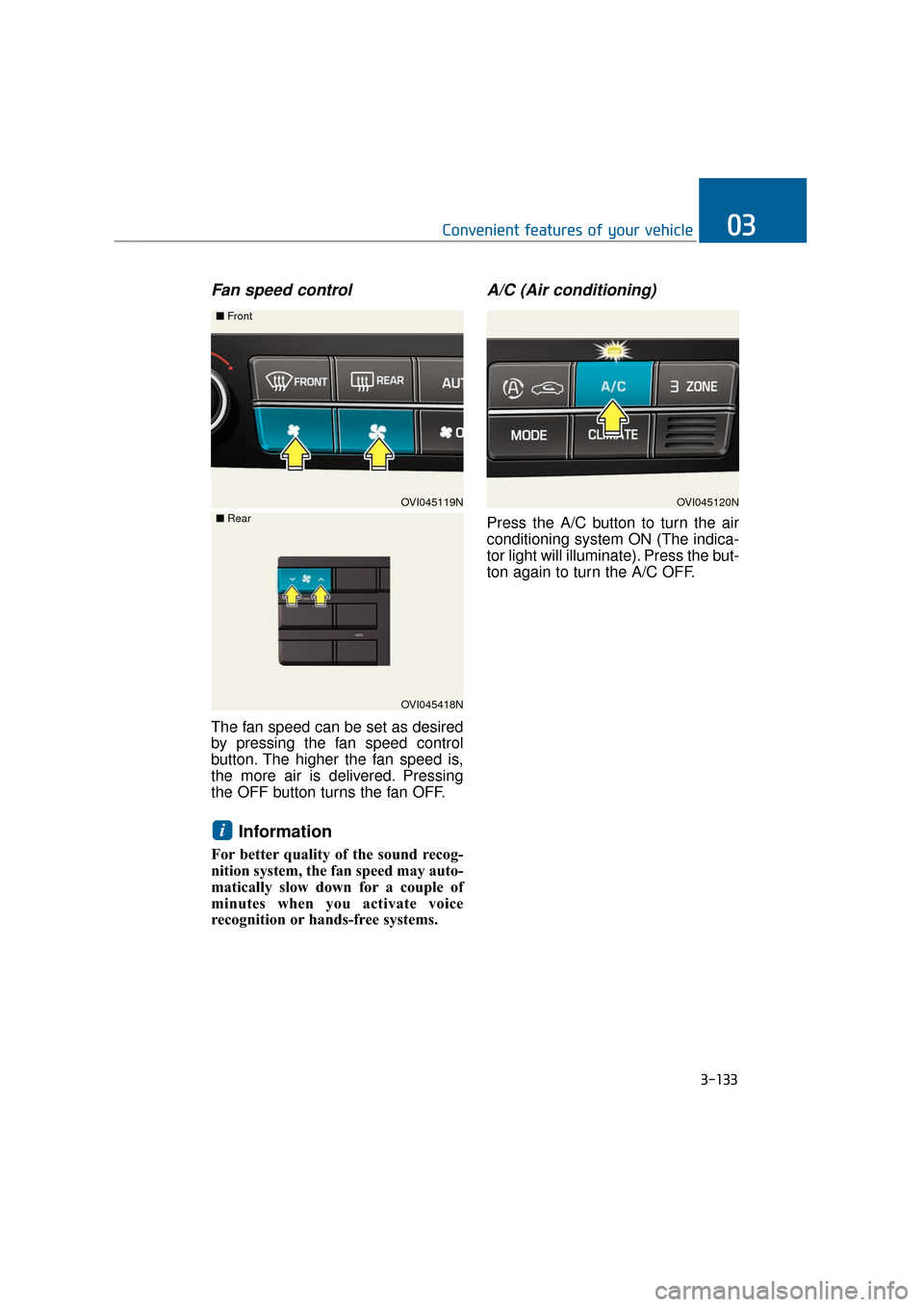

Fan speed control
The fan speed can be set as desired
by pressing the fan speed control
button. The higher the fan speed is,
the more air is delivered. Pressing
the OFF button turns the fan OFF.
Information
For better quality of the sound recog-
nition system, the fan speed may auto-
matically slow down for a couple of
minutes when you activate voice
recognition or hands-free systems.
A/C (Air conditioning)
Press the A/C button to turn the air
conditioning system ON (The indica-
tor light will illuminate). Press the but-
ton again to turn the A/C OFF.
i
OVI045119N
■
Front
OVI045418N
■
Rear
OVI045120N

3-134
Convenient features of your vehicle

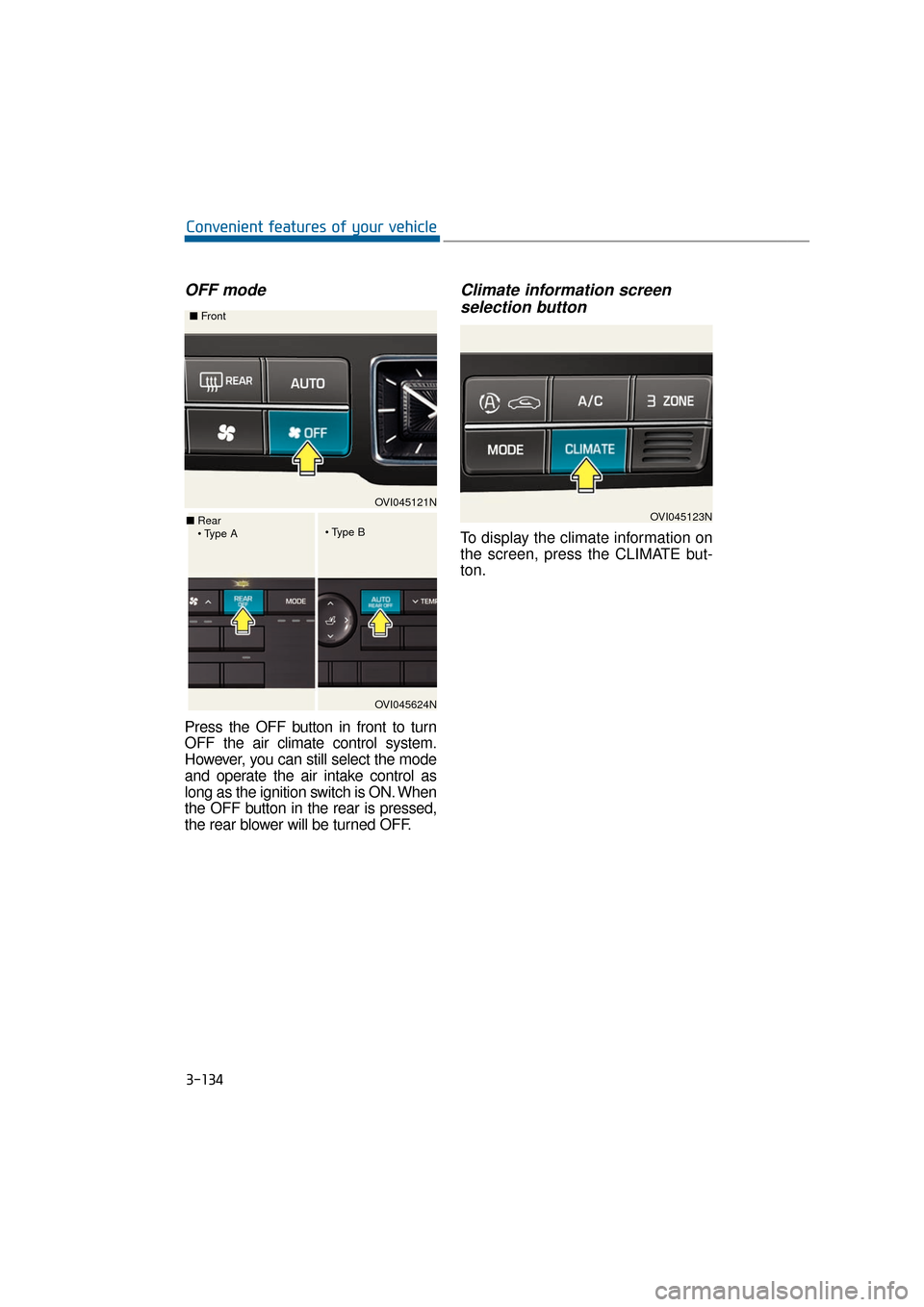

OFF mode
Press the OFF button in front to turn
OFF the air climate control system.
However, you can still select the mode
and operate the air intake control as
long as the ignition switch is ON. When
the OFF button in the rear is pressed,
the rear blower will be turned OFF.
Climate information screenselection button
To display the climate information on
the screen, press the CLIMATE but-
ton.
OVI045121N
■
Front
OVI045624N
■
Rear

OVI045123N

3-135
Convenient features of your vehicle03

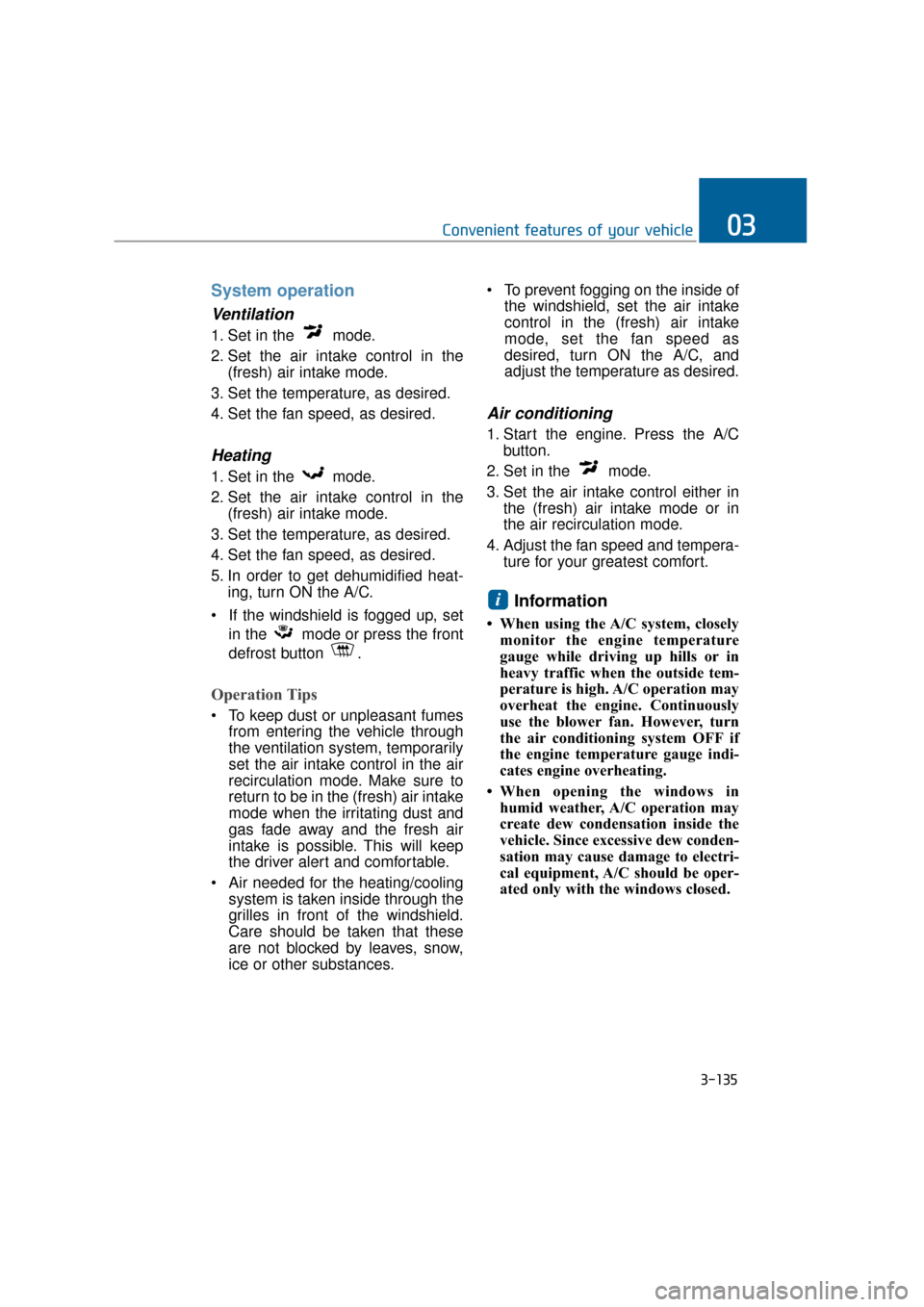

System operation
Ventilation
1. Set in the mode.
2. Set the air intake control in the(fresh) air intake mode.
3. Set the temperature, as desired.
4. Set the fan speed, as desired.
Heating
1. Set in the mode.
2. Set the air intake control in the (fresh) air intake mode.
3. Set the temperature, as desired.
4. Set the fan speed, as desired.
5. In order to get dehumidified heat- ing, turn ON the A/C.
If the windshield is fogged up, set in the mode or press the front
defrost button .
Operation Tips
To keep dust or unpleasant fumesfrom entering the vehicle through
the ventilation system, temporarily
set the air intake control in the air
recirculation mode. Make sure to
return to be in the (fresh) air intake
mode when the irritating dust and
gas fade away and the fresh air
intake is possible. This will keep
the driver alert and comfortable.
Air needed for the heating/cooling system is taken inside through the
grilles in front of the windshield.
Care should be taken that these
are not blocked by leaves, snow,
ice or other substances. To prevent fogging on the inside of
the windshield, set the air intake
control in the (fresh) air intake
mode, set the fan speed as
desired, turn ON the A/C, and
adjust the temperature as desired.
Air conditioning
1. Start the engine. Press the A/Cbutton.
2. Set in the mode.
3. Set the air intake control either in the (fresh) air intake mode or in
the air recirculation mode.
4. Adjust the fan speed and tempera- ture for your greatest comfort.
Information
• When using the A/C system, closelymonitor the engine temperature
gauge while driving up hills or in
heavy traffic when the outside tem-
perature is high. A/C operation may
overheat the engine. Continuously
use the blower fan. However, turn
the air conditioning system OFF if
the engine temperature gauge indi-
cates engine overheating.
• When opening the windows in humid weather, A/C operation may
create dew condensation inside the
vehicle. Since excessive dew conden-
sation may cause damage to electri-
cal equipment, A/C should be oper-
ated only with the windows closed.
i
