Hyundai Equus 2016 Owner's Manual

7-64
Maintenance
OVI073160N

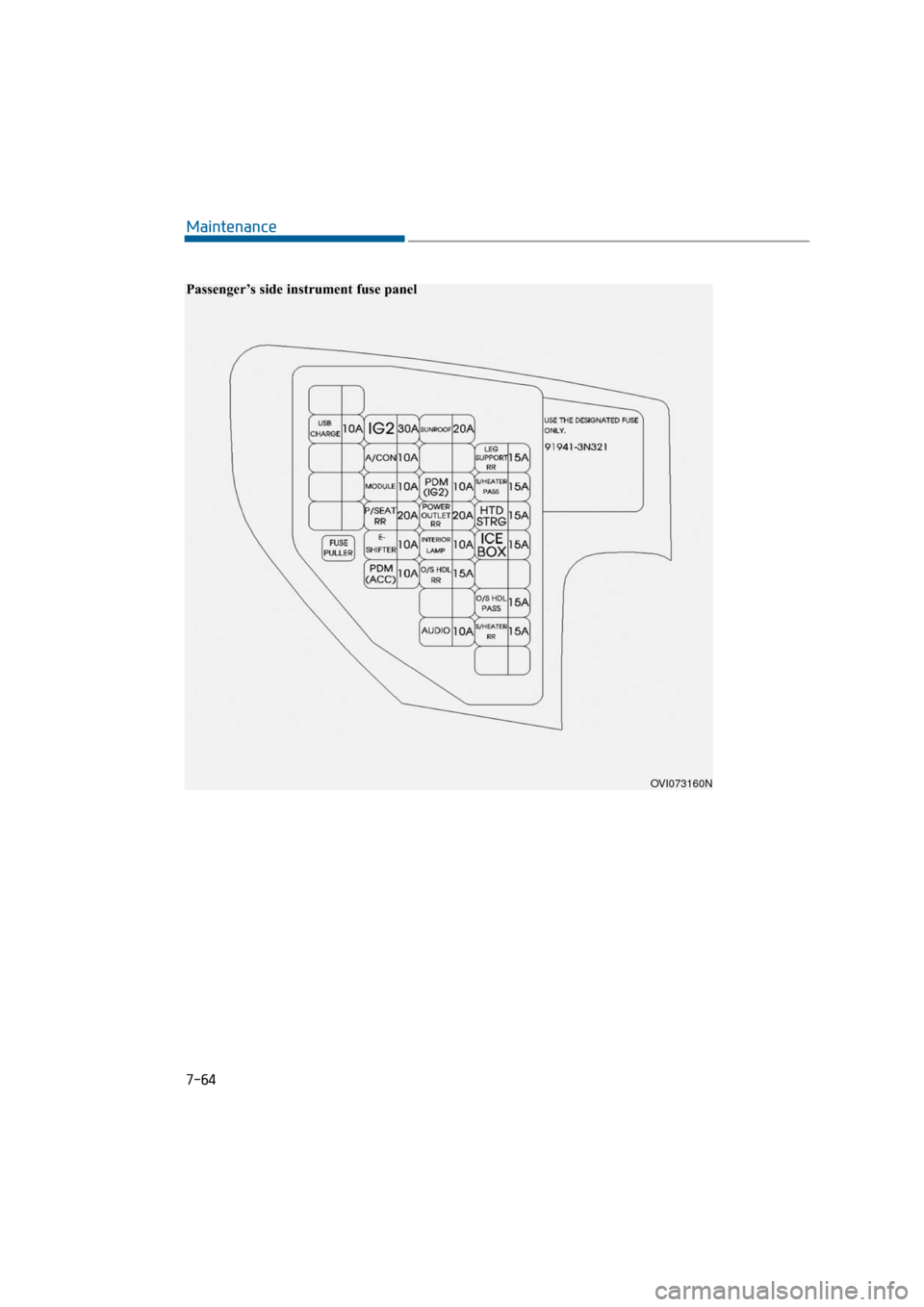

Passenger’s side instrument fuse panel

7-65
Maintenance07

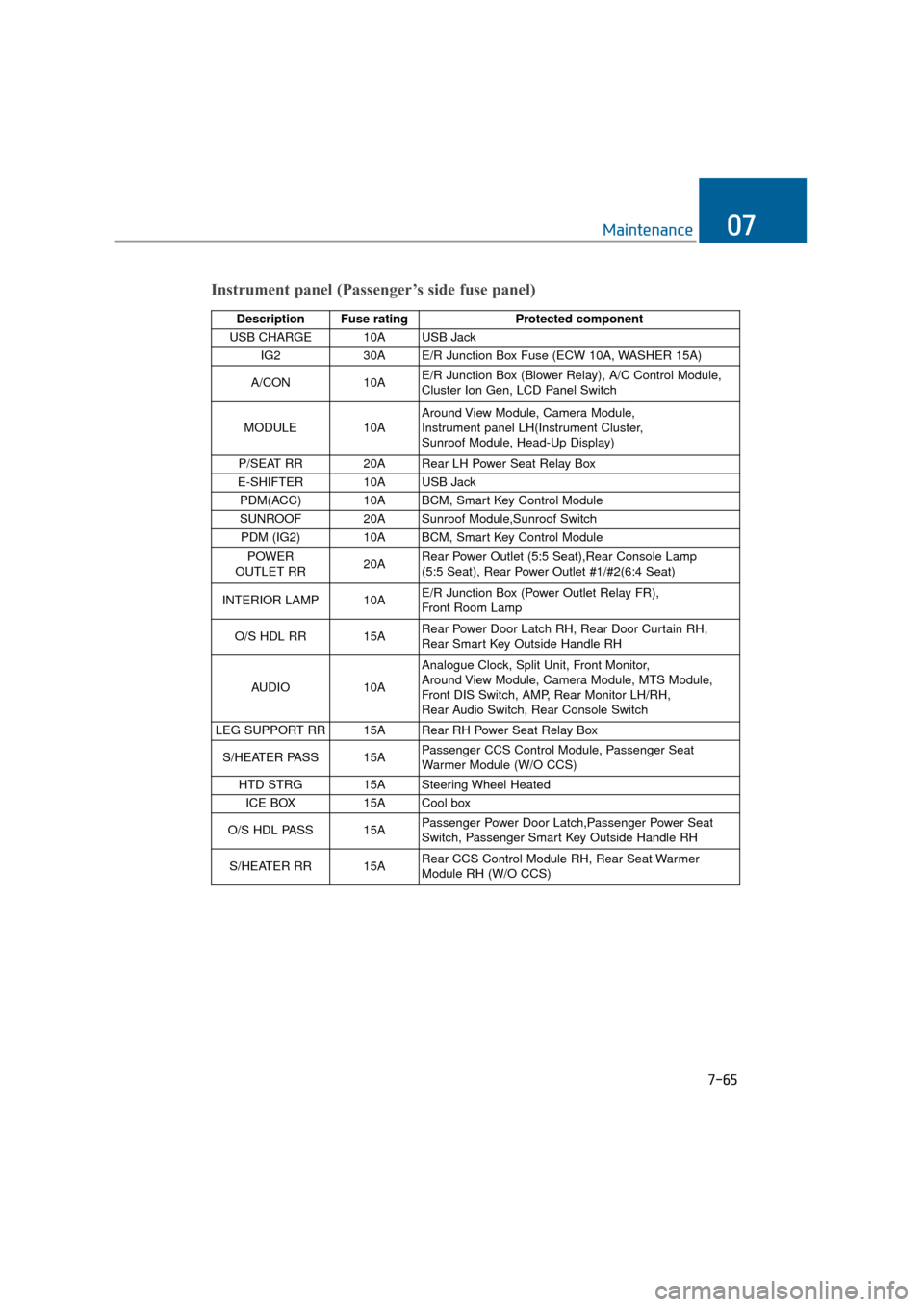

Instrument panel (Passenger’s side fuse panel)
Description Fuse ratingProtected component
USB CHARGE 10A USB Jack IG2 30A E/R Junction Box Fuse (ECW 10A, WASHER 15A)
A/CON 10AE/R Junction Box (Blower Relay), A/C Control Module,
Cluster Ion Gen, LCD Panel Switch
MODULE 10AAround View Module, Camera Module,
Instrument panel LH(Instrument Cluster,
Sunroof Module, Head-Up Display)
P/SEAT RR 20A Rear LH Power Seat Relay Box
E-SHIFTER 10A USB Jack PDM(ACC) 10A BCM, Smart Key Control Module
SUNROOF 20A Sunroof Module,Sunroof Switch PDM (IG2) 10A BCM, Smart Key Control Module
POWER
OUTLET RR 20ARear Power Outlet (5:5 Seat),Rear Console Lamp
(5:5 Seat), Rear Power Outlet #1/#2(6:4 Seat)
INTERIOR LAMP 10A E/R Junction Box (Power Outlet Relay FR),
Front Room Lamp
O/S HDL RR 15A Rear Power Door Latch RH, Rear Door Curtain RH,
Rear Smart Key Outside Handle RH
AUDIO 10AAnalogue Clock, Split Unit, Front Monitor,
Around View Module, Camera Module, MTS Module,
Front DIS Switch, AMP, Rear Monitor LH/RH,
Rear Audio Switch, Rear Console Switch
LEG SUPPORT RR 15A Rear RH Power Seat Relay Box
S/HEATER PASS 15A Passenger CCS Control Module, Passenger Seat
Warmer Module (W/O CCS)
HTD STRG 15A Steering Wheel Heated ICE BOX 15A Cool box
O/S HDL PASS15APassenger Power Door Latch,Passenger Power Seat
Switch, Passenger Smart Key Outside Handle RH
S/HEATER RR15ARear CCS Control Module RH, Rear Seat Warmer
Module RH (W/O CCS)

7-66
Maintenance
OVI073109N/OVI073107N

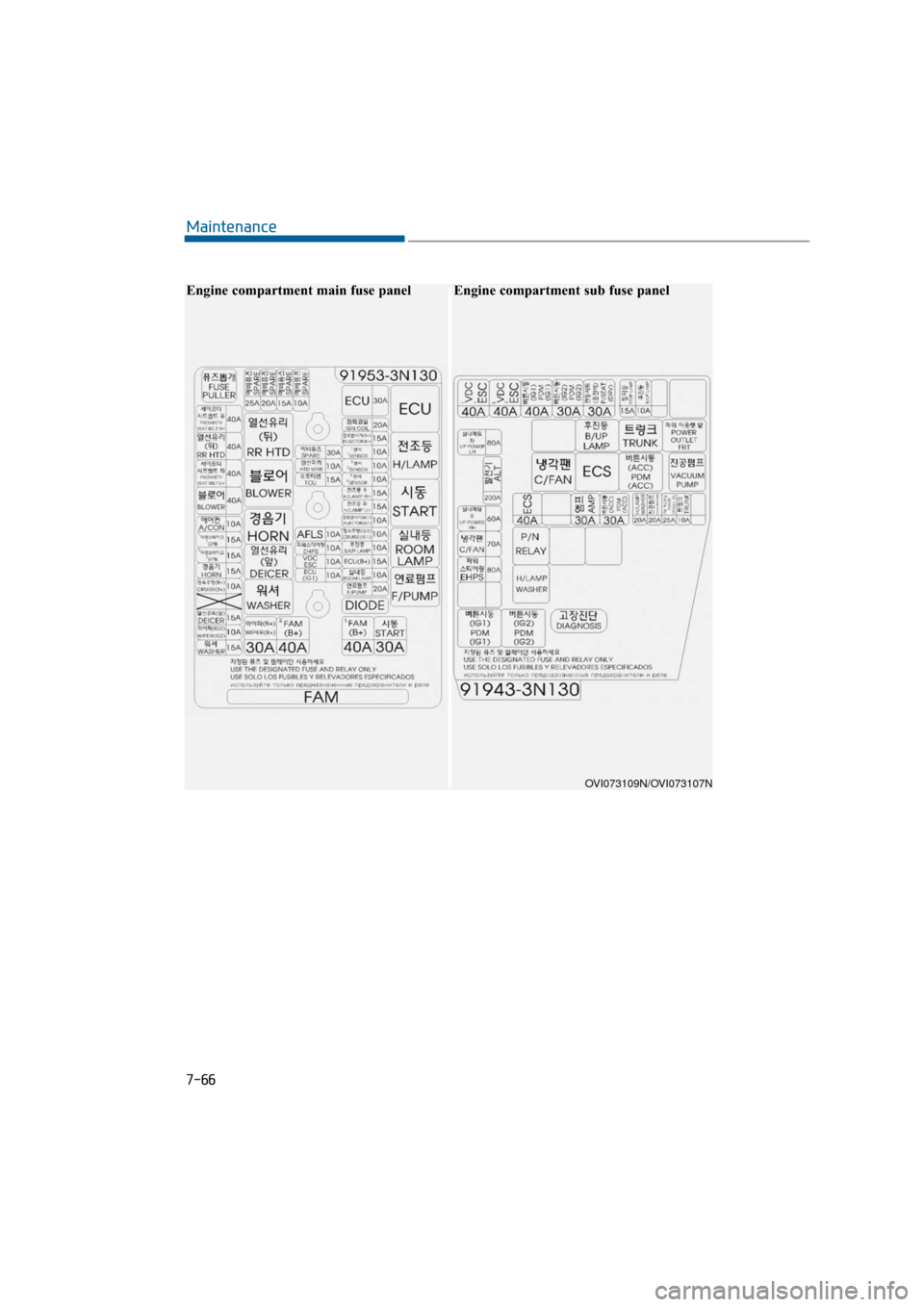

Engine compartment main fuse panel Engine compartment sub fuse panel

7-67
Maintenance07

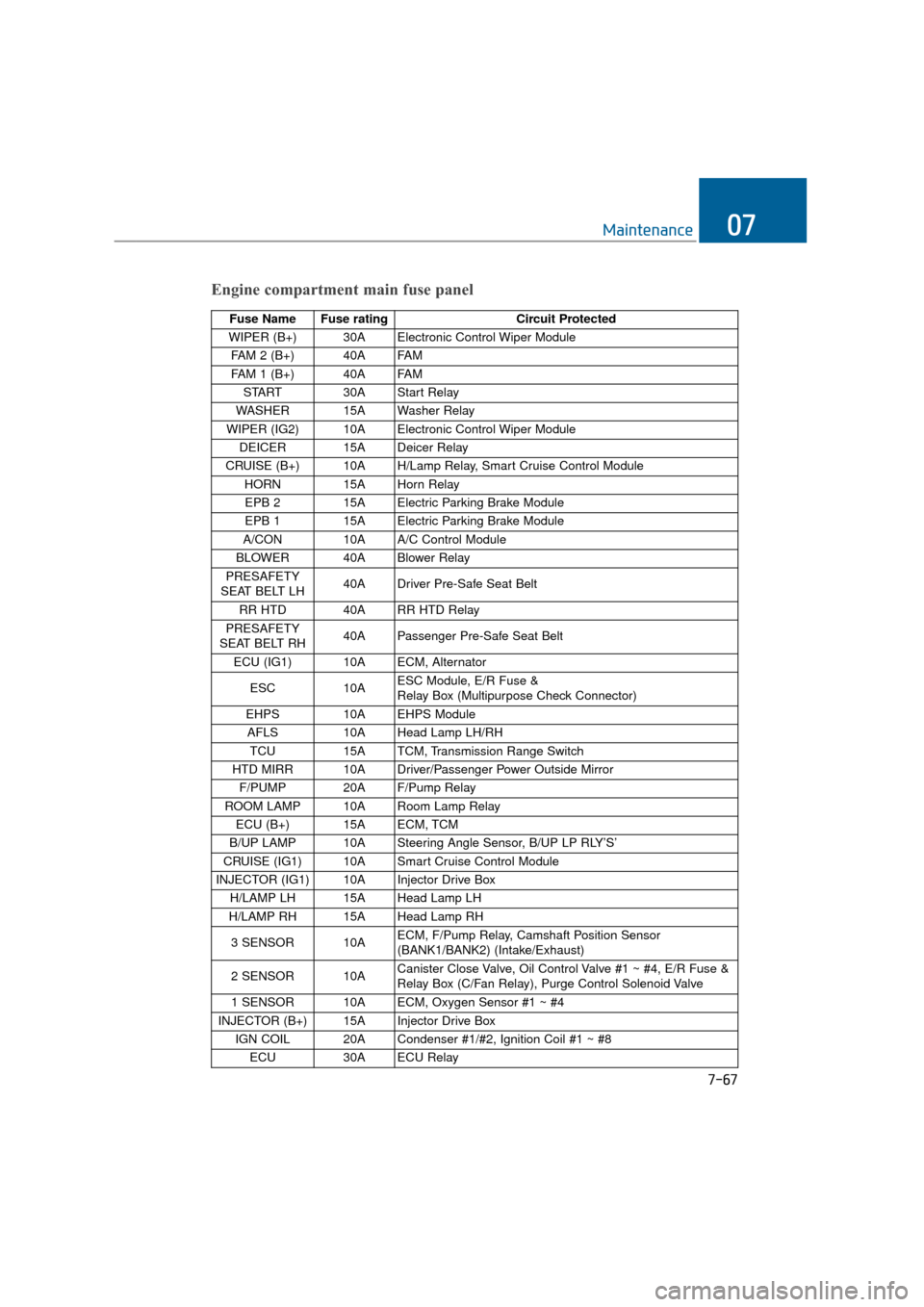

Engine compartment main fuse panel
Fuse Name Fuse ratingCircuit Protected
WIPER (B+) 30A Electronic Control Wiper Module FAM 2 (B+) 40A FAM
FAM 1 (B+) 40A FAM START 30A Start Relay
WASHER 15A Washer Relay
WIPER (IG2) 10A Electronic Control Wiper Module DEICER 15A Deicer Relay
CRUISE (B+) 10A H/Lamp Relay, Smart Cruise Control Module HORN 15A Horn Relay
EPB 2 15A Electric Parking Brake Module
EPB 1 15A Electric Parking Brake Module
A/CON 10A A/C Control Module
BLOWER 40A Blower Relay
PRESAFETY
SEAT BELT LH 40A Driver Pre-Safe Seat Belt
RR HTD 40A RR HTD Relay
PRESAFETY
SEAT BELT RH 40A Passenger Pre-Safe Seat Belt
ECU (IG1) 10A ECM, Alternator ESC 10AESC Module, E/R Fuse &
Relay Box (Multipurpose Check Connector)
EHPS 10A EHPS Module
AFLS 10A Head Lamp LH/RH
TCU 15A TCM, Transmission Range Switch
HTD MIRR 10A Driver/Passenger Power Outside Mirror F/PUMP 20A F/Pump Relay
ROOM LAMP 10A Room Lamp Relay ECU (B+) 15A ECM, TCM
B/UP LAMP 10A Steering Angle Sensor, B/UP LP RLY’S’
CRUISE (IG1) 10A Smart Cruise Control Module
INJECTOR (IG1) 10A Injector Drive Box H/LAMP LH 15A Head Lamp LH
H/LAMP RH 15A Head Lamp RH
3 SENSOR 10A ECM, F/Pump Relay, Camshaft Position Sensor
(BANK1/BANK2) (Intake/Exhaust)
2 SENSOR 10A Canister Close Valve, Oil Control Valve #1 ~ #4, E/R Fuse &
Relay Box (C/Fan Relay), Purge Control Solenoid Valve
1 SENSOR 10A ECM, Oxygen Sensor #1 ~ #4
INJECTOR (B+) 15A Injector Drive Box IGN COIL 20A Condenser #1/#2, Ignition Coil #1 ~ #8ECU 30A ECU Relay

7-68
Maintenance

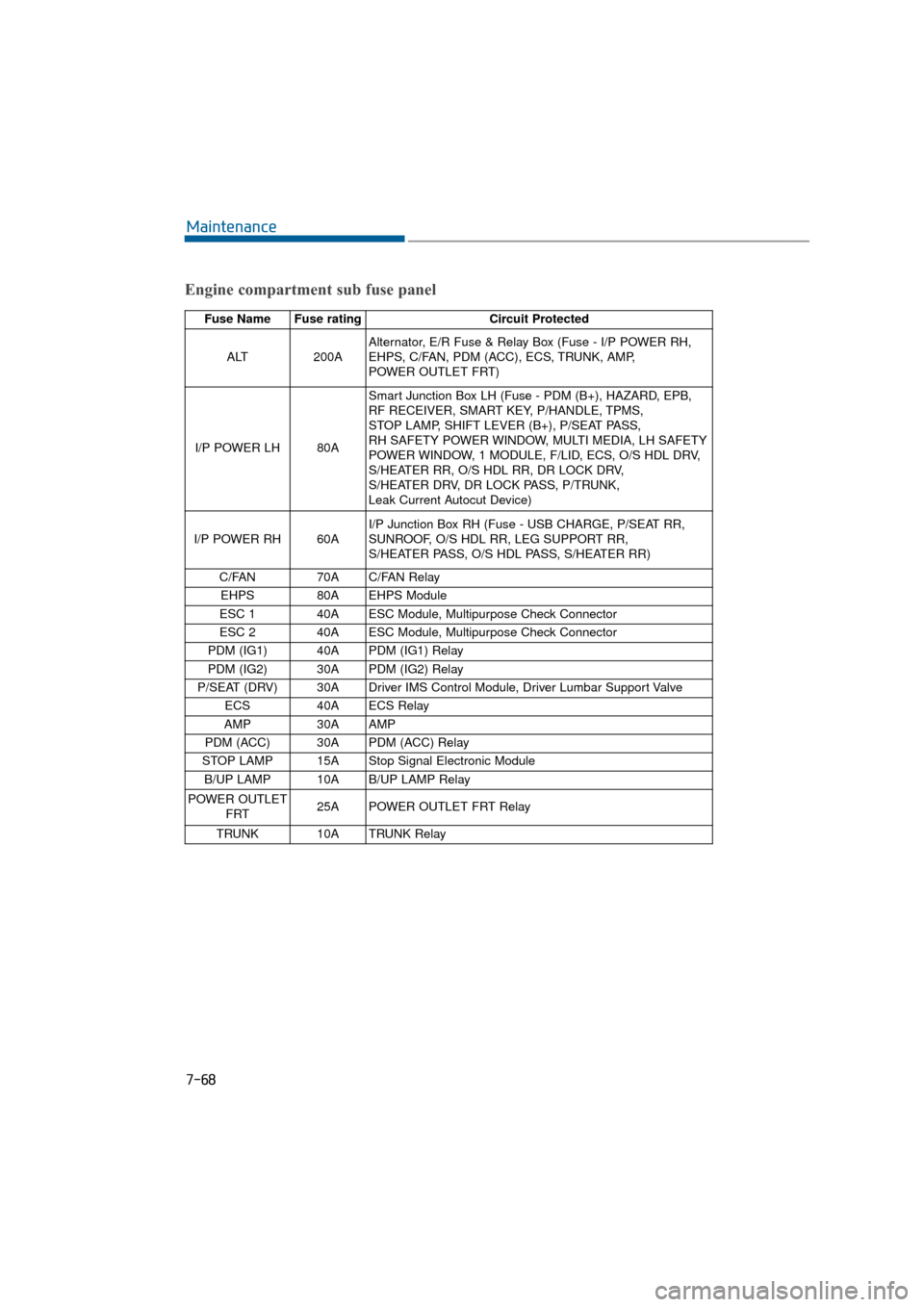

Engine compartment sub fuse panel
Fuse Name Fuse ratingCircuit Protected
ALT 200AAlternator, E/R Fuse & Relay Box (Fuse - I/P POWER RH,
EHPS, C/FAN, PDM (ACC), ECS, TRUNK, AMP,
POWER OUTLET FRT)
I/P POWER LH 80A Smart Junction Box LH (Fuse - PDM (B+), HAZARD, EPB,
RF RECEIVER, SMART KEY, P/HANDLE, TPMS,
STOP LAMP, SHIFT LEVER (B+), P/SEAT PASS,
RH SAFETY POWER WINDOW, MULTI MEDIA, LH SAFETY
POWER WINDOW, 1 MODULE, F/LID, ECS, O/S HDL DRV,
S/HEATER RR, O/S HDL RR, DR LOCK DRV,
S/HEATER DRV, DR LOCK PASS, P/TRUNK,
Leak Current Autocut Device)
I/P POWER RH 60A I/P Junction Box RH (Fuse - USB CHARGE, P/SEAT RR,
SUNROOF, O/S HDL RR, LEG SUPPORT RR,
S/HEATER PASS, O/S HDL PASS, S/HEATER RR)
C/FAN 70A C/FAN Relay EHPS 80A EHPS Module
ESC 1 40A ESC Module, Multipurpose Check Connector
ESC 2 40A ESC Module, Multipurpose Check Connector
PDM (IG1) 40A PDM (IG1) Relay
PDM (IG2) 30A PDM (IG2) Relay
P/SEAT (DRV) 30A Driver IMS Control Module, Driver Lumbar Support Valve ECS 40A ECS Relay
AMP 30A AMP
PDM (ACC) 30A PDM (ACC) Relay
STOP LAMP 15A Stop Signal Electronic Module B/UP LAMP 10A B/UP LAMP Relay
POWER OUTLET FRT 25A POWER OUTLET FRT Relay
TRUNK 10A TRUNK Relay

7-69
Maintenance07
L
LI
IG
G H
H T
T
B
B U
U L
LB
B S
S

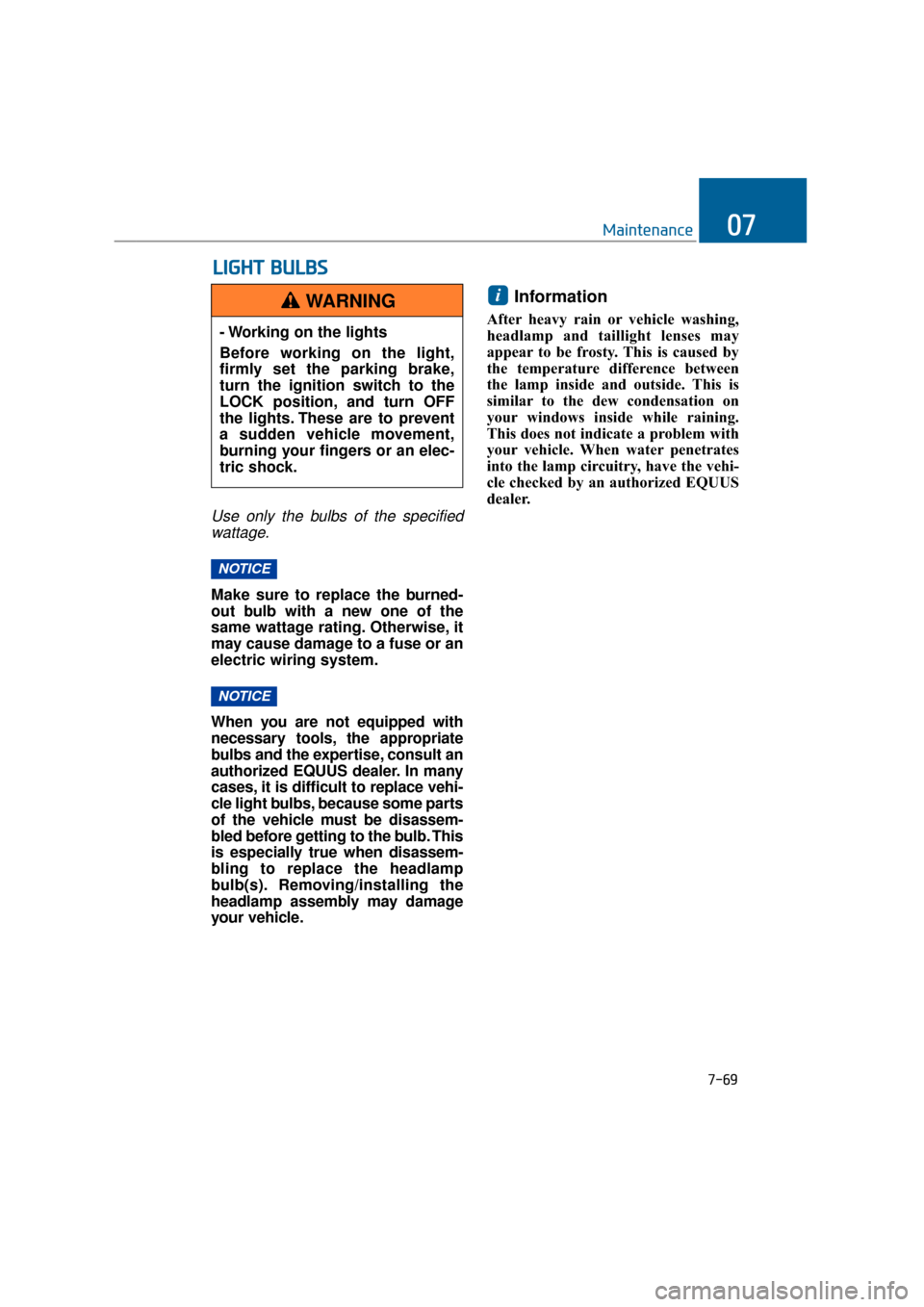

Use only the bulbs of the specified
wattage.
Make sure to replace the burned-
out bulb with a new one of the
same wattage rating. Otherwise, it
may cause damage to a fuse or an
electric wiring system.
When you are not equipped with
necessary tools, the appropriate
bulbs and the expertise, consult an
authorized EQUUS dealer. In many
cases, it is difficult to replace vehi-
cle light bulbs, because some parts
of the vehicle must be disassem-
bled before getting to the bulb. This
is especially true when disassem-
bling to replace the headlamp
bulb(s). Removing/installing the
headlamp assembly may damage
your vehicle.
Information
After heavy rain or vehicle washing,
headlamp and taillight lenses may
appear to be frosty. This is caused by
the temperature difference between
the lamp inside and outside. This is
similar to the dew condensation on
your windows inside while raining.
This does not indicate a problem with
your vehicle. When water penetrates
into the lamp circuitry, have the vehi-
cle checked by an authorized EQUUS
dealer.
i
NOTICE
NOTICE
- Working on the lights
Before working on the light,
firmly set the parking brake,
turn the ignition switch to the
LOCK position, and turn OFF
the lights. These are to prevent
a sudden vehicle movement,
burning your fingers or an elec-
tric shock.
WARNING

7-70
Maintenance

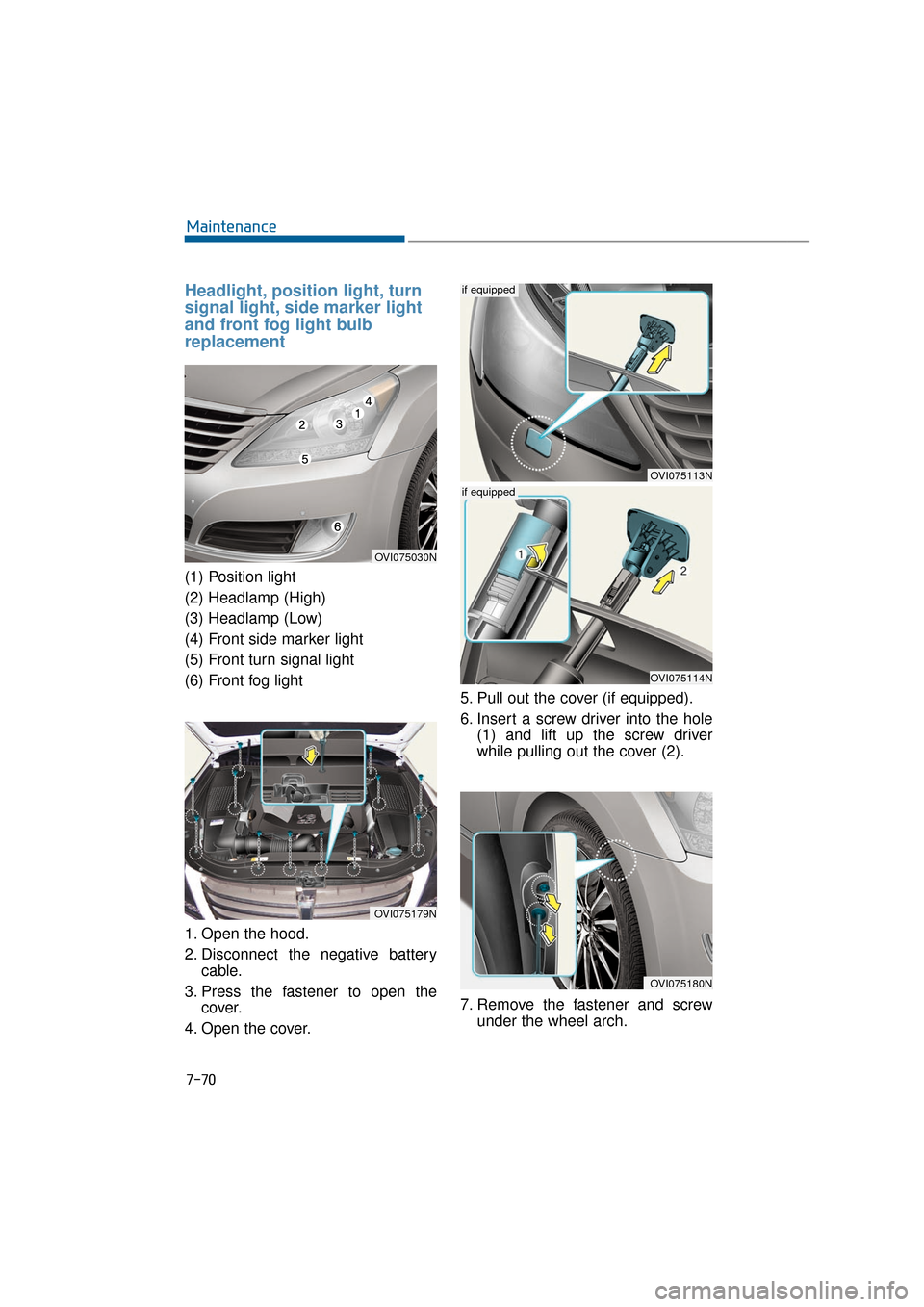

Headlight, position light, turn
signal light, side marker light
and front fog light bulb
replacement
(1) Position light
(2) Headlamp (High)
(3) Headlamp (Low)
(4) Front side marker light
(5) Front turn signal light
(6) Front fog light
1. Open the hood.
2. Disconnect the negative batterycable.
3. Press the fastener to open the cover.
4. Open the cover. 5. Pull out the cover (if equipped).
6. Insert a screw driver into the hole
(1) and lift up the screw driver
while pulling out the cover (2).
7. Remove the fastener and screw under the wheel arch.
OVI075030N
OVI075179N
OVI075113N
if equipped
OVI075114N
if equipped
OVI075180N

7-71
Maintenance07

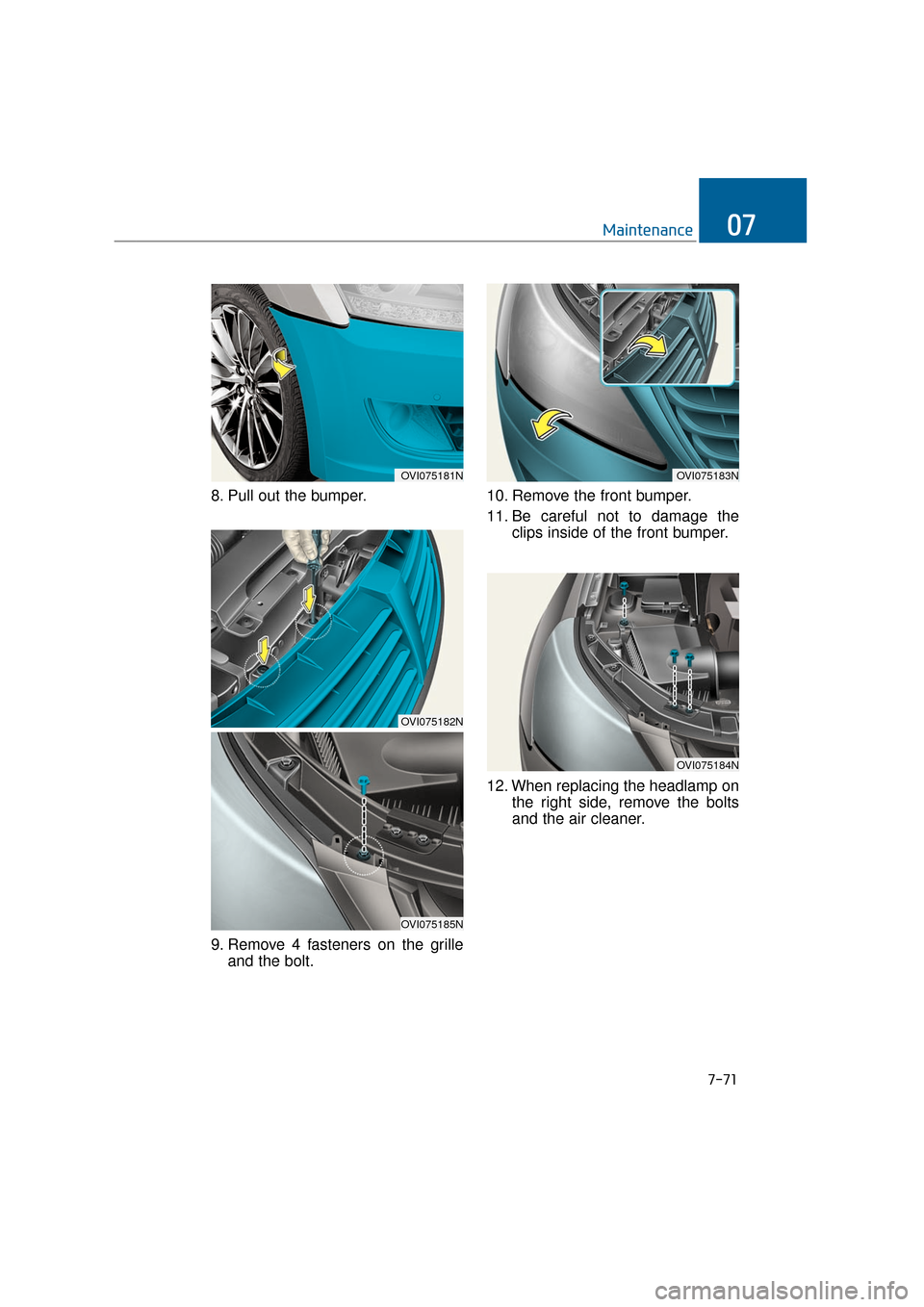

8. Pull out the bumper.
9. Remove 4 fasteners on the grilleand the bolt. 10. Remove the front bumper.
11. Be careful not to damage the
clips inside of the front bumper.
12. When replacing the headlamp on the right side, remove the bolts
and the air cleaner.
OVI075181N
OVI075182N
OVI075185N
OVI075183N
OVI075184N

7-72
Maintenance

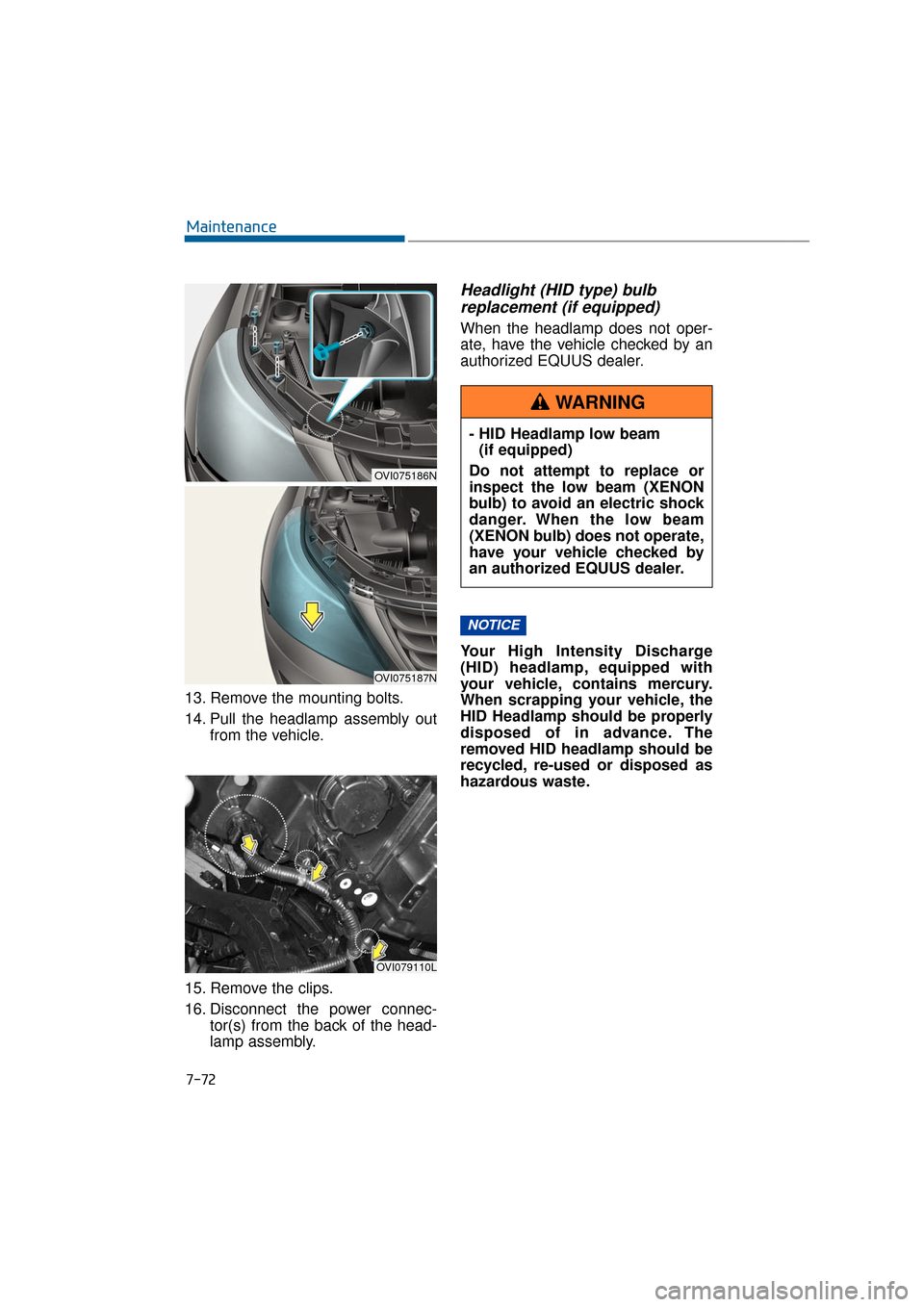

13. Remove the mounting bolts.
14. Pull the headlamp assembly out from the vehicle.
15. Remove the clips.
16. Disconnect the power connec- tor(s) from the back of the head-
lamp assembly.
Headlight (HID type) bulbreplacement (if equipped)
When the headlamp does not oper-
ate, have the vehicle checked by an
authorized EQUUS dealer.
Your High Intensity Discharge
(HID) headlamp, equipped with
your vehicle, contains mercury.
When scrapping your vehicle, the
HID Headlamp should be properly
disposed of in advance. The
removed HID headlamp should be
recycled, re-used or disposed as
hazardous waste.
NOTICE
OVI075186N
OVI075187N
OVI079110L
- HID Headlamp low beam
(if equipped)
Do not attempt to replace or
inspect the low beam (XENON
bulb) to avoid an electric shock
danger. When the low beam
(XENON bulb) does not operate,
have your vehicle checked by
an authorized EQUUS dealer.
WARNING

7-73
Maintenance07

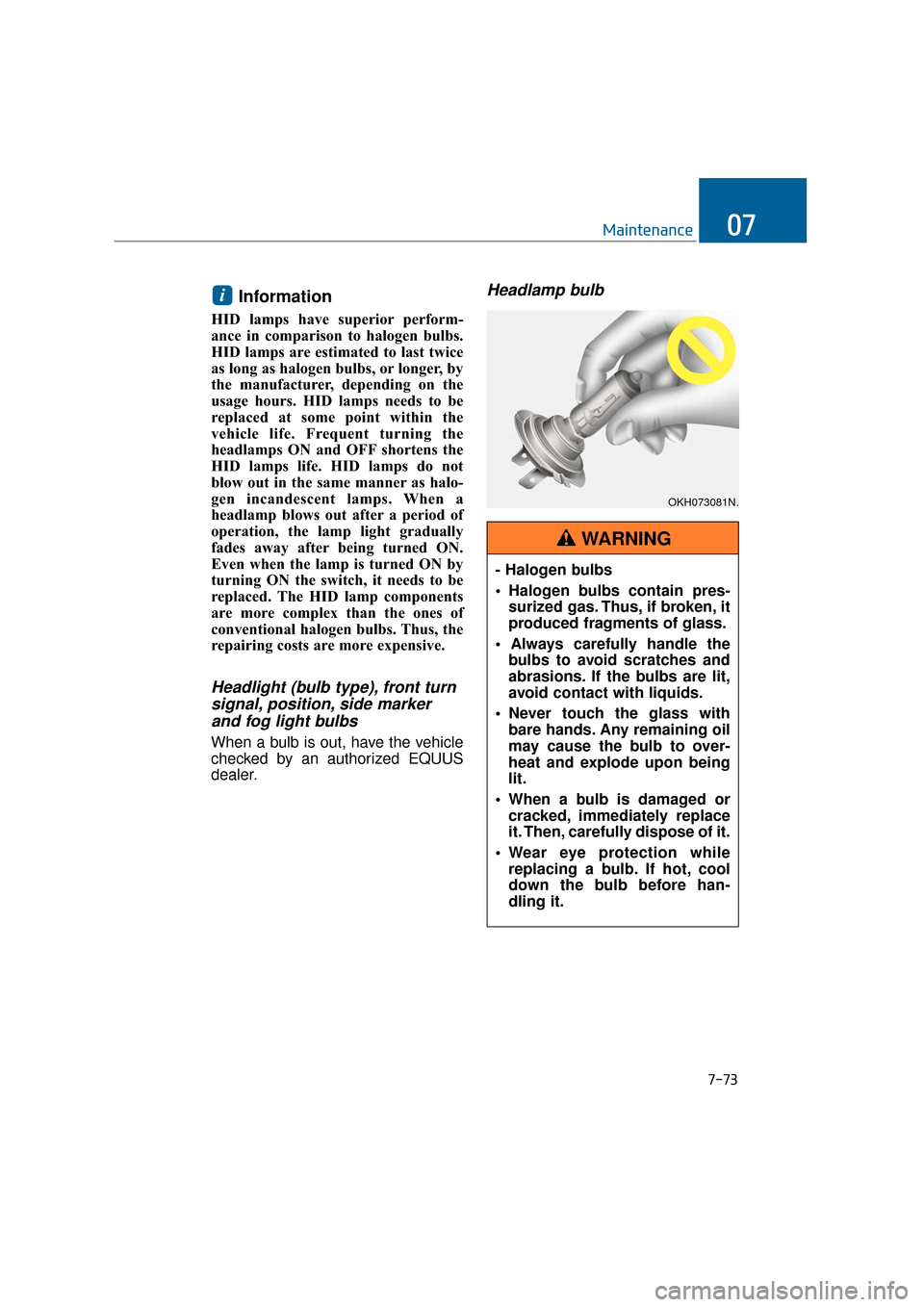

Information
HID lamps have superior perform-
ance in comparison to halogen bulbs.
HID lamps are estimated to last twice
as long as halogen bulbs, or longer, by
the manufacturer, depending on the
usage hours. HID lamps needs to be
replaced at some point within the
vehicle life. Frequent turning the
headlamps ON and OFF shortens the
HID lamps life. HID lamps do not
blow out in the same manner as halo-
gen incandescent lamps. When a
headlamp blows out after a period of
operation, the lamp light gradually
fades away after being turned ON.
Even when the lamp is turned ON by
turning ON the switch, it needs to be
replaced. The HID lamp components
are more complex than the ones of
conventional halogen bulbs. Thus, the
repairing costs are more expensive.
Headlight (bulb type), front turnsignal, position, side markerand fog light bulbs
When a bulb is out, have the vehicle
checked by an authorized EQUUS
dealer.
Headlamp bulb i
OKH073081N.
- Halogen bulbs
Halogen bulbs contain pres-
surized gas. Thus, if broken, it
produced fragments of glass.
bulbs to avoid scratches and
abrasions. If the bulbs are lit,
avoid contact with liquids.
Never touch the glass with bare hands. Any remaining oil
may cause the bulb to over-
heat and explode upon being
lit.
When a bulb is damaged or cracked, immediately replace
it. Then, carefully dispose of it.
Wear eye protection while replacing a bulb. If hot, cool
down the bulb before han-
dling it.
WARNING
