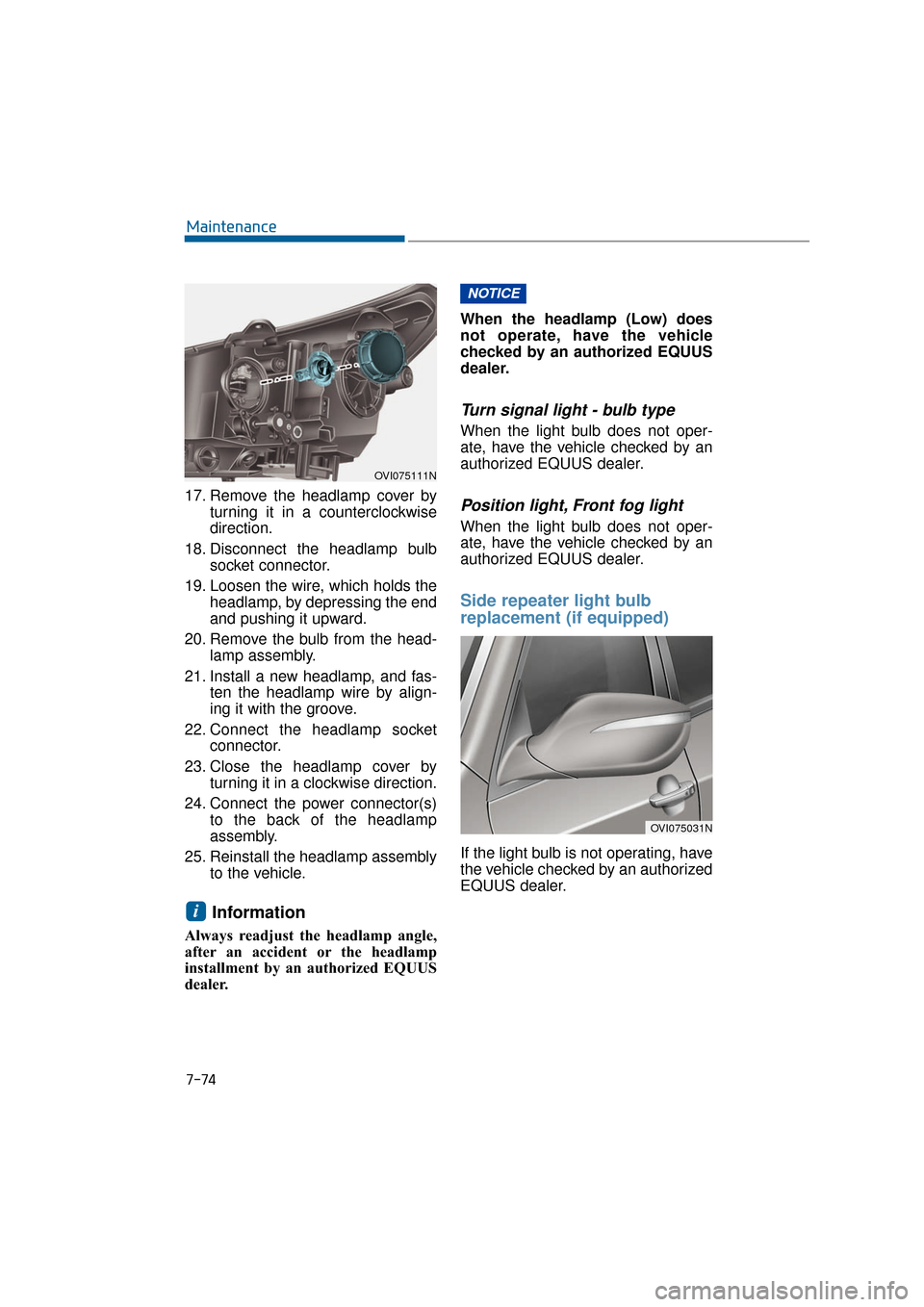

17. Remove the headlamp cover by turning it in a counterclockwise
direction.
18. Disconnect the headlamp bulb socket connector.
19. Loosen the wire, which holds the headlamp, by depressing the end
and pushing it upward.
20. Remove the bulb from the head- lamp assembly.
21. Install a new headlamp, and fas- ten the headlamp wire by align-
ing it with the groove.
22. Connect the headlamp socket connector.
23. Close the headlamp cover by turning it in a clockwise direction.
24. Connect the power connector(s) to the back of the headlamp
assembly.
25. Reinstall the headlamp assembly to the vehicle.
Information
Always readjust the headlamp angle,
after an accident or the headlamp
installment by an authorized EQUUS
dealer. When the headlamp (Low) does
not operate, have the vehicle
checked by an authorized EQUUS
dealer.
Turn signal light - bulb type
When the light bulb does not oper-
ate, have the vehicle checked by an
authorized EQUUS dealer.
Position light, Front fog light
When the light bulb does not oper-
ate, have the vehicle checked by an
authorized EQUUS dealer.
Side repeater light bulb
replacement (if equipped)
If the light bulb is not operating, have
the vehicle checked by an authorized
EQUUS dealer.
NOTICE
i
OVI075111N
OVI075031N

7-75
Maintenance07

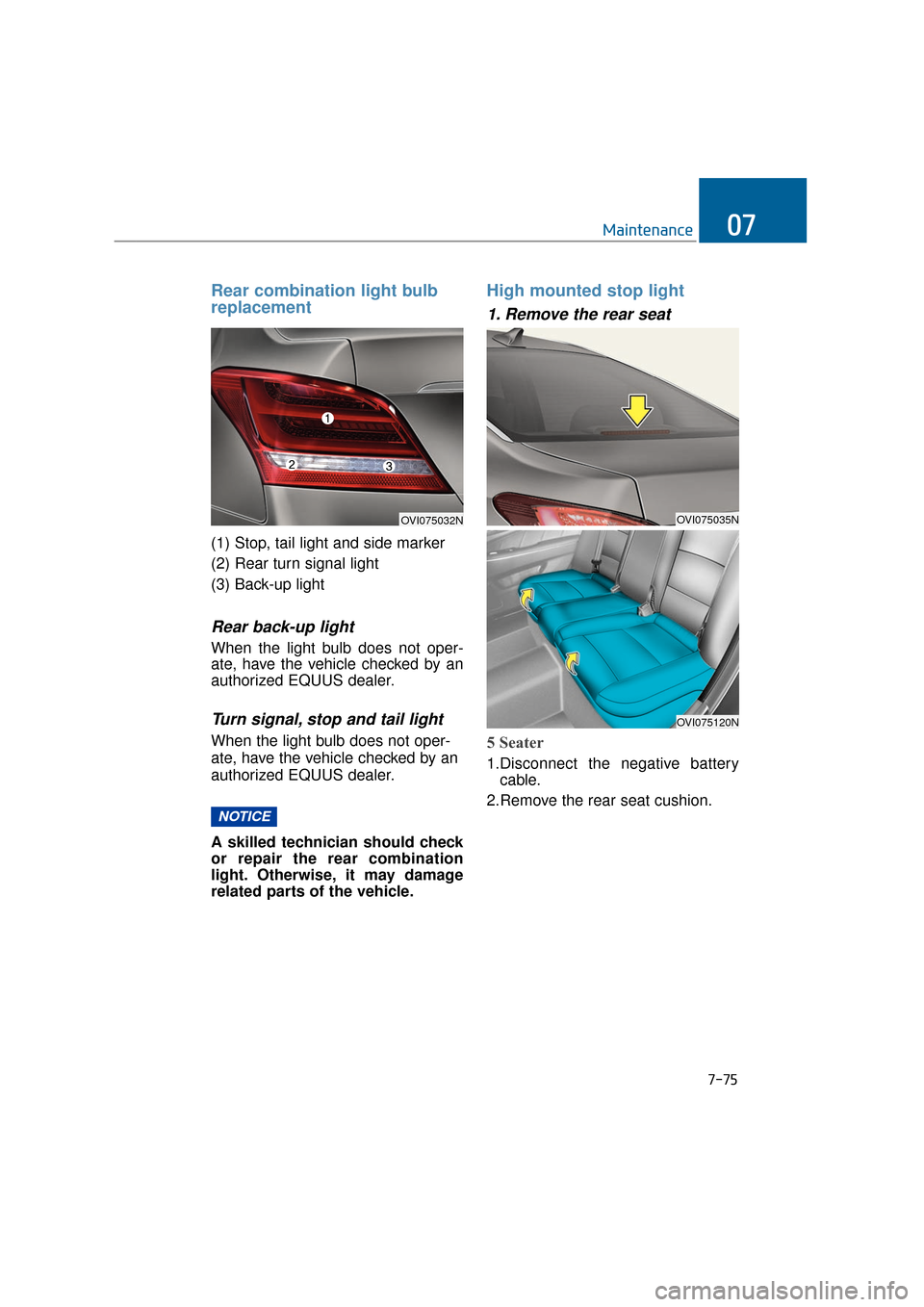

Rear combination light bulb
replacement
(1) Stop, tail light and side marker
(2) Rear turn signal light
(3) Back-up light
Rear back-up light
When the light bulb does not oper-
ate, have the vehicle checked by an
authorized EQUUS dealer.
Turn signal, stop and tail light
When the light bulb does not oper-
ate, have the vehicle checked by an
authorized EQUUS dealer.
A skilled technician should check
or repair the rear combination
light. Otherwise, it may damage
related parts of the vehicle.
High mounted stop light
1. Remove the rear seat
5 Seater
1.Disconnect the negative batterycable.
2.Remove the rear seat cushion.
NOTICE
OVI075032NOVI075035N
OVI075120N

7-76
Maintenance

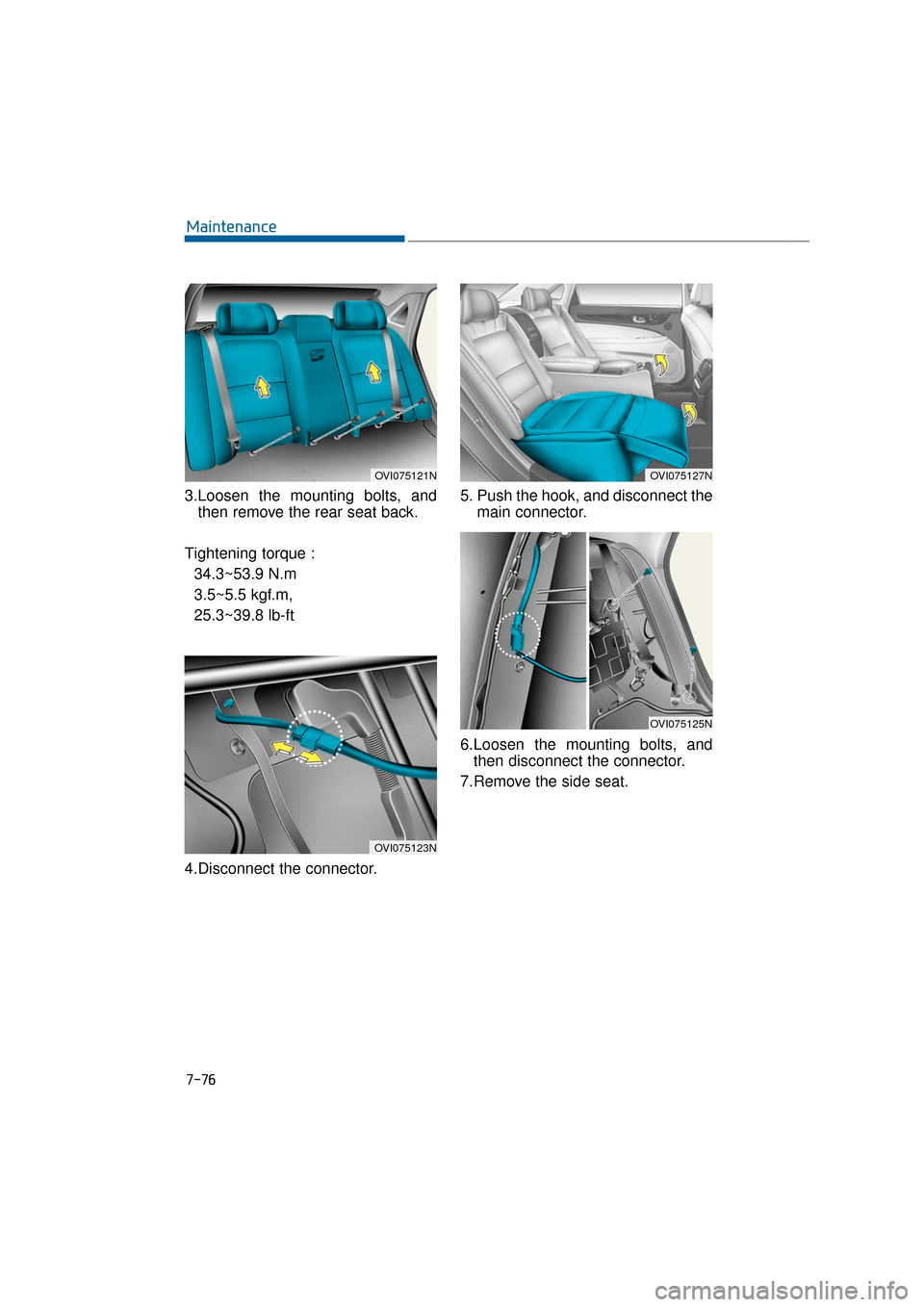

3.Loosen the mounting bolts, and then remove the rear seat back.
Tightening torque : 34.3~53.9 N.m
3.5~5.5 kgf.m,
25.3~39.8 lb-ft
4.Disconnect the connector. 5. Push the hook, and disconnect the
main connector.
6.Loosen the mounting bolts, and then disconnect the connector.
7.Remove the side seat.
OVI075121N
OVI075123N
OVI075127N
OVI075125N

7-77
Maintenance07

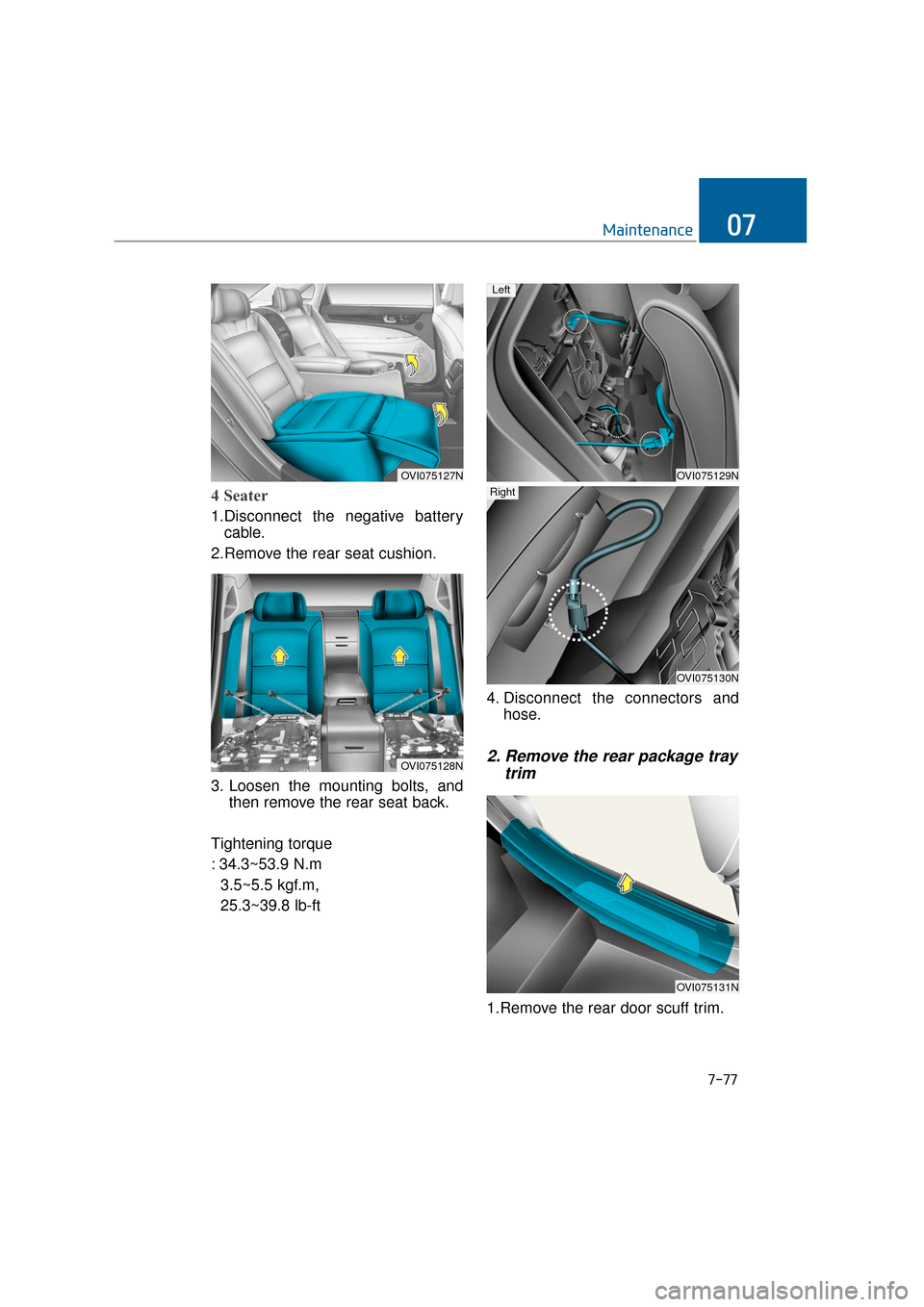

4 Seater
1.Disconnect the negative batterycable.
2.Remove the rear seat cushion.
3. Loosen the mounting bolts, and then remove the rear seat back.
Tightening torque
: 34.3~53.9 N.m 3.5~5.5 kgf.m,
25.3~39.8 lb-ft 4. Disconnect the connectors and
hose.
2. Remove the rear package tray trim
1.Remove the rear door scuff trim.
OVI075127N
OVI075128N
OVI075129N
OVI075130N
Left
Right
OVI075131N

7-78
Maintenance

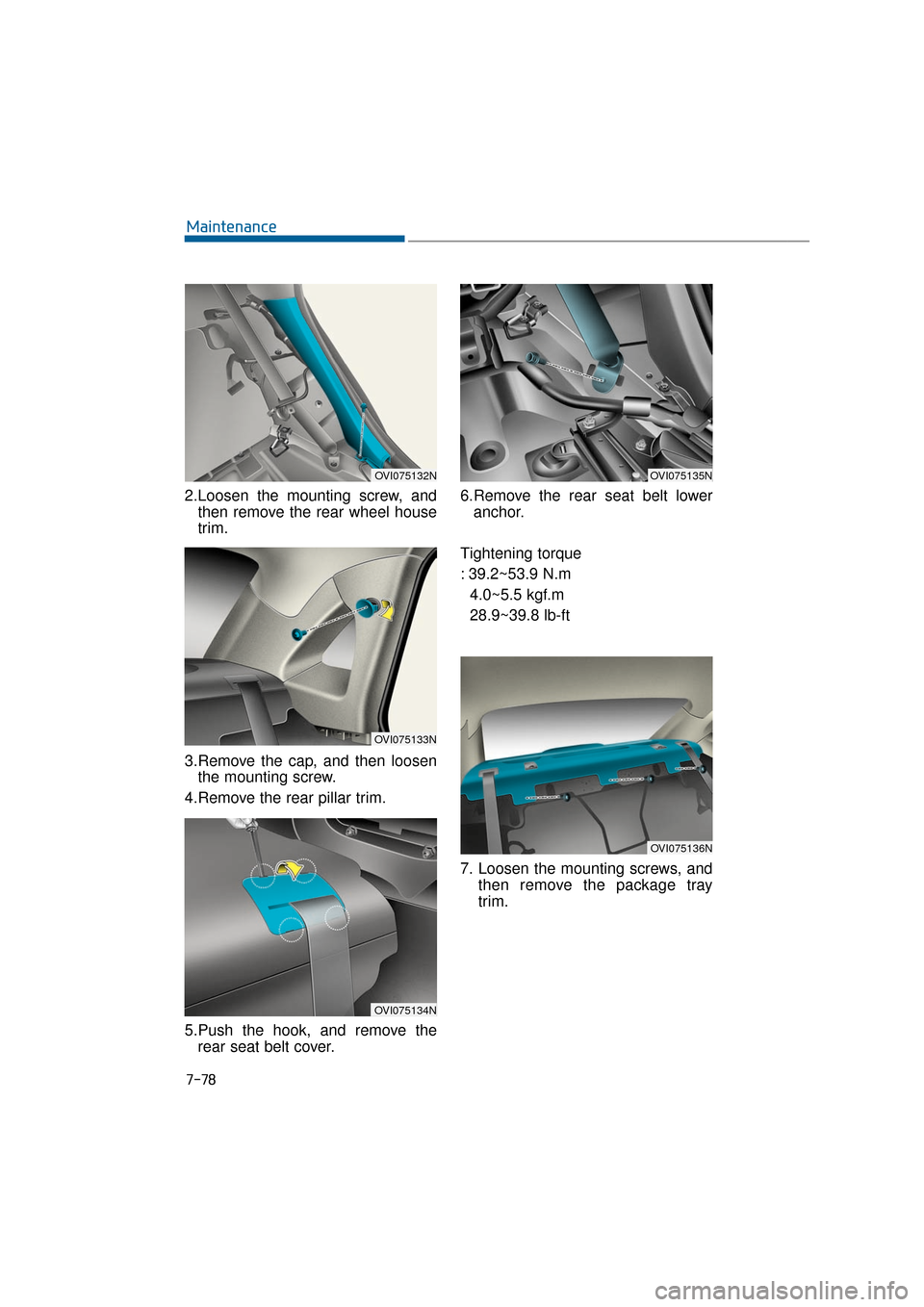

2.Loosen the mounting screw, and then remove the rear wheel house
trim.
3.Remove the cap, and then loosen the mounting screw.
4.Remove the rear pillar trim.
5.Push the hook, and remove the rear seat belt cover. 6.Remove the rear seat belt lower
anchor.
Tightening torque
: 39.2~53.9 N.m 4.0~5.5 kgf.m
28.9~39.8 lb-ft
7. Loosen the mounting screws, and then remove the package tray
trim.
OVI075132N
OVI075134N
OVI075133N
OVI075135N
OVI075136N

7-79
Maintenance07

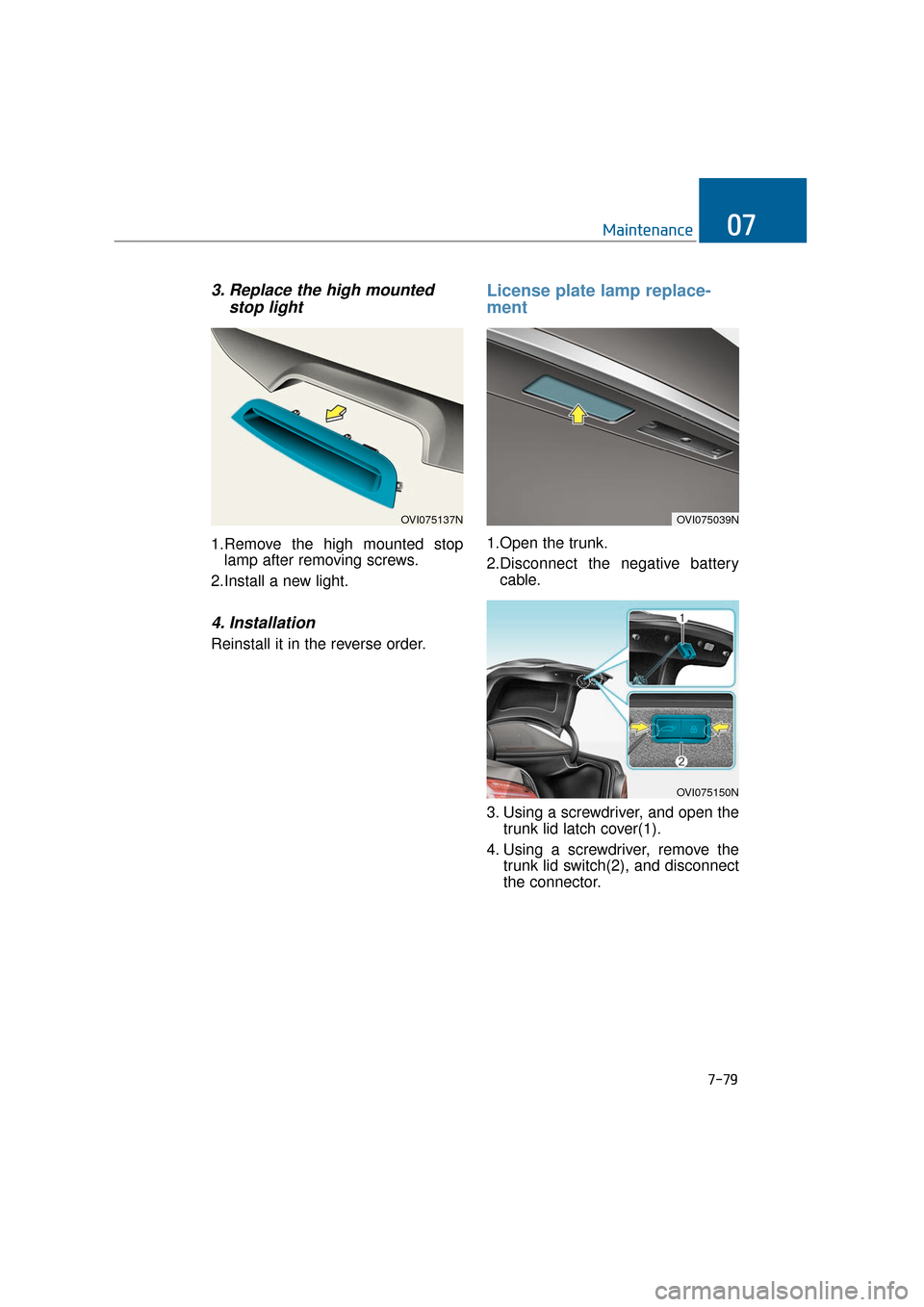

3. Replace the high mountedstop light
1.Remove the high mounted stop
lamp after removing screws.
2.Install a new light.
4. Installation
Reinstall it in the reverse order.
License plate lamp replace-
ment
1.Open the trunk.
2.Disconnect the negative battery cable.
3. Using a screwdriver, and open the trunk lid latch cover(1).
4. Using a screwdriver, remove the trunk lid switch(2), and disconnect
the connector.
OVI075137NOVI075039N
OVI075150N

7-80
Maintenance

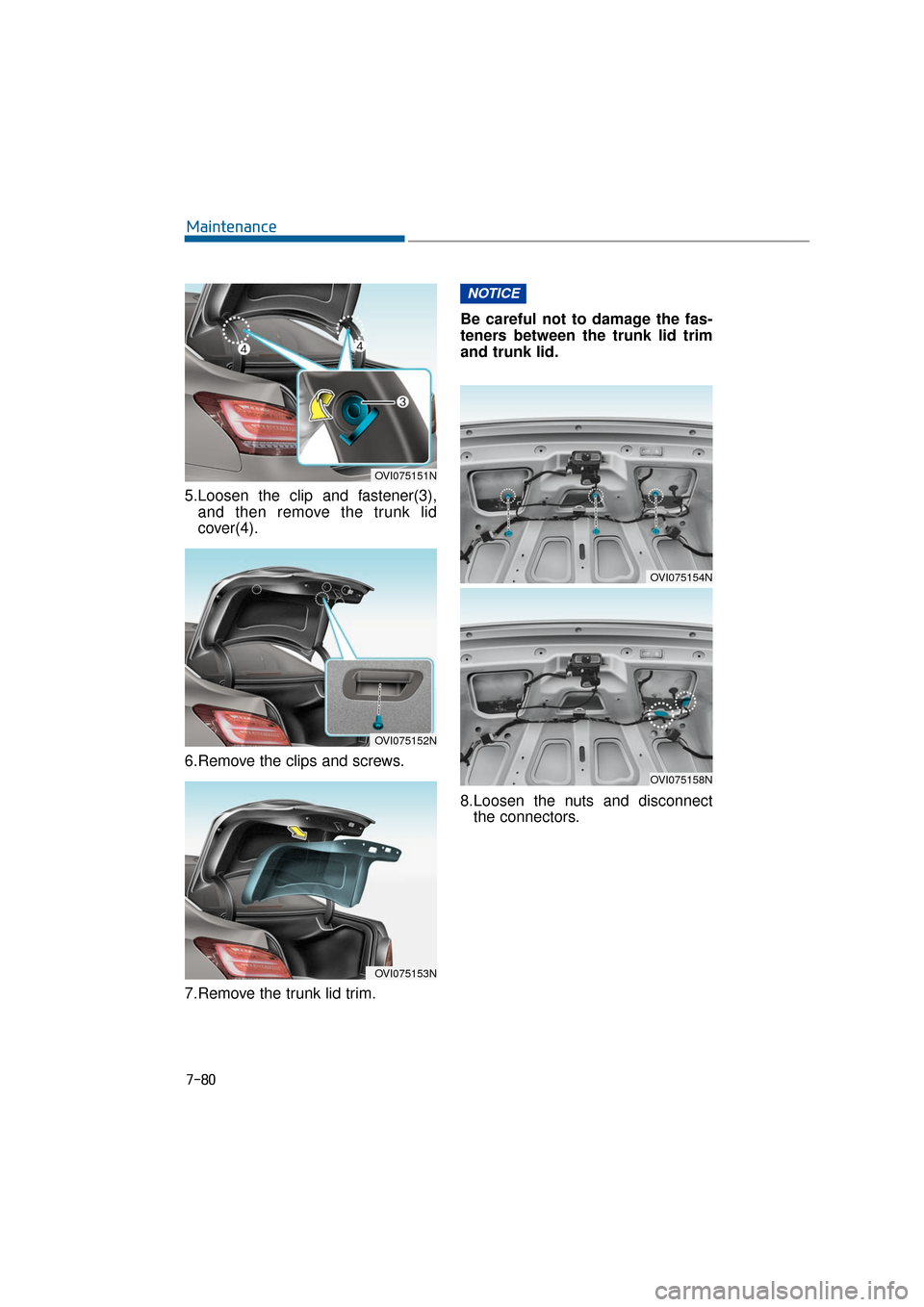

5.Loosen the clip and fastener(3), and then remove the trunk lid
cover(4).
6.Remove the clips and screws.
7.Remove the trunk lid trim. Be careful not to damage the fas-
teners between the trunk lid trim
and trunk lid.
8.Loosen the nuts and disconnect
the connectors.
NOTICE
OVI075151N
OVI075152N
OVI075153N
OVI075154N
OVI075158N

7-81
Maintenance07

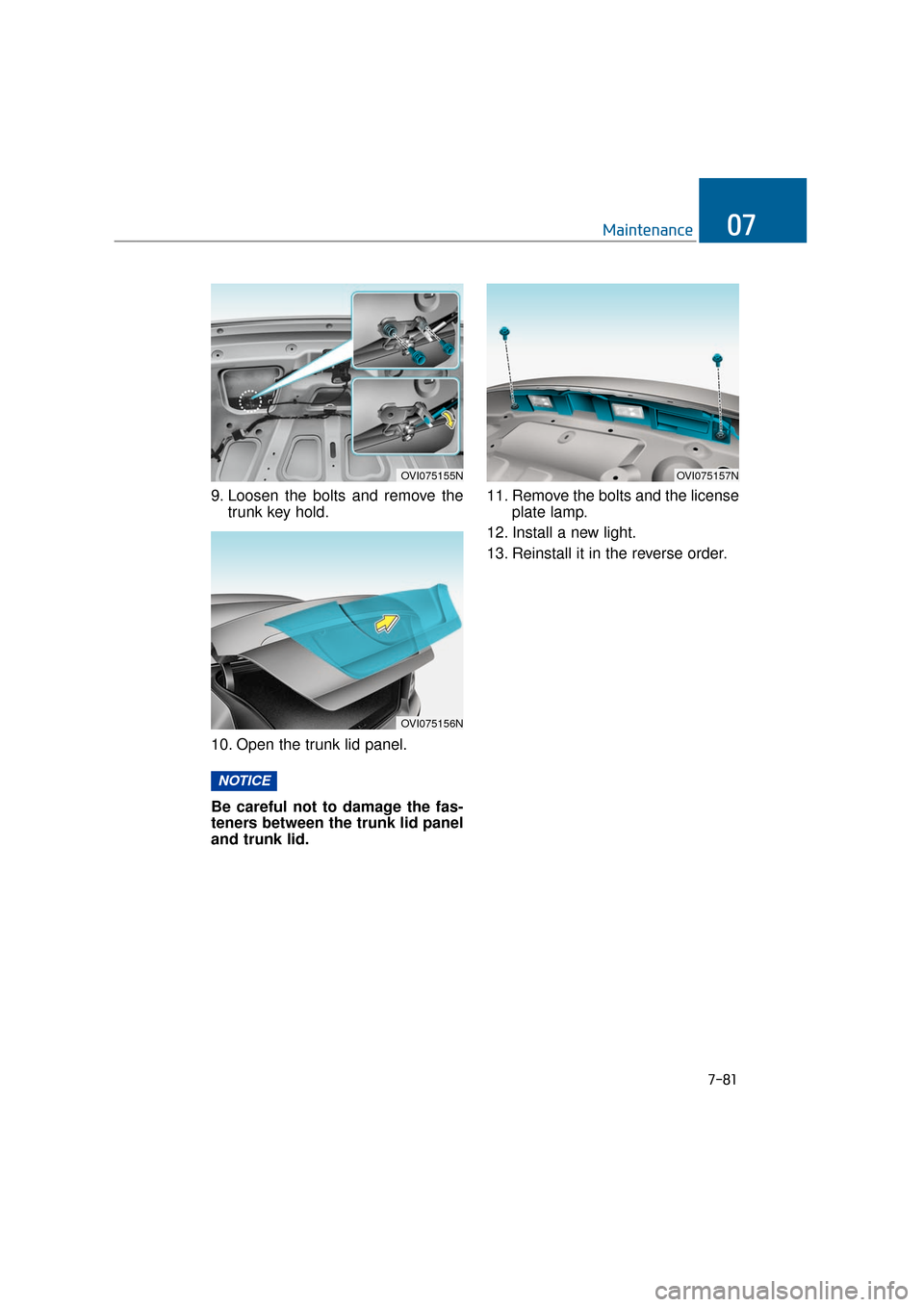

9. Loosen the bolts and remove thetrunk key hold.
10. Open the trunk lid panel.
Be careful not to damage the fas-
teners between the trunk lid panel
and trunk lid. 11. Remove the bolts and the license
plate lamp.
12. Install a new light.
13. Reinstall it in the reverse order.
NOTICE
OVI075155N
OVI075156N
OVI075157N

7-82
Maintenance

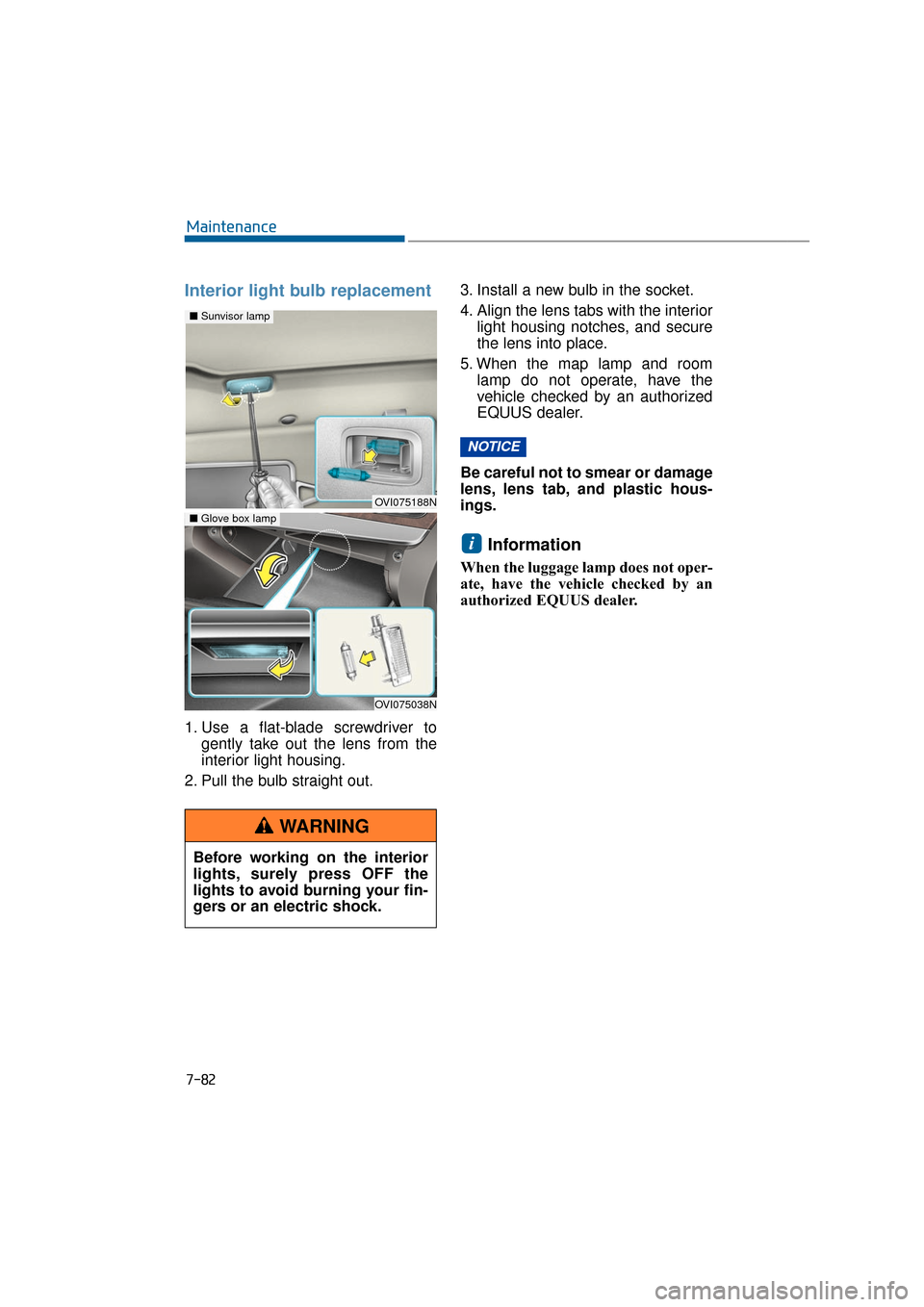

Interior light bulb replacement
1. Use a flat-blade screwdriver togently take out the lens from the
interior light housing.
2. Pull the bulb straight out. 3. Install a new bulb in the socket.
4. Align the lens tabs with the interior
light housing notches, and secure
the lens into place.
5. When the map lamp and room lamp do not operate, have the
vehicle checked by an authorized
EQUUS dealer.
Be careful not to smear or damage
lens, lens tab, and plastic hous-
ings.
Information
When the luggage lamp does not oper-
ate, have the vehicle checked by an
authorized EQUUS dealer.
i
NOTICE
OVI075188N
■ Sunvisor lamp
OVI075038N
■Glove box lamp
Before working on the interior
lights, surely press OFF the
lights to avoid burning your fin-
gers or an electric shock.
WARNING

7-83
Maintenance07
A
AP
PP
PE
EA
A R
RA
A N
N C
CE
E
C
C A
A R
RE
E
