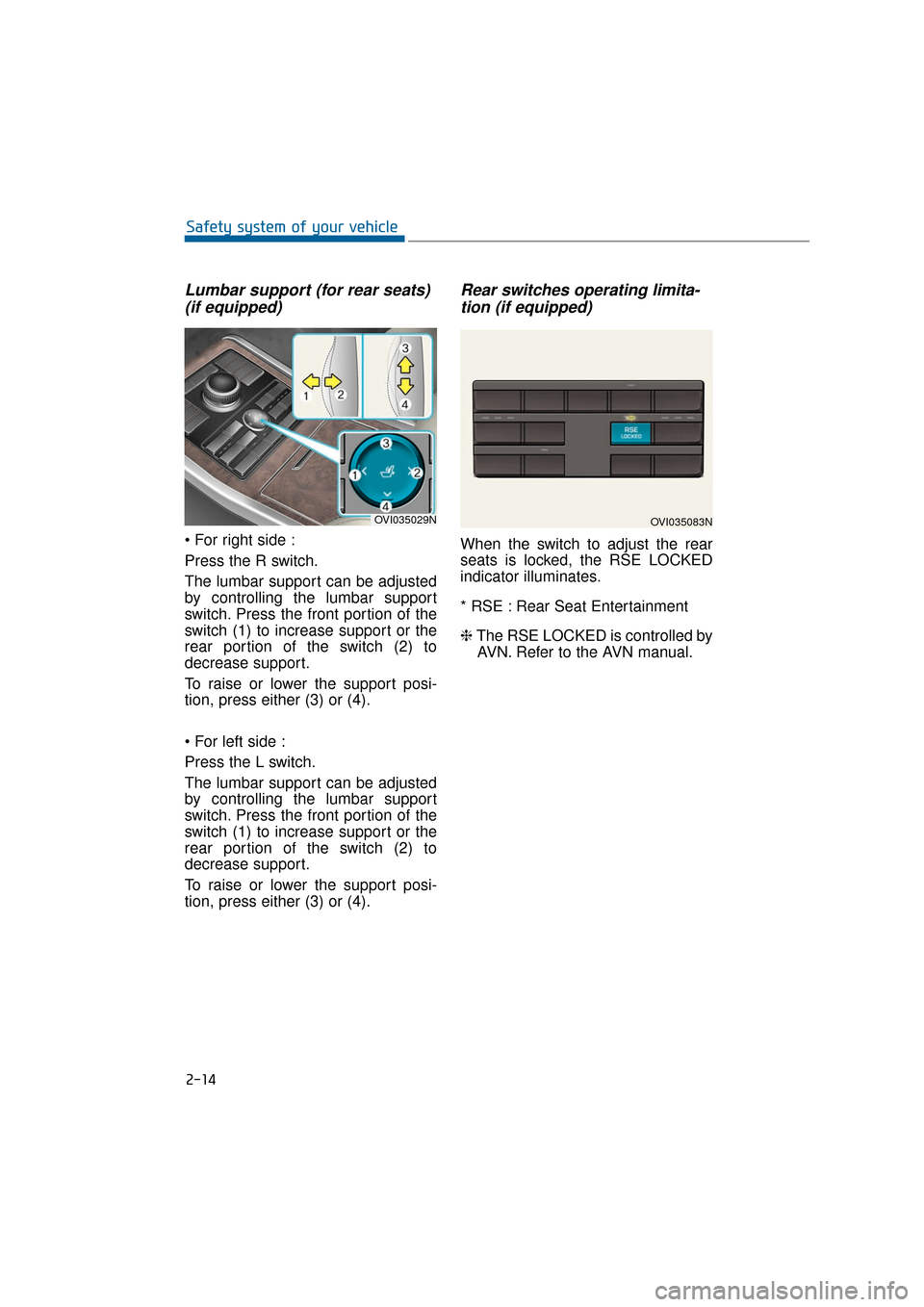

Lumbar support (for rear seats)(if equipped)
Press the R switch.
The lumbar support can be adjusted
by controlling the lumbar support
switch. Press the front portion of the
switch (1) to increase support or the
rear portion of the switch (2) to
decrease support.
To raise or lower the support posi-
tion, press either (3) or (4).
Press the L switch.
The lumbar support can be adjusted
by controlling the lumbar support
switch. Press the front portion of the
switch (1) to increase support or the
rear portion of the switch (2) to
decrease support.
To raise or lower the support posi-
tion, press either (3) or (4).
Rear switches operating limita-tion (if equipped)
When the switch to adjust the rear
seats is locked, the RSE LOCKED
indicator illuminates.
* RSE : Rear Seat Entertainment
❈ The RSE LOCKED is controlled by
AVN. Refer to the AVN manual.
2-14
Safety system of your vehicle
OVI035029NOVI035083N
Page 42 of 477

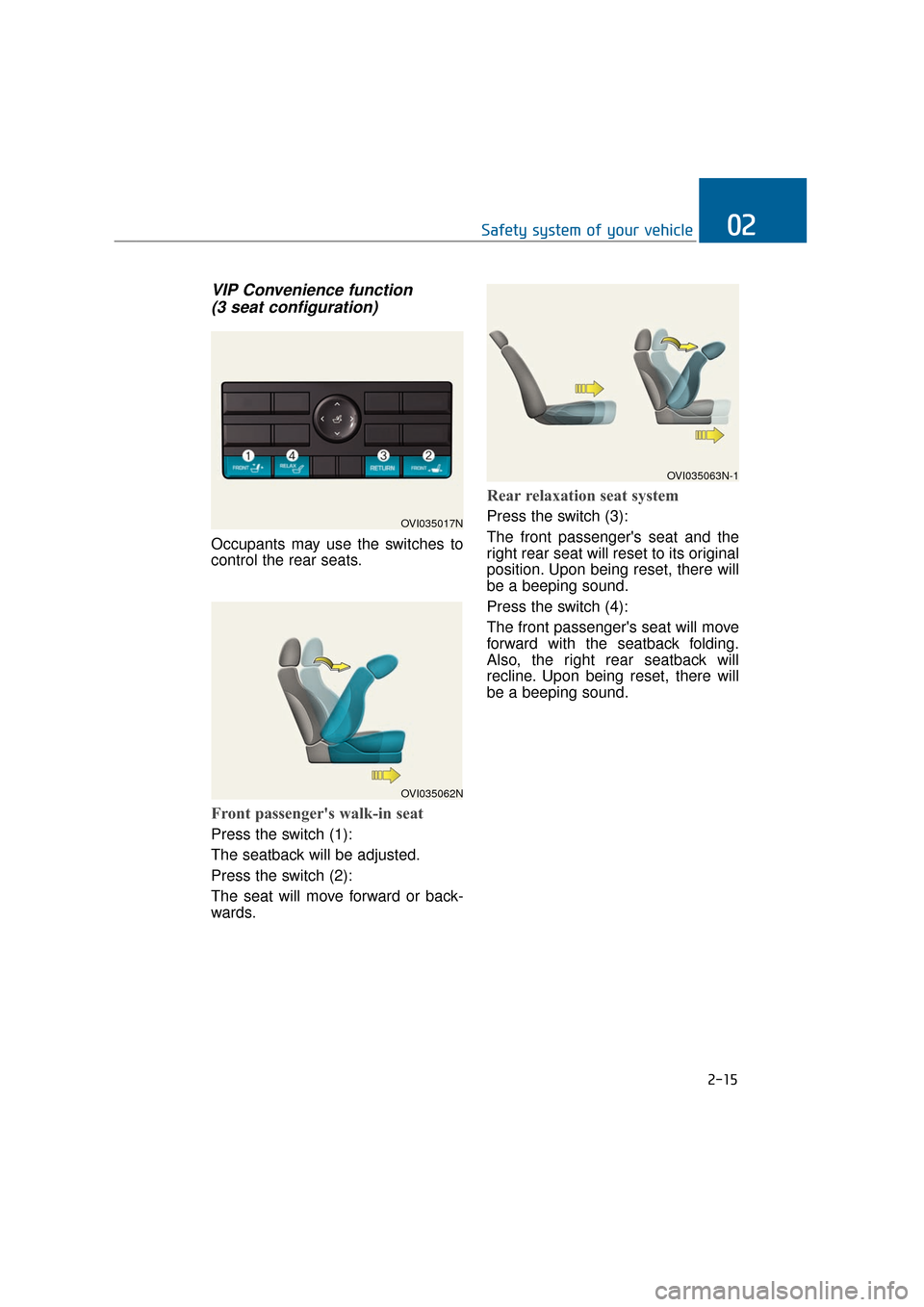

VIP Convenience function (3 seat configuration)
Occupants may use the switches to
control the rear seats.
Front passenger's walk-in seat
Press the switch (1):
The seatback will be adjusted.
Press the switch (2):
The seat will move forward or back-
wards.
Rear relaxation seat system
Press the switch (3):
The front passenger's seat and the
right rear seat will reset to its original
position. Upon being reset, there will
be a beeping sound.
Press the switch (4):
The front passenger's seat will move
forward with the seatback folding.
Also, the right rear seatback will
recline. Upon being reset, there will
be a beeping sound.
2-15
Safety system of your vehicle02
OVI035062N
OVI035063N-1
OVI035017N
Page 43 of 477

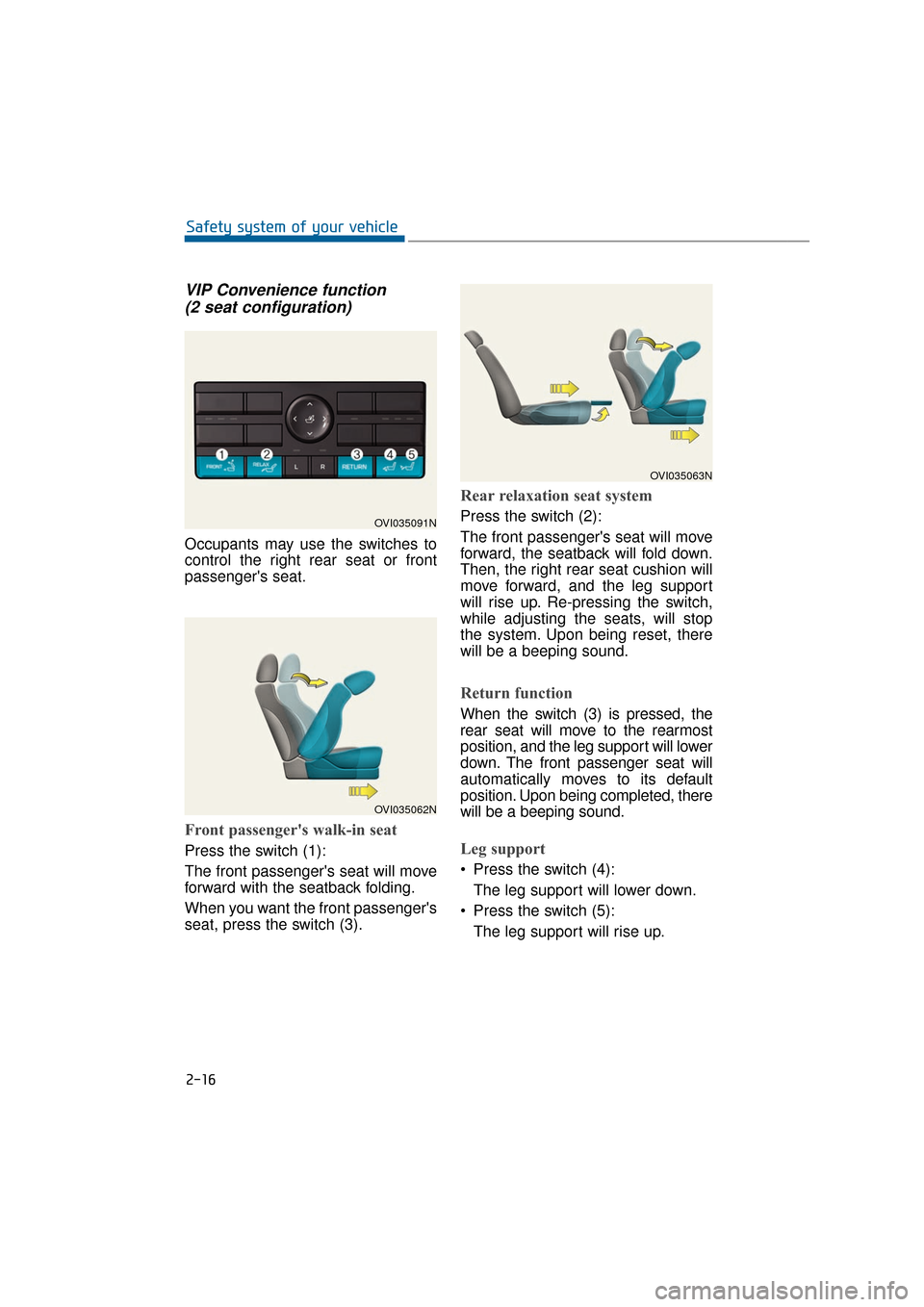

VIP Convenience function (2 seat configuration)
Occupants may use the switches to
control the right rear seat or front
passenger's seat.
Front passenger's walk-in seat
Press the switch (1):
The front passenger's seat will move
forward with the seatback folding.
When you want the front passenger's
seat, press the switch (3).
Rear relaxation seat system
Press the switch (2):
The front passenger's seat will move
forward, the seatback will fold down.
Then, the right rear seat cushion will
move forward, and the leg support
will rise up. Re-pressing the switch,
while adjusting the seats, will stop
the system. Upon being reset, there
will be a beeping sound.
Return function
When the switch (3) is pressed, the
rear seat will move to the rearmost
position, and the leg support will lower
down. The front passenger seat will
automatically moves to its default
position. Upon being completed, there
will be a beeping sound.
Leg support
Press the switch (4):
The leg support will lower down.
Press the switch (5): The leg support will rise up.
2-16
Safety system of your vehicle
OVI035063N
OVI035091N
OVI035062N
Page 44 of 477

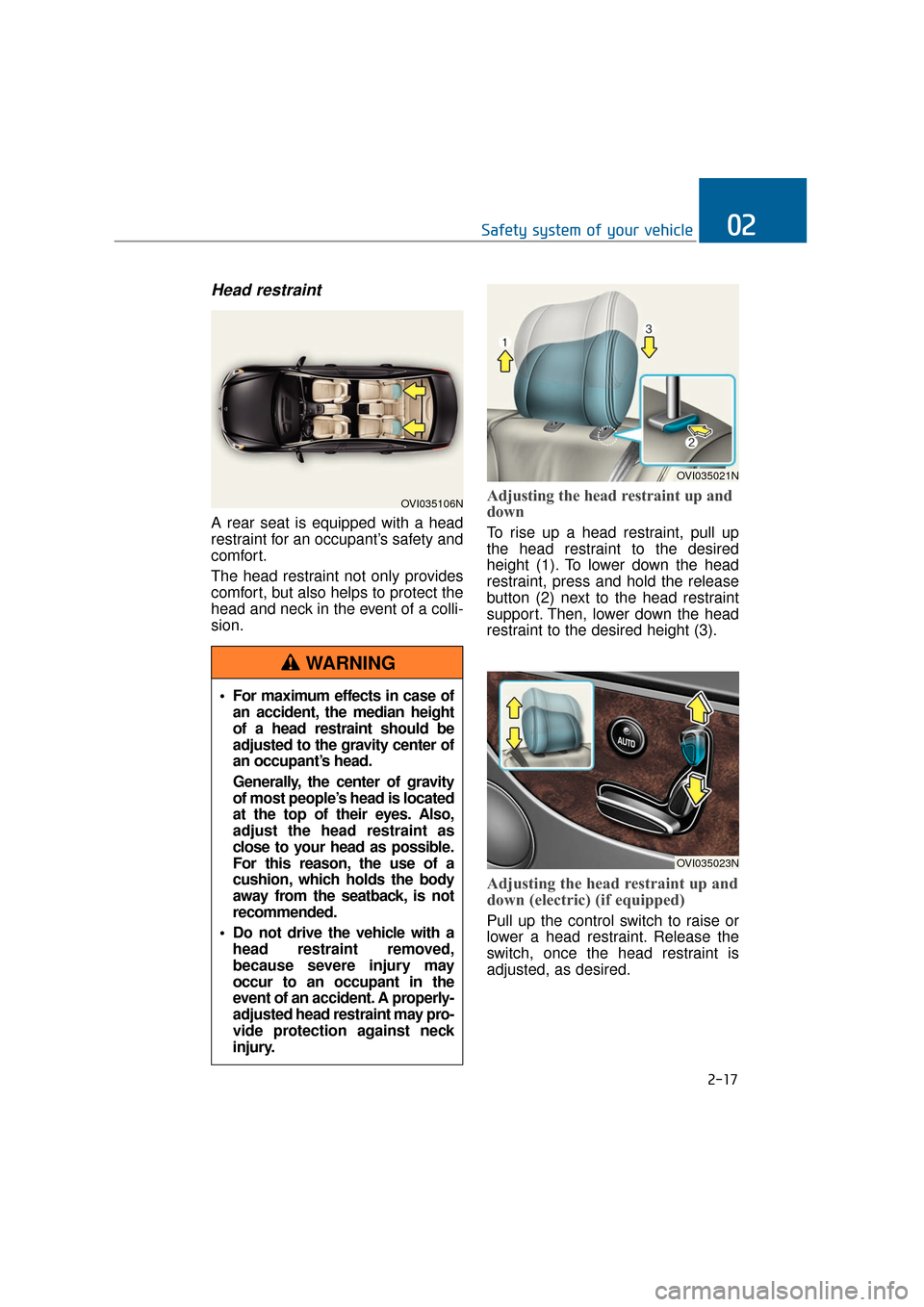

Head restraint
A rear seat is equipped with a head
restraint for an occupant’s safety and
comfort.
The head restraint not only provides
comfort, but also helps to protect the
head and neck in the event of a colli-
sion.
Adjusting the head restraint up and
down
To rise up a head restraint, pull up
the head restraint to the desired
height (1). To lower down the head
restraint, press and hold the release
button (2) next to the head restraint
support. Then, lower down the head
restraint to the desired height (3).
Adjusting the head restraint up and
down (electric) (if equipped)
Pull up the control switch to raise or
lower a head restraint. Release the
switch, once the head restraint is
adjusted, as desired.
2-17
Safety system of your vehicle02
OVI035021N
OVI035023N
For maximum effects in case ofan accident, the median height
of a head restraint should be
adjusted to the gravity center of
an occupant’s head.
Generally, the center of gravity
of most people’s head is located
at the top of their eyes. Also,
adjust the head restraint as
close to your head as possible.
For this reason, the use of a
cushion, which holds the body
away from the seatback, is not
recommended.
Do not drive the vehicle with a head restraint removed,
because severe injury may
occur to an occupant in the
event of an accident. A properly-
adjusted head restraint may pro-
vide protection against neck
injury.
WARNING
OVI035106N
Page 45 of 477

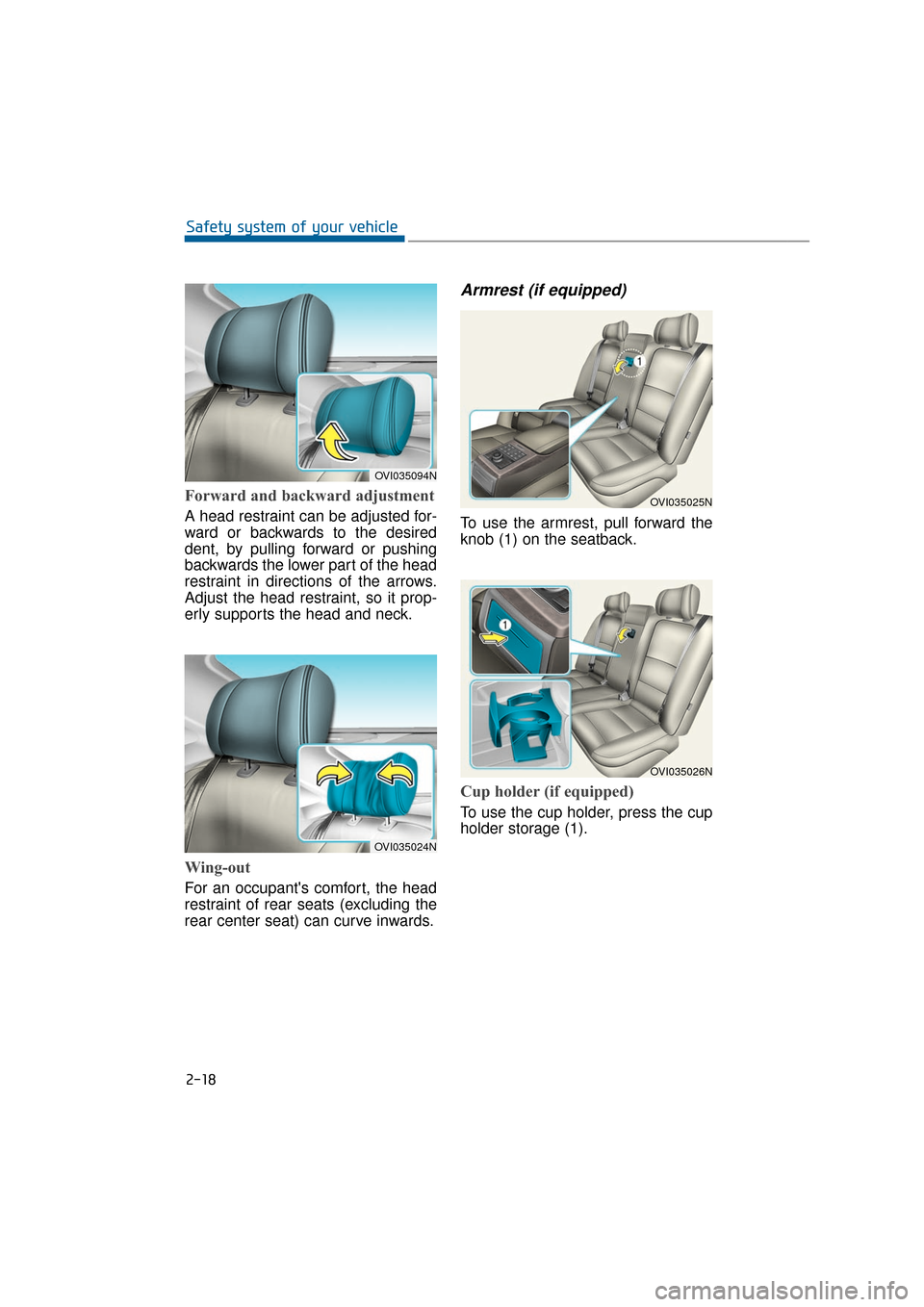

Forward and backward adjustment
A head restraint can be adjusted for-
ward or backwards to the desired
dent, by pulling forward or pushing
backwards the lower part of the head
restraint in directions of the arrows.
Adjust the head restraint, so it prop-
erly supports the head and neck.
Wing-out
For an occupant's comfort, the head
restraint of rear seats (excluding the
rear center seat) can curve inwards.
Armrest (if equipped)
To use the armrest, pull forward the
knob (1) on the seatback.
Cup holder (if equipped)
To use the cup holder, press the cup
holder storage (1).
2-18
Safety system of your vehicle
OVI035025N
OVI035026N
OVI035094N
OVI035024N
Page 46 of 477

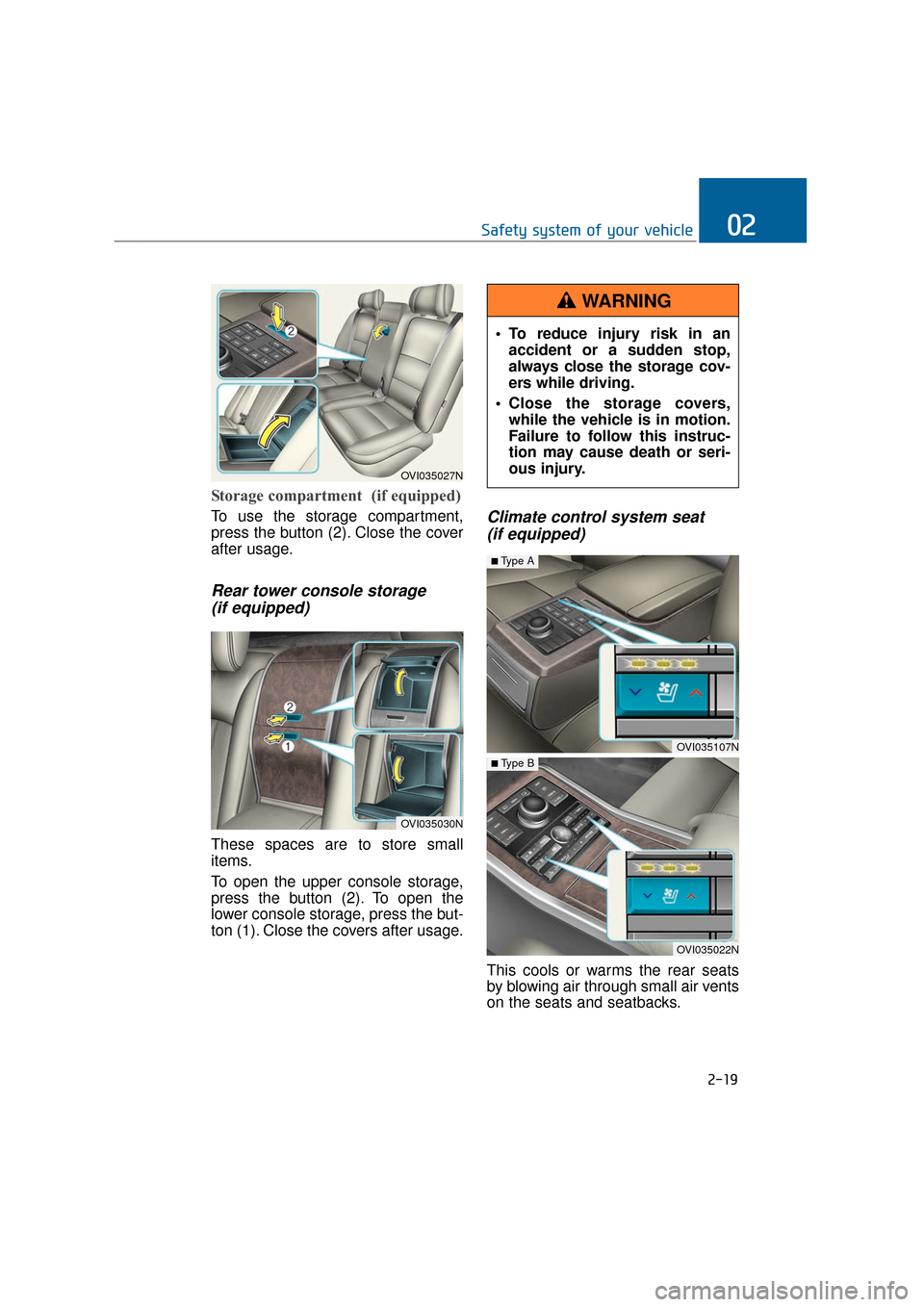

Storage compartment (if equipped)
To use the storage compartment,
press the button (2). Close the cover
after usage.
Rear tower console storage (if equipped)
These spaces are to store small
items.
To open the upper console storage,
press the button (2). To open the
lower console storage, press the but-
ton (1). Close the covers after usage.
Climate control system seat(if equipped)
This cools or warms the rear seats
by blowing air through small air vents
on the seats and seatbacks.
2-19
Safety system of your vehicle02
OVI035030N
OVI035027N
To reduce injury risk in an
accident or a sudden stop,
always close the storage cov-
ers while driving.
Close the storage covers, while the vehicle is in motion.
Failure to follow this instruc-
tion may cause death or seri-
ous injury.
WARNING
OVI035107N
■Type A
OVI035022N
■ Type B
Page 47 of 477

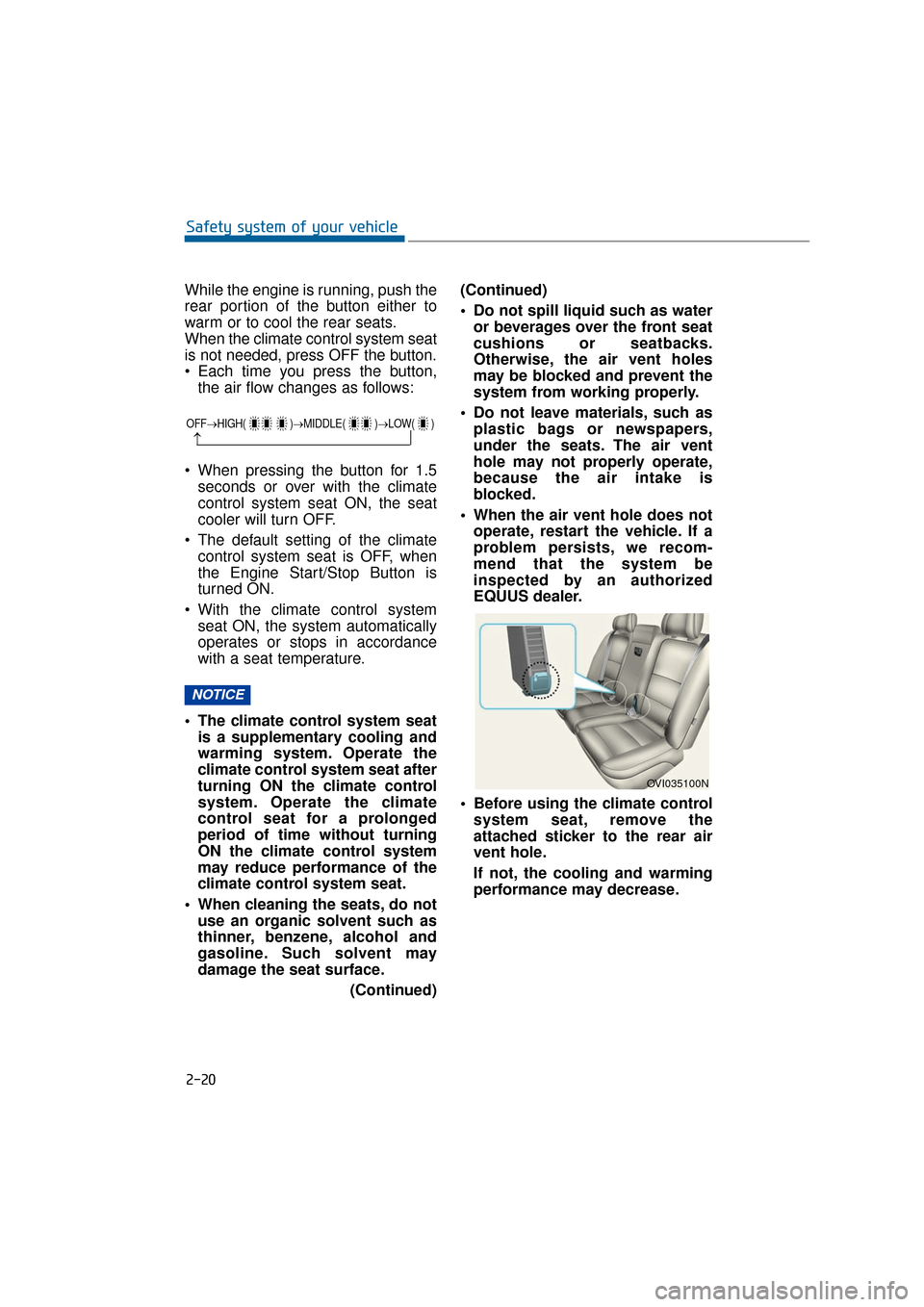

While the engine is running, push the
rear portion of the button either to
warm or to cool the rear seats.
When the climate control system seat
is not needed, press OFF the button.
Each time you press the button,the air flow changes as follows:
When pressing the button for 1.5 seconds or over with the climate
control system seat ON, the seat
cooler will turn OFF.
The default setting of the climate control system seat is OFF, when
the Engine Start/Stop Button is
turned ON.
With the climate control system seat ON, the system automatically
operates or stops in accordance
with a seat temperature.
The climate control system seat is a supplementary cooling and
warming system. Operate the
climate control system seat after
turning ON the climate control
system. Operate the climate
control seat for a prolonged
period of time without turning
ON the climate control system
may reduce performance of the
climate control system seat.
When cleaning the seats, do not use an organic solvent such as
thinner, benzene, alcohol and
gasoline. Such solvent may
damage the seat surface.
(Continued)(Continued)
Do not spill liquid such as water
or beverages over the front seat
cushions or seatbacks.
Otherwise, the air vent holes
may be blocked and prevent the
system from working properly.
Do not leave materials, such as plastic bags or newspapers,
under the seats. The air vent
hole may not properly operate,
because the air intake is
blocked.
When the air vent hole does not operate, restart the vehicle. If a
problem persists, we recom-
mend that the system be
inspected by an authorized
EQUUS dealer.
Before using the climate control system seat, remove the
attached sticker to the rear air
vent hole.
If not, the cooling and warming
performance may decrease.
OVI035100N
NOTICE
2-20
Safety system of your vehicle
OFF→ HIGH( )→ MIDDLE( )→LOW( )
→
Page 48 of 477

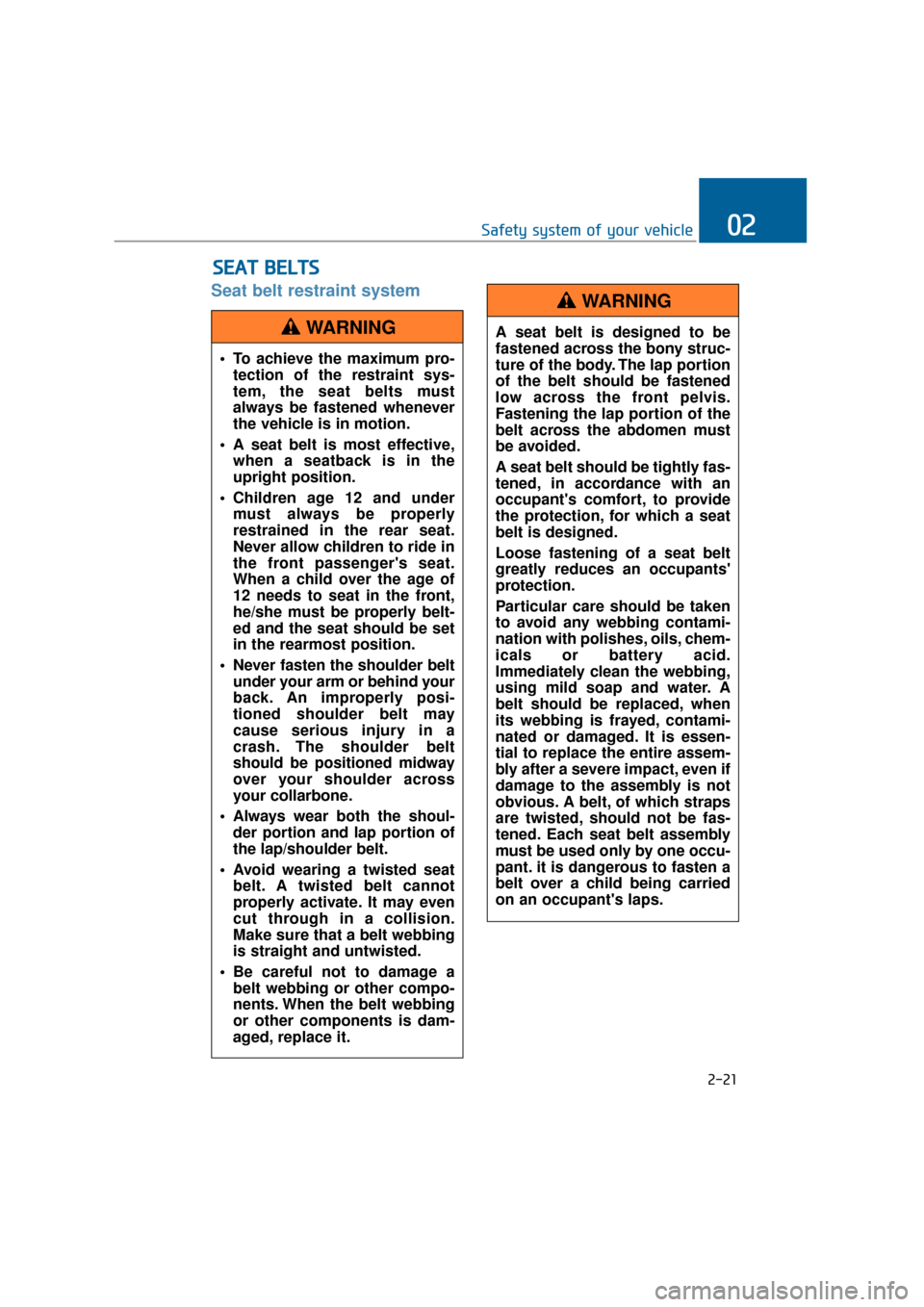

Seat belt restraint system
S
SE
E A
A T
T
B
B E
EL
LT
T S
S
2-21
Safety system of your vehicle02
To achieve the maximum pro-
tection of the restraint sys-
tem, the seat belts must
always be fastened whenever
the vehicle is in motion.
A seat belt is most effective, when a seatback is in the
upright position.
Children age 12 and under must always be properly
restrained in the rear seat.
Never allow children to ride in
the front passenger's seat.
When a child over the age of
12 needs to seat in the front,
he/she must be properly belt-
ed and the seat should be set
in the rearmost position.
Never fasten the shoulder belt under your arm or behind your
back. An improperly posi-
tioned shoulder belt may
cause serious injury in a
crash. The shoulder belt
should be positioned midway
over your shoulder across
your collarbone.
Always wear both the shoul- der portion and lap portion of
the lap/shoulder belt.
Avoid wearing a twisted seat belt. A twisted belt cannot
properly activate. It may even
cut through in a collision.
Make sure that a belt webbing
is straight and untwisted.
Be careful not to damage a belt webbing or other compo-
nents. When the belt webbing
or other components is dam-
aged, replace it.
WARNINGA seat belt is designed to be
fastened across the bony struc-
ture of the body. The lap portion
of the belt should be fastened
low across the front pelvis.
Fastening the lap portion of the
belt across the abdomen must
be avoided.
A seat belt should be tightly fas-
tened, in accordance with an
occupant's comfort, to provide
the protection, for which a seat
belt is designed.
Loose fastening of a seat belt
greatly reduces an occupants'
protection.
Particular care should be taken
to avoid any webbing contami-
nation with polishes, oils, chem-
icals or battery acid.
Immediately clean the webbing,
using mild soap and water. A
belt should be replaced, when
its webbing is frayed, contami-
nated or damaged. It is essen-
tial to replace the entire assem-
bly after a severe impact, even if
damage to the assembly is not
obvious. A belt, of which straps
are twisted, should not be fas-
tened. Each seat belt assembly
must be used only by one occu-
pant. it is dangerous to fasten a
belt over a child being carried
on an occupant's laps.
WARNING
Page 49 of 477

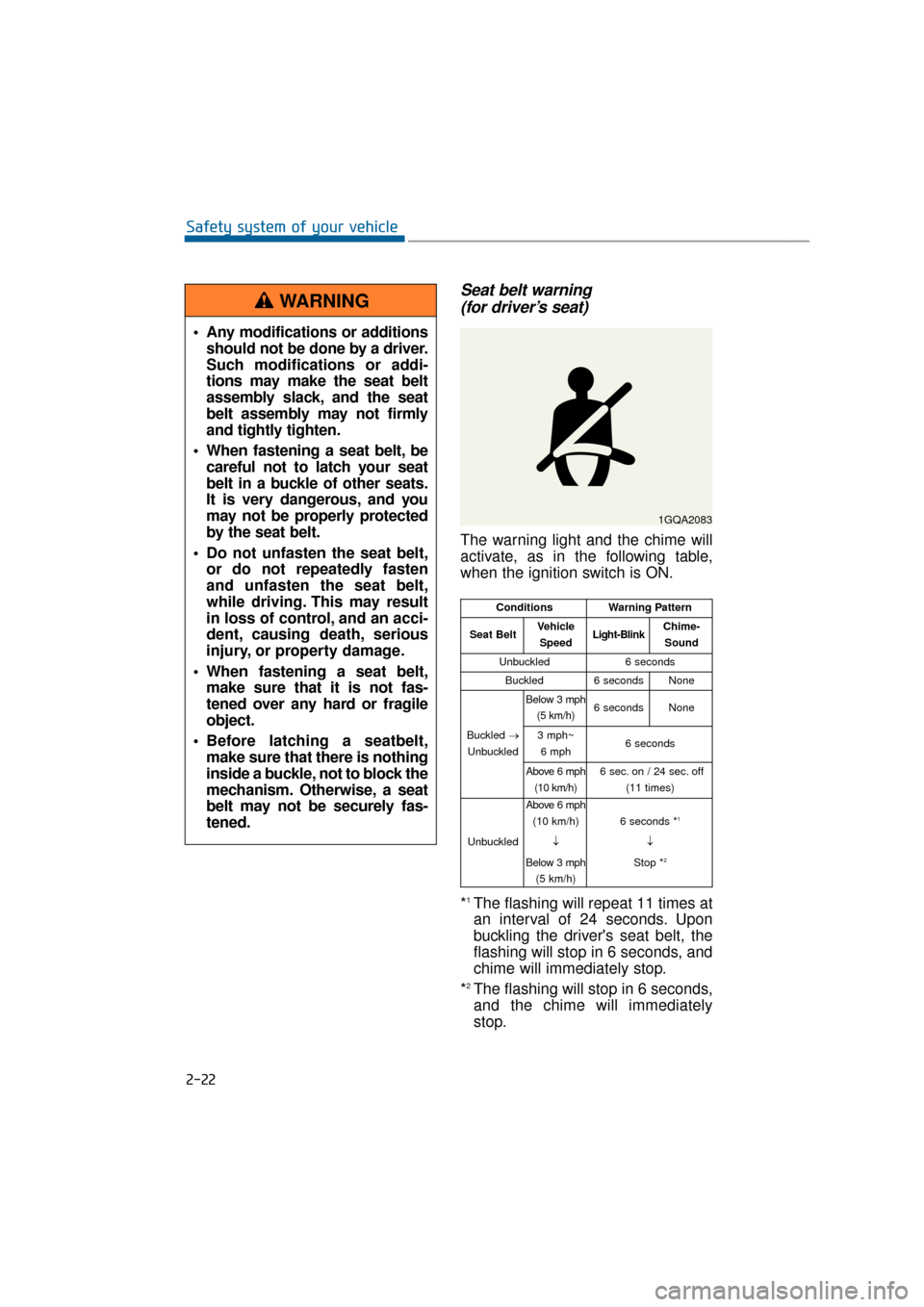

Seat belt warning (for driver’s seat)
The warning light and the chime will
activate, as in the following table,
when the ignition switch is ON.
*
1The flashing will repeat 11 times at
an interval of 24 seconds. Upon
buckling the driver's seat belt, the
flashing will stop in 6 seconds, and
chime will immediately stop.
*
2The flashing will stop in 6 seconds,
and the chime will immediately
stop.
2-22
Safety system of your vehicle
Any modifications or additions should not be done by a driver.
Such modifications or addi-
tions may make the seat belt
assembly slack, and the seat
belt assembly may not firmly
and tightly tighten.
When fastening a seat belt, be careful not to latch your seat
belt in a buckle of other seats.
It is very dangerous, and you
may not be properly protected
by the seat belt.
Do not unfasten the seat belt, or do not repeatedly fasten
and unfasten the seat belt,
while driving. This may result
in loss of control, and an acci-
dent, causing death, serious
injury, or property damage.
When fastening a seat belt, make sure that it is not fas-
tened over any hard or fragile
object.
Before latching a seatbelt, make sure that there is nothing
inside a buckle, not to block the
mechanism. Otherwise, a seat
belt may not be securely fas-
tened.
WARNING
1GQA2083
ConditionsWarning Pattern
Seat BeltVehicle
SpeedLight-BlinkChime-Sound
Unbuckled6 seconds
Buckled6 secondsNone
Buckled →
Unbuckled
Below 3 mph (5 km/h)6 secondsNone
3 mph~6 mph6 seconds
Above 6 mph (10 km/h)6 sec. on / 24 sec. off (11 times)
Unbuckled
Above 6 mph(10 km/h)
↓
Below 3 mph (5 km/h)
6 seconds *1
↓
Stop *
2
Page 50 of 477

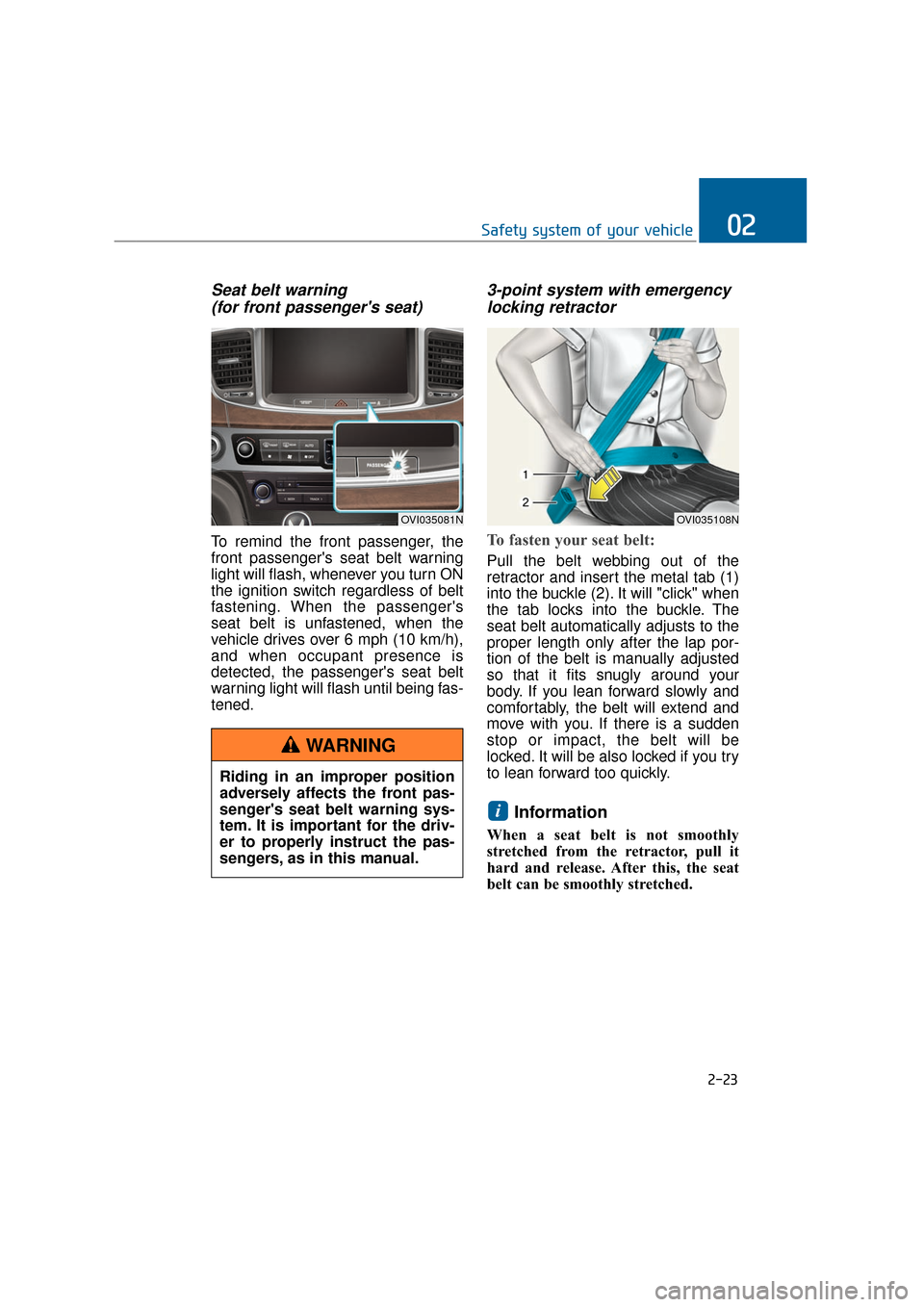

Seat belt warning (for front passenger's seat)
To remind the front passenger, the
front passenger's seat belt warning
light will flash, whenever you turn ON
the ignition switch regardless of belt
fastening. When the passenger's
seat belt is unfastened, when the
vehicle drives over 6 mph (10 km/h),
and when occupant presence is
detected, the passenger's seat belt
warning light will flash until being fas-
tened.
3-point system with emergencylocking retractor
To fasten your seat belt:
Pull the belt webbing out of the
retractor and insert the metal tab (1)
into the buckle (2). It will "click" when
the tab locks into the buckle. The
seat belt automatically adjusts to the
proper length only after the lap por-
tion of the belt is manually adjusted
so that it fits snugly around your
body. If you lean forward slowly and
comfortably, the belt will extend and
move with you. If there is a sudden
stop or impact, the belt will be
locked. It will be also locked if you try
to lean forward too quickly.
Information
When a seat belt is not smoothly
stretched from the retractor, pull it
hard and release. After this, the seat
belt can be smoothly stretched.
i
2-23
Safety system of your vehicle02
OVI035081N
Riding in an improper position
adversely affects the front pas-
senger's seat belt warning sys-
tem. It is important for the driv-
er to properly instruct the pas-
sengers, as in this manual.
WARNING
OVI035108N
