Maintenance
46 7
G210101AUN

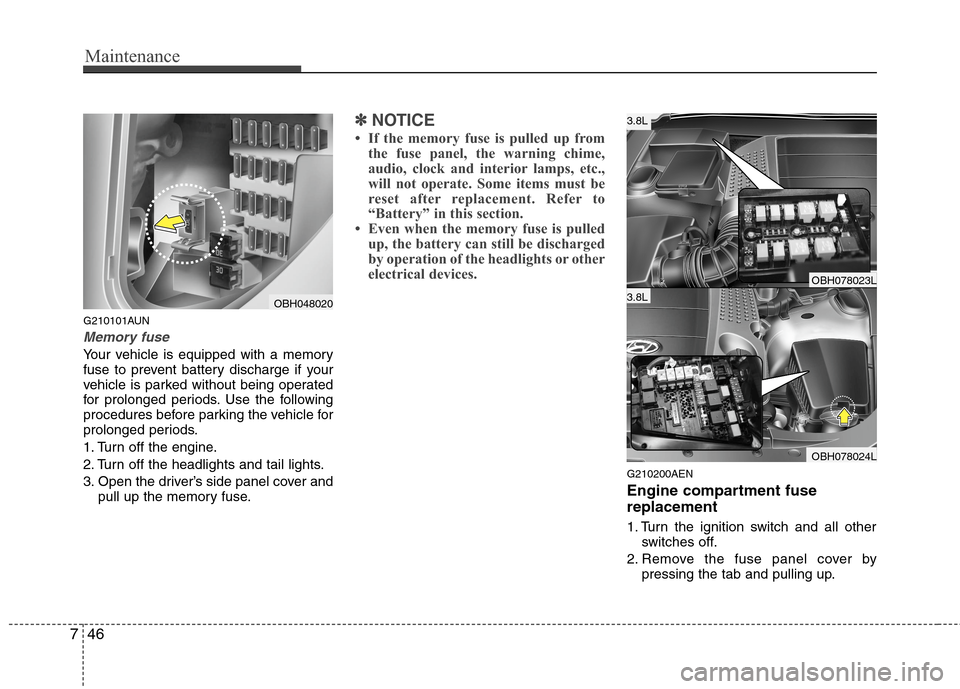

Memory fuse
Your vehicle is equipped with a memory
fuse to prevent battery discharge if your
vehicle is parked without being operated
for prolonged periods. Use the following
procedures before parking the vehicle for
prolonged periods.
1. Turn off the engine.
2. Turn off the headlights and tail lights.
3. Open the driver’s side panel cover and
pull up the memory fuse.
✽ ✽
NOTICE
• If the memory fuse is pulled up from
the fuse panel, the warning chime,
audio, clock and interior lamps, etc.,
will not operate. Some items must be
reset after replacement. Refer to
“Battery” in this section.
• Even when the memory fuse is pulled
up, the battery can still be discharged
by operation of the headlights or other
electrical devices.
G210200AEN
Engine compartment fuse
replacement
1. Turn the ignition switch and all other
switches off.
2. Remove the fuse panel cover by
pressing the tab and pulling up.
OBH048020
OBH078023L
OBH078024L
3.8L
3.8L

747
Maintenance

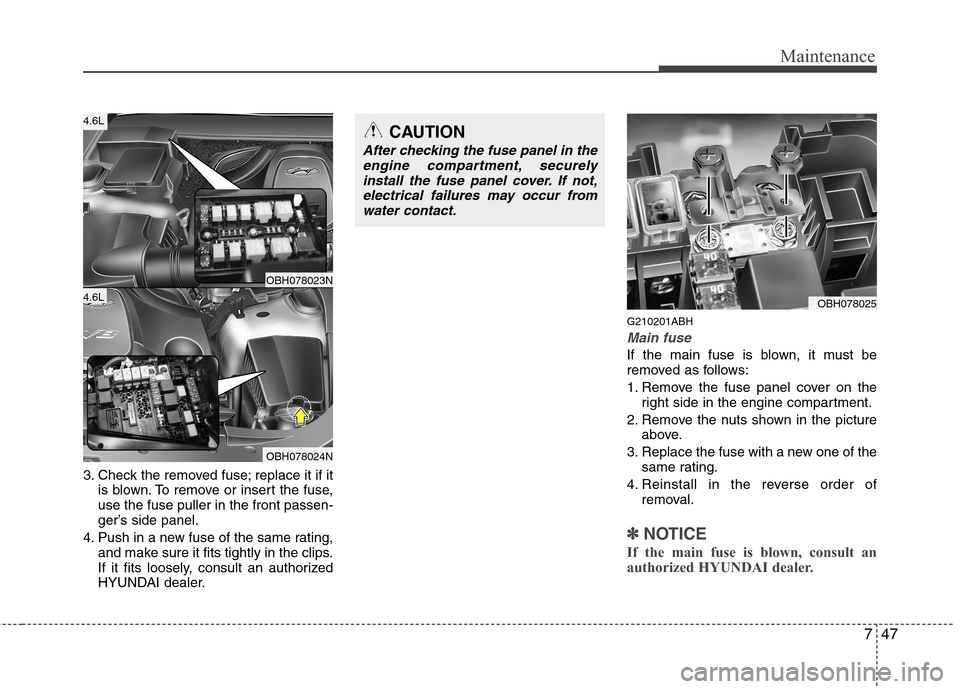

3. Check the removed fuse; replace it if it
is blown. To remove or insert the fuse,
use the fuse puller in the front passen-
ger’s side panel.
4. Push in a new fuse of the same rating,
and make sure it fits tightly in the clips.
If it fits loosely, consult an authorized
HYUNDAI dealer.
G210201ABH
Main fuse
If the main fuse is blown, it must be
removed as follows:
1. Remove the fuse panel cover on the
right side in the engine compartment.
2. Remove the nuts shown in the picture
above.
3. Replace the fuse with a new one of the
same rating.
4. Reinstall in the reverse order of
removal.
✽ ✽
NOTICE
If the main fuse is blown, consult an
authorized HYUNDAI dealer.
CAUTION
After checking the fuse panel in the
engine compartment, securely
install the fuse panel cover. If not,
electrical failures may occur from
water contact.
OBH078025
OBH078023N
OBH078024N
4.6L
4.6L

Maintenance
48 7
✽
✽
NOTICE
Not all fuse panel descriptions in this
manual may be applicable to your vehi-
cle. It is accurate at the time of printing.
When you inspect the fuse panel in your
vehicle, refer to the fuse panel label.
Inner panel fuse panel
Engine compartment fuse panel
G210300ABH-EU

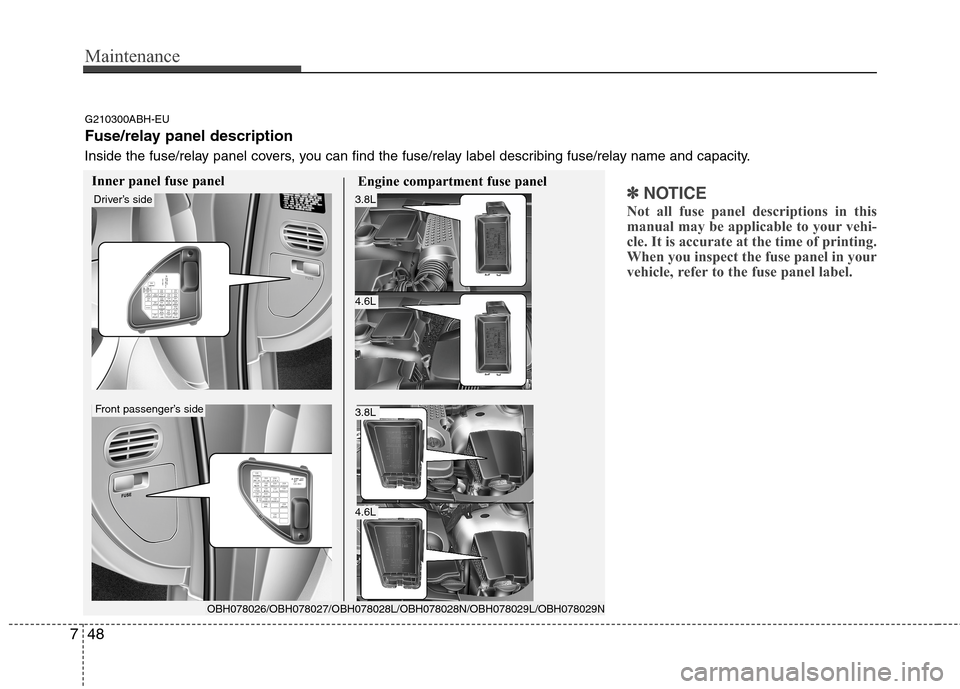

Fuse/relay panel description
Inside the fuse/relay panel covers, you can find the fuse/relay label describing fuse/relay name and capacity.
OBH078026/OBH078027/OBH078028L/OBH078028N/OBH078029L/OBH078029N
Driver’s side3.8L
4.6L
3.8L
4.6L
Front passenger’s side

749
Maintenance

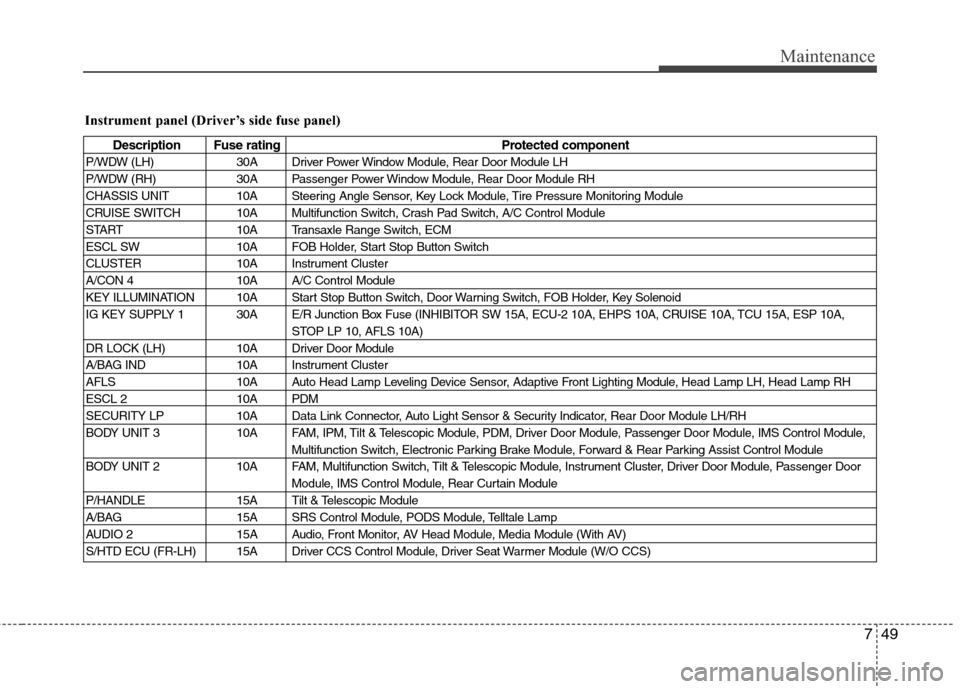

Instrument panel (Driver’s side fuse panel)
Description Fuse rating Protected component
P/WDW (LH) 30A Driver Power Window Module, Rear Door Module LH
P/WDW (RH) 30A Passenger Power Window Module, Rear Door Module RH
CHASSIS UNIT 10A Steering Angle Sensor, Key Lock Module, Tire Pressure Monitoring Module
CRUISE SWITCH 10A Multifunction Switch, Crash Pad Switch, A/C Control Module
START 10A Transaxle Range Switch, ECM
ESCL SW 10A FOB Holder, Start Stop Button Switch
CLUSTER 10A Instrument Cluster
A/CON 4 10A A/C Control Module
KEY ILLUMINATION 10A Start Stop Button Switch, Door Warning Switch, FOB Holder, Key Solenoid
IG KEY SUPPLY 1 30A E/R Junction Box Fuse (INHIBITOR SW 15A, ECU-2 10A, EHPS 10A, CRUISE 10A, TCU 15A, ESP 10A,
STOP LP 10, AFLS 10A)
DR LOCK (LH) 10A Driver Door Module
A/BAG IND 10A Instrument Cluster
AFLS 10A Auto Head Lamp Leveling Device Sensor, Adaptive Front Lighting Module, Head Lamp LH, Head Lamp RH
ESCL 2 10A PDM
SECURITY LP 10A Data Link Connector, Auto Light Sensor & Security Indicator, Rear Door Module LH/RH
BODY UNIT 3 10A FAM, IPM, Tilt & Telescopic Module, PDM, Driver Door Module, Passenger Door Module, IMS Control Module,
Multifunction Switch, Electronic Parking Brake Module, Forward & Rear Parking Assist Control Module
BODY UNIT 2 10A FAM, Multifunction Switch, Tilt & Telescopic Module, Instrument Cluster, Driver Door Module, Passenger Door
Module, IMS Control Module, Rear Curtain Module
P/HANDLE 15A Tilt & Telescopic Module
A/BAG 15A SRS Control Module, PODS Module, Telltale Lamp
AUDIO 2 15A Audio, Front Monitor, AV Head Module, Media Module (With AV)
S/HTD ECU (FR-LH) 15A Driver CCS Control Module, Driver Seat Warmer Module (W/O CCS)

Maintenance
50 7

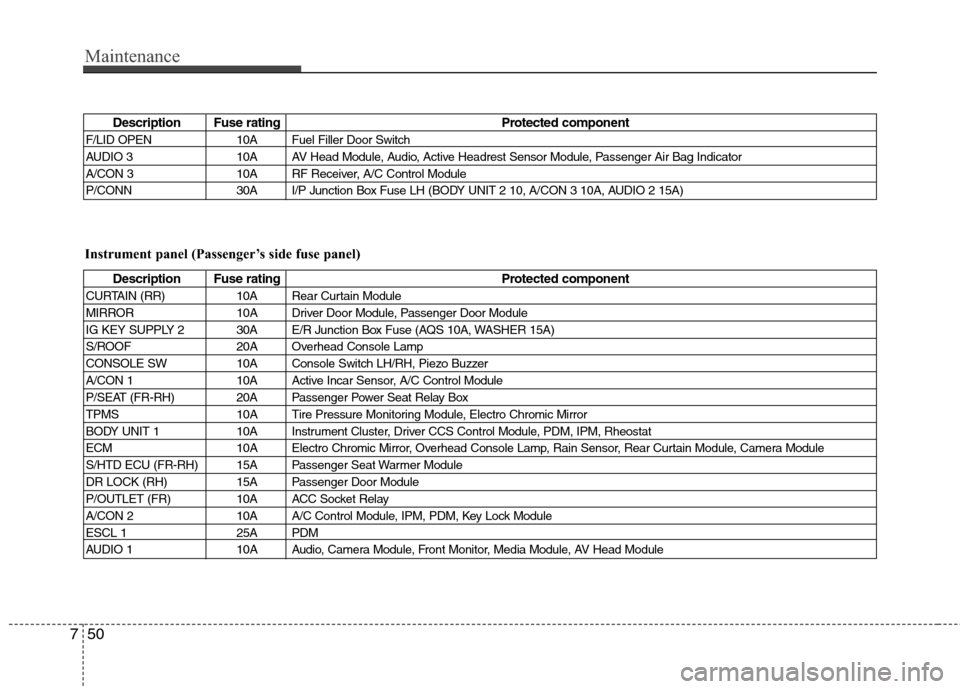

Description Fuse rating Protected component
F/LID OPEN 10A Fuel Filler Door Switch
AUDIO 3 10A AV Head Module, Audio, Active Headrest Sensor Module, Passenger Air Bag Indicator
A/CON 3 10A RF Receiver, A/C Control Module
P/CONN 30A I/P Junction Box Fuse LH (BODY UNIT 2 10, A/CON 3 10A, AUDIO 2 15A)
Instrument panel (Passenger’s side fuse panel)
Description Fuse rating Protected component
CURTAIN (RR) 10A Rear Curtain Module
MIRROR 10A Driver Door Module, Passenger Door Module
IG KEY SUPPLY 2 30A E/R Junction Box Fuse (AQS 10A, WASHER 15A)
S/ROOF 20A Overhead Console Lamp
CONSOLE SW 10A Console Switch LH/RH, Piezo Buzzer
A/CON 1 10A Active Incar Sensor, A/C Control Module
P/SEAT (FR-RH) 20A Passenger Power Seat Relay Box
TPMS 10A Tire Pressure Monitoring Module, Electro Chromic Mirror
BODY UNIT 1 10A Instrument Cluster, Driver CCS Control Module, PDM, IPM, Rheostat
ECM 10A Electro Chromic Mirror, Overhead Console Lamp, Rain Sensor, Rear Curtain Module, Camera Module
S/HTD ECU (FR-RH) 15A Passenger Seat Warmer Module
DR LOCK (RH) 15A Passenger Door Module
P/OUTLET (FR) 10A ACC Socket Relay
A/CON 2 10A A/C Control Module, IPM, PDM, Key Lock Module
ESCL 1 25A PDM
AUDIO 1 10A Audio, Camera Module, Front Monitor, Media Module, AV Head Module

751
Maintenance

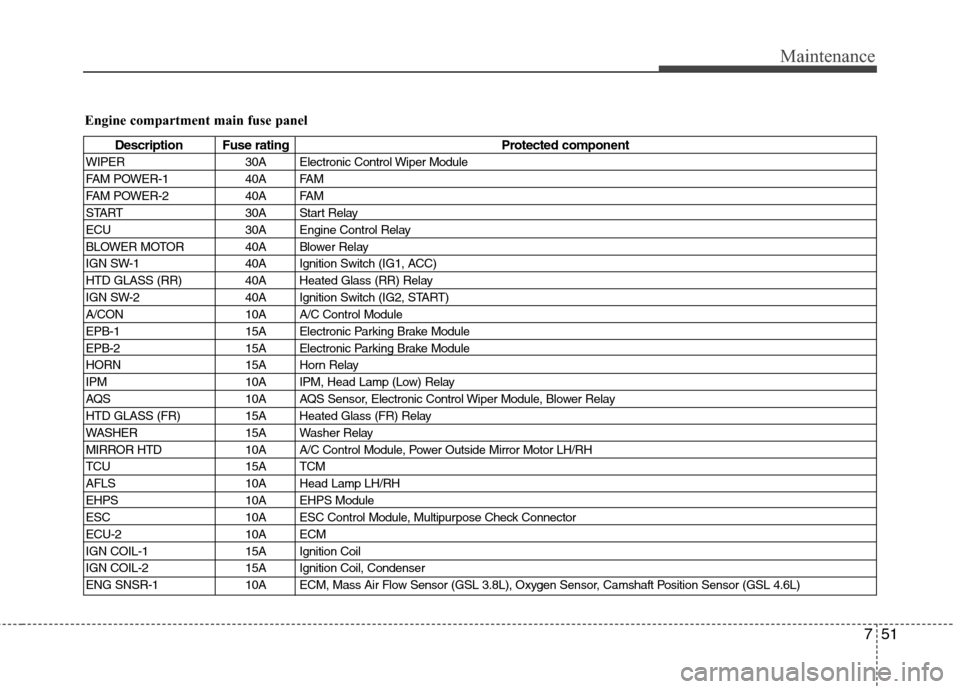

Engine compartment main fuse panel
Description Fuse rating Protected component
WIPER 30A Electronic Control Wiper Module
FAM POWER-1 40A FAM
FAM POWER-2 40A FAM
START 30A Start Relay
ECU 30A Engine Control Relay
BLOWER MOTOR 40A Blower Relay
IGN SW-1 40A Ignition Switch (IG1, ACC)
HTD GLASS (RR) 40A Heated Glass (RR) Relay
IGN SW-2 40A Ignition Switch (IG2, START)
A/CON 10A A/C Control Module
EPB-1 15A Electronic Parking Brake Module
EPB-2 15A Electronic Parking Brake Module
HORN 15A Horn Relay
IPM 10A IPM, Head Lamp (Low) Relay
AQS 10A AQS Sensor, Electronic Control Wiper Module, Blower Relay
HTD GLASS (FR) 15A Heated Glass (FR) Relay
WASHER 15A Washer Relay
MIRROR HTD 10A A/C Control Module, Power Outside Mirror Motor LH/RH
TCU 15A TCM
AFLS 10A Head Lamp LH/RH
EHPS 10A EHPS Module
ESC 10A ESC Control Module, Multipurpose Check Connector
ECU-2 10A ECM
IGN COIL-1 15A Ignition Coil
IGN COIL-2 15A Ignition Coil, Condenser
ENG SNSR-1 10A ECM, Mass Air Flow Sensor (GSL 3.8L), Oxygen Sensor, Camshaft Position Sensor (GSL 4.6L)

Maintenance
52 7

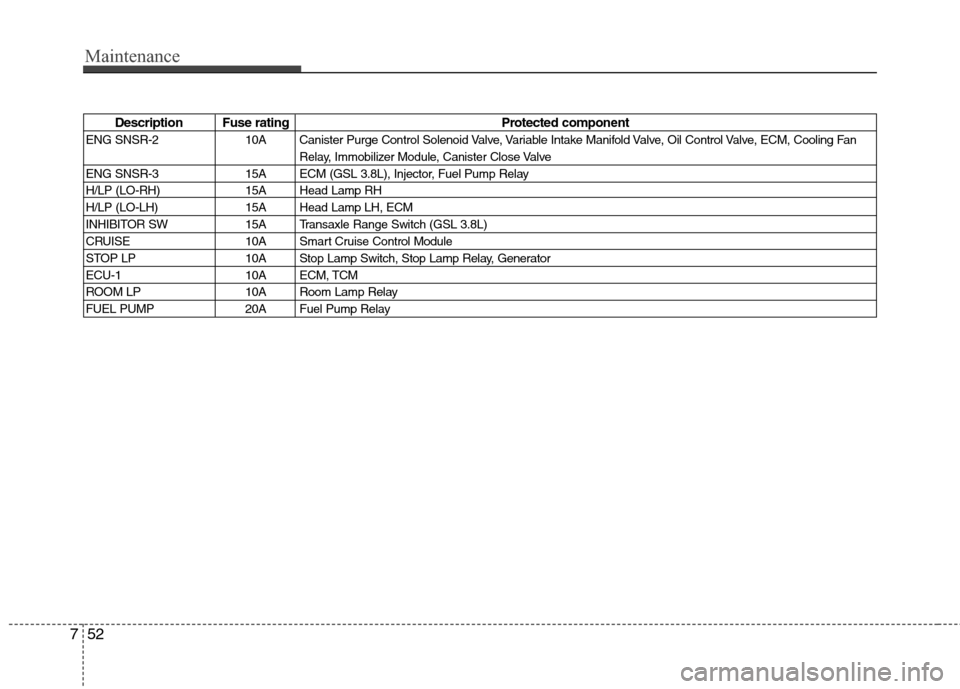

Description Fuse rating Protected component
ENG SNSR-2 10A Canister Purge Control Solenoid Valve, Variable Intake Manifold Valve, Oil Control Valve, ECM, Cooling Fan
Relay, Immobilizer Module, Canister Close Valve
ENG SNSR-3 15A ECM (GSL 3.8L), Injector, Fuel Pump Relay
H/LP (LO-RH) 15A Head Lamp RH
H/LP (LO-LH) 15A Head Lamp LH, ECM
INHIBITOR SW 15A Transaxle Range Switch (GSL 3.8L)
CRUISE 10A Smart Cruise Control Module
STOP LP 10A Stop Lamp Switch, Stop Lamp Relay, Generator
ECU-1 10A ECM, TCM
ROOM LP 10A Room Lamp Relay
FUEL PUMP 20A Fuel Pump Relay

753
Maintenance

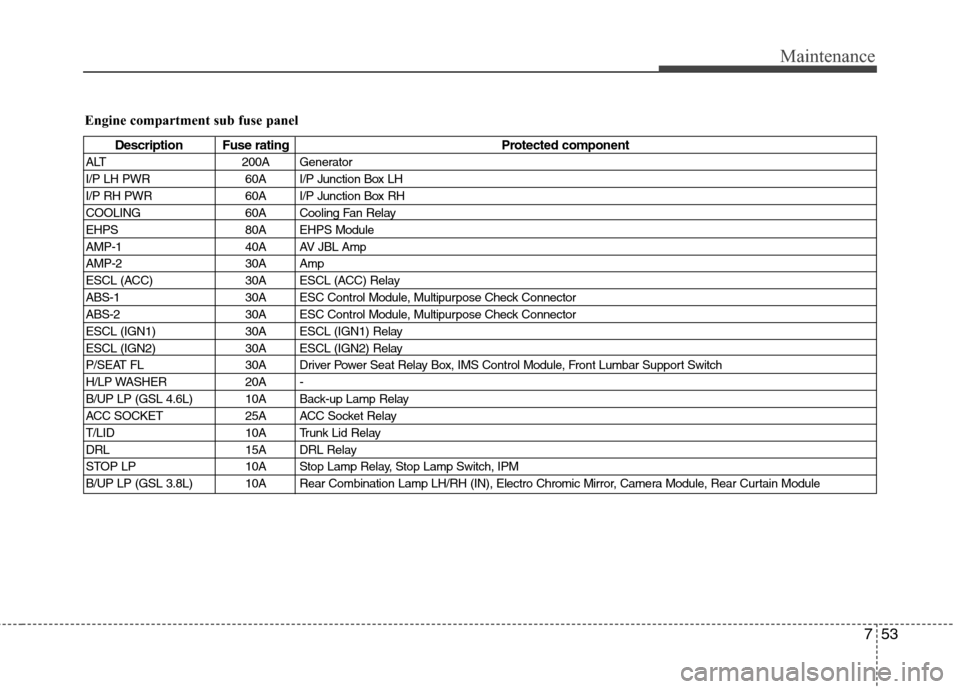

Engine compartment sub fuse panel
Description Fuse rating Protected component
ALT 200A Generator
I/P LH PWR 60A I/P Junction Box LH
I/P RH PWR 60A I/P Junction Box RH
COOLING 60A Cooling Fan Relay
EHPS 80A EHPS Module
AMP-1 40A AV JBL Amp
AMP-2 30A Amp
ESCL (ACC) 30A ESCL (ACC) Relay
ABS-1 30A ESC Control Module, Multipurpose Check Connector
ABS-2 30A ESC Control Module, Multipurpose Check Connector
ESCL (IGN1) 30A ESCL (IGN1) Relay
ESCL (IGN2) 30A ESCL (IGN2) Relay
P/SEAT FL 30A Driver Power Seat Relay Box, IMS Control Module, Front Lumbar Support Switch
H/LP WASHER 20A -
B/UP LP (GSL 4.6L) 10A Back-up Lamp Relay
ACC SOCKET 25A ACC Socket Relay
T/LID 10A Trunk Lid Relay
DRL 15A DRL Relay
STOP LP 10A Stop Lamp Relay, Stop Lamp Switch, IPM
B/UP LP (GSL 3.8L) 10A Rear Combination Lamp LH/RH (IN), Electro Chromic Mirror, Camera Module, Rear Curtain Module

Maintenance
54 7

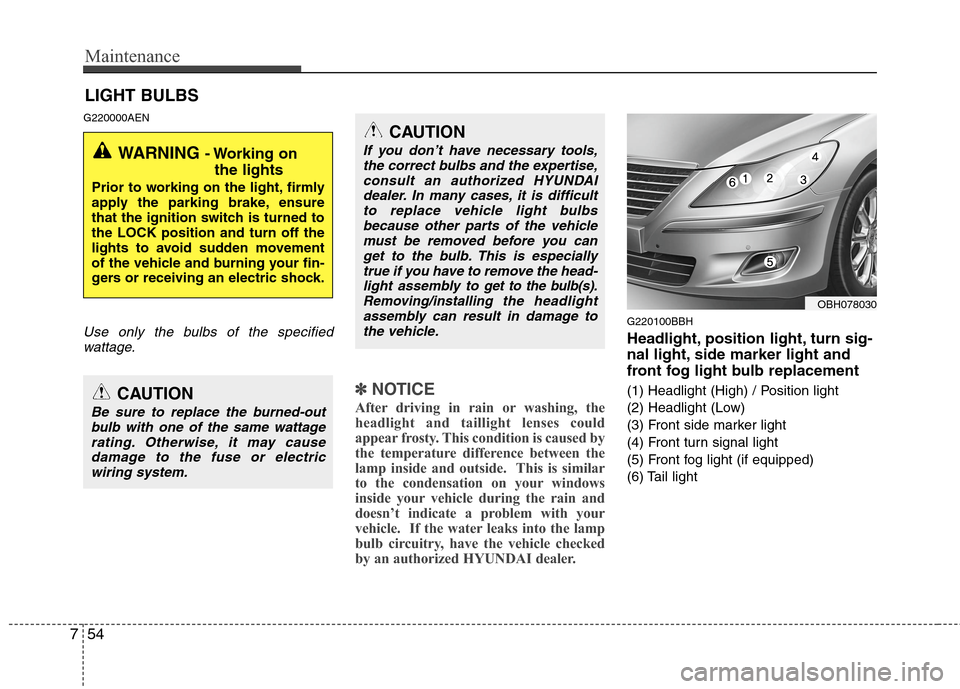

LIGHT BULBS
G220000AEN
Use only the bulbs of the specified
wattage.
✽ ✽
NOTICE
After driving in rain or washing, the
headlight and taillight lenses could
appear frosty. This condition is caused by
the temperature difference between the
lamp inside and outside. This is similar
to the condensation on your windows
inside your vehicle during the rain and
doesn’t indicate a problem with your
vehicle. If the water leaks into the lamp
bulb circuitry, have the vehicle checked
by an authorized HYUNDAI dealer.
G220100BBH
Headlight, position light, turn sig-
nal light, side marker light and
front fog light bulb replacement
(1) Headlight (High) / Position light
(2) Headlight (Low)
(3) Front side marker light
(4) Front turn signal light
(5) Front fog light (if equipped)
(6) Tail light
WARNING - Working on
the lights
Prior to working on the light, firmly
apply the parking brake, ensure
that the ignition switch is turned to
the LOCK position and turn off the
lights to avoid sudden movement
of the vehicle and burning your fin-
gers or receiving an electric shock.
CAUTION
Be sure to replace the burned-out
bulb with one of the same wattage
rating. Otherwise, it may cause
damage to the fuse or electric
wiring system.
CAUTION
If you don’t have necessary tools,
the correct bulbs and the expertise,
consult an authorized HYUNDAI
dealer. In many cases, it is difficult
to replace vehicle light bulbs
because other parts of the vehicle
must be removed before you can
get to the bulb. This is especially
true if you have to remove the head-
light assembly to
get to the bulb(s).
Removing/installingthe headlight
assembly can result in damage to
the vehicle.OBH078030

755
Maintenance
G220101AUN-EU

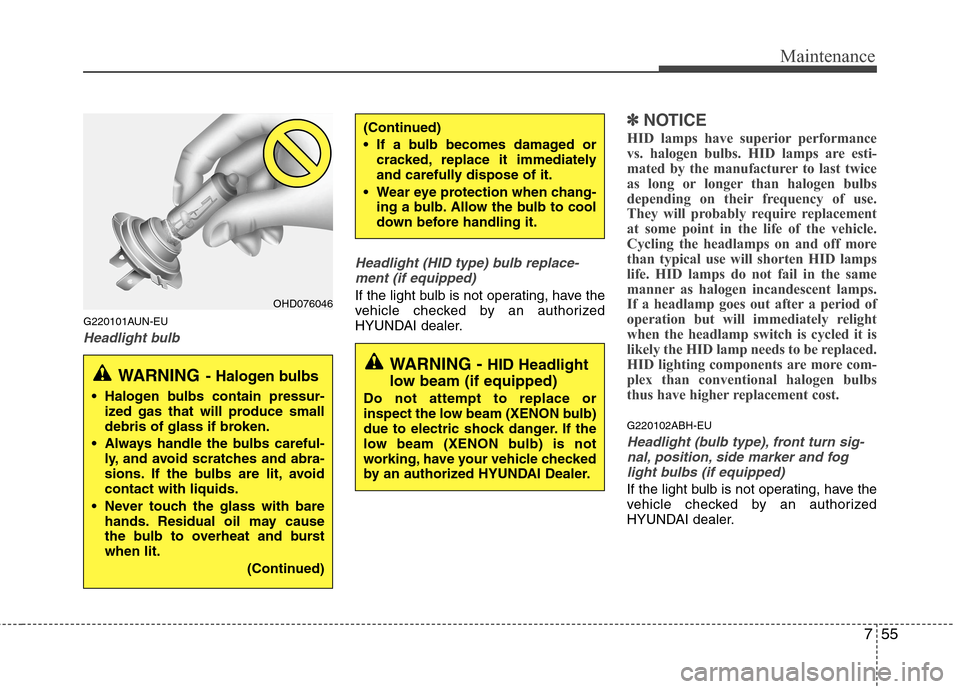

Headlight bulbHeadlight (HID type) bulb replace-
ment (if equipped)
If the light bulb is not operating, have the
vehicle checked by an authorized
HYUNDAI dealer.
✽ ✽
NOTICE
HID lamps have superior performance
vs. halogen bulbs. HID lamps are esti-
mated by the manufacturer to last twice
as long or longer than halogen bulbs
depending on their frequency of use.
They will probably require replacement
at some point in the life of the vehicle.
Cycling the headlamps on and off more
than typical use will shorten HID lamps
life. HID lamps do not fail in the same
manner as halogen incandescent lamps.
If a headlamp goes out after a period of
operation but will immediately relight
when the headlamp switch is cycled it is
likely the HID lamp needs to be replaced.
HID lighting components are more com-
plex than conventional halogen bulbs
thus have higher replacement cost.
G220102ABH-EU
Headlight (bulb type), front turn sig-
nal, position, side marker and fog
light bulbs (if equipped)
If the light bulb is not operating, have the
vehicle checked by an authorized
HYUNDAI dealer.
(Continued)
If a bulb becomes damaged or
cracked, replace it immediately
and carefully dispose of it.
Wear eye protection when chang-
ing a bulb. Allow the bulb to cool
down before handling it.
OHD076046
WARNING- Halogen bulbs
Halogen bulbs contain pressur-
ized gas that will produce small
debris of glass if broken.
Always handle the bulbs careful-
ly, and avoid scratches and abra-
sions. If the bulbs are lit, avoid
contact with liquids.
Never touch the glass with bare
hands. Residual oil may cause
the bulb to overheat and burst
when lit.
(Continued)
WARNING - HID Headlight
low beam (if equipped)
Do not attempt to replace or
inspect the low beam (XENON bulb)
due to electric shock danger. If the
low beam (XENON bulb) is not
working, have your vehicle checked
by an authorized HYUNDAI Dealer.
