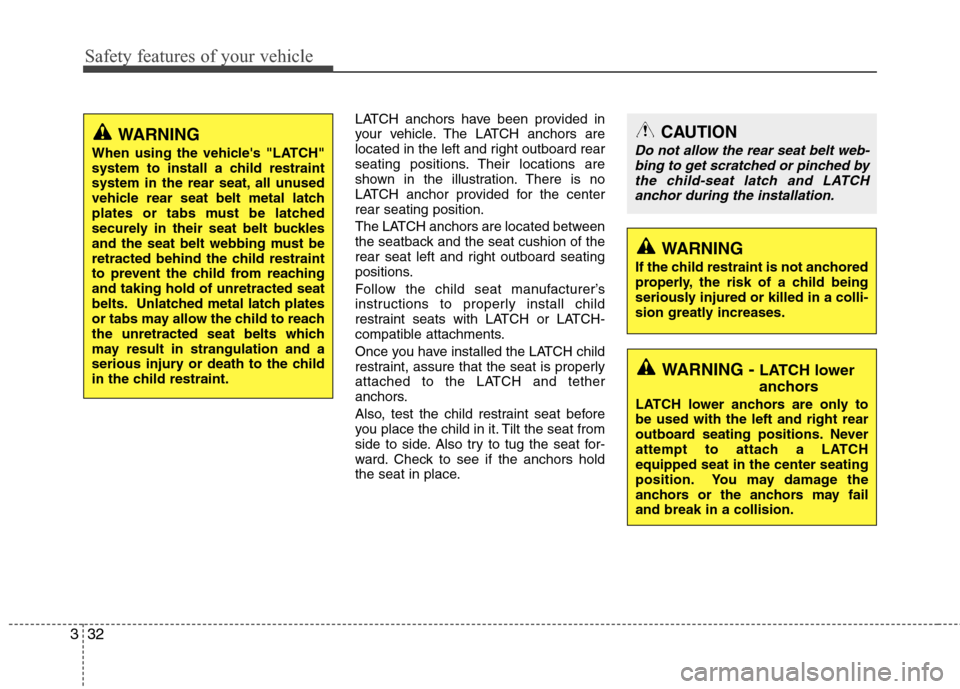

Page 51 of 409

Hyundai Genesis 2011 Workshop Manual Safety features of your vehicle
32 3
LATCH anchors have been provided in
your vehicle. The LATCH anchors are
located in the left and right outboard rear
seating positions. Their locations are
shown in

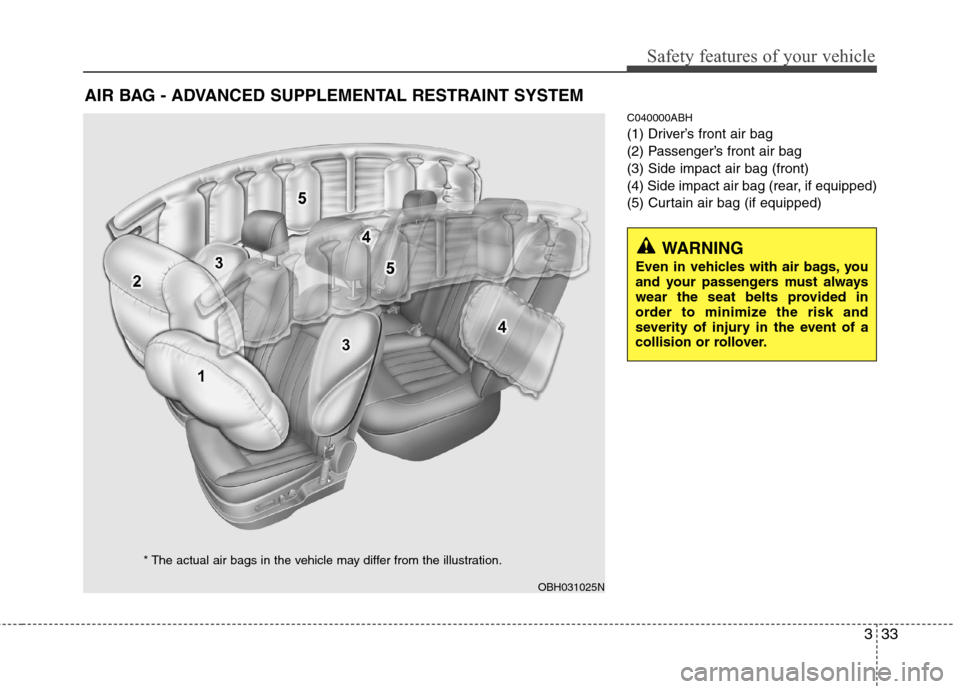

Page 52 of 409

Hyundai Genesis 2011 Workshop Manual 333
Safety features of your vehicle
C040000ABH
(1) Driver’s front air bag
(2) Passenger’s front air bag
(3) Side impact air bag (front)
(4) Side impact air bag (rear, if equipped)
(5) Curtain air

Page 53 of 409

Hyundai Genesis 2011 Workshop Manual Safety features of your vehicle
34 3
C040900AEN-EU
How does the air bag system
operate
 Air bags are activated (able to inflate if
necessary) only when the ignition
switch is turned to the ON or STAR

Page 54 of 409

Hyundai Genesis 2011 Workshop Manual 335
Safety features of your vehicle
C040902AEN
Noise and smoke
When the air bags inflate, they make a loud
noise and they leave smoke and powder in
the air inside of the vehicle. This is normal
and is

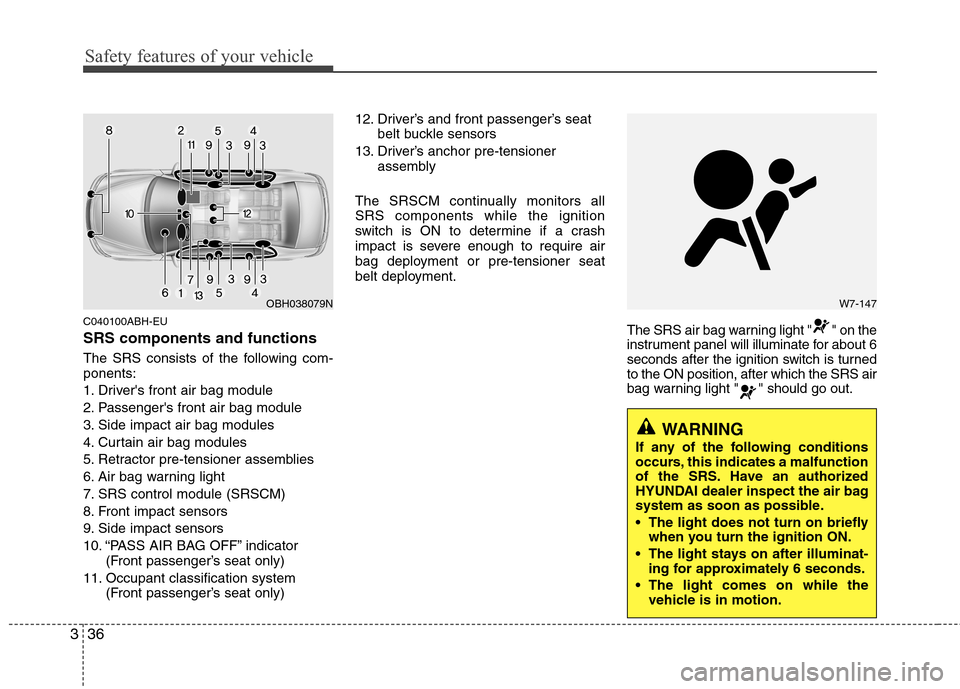

Page 55 of 409

Hyundai Genesis 2011 Workshop Manual Safety features of your vehicle
36 3
C040100ABH-EU
SRS components and functions
The SRS consists of the following com-
ponents:
1. Drivers front air bag module
2. Passengers front air bag module
3.

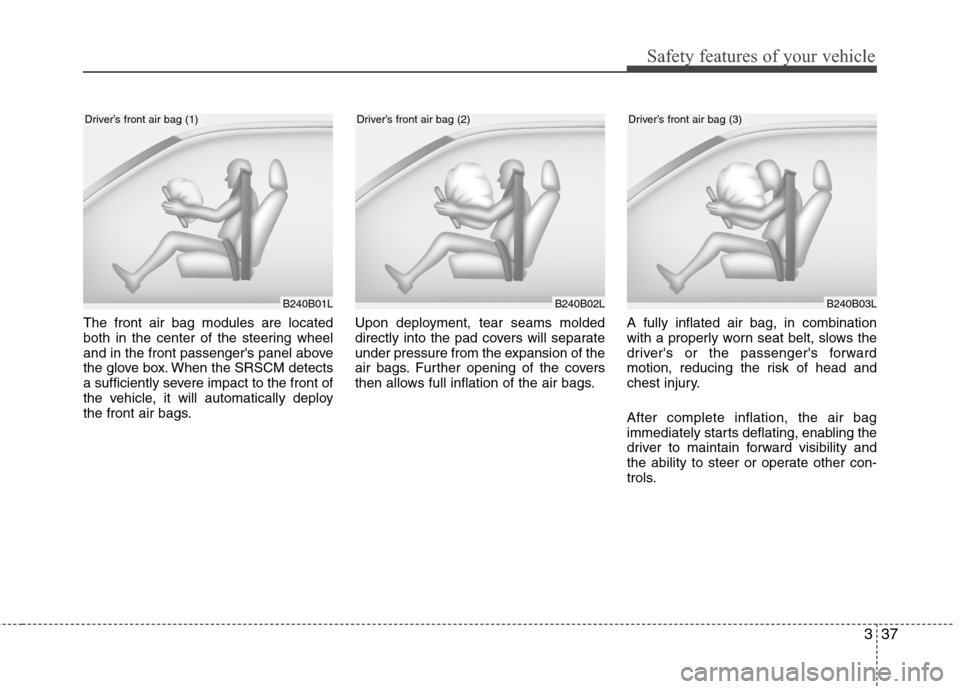

Page 56 of 409

Hyundai Genesis 2011 Workshop Manual 337
Safety features of your vehicle
The front air bag modules are located
both in the center of the steering wheel
and in the front passengers panel above
the glove box. When the SRSCM detects
a suff

Page 57 of 409

Hyundai Genesis 2011 Workshop Manual Safety features of your vehicle
38 3
WARNING
 Do not install or place any acces-
sories (drink holder, cassette
holder, sticker, etc.) on the front
passengers panel above the
glove box in a vehicle

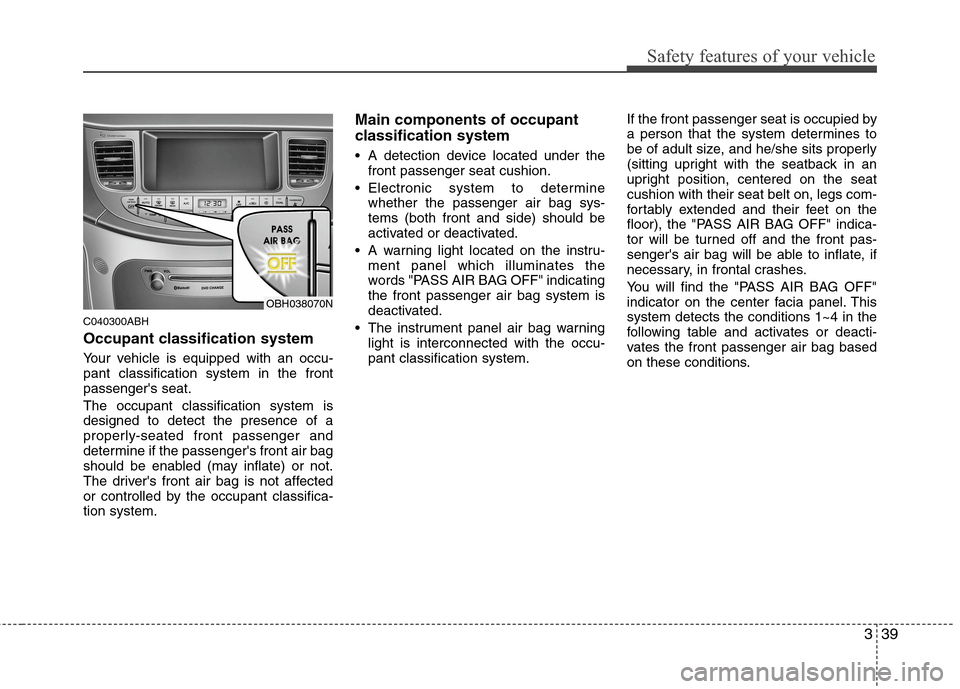

Page 58 of 409

Hyundai Genesis 2011 Workshop Manual 339
Safety features of your vehicle
C040300ABH
Occupant classification system
Your vehicle is equipped with an occu-
pant classification system in the front
passengers seat.
The occupant classificati

Page 59 of 409

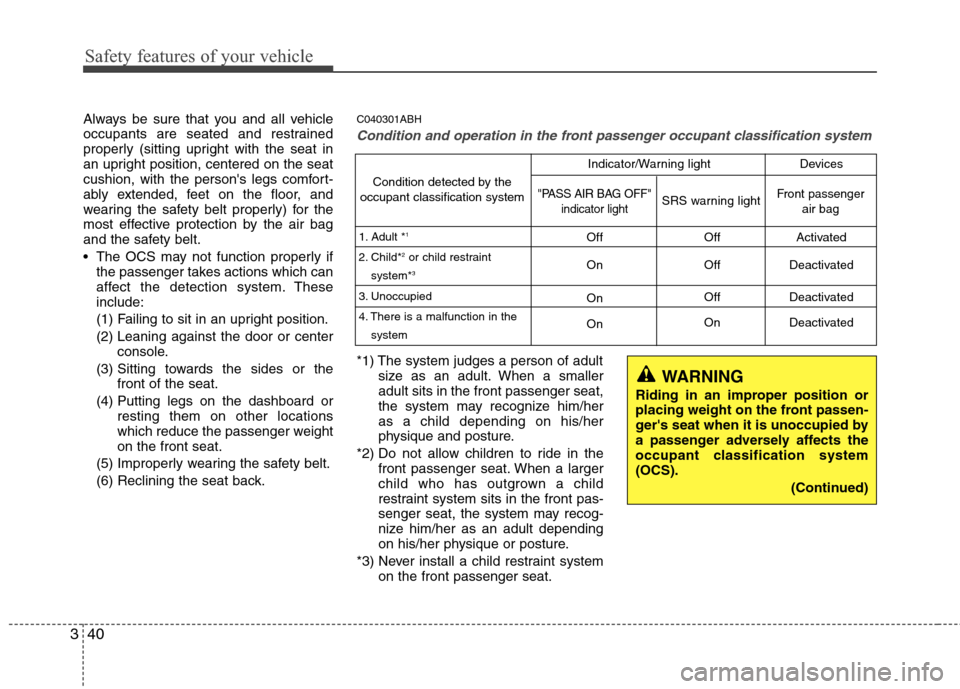

Hyundai Genesis 2011 Workshop Manual Safety features of your vehicle
40 3
Always be sure that you and all vehicle
occupants are seated and restrained
properly (sitting upright with the seat in
an upright position, centered on the seat
cu

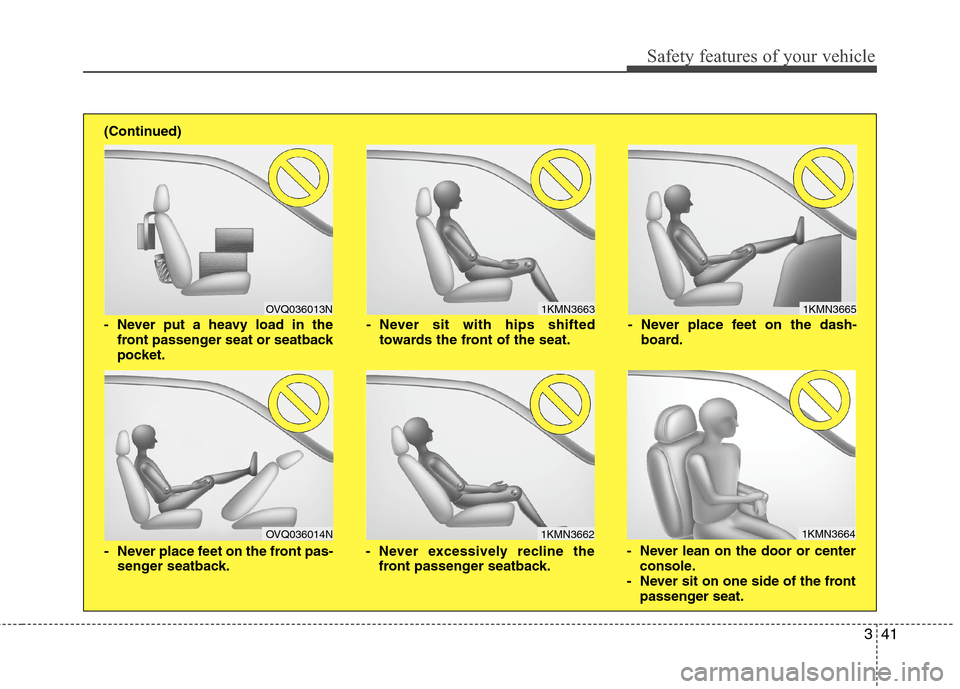

Page 60 of 409

Hyundai Genesis 2011 Workshop Manual 341
Safety features of your vehicle
1KMN3663
1KMN3664
1KMN3665
- Never sit with hips shifted
towards the front of the seat.
- Never lean on the door or center
console.
- Never sit on one side of the f
