Hyundai Genesis 2012 Owner's Guide
Manufacturer: HYUNDAI, Model Year: 2012, Model line: Genesis, Model: Hyundai Genesis 2012Pages: 393, PDF Size: 8.81 MB

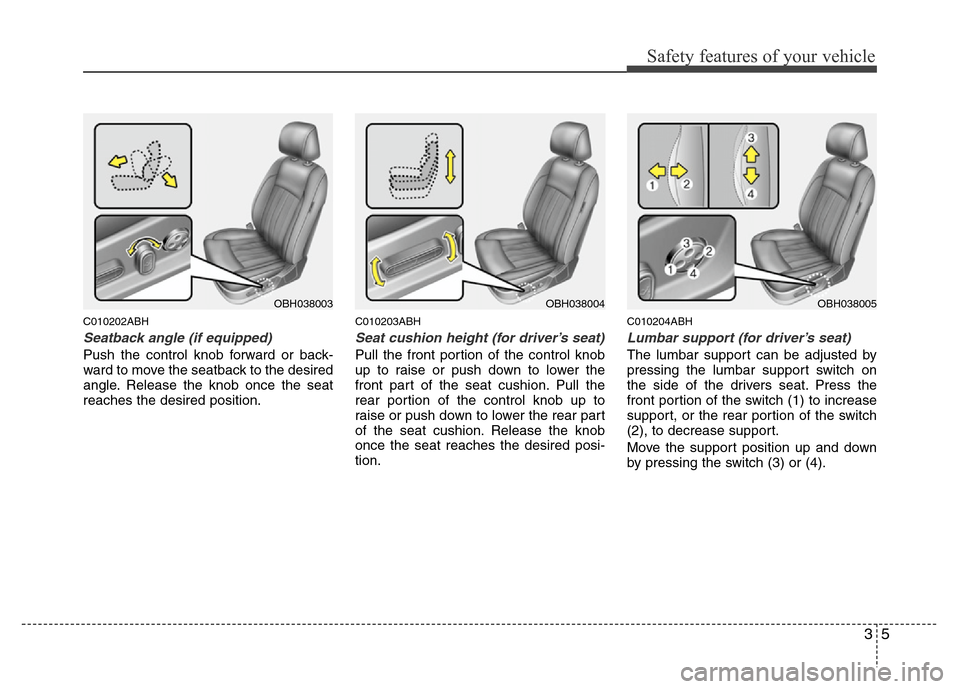

Page 21 of 393
35
Safety features of your vehicle
C010202ABH
Seatback angle (if equipped)
Push the control knob forward or back-
ward to move the seatback to the desired
angle. Release the knob once the seat
reaches the desired position.
C010203ABH
Seat cushion height (for driver’s seat)
Pull the front portion of the control knob
up to raise or push down to lower the
front part of the seat cushion. Pull the
rear portion of the control knob up to
raise or push down to lower the rear part
of the seat cushion. Release the knob
once the seat reaches the desired posi-
tion.
C010204ABH
Lumbar support (for driver’s seat)
The lumbar support can be adjusted by
pressing the lumbar support switch on
the side of the drivers seat. Press the
front portion of the switch (1) to increase
support, or the rear portion of the switch
(2), to decrease support.
Move the support position up and down
by pressing the switch (3) or (4).
OBH038003OBH038004OBH038005
Page 22 of 393
Safety features of your vehicle
6 3
C010104ABH

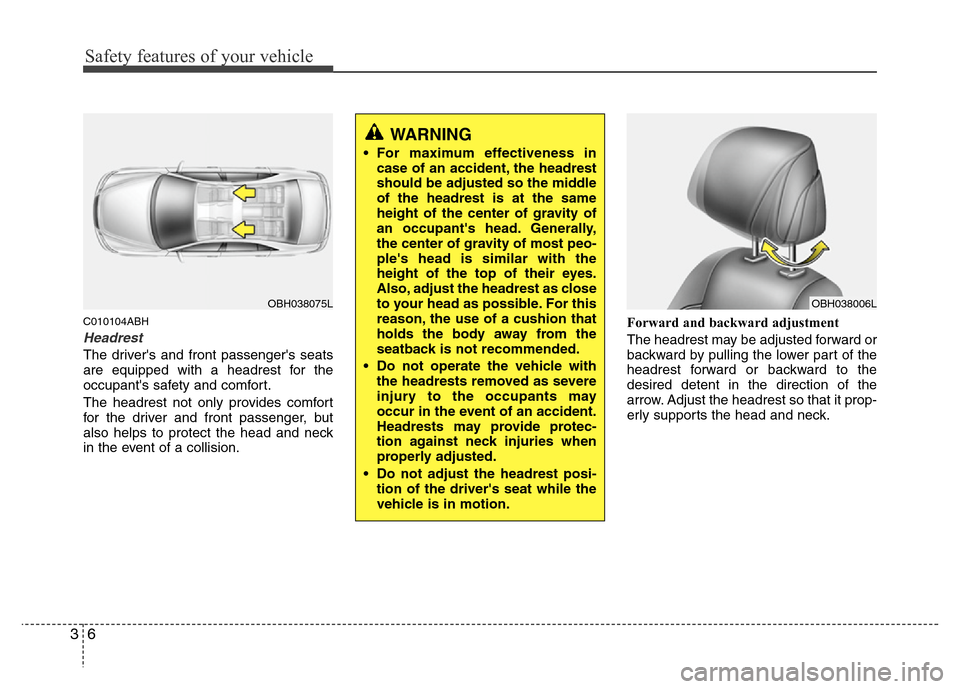

Headrest
The driver's and front passenger's seats
are equipped with a headrest for the
occupant's safety and comfort.
The headrest not only provides comfort
for the driver and front passenger, but
also helps to protect the head and neck
in the event of a collision.Forward and backward adjustment
The headrest may be adjusted forward or
backward by pulling the lower part of the
headrest forward or backward to the
desired detent in the direction of the
arrow. Adjust the headrest so that it prop-
erly supports the head and neck.
OBH038075LOBH038006L
WARNING
• For maximum effectiveness in
case of an accident, the headrest
should be adjusted so the middle
of the headrest is at the same
height of the center of gravity of
an occupant's head. Generally,
the center of gravity of most peo-
ple's head is similar with the
height of the top of their eyes.
Also, adjust the headrest as close
to your head as possible. For this
reason, the use of a cushion that
holds the body away from the
seatback is not recommended.
• Do not operate the vehicle with
the headrests removed as severe
injury to the occupants may
occur in the event of an accident.
Headrests may provide protec-
tion against neck injuries when
properly adjusted.
• Do not adjust the headrest posi-
tion of the driver's seat while the
vehicle is in motion.
Page 23 of 393
37
Safety features of your vehicle

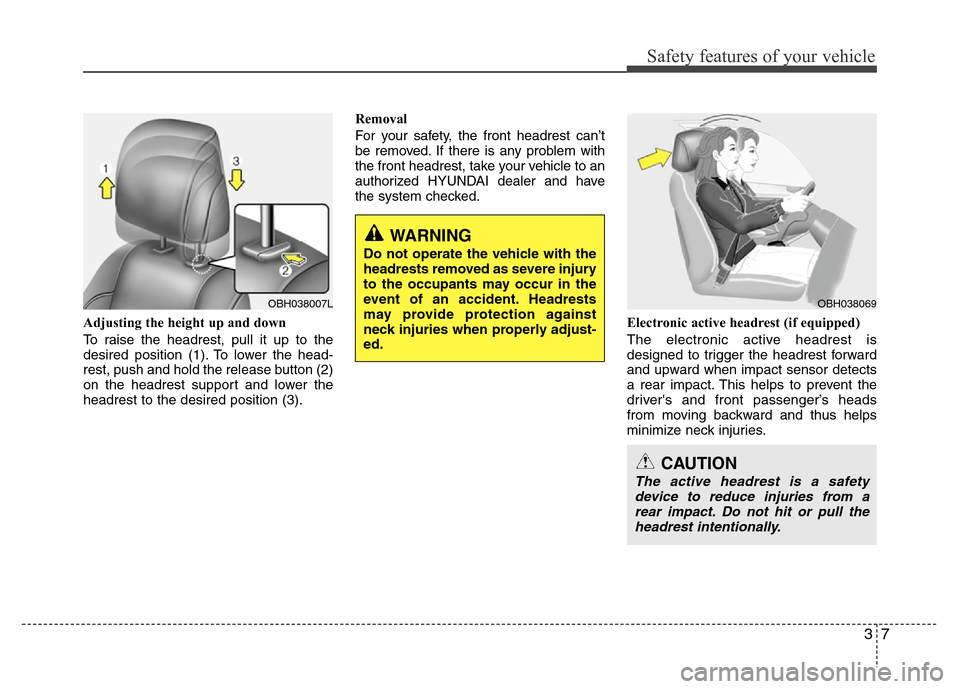

Adjusting the height up and down
To raise the headrest, pull it up to the
desired position (1). To lower the head-
rest, push and hold the release button (2)
on the headrest support and lower the
headrest to the desired position (3).Removal
For your safety, the front headrest can’t
be removed. If there is any problem with
the front headrest, take your vehicle to an
authorized HYUNDAI dealer and have
the system checked.
Electronic active headrest (if equipped)
The electronic active headrest is
designed to trigger the headrest forward
and upward when impact sensor detects
a rear impact. This helps to prevent the
driver's and front passenger’s heads
from moving backward and thus helps
minimize neck injuries.
OBH038007L
WARNING
Do not operate the vehicle with the
headrests removed as severe injury
to the occupants may occur in the
event of an accident. Headrests
may provide protection against
neck injuries when properly adjust-
ed.
OBH038069
CAUTION
The active headrest is a safety
device to reduce injuries from a
rear impact. Do not hit or pull the
headrest intentionally.
Page 24 of 393
Safety features of your vehicle
8 3
C010107ABH

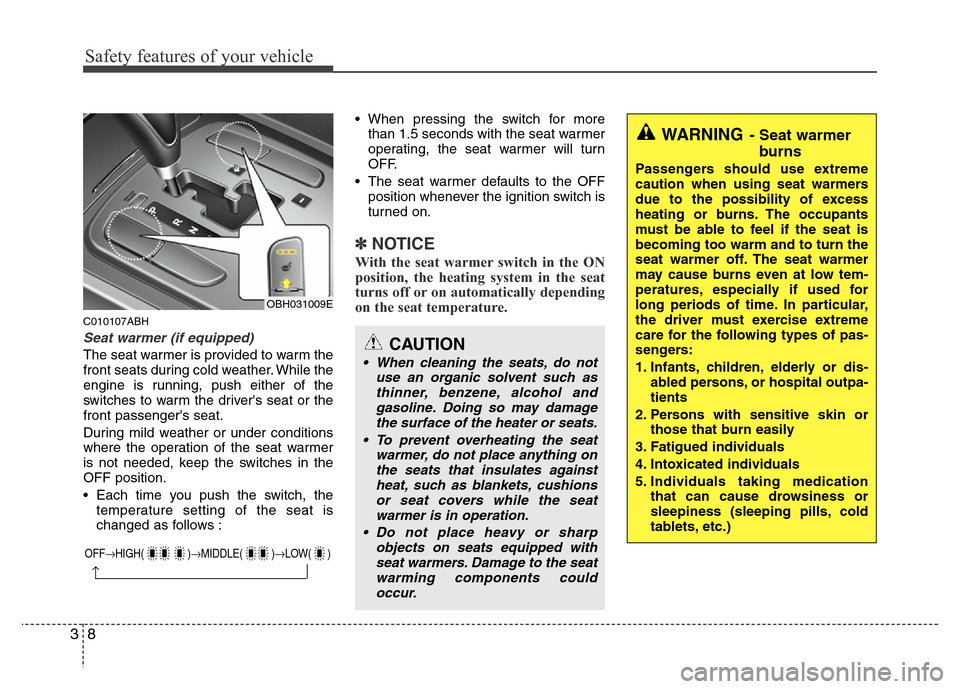

Seat warmer (if equipped)
The seat warmer is provided to warm the
front seats during cold weather. While the
engine is running, push either of the
switches to warm the driver's seat or the
front passenger's seat.
During mild weather or under conditions
where the operation of the seat warmer
is not needed, keep the switches in the
OFF position.
• Each time you push the switch, the
temperature setting of the seat is
changed as follows :• When pressing the switch for more
than 1.5 seconds with the seat warmer
operating, the seat warmer will turn
OFF.
• The seat warmer defaults to the OFF
position whenever the ignition switch is
turned on.
✽NOTICE
With the seat warmer switch in the ON
position, the heating system in the seat
turns off or on automatically depending
on the seat temperature.
OBH031009E
OFF→HIGH( )→MIDDLE( )→LOW( )
→
CAUTION
• When cleaning the seats, do not
use an organic solvent such as
thinner, benzene, alcohol and
gasoline. Doing so may damage
the surface of the heater or seats.
• To prevent overheating the seat
warmer, do not place anything on
the seats that insulates against
heat, such as blankets, cushions
or seat covers while the seat
warmer is in operation.
• Do not place heavy or sharp
objects on seats equipped with
seat warmers. Damage to the seat
warming components could
occur.
WARNING- Seat warmer
burns
Passengers should use extreme
caution when using seat warmers
due to the possibility of excess
heating or burns. The occupants
must be able to feel if the seat is
becoming too warm and to turn the
seat warmer off. The seat warmer
may cause burns even at low tem-
peratures, especially if used for
long periods of time. In particular,
the driver must exercise extreme
care for the following types of pas-
sengers:
1. Infants, children, elderly or dis-
abled persons, or hospital outpa-
tients
2. Persons with sensitive skin or
those that burn easily
3. Fatigued individuals
4. Intoxicated individuals
5. Individuals taking medication
that can cause drowsiness or
sleepiness (sleeping pills, cold
tablets, etc.)
Page 25 of 393
39
Safety features of your vehicle
C010109ABH

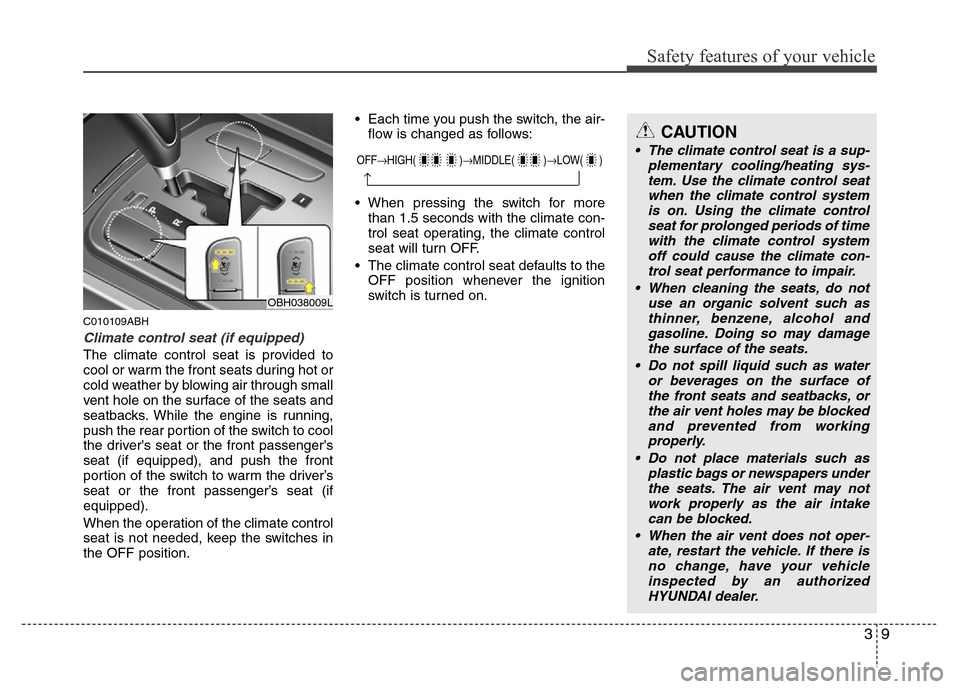

Climate control seat (if equipped)
The climate control seat is provided to
cool or warm the front seats during hot or
cold weather by blowing air through small
vent hole on the surface of the seats and
seatbacks. While the engine is running,
push the rear portion of the switch to cool
the driver's seat or the front passenger's
seat (if equipped), and push the front
portion of the switch to warm the driver’s
seat or the front passenger’s seat (if
equipped).
When the operation of the climate control
seat is not needed, keep the switches in
the OFF position.• Each time you push the switch, the air-
flow is changed as follows:
• When pressing the switch for more
than 1.5 seconds with the climate con-
trol seat operating, the climate control
seat will turn OFF.
• The climate control seat defaults to the
OFF position whenever the ignition
switch is turned on.
OBH038009L
CAUTION
• The climate control seat is a sup-
plementary cooling/heating sys-
tem. Use the climate control seat
when the climate control system
is on. Using the climate control
seat for prolonged periods of time
with the climate control system
off could cause the climate con-
trol seat performance to impair.
• When cleaning the seats, do not
use an organic solvent such as
thinner, benzene, alcohol and
gasoline. Doing so may damage
the surface of the seats.
• Do not spill liquid such as water
or beverages on the surface of
the front seats and seatbacks, or
the air vent holes may be blocked
and prevented from working
properly.
• Do not place materials such as
plastic bags or newspapers under
the seats. The air vent may not
work properly as the air intake
can be blocked.
• When the air vent does not oper-
ate, restart the vehicle. If there is
no change, have your vehicle
inspected by an authorized
HYUNDAI dealer.OFF→HIGH( )→MIDDLE( )→LOW( )
→

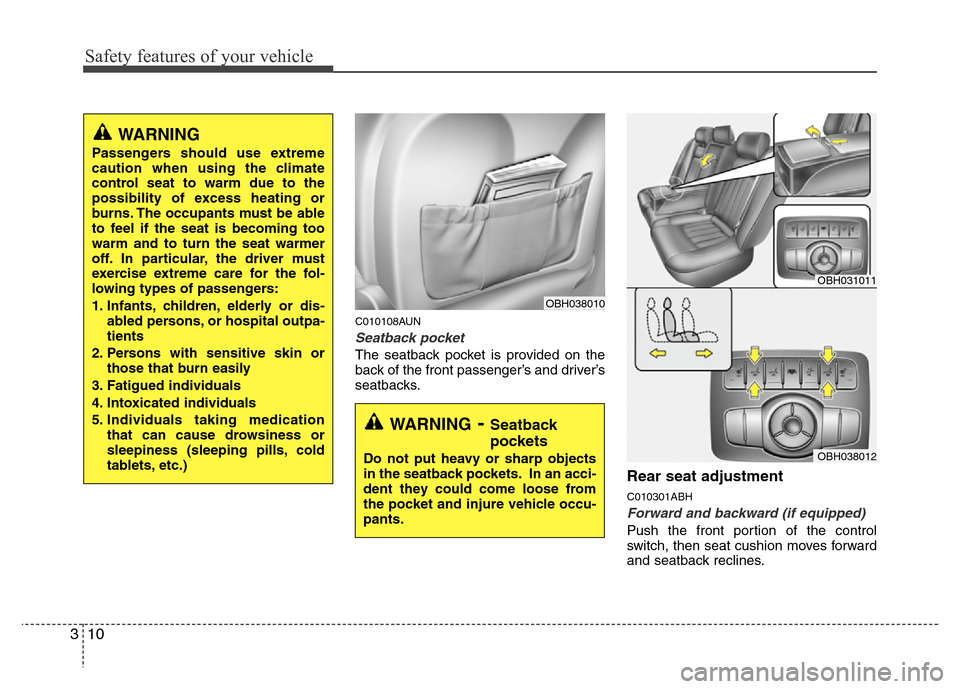

Page 26 of 393
Safety features of your vehicle
10 3
C010108AUN
Seatback pocket
The seatback pocket is provided on the
back of the front passenger’s and driver’s
seatbacks.
Rear seat adjustment
C010301ABH
Forward and backward (if equipped)
Push the front portion of the control
switch, then seat cushion moves forward
and seatback reclines.
WARNING
Passengers should use extreme
caution when using the climate
control seat to warm due to the
possibility of excess heating or
burns. The occupants must be able
to feel if the seat is becoming too
warm and to turn the seat warmer
off. In particular, the driver must
exercise extreme care for the fol-
lowing types of passengers:
1. Infants, children, elderly or dis-
abled persons, or hospital outpa-
tients
2. Persons with sensitive skin or
those that burn easily
3. Fatigued individuals
4. Intoxicated individuals
5. Individuals taking medication
that can cause drowsiness or
sleepiness (sleeping pills, cold
tablets, etc.)
WARNING- Seatback
pockets
Do not put heavy or sharp objects
in the seatback pockets. In an acci-
dent they could come loose from
the pocket and injure vehicle occu-
pants.
OBH038010
OBH031011
OBH038012
Page 27 of 393
311
Safety features of your vehicle

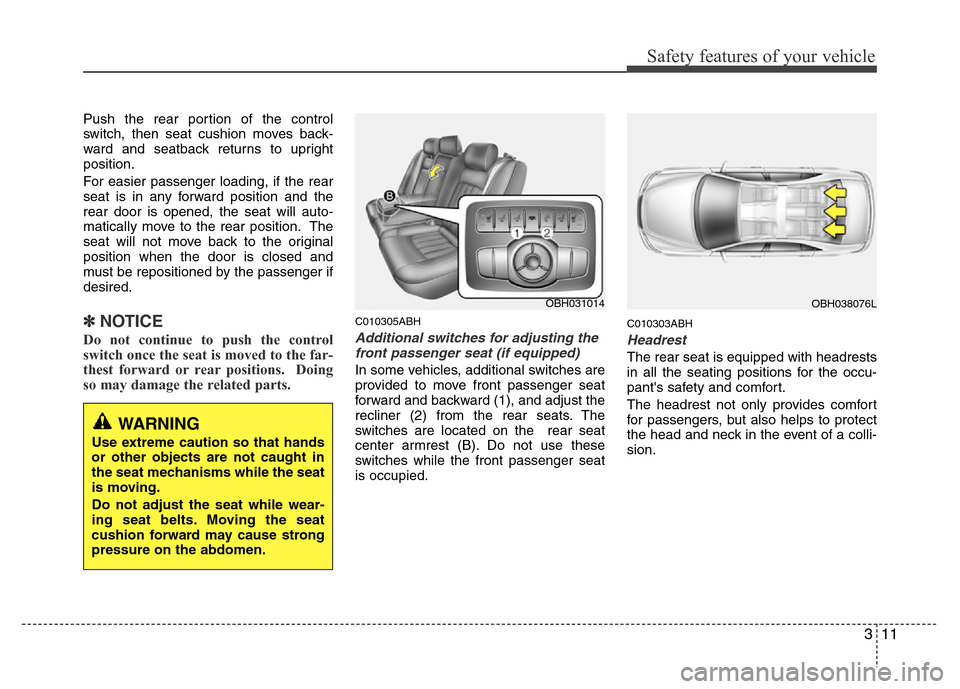

Push the rear portion of the control
switch, then seat cushion moves back-
ward and seatback returns to upright
position.
For easier passenger loading, if the rear
seat is in any forward position and the
rear door is opened, the seat will auto-
matically move to the rear position. The
seat will not move back to the original
position when the door is closed and
must be repositioned by the passenger if
desired.
✽NOTICE
Do not continue to push the control
switch once the seat is moved to the far-
thest forward or rear positions. Doing
so may damage the related parts.
C010305ABH
Additional switches for adjusting the
front passenger seat (if equipped)
In some vehicles, additional switches are
provided to move front passenger seat
forward and backward (1), and adjust the
recliner (2) from the rear seats. The
switches are located on the rear seat
center armrest (B). Do not use these
switches while the front passenger seat
is occupied.
C010303ABH
Headrest
The rear seat is equipped with headrests
in all the seating positions for the occu-
pant's safety and comfort.
The headrest not only provides comfort
for passengers, but also helps to protect
the head and neck in the event of a colli-
sion.
WARNING
Use extreme caution so that hands
or other objects are not caught in
the seat mechanisms while the seat
is moving.
Do not adjust the seat while wear-
ing seat belts. Moving the seat
cushion forward may cause strong
pressure on the abdomen.
OBH031014OBH038076L
Page 28 of 393
Safety features of your vehicle
12 3

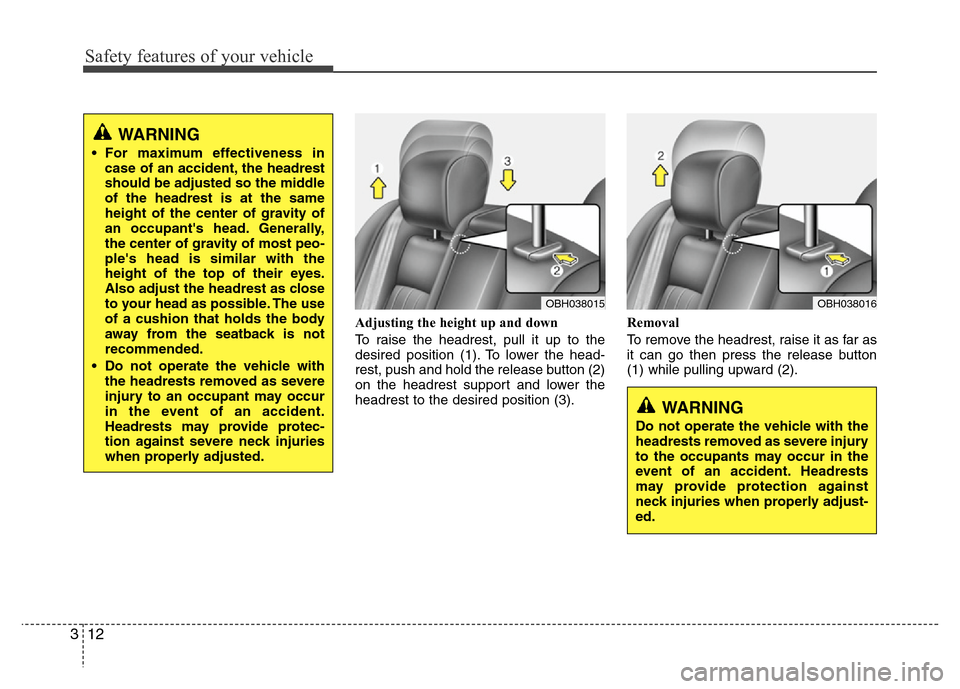

Adjusting the height up and down
To raise the headrest, pull it up to the
desired position (1). To lower the head-
rest, push and hold the release button (2)
on the headrest support and lower the
headrest to the desired position (3).Removal
To remove the headrest, raise it as far as
it can go then press the release button
(1) while pulling upward (2).
WARNING
• For maximum effectiveness in
case of an accident, the headrest
should be adjusted so the middle
of the headrest is at the same
height of the center of gravity of
an occupant's head. Generally,
the center of gravity of most peo-
ple's head is similar with the
height of the top of their eyes.
Also adjust the headrest as close
to your head as possible. The use
of a cushion that holds the body
away from the seatback is not
recommended.
• Do not operate the vehicle with
the headrests removed as severe
injury to an occupant may occur
in the event of an accident.
Headrests may provide protec-
tion against severe neck injuries
when properly adjusted.
OBH038015OBH038016
WARNING
Do not operate the vehicle with the
headrests removed as severe injury
to the occupants may occur in the
event of an accident. Headrests
may provide protection against
neck injuries when properly adjust-
ed.
Page 29 of 393

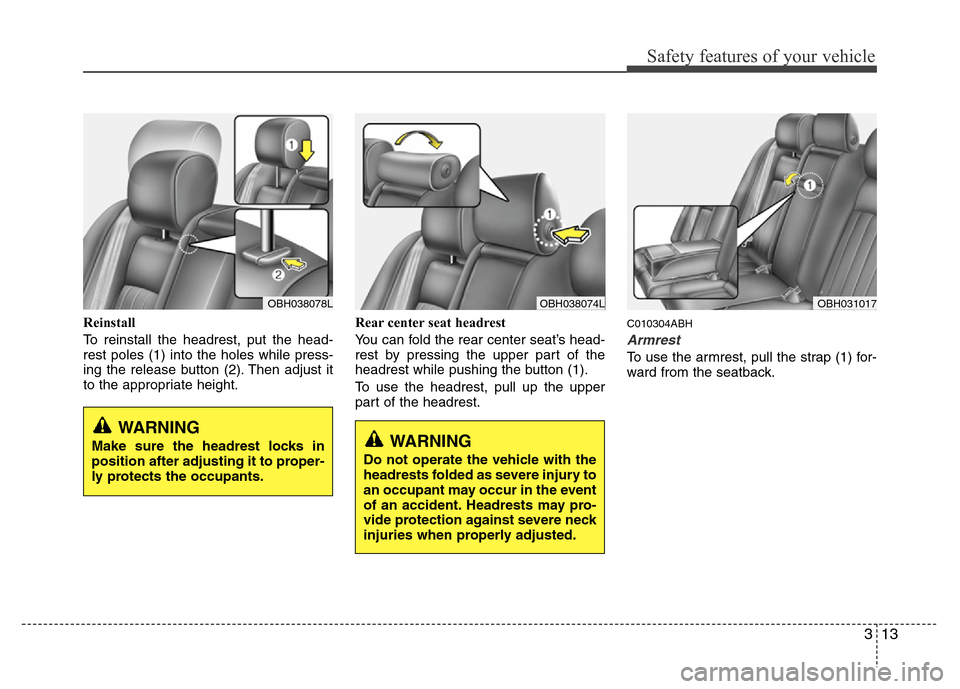

313
Safety features of your vehicle
Reinstall
To reinstall the headrest, put the head-
rest poles (1) into the holes while press-
ing the release button (2). Then adjust it
to the appropriate height.Rear center seat headrest
You can fold the rear center seat’s head-
rest by pressing the upper part of the
headrest while pushing the button (1).
To use the headrest, pull up the upper
part of the headrest.C010304ABH
Armrest
To use the armrest, pull the strap (1) for-
ward from the seatback.
OBH038078L
WARNING
Make sure the headrest locks in
position after adjusting it to proper-
ly protects the occupants.
OBH031017
WARNING
Do not operate the vehicle with the
headrests folded as severe injury to
an occupant may occur in the event
of an accident. Headrests may pro-
vide protection against severe neck
injuries when properly adjusted.
OBH038074L

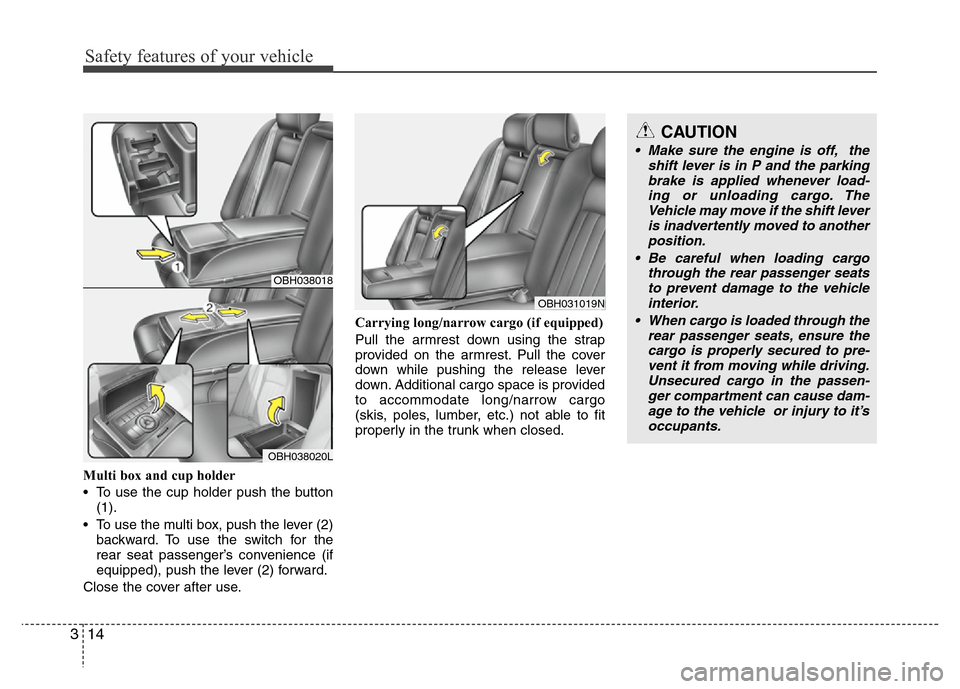

Page 30 of 393
Safety features of your vehicle
14 3
Multi box and cup holder
• To use the cup holder push the button
(1).
• To use the multi box, push the lever (2)
backward. To use the switch for the
rear seat passenger’s convenience (if
equipped), push the lever (2) forward.
Close the cover after use.Carrying long/narrow cargo (if equipped)
Pull the armrest down using the strap
provided on the armrest. Pull the cover
down while pushing the release lever
down. Additional cargo space is provided
to accommodate long/narrow cargo
(skis, poles, lumber, etc.) not able to fit
properly in the trunk when closed.
OBH038018
OBH038020L
OBH031019N
CAUTION
• Make sure the engine is off, the
shift lever is in P and the parking
brake is applied whenever load-
ing or unloading cargo. The
Vehicle may move if the shift lever
is inadvertently moved to another
position.
• Be careful when loading cargo
through the rear passenger seats
to prevent damage to the vehicle
interior.
• When cargo is loaded through the
rear passenger seats, ensure the
cargo is properly secured to pre-
vent it from moving while driving.
Unsecured cargo in the passen-
ger compartment can cause dam-
age to the vehicle or injury to it’s
occupants.
