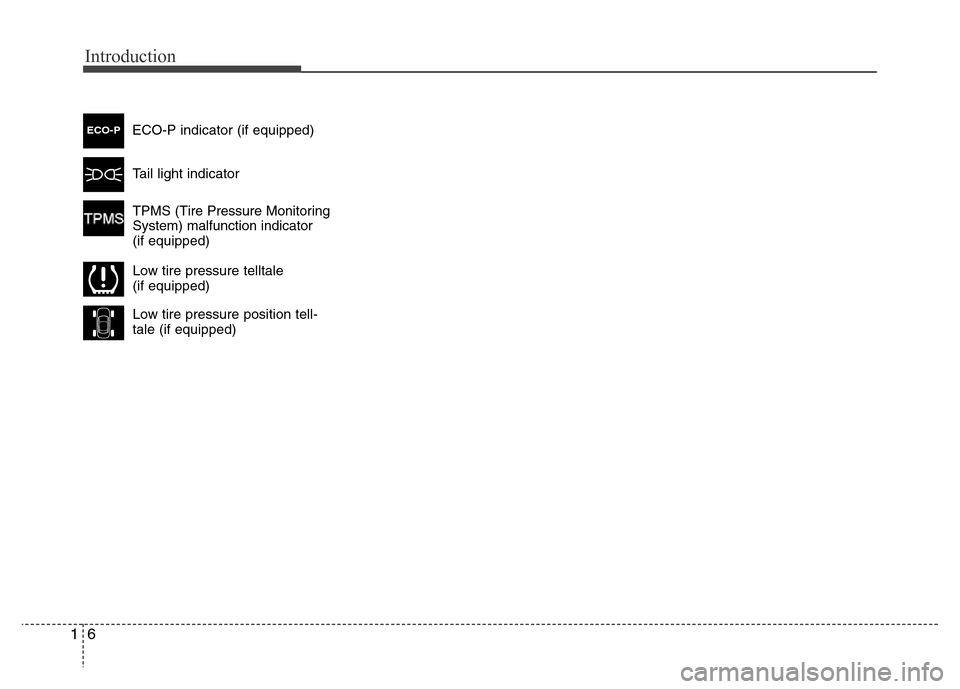

Page 11 of 393
Introduction
6 1
Low tire pressure telltale
(if equipped)
Low tire pressure position tell-
tale (if equipped)
Tail light indicator
TPMS (Tire Pressure Monitoring
System) malfunction indicator
(if equipped) ECO-P indicator (if equipped)
ECO-P

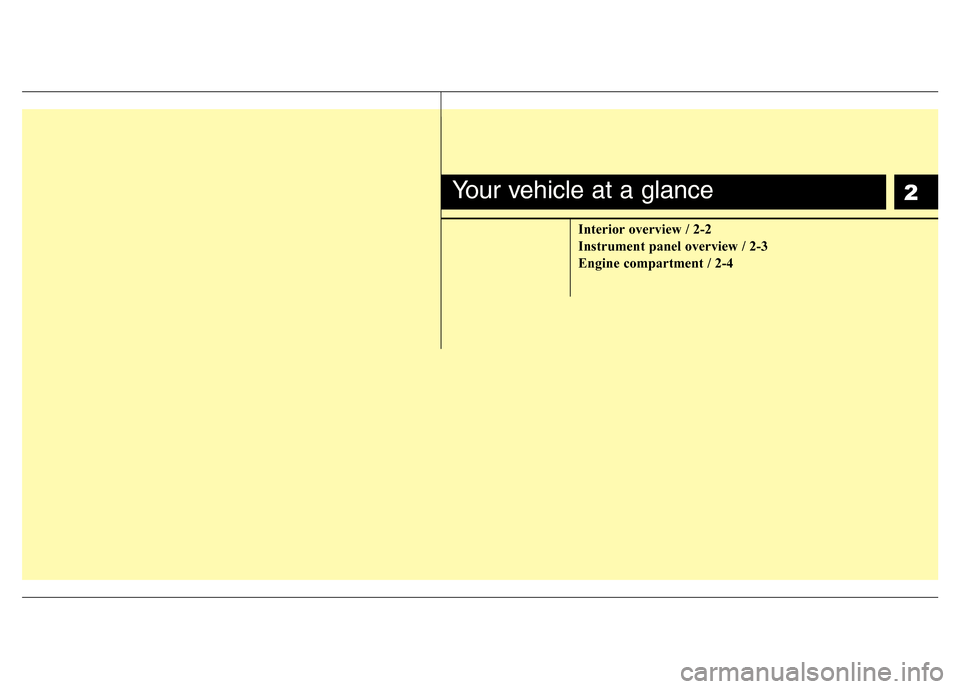

Page 12 of 393
2
Interior overview / 2-2
Instrument panel overview / 2-3
Engine compartment / 2-4
Your vehicle at a glance

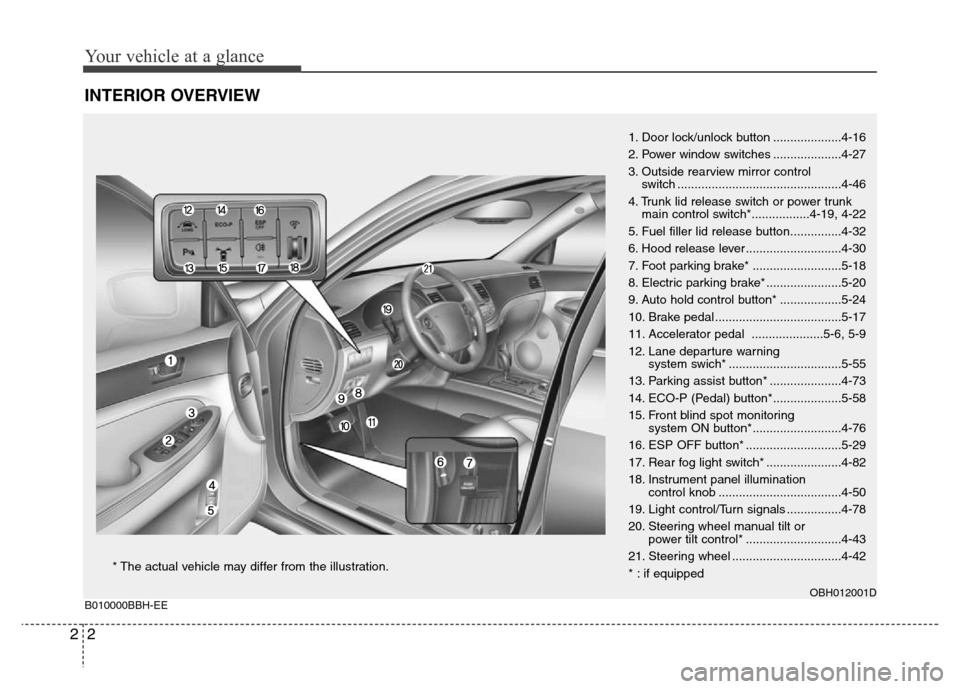

Page 13 of 393
Your vehicle at a glance
2 2
INTERIOR OVERVIEW
1. Door lock/unlock button ....................4-16
2. Power window switches ....................4-27
3. Outside rearview mirror control
switch ................................................4-46
4. Trunk lid release switch or power trunk
main control switch*.................4-19, 4-22
5. Fuel filler lid release button...............4-32
6. Hood release lever ............................4-30
7. Foot parking brake* ..........................5-18
8. Electric parking brake* ......................5-20
9. Auto hold control button* ..................5-24
10. Brake pedal .....................................5-17
11. Accelerator pedal .....................5-6, 5-9
12. Lane departure warning
system swich* .................................5-55
13. Parking assist button* .....................4-73
14. ECO-P (Pedal) button*....................5-58
15. Front blind spot monitoring
system ON button*..........................4-76
16. ESP OFF button* ............................5-29
17. Rear fog light switch* ......................4-82
18. Instrument panel illumination
control knob ....................................4-50
19. Light control/Turn signals ................4-78
20. Steering wheel manual tilt or
power tilt control* ............................4-43
21. Steering wheel ................................4-42
* : if equipped
OBH012001DB010000BBH-EE
* The actual vehicle may differ from the illustration.
Page 14 of 393
23
Your vehicle at a glance
INSTRUMENT PANEL OVERVIEW
1. Instrument cluster.............................4-48
2. Horn .................................................4-44
3. Driver’s front air bag .........................3-45
4. Wiper/Washer ...................................4-85
5. Ignition switch or engine start/
stop button* .................................5-4, 5-7
6. Climate control system .....................4-93
7. Digital clock ....................................4-113
8. Hazard warning flasher
switch ........................................4-77, 6-2
9. Shift lever .........................................5-11
10. Central control panel*...................4-118
11. Seat warmer or climate
control seat* ..............................3-8, 3-9
12. Vehicle height control button* .........5-36
13. Sport mode button* ........................5-35
14. Passenger’s front air bag ...............3-45
* : if equipped
OBH012002LB020000ABH-EE

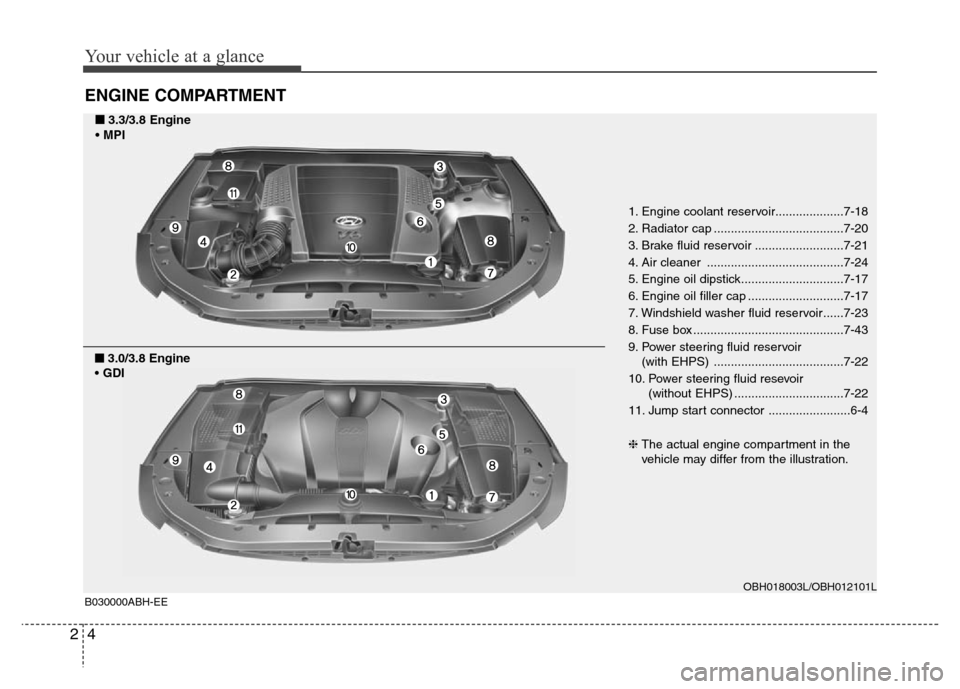

Page 15 of 393
Your vehicle at a glance
4 2
ENGINE COMPARTMENT
1. Engine coolant reservoir....................7-18
2. Radiator cap ......................................7-20
3. Brake fluid reservoir ..........................7-21
4. Air cleaner ........................................7-24
5. Engine oil dipstick..............................7-17
6. Engine oil filler cap ............................7-17
7. Windshield washer fluid reservoir......7-23
8. Fuse box ............................................7-43
9. Power steering fluid reservoir
(with EHPS) ......................................7-22
10. Power steering fluid resevoir
(without EHPS) ................................7-22
11. Jump start connector ........................6-4
❈The actual engine compartment in the
vehicle may differ from the illustration.
OBH018003L/OBH012101LB030000ABH-EE
■■3.3/3.8 Engine
• MPI
■3.0/3.8 Engine
• GDI

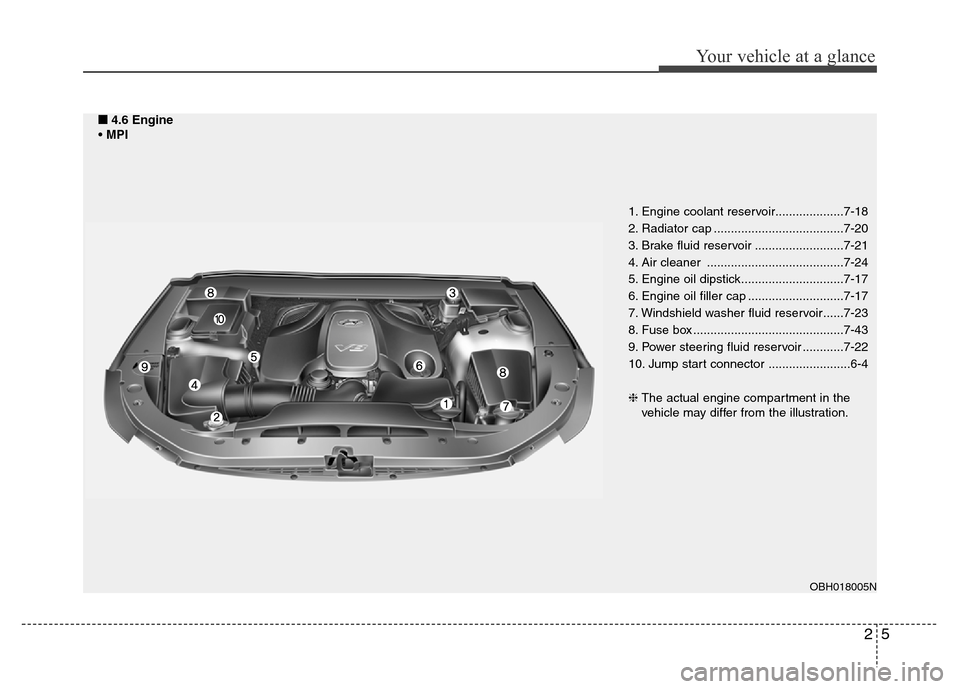

Page 16 of 393
25
Your vehicle at a glance
1. Engine coolant reservoir....................7-18
2. Radiator cap ......................................7-20
3. Brake fluid reservoir ..........................7-21
4. Air cleaner ........................................7-24
5. Engine oil dipstick..............................7-17
6. Engine oil filler cap ............................7-17
7. Windshield washer fluid reservoir......7-23
8. Fuse box ............................................7-43
9. Power steering fluid reservoir ............7-22
10. Jump start connector ........................6-4
❈The actual engine compartment in the
vehicle may differ from the illustration.
OBH018005N
■■4.6 Engine
• MPI

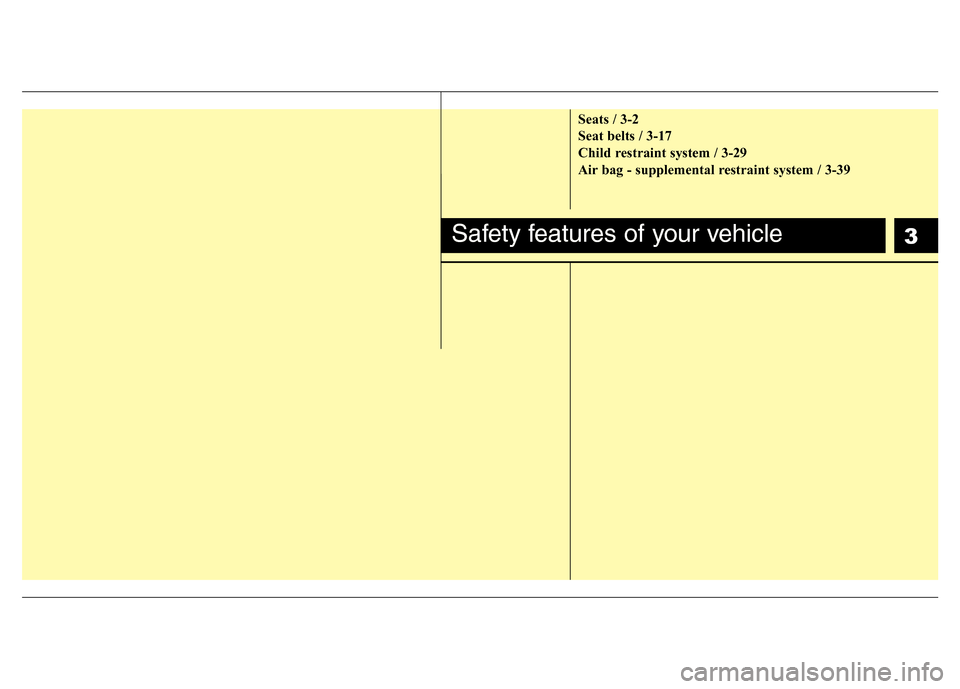

Page 17 of 393
3
Seats / 3-2
Seat belts / 3-17
Child restraint system / 3-29
Air bag - supplemental restraint system / 3-39
Safety features of your vehicle
Page 18 of 393

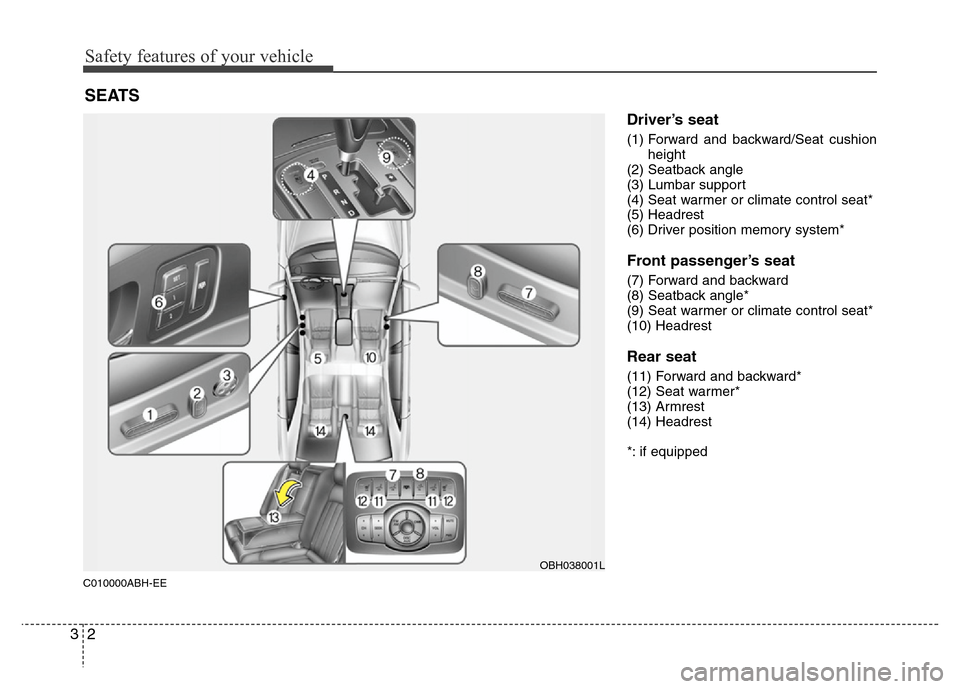

Safety features of your vehicle
2 3
C010000ABH-EE
Driver’s seat
(1) Forward and backward/Seat cushion
height
(2) Seatback angle
(3) Lumbar support
(4) Seat warmer or climate control seat*
(5) Headrest
(6) Driver position memory system*
Front passenger’s seat
(7) Forward and backward
(8) Seatback angle*
(9) Seat warmer or climate control seat*
(10) Headrest
Rear seat
(11) Forward and backward*
(12) Seat warmer*
(13) Armrest
(14) Headrest
*: if equipped
SEATS
OBH038001L

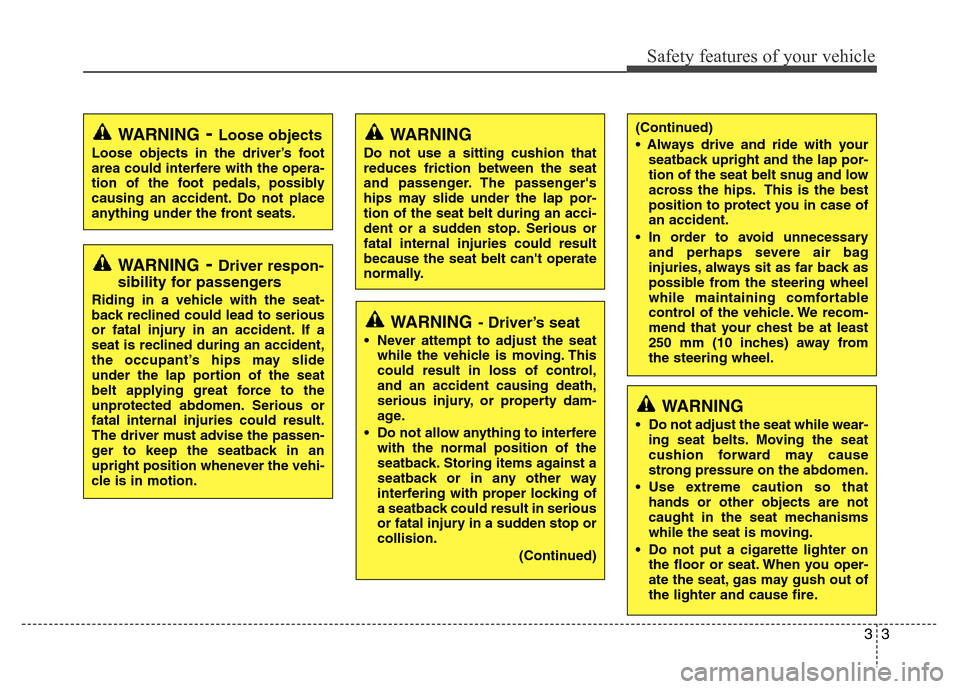

Page 19 of 393
33
Safety features of your vehicle
WARNING- Driver’s seat
• Never attempt to adjust the seat
while the vehicle is moving. This
could result in loss of control,
and an accident causing death,
serious injury, or property dam-
age.
• Do not allow anything to interfere
with the normal position of the
seatback. Storing items against a
seatback or in any other way
interfering with proper locking of
a seatback could result in serious
or fatal injury in a sudden stop or
collision.
(Continued)
WARNING- Driver respon-
sibility for passengers
Riding in a vehicle with the seat-
back reclined could lead to serious
or fatal injury in an accident. If a
seat is reclined during an accident,
the occupant’s hips may slide
under the lap portion of the seat
belt applying great force to the
unprotected abdomen. Serious or
fatal internal injuries could result.
The driver must advise the passen-
ger to keep the seatback in an
upright position whenever the vehi-
cle is in motion.
WARNING
Do not use a sitting cushion that
reduces friction between the seat
and passenger. The passenger's
hips may slide under the lap por-
tion of the seat belt during an acci-
dent or a sudden stop. Serious or
fatal internal injuries could result
because the seat belt can't operate
normally.
WARNING
• Do not adjust the seat while wear-
ing seat belts. Moving the seat
cushion forward may cause
strong pressure on the abdomen.
• Use extreme caution so that
hands or other objects are not
caught in the seat mechanisms
while the seat is moving.
• Do not put a cigarette lighter on
the floor or seat. When you oper-
ate the seat, gas may gush out of
the lighter and cause fire.
WARNING- Loose objects
Loose objects in the driver’s foot
area could interfere with the opera-
tion of the foot pedals, possibly
causing an accident. Do not place
anything under the front seats.
(Continued)
• Always drive and ride with your
seatback upright and the lap por-
tion of the seat belt snug and low
across the hips. This is the best
position to protect you in case of
an accident.
• In order to avoid unnecessary
and perhaps severe air bag
injuries, always sit as far back as
possible from the steering wheel
while maintaining comfortable
control of the vehicle. We recom-
mend that your chest be at least
250 mm (10 inches) away from
the steering wheel.

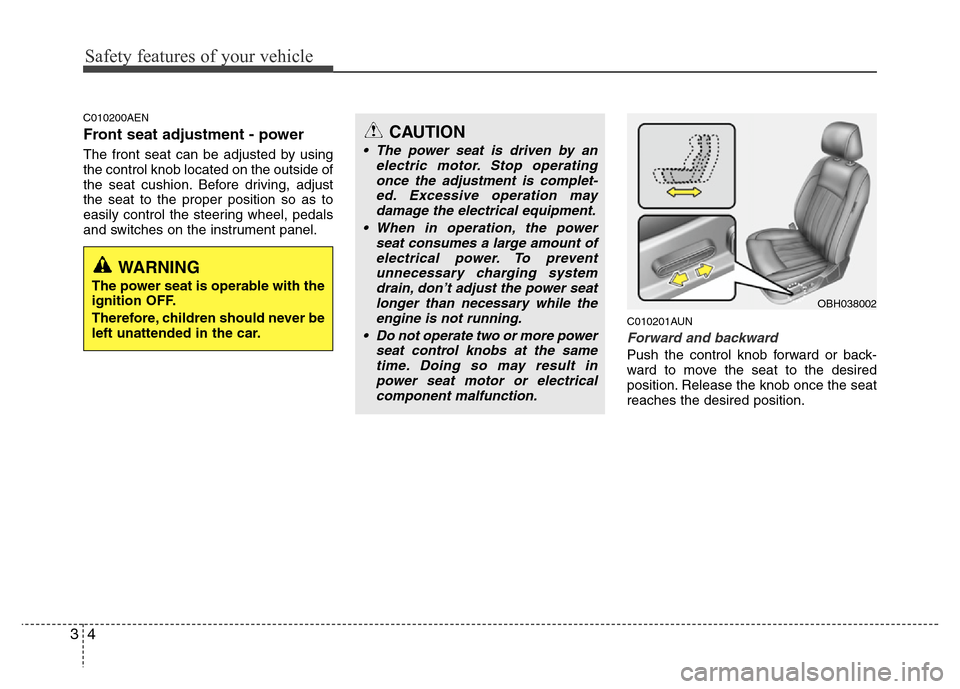

Page 20 of 393
Safety features of your vehicle
4 3
C010200AEN
Front seat adjustment - power
The front seat can be adjusted by using
the control knob located on the outside of
the seat cushion. Before driving, adjust
the seat to the proper position so as to
easily control the steering wheel, pedals
and switches on the instrument panel.
C010201AUN
Forward and backward
Push the control knob forward or back-
ward to move the seat to the desired
position. Release the knob once the seat
reaches the desired position.
CAUTION
• The power seat is driven by an
electric motor. Stop operating
once the adjustment is complet-
ed. Excessive operation may
damage the electrical equipment.
• When in operation, the power
seat consumes a large amount of
electrical power. To prevent
unnecessary charging system
drain, don’t adjust the power seat
longer than necessary while the
engine is not running.
• Do not operate two or more power
seat control knobs at the same
time. Doing so may result in
power seat motor or electrical
component malfunction.
WARNING
The power seat is operable with the
ignition OFF.
Therefore, children should never be
left unattended in the car.
OBH038002
