Hyundai Genesis 2014 Owner's Manual

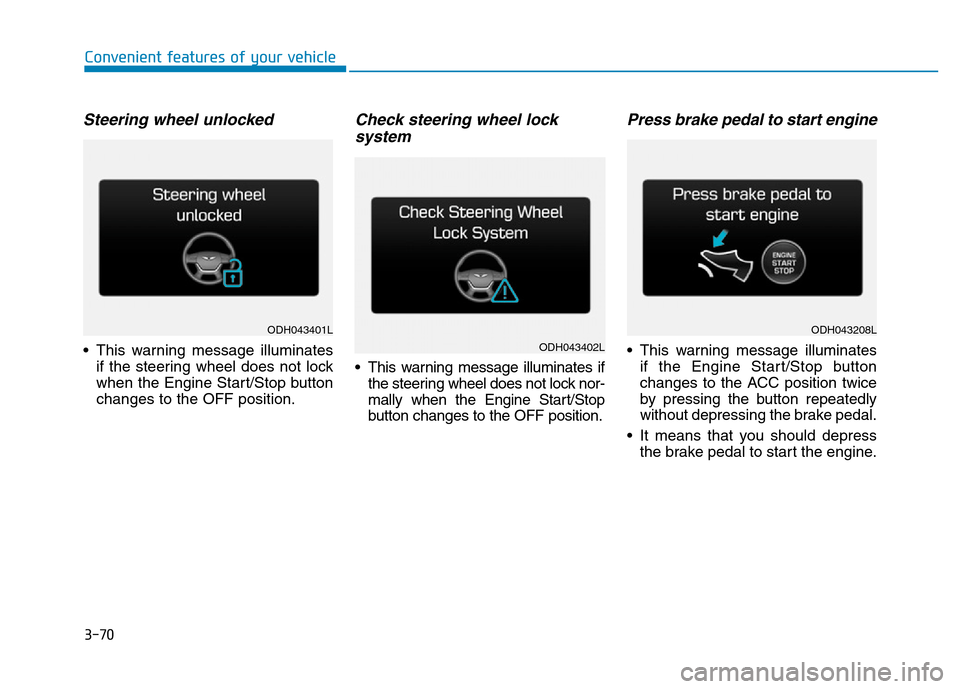

3-70
Convenient features of your vehicle
Steering wheel unlocked
• This warning message illuminates
if the steering wheel does not lock
when the Engine Start/Stop button
changes to the OFF position.
Check steering wheel lock
system
• This warning message illuminates if
the steering wheel does not lock nor-
mally when the Engine Start/Stop
button changes to the OFF position.
Press brake pedal to start engine
• This warning message illuminates
if the Engine Start/Stop button
changes to the ACC position twice
by pressing the button repeatedly
without depressing the brake pedal.
• It means that you should depress
the brake pedal to start the engine.
ODH043401L
ODH043402L
ODH043208L

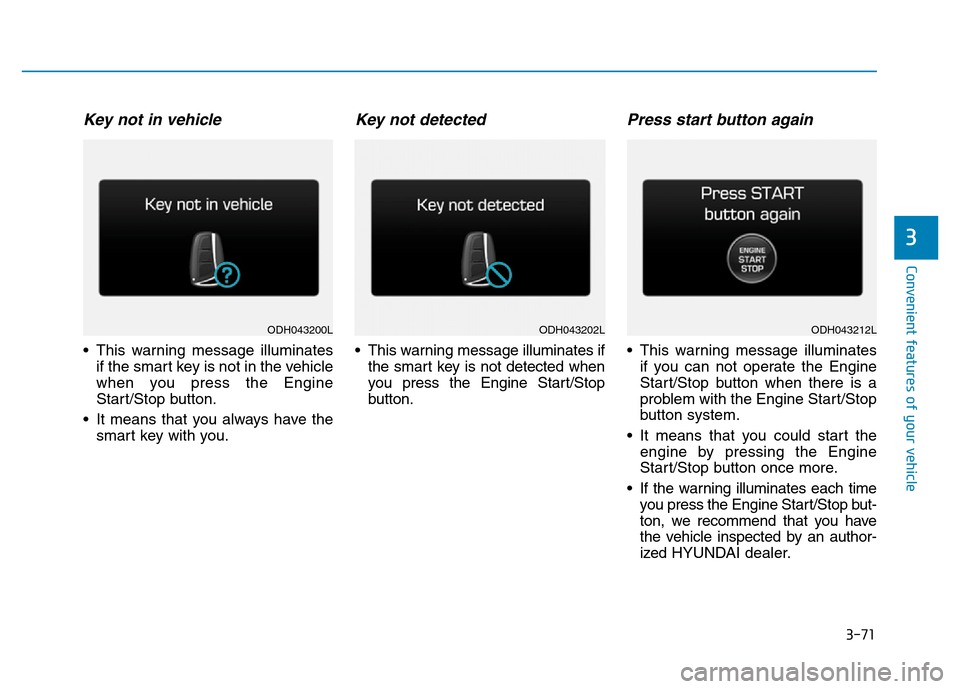

3-71
Convenient features of your vehicle
3
Key not in vehicle
• This warning message illuminates
if the smart key is not in the vehicle
when you press the Engine
Start/Stop button.
• It means that you always have the
smart key with you.
Key not detected
• This warning message illuminates if
the smart key is not detected when
you press the Engine Start/Stop
button.
Press start button again
• This warning message illuminates
if you can not operate the Engine
Start/Stop button when there is a
problem with the Engine Start/Stop
button system.
• It means that you could start the
engine by pressing the Engine
Start/Stop button once more.
• If the warning illuminates each time
you press the Engine Start/Stop but-
ton, we recommend that you have
the vehicle inspected by an author-
ized HYUNDAI dealer.
ODH043202LODH043212LODH043200L

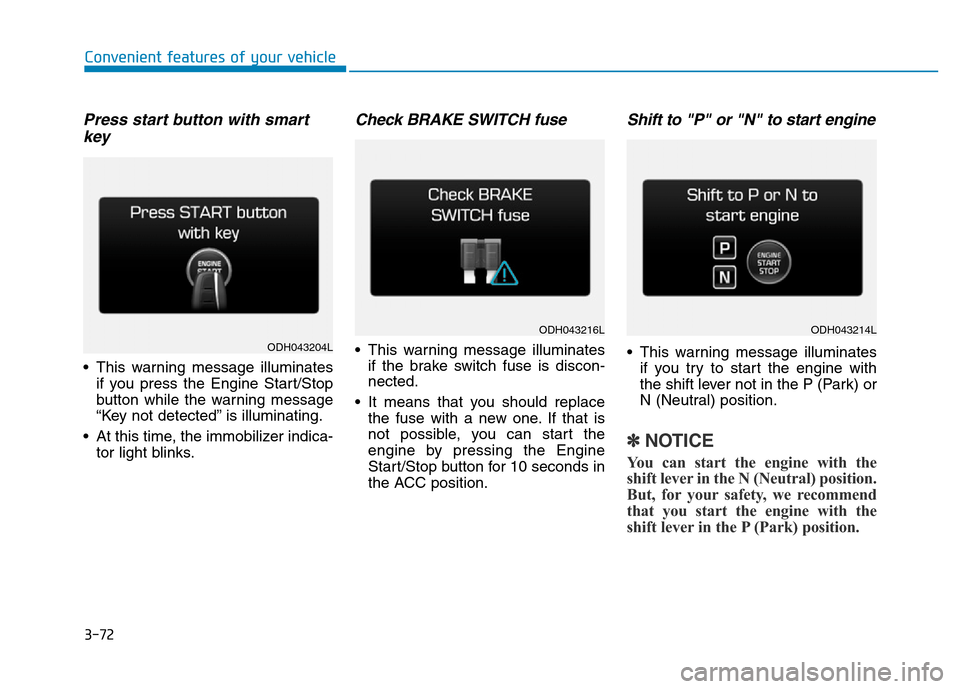

3-72
Convenient features of your vehicle
Press start button with smart
key
• This warning message illuminates
if you press the Engine Start/Stop
button while the warning message
“Key not detected” is illuminating.
• At this time, the immobilizer indica-
tor light blinks.
Check BRAKE SWITCH fuse
• This warning message illuminates
if the brake switch fuse is discon-
nected.
• It means that you should replace
the fuse with a new one. If that is
not possible, you can start the
engine by pressing the Engine
Start/Stop button for 10 seconds in
the ACC position.
Shift to "P" or "N" to start engine
• This warning message illuminates
if you try to start the engine with
the shift lever not in the P (Park) or
N (Neutral) position.
✽NOTICE
You can start the engine with the
shift lever in the N (Neutral) position.
But, for your safety, we recommend
that you start the engine with the
shift lever in the P (Park) position.
ODH043204L
ODH043216LODH043214L

3-73
Convenient features of your vehicle
3
Door, Hood, Trunk Open
• It means that any door, hood, or
trunk is open.
Sunroof Open (if equipped)
This warning message illuminates if
you turn off the engine when the sun-
roof is open.
Window Open (if equipped)
This warning message illuminates if
you turn off the engine when any
window is open.
ODH043218ODH043220LODH043222L

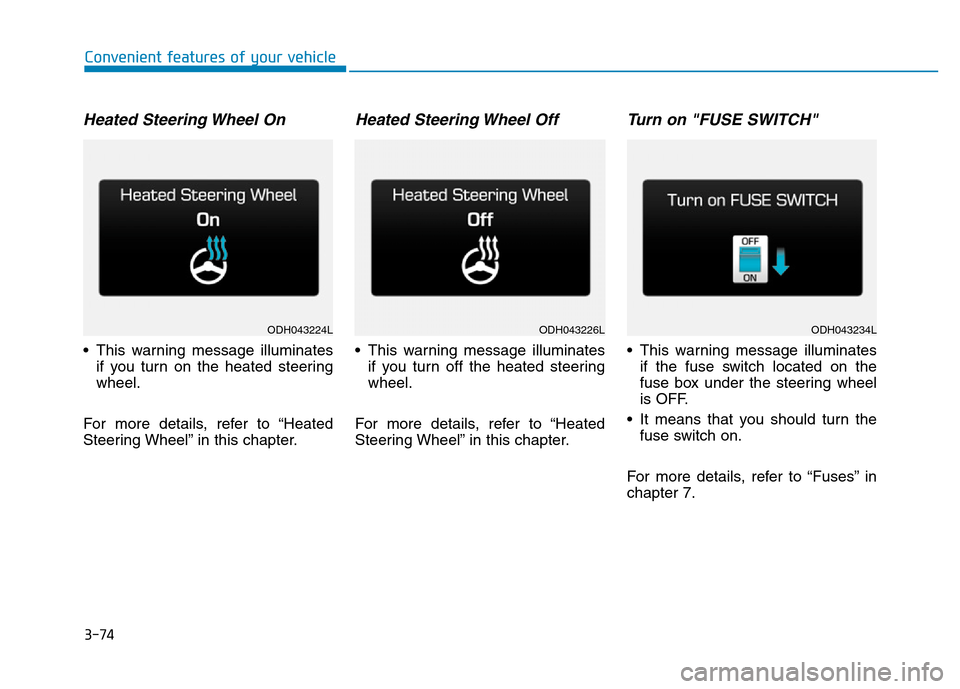

3-74
Convenient features of your vehicle
Heated Steering Wheel On
• This warning message illuminates
if you turn on the heated steering
wheel.
For more details, refer to “Heated
Steering Wheel” in this chapter.
Heated Steering Wheel Off
• This warning message illuminates
if you turn off the heated steering
wheel.
For more details, refer to “Heated
Steering Wheel” in this chapter.
Turn on "FUSE SWITCH"
• This warning message illuminates
if the fuse switch located on the
fuse box under the steering wheel
is OFF.
• It means that you should turn the
fuse switch on.
For more details, refer to “Fuses” in
chapter 7.
ODH043224LODH043226LODH043234L

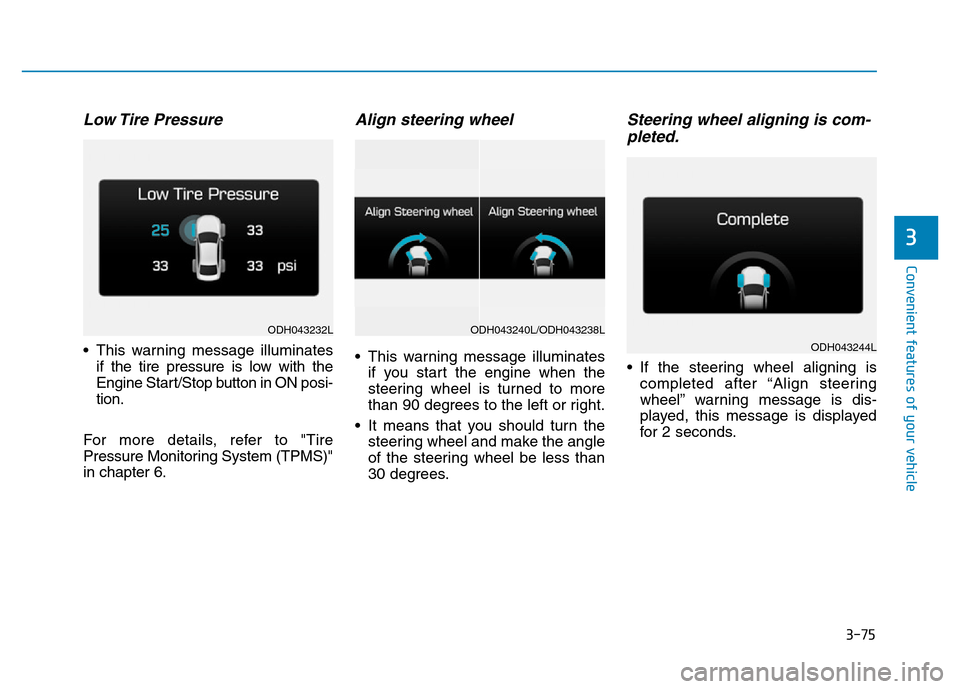

3-75
Convenient features of your vehicle
3
Low Tire Pressure
• This warning message illuminates
if the tire pressure is low with the
Engine Start/Stop button in ON posi-
tion.
For more details, refer to "Tire
Pressure Monitoring System (TPMS)"
in chapter 6.
Align steering wheel
• This warning message illuminates
if you start the engine when the
steering wheel is turned to more
than 90 degrees to the left or right.
• It means that you should turn the
steering wheel and make the angle
of the steering wheel be less than
30 degrees.
Steering wheel aligning is com-
pleted.
• If the steering wheel aligning is
completed after “Align steering
wheel” warning message is dis-
played, this message is displayed
for 2 seconds.
ODH043232L
ODH043244L
ODH043240L/ODH043238L

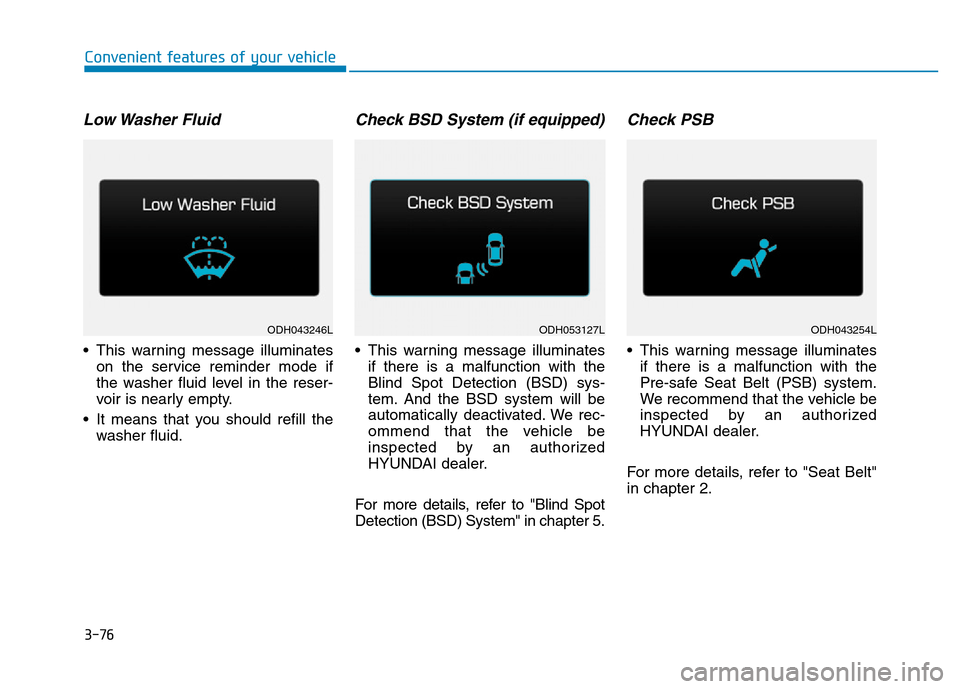

3-76
Convenient features of your vehicle
Low Washer Fluid
• This warning message illuminates
on the service reminder mode if
the washer fluid level in the reser-
voir is nearly empty.
• It means that you should refill the
washer fluid.
Check BSD System (if equipped)
• This warning message illuminates
if there is a malfunction with the
Blind Spot Detection (BSD) sys-
tem. And the BSD system will be
automatically deactivated. We rec-
ommend that the vehicle be
inspected by an authorized
HYUNDAI dealer.
For more details, refer to "Blind Spot
Detection (BSD) System" in chapter 5.
Check PSB
• This warning message illuminates
if there is a malfunction with the
Pre-safe Seat Belt (PSB) system.
We recommend that the vehicle be
inspected by an authorized
HYUNDAI dealer.
For more details, refer to "Seat Belt"
in chapter 2.
ODH043246LODH053127LODH043254L

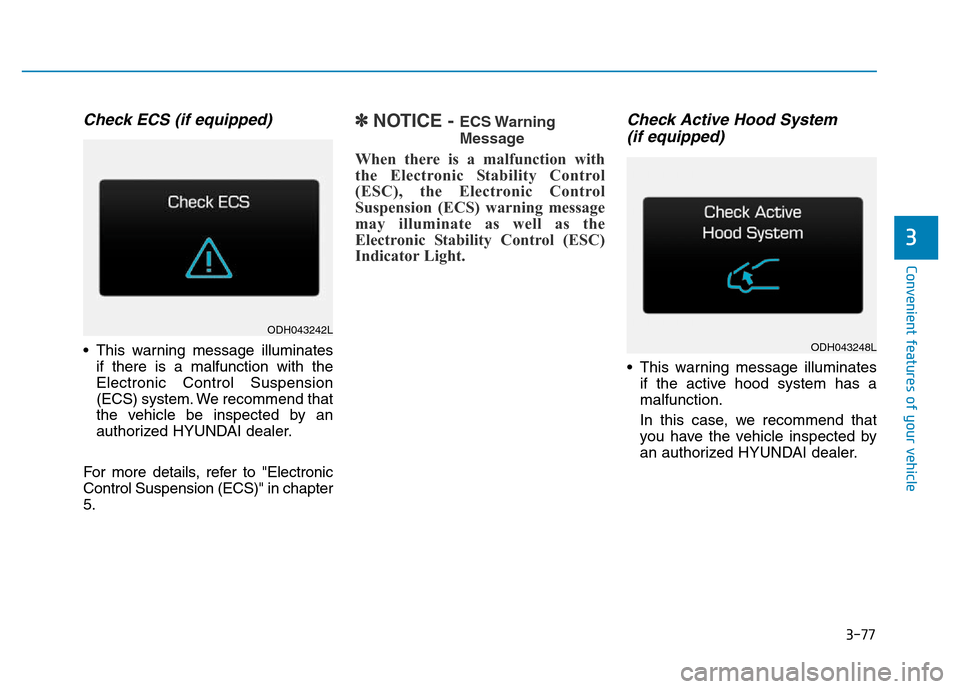

3-77
Convenient features of your vehicle
3
Check ECS (if equipped)
• This warning message illuminates
if there is a malfunction with the
Electronic Control Suspension
(ECS) system. We recommend that
the vehicle be inspected by an
authorized HYUNDAI dealer.
For more details, refer to "Electronic
Control Suspension (ECS)" in chapter
5.
✽NOTICE - ECS Warning
Message
When there is a malfunction with
the Electronic Stability Control
(ESC), the Electronic Control
Suspension (ECS) warning message
may illuminate as well as the
Electronic Stability Control (ESC)
Indicator Light.
Check Active Hood System
(if equipped)
• This warning message illuminates
if the active hood system has a
malfunction.
In this case, we recommend that
you have the vehicle inspected by
an authorized HYUNDAI dealer.
ODH043242L
ODH043248L

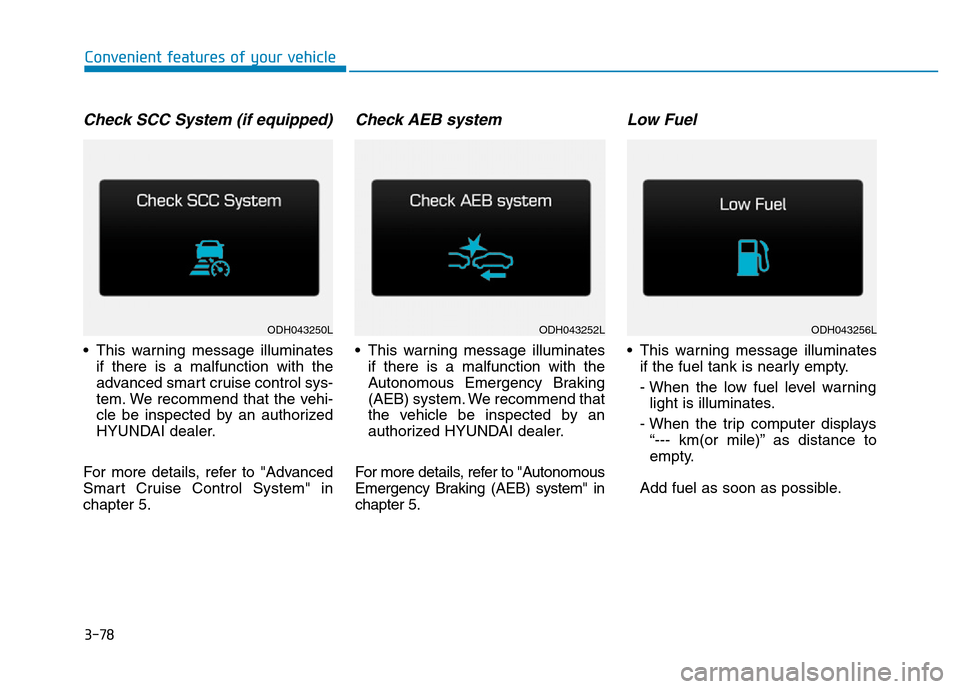

3-78
Convenient features of your vehicle
Check SCC System (if equipped)
• This warning message illuminates
if there is a malfunction with the
advanced smart cruise control sys-
tem. We recommend that the vehi-
cle be inspected by an authorized
HYUNDAI dealer.
For more details, refer to "Advanced
Smart Cruise Control System" in
chapter 5.
Check AEB system
• This warning message illuminates
if there is a malfunction with the
Autonomous Emergency Braking
(AEB) system. We recommend that
the vehicle be inspected by an
authorized HYUNDAI dealer.
For more details, refer to "Autonomous
Emergency Braking (AEB) system" in
chapter 5.
Low Fuel
• This warning message illuminates
if the fuel tank is nearly empty.
- When the low fuel level warning
light is illuminates.
- When the trip computer displays
“--- km(or mile)” as distance to
empty.
Add fuel as soon as possible.
ODH043250LODH043252LODH043256L

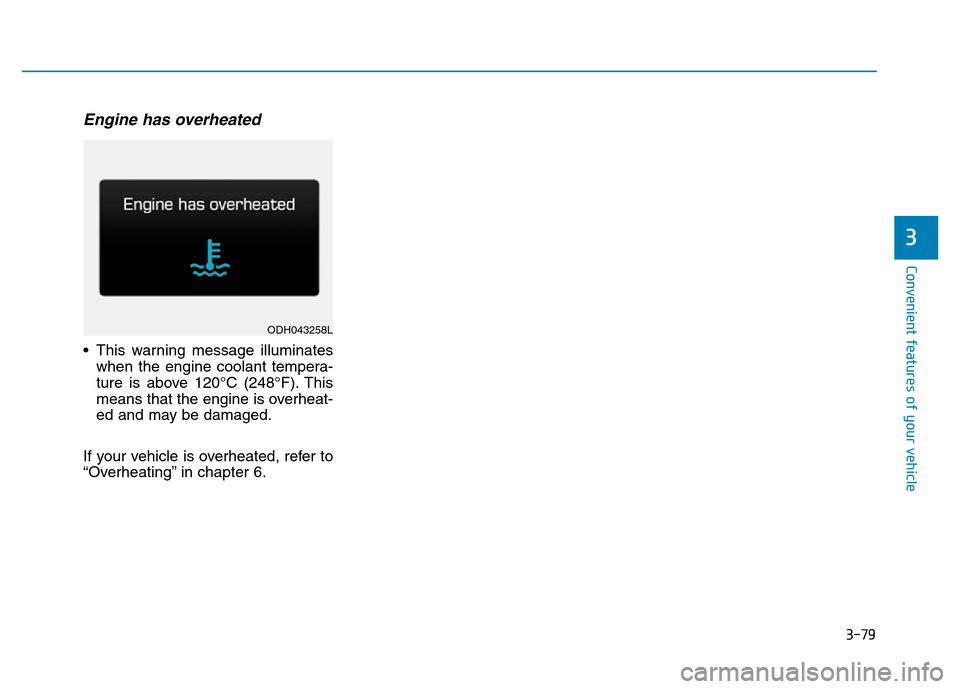

3-79
Convenient features of your vehicle
3
Engine has overheated
• This warning message illuminates
when the engine coolant tempera-
ture is above 120°C (248°F). This
means that the engine is overheat-
ed and may be damaged.
If your vehicle is overheated, refer to
“Overheating” in chapter 6.
ODH043258L
