3-140
Convenient features of your vehicle

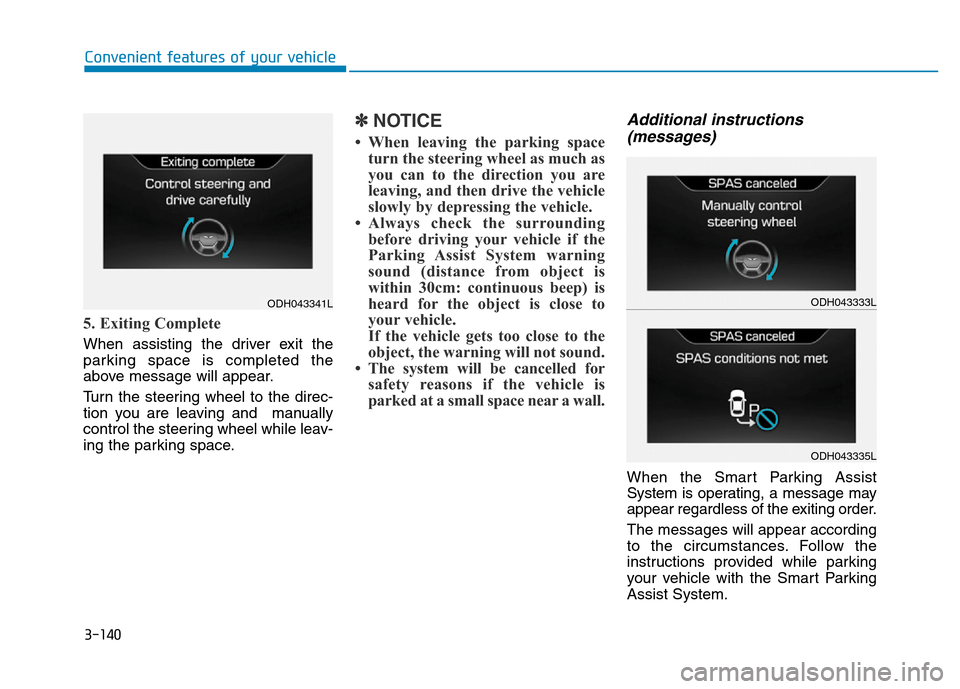

5. Exiting Complete
When assisting the driver exit the
parking space is completed the
above message will appear.
Turn the steering wheel to the direc-
tion you are leaving and manually
control the steering wheel while leav-
ing the parking space.
✽NOTICE
• When leaving the parking space
turn the steering wheel as much as
you can to the direction you are
leaving, and then drive the vehicle
slowly by depressing the vehicle.
• Always check the surrounding
before driving your vehicle if the
Parking Assist System warning
sound (distance from object is
within 30cm: continuous beep) is
heard for the object is close to
your vehicle.
If the vehicle gets too close to the
object, the warning will not sound.
• The system will be cancelled for
safety reasons if the vehicle is
parked at a small space near a wall.
Additional instructions
(messages)
When the Smart Parking Assist
System is operating, a message may
appear regardless of the exiting order.
The messages will appear according
to the circumstances. Follow the
instructions provided while parking
your vehicle with the Smart Parking
Assist System.
ODH043333L
ODH043335L
ODH043341L

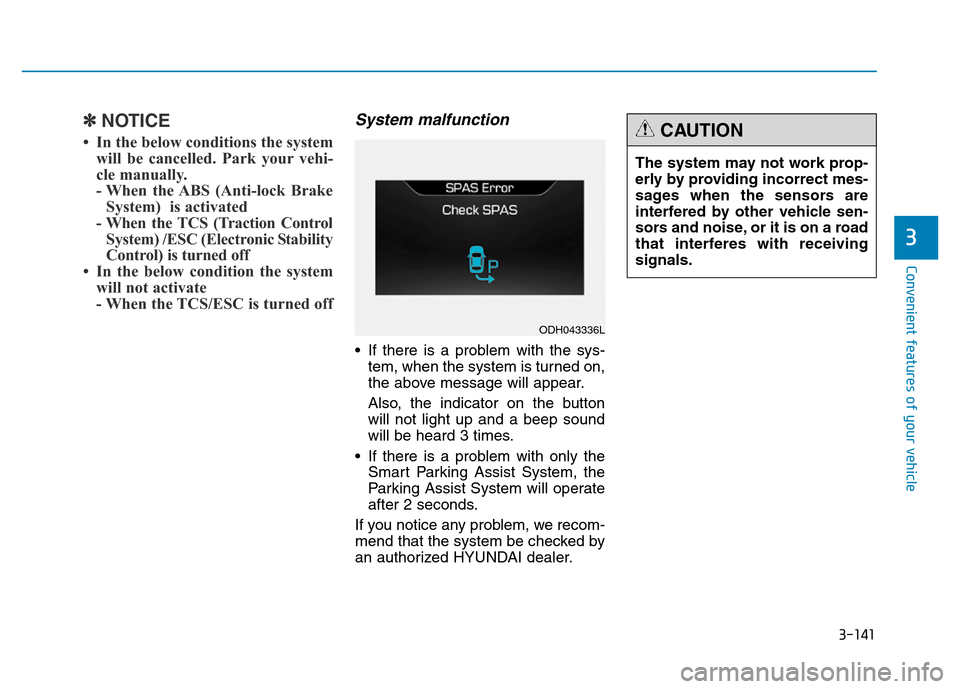

3-141
Convenient features of your vehicle
3
✽NOTICE
• In the below conditions the system
will be cancelled. Park your vehi-
cle manually.
- When the ABS (Anti-lock Brake
System) is activated
- When the TCS (Traction Control
System) /ESC (Electronic Stability
Control) is turned off
• In the below condition the system
will not activate
- When the TCS/ESC is turned off
System malfunction
• If there is a problem with the sys-
tem, when the system is turned on,
the above message will appear.
Also, the indicator on the button
will not light up and a beep sound
will be heard 3 times.
• If there is a problem with only the
Smart Parking Assist System, the
Parking Assist System will operate
after 2 seconds.
If you notice any problem, we recom-
mend that the system be checked by
an authorized HYUNDAI dealer.The system may not work prop-
erly by providing incorrect mes-
sages when the sensors are
interfered by other vehicle sen-
sors and noise, or it is on a road
that interferes with receiving
signals.
CAUTION
ODH043336L

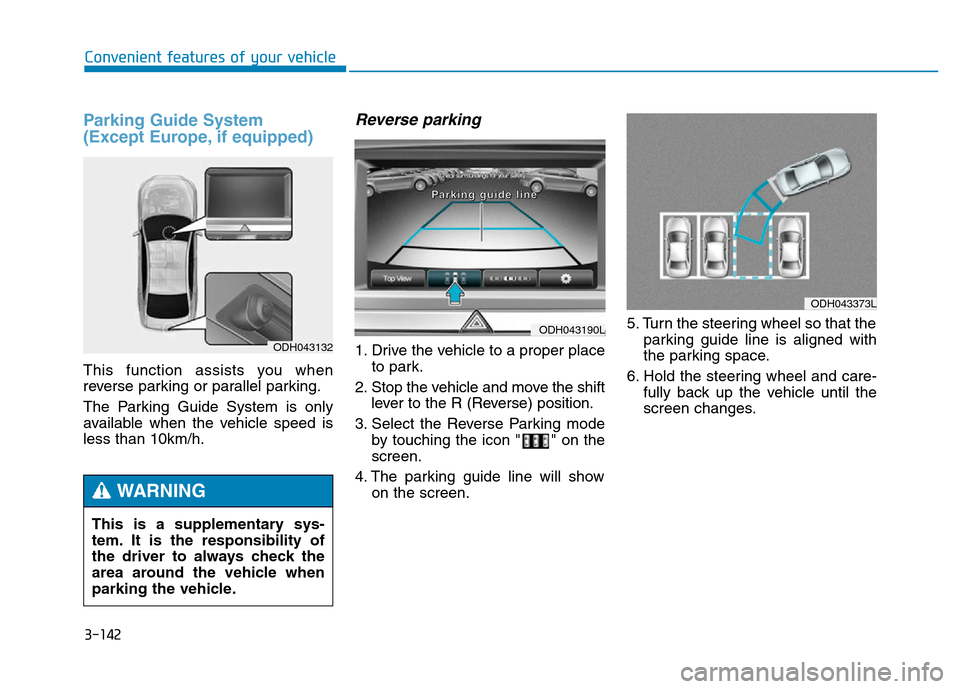

3-142
Convenient features of your vehicle
Parking Guide System
(Except Europe, if equipped)
This function assists you when
reverse parking or parallel parking.
The Parking Guide System is only
available when the vehicle speed is
less than 10km/h.
Reverse parking
1. Drive the vehicle to a proper place
to park.
2. Stop the vehicle and move the shift
lever to the R (Reverse) position.
3. Select the Reverse Parking mode
by touching the icon " " on the
screen.
4. The parking guide line will show
on the screen.5. Turn the steering wheel so that the
parking guide line is aligned with
the parking space.
6. Hold the steering wheel and care-
fully back up the vehicle until the
screen changes.ODH043132
This is a supplementary sys-
tem. It is the responsibility of
the driver to always check the
area around the vehicle when
parking the vehicle.
WARNING
ODH043373L
ODH043190L
P P
a a
r r
k k
i i
n n
g g

g g
u u
i i
d d
e e

l l
i i
n n
e e

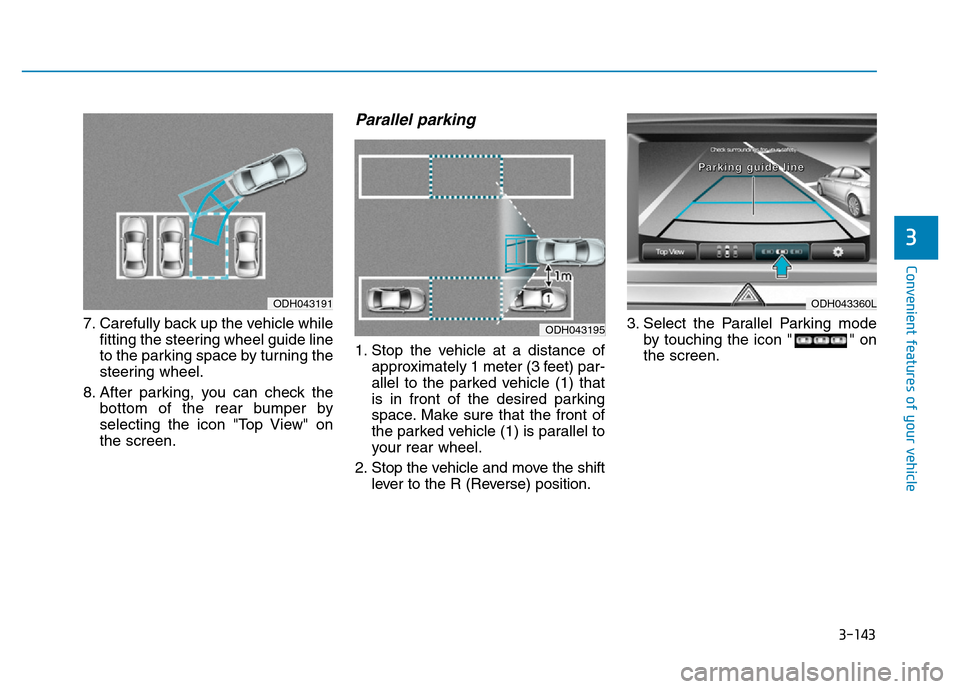

3-143
Convenient features of your vehicle
3
7. Carefully back up the vehicle while
fitting the steering wheel guide line
to the parking space by turning the
steering wheel.
8. After parking, you can check the
bottom of the rear bumper by
selecting the icon "Top View" on
the screen.
Parallel parking
1. Stop the vehicle at a distance of
approximately 1 meter (3 feet) par-
allel to the parked vehicle (1) that
is in front of the desired parking
space. Make sure that the front of
the parked vehicle (1) is parallel to
your rear wheel.
2. Stop the vehicle and move the shift
lever to the R (Reverse) position.3. Select the Parallel Parking mode
by touching the icon " " on
the screen.
ODH043191
ODH043195
ODH043360L
P P
a a
r r
k k
i i
n n
g g

g g
u u
i i
d d
e e

l l
i i
n n
e e

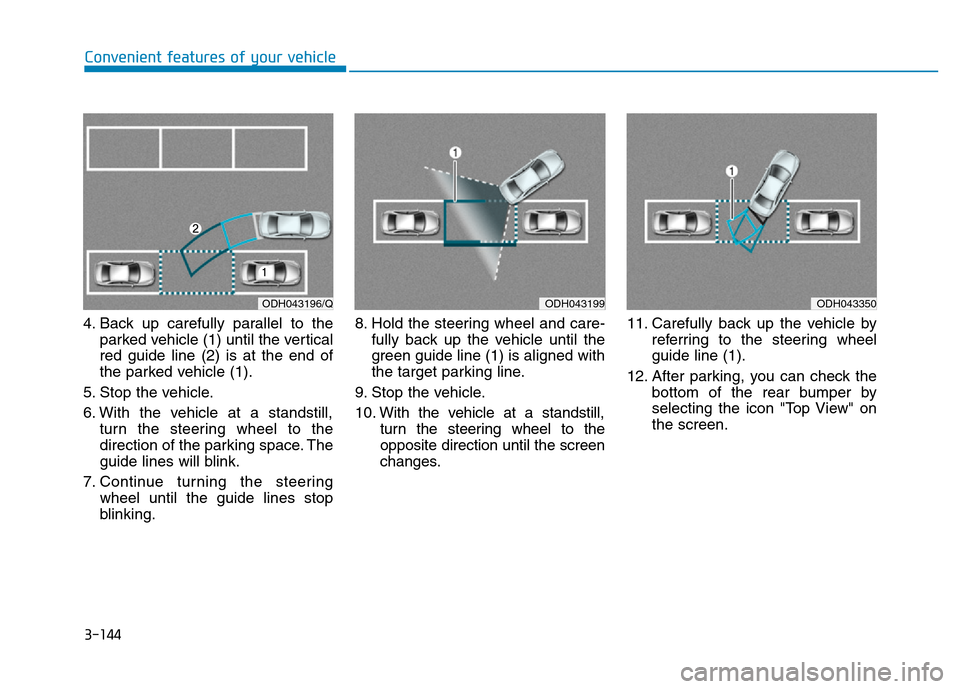

3-144
Convenient features of your vehicle
4. Back up carefully parallel to the
parked vehicle (1) until the vertical
red guide line (2) is at the end of
the parked vehicle (1).
5. Stop the vehicle.
6. With the vehicle at a standstill,
turn the steering wheel to the
direction of the parking space. The
guide lines will blink.
7. Continue turning the steering
wheel until the guide lines stop
blinking.8. Hold the steering wheel and care-
fully back up the vehicle until the
green guide line (1) is aligned with
the target parking line.
9. Stop the vehicle.
10. With the vehicle at a standstill,
turn the steering wheel to the
opposite direction until the screen
changes.11. Carefully back up the vehicle by
referring to the steering wheel
guide line (1).
12. After parking, you can check the
bottom of the rear bumper by
selecting the icon "Top View" on
the screen.
ODH043199ODH043350ODH043196/Q

3-145
Convenient features of your vehicle
3

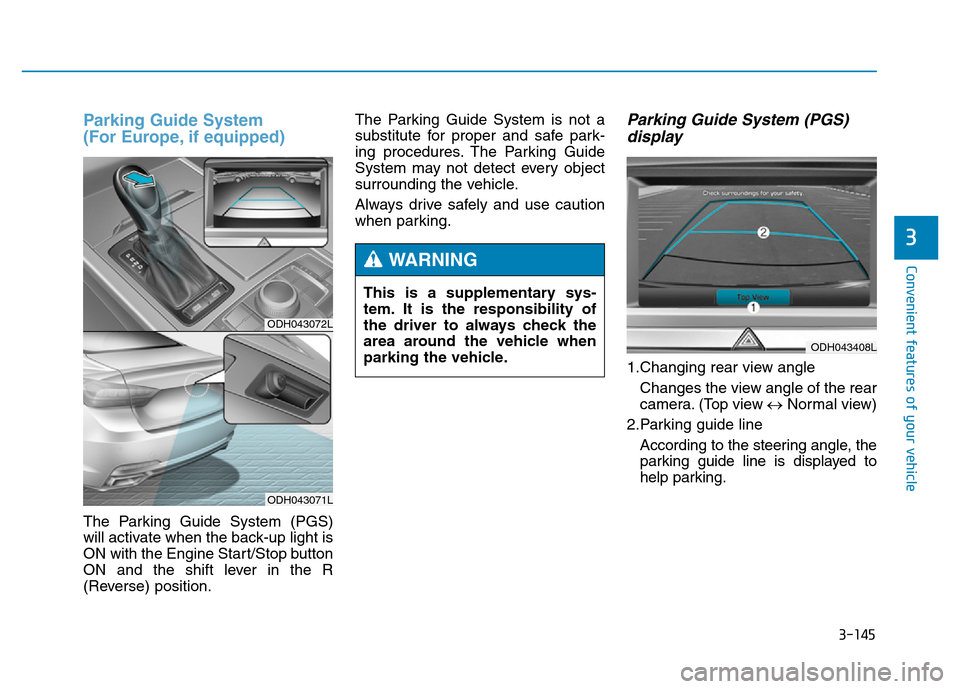

Parking Guide System
(For Europe, if equipped)
The Parking Guide System (PGS)
will activate when the back-up light is
ON with the Engine Start/Stop button
ON and the shift lever in the R
(Reverse) position.The Parking Guide System is not a
substitute for proper and safe park-
ing procedures. The Parking Guide
System may not detect every object
surrounding the vehicle.
Always drive safely and use caution
when parking.
Parking Guide System (PGS)
display
1.Changing rear view angle
Changes the view angle of the rear
camera. (Top view ↔Normal view)
2.Parking guide line
According to the steering angle, the
parking guide line is displayed to
help parking.
ODH043072L
ODH043071L
This is a supplementary sys-
tem. It is the responsibility of
the driver to always check the
area around the vehicle when
parking the vehicle.
WARNING
ODH043408L

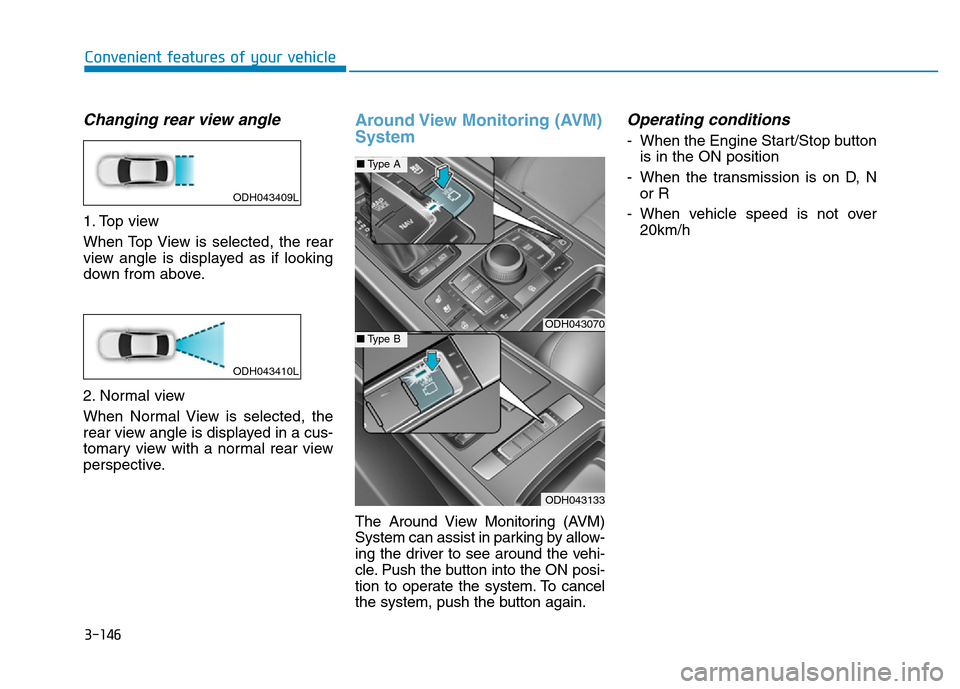

3-146
Convenient features of your vehicle
Changing rear view angle
1. Top view
When Top View is selected, the rear
view angle is displayed as if looking
down from above.
2. Normal view
When Normal View is selected, the
rear view angle is displayed in a cus-
tomary view with a normal rear view
perspective.
Around View Monitoring (AVM)
System
The Around View Monitoring (AVM)
System can assist in parking by allow-
ing the driver to see around the vehi-
cle. Push the button into the ON posi-
tion to operate the system. To cancel
the system, push the button again.
Operating conditions
- When the Engine Start/Stop button
is in the ON position
- When the transmission is on D, N
or R
- When vehicle speed is not over
20km/h
ODH043070
ODH043133
■Type A
■Type B
ODH043409L
ODH043410L

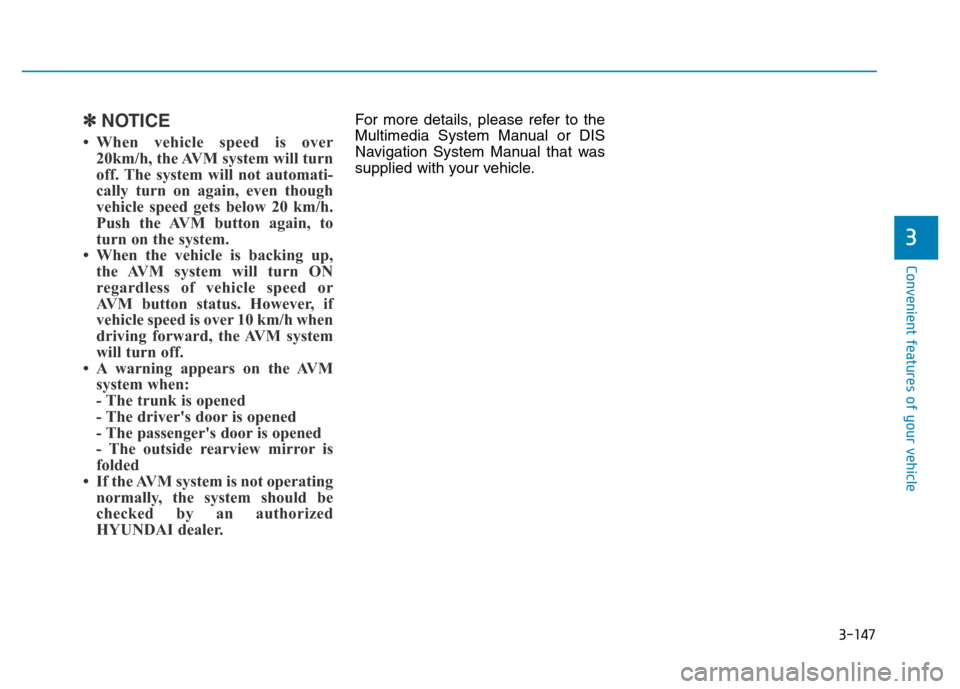

3-147
Convenient features of your vehicle
3
✽NOTICE
• When vehicle speed is over
20km/h, the AVM system will turn
off. The system will not automati-
cally turn on again, even though
vehicle speed gets below 20 km/h.
Push the AVM button again, to
turn on the system.
• When the vehicle is backing up,
the AVM system will turn ON
regardless of vehicle speed or
AVM button status. However, if
vehicle speed is over 10 km/h when
driving forward, the AVM system
will turn off.
• A warning appears on the AVM
system when:
- The trunk is opened
- The driver's door is opened
- The passenger's door is opened
- The outside rearview mirror is
folded
• If the AVM system is not operating
normally, the system should be
checked by an authorized
HYUNDAI dealer.
For more details, please refer to the
Multimedia System Manual or DIS
Navigation System Manual that was
supplied with your vehicle.

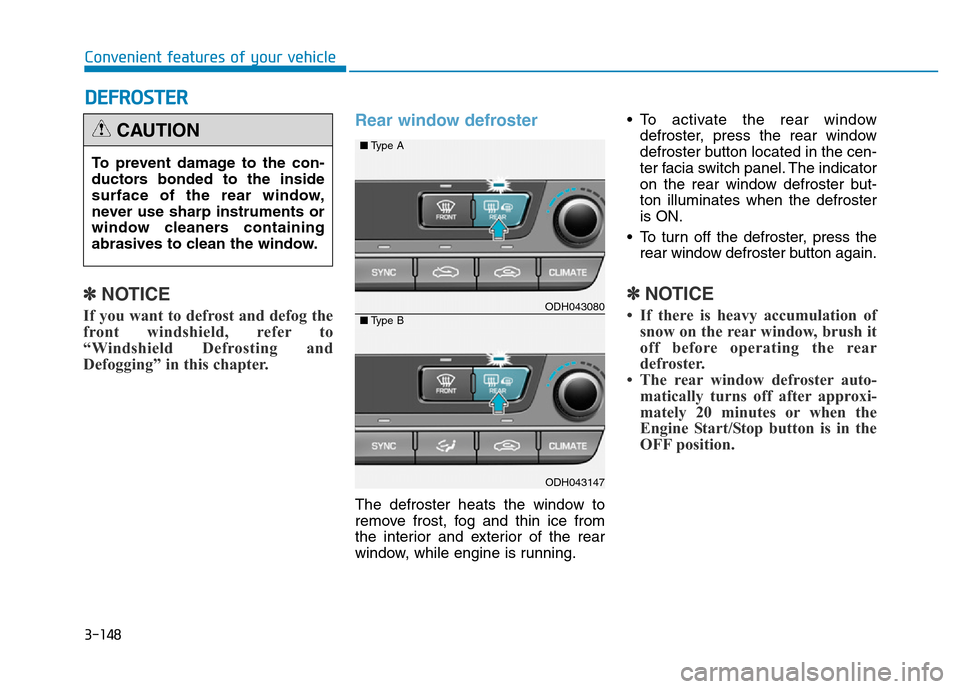

3-148
Convenient features of your vehicle
DEFROSTER
✽
NOTICE
If you want to defrost and defog the
front windshield, refer to
“Windshield Defrosting and
Defogging” in this chapter.
Rear window defroster
The defroster heats the window to
remove frost, fog and thin ice from
the interior and exterior of the rear
window, while engine is running.• To activate the rear window
defroster, press the rear window
defroster button located in the cen-
ter facia switch panel. The indicator
on the rear window defroster but-
ton illuminates when the defroster
is ON.
• To turn off the defroster, press the
rear window defroster button again.
✽NOTICE
• If there is heavy accumulation of
snow on the rear window, brush it
off before operating the rear
defroster.
• The rear window defroster auto-
matically turns off after approxi-
mately 20 minutes or when the
Engine Start/Stop button is in the
OFF position.
To prevent damage to the con-
ductors bonded to the inside
surface of the rear window,
never use sharp instruments or
window cleaners containing
abrasives to clean the window.
CAUTION
ODH043080
ODH043147
■Type A
■Type B

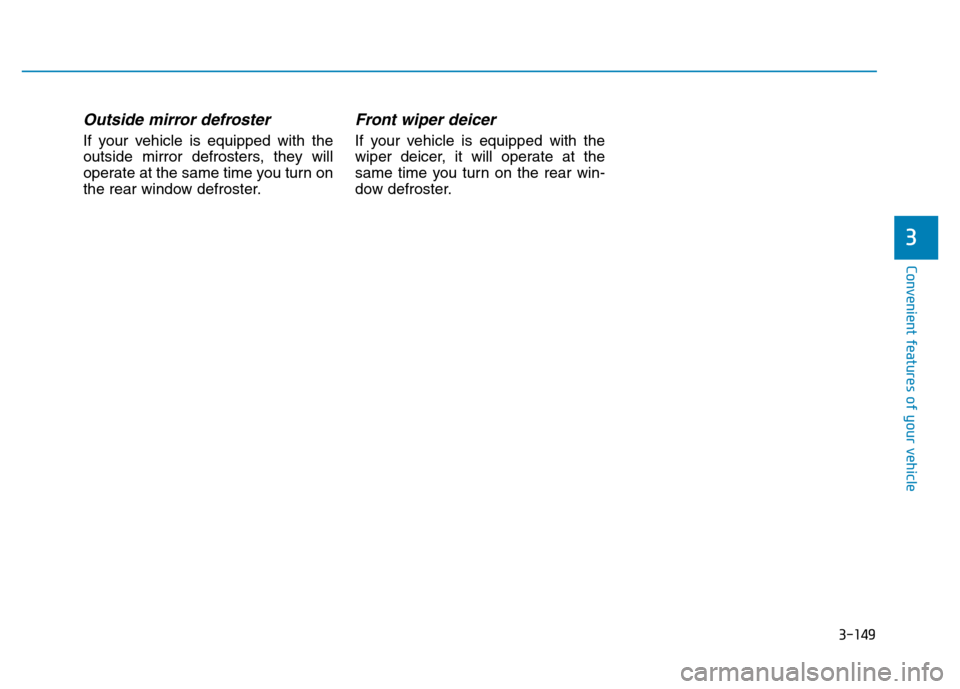

3-149
Convenient features of your vehicle
3
Outside mirror defroster
If your vehicle is equipped with the
outside mirror defrosters, they will
operate at the same time you turn on
the rear window defroster.
Front wiper deicer
If your vehicle is equipped with the
wiper deicer, it will operate at the
same time you turn on the rear win-
dow defroster.
